    WELL POD 3

    The WELL POD 3 is a versatile, battery-powered wash light that delivers high output and superior color rendering in a flexible PAR fixture design with a removable split yoke.
    Ideal for indoor or outdoor productions and rental applications where lighting professionals require quick, flexible setup and long battery life.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    User Manual
    		 Download
    DMX Charts
    		 Download
    Photometrics Report
    		 Download
    CAD File
    		 Download
    2D CAD Files
    		 Download
    3D CAD Files
    		 Download

    WELL POD 3

    SKU: WELLPOD3X4

    WELL POD 3 is a fully-accessorized addition to any rental package, delivering great output, fantastic color rendering, and the flexibility of a PAR fixture design with a removable split yoke ideal for both truss and floor mounting. Up to 18 hours of battery life from a wash light engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy four-unit kit with built-in charging capability.

    Download the App

    ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.

    Download on the App Store
    Get it on Google Play

    Features

    Complete 4-Fixture Kit

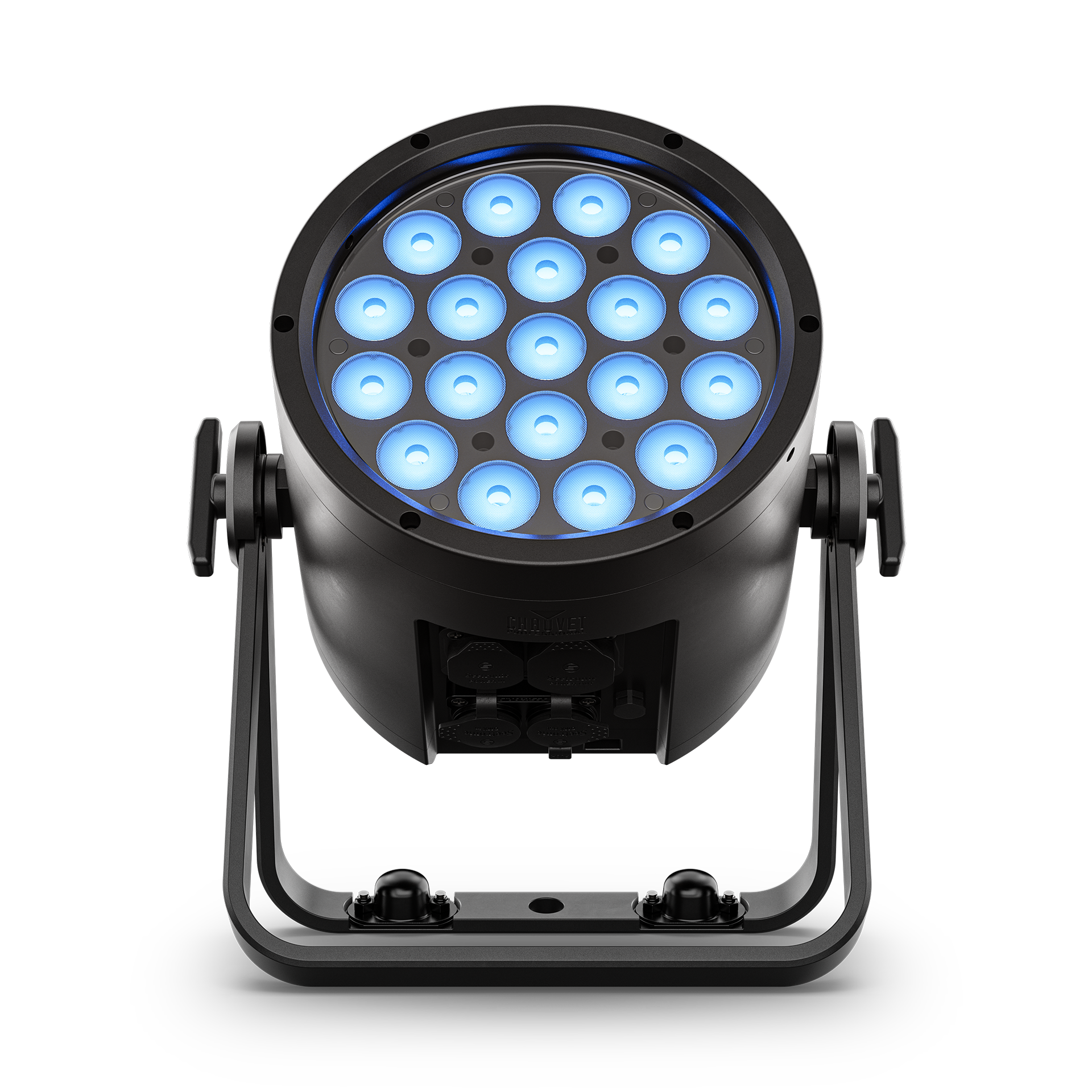

    Includes four battery-operated, IP65-rated par fixtures, each with 19 RGB Warm White LEDs and a 12.7-degree beam angle.

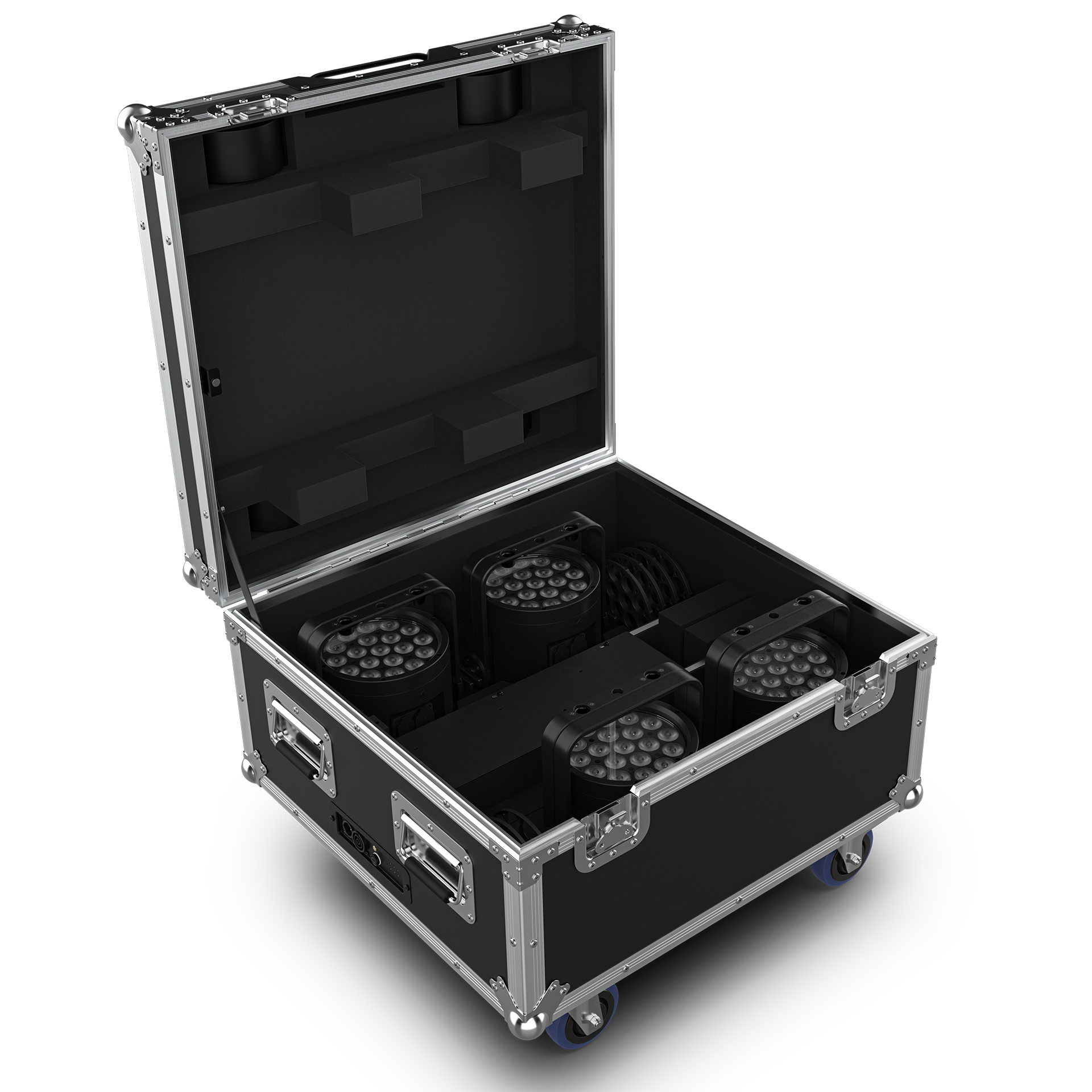

    Space-Saving Charging Case

    Charge all fixtures inside the case with the lid closed to maximize storage and warehouse efficiency.

    Selectable Battery Runtimes

    Choose from 5, 8, 12, or 18-hour runtimes at full output to match the needs of your event.

    Charge and Operate Simultaneously

    The built-in battery charger allows the fixture to be used while it is plugged in and charging.

    IP65 DMX Connectivity

    Integrated IP65-rated 5-pin DMX in/out connections provide a reliable wired data link for any environment.

    IP65 Power Connections

    Features Seetronic IP65 PowerKon input and output for secure, weather-resistant power linking between fixtures.

    Versatile Control Options

    Operate the fixture using DMX, CRMX, RDM, or RF for maximum control flexibility.

    Mobile App Control

    Easily connect to the WELL CONNECT box and ConnectFX for convenient control directly from a mobile app.

    USB-C Software Updates

    A modern USB-C port allows for simple and convenient firmware updates.

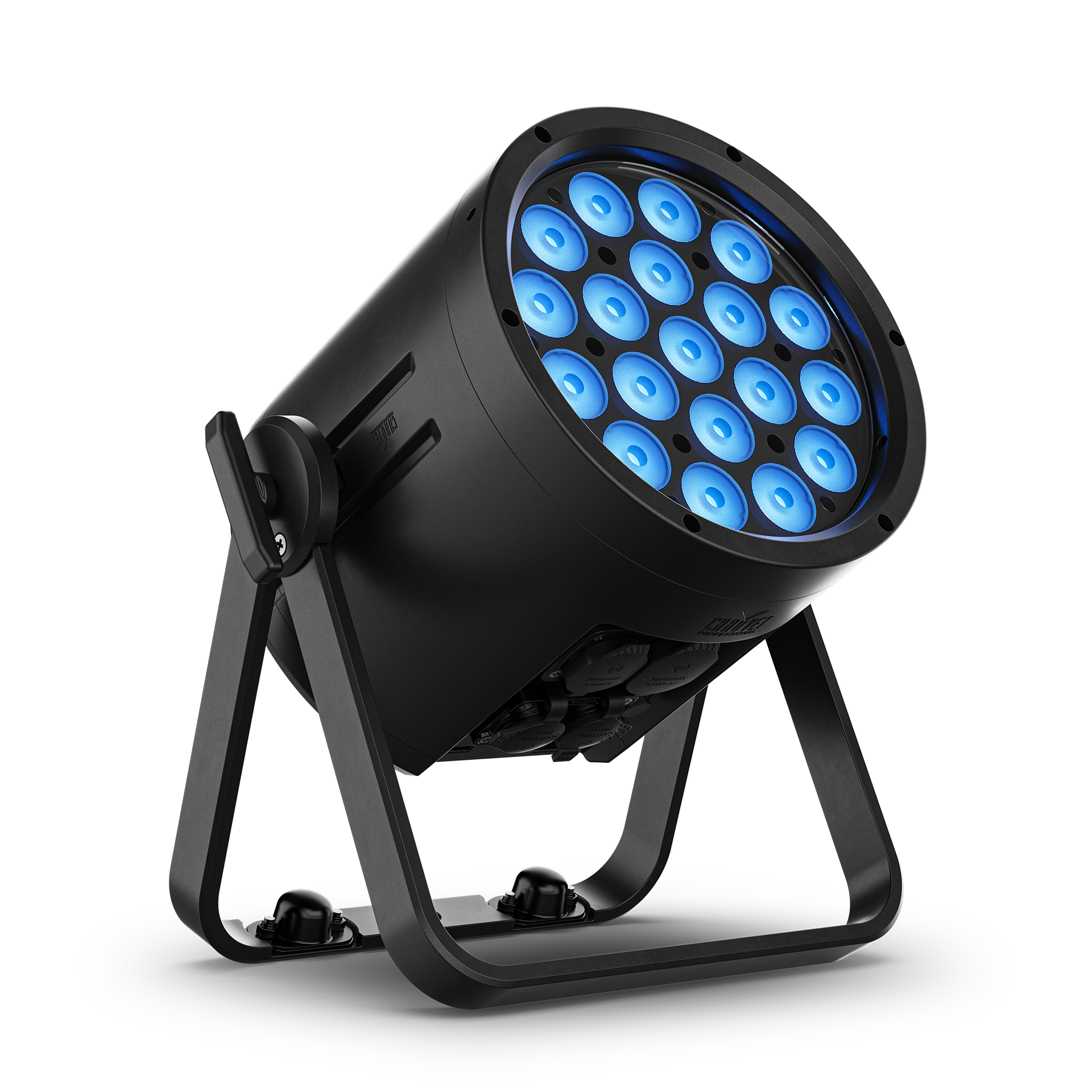

    Flexible Mounting Yoke

    The removable split yoke enables versatile rigging options for both hanging and floor-standing applications.

    Pressure Equalizing Valve

    An integrated M6 Gore valve equalizes internal pressure, protecting the housing and electronics from the elements.

    Integrated Safety Point

    A dedicated attachment point is built directly into the fixture for securely attaching safety cables.

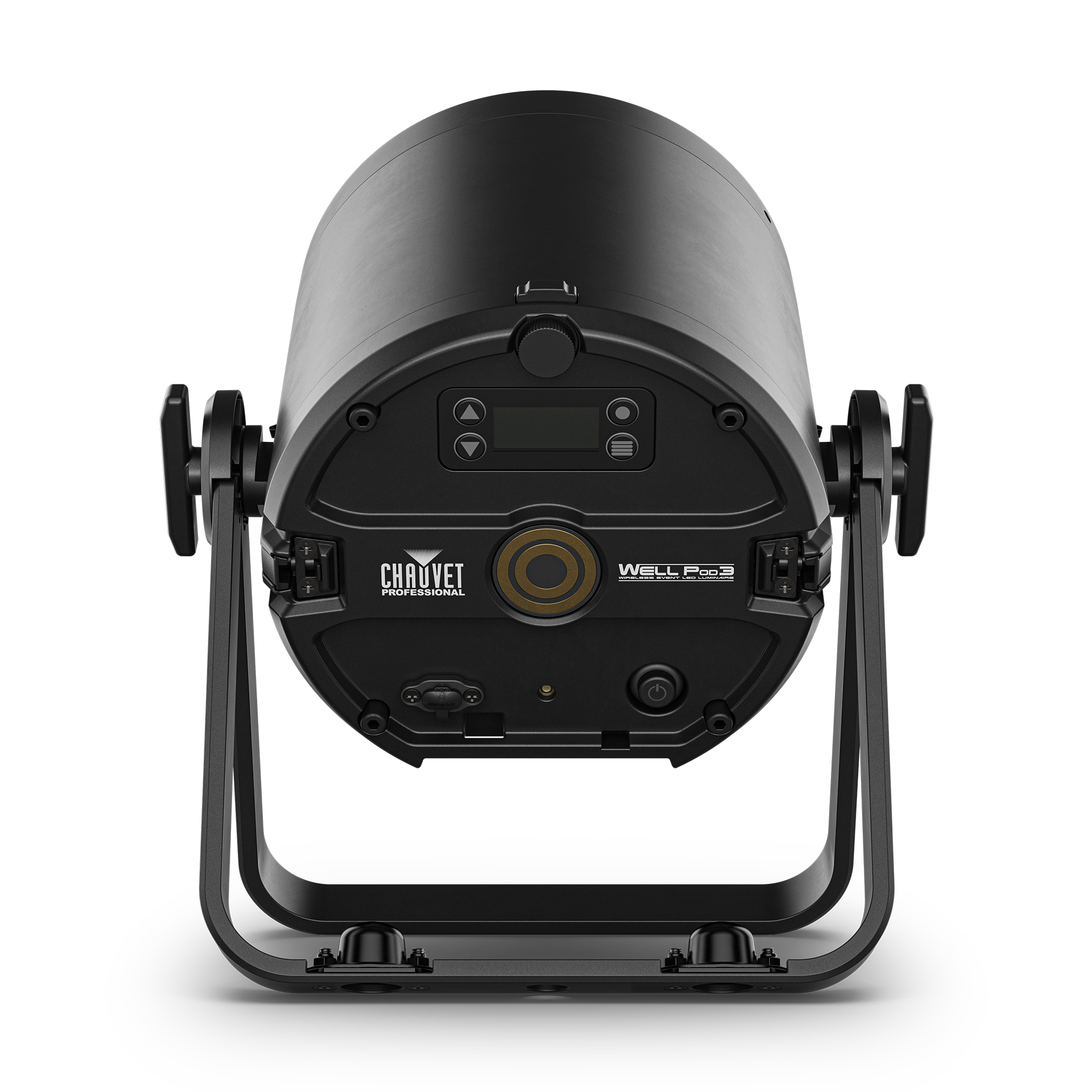

    Clear OLED Display

    An easy-to-read OLED display provides clear access to all onboard settings and fixture information.

    Built-In Theft Alarm

    Protect your investment with an integrated alarm that provides both audio and visual notifications if the fixture is moved.

    Adjustable PWM

    Built-in Pulse Width Modulation adjustment ensures completely flicker-free operation on camera.

    Included RF Remote

    An RF remote is included for simple, out-of-the-box wireless control of the fixtures.

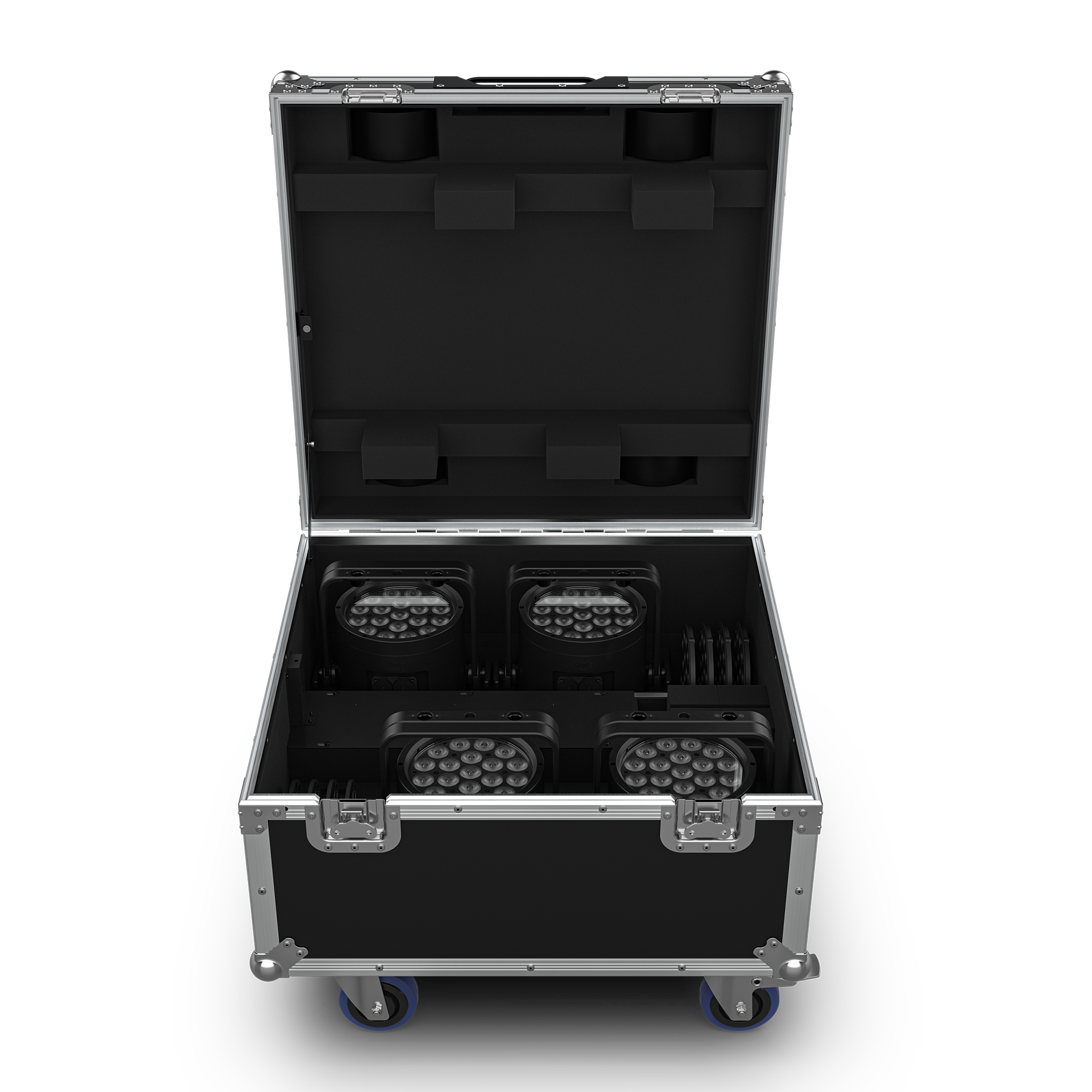

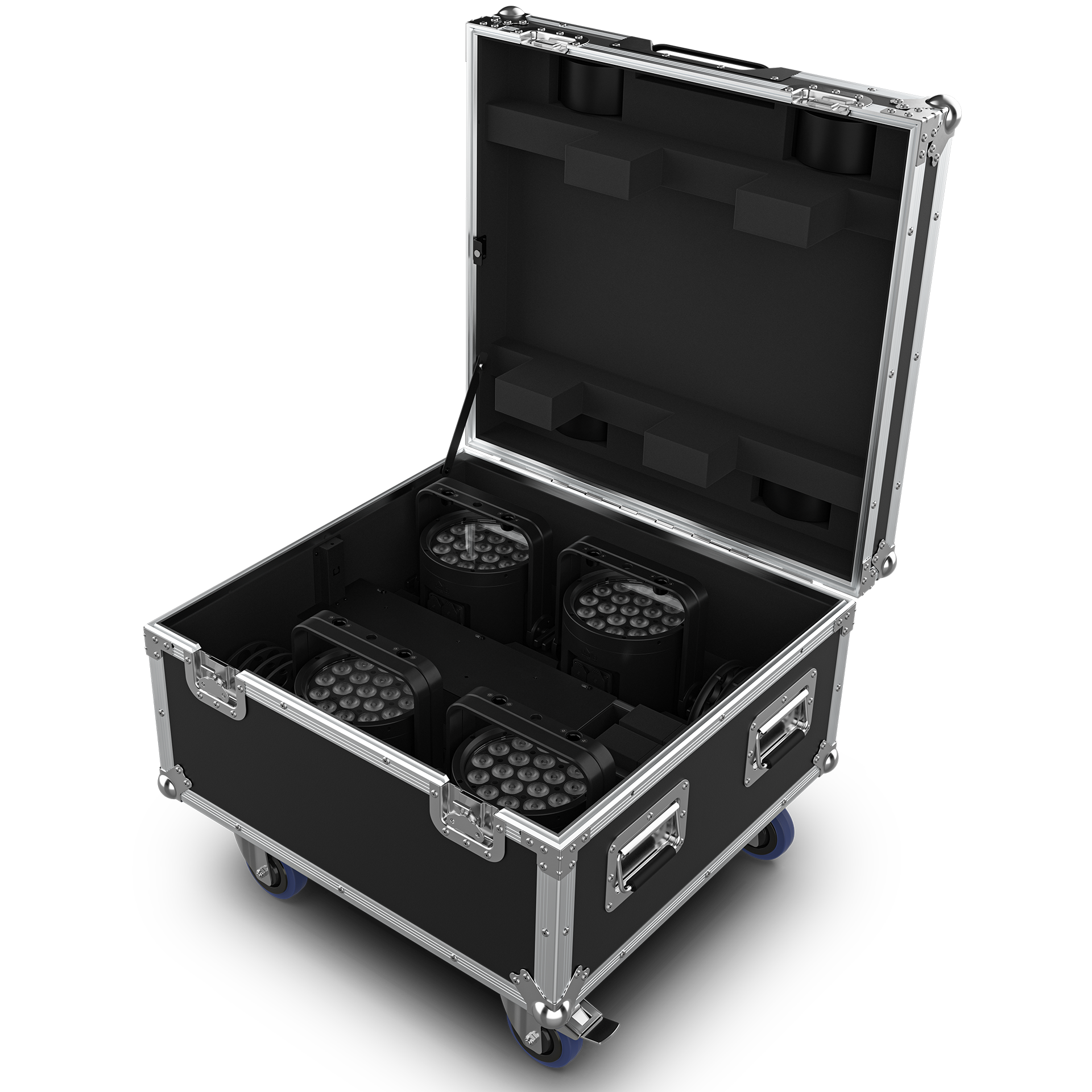

    Included 4-Pack Charging Case

    The kit comes complete with a rugged, road-ready charging case that holds and powers all four fixtures.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

    • Light Source

      19 LEDs (RGBWW), 13.2W, (960mA) 50,000 hours life

    • Color Temperature (range)

      2800 to 6500 K

    • Beam Angle

      12.7°

    • Field Angle

      25.4°

    • Cutoff Angle

      47.2°

    • Lumens

      3557 lm (AC power)

    • Illuminance

      1692 lux @ 5 m (AC power)

    • Lumens

      1994 lm (OFF battery setting)

    • Illuminance

      946 lux @ 5 m (OFF battery setting)

    • Lumens

      2177 lm (5-hour battery setting)

    • Illuminance

      1033 lux @ 5 m (5-hour battery setting)

    • Lumens

      1379 lm (8-hour battery setting)

    • Illuminance

      655 lux @ 5 m (8-hour battery setting)

    • Lumens

      845 lm (12-hour battery setting)

    • Illuminance

      398 lux @ 5 m (12-hour battery setting)

    • Lumens

      555 lm (18-hour battery setting)

    • Illuminance

      261 lux @ 5 m (18-hour battery setting)

    • Selectable PWM

      600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

    Dynamic Effects

    • Dimmer

      Electronic

    • Shutter/Strobe

      Electronic

    • Strobe Rate

      1 to 30 Hz

    • Standalone Color Mixing

      Yes

    • Color Temperature Presets

      Yes

    • Dim Modes

      4

    • Dim Curves

      4

    • Built-in Automated Programs

      Yes

    • Customizable Programs

      No

    • Recall Custom Programs

      No

    Construction/Physical

    • Dimensions

      9.76 x 7 x 10.86 in (248 x 178 x 276 mm)

    • Dimensions (w/o bracket)

      9.76 x 7 x 7 in (248 x 178 x 178 mm)

    • Dimensions case

      27 x 25.6 x 15 in (685 x 650 x 380 mm)

    • Weight

      11.2 lbs (5.1 kg)

    • Shipping Weight

      119.7 lb (54.3 kg)

    • Exterior Color

      Black

    • Housing Material

      Aluminum die-cast

    Connections

    • Power Connection

      Edison (local) plug to Seetronic Powerkon IP65

    • Power Input (fixture and charging case)

      Seetronic Powerkon IP65

    • Power Output(fixture and charging case)

      Seetronic Powerkon IP65

    • Data Connectors

      5-pin XLR

    • Cable Length (power)

      5 ft (1.5 m)

    • Software Connection

      USB-C

    Control

    • Control Protocol

      RDM, CRMX, NFC, RF

    • DMX Channels

      5, 8, or 12

    • Modes/Personalities

      3 personalities (5Ch, 8Ch, 12Ch)

    • Wireless WDMX “G” Compatibility

      G4S

    • Wireless Lumen Radio Compatibility

      CRMX

    Electrical

      • Single Unit
        • Input Voltage

          100 to 240 VAC, 50/60 Hz (auto-ranging)

        • Power Linking

          20 units @ 120 V; 34 units @ 208 V; 37 units @ 230 V;

        • Power and Current

          72 W, 0.60 A @ 120 V, 60 Hz

        • Power and Current

          70 W, 0.35 A @ 208 V, 60 Hz

        • Power and Current

          70 W, 0.32 A @ 230 V, 50 Hz

      • 4 Pack Case
        • Power Linking

          5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V;

        • Power and Current

          135 W, 2.02 A @ 120 V, 60 Hz

        • Power and Current

          134 W, 1.45 A @ 208 V, 60 Hz

        • Power and Current

          135 W, 1.33 A @ 230 V, 50 Hz

        • 4 Pack case fuse

          T5A, 250V

    Battery

    • Battery type

      Lithium Ion

    • Rechargeable

      Yes

    • Battery Charge Time

      8 hours

    • Battery Life

      3hr, 5hr, 8hr, 12hr

    • Battery Power

      25.9V, 6.6 Ah

    Certifications/Qualifications

    • Certifications

      CE, UKCA, FCC, ROHS

    • IP Rating

      IP65, temporary outdoor/wet use

    • Temperature (Ambient)

      14 °F to 113 °F (-10 °C to 45 °C)

    Compatible Accessories

    • Clamps
    • 15°Lens pack
    • 60°x10° Lens pack

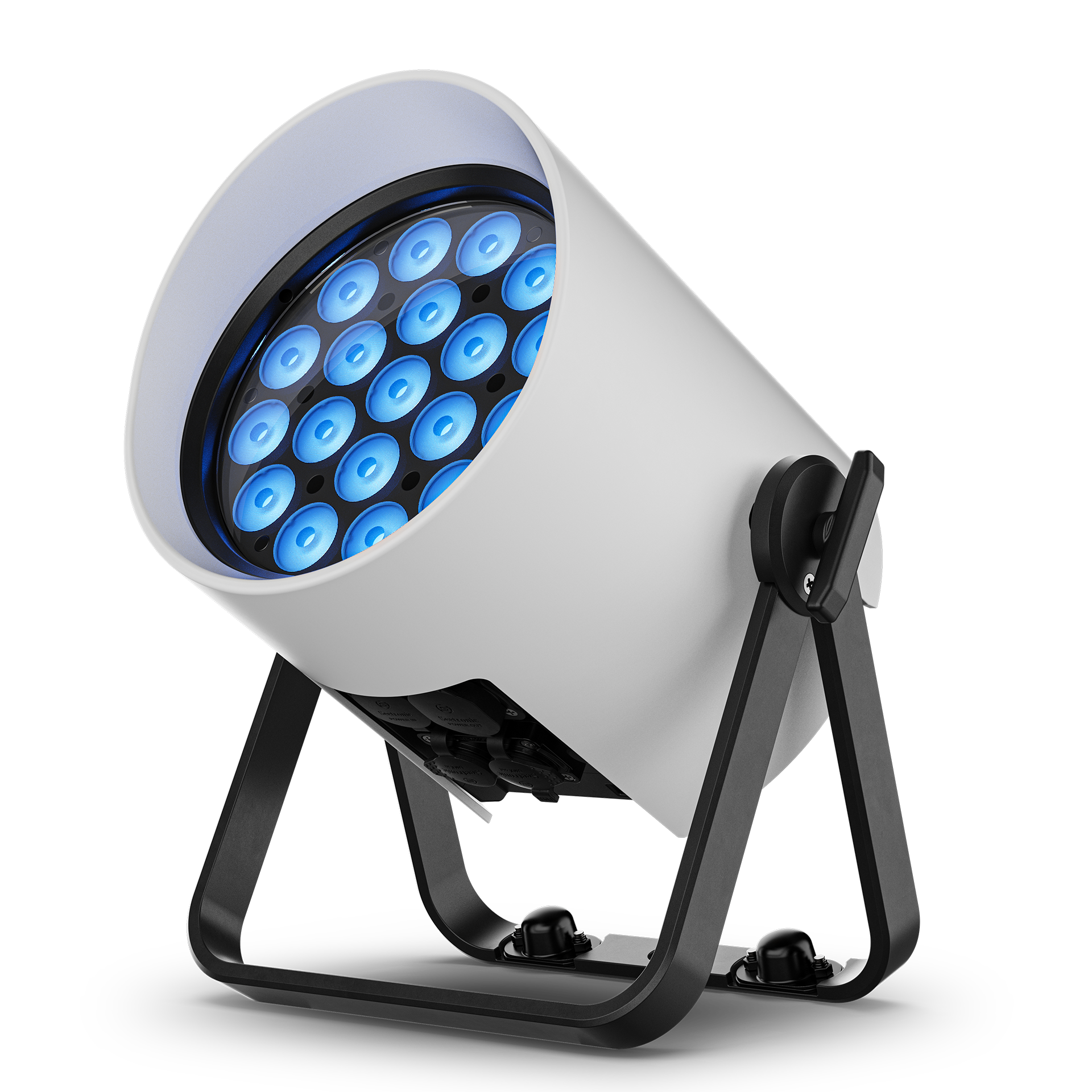

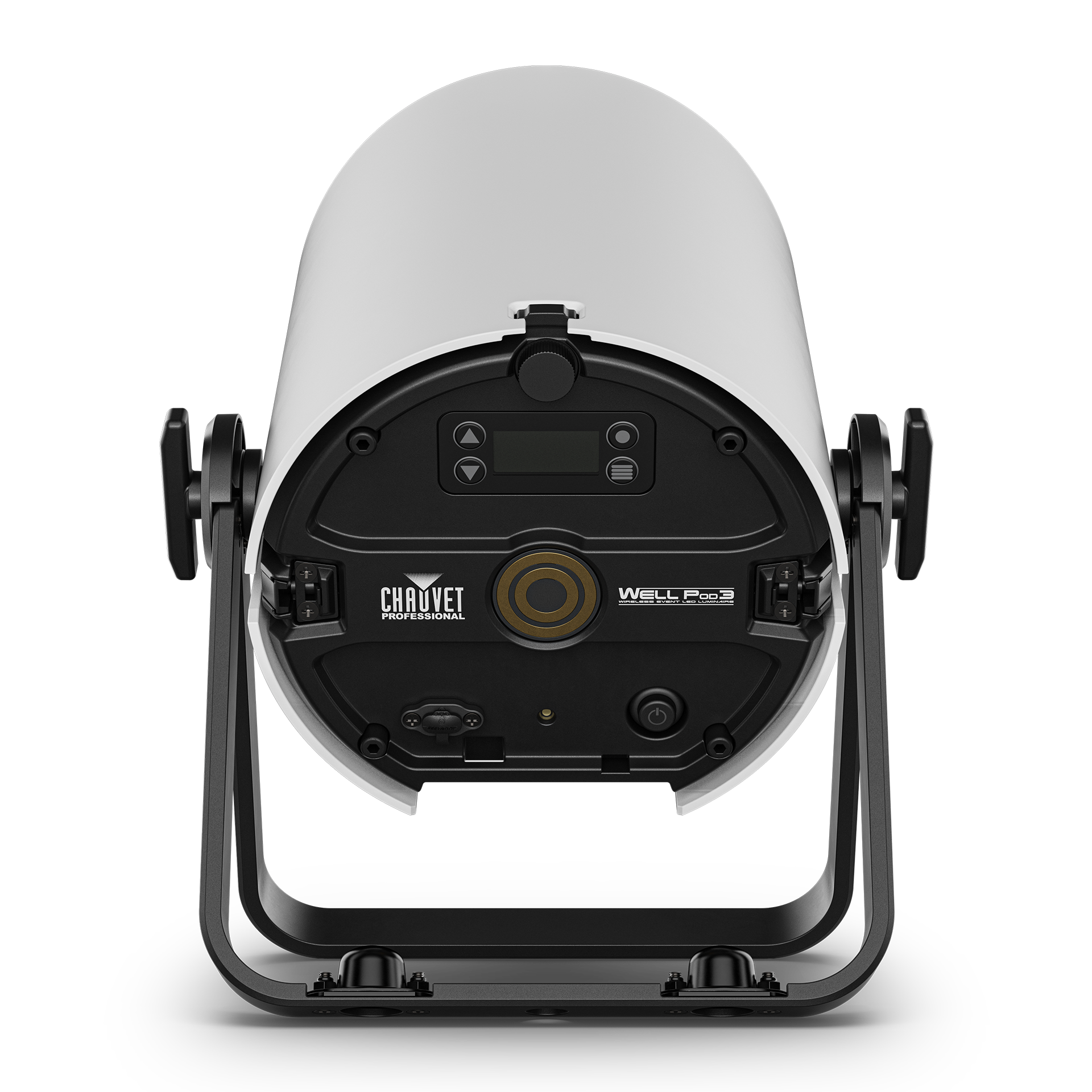

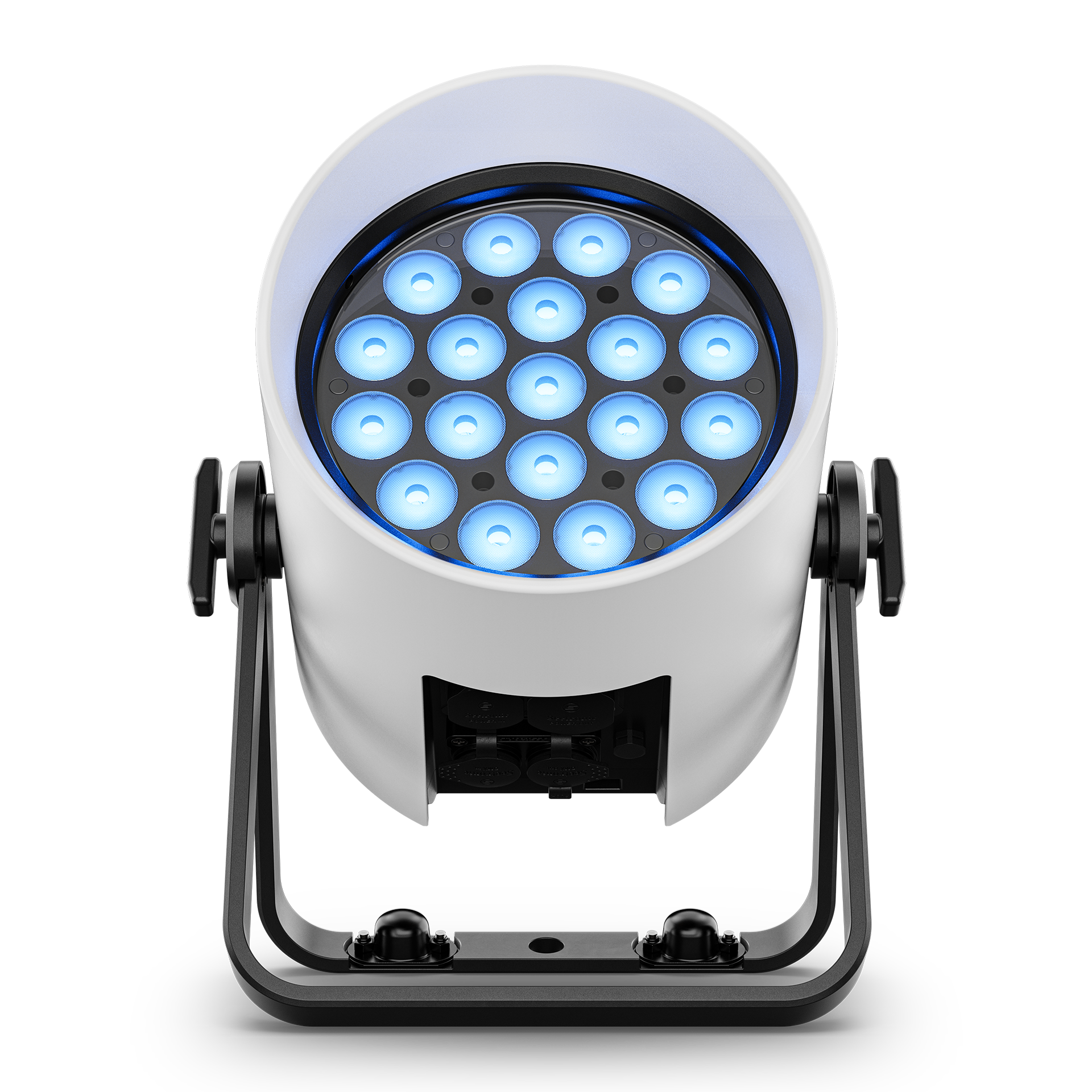

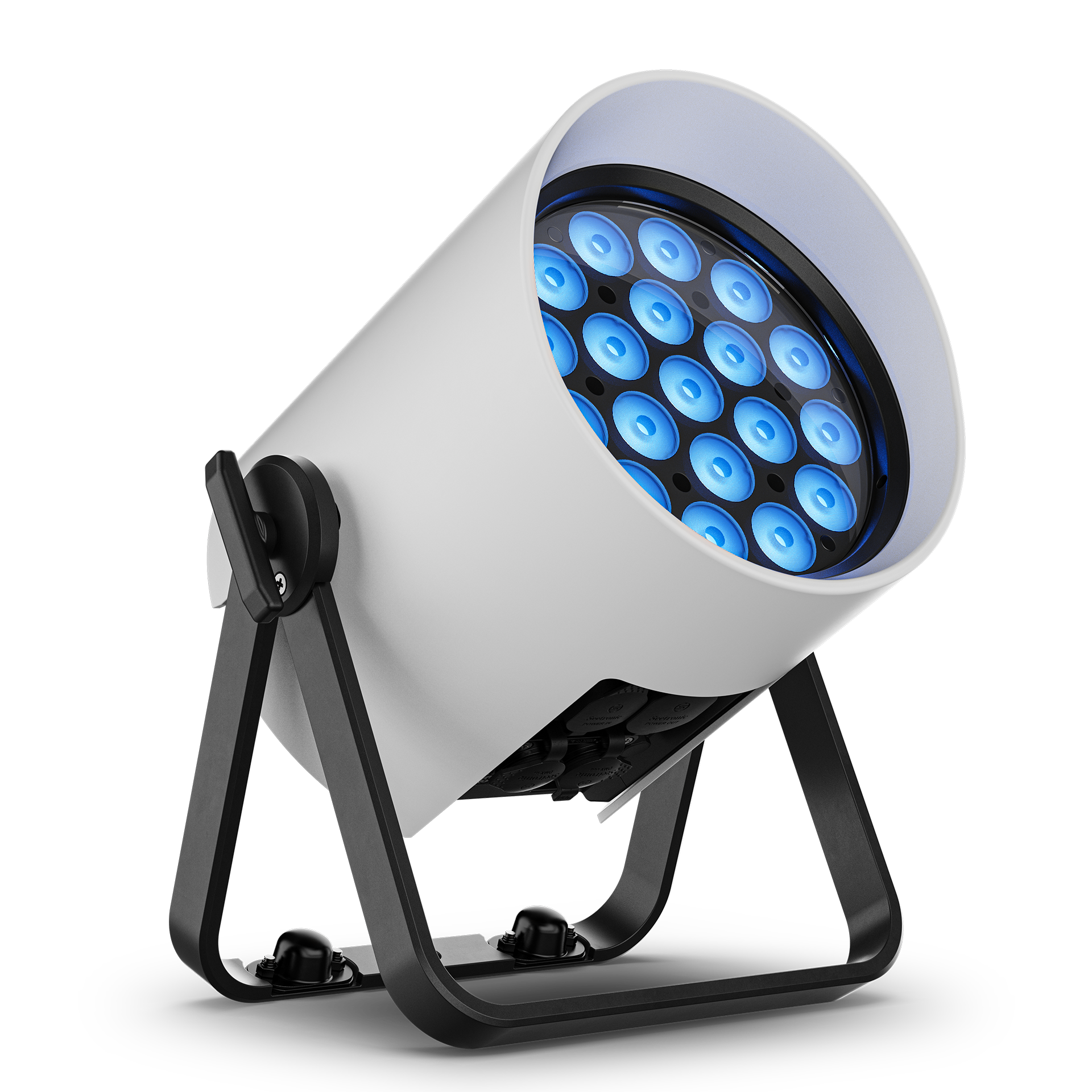

    • White metal cover
    • PowerKon Extension cables
    • 5 pin DMX Cables

    What's Included

    • (4) WELL POD 3
    • (1) Charging case
    • (4) Omega brackets
    • (4) Detachable split yokes
    • (1) RF controller
    • (1) Quick Reference Guide

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    WELL POD 3 – Quick Reference Guide
    		Download
    Manuals
    WELL POD 3 – User Manual
    		Download
    Manuals
    WELL POD 3 – DMX Charts
    		Download
    Manuals
    WELL POD 3 – Photometrics Report
    		Download
    Drawings
    WELL POD 3 – CAD File
    		Download
    Drawings
    WELL POD 3 – 2D CAD Files
    		Download
    Manuals
    WELL POD 3 – 3D CAD Files
    		Download

    Learn How To Use Your WELL POD 3

    Explore these detailed videos showcasing setup, features, and creative applications for this product.

    • LD Corey Easterbrook talks turning up the color with WELL

      Lighting Designer Corey Easterbrook shares how the CHAUVET Professional WELL family empowers event lighting. Discover how these battery-powered, wireless fixtures deliver superior color mixing and rapid deployment for galas, weddings, and other demanding productions.

    Video Library

    WELL POD 3 FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the WELL POD 3
    What is the WELL POD 3 used for?

    The WELL POD 3 is a versatile, battery-powered lighting fixture kit designed for fast and easy setup at any event. It’s perfect for both indoor and outdoor use, providing vibrant color washes where running power cables is difficult. Each light can be hung from a structure or placed directly on the floor, making it ideal for event professionals who need maximum flexibility.
