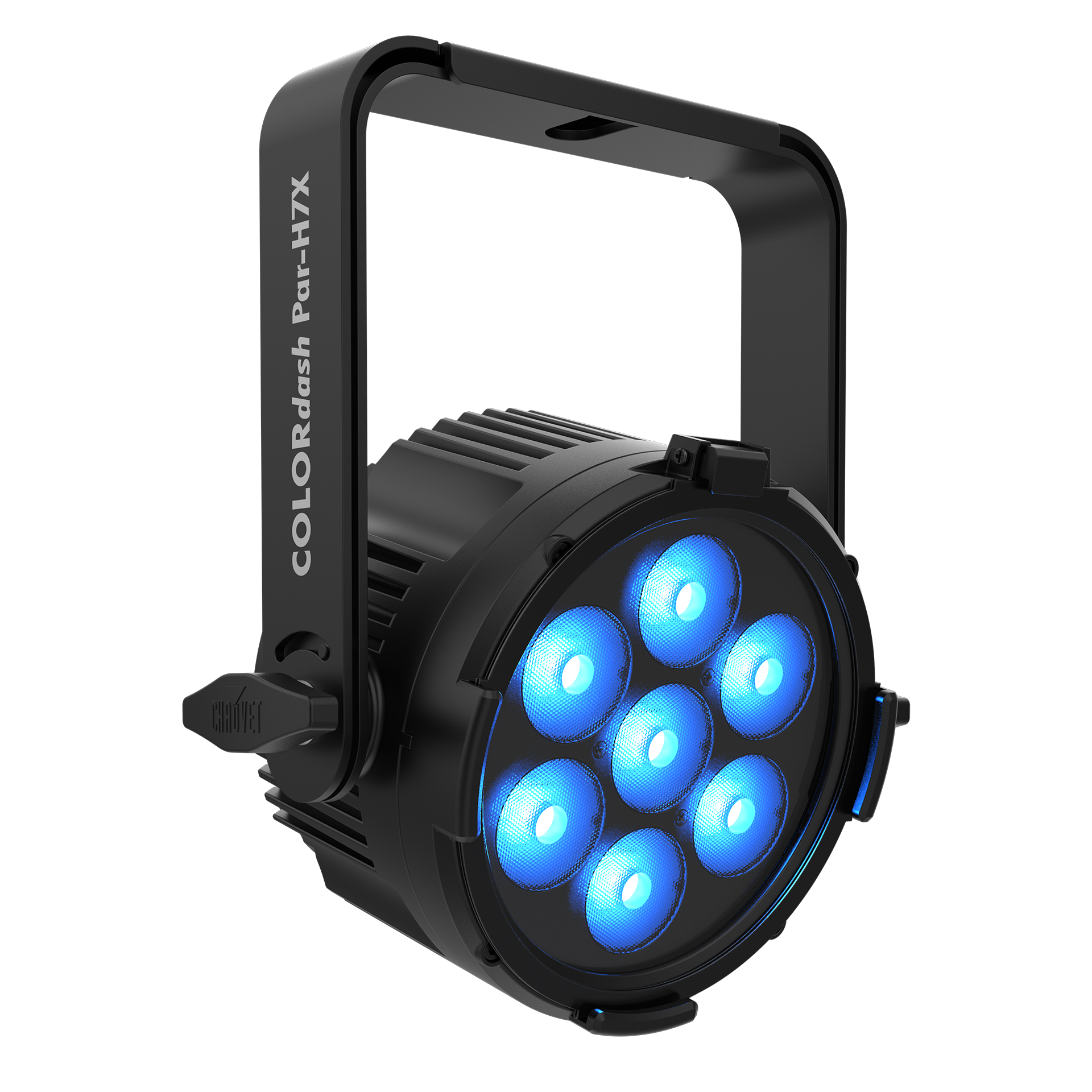

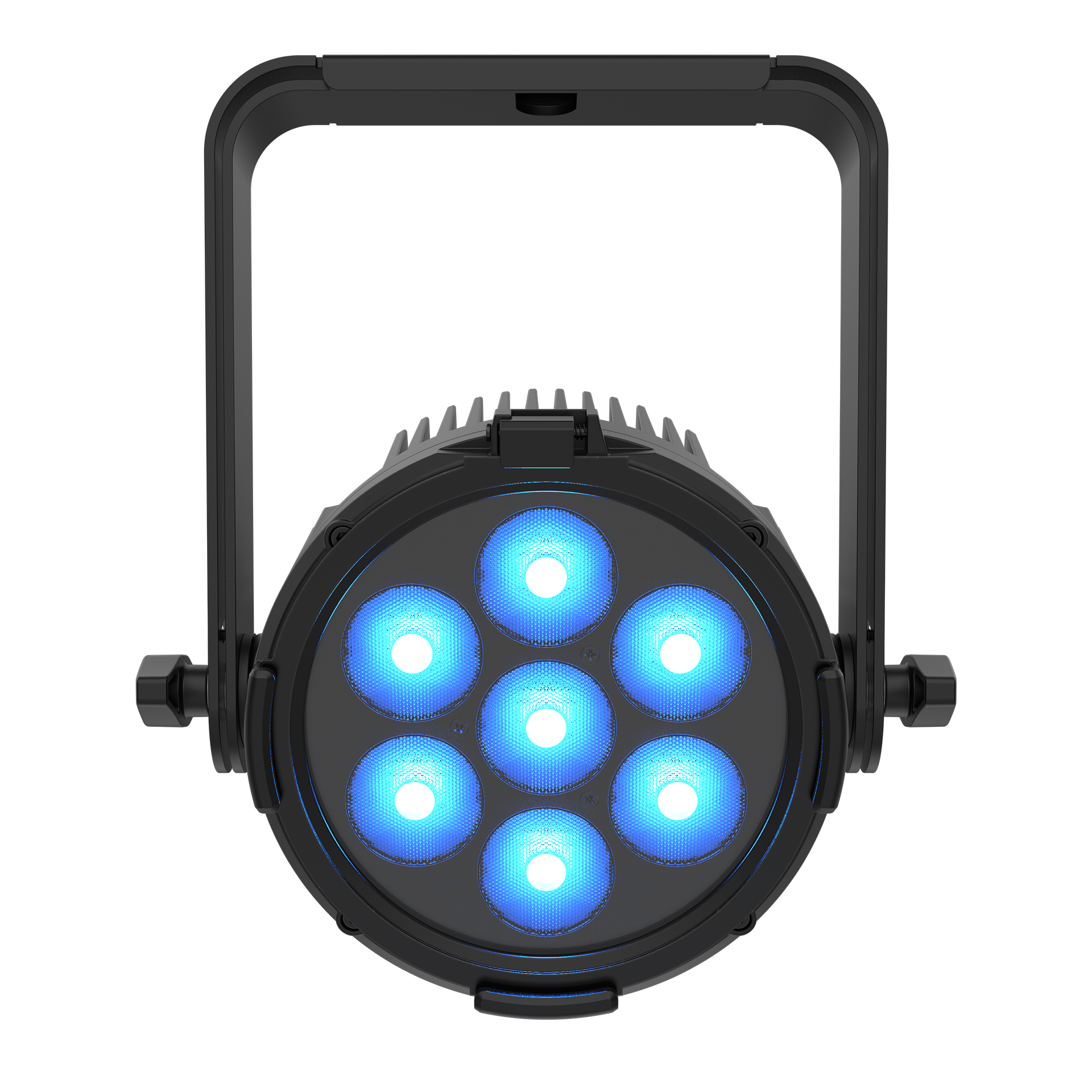

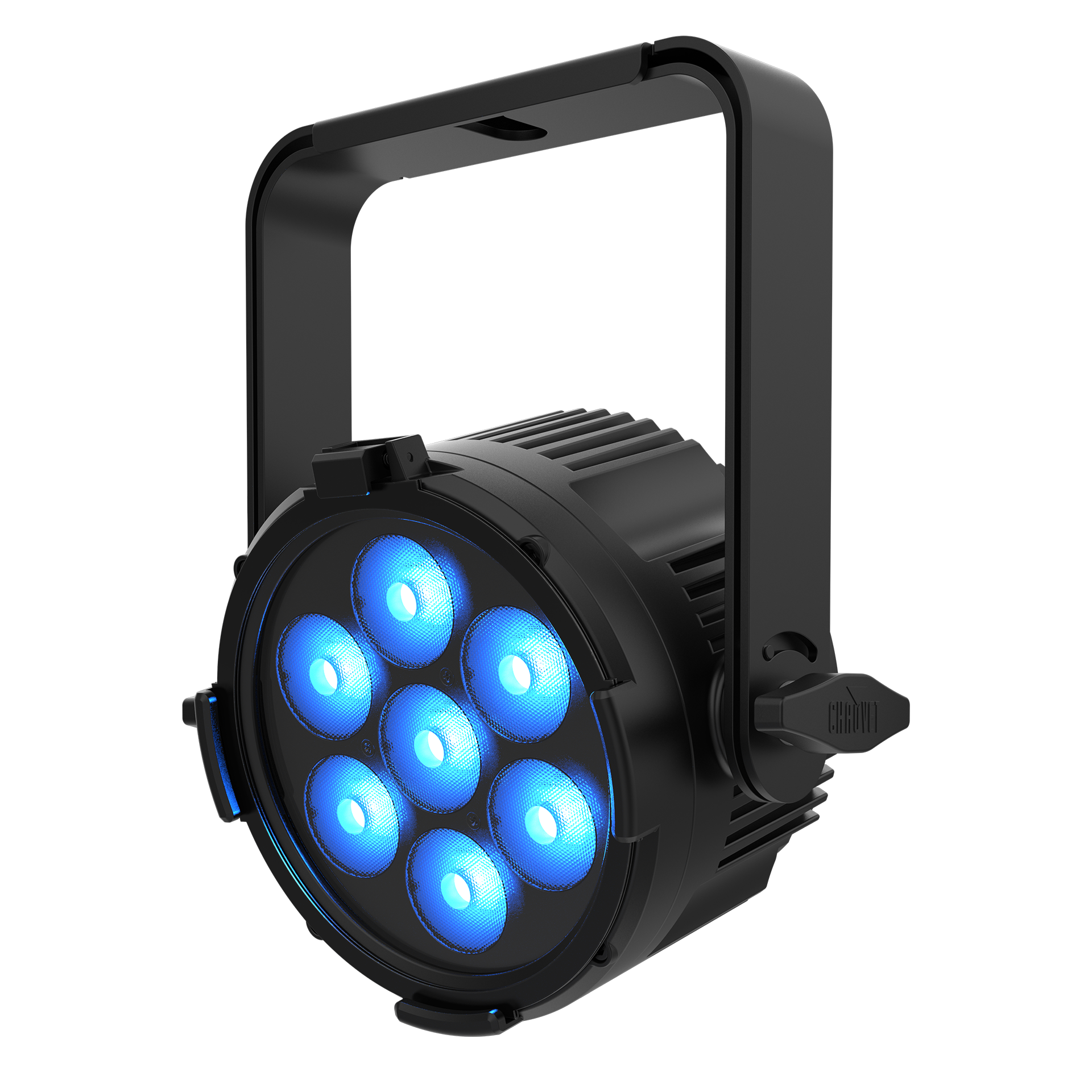

COLORdash PAR H7X
The COLORdash PAR H7X is a lightweight, durable, seven-color (RGBWAUV) LED wash light offering a versatile palette of colors, smooth 16-bit dimming, and flicker-free output.
Perfect for both live and on-camera applications, this fixture is an ideal workhorse for touring, broadcast, and theatrical productions where color precision and portability are paramount.
-
Features seven 84W hex-color RGBAW+UV LEDs for a broad, saturated color palette.
-
Offers an adjustable color temperature range from 2800K to 10,000K for precise white balancing.
-
Provides four selectable dimming curves for exceptionally smooth, professional-grade fades.
-
Includes adjustable PWM settings to ensure flicker-free operation for on-camera applications.
-
Supports both DMX and RDM protocols with five personalities for flexible control integration.
-
Housed in a lightweight die-cast body with a double-bracketed yoke for versatile mounting options.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
COLORdash PAR H7X
In the rig or on the floor, live or on camera, the lightweight COLORdash PAR H7X RGBWAUV LED wash is a portable six pound package that delivers a broad palette of subtle to saturated color with beautiful precision. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H7X is a die-cast workhorse that withstands the rigors of real world use while offering convenient operation and excellent performance.
Features
Rugged 6-in-1 LED Wash
Provides a wide spectrum of rich colors, including true UV, in a durable housing built for any event.
Flicker-Free Operation
Adjust the Pulse Width Modulation (PWM) to ensure flawless performance on camera.
Remote Device Management
RDM capability allows for remote addressing and configuration for added flexibility.
Smooth Dimming Curves
Selectable dimming curves eliminate flicker and choppiness for perfectly smooth fades.
OLED Touchscreen Display
An easy-to-read, password-protected OLED display with a touchscreen interface allows for simple navigation.
Advanced Optics
The advanced optical system provides exceptional color mixing and high efficiency.
Versatile Mounting
A double-bracketed yoke also functions as a floor stand for flexible placement options.
Specifications
Optical
-
Light Source
7 LEDs (hex-color RGBAW+UV) 84 W, (505 mA), 50,000 hours life expectancy
-
Color Temperature (range)
2800 to 10,000 K
-
Color Temperature (at full)
14,329 K
-
Beam Angle
22.7°
-
Field Angle
37.6°
-
Lumens
2738
-
Illuminance (total)
522 lux @ 5 m
-
Selectable PWM
600 Hz, 1.2K Hz, 2K Hz, 4K Hz, 6K Hz, 25K Hz
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 20 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Built-in Automated Programs
Yes
-
Customizable Programs
No
Construction/Physical
-
Dimensions
10.16 x 9.45 x 4.57 in (258 x 240 x 116 mm)
-
Weight
6 lb (2.7 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum alloy, Aluminum die-cast
-
Accessory Holder/Gel Frame Size
6.5 in (165 mm)

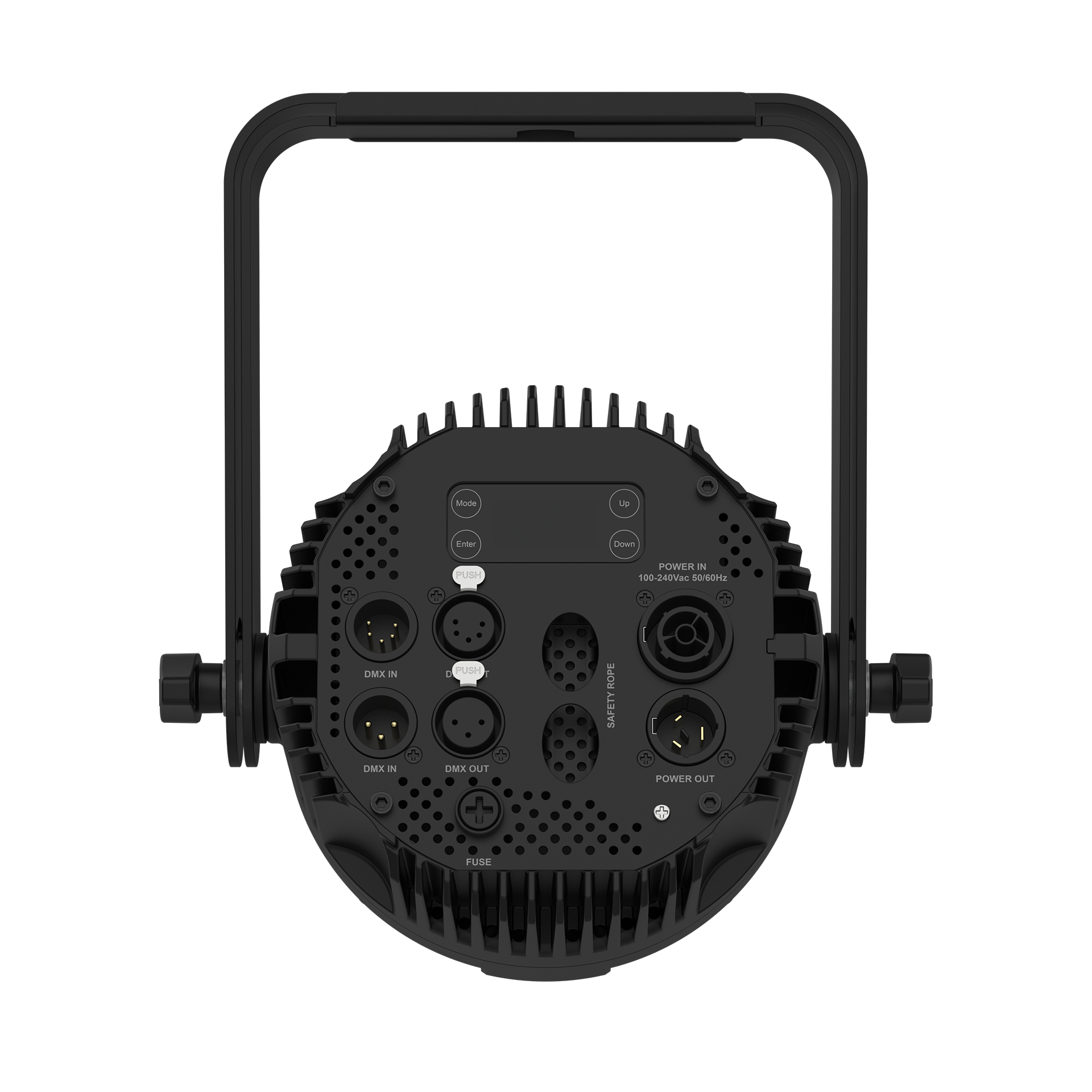

Connections
-
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Data Connectors
3- and 5-pin XLR, 3- and 5-pin IP65 XLR
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
6ch ,8ch ,9ch ,13ch, or 14ch
-
Modes/Personalities
5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
20 units @ 120 V; 34 units @ 208 V; 38 units @ 230 V
-
Power and Current
70 W, .592 A @ 120 V, 60 Hz
-
Power and Current
67 W, .344 A @ 208 V, 60 Hz
-
Power and Current
67 W, .312 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC, UKCA, FCC
-
IP Rating
IP20, dry location
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Neutrik® powerCON® cables
- 3- or 5-pin DMX Cables
- COLORdash Par H7X Barndoor
What's Included
- Colordash Par H7X
- Seetronic powerkon IP65 power cord
- Gel frame
- Quick Reference Guide
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Complete Your Rig
Downloads
Manuals | COLORdash PAR H7X – Quick Reference Guide | Download |
Other | COLORdash Par H7X-Standard Optics-IES Files | Download |
Other | COLORdash PAR H7X – 2D CAD | Download |
Other | COLORdash PAR H7X – 3D CAD | Download |
Manuals | COLORdash Par H7X – User Manual | Download |
Photometrics | COLORdash Par H7X – Photometrics | Download |
DMX | COLORdash Par H7X – DMX Chart | Download |
Other | COLORdash PAR H7X – Firmware | Download |
COLORdash PAR H7X FAQ’s
It produces an incredibly wide spectrum of colors. By combining red, green, blue, amber, white, and even ultraviolet (UV) LEDs, it can generate everything from deep, saturated hues and soft pastels to brilliant white light. The dedicated UV LED also allows for creating classic “blacklight” effects.
