Colordash Par H18X M

Optical

• Light Source

  18 LEDs (HEX-color RGBWAUV) 12 W

• Color Temperature (range)

  2800 to 10,000K

• Color Temperature (at full)

  8017 K

• Beam Angle

  25.2°

• Field Angle

  39.4°

• Lumens

  6485 lm

• Illuminance

  1259 lux @ 5 m

• Selectable PWM

  600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Strobe Rate

  0 to 20 Hz

• Standalone Color Mixing

  Yes

• Color Temperature Presets

  Yes

• Dim Modes

  4

• Built-in Automated Programs

  Yes

Construction/Physical

• Dimensions

  10x 10 x 5.51 in (254 x 254 x 140 mm)

• Weight

  14.8 lb (6.7 kg)

• Exterior Color

  White, C5-M Coated

• Housing Material

  Aluminum diecast

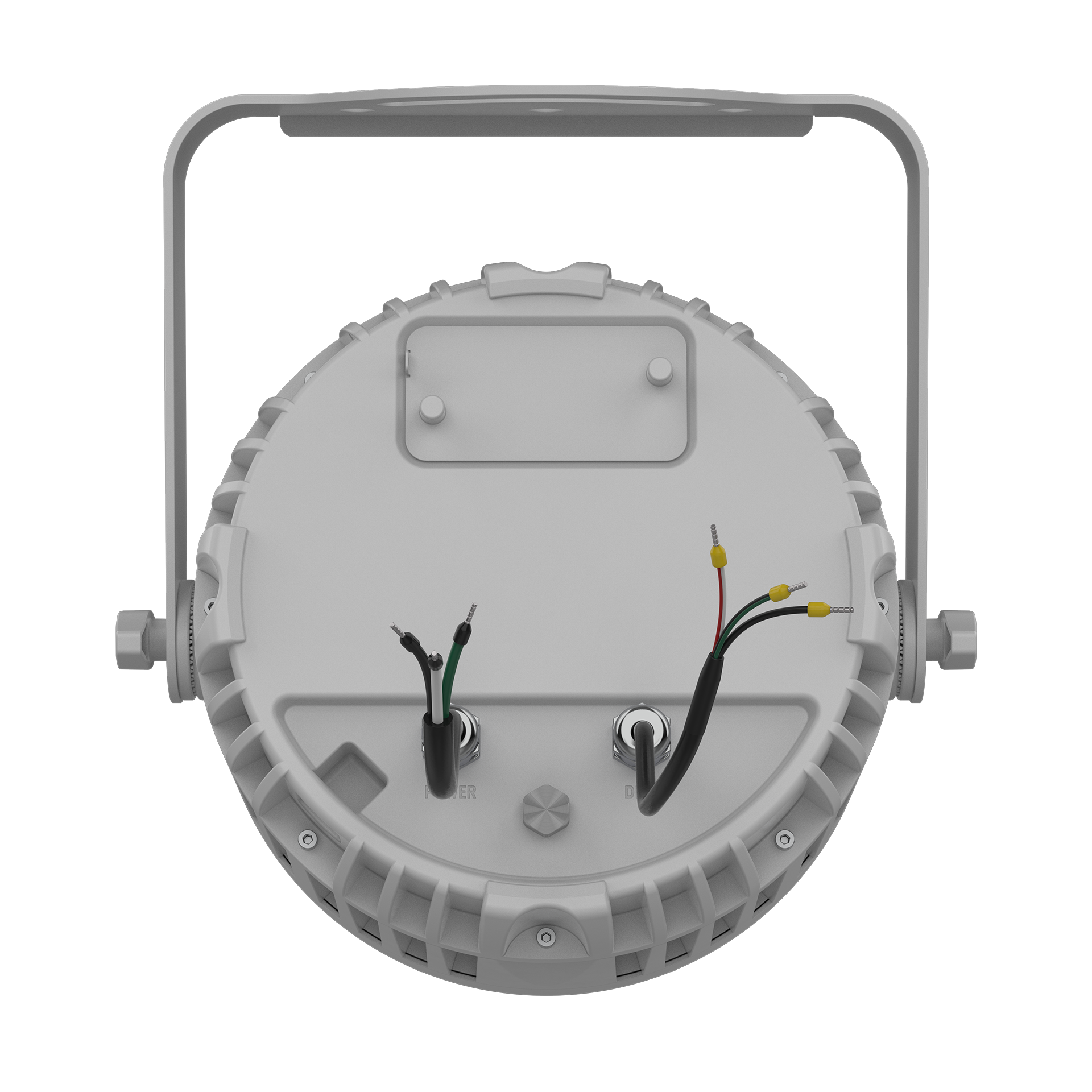

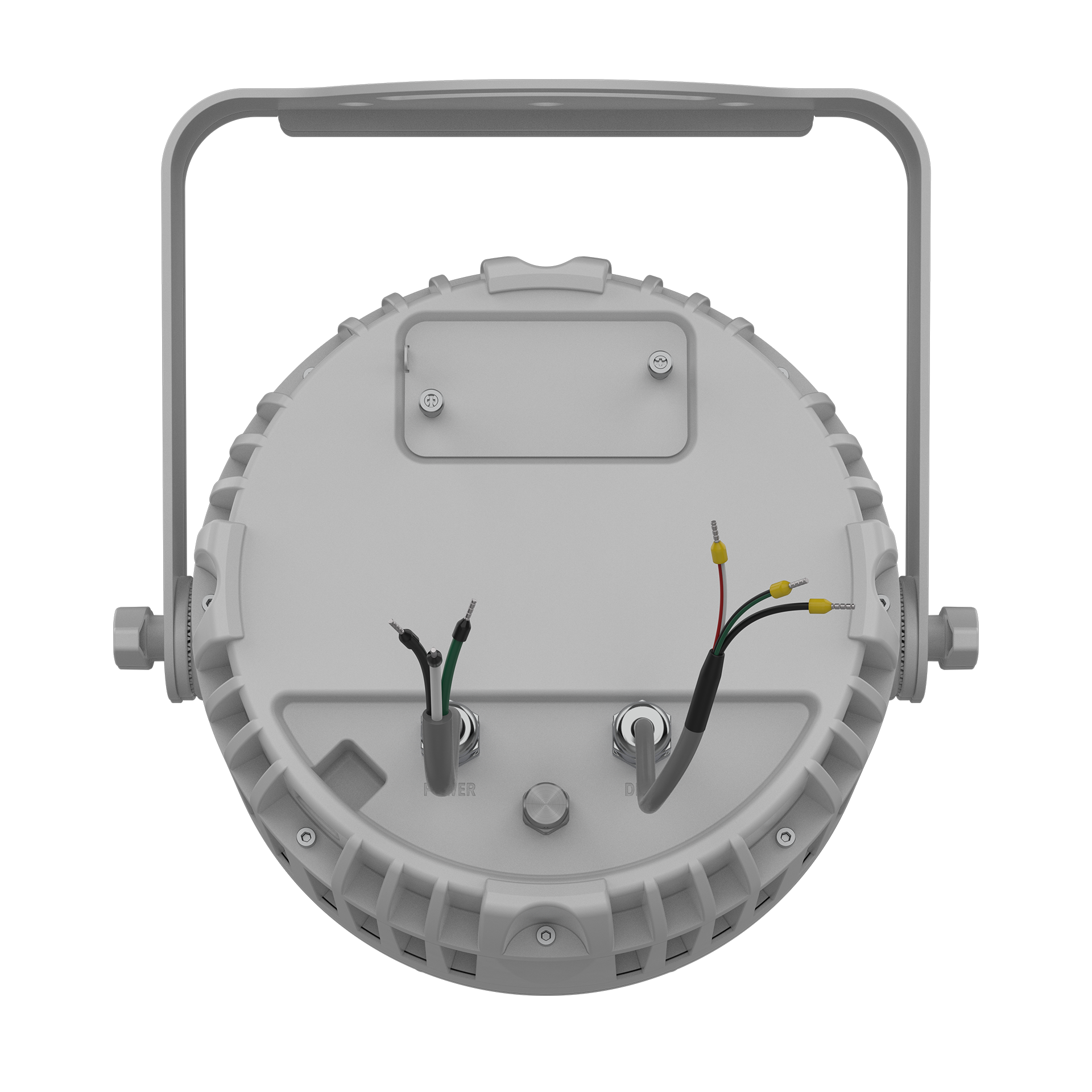

Connections

• Power Connection

  Bare wired to Neutrik powerCON or Neutrik powerCON TRUE1 Compatible or Seetronic Powerkon (powerCON Compatible)

• Data Connectors

  Bare Wire

• • Cable Length
    • Cable Length (signal)

      5 ft (1.5 m)

    • Cable Length (power)

      5 ft (1.5 m)

Control

• Control Protocol

  DMX, RDM

• DMX Channels

  6, 8, 9, 13 or 14

• Modes/Personalities

  5 personalities (6ch, 8ch, 9ch, 13ch, 14ch)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current

  154 W, 1.277A @ 120 V, 60 Hz

• Power and Current

  152 W, 0.740 A @ 208 V, 60 Hz

• Power and Current

  151 W, 0.666 A @ 230 V, 50 Hz

Certifications/Qualifications

• CE, MET, FCC, UKCA
• IP Rating

  IP67, outdoor/wet, with pressure equalizing M12 GORE valve

• Temperature (Ambient)

  -4 °F to 113 °F (-20 °C to 45 °C)
