WELL BATTEN 14
A battery-powered lighting batten that delivers 14 zones of control for dynamic pixel-mapping effects and includes a preprogrammed library of looks with an 18-hour runtime.
Ideal for mobile productions, touring events, and any indoor or outdoor application where rapid, flexible, and cable-free deployment is crucial.
-
Houses 28 RGBW LEDs delivering 3,854 lumens with a 2600K to 10,000K color temperature range.
-
Delivers a focused 16° beam angle for precise illumination and defined visual effects.
-
Offers selectable battery runtimes up to 18 hours for versatile power management.
-
Built with a durable IP65-rated housing for reliable operation in outdoor environments.
-
Supports versatile control options including DMX, RDM, CRMX, and an optional RF remote.
-
Ensures flicker-free on-camera performance with adjustable Pulse Width Modulation.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
WELL BATTEN 14
WELL BATTEN 14 delivers 14 zones of control for pixel-mapping effects and a preprogrammed library of looks similar to our popular WELL STX. Up to 18 hours of battery life from a batten engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy four-unit kit with built-in charging capability.
Download the App
ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.
Features
Complete Batten Fixture Kit
A fully realized kit of four battery-operated, IP65-rated batten style fixtures.
RGB Warm White LEDs
Each fixture contains 28 RGB warm white LEDs with a focused 16-degree beam angle.
Pixel Mapping Capability
Fourteen individual zones of control allow for the creation of intricate pixel mapping effects.

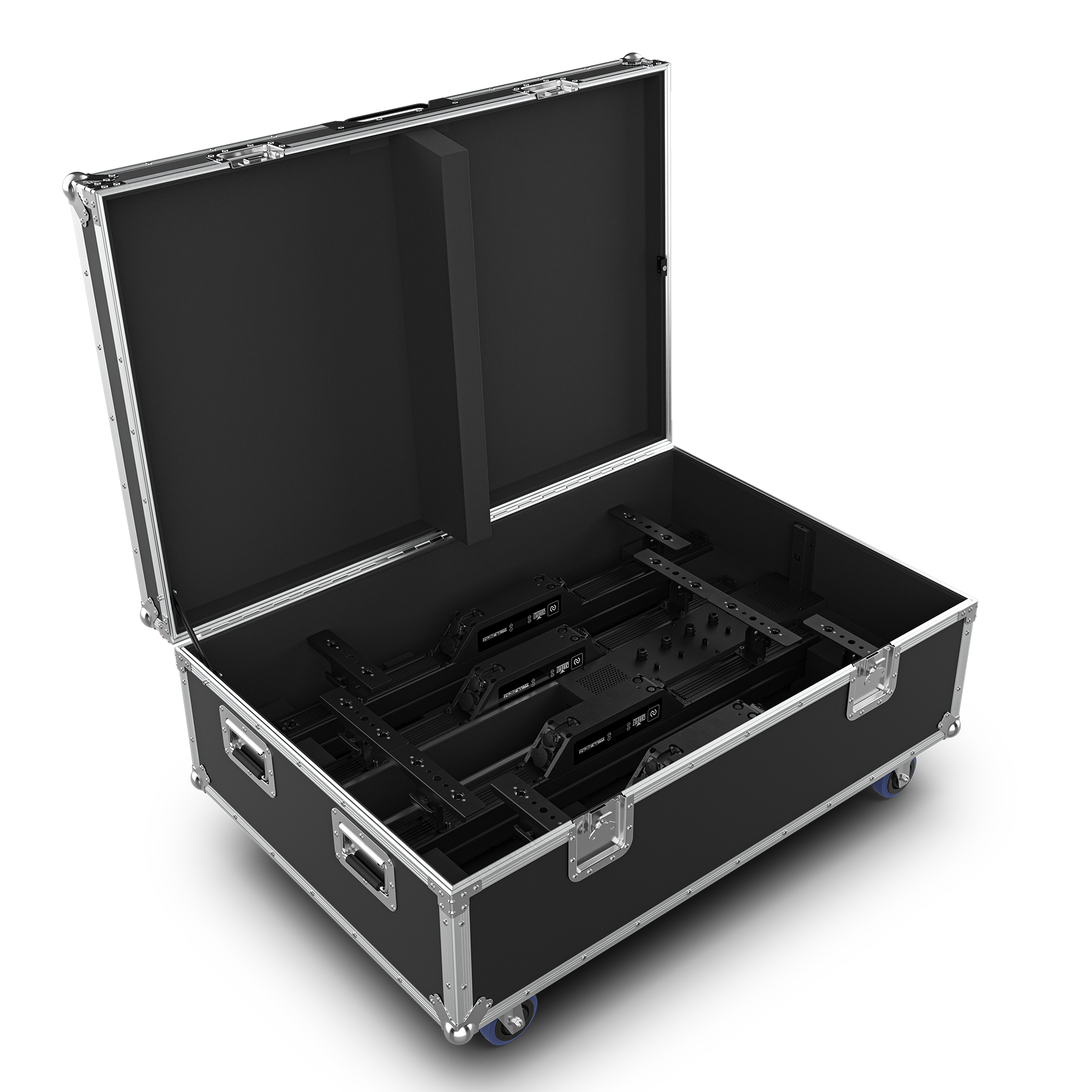

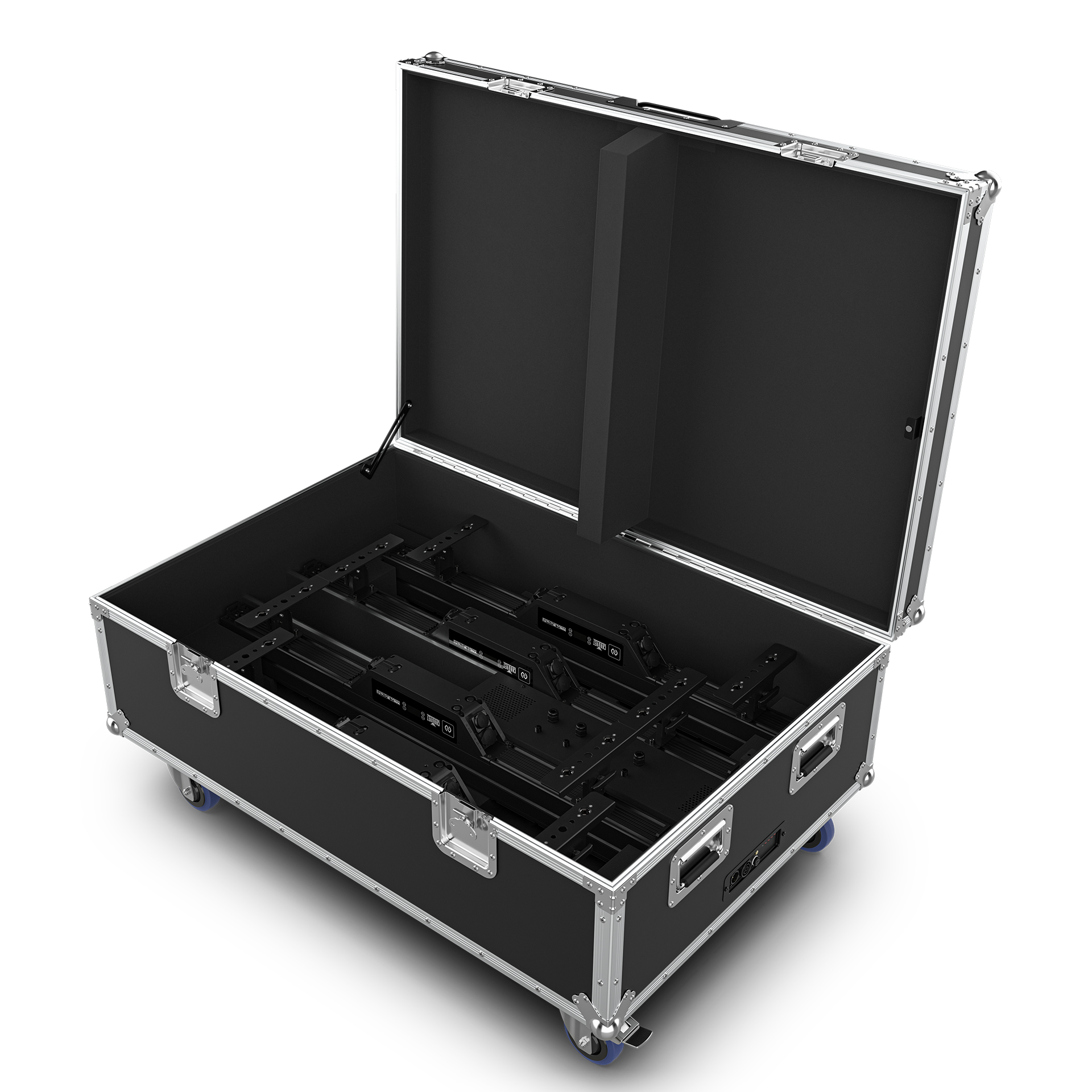

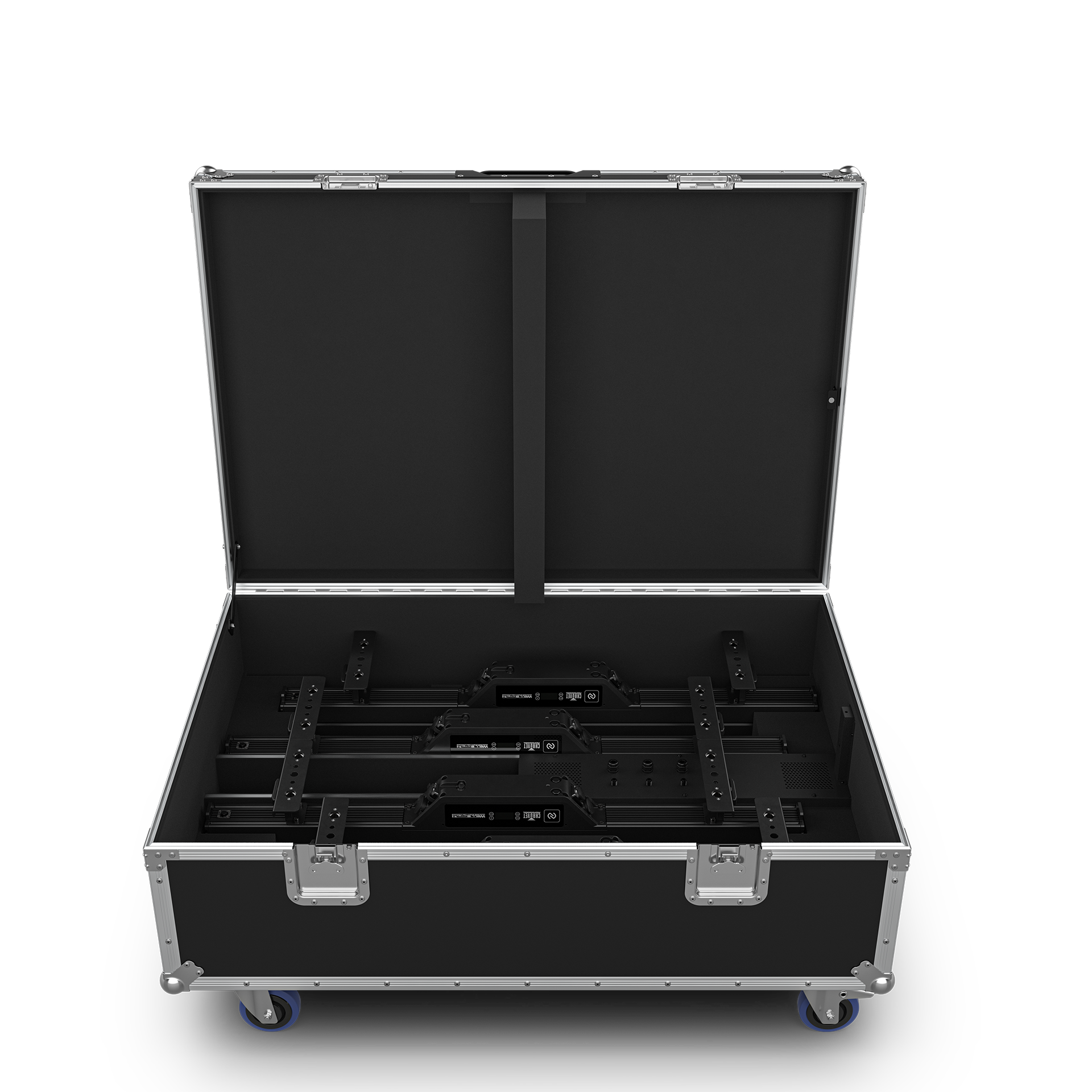

Space-Saving Charging Case
The included case is designed to charge all four fixtures simultaneously with the lid closed.
Selectable Battery Runtimes
Choose between 5, 8, 12, and 18-hour battery operation modes at full output.
Charge and Operate Simultaneously
A built-in battery charger allows the fixture to be used while it is plugged in and charging.
Wired DMX Connectivity
Integrated IP65-rated 5-pin DMX input and output ports provide a reliable wired data connection.
Professional Power Connections
Features built-in Seetronic IP65 PowerKon input and output for secure power linking.
Flexible Control Methods
Offers versatile control options including RDM, DMX, CRMX, or an RF remote.
ConnectFX App Control
Easily connects to the WELL CONNECT box for intuitive control via the ConnectFX mobile app.
Convenient Software Updates
A built-in USB-C port allows for simple and convenient firmware updates.
Pressure Equalizing Valve
An M6 Gore valve automatically equalizes internal pressure to protect seals and electronics.
Integrated Safety Point
A built-in attachment point provides a secure connection for a safety cable.
Clear OLED Display
An easy-to-read OLED screen provides clear access to settings and fixture information.
Built-in Theft Alarm
An integrated alarm provides both audible and visual alerts if the fixture is moved.
Flicker-Free Operation
Built-in Pulse Width Modulation adjustment ensures flicker-free performance on camera.
Included RF Remote
A radio frequency remote is included for simple wireless control out of the box.
Included Glare Shields
Comes with two glare shields to help shape the light output and prevent unwanted spill.
Specifications
Optical
-
Light Source
28 LEDs (RGBW) 13.2W, (516mA), 50,000 hours life expectancy.
-
Color Temperature (range)
2600 to 10,000K
-
Beam Angle
16°
-
Field Angle
33.8°
-
Cutoff Angle
64.1°
-
Lumens
3854 lm (AC power)
-
Illuminance
1050 lux @ 5 m (AC power) Lumens:
-
Lumens
2210 lm (OFF battery setting)
-
Illuminance
601 lux @ 5 m (OFF battery setting)
-
Lumens
2319 lm (5-hour battery setting)
-
Illuminance
631 lux @ 5 m (5-hour battery setting)
-
Lumens
1437 lm (8-hour battery setting)
-
Illuminance
392 lux @ 5 m (8-hour battery setting)
-
Lumens
890 lm (12-hour battery setting)
-
Illuminance
243 lux @ 5 m (12-hour battery setting)
-
Lumens
548 lm (18-hour battery setting)
-
Illuminance
148 lux @ 5 m (18-hour battery setting)
-
Selectable PWM
1000 Hz, 2000 Hz, 3000Hz, 4000Hz, 6000Hz, 25kHz
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 30 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Dim Curves
4
-
Built-in Automated Programs
Yes
-
Customizable Programs
No
-
Recall Custom Programs
No
Construction/Physical
-
Dimensions
39.4 x 7.9 x 6.4 in (1001 x 200 x 163 mm)
-
Weight
16.4 lb (7.4 kg)
-
Weight (shipping weight)
186.3 lb (84.5 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum diecast
Connections
-
Power Connection
Edison (local) plug to Seetronic PowerKon IP65
-
Power Input (fixture and charging case)
Seetronic PowerKon IP65
-
Power Output (fixture and charging case)
Seetronic PowerKon IP65
-
Data Connectors
5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
-
Software Connection
USB-C
Control
-
Control Protocol
DMX, RDM, CRMX, NFC, RF
-
DMX Channels
5,8,15,66,85
-
Modes/Personalities
6 personalities (5ch,8ch,15ch,66ch,85ch)
-
Wireless WDMX “G” Compatibility
G4S
-
Wireless Lumen Radio Compatibility
CRMX
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
-
Single Unit
-
Power Linking
17 units @ 120 V; 30 units @ 208 V; 32 units @ 230 V
-
Power and Current
84 W, 0.70 A @ 120 V, 60 Hz
-
Power and Current
82 W, 0.40 A @ 208 V, 60 Hz
-
Power and Current
83 W, 0.37 A @ 230 V, 50 Hz
-
-
Single Unit
-
-
4 Pack Case
-
Power Linking
4 units @ 120 V; 7 units @ 208 V; 7 units @ 230 V
-
Power and Current
348 W, 2.90 A @ 120 V, 60 Hz
-
Power and Current
343 W, 1.68 A @ 208 V, 60 Hz
-
Power and Current
344 W, 1.53 A @ 230 V, 50 Hz
-
-
4 Pack Case
Battery
-
Battery type
Lithium Nickel Cobalt AL (Li) (NiCoAL)
-
Rechargeable
Yes
-
Battery Charge Time
7 hours
-
Battery Life
selectable: off, 5, 8, 12, 18 hrs
Certifications/Qualifications
-
Certifications
CE, UKCA, FCC, ROHS
-
IP Rating
IP65, temporary outdoor/wet use
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories
- Clamps
- WELL Batten 14 – 15° Filter Pack
- WELL Batten 14 – 60° x 10° Filter Pack
- PowerKon Extension cables
- 5 pin DMX Cables
What's Included
- (4) WELL BATTEN 14
- (1) 4 slot charging case
- (1) basic RF controller
- (4) Seetronic PowerKon IP65 power cords
- (8) Omega Brackets
- (8) glare shields
- (1) QRG
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Complete Your Rig
Downloads
Manuals | WELL BATTEN 14 – Quick Reference Guide | Download |
Manuals | WELL BATTEN 14 – User Manual | Download |
Manuals | WELL BATTEN 14 – DMX Charts | Download |
Photometrics | WELL BATTEN 14 – Photometrics Report | Download |
Manuals | WELL BATTEN 14 – CAD File | Download |
Manuals | WELL BATTEN 14 – 2D CAD File | Download |
Manuals | WELL BATTEN 14 – 3D CAD File | Download |
WELL BATTEN 14 FAQ’s
The WELL BATTEN 14 offers excellent flexibility with selectable battery run times. You can choose settings for 5, 8, 12, or even up to 18 hours of continuous operation, making it reliable for events of any length without needing power cables.
