    WELL PANEL X

    A battery-powered, high-CRI LED panel light offering superior color mixing and up to 18 hours of runtime in a fixture designed for quick and flexible deployment.
    Perfect for rental houses and lighting professionals on any production, indoors or out, requiring a high-quality, deployable key light where quick setup and flexibility are essential.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    Quick Reference Guide
    		 Download
    User Manual
    		 Download
    Photometrics Report
    		 Download
    DMX Chart
    		 Download
    CAD File
    		 Download
    2D CAD File
    		 Download
    3D CAD File
    		 Download

    WELL PANEL X

    SKU: WELLPANELXX4

    WELL PANEL X is the ideal addition to any rental package, offering an easily deployed and controlled fixture with high CRI that renders skin tones beautifully and make this panel an excellent key light. A higher quantity of smaller LEDs in this design ensures better color mixing than ever before. Up to 18 hours of battery life from a fixture engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a fully-realized road-worthy four-unit kit with built-in charging capability.

    Download the App

    ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.

    Download on the App Store
    Get it on Google Play

    Features

    Complete IP65 Panel Fixture Kit

    Includes four battery-operated, IP65-rated panel fixtures featuring 40 RGB warm white LEDs and a 10.8-degree beam angle.

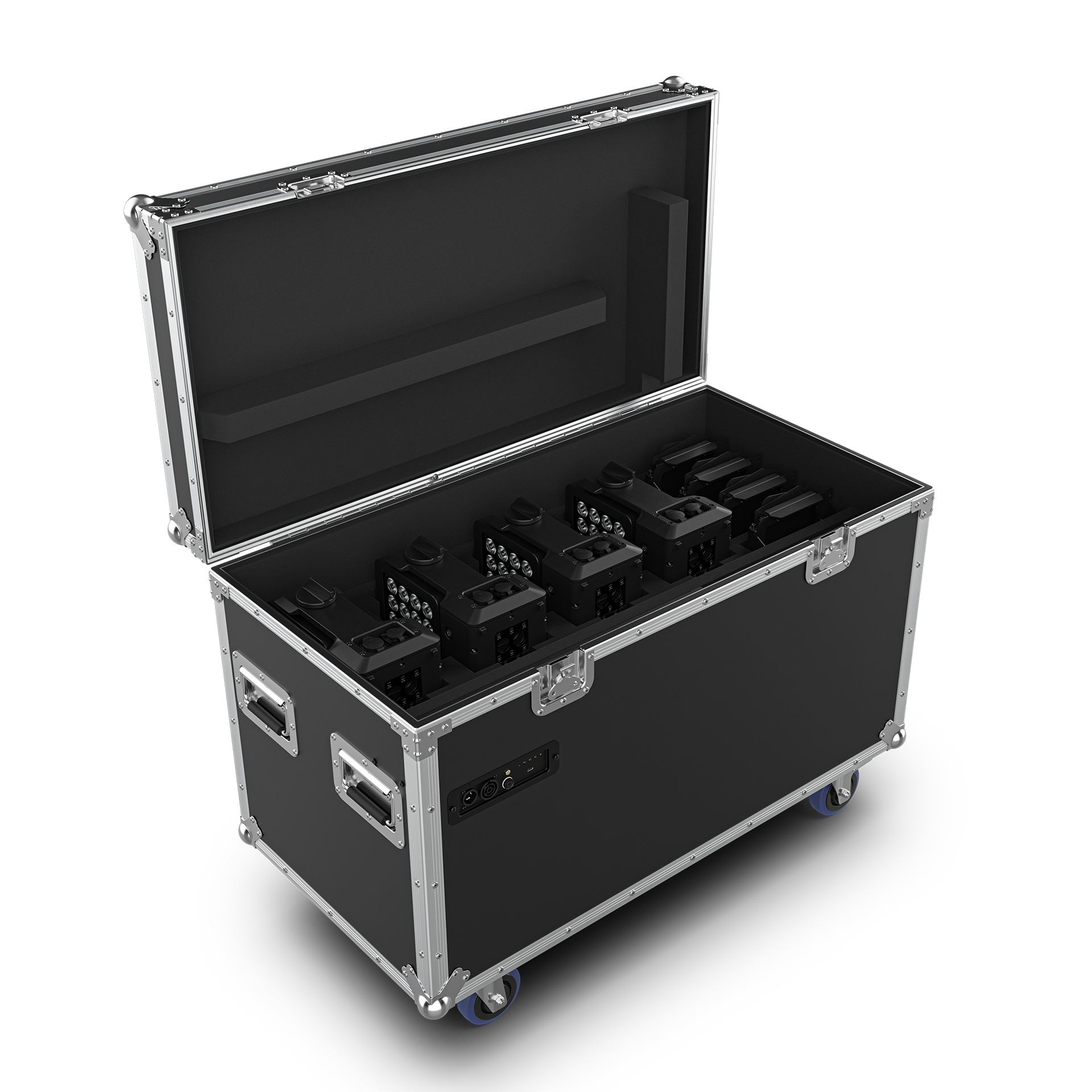

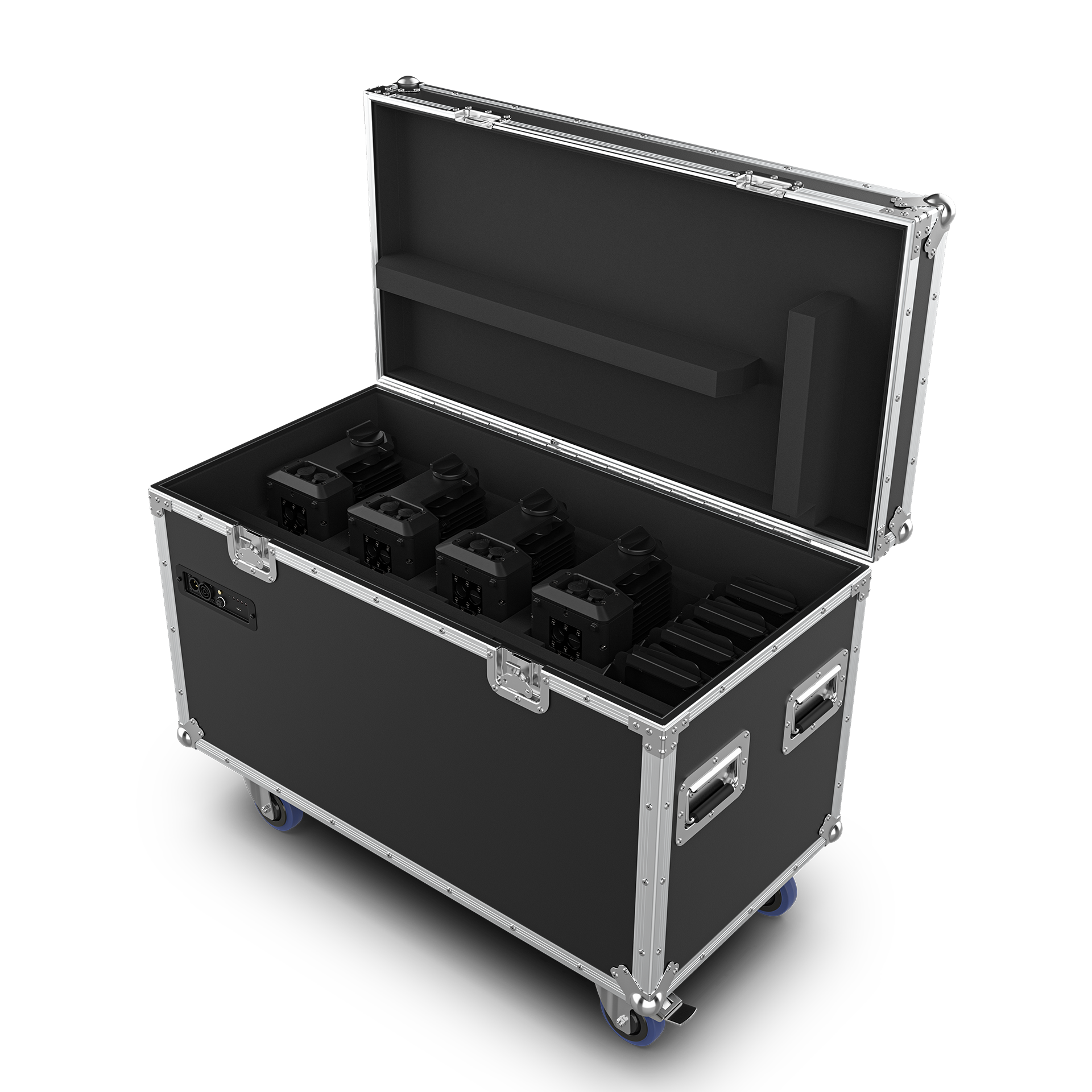

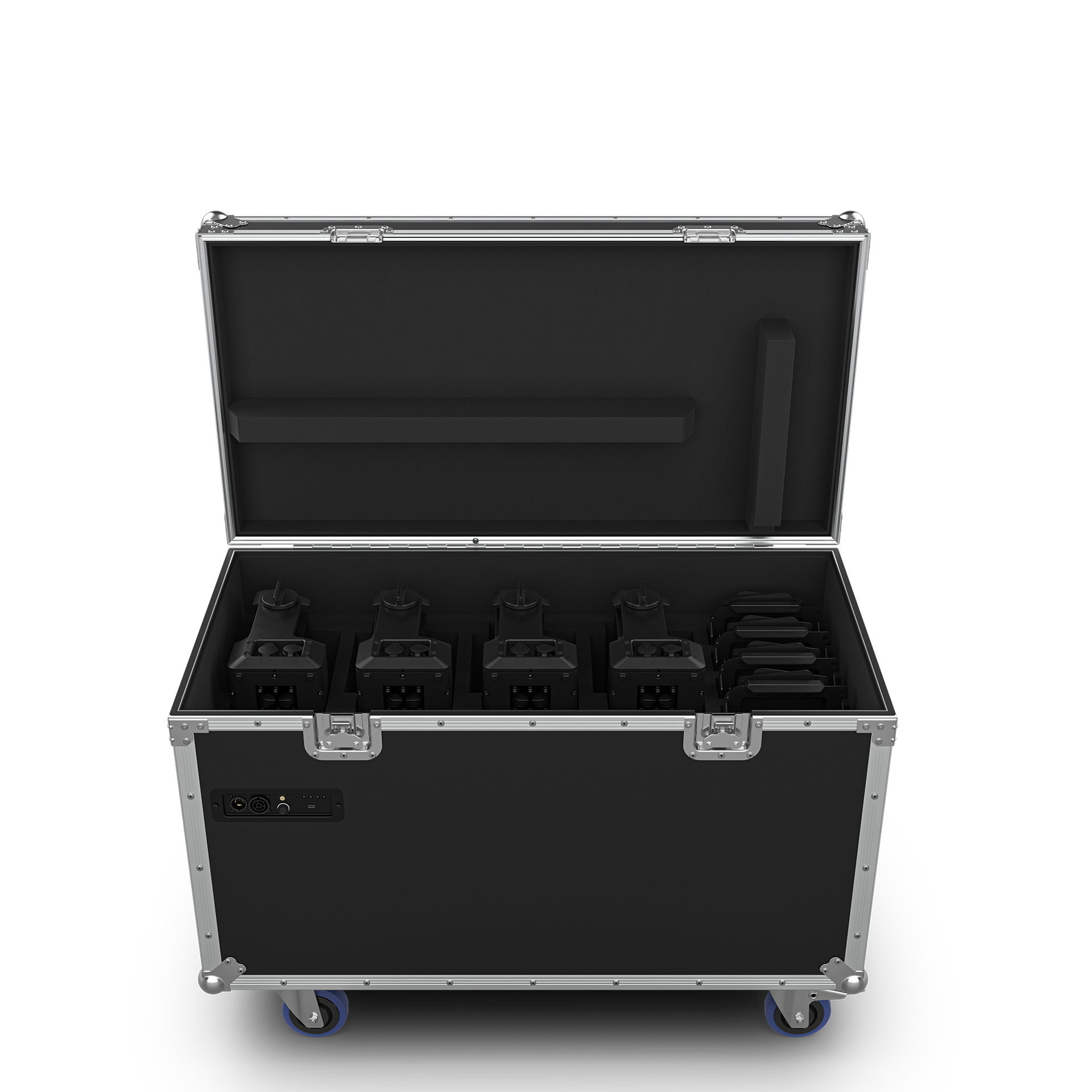

    Space Saving Charging Case

    The included road case charges all four units with the lid closed, simplifying storage and transport.

    Selectable Battery Runtimes

    Choose between 5, 8, 12, and 18-hour runtime modes to perfectly match the duration of your event.

    Uninterrupted Operation

    The fixtures can be operated normally even while plugged in and charging.

    Weatherproof DMX Control

    Integrated IP65-rated 5-pin DMX input and output ports allow for reliable wired data connections in any environment.

    Professional Power Linking

    Features Seetronic IP65 PowerKon input and output for secure, all-weather power daisy-chaining.

    Multiple Control Protocols

    Offers flexible control through DMX, CRMX, RDM, and RF for seamless integration into any setup.

    Wireless App Control

    Connects effortlessly to the WELL CONNECT box and ConnectFX app for advanced control from your mobile device.

    Pressure Equalizing Valve

    A built-in M12 Gore valve protects the internal components by equalizing pressure within the housing.

    Integrated Safety Attachment

    A built-in attachment point is included for easily securing a safety cable.

    High Contrast OLED Display

    An easy-to-read OLED screen provides clear access to all settings and operating information.

    Adjustable PWM

    Adjust the Pulse Width Modulation to ensure flicker-free performance for on-camera applications.

    Included RF Remote

    A simple RF remote is included for convenient wireless operation without a DMX controller.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        40 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy

      • Color Temperature (range)

        2800 to 6500 K

      • Installed optics

        11.6°

      • Beam Angle

        21.4°

      • Field Angle

        31.7°

      • Lumens

        6865 lm (AC power)

      • Illuminance

        4575 lux @ 5 m (AC power)

      • Lumens

        6615 lm (OFF battery setting)

      • Illuminance

        4269 lux @ 5 m (OFF battery setting)

      • Lumens

        2886 lm (5-hour battery setting)

      • Illuminance

        1867 lux @ 5 m (5-hour battery setting)

      • Lumens

        1807 lm (8-hour battery setting)

      • Illuminance

        1194 lux @ 5 m (8-hour battery setting)

      • Lumens

        1189 lm (12-hour battery setting)

      • Illuminance

        769 lux @ 5 m (12-hour battery setting)

      • Lumens

        851 lm (18-hour battery setting)

      • Illuminance

        548 lux @ 5 m (18-hour battery setting)

      • Selectable PWM

        600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000

      Dynamic Effects

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Strobe Rate

        0 to 30 Hz

      • Standalone Color Mixing

        Yes

      • Color Temperature Presets

        Yes

      • Dim Modes

        4

      • Dim Curves

        4

      • Built-in Automated Programs

        Yes

      • Customizable Programs

        No

      • Recall Custom Programs

        No

      Construction/Physical

      • Dimensions

        17.17 x 5.31 x 10.24 in (436 x 135 x 260 mm)

      • Dimensions case

        36.4 x 20.7 x 21.5 in (925 x 525 x 545 mm)

      • Weight

        20.8 lb (9.43 kg)

      • Weight case

        184 lb (83.5 kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum diecast

      Connections

      • Power Connection

        Edison (local) plug to Seetronic Powerkon IP65

      • Power Input (fixture and charging case)

        Seetronic Powerkon IP65

      • Power Output (fixture and charging case)

        Seetronic Powerkon IP65

      • Data Connectors

        5-pin XLR

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        RDM, CRMX, NFC, RF

      • DMX Channels

        5,8,9,12,16 channels

      • Modes/Personalities

        5 personalities (5Ch, 8Ch, 9Ch, 12 ch, 16 ch)

      • Wireless WDMX “G” Compatibility

        G4S

      • Wireless Lumen Radio Compatibility

        CRMX

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

        • Single Unit
          • Power Linking

            12 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V

          • Power and Current

            120 W, 0.99 A @ 120 V, 60 Hz

          • Power and Current

            113 W, 0.56 A @ 208 V, 60 Hz

          • Power and Current

            115 W, 0.51 A @ 230 V, 50 Hz

        • 4 Pack Case
          • Power and Current

            550 W, 4.60 A @ 120 V, 60 Hz

          • Power and Current

            536 W, 2.62 A @ 208 V, 60 Hz

          • Power and Current

            522 W, 2.31 A @ 230 V, 50 Hz

          • Fuse

            T6.3A, 250 V

      Battery

      • Battery type

        Lithium Ion

      • Rechargeable

        Yes

      • Battery Charge Time

        4 hours

      • Battery Life

        5, 8, 12,18 hours

      • Battery Power

        44.4 V, 6600 mAh

      Certifications/Qualifications

      • Certifications

        CE, FCC, UKCA

      • IP Rating

        IP65, temporary outdoor/wet use

      • Temperature (Ambient)

        -4 °F to 113 °F (-20 °C to 45 °C)

      Compatible Accessories

      • Clamps: CTC-50HC, CTC-50G, CTC-50CBLK, CTC 50HCN, CTC-50HCNBLK
      • 45° hard filter pack (sold in singles)
      • 60° hard filter pack (sold in singles)
      • 100° hard filter pack (sold in singles)
      • 10°x60° hard filter pack (sold in singles)
      • 30°x60° hard filter pack (sold in singles)
      • 60°x10° and 60°x40° soft filter pack (sold in 4 packs)
      • Empty filter frame for soft filters (sold in singles)
      • Rig Link PowerKon Extension cables
      • Rig Link 5 pin DMX Cables
      • 45° hard filter (sold in singles with frame)
      • 60° hard filter (sold in singles with frame)
      • 100° hard filter (sold in singles with frame)
      • 10°x60° hard filter (sold in singles with frame)
      • 30°x60° hard filter (sold in singles with frame)
      • 60°x10° and 60°x40° soft filter (sold in 2 packs without frames)
      • Empty filter frame for soft filters (sold in singles without filters)
      • Riglink PowerKon Extension cables
      • WELL Panel Barn Door

      What's Included

      • (4) WELL PANEL X
      • (1) 4 slot charging case
      • (1) basic RF controller
      • (4) Seetronic PowerKon IP 65 power cords
      • (4) Omega Brackets
      • (1) QRG

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      WELL PANEL X – Quick Reference Guide
      		Download
      Manuals
      WELL PANEL X – User Manual
      		Download
      Manuals
      WELL PANEL X – Photometrics Report
      		Download
      DMX
      WELL PANEL X – DMX Chart
      		Download
      Drawings
      WELL PANEL X – CAD File
      		Download
      Drawings
      WELL PANEL X – 2D CAD File
      		Download
      Drawings
      WELL PANEL X – 3D CAD File
      		Download

      Learn How To Use Your WELL PANEL X

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • LD Corey Easterbrook talks turning up the color with WELL

        Lighting Designer Corey Easterbrook shares how the CHAUVET Professional WELL family empowers event lighting. Discover how these battery-powered, wireless fixtures deliver superior color mixing and rapid deployment for galas, weddings, and other demanding productions.

      Video Library

      Latest Articles

      Browse Articles

      WELL PANEL X FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the WELL PANEL X
      What is WELL PANEL X and what is it used for?

      WELL PANEL X is a professional, battery-powered LED lighting fixture. It is ideal for film, broadcast, and events where high-quality light and fast setup are critical. It excels as a key light because its advanced design renders skin tones beautifully and naturally, and its multiple LEDs ensure smooth, even color mixing.

      Can WELL PANEL X be used outdoors?

      Yes, WELL PANEL X is built to be used both indoors and outdoors. It is a weatherproof fixture that can withstand temporary wet conditions. Its durable aluminum body and long battery life of up to 18 hours make it a reliable choice for on-location shoots and events where power sources may be unavailable.

      How is the WELL PANEL X kit designed for easy use?

      The WELL PANEL X is designed for convenience and speed. It comes as a complete kit of four light panels in a single, durable case that also charges all four units at once. Being battery-powered and controllable wirelessly, you can place the lights anywhere without running cables, making setup and teardown incredibly fast and simple.
