Pre-Order

Preliminary Specs Only

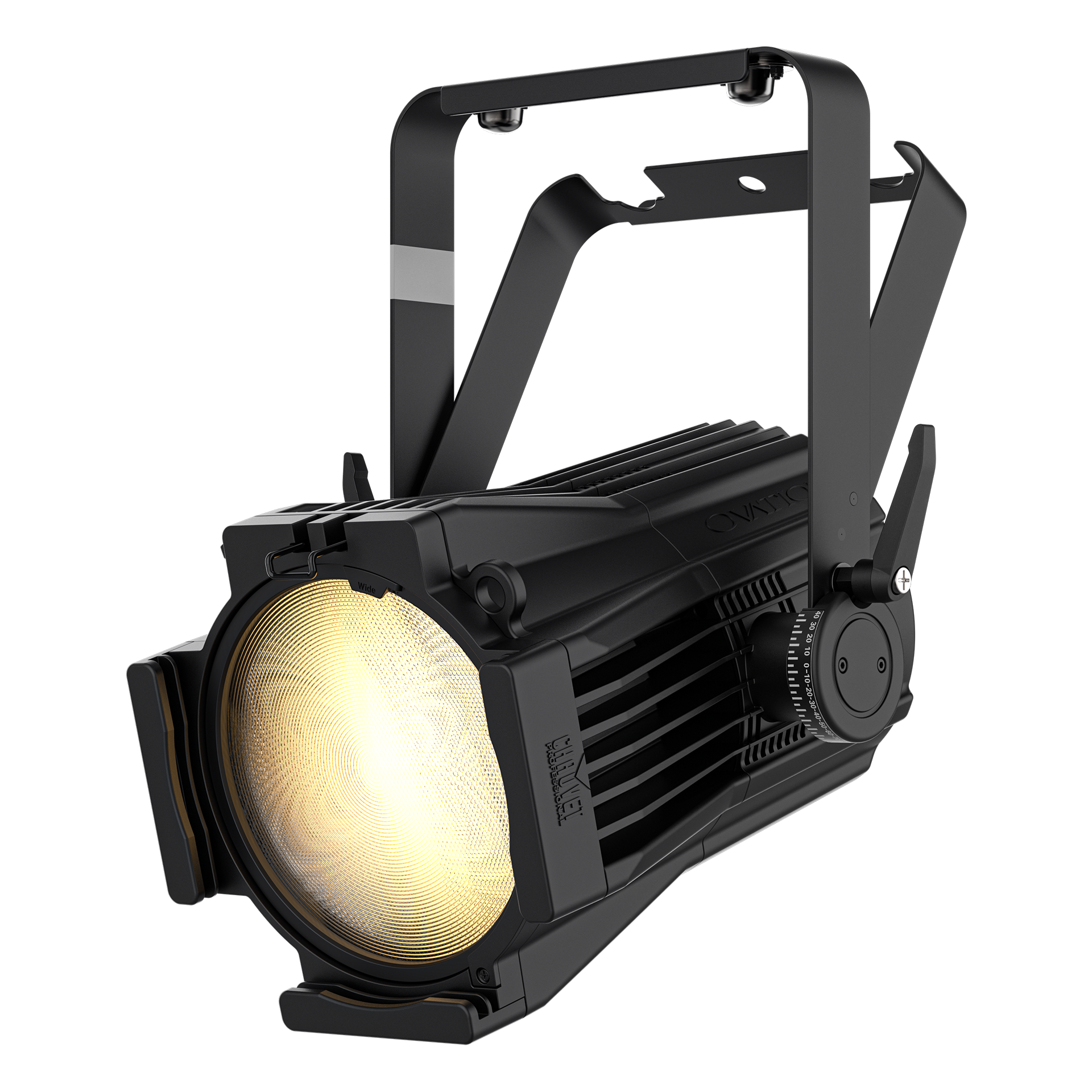

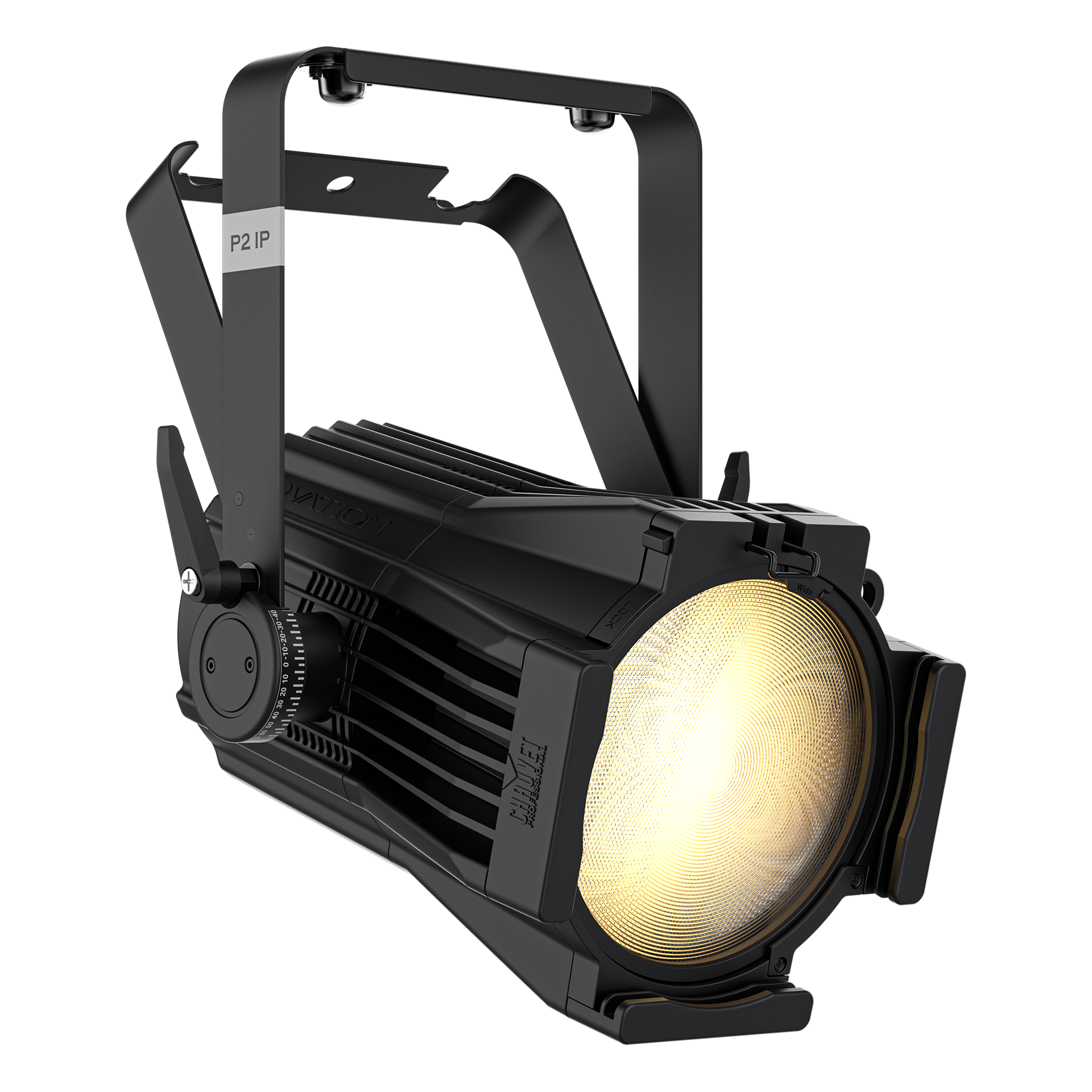

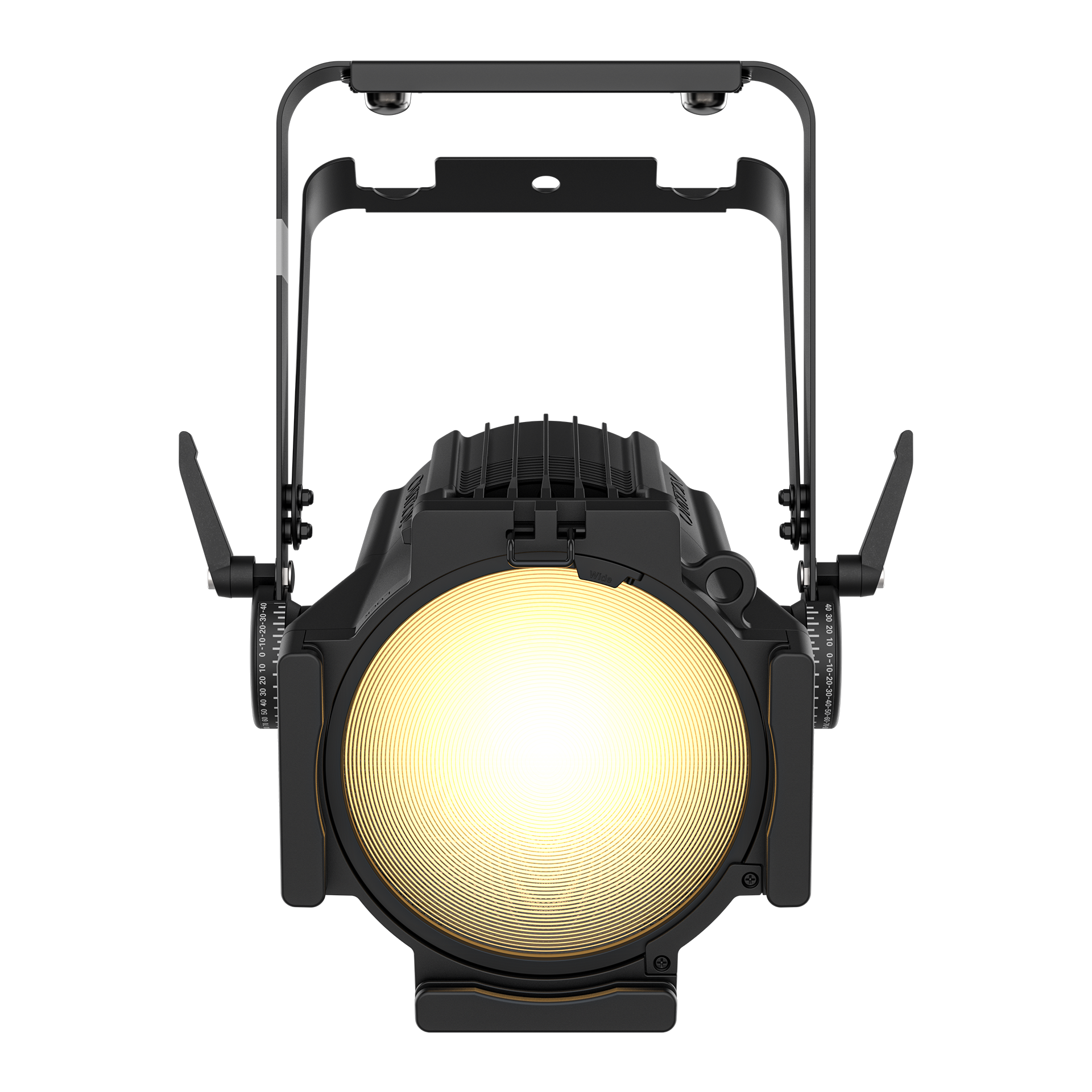

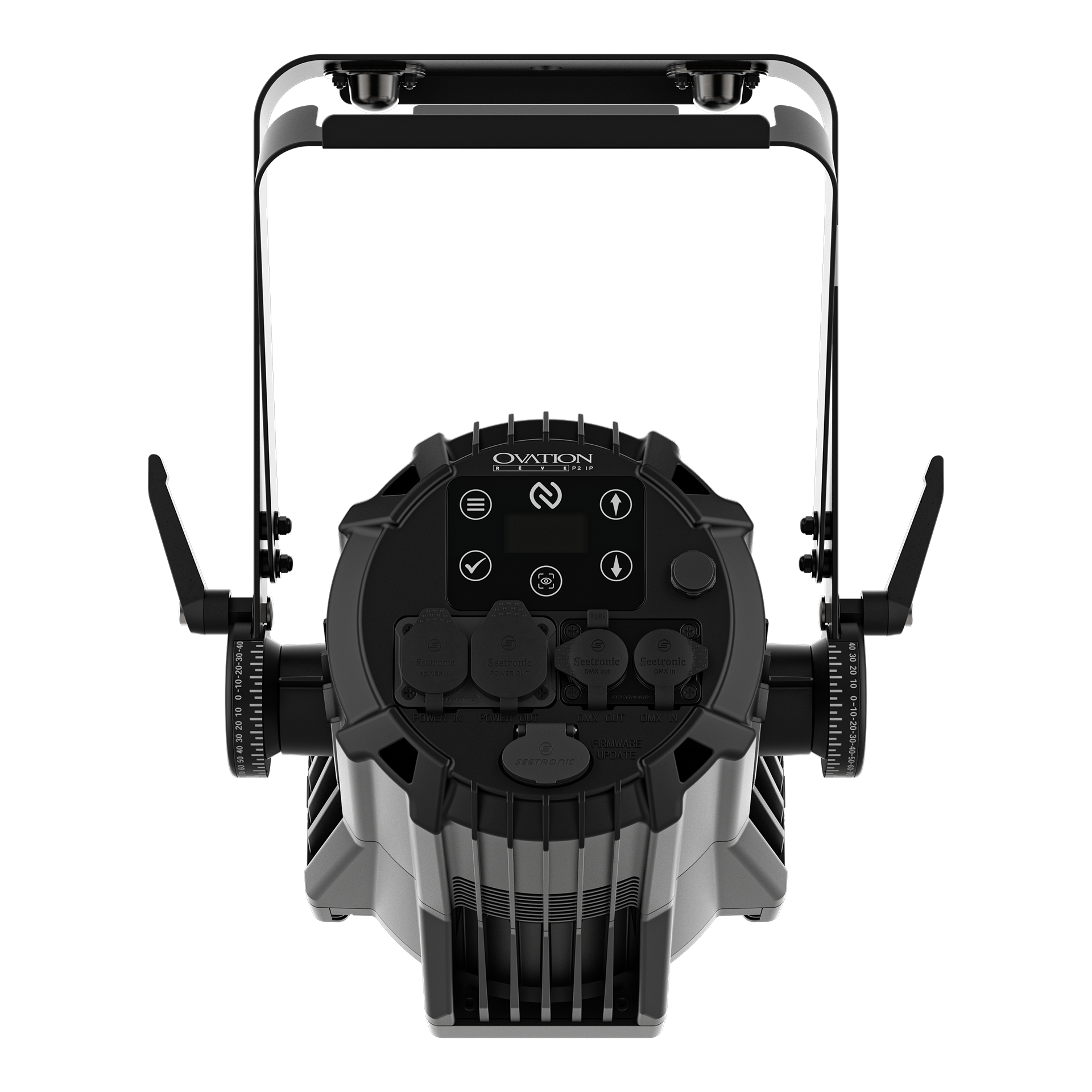

Ovation Rêve P2 IP

The Ovation Rêve P2 IP is a robust, IP65-rated PAR fixture featuring an advanced RGBACM LED engine. This ‘mid-size’ PAR offers significantly higher output, superior color quality, and enhanced versatility. It comes with interchangeable narrow, medium, and wide lenses, making it adaptable for a wide range of applications.

Features

Advanced RGBACM Color Engine

The advanced RGBACM LED system produces a broad spectrum of rich, nuanced colors and pristine whites for superior quality of light.

All-Weather IP65 Design

A rugged IP65-rated housing ensures reliable, consistent performance for outdoor events, architectural facades, and other demanding environments.

Versatile Beam Shaping

Shape your light with precision using the included narrow, medium, and wide lenses, adapting quickly to any application or design need.

Market-Leading Output

Delivers a powerful, high-output beam that cuts through ambient light, making it an ideal replacement for less efficient, older fixtures.

Preliminary Specifications

Details are being finalized and may change before shipping.

Download Product Specs

Optical*

Light Source

RGBCAM LED Array

Request Preliminary Optical Specs

* These specifications are still being finalized.

Dynamic Effects

Dimmer

Electronic
Shutter/Strobe

Electronic
Strobe Rate

0 to 30 Hz
Standalone Color Mixing

Yes
Color Temperature Presets

Yes
Dim Modes

4
Dim Curves

4
Built-in Automated Programs

Yes

Construction/Physical

Dimensions

17.7 x 12.8 x 8.3 in (451.7 x 326 x 213 mm)
Weight

20.2 lb (9.2 kg)
Exterior Color

Black
Housing Material

Aluminum die-cast/Magnesium die-cast
Accessory Holder/Gel Frame Size

#.## in (# mm)
IP Rating

IP65

Connections

Power Connection

Edison (Local) plug to Seetronic Powerkon IP65
Power Input

Seetronic Powerkon IP65
Power Output

Seetronic Powerkon IP65
Data Connectors

5-pin XLR
Cable Length (power)

5 ft (1.5 m)
Software Connection

USB

Control

Control Protocol

DMX, RDM, NFC
DMX Channels

1ch, 4ch, 6ch, 8ch, 12ch, 14ch, 15ch, 19ch, HSV, XY Basic or XY Extended
Modes/Personalities

11 personalities (1ch, 4ch, 6ch, 8ch, 12ch, 14ch, 15ch, 19ch, HSV, XY Basic or XY Extended)

Electrical

Input Voltage

100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking

5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
Power and Current

260 W, 2.16 A @ 120 V, 60 Hz
Power and Current

256 W, 1.23 A @ 208 V, 60 Hz
Power and Current

255 W, 1.12 A @ 230 V, 50 Hz

Battery

Battery type

Lithium Ion
Rechargeable

Yes
Battery Life

12 hours
Battery Power

3.6 V, 200 Ah

Certifications/Qualifications

Compliance

CE, MET, CB, FCC
MET Listing Number
US Safety
- Canadian Safety
  - Thermal Dissipation @ 120V

    819 BTU per hour
  - Thermal Dissipation @ 208V

    819 BTU per hour
  - Thermal Dissipation @ 230V

    819 BTU per hour
Operating Temperature

-4 °F to 122 °F (-20 °C to 50 °C)
Temperature (Ambient)

-4 °F to 113 °F (-20 °C to 45 °C)

Required Accessories

DMX Controller

Compatible Accessories

Controllers: IRC, FCW, ACW, FCT, FCM
Clamps
Barn Doors
RIGLINK powerKON cables
RIGLINK etherKON cables
RIGLINK DMX Cables
Flight Cases
M12 Bolt

What's Included

Ovation Rêve P2 IP
Seetronic Powerkon power cord
Gel frame
Gel frame holder
Narrow, Medium, and Wide Lenses
Omega bracket with mounting hardware
