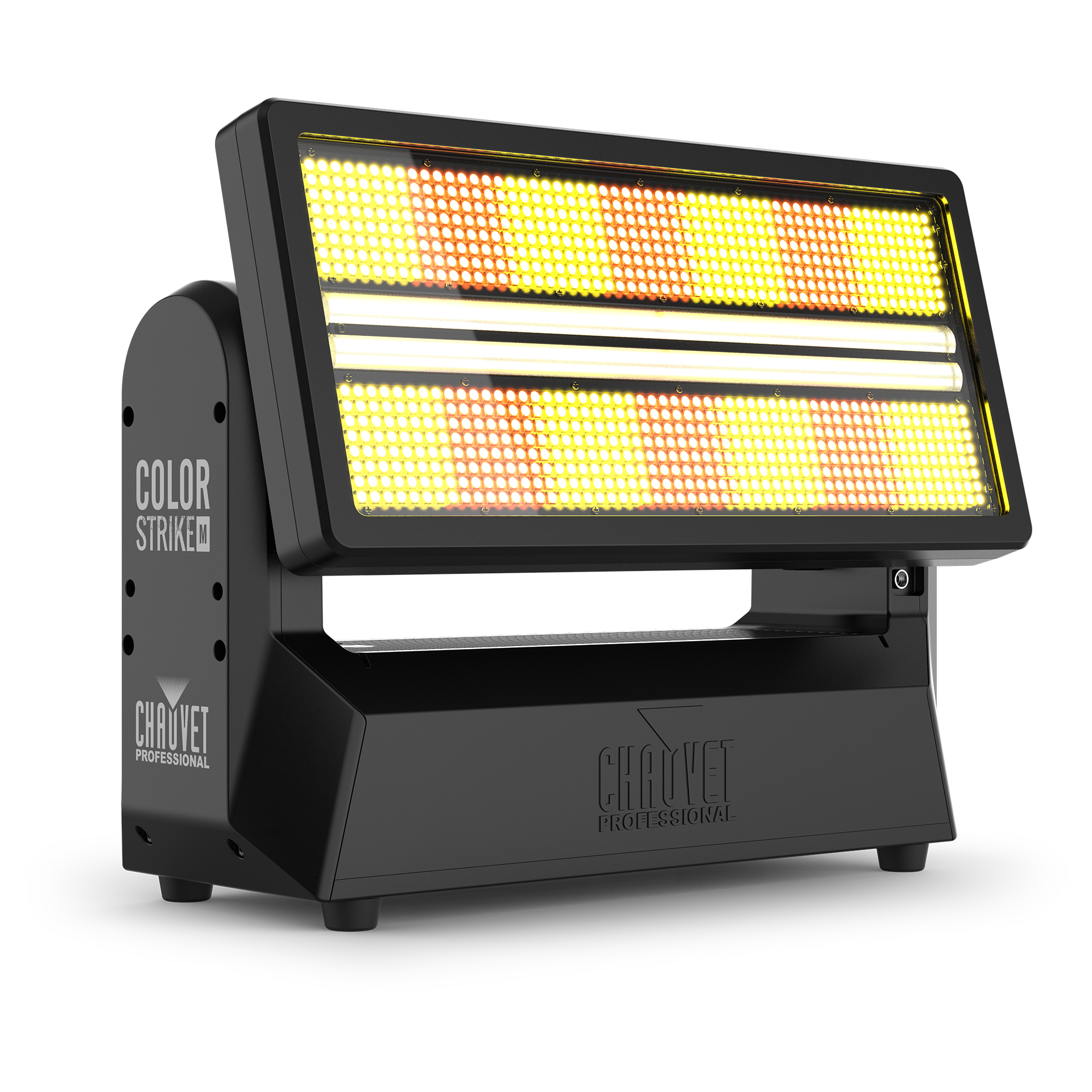

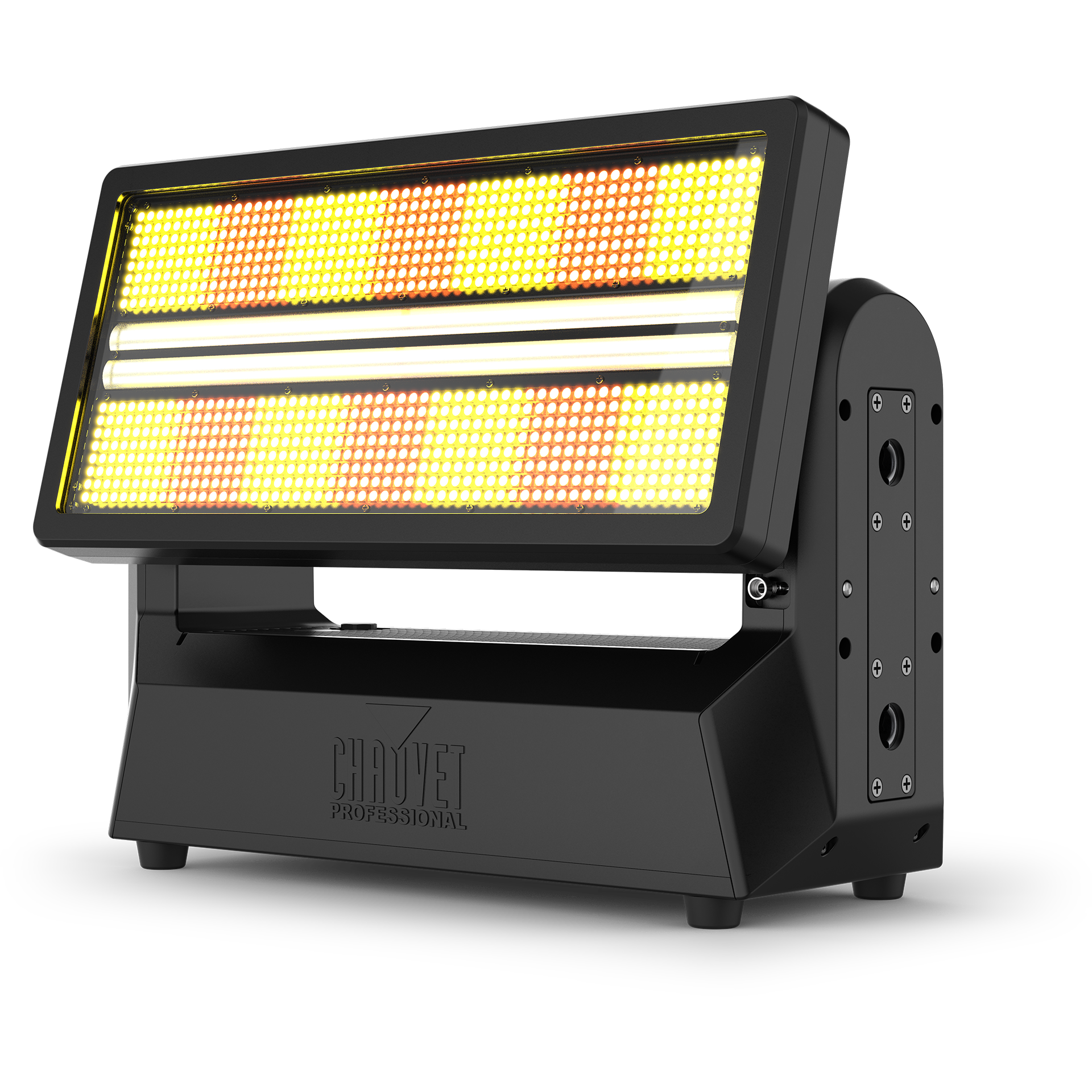

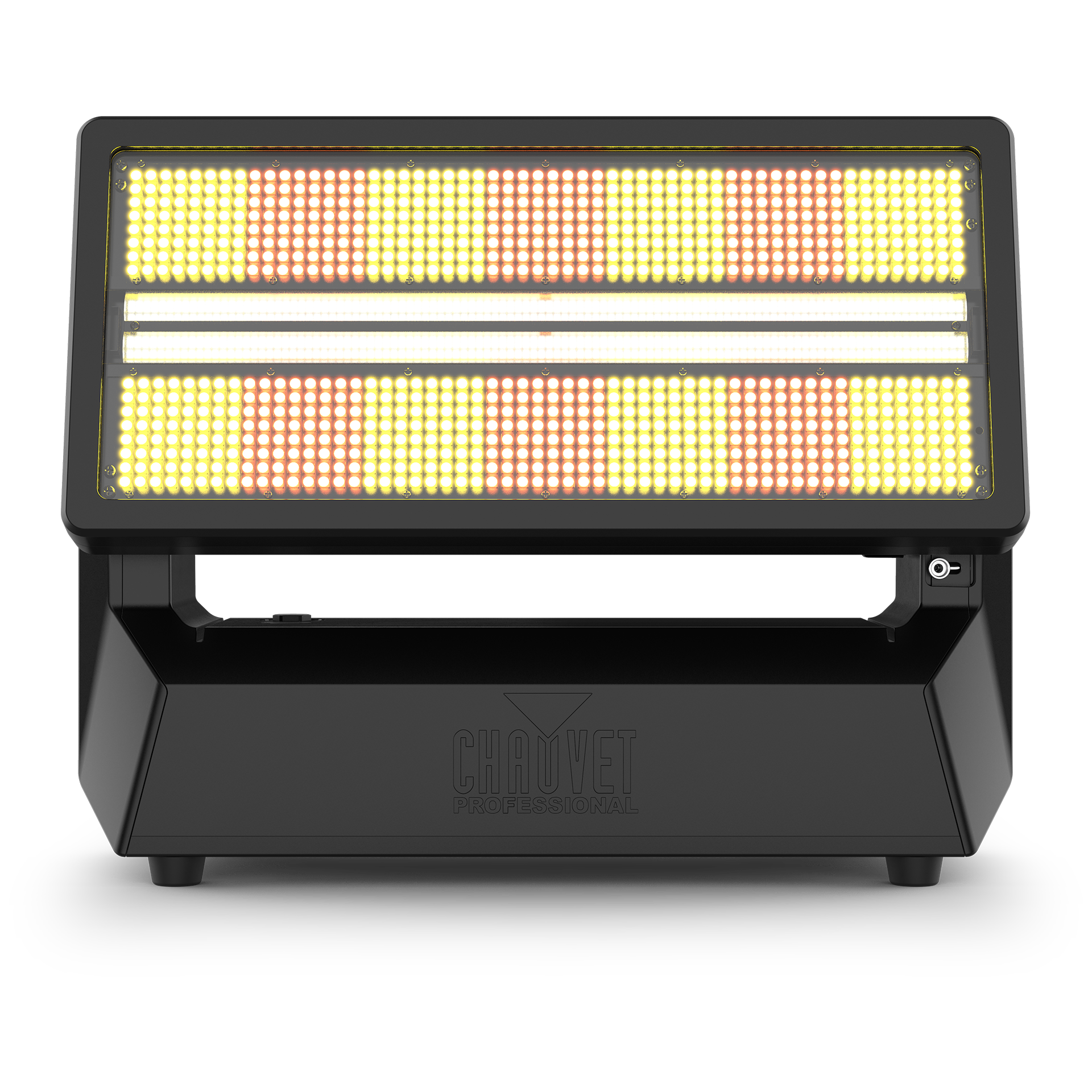

    Color STRIKE M

    SKU: COLORSTRIKEMV2

    Color STRIKE M is an IP65 rated motorized strobe/wash with two ultra-bright, white light tube elements surrounded by an electrifying, color-mixing, and pixel-mappable face. This versatile strobe light can double as a wash fixture with 180° tilt range to throw bright saturated color wherever you need. The IP65 casing protects the fixture from any environmental factors or weather and has two omega-bracket attachments so you can mount the fixture horizontally or vertically without any hassle. Multiple programming personalities give you a varying amount of control from simple set ups with a multitude of built-in effects, or wider control options to take advantage of the pixel-mappable zones: 14 in the RGB face and 28 in the two tube elements. Built-in alignment pins insure perfectly straight linear arrays to create massive arrangements. DMX, Art-net, and sACN control.

    Features

    Tilting Hybrid Strobe and Wash

    A high-power fixture combines strobe and wash effects with a 180-degree tilting head for dynamic positioning.

    All-Weather IP65 Rating

    Ensures reliable performance in any environment, making it suitable for all-weather outdoor use.

    Extensive Pixel Control

    Features 14 controllable RGB sections and 28 white strobe sections for creating detailed visual effects.

    Versatile Rigging Options

    A repositionable yoke with quarter-turn adaptors offers creative mounting in horizontal or vertical orientations.

    Built-In Effect Macros

    Includes a multitude of pre-programmed effects with adjustable parameters for quick and easy setup.

    Flexible Control Protocols

    Supports DMX, ArtNet, and sACN to seamlessly integrate into any professional lighting system.

    Easy-to-Use OLED Display

    Provides a clear and simple interface for on-board fixture configuration and settings adjustments.

    Rugged Design

    Engineered for years of rough use and reliable performance in the most extreme conditions.

    Advanced System Flexibility

    Offers adjustable Pulse Width Modulation (PWM) and Remote Device Management (RDM) for added control.

    USB Software Updates

    A convenient USB port allows for simple fixture software updates to add new features and improvements.

    Integrated Alignment Pins

    Ensures multiple units can be linked together to form perfectly straight linear arrays.

    Latest News

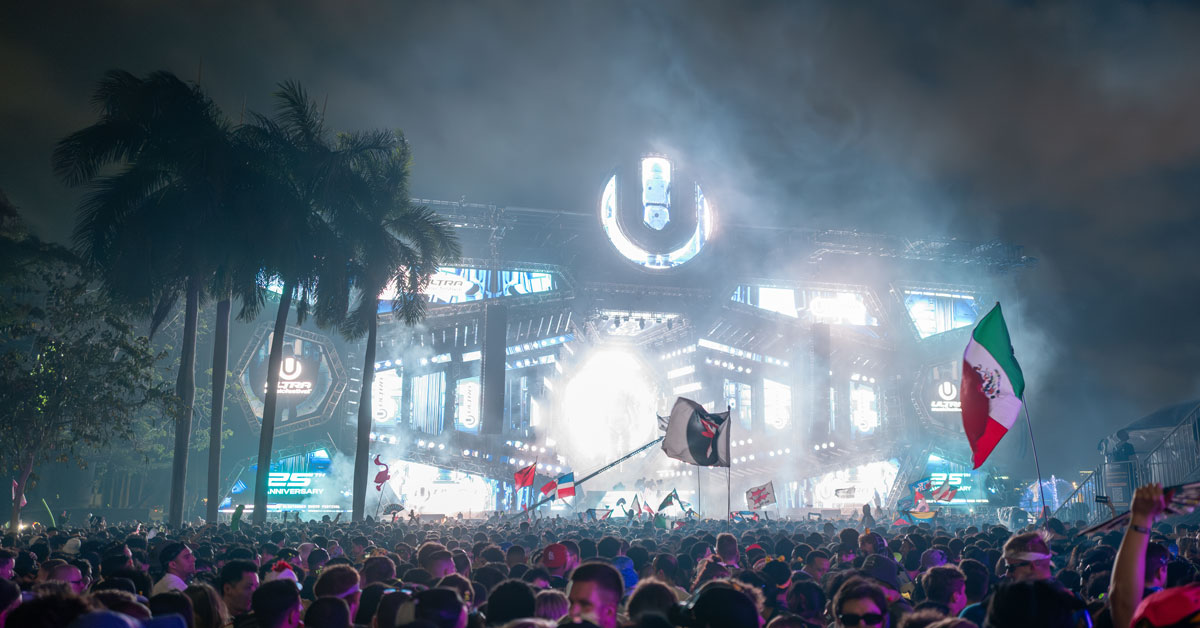

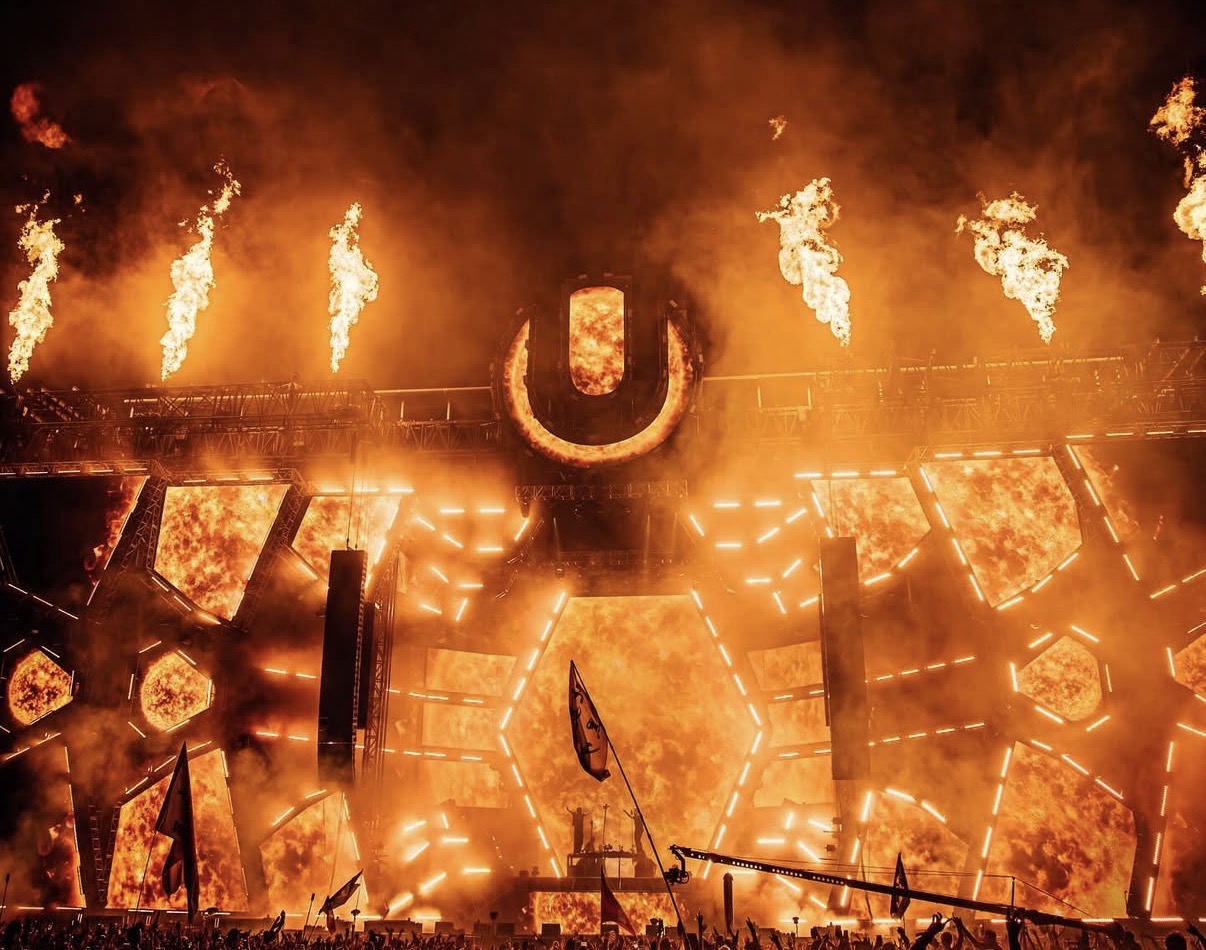

    TAG Supplies 264 CHAUVET Professional Fixtures For Patrick Dierson’s Ultra Main Stage Lighting Design
    Lighting designer Patrick Dierson elevates the Ultra Music Festival main stage with a geometric, high-impact rig.
    Read more
    Liam Griffiths and Vision Factory Accent Arthur Hill’s World at Wembley with CHAUVET Professional
    Creative Director Liam Griffiths uses light to craft an intimate, surreal world for Arthur Hill at Wembley.
    Read more
    CHAUVET Professional and LD Systems Help Willis Underhill Set Party Atmosphere at Austin Rodeo for Diamond Rio
    LD Willis Underhill creates a dynamic party atmosphere for Diamond Rio on a unique rotating stage.
    Read more
    Coachella Chauvet!
    CHAUVET Professional fixtures deliver powerful looks for top artists across the stages of Coachella.
    Read more
    CHAUVET Professional Helps Moshe Baskin Create We Belong Here Festival’s Engaging Vibe
    Lighting designer Moshe Baskin crafts an immersive, holistic environment for the We Belong Here festival.
    Read more

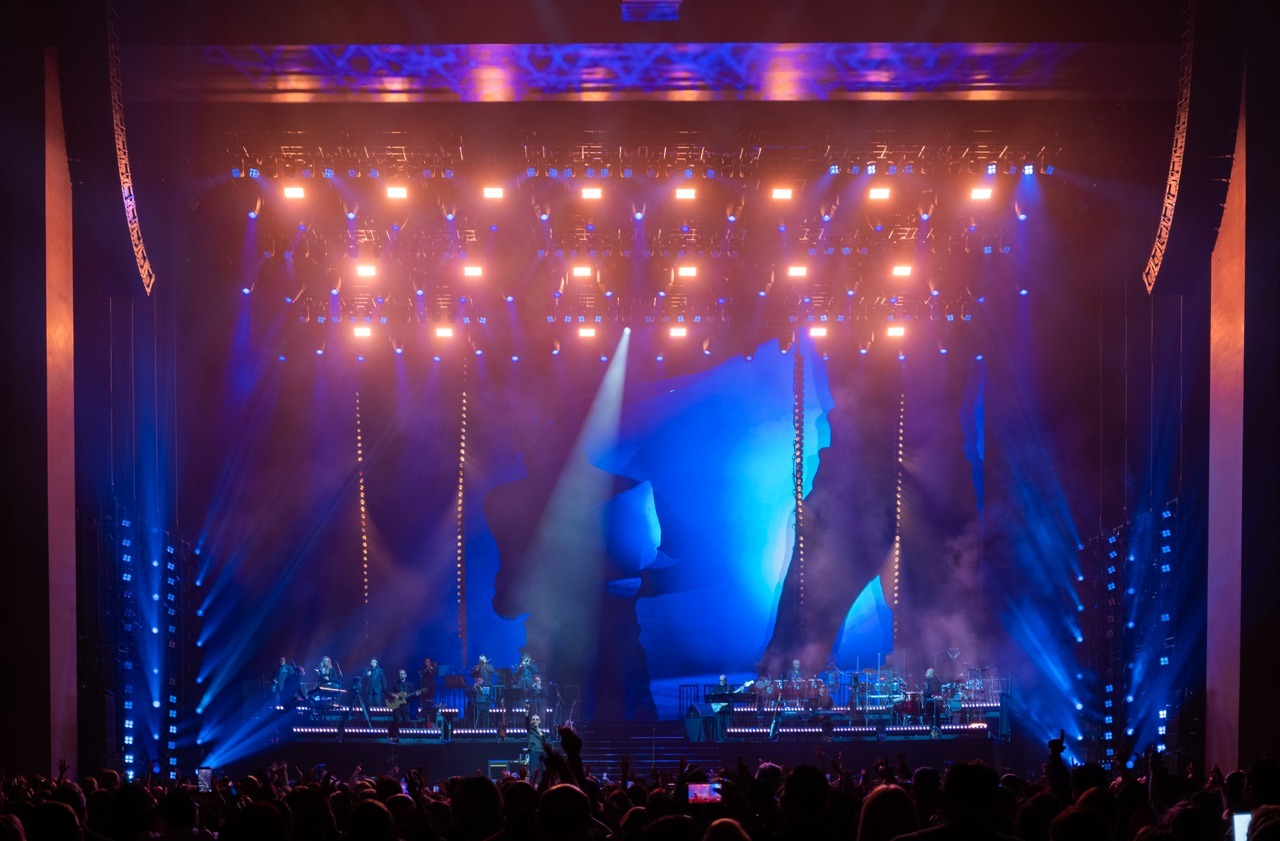

    Lightswitch’s Ignacio Rosenberg Creates Special Moments for Marc Anthony’s Las Vegas Residency with CHAUVET Professional Color STRIKE M
    Ignacio Rosenberg harnesses the house rig’s Color STRIKE M for Marc Anthony’s vibrant Vegas residency.
    Read more
    TAG Supplies 264 CHAUVET Professional Fixtures For Patrick Dierson’s Ultra Main Stage Lighting Design
    Lighting designer Patrick Dierson elevates the Ultra Music Festival main stage with a geometric, high-impact rig.
    Read more
    Liam Griffiths and Vision Factory Accent Arthur Hill’s World at Wembley with CHAUVET Professional
    Creative Director Liam Griffiths uses light to craft an intimate, surreal world for Arthur Hill at Wembley.
    Read more
    CHAUVET Professional and LD Systems Help Willis Underhill Set Party Atmosphere at Austin Rodeo for Diamond Rio
    LD Willis Underhill creates a dynamic party atmosphere for Diamond Rio on a unique rotating stage.
    Read more
    Coachella Chauvet!
    CHAUVET Professional fixtures deliver powerful looks for top artists across the stages of Coachella.
    Read more
    CHAUVET Professional Helps Moshe Baskin Create We Belong Here Festival’s Engaging Vibe
    Lighting designer Moshe Baskin crafts an immersive, holistic environment for the We Belong Here festival.
    Read more
    Lightswitch’s Ignacio Rosenberg Creates Special Moments for Marc Anthony’s Las Vegas Residency with CHAUVET Professional Color STRIKE M
    Ignacio Rosenberg harnesses the house rig’s Color STRIKE M for Marc Anthony’s vibrant Vegas residency.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

    • Light Source

      896 LEDs (tri-color) SMD 5050, 0.784 W, (252 mA), 50,000 hours life expectancy

    • Light Source

      432 LEDs, (CW) 1.56 W, (696 mA), 5861K, 50,000 hours life expectancy

    • Color Temperature (at full)

      7757 K

    • CRI

      90.3

      • Beam Angle
        • (Combine)

          98° x 57°

        • (Plate)

          123°

        • (Beam)

          95° x 50°

      • Field Angle
        • (Combine)

          146° x 122°

        • (Plate)

          160°

        • (Beam)

          138° x 100°

    • Lumens (Combined)

      71,620

    • Lumens (Plate)

      18,600

    • Lumens (Beam)

      54,381

      • Illuminance
        • Illuminance (Combined)

          1591 lux @ 5 m

        • Illuminance (Plate)

          231 lux @ 5 m

        • Illuminance (Beam)

          1432 lux @ 5 m

    • Selectable PWM

      600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

    Dynamic Effects

    • Tilt

      180°

    • Tilt Ranges

      0° to 180°

    • Dimmer

      Electronic

    • Shutter/Strobe

      Electronic

    • Strobe Rate

      0 to 30 Hz

    • Standalone Color Mixing

      Yes

    • Dim Modes

      4

    • Built-in Automated Programs

      Yes

    Construction/Physical

    • Dimensions

      16.02 x 6.90 x 12.30 in (407 x 175.4 x 312.5 mm)

    • Weight

      26.6 lb (12.1 kg)

    • Exterior Color

      Black

    • Housing Material

      Magnesium alloy

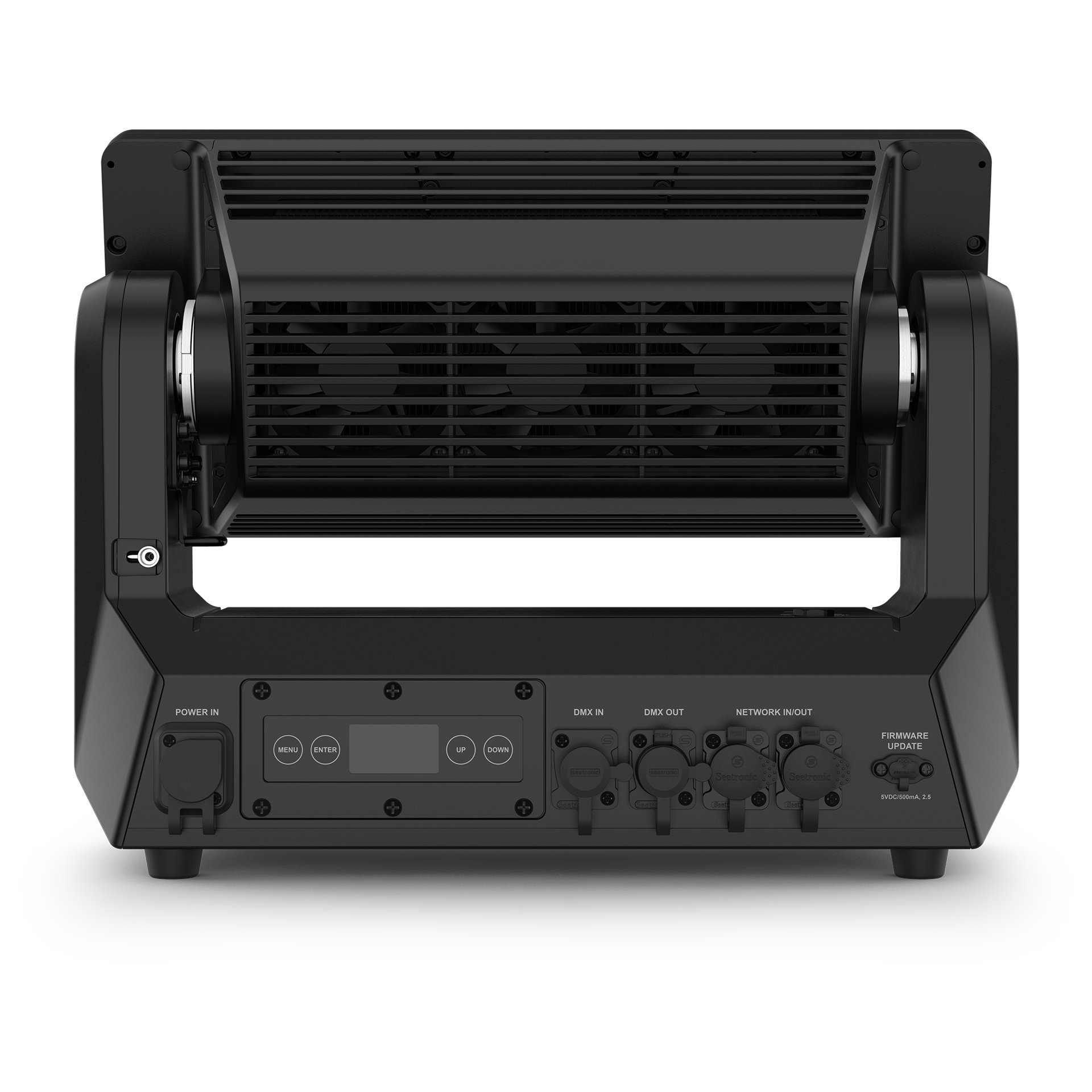

    Connections

    • Power Connection

      Edison (Local) plug to Seetronic Powerkon IP65

    • Power Input

      Seetronic Powerkon IP65

    • Data Connectors

      5-pin IP65 XLR, Seetronic etherCON IP65

    • Cable Length (power)

      5 ft (1.5 m)

    Control

    • Control Protocol

      Art-Net, DMX, RDM, sACN

    • DMX Channels

      8, 11, 13, 24, 30, 47, 68, 74 or 97

    • Art-Net Channels

      8, 11, 13, 24, 30, 47, 68, 74 or 97

    • Modes/Personalities

      8 personalities (8, 11, 13, 24, 30, 47, 68, 74, 97)

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power and Current

      720 W, 7.14 A @ 100 V, 60 Hz

    • Power and Current

      740 W, 6.36 A @ 120 V, 60 Hz

    • Power and Current

      716 W, 2.35 A @ 208 V, 60 Hz

    • Power and Current

      696 W, 3.27 A @ 230 V, 50 Hz

    • Power and Current

      709 W, 3.02 A @ 240 V, 50 Hz

    Certifications/Qualifications

    • Certifications

      CE, MET, FCC,

    • IP Rating

      IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

    • Temperature (Ambient)

      14 °F to 113 °F (-10 °C to 45 °C)

    Compatible Accessories

    • Professional Clamps: CTC-50HC, CTC-50HCN
    • Safety Cable: SC-08
    • IP Rated Seetronic® Powerkon Extensions
    • IP Rated DMX cables
    • IP Rated EtherCon Cables
    • UPLOAD 03 software uploader

    What's Included

    • Color STRIKE M
    • Seetronic Powerkon IP65 power cord
    • Omega bracket

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    Color STRIKE M – Quick Reference Guide
    		Download
    Manuals
    Color STRIKE M – User Manual
    		Download
    Drawings
    Color STRIKE M – 2D CAD Drawings
    		Download
    Drawings
    Color STRIKE M – 3D CAD Drawings
    		Download
    DMX
    Color STRIKE M – DMX Chart
    		Download
    Drawings
    Color STRIKE M – IES File
    		Download
    Photometrics
    Color STRIKE M – Photometric Report
    		Download
    Other
    Color STRIKE M – Firmware
    		Download

    Learn How To Use Your Color STRIKE M

    Explore these detailed videos showcasing setup, features, and creative applications for this product.

    • Big & Bold NYE 2025! #BTS at Fontainebleau Miami Beach with LD Tyler Frank

      Go behind the scenes at the Fontainebleau Miami Beach as LD Tyler Frank transforms the iconic poolside venue for a bold New Year’s Eve party. Discover how a powerful, IP65-rated rig of CHAUVET Professional fixtures delivered stunning looks for this legendary outdoor celebration.

    • #bts at LOLLAPALOOZA 2024 with LD Steven Douglas & The Killers

      Go behind the scenes at Lollapalooza with Lighting Designer Steven Douglas for The Killers’ headline show. Discover how he commands a rig of CHAUVET Professional IP-rated fixtures to deliver massive, punchy looks that connect the band with a huge festival audience for an unforgettable rock show.

    • Live from Central Park! It’s SummerStage 2024 with Spencer Lavoie

      Go behind the scenes at SummerStage 2024 as Spencer Lavoie reveals his lighting rig. Discover how all-weather CHAUVET Professional fixtures deliver vibrant, high-impact looks for New York’s iconic outdoor festival, rain or shine.

    • Go #bts with LD Krizia Velez & CHAUVET Professional on Bad Bunny’s “Most Wanted” Tour

      Go behind the scenes on Bad Bunny’s “Most Wanted” Tour with Lighting Director Krizia Velez. See how CHAUVET Professional Color STRIKE M and COLORado PXL Curve 12 fixtures delivered powerful, versatile lighting for a massive 360-degree arena production.

    • TOTAL IMMERSION at #coachella2024 with LD Eliot Jessep & CHAUVET Professional

      Lighting Designer Eliot Jessep reveals how he used CHAUVET Professional fixtures for Peso Pluma’s immersive Coachella performance. Discover how powerful, all-weather strobes and hybrids delivered bold color and dynamic effects to engage the audience in a massive festival environment.

    • Creating EPIC Festival Vibes at #coachella2024 with LD Marcus Jessup & CHAUVET Professional

      Lighting Designer Marcus Jessup shares how he used CHAUVET Professional fixtures, including the Color STRIKE M and Maverick STORM 1 Hybrid, to create a punchy, theatrical design for Peso Pluma’s main stage show at Coachella 2024.

    • #bts with Gravitate Productions at ULTRA Music Festival’s Radio Stage

      Gravitate Productions explains why they chose CHAUVET Professional for the ULTRA Music Festival Radio Stage. See how our IP65-rated fixtures deliver powerful, weather-resistant performance for the world’s most demanding outdoor events.

    • MGM Grand BTS with LD Alain Corthout at Alejandro Fernández “Amor y Patria”

      Go behind the scenes with LD Alain Corthout at the MGM Grand for the Alejandro Fernández “Amor y Patria” tour. See how CHAUVET Professional IP65-rated strobes and battens empower designers to create dynamic, impactful lighting for massive concert productions with versatile, pixel-mapped effects.

    • Behind The Scenes at Motion 2023 with Church of the Highlands

      Go behind the scenes at Motion 2023 as designers use an all CHAUVET Professional rig to create an immersive worship experience. See how they commanded an arena-scale production for 12,000 students, using powerful fixtures to connect with the audience from any seat.

    • BTS National Happy Belgium Concert Celebration at Parc du Cinquantenaire

      See how over 230 CHAUVET Professional IP65 fixtures delivered flawless performance for Belgium’s national celebration. The rig illuminated the massive stage and historic architecture for 60,000 attendees and a national broadcast, proving its power and reliability in a demanding outdoor concert environment.

    • Burna Boy: Behind the Scenes with Lighting Designer Anthony Hazelden

      Go behind the scenes with Burna Boy’s lighting designer, Anthony Hazelden, at Citi Field. See how CHAUVET Professional fixtures deliver the brightness and IP-rated power needed to light up massive stadium shows for live audiences and broadcast cameras, creating a vibrant, circus-themed spectacle.

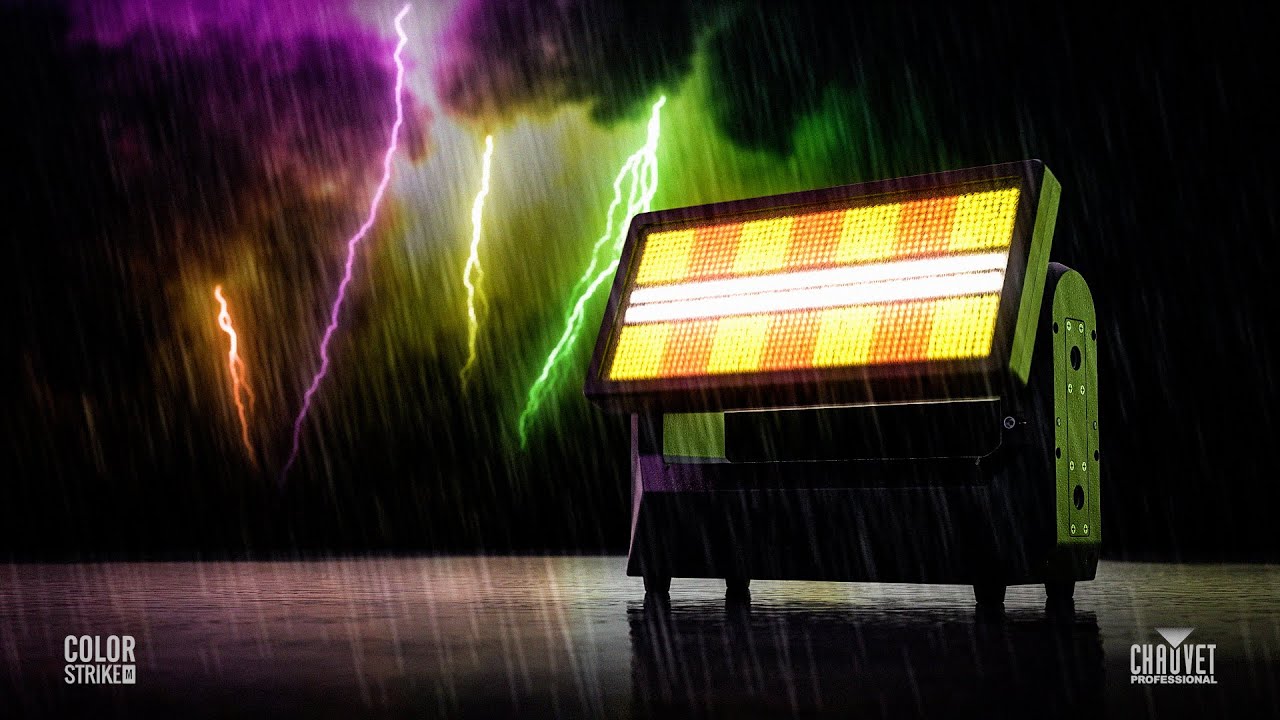

    • Bring On The Rain with Color STRIKE M
