REM 1 SQ
A high-resolution 1.9mm pitch indoor video wall solution featuring integrated curving capabilities, an expanded DCI-P3 color gamut, and high-performance processing for exceptional visual quality.
Perfect for high-impact applications such as exhibits, houses of worship, corporate installations, and other indoor events that demand superior image fidelity and low latency.
-
Delivers a calibrated 800 NITS brightness with a wide 140-degree viewing angle.
-
Features black body LEDs and 22-bit+ grayscale for exceptional color depth and contrast.
-
Powered by high-performance drivers for a smooth 3,840 Hz flicker-free refresh rate.
-
Houses hot-swappable magnetic LED modules for fast, tool-free service and maintenance.
-
Offers versatile rigging options including overhead hanging, ground stacking, and wall mounting.
-
Built with corner protectors and an anti-reflective mask for enhanced durability and viewing.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
REM 1 SQ

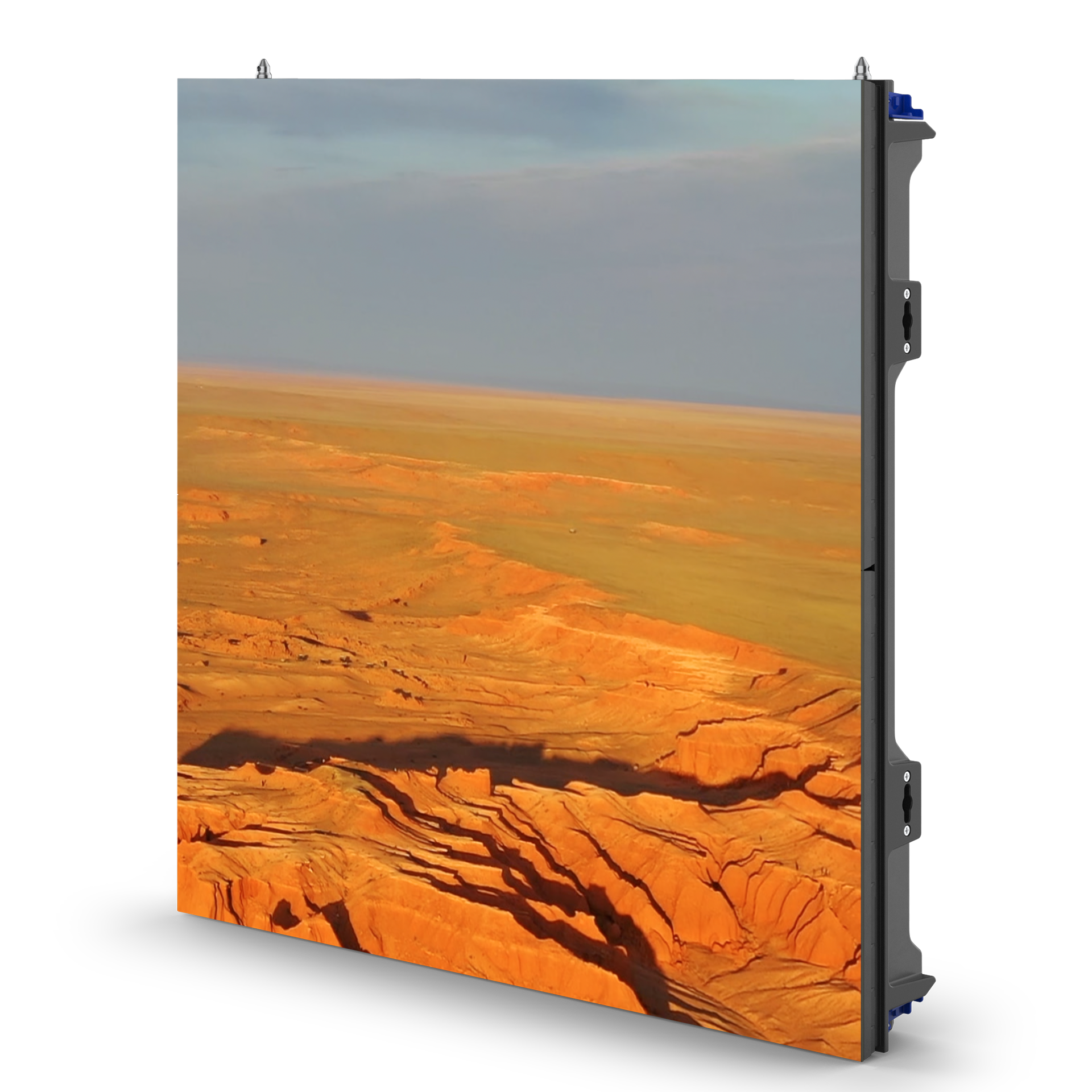

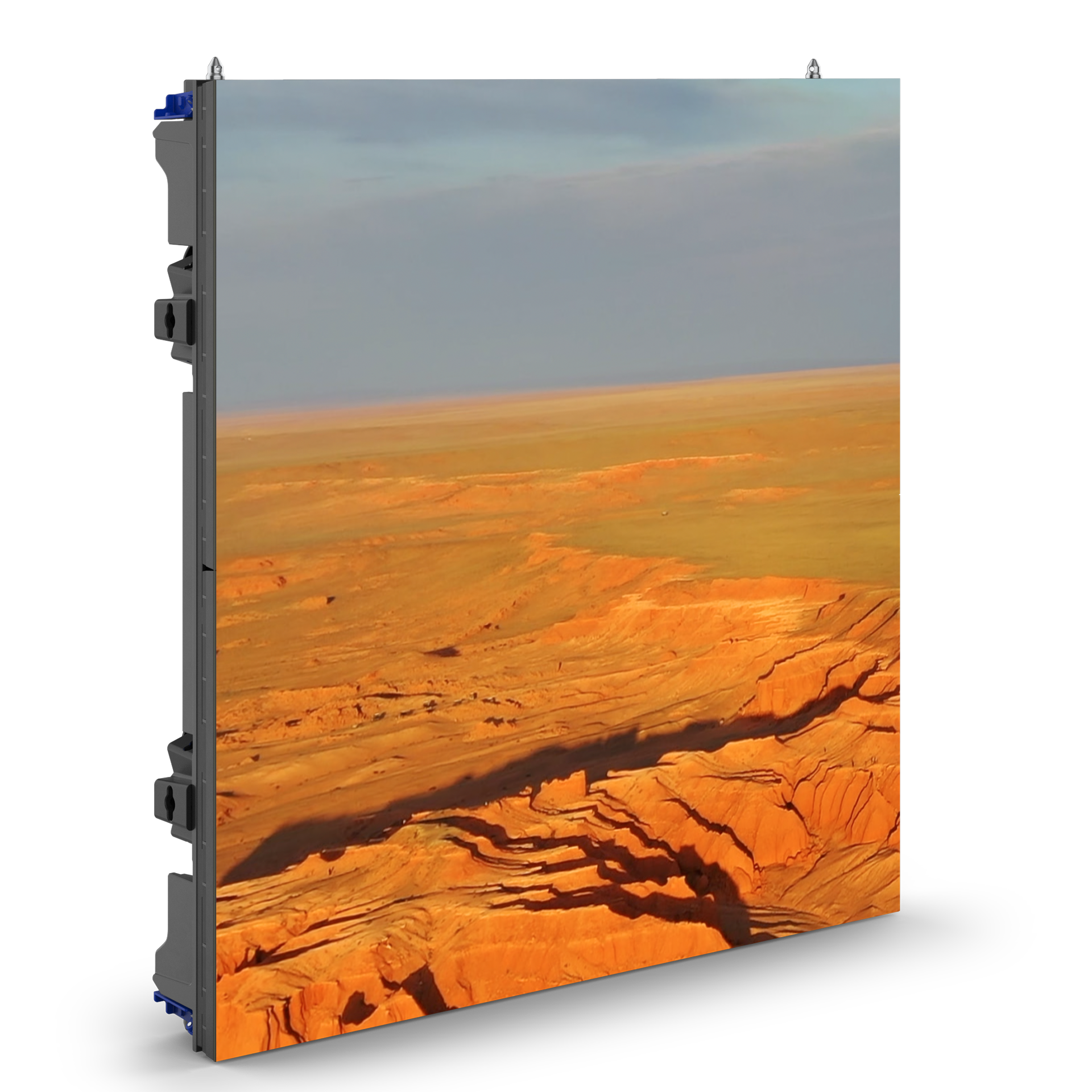

REM 1 SQ is a high-resolution 800 NITS indoor video wall solution with a 1.9mm pitch, integrated convex/concave curving capabilities, and universal magnetic LED modules. Its DCI-P3 color gamut LEDs offer 26% more color possibilities compared to standard sRGB/Rec.709 LEDs. With high-speed 7680Hz LED drivers, A10s Pro Novastar Receiving cards, and low latency, REM 1 SQ offers top-tier performance and signal processing for exhibits, houses of worship, installations and indoor events.
Features

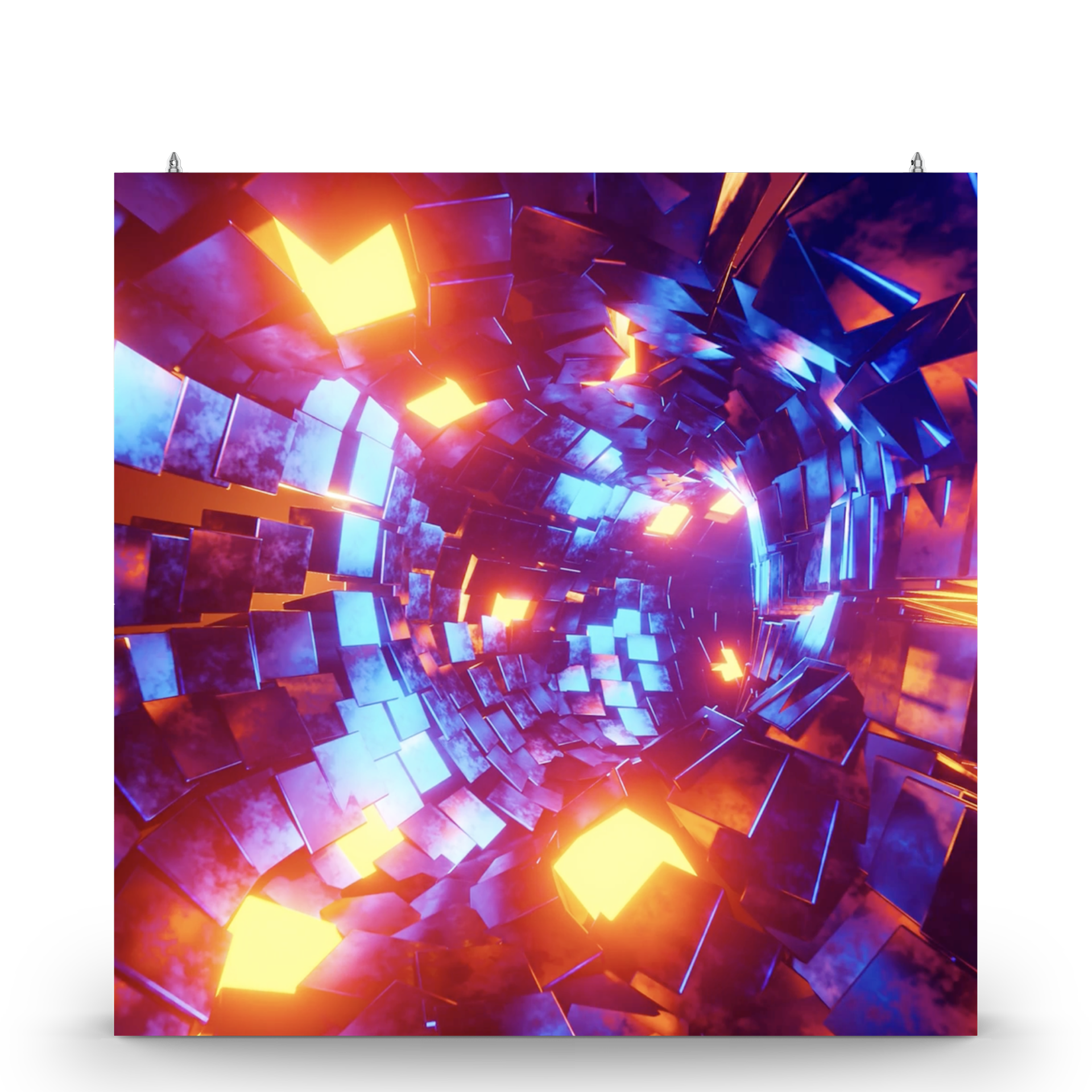

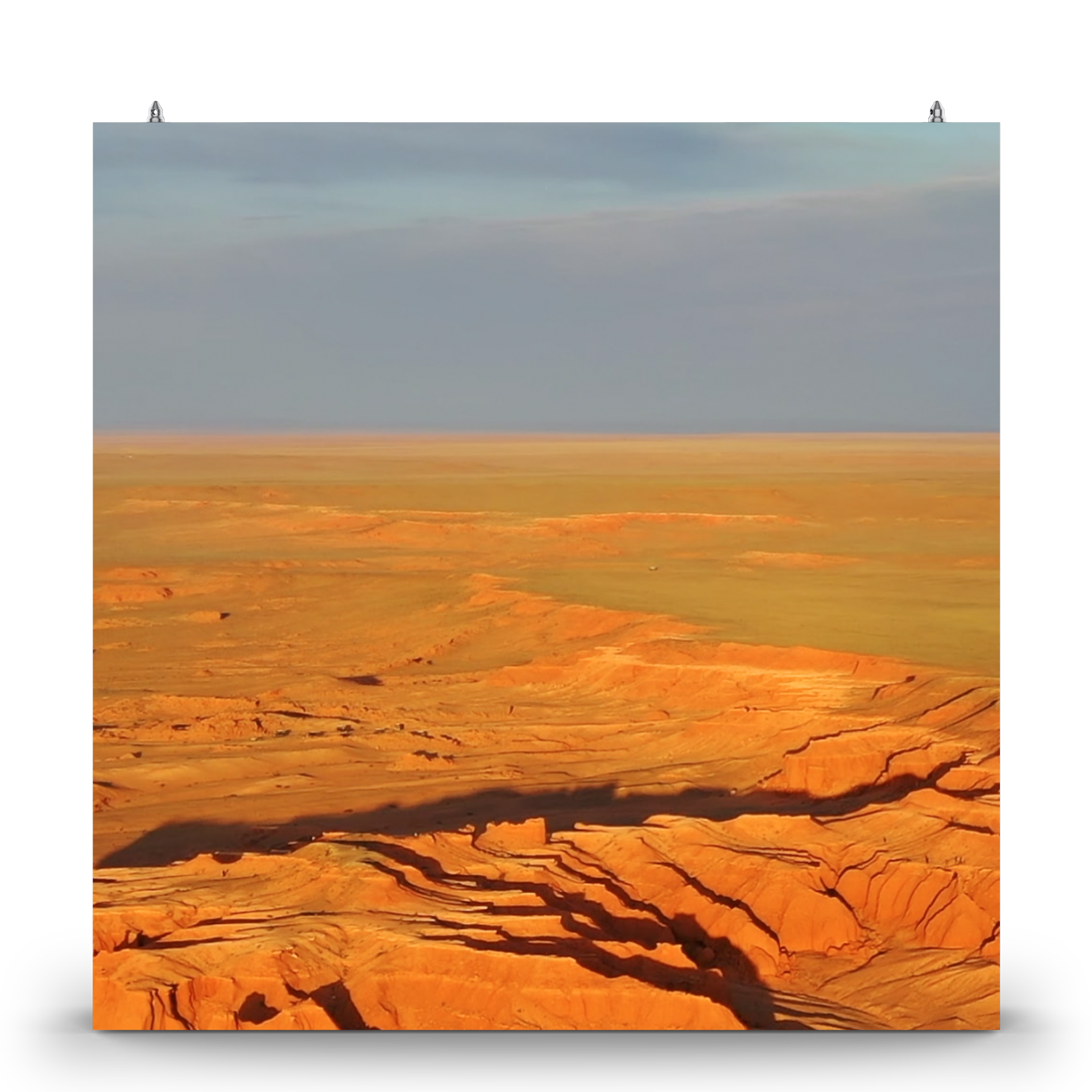

Ultra-High Resolution Display
This indoor video panel features a 1.9 mm pixel pitch for ultra-high resolution in a convenient 500 x 500 mm form factor.
Novastar MX40 Pro Sender
Easily map and scale your video wall using the integrated Novastar MX40 Pro sender.
Exceptional Color Reproduction
Black body LEDs and the premium A10s Pro receiver card deliver a wide color gamut in the DCI-P3 space with 22-bit+ grayscale.
High Refresh Rate
High-performance LED drivers provide a smooth 3,840 Hz refresh rate suitable for high-demand applications.
Hot-Swappable Magnetic Modules
Magnetic LED modules can be hot-swapped and store factory calibration data for consistent performance and uniformity.
Versatile Rigging Options

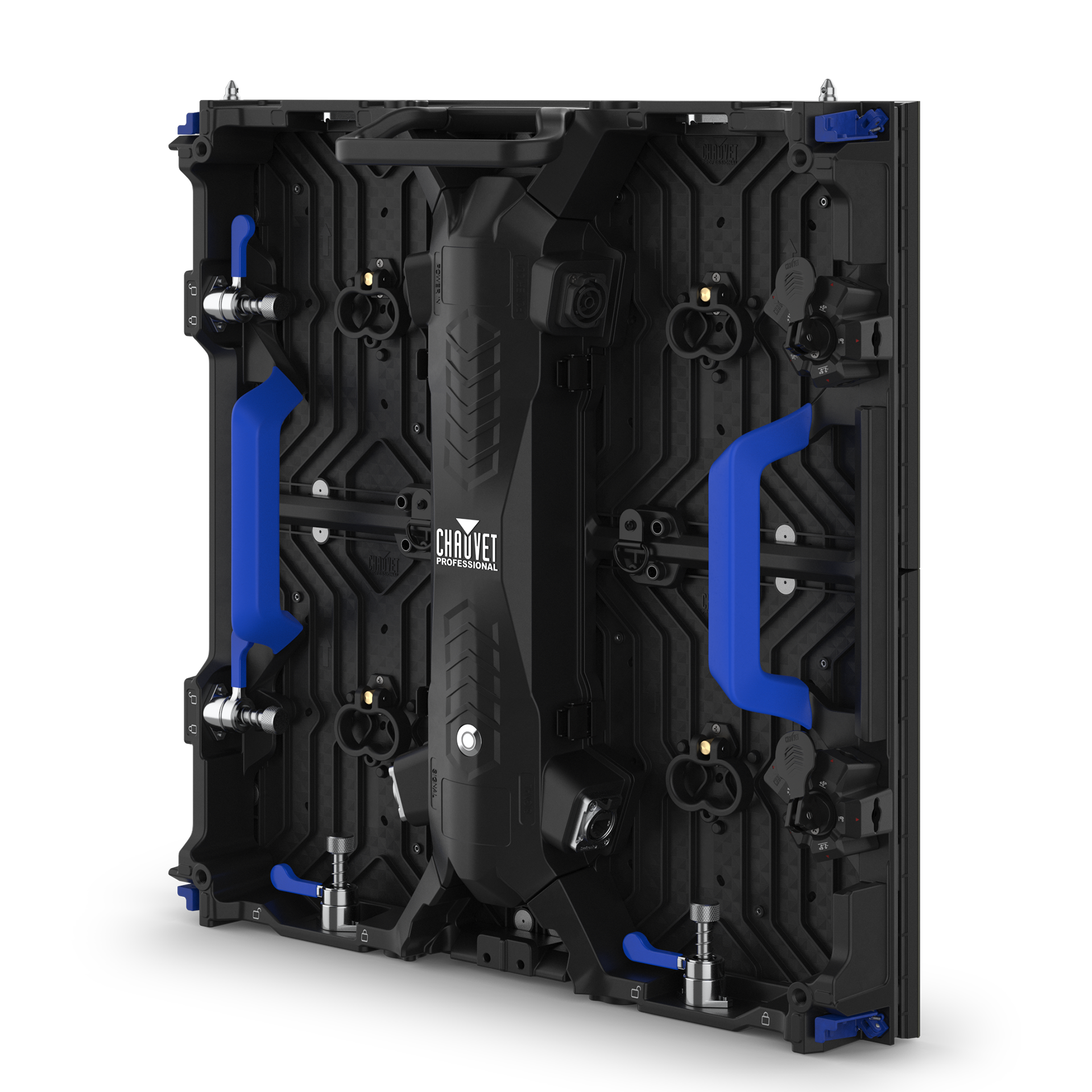

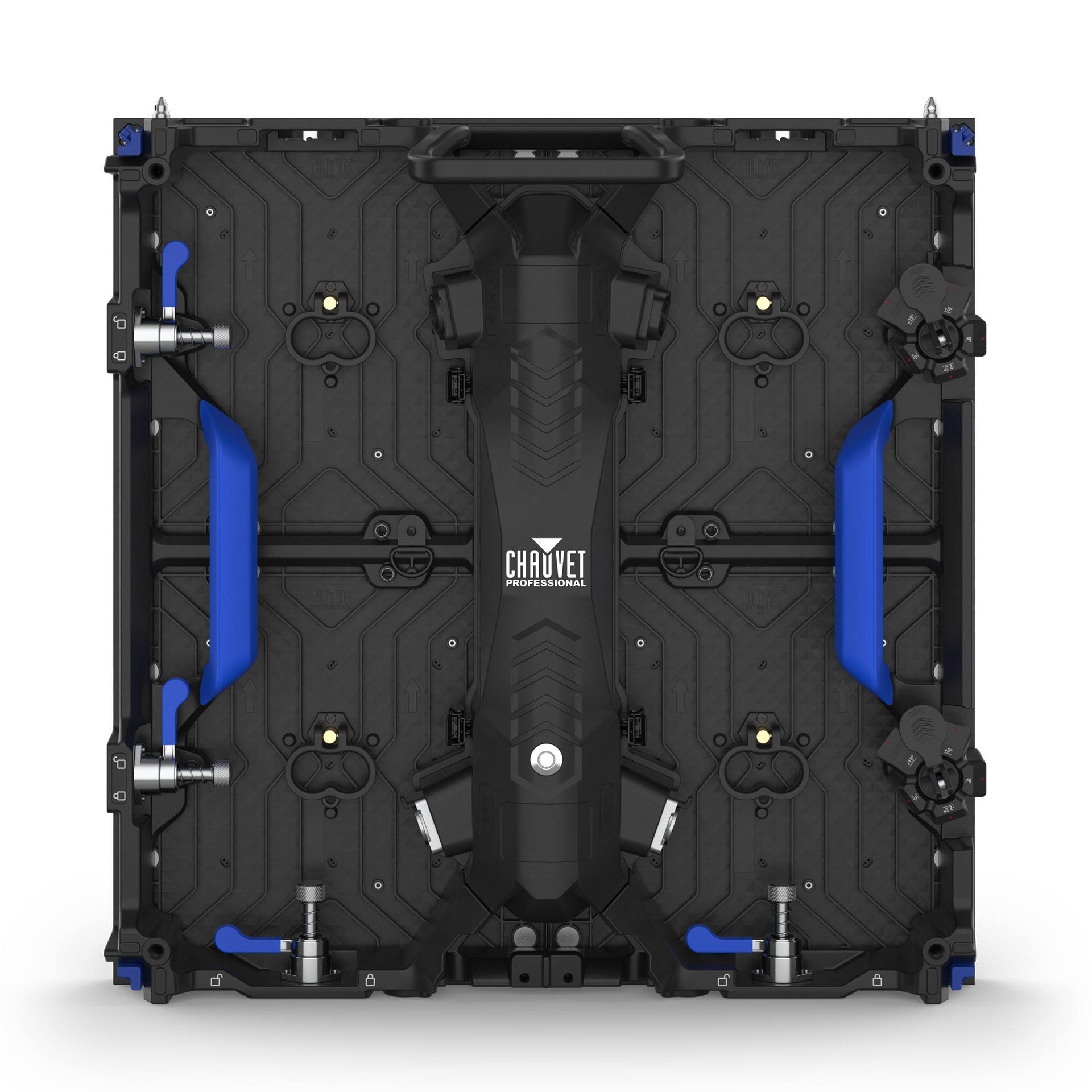

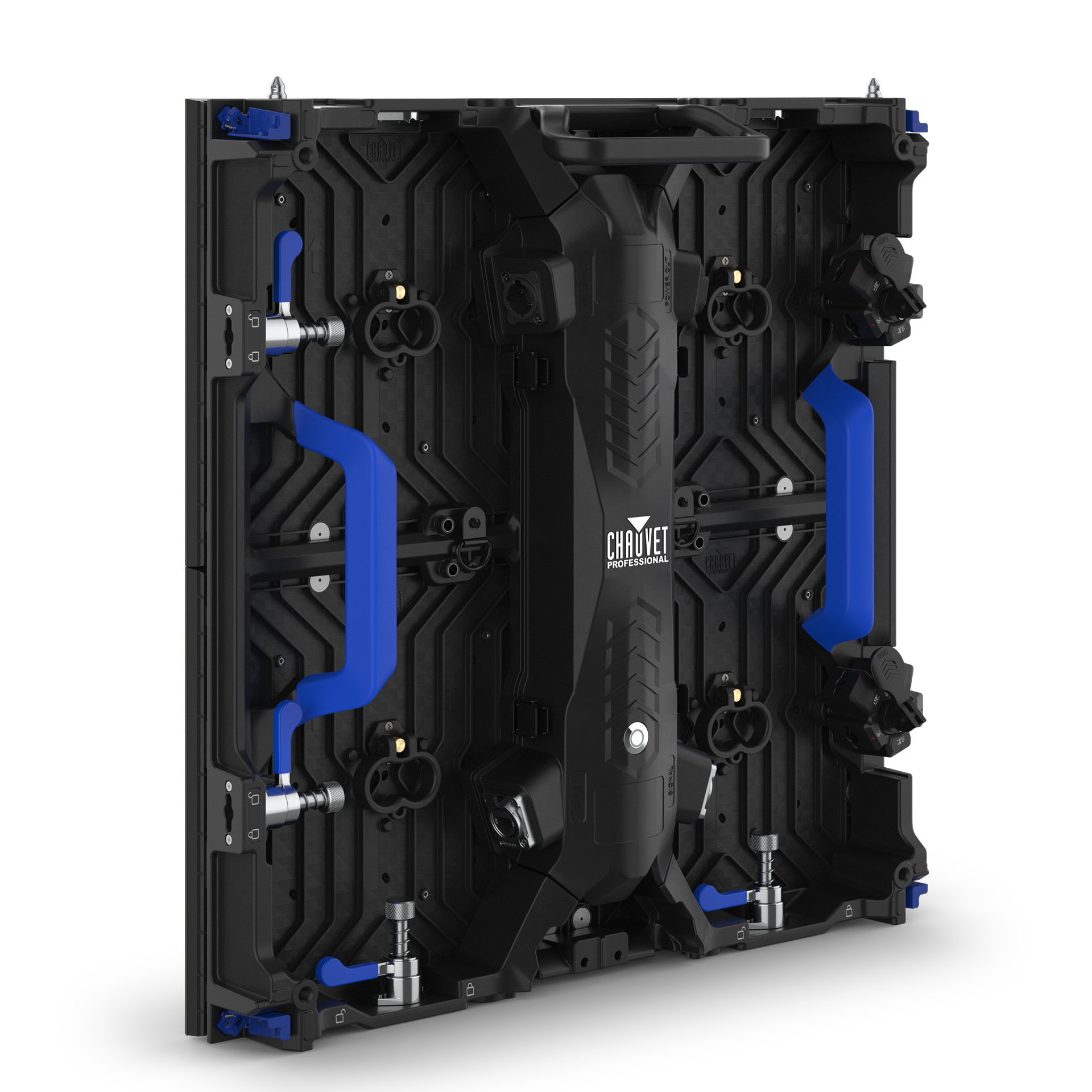

A specialized frame design supports overhead hanging, ground stacking, and wall mounting for maximum application flexibility.
Enhanced Durability and Protection
Corner protectors and a specialized board design provide superior impact resistance while a resilient mask protects LEDs and improves viewing angles.
Magnetic Assisted Hanging
Strong magnets assist with hanging, enabling fast and easy setup that requires minimal crew.
Anti-Reflective Coating
A specialized coating on the LED modules reduces glare and ensures optimal viewing comfort.
Optional Ground Support System
An available ground support and stacking system comes in a scalable road case for easy transport and deployment.
Complete Your Rig
Specifications
Optical
-
Light Source
65,536 LEDs (tri-color RGB) SMD 1212, 50,000 hours life expectancy
-
Color Wavelength
red (620 to 625 nm), green (510 to 535 nm), blue (458 to 475 nm)
-
LED Color Space
DCI-P3
-
Viewing Angle (H/V)
140°/140°
-
Calibrated Illuminance
800 NITS
-
Maximum Illuminance
>1,000 NITS
-
Contrast Ratio
T.B.D.:1
-
Grayscale
22-bit+
-
Receiver Card
A10s Pro
-
Drive Type
(scan mode) : 1/32
-
Pixels
256 x 256
-
Pixel Pitch
1.9 mm
-
Minimum Viewing Distance
7.5 ft (2.3 m)
-
Pixel Density
262,144/m2
-
Display Refresh Rate
3,840 Hz (S-PWM)
Construction/Physical
-
Dimensions
19.69 x xxx x 39.37 in (500 x xxx x 500 mm)
-
Weight
18.2 lb (8.26 kg)
-
Threaded Bolt
M10, 1.5
-
Exterior Color
Black
-
Housing Material
Aluminum ADC12
-
LED Module Material
Glass filled polycarbonate
-
Maximum vertical hang
11 panels
Connections
-
Power Connection
Edison (local) plug to Seetronic® powerKON®
-
Power Input
Seetronic® powerKON®
-
Power Output
Seetronic® powerKON®
-
Data Connectors
Seetronic® etherKON®
-
-
Cable Length
-
(Signal Extension)
5 ft (1.5 m)
-
(Power)
5 ft (1.5 m)
-
(Power Extension)
6.56 ft (2.0 m)
-
-
Cable Length
Control
-
Control Protocol
Novastar Coex VMP
-
Panel Resolution (L x H)
256 x 256
-
-
Maximum Panels / Novastar MX40 Pro (20 ports)
-
HDR off, 24 Hz — 8-bit
25/port, up to 500/Processor/Sender
-
HDR off, 24 Hz — 10-bit
18/port, up to 360/Processor/Sender
-
HDR off, 24 Hz — 12-bit
12/port, up to 240/Processor/Sender
-
HDR off, 30 Hz — 8-bit
20/port, up to 400/Processor/Sender
-
HDR off, 30 Hz — 10-bit
15/port, up to 300/Processor/Sender
-
HDR off, 30 Hz — 12-bit
10/port, up to 200/Processor/Sender
-
HDR off, 60 Hz — 8-bit
10/port, up to 200/Processor/Sender
-
HDR off, 60 Hz — 10-bit
7/port, up to 140/Processor/Sender
-
HDR off, 60 Hz — 12-bit
5/port, up to 100/Processor/Sender
-
HDR off, 120 Hz — 8-bit
5/port, up to 100/Processor/Sender
-
HDR off, 120 Hz — 10-bit
3/port, up to 60/Processor/Sender
-
HDR off, 120 Hz — 12-bit
2/port, up to 40/Processor/Sender
-
HDR off, 144 Hz — 8-bit
4/port, up to 80/Processor/Sender
-
HDR off, 144 Hz — 10-bit
3/port, up to 60/Processor/Sender
-
HDR off, 144 Hz — 12-bit
2/port, up to 40/Processor/Sender
-
-
Maximum Panels / Novastar MX40 Pro (20 ports)
-
-
Maximum Panels Tall / Novastar MX40 Pro
-
1080 height
4
-
1344 height
5
-
1680 height
6
-
2160 height
8
-
-
Maximum Panels Tall / Novastar MX40 Pro
-
-
Maximum Panels Wide / Novastar MX40 Pro
-
1920 width
7
-
3840 width
15
-
8192 width
32
-
-
Maximum Panels Wide / Novastar MX40 Pro
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
15 units @ 120 V; 25 units @ 208 V; 28 units @ 230 V
-
Power and Current
120 W, 1.0 A @ 120 V, 60 Hz
-
Power and Current
120 W, 0.57 A @ 208 V, 60 Hz
-
Power and Current
120 W, 0.52 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC
-
MET Listing Number
E113093-1110, E113093-1125
-
US Safety
UL 60950-1
-
Canadian Safety
CSA C22.2 No. 60950-1
-
IP Rating
IP30, dry location
-
-
Thermal Dissipation @
-
120V
409 BTU per hour
-
208V
409 BTU per hour
-
230V
409 BTU per hour
-
-
Thermal Dissipation @
-
Operating Temperature
-4 °F to 122 °F (-20 °C to 50 °C)
Required Accessories
- Required Software: Nova VMP
- Controller (required): Novastar MX40 Pro
- Compatible Mounting Options: REM Rig Bar (0.5 m, 1 m lengths offered), M10 bolt/clamp (rear or surface mounting), GROUNDSTACKKIT (floor mounting/stacking)
Compatible Accessories
- Clamps
- Neutrik powerKON cables
- Neutrik etherCON cables
- REM-RB100CMIP
- REM-RB50CMIP
- GROUNDSTACKKIT
- MT07 Universal Module Removal Tool
What's Included
- 8 REM1SQ
- 1 Seetronic® powerKON® power cord
- 8 Seetronic® powerKON® power linking cords
- 8 Seetronic® etherKON® signal linking cords
- 5 pcs spare LED masks
- User Manual
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
REM 1 SQ FAQ’s
REM 1 SQ is a high-performance indoor video panel used to build large, seamless video walls. Its exceptional color accuracy and smooth, flicker-free playback make it ideal for houses of worship, corporate events, trade show exhibits, and permanent installations where image quality is critical.
