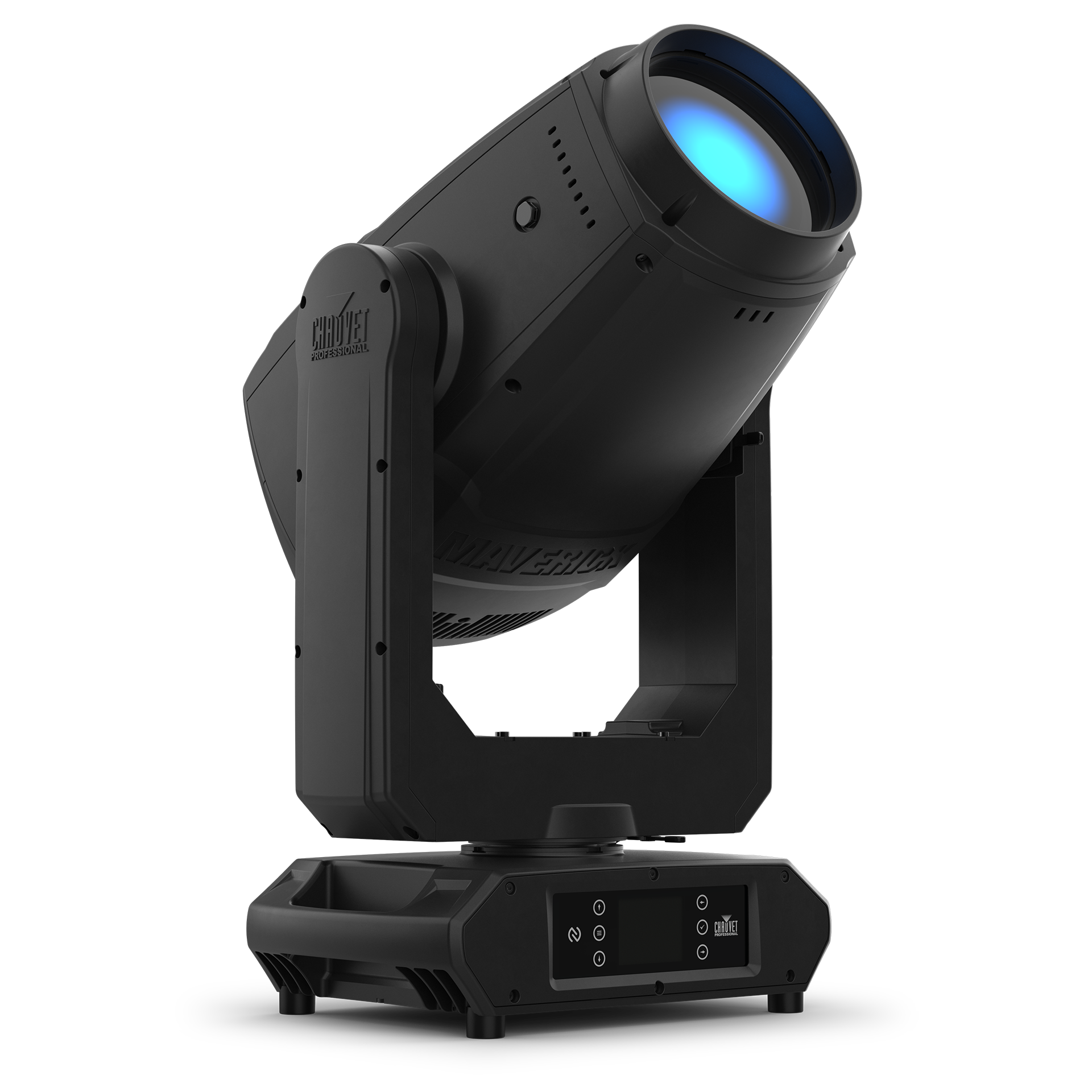

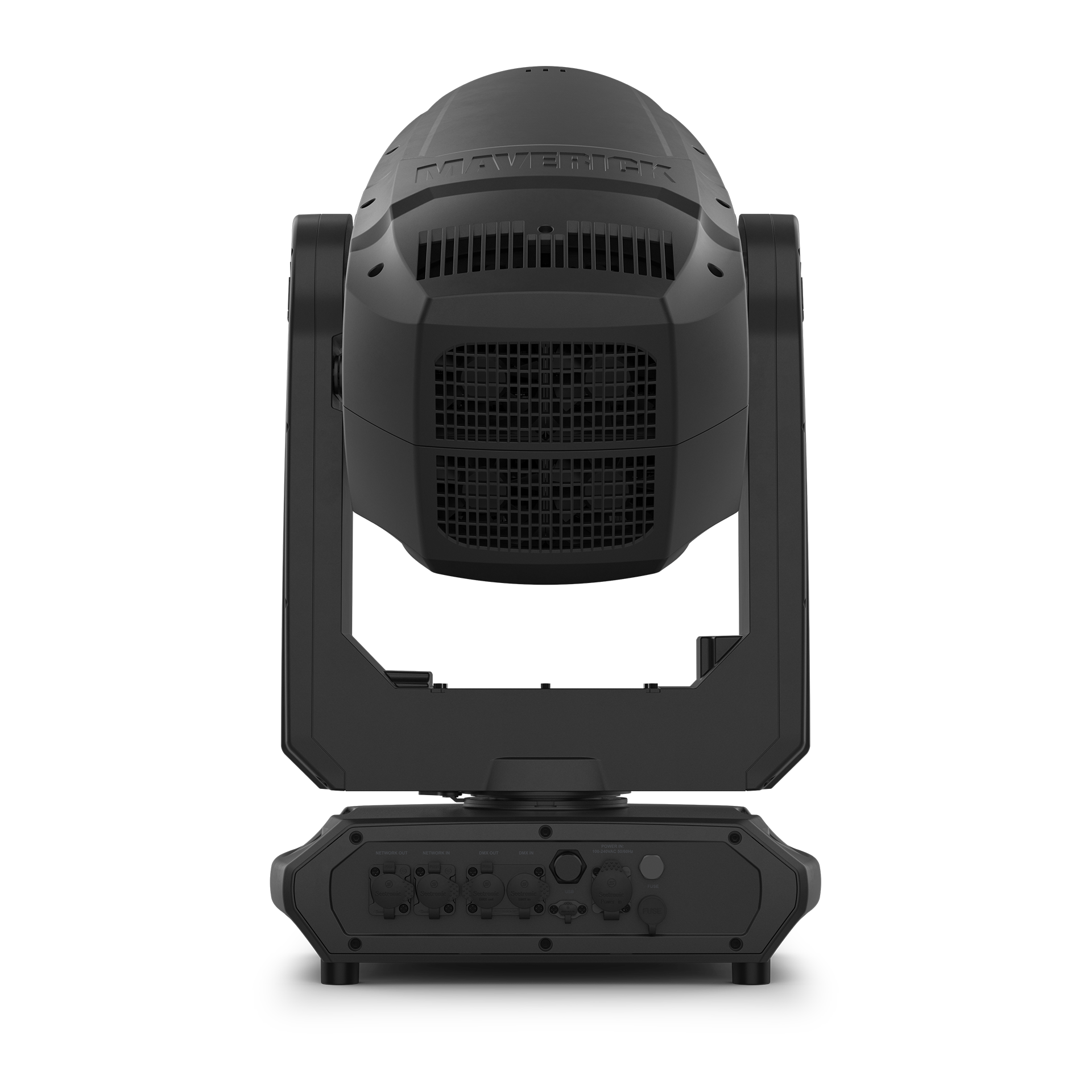

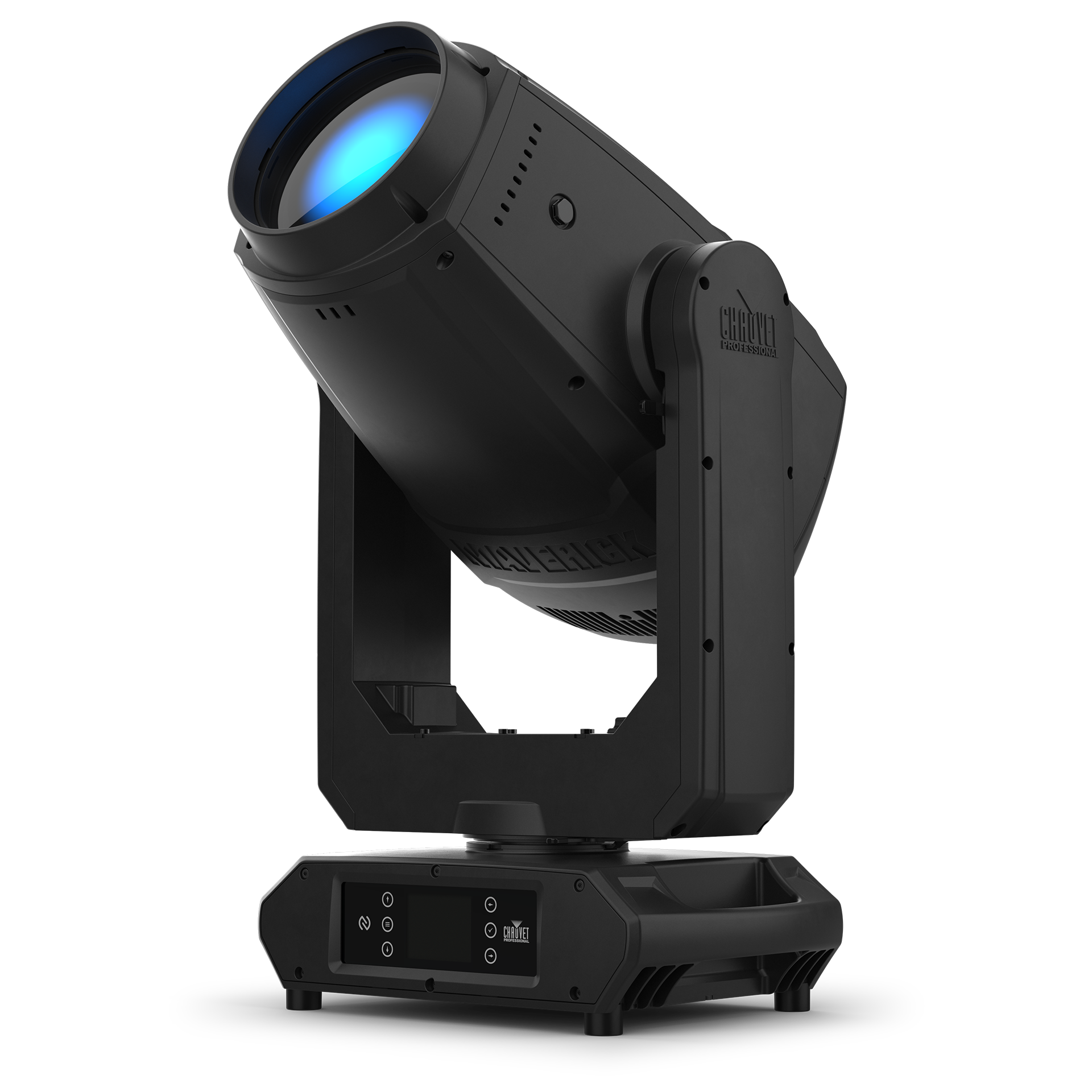

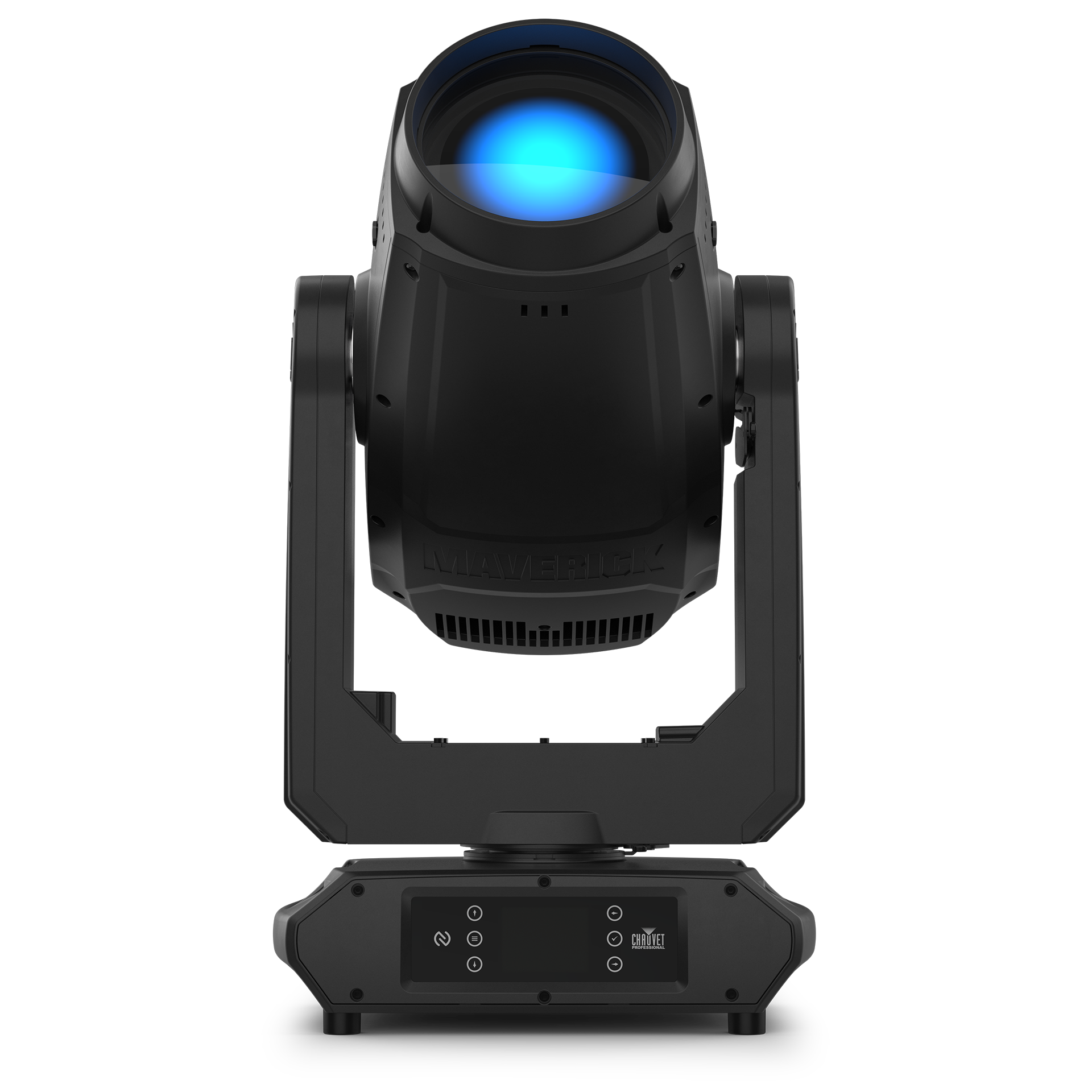

Maverick Storm 1 Flex

Optical

• Light Source

  1 Led, 6595K, up to 50,000 hours life expectancy

• Color Temperature (at full)

  6595 K

• Front lens diameters

  165 mm

• Lumens

  33587 lm

• • Spot Mode
    • Beam Angle

      3.1° to 46.6°

    • Field Angle

      4.1° to 57.9°

    • Cutoff Angle

      4.5° to 55.5 °

    • Zoom Range

      3.1° to 55.5°

    • Illuminance

      (3.1 °) 154,697 lux @ 5 m

    • Illuminance

      (55.5 °) 2,675 lux @ 5 m

• • Beam Mode
    • Beam Angle

      2.6° to 43 °

    • Field Angle

      3° to 47.3°

    • Cutoff Angle

      3.4° to 50.7°

    • Zoom Range

      2.6° to 50.7°

    • Illuminance

      (2.6°) 17,538 lux @ 15 m

    • Illuminance

      (50.7 °) 295 lux @ 15 m

• • Wash Mode
    • Beam Angle

      2.8° to 45.8 °

    • Field Angle

      3.7° to 53.1°

    • Cutoff Angle

      3.9° to 57°

    • Zoom Range

      2.8° to 57°

    • Illuminance

      (2.8°) 146,171lux @5 m

    • Illuminance

      (57 °) 2478 lux @ 5 m

Dynamic Effects

• Pan and Tilt

  540°/270°

• Pan and Tilt Ranges

  540°, 360°, 180° pan/270°, 180°, 90° tilt

• Colors

  7 + white, split colors, continuous scroll at variable speeds

• Colors

  CMY + CTO flags

• Gobos (1)

  7+ open (1 empty slot + 6 glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds) and (1) steel dual layer non-removable rotating, continuous scroll at variable speeds)

• Gobos Static

  10 + open (11 metal), rotating, continuous scroll at variable speeds

• Gobo Size (1)

  Gobo Wheel 1 (rotating): 23.9 mm (outside), 20 mm (image), 1.1 mm (max. thickness)

• Animation Wheel

  1

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Focus

  Motorized

• Frost

  Motorized

• Prism (1)

  6 Facets, motorized, rotating

• Prism (2)

  8 Facets, motorized, rotating

• Move-in-Black

  Yes

• Built in Sky Tracker Mode

  Yes

Construction/Physical

• Dimensions

  15.27 x 10.55 x 29 in (388 x 268 x 738 mm)

• Weight

  63.5lb (28.8 kg)

• Exterior Color

  Black

• Housing Material

  Aluminum die-cast, High-impact flame-retardant polymer, Steel

Connections

• Power Connection

  Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Data Connectors

  5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out

• Cable Length (power)

  5 ft (1.5 m)

• Software Connection

  Type-C USB

Control

• Control Protocol

  Art-Net, sACN, RDM, DMX, CRMX

• DMX Channels

  26 or 33

• Art-Net/sACN Channels

  26 or 33

• Modes/Personalities

  2 personalities (26, 33)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current

  754 W, 6.25 A @ 120 V, 60 Hz

• Power and Current

  734 W, 3.60 A @ 208 V, 60 Hz

• Power and Current

  738 W, 3.30 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET, FCC, CB, UKCA

• IP Rating

  IP65, outdoor/wet, with pressure equalizing M12 GORE valve

• • Noise Levels
    • Noise Level (Idle)

      29.0 dB(A) @ m

    • Noise Level (Auto)

      40.0 dB(A) @ m

    • Noise Level (Full)

      51.2 dB(A) @ m

    • Noise Level (Eco)

      46.4 dB(A) @ m

    • Noise Level (TV25)

      40.7 dB(A) @ m

    • Noise Level (TV35)

      40.7 dB(A) @ m

    • Noise Level (Max)

      41.0 dB(A) @ m

• Temperature (Ambient)

  4 °F to 113 °F (-20 °C to 45 °C)
