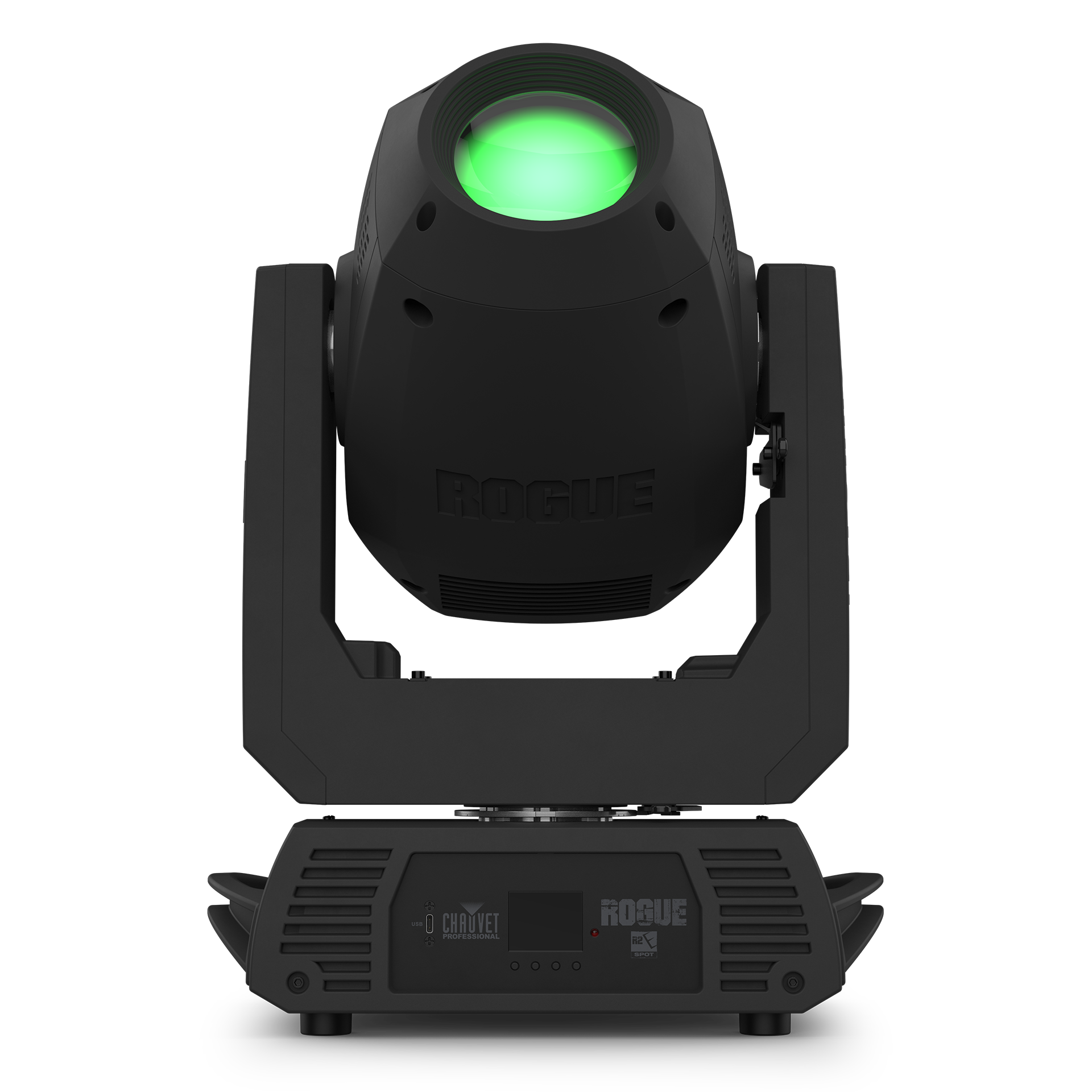

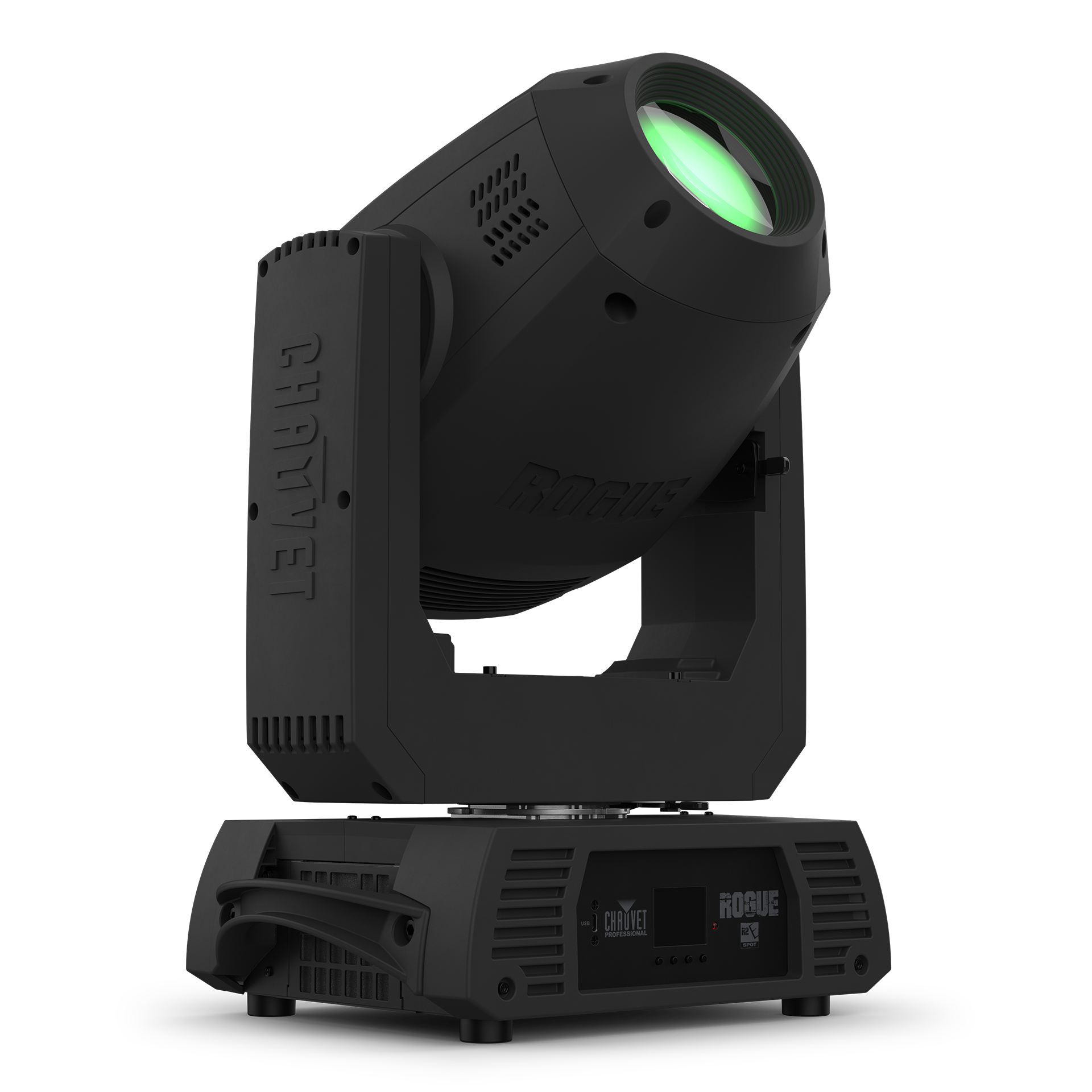

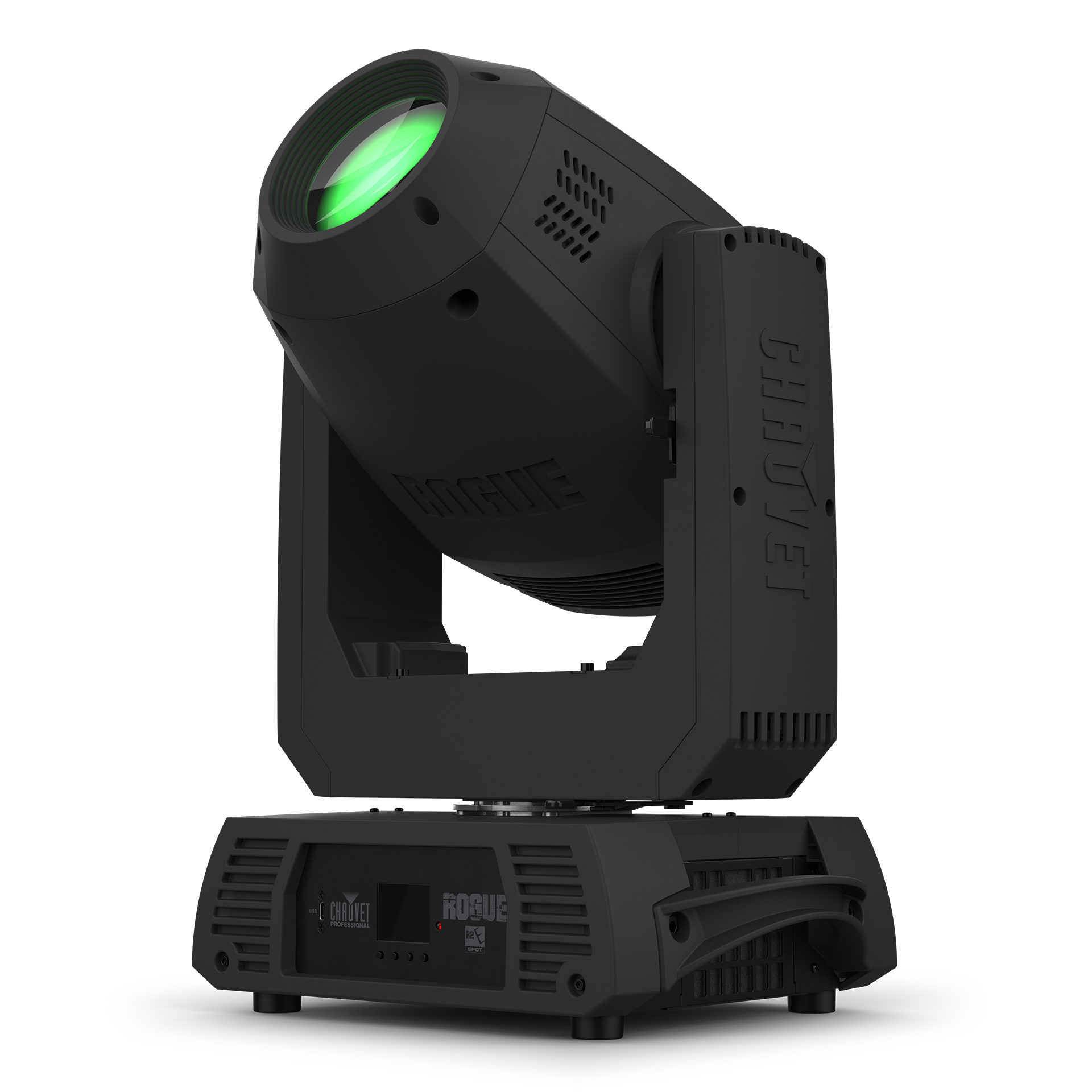

Rogue R2E Spot
A compact and lightweight moving yoke spot powered by a 350W LED engine, featuring dual gobo and color wheels, a rotating prism, and motorized iris and frost to create a wide range of dynamic aerial and projection effects.
Ideal for mobile productions, concert stages, and permanent installations requiring a compact, feature-packed spot fixture for creating intricate lighting looks.
-
Delivers intense output from a 350W LED with a selectable mode to match legacy R2X Spots.
-
Layer and morph patterns with dual gobo wheels, including one with rotating, interchangeable gobos.
-
Features two color wheels with eight colors each, enabling split-color effects and continuous scrolling.
-
Delivers a crisp 15.9° beam angle with a motorized iris and frost for versatile beam control.
-
Offers flexible control via DMX and RDM, with selectable PWM settings for flicker-free video use.
-
Features True 1 compatible power linking to simplify setup and reduce cable clutter in any rig.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Rogue R2E Spot
Two gobo wheels and two color wheels pair up in the fully featured Rogue R2E Spot. This compact, lightweight moving yoke spot delivers intense output from its 350W LED light engine and brings a packed wheelhouse: dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; dual color wheels each with eight brilliant colors + white + split colors; 3-facet rotating prism for stunning aerial effects; and motorized iris and frost for beam shaping. Its 15° beam angle delivers crisp gobo projections and a selectable LED max output setting enables matching brightness with legacy Rogue R2X Spots in your rig.
Features
Intense 350W LED Engine
A powerful and efficient light source is housed within a compact and lightweight moving yoke spot fixture.
Dual Gobo Wheels
Features one fixed scrolling wheel and one rotating, interchangeable wheel for a wide variety of pattern effects.
Dual Color Wheels
Two wheels with eight colors each offer split-color abilities and continuous variable speed scrolling.
16-Bit Dimming
Achieve exceptionally smooth fades and precise intensity control with high-resolution dimming.
Gobo Morphing
Create seamless visual transitions between patterns on the two gobo wheels.
Motorized Iris
Easily control the beam size for precise highlighting and dynamic effects.
3-Facet Prism
Multiply and split the beam for stunning aerial effects and wide coverage.
Frost Filter
Soften the beam edge to create a smooth wash effect for even lighting.
Power Linking Capability
Simplify setup and reduce cable clutter using True 1 compatible input and output connections.
Flexible DMX Connections
Includes both 3-pin and 5-pin DMX input and output connections for maximum compatibility.
RDM Enabled
Allows for remote addressing and troubleshooting directly from an RDM-compliant controller.
Selectable LED Output
Match the output of legacy Rogue R2X Spot fixtures for seamless integration into existing rigs.
Selectable PWM Settings
Ensure flicker-free performance on camera by choosing the appropriate Pulse Width Modulation setting.
Versatile DMX Profiles
Offers both simple and complex DMX channel profiles to suit various programming needs.
Complete Your Rig
Specifications
Optical
-
Light Source
1 LEDs (CW) 350 W, (5 A), 7057 K, 50,000 hours life expectancy
-
Color Temperature (at full)
7057 K
-
Front lens diameter
90mm
-
CRI
70.4
-
Beam Angle
15.9°
-
Field Angle
18.1°
-
Cutoff Angle
20.3°
-
Lumens – Source
24,500
-
Lumens – Output
16,345
-
Illuminance (total)
11,345 lux @ 5 m
-
Selectable LED Power output
50-100
-
Selectable PWM
600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
-
Pan and Tilt
540°/270°
-
Pan and Tilt Ranges
540°, 360°, 180° pan/270°, 180°, 90° tilt.
-
Colors (1)
8 + white, split colors, continuous scroll at variable speeds
-
Colors (2)
8 + white, split colors, continuous scroll at variable speeds
-
Gobos (1)
7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds.
-
Gobos (2)
8 + open (8 metal), continuous scroll at variable speeds
-
Gobo Size
Gobo Wheel 1 (rotating) size: 20 mm (outside), 16 mm (image), 1.5 mm (max. thickness)
-
Framing Shutters
No
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Focus
Motorized
-
Frost
Motorized
-
Iris
Motorized
-
Prism
3 Facets, motorized, rotating
-
Strobe Rate
0 to 22 Hz
-
Standalone Color Mixing
No
-
Color Temperature Presets
No
-
Move-in-Black
Yes
Construction/Physical
-
Dimensions (single unit)
14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm)
-
Weight (single unit)
31.2 lb (14.2 kg)
-
Exterior Color
Black
-
Housing Material
High-impact flame-retardant polymer

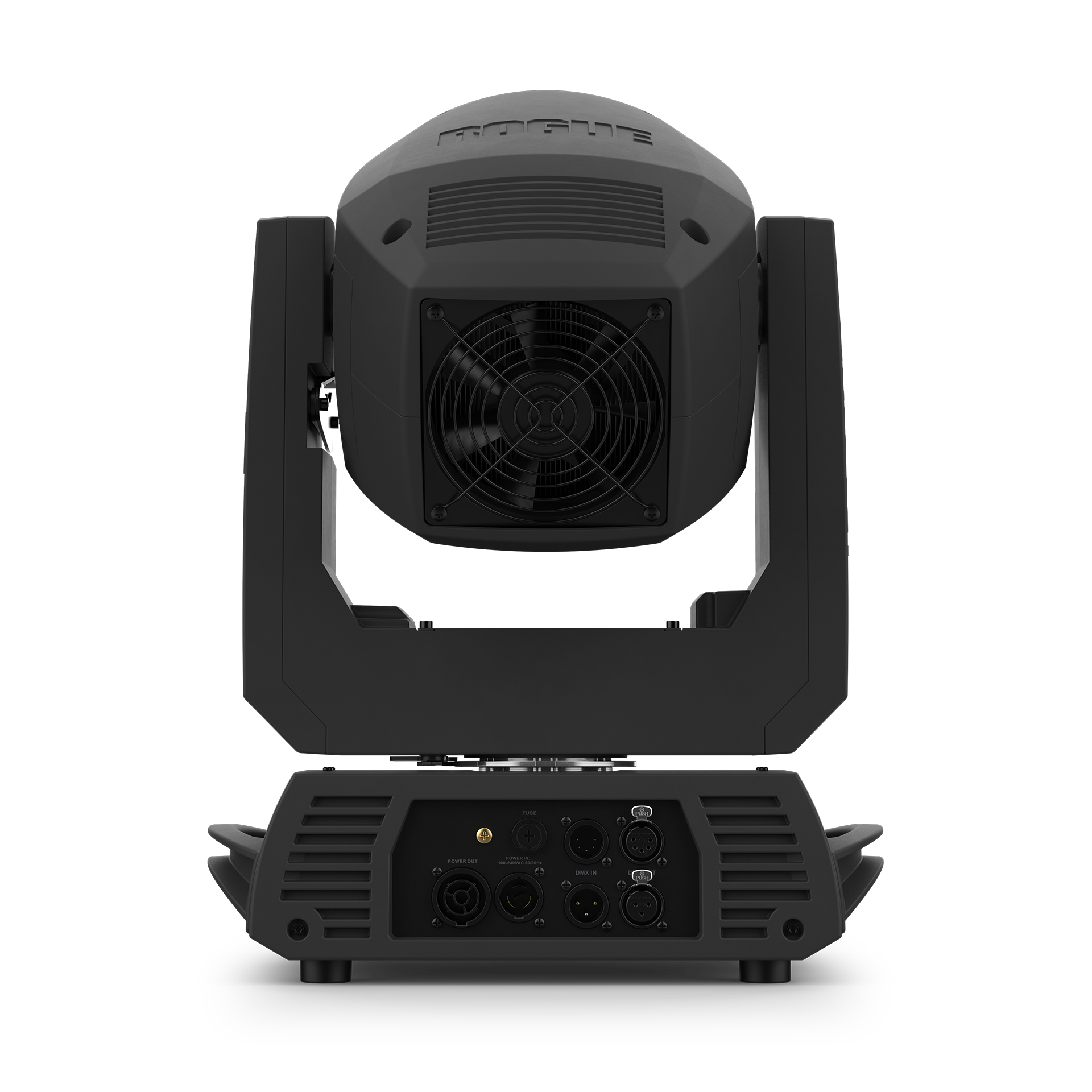

Connections
-
Power Connection
Edison (local) plug to Seetronic PowerKon
-
Power Input
Seetronic PowerKon
-
Power Output
Seetronic PowerKon
-
Data Connectors
3- and 5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
19 or 22
-
Modes/Personalities
2 personalities (19, 22)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
2; 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
-
Power and Current
481 W, 4.05 A @ 120 V, 60 Hz
-
Power and Current
472 W, 2.32 A @ 208 V, 60 Hz
-
Power and Current
469 W, 2.13 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC, UKCA
-
IP Rating
IP20, dry location
Compatible Accessories
- Clamps
- Neutrik powerCON cables
- DMX Cables
- Flight Cases
- Flight Cases CP rack
What's Included
- Rogue R2E Spot
- Neutrik powerCON power cord
- 2 140D Omega brackets with mounting hardware
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Rogue R2E Spot – DMX Chart | Download |
Manuals | Rogue R2E Spot – Quick Reference Guide | Download |
Manuals | Rogue R2E Spot – User Manual | Download |
Manuals | Rogue R2E Spot – Photometric Report | Download |
Manuals | Rogue R2E Spot – IES Files | Download |
Drawings | Rogue R2E Spot – 2D CAD File | Download |
Drawings | Rogue R2E Spot – 3D CAD File | Download |
Other | Rogue R2E Spot – Firmware | Download |
Learn How To Use Your Rogue R2E Spot
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-

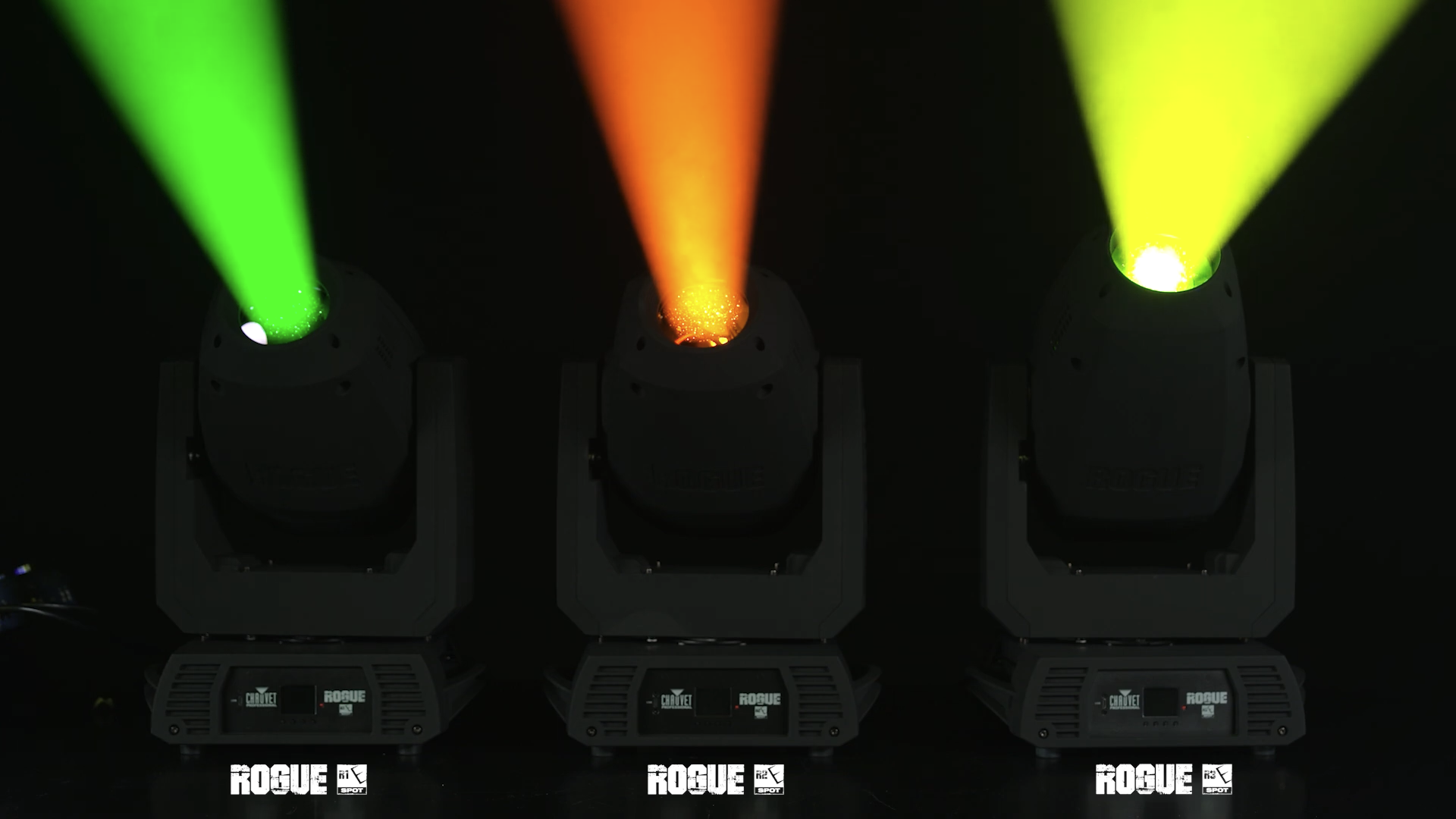

Light Snacks: A Closer Look at the New Rogue R1E, R2E, and R3E Spots
CHAUVET Professional introduces the new Rogue E Spot series in this quick overview. See how the R1E, R2E, and R3E Spot fixtures deliver increased lumen output, USB software updates, and adjustable fan speeds for brighter, lighter, and more powerful performance.
Rogue R2E Spot FAQ’s
The Rogue R2E Spot is a creative powerhouse, designed to produce a wide range of dynamic visuals. It features two separate wheels for patterns (gobos) and two for colors, allowing you to layer and morph them for unique projected looks. It can also split its beam into three rotating shafts of light, creating spectacular mid-air effects for any event.
You have several tools to precisely shape the light. A motorized focus keeps your patterns sharp at any distance. It also includes a motorized iris to make the light beam larger or smaller, and a frost filter that can be applied to soften the beam’s edge for a smooth, gentle wash of light.
Yes, it’s ideal for both scenarios. The fixture is designed to be flicker-free on camera, making it perfect for video recording and live streams. It also has a useful setting that lets you adjust its maximum brightness to perfectly match other Rogue R2X Spot lights you may already have in your setup, ensuring a consistent look.
