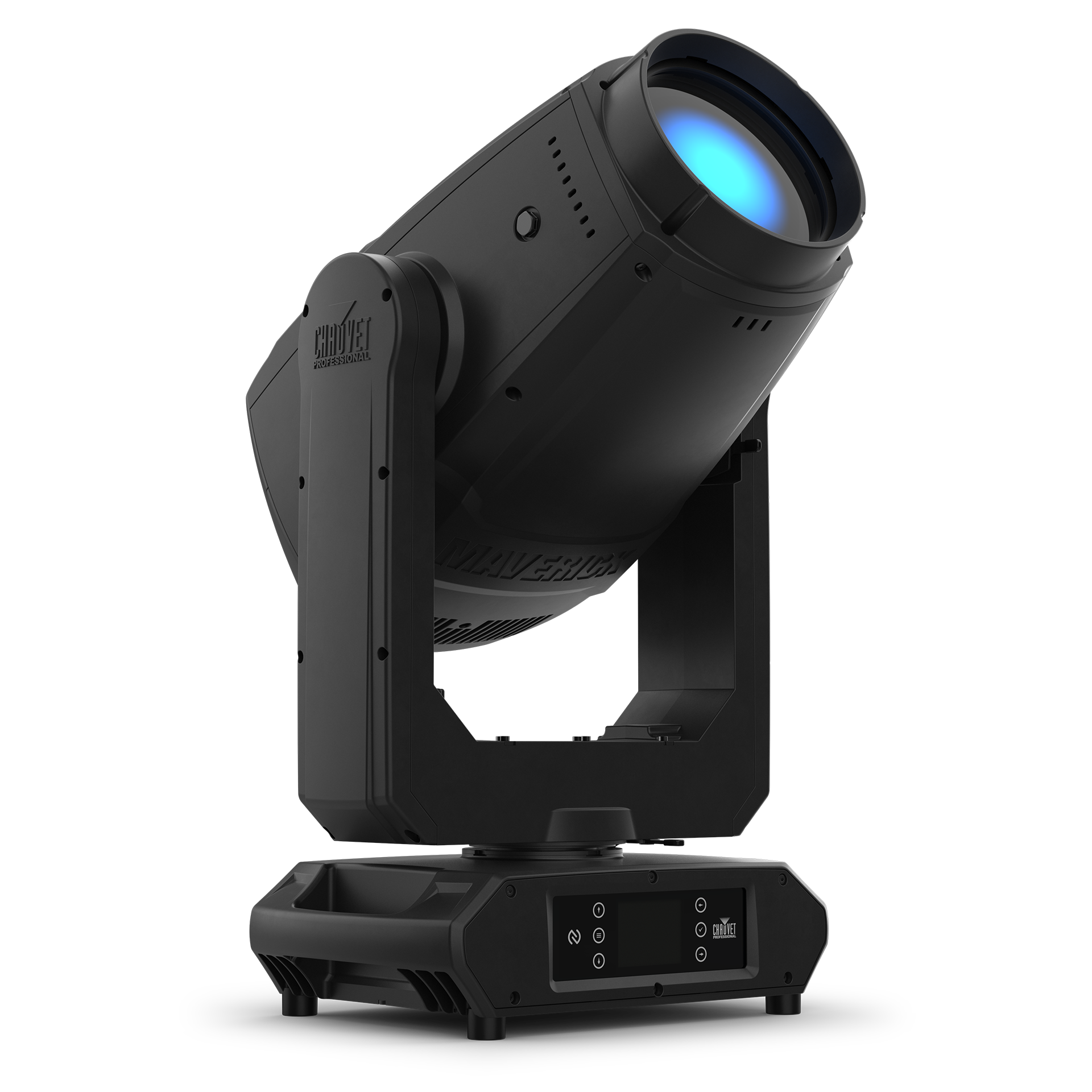

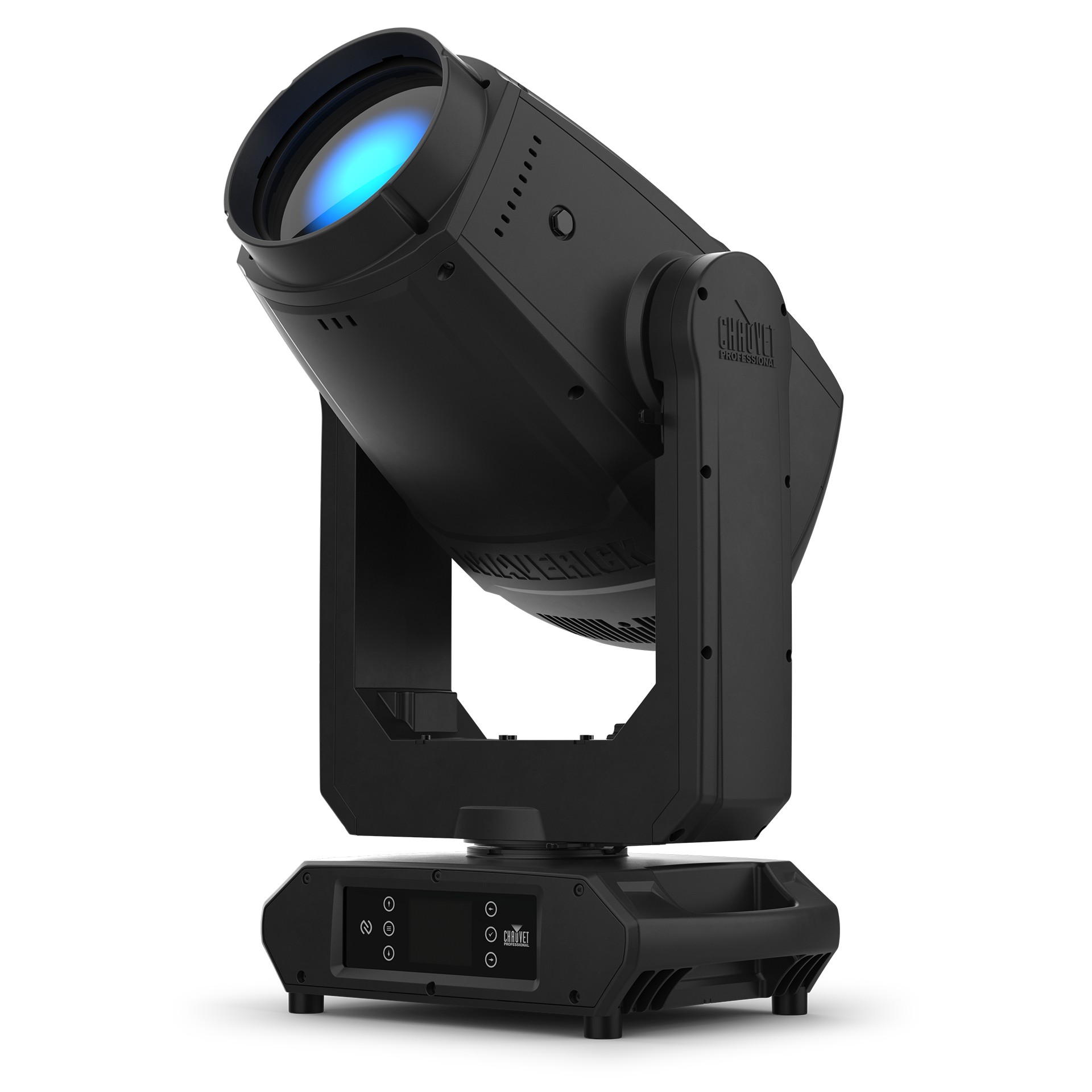

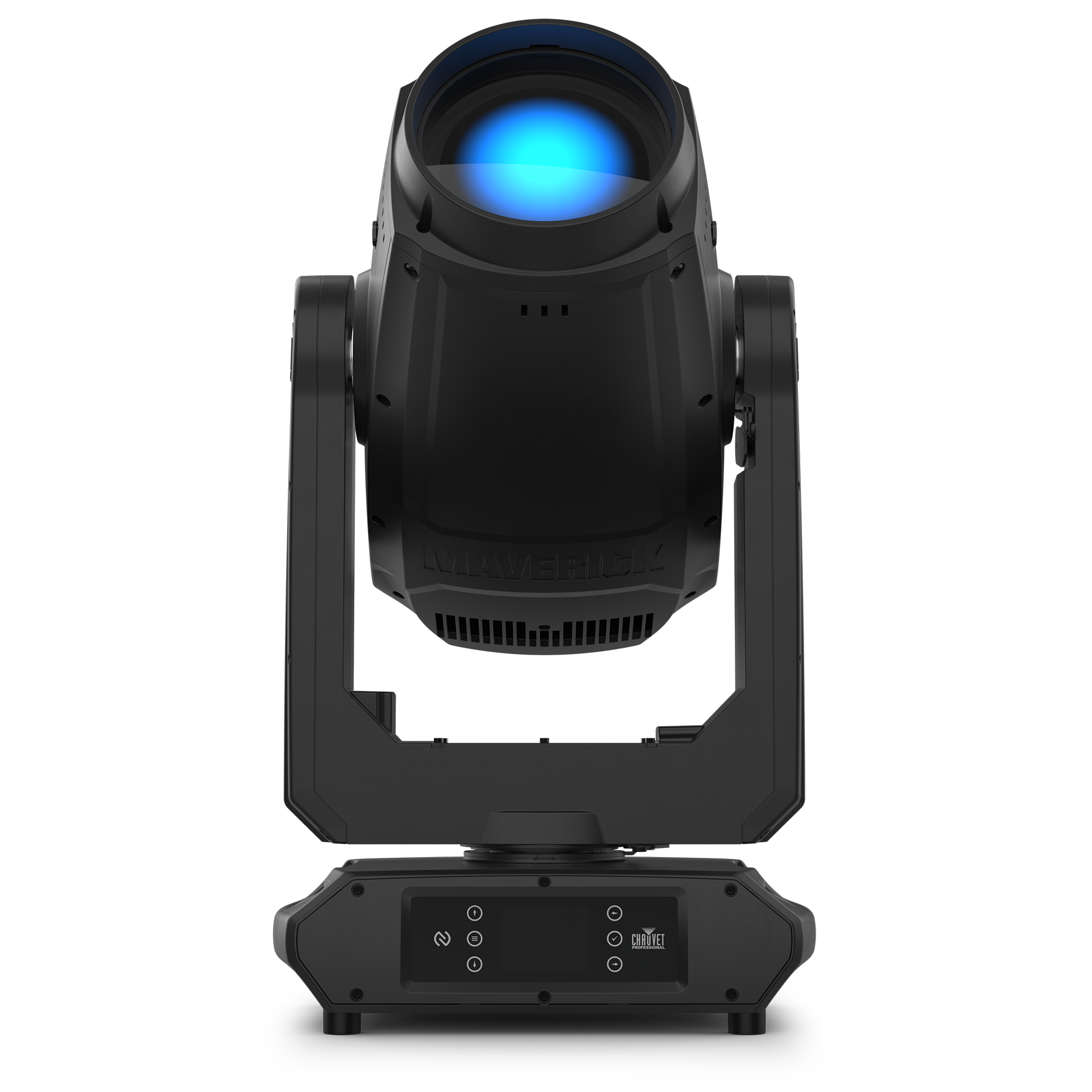

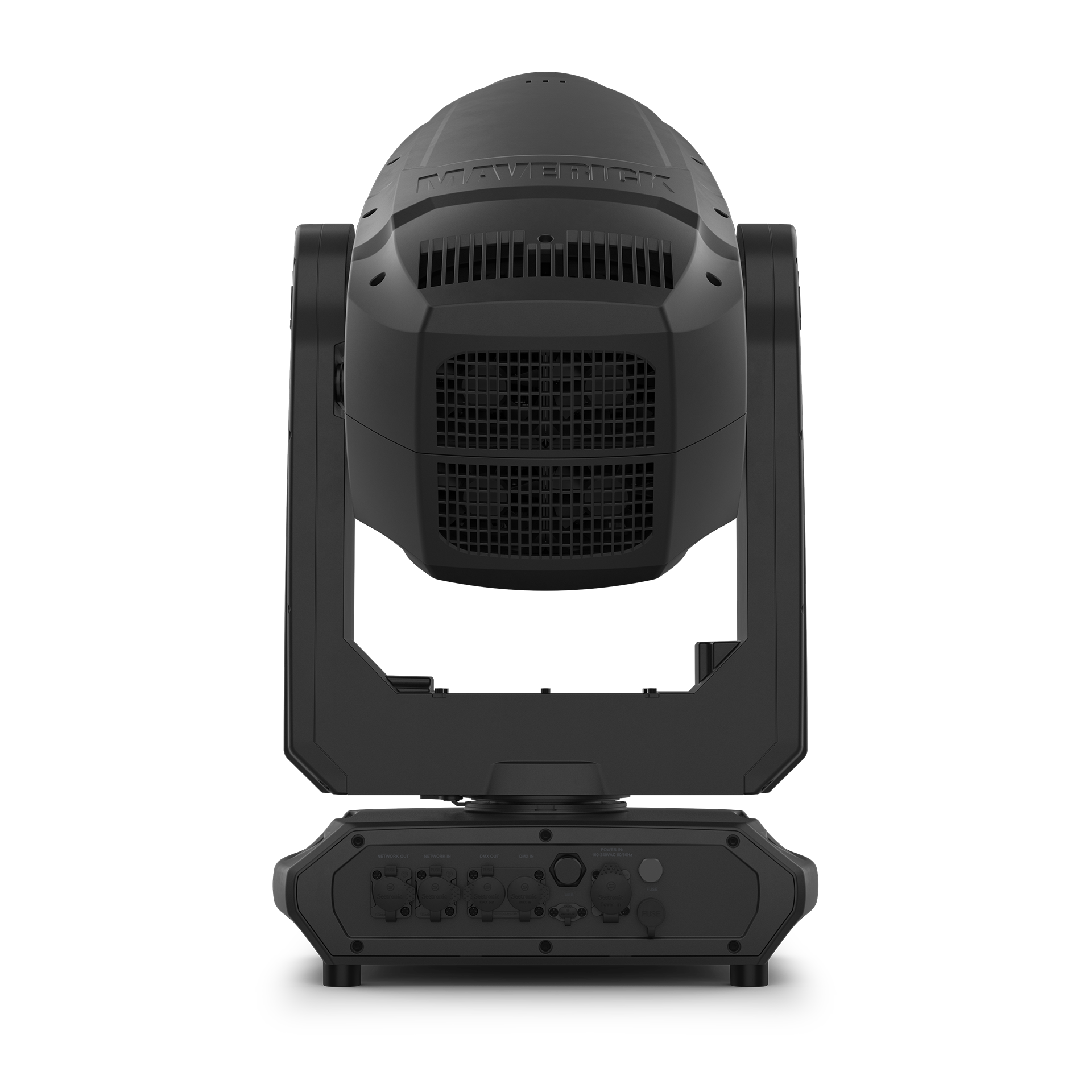

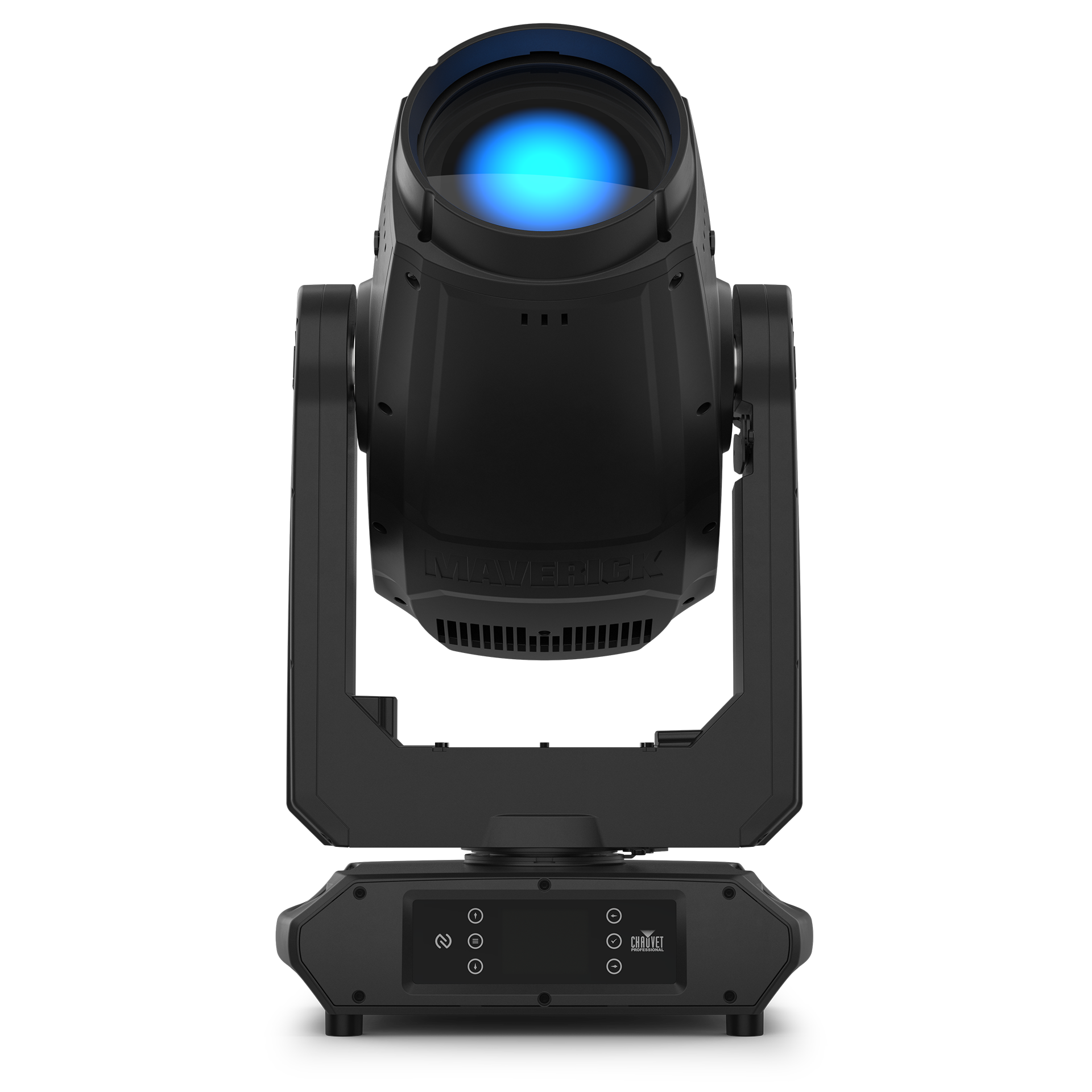

Maverick Storm 3 Profile
A compact, high-output IP65-rated moving profile featuring an 18:1 zoom, a full framing system, CMY+CTO color mixing, and a complete effects package.
Ideal for touring, outdoor festivals, and theatrical applications requiring a powerful, feature-rich, and weather-resistant profile fixture.
-
Delivers over 30,000 lumens from a powerful 620W 7500K LED engine.
-
Features a four-blade framing system with full rotational capability for precise beam shaping.
-
Includes a color wheel with dedicated CRI and CTB filters for enhanced color rendering.
-
Offers dual gobo wheels, a 5-facet prism, iris, and frost for layered visual effects.
-
Integrated SunShield technology protects internal optics from sun damage when the fixture is idle.
-
Supports DMX, WDMX, sACN, and Art-Net protocols for flexible system integration.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Maverick Storm 3 Profile
With an 18:1 zoom and a full armory of features, Maverick Storm 3 Profile is a compact IP65 moving profile with incredible reach. This lightweight powerhouse combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out. Harness over 30,000 lumens of output as you go from a narrow 3.4° beam to a wide 56.7° spot. Freely create with its exquisitely sharp framing shutter system and a wheelhouse that includes variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. This Maverick weathers the storm and welcomes the sunshine with SunShield technology that comes on with complete protection of all internal optical components whenever the fixture powers down
Features
Compact IP65 Profile Fixture
A fully-featured, lightweight, and weatherproof 620W LED yoke profile fixture.
Variable CMY + CTO Color Mixing
Create a wide pallet of colors with a versatile and variable CMY and CTO mixing system.
Rotating Framing Shutter System
A four-blade framing system with full rotational capability provides precise control over the beam shape.
Enhanced Color Wheel
An additional color wheel includes CRI and CTB filters for enhanced color temperature flexibility.
Rotating Gobo Wheel
Features one rotating, indexing gobo wheel with interchangeable, slot-and-lock gobos.
Static Gobo Wheel
A second, static gobo wheel offers an additional layer of patterns for creative effects.
Wide Zoom Range
An expansive 18:1 zoom ratio provides a variable beam from a tight 3.4° to a wide 56.7°.
Advanced Beam Control
Further shape and alter the beam with a built-in iris, a 5-facet prism, and a frost filter.
Smooth 16-Bit Dimming
Achieve exceptionally smooth control of fades using the 16-bit master dimmer.
Flicker-Free Operation
A 65,000 Hz PWM frequency ensures flicker-free performance for use with high-speed cameras.
Flexible Control Options
Supports DMX, WDMX, sACN, and Art-Net protocols for full flexibility in any control environment.
RDM Fixture Reporting
Utilize RDM control over DMX for remote fixture monitoring and reporting.
True 1 Power Input
Features a professional-grade, locking True 1 compatible power input for secure connections.
Integrated Sun Shield
Protects the internal optical system from direct sunlight when the fixture is not in use.
Easy Shop Setup
Three setup menu presets and preset sync allow for fast cross-loading to multiple fixtures.
USB Software Slot
A convenient onboard USB slot allows for simple and direct software uploads.
Battery Backup Display
The auto-rotating display with battery backup allows for fixture configuration without main power.
Failsafe Ethernet
Data continues to pass through the fixture’s Ethernet connection even if power is lost.
NFC Fixture Setup
Use Near Field Communication to quickly and easily configure the fixture from a compatible device.
Complete Your Rig
Specifications
Optical
-
Light Source
1 LEDs (CW) 620 W, (4.6 A), 7500 K, 50,000 hours life expectancy
-
Color Temperature (at full)
7062 K
-
CRI
72.3
-
CRI with CRI Filter
90.2
-
Front Lens Diameter
165 mm
-
Beam Angle
3.5° to 51.5°
-
Field Angle
4.1° to 54.3°
-
Cutoff Angle
4.3° to 57.7°
-
Zoom Range
3.5° to 57.7°
-
Lumens – Output
34,500 lm
-
-
Illuminance
-
Illuminance (3.5°)
165,664 lux @ 5 m
-
Illuminance (56.7°)
2,173 lux @ 5 m
-
-
Illuminance
-
PWM Frequency
600Hz, 1500Hz, 2000Hz, 65,000Hz
Dynamic Effects
-
Pan and Tilt
540°/270°
-
Pan and Tilt Ranges
540°, 360°, 180° pan/270°, 180°, 90° tilt
-
Colors
7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
-
Colors
CMY wheel, CTO wheel
-
Gobos (1)
7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
-
Gobos (2)
9 + open (glass), continuous scroll at variable speeds
-
Gobo Size
Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
-
Framing Shutters
4 Blades, each with dual axis movement, Full blackout.
-
Framing Shutter rotation
+/- 60° rotation.
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Zoom
Motorized
-
Focus
Motorized
-
Frost
Motorized
-
Iris
Motorized
-
Animation
Motorized
-
Prism
5 Facets, motorized, rotating
-
Strobe Rate
0 to 25 Hz
-
Move-in-Black
Yes
-
Dim Curves
4
Construction/Physical
-
Dimensions
15.27 x 10.55 x 29.21 in (388 x 268 x 742 mm)
-
Weight
69 lb (31.3kg)
-
Exterior Color
Black
-
Housing Material
Aluminum diecast, High-impact flame-retardant polymer, Steel
Connections
-
Power Connection
Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Data Connectors
5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
Art-Net, DMX, RDM, W-DMX, sACN
-
DMX Channels
34 or 50
-
Art-Net Channels
34 or 50
-
Modes/Personalities
2 personalities (34, 50)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current
1020 W, 8.5 A @ 120 V, 60 Hz
-
Power and Current
1020 W, 4.82 A @ 208 V, 60 Hz
-
Power and Current
1010 W, 4.39 A @ 230 V, 50 Hz
-
Fuse
F15 AL, 250 V
Certifications/Qualifications
-
Certifications
CE, MET, FCC, CB, UKCA
-
IP Rating
IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
-
-
Noise Levels
-
Idle
30.0 dB(A) @ 1 m
-
Auto
41.1 dB(A) @ 1 m
-
Full
51.5 dB(A) @ 1 m
-
ECO
40.6 dB(A) @ 1 m
-
TV25
40.6 dB(A) @ 1 m
-
TV35
40.6 dB(A) @ 1 m
-
Max
41.2 dB(A) @ 1 m
-
-
Noise Levels
Compatible Accessories
- Clamps: CTC-50HC, CTC-50G, CTC-50CBLK, CTC 50HCN, CTC-50HCNBLK
- RigLink powerCON cables
- RigLink etherCON cables
- RigLink DMX Cables
- Flight Cases
- CP Rack
- IP tester
What's Included
- Maverick Storm 3 Profile
- Seetronic Powerkon IP65 power cord to Edison
- Omega bracket with mounting hardware
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Maverick Storm 3 Profile – Quick Reference Guide | Download |
Manuals | Maverick Storm 3 Profile – User Manual | Download |
Manuals | Maverick Storm 3 Profile – DMX Charts | Download |
Manuals | Maverick Storm 3 Profile – 2D CAD File | Download |
Manuals | Maverick Storm 3 Profile – 3D CAD File | Download |
Drawings | Maverick Storm 3 Profile – IES Files | Download |
Manuals | Maverick Storm 3 Profile – Photometrics Report | Download |
Manuals | Maverick Storm 3 Profile – Acoustic Report | Download |
Learn How To Use Your Maverick Storm 3 Profile
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-

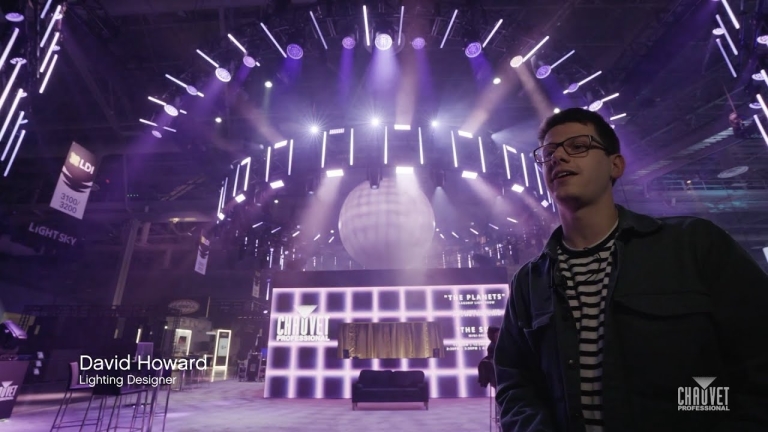

Designing the CHAUVET Professional Booth at #LDI2025 | LD David Howard Walkthrough
Join lighting designer David Howard for an inside look at the CHAUVET Professional LDI 2025 booth. Discover the creative vision and technical approach behind layering beam, wash, and pixel-based fixtures to build an immersive showcase of lighting innovation and design.
-

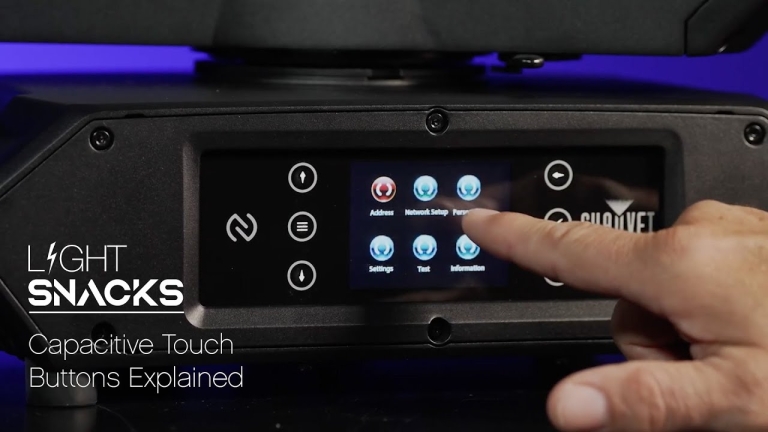

Light Snacks: Capacitive Touch Buttons Explained
Learn how the capacitive touch buttons on CHAUVET Professional fixtures like the Maverick Storm 3 Profile offer greater reliability. With fewer moving parts, these controls reduce mechanical failure points, ensuring dependable operation for any production.
-

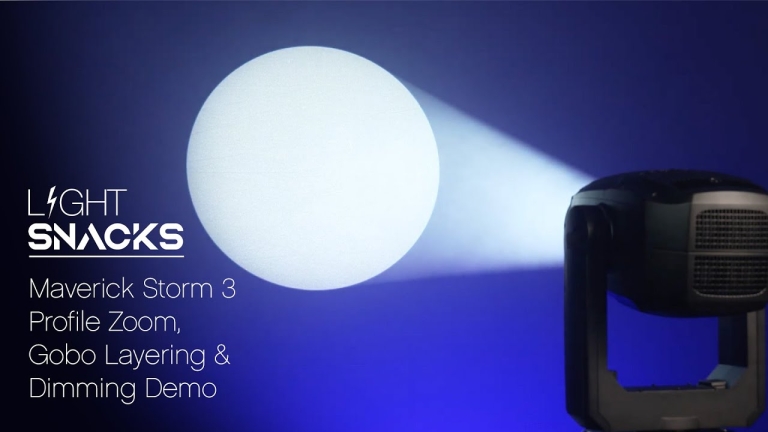

Light Snacks: Maverick Storm 3 Profile Zoom, Gobo Layering & Dimming Demo
See the Maverick Storm 3 Profile in action as CHAUVET Professional demonstrates its crystal-clear zoom, dynamic dual gobo layering, and smooth, flicker-free dimming. Discover how this IP65-rated moving head empowers designers to create precise, high-impact looks for any production, indoors or out.
-
1
Designing the CHAUVET Professional Booth at #LDI2025 | LD David Howard Walkthrough
Join lighting designer David Howard for an inside look at the CHAUVET Professional LDI 2025 booth. Discover the creative vision and technical approach behind layering beam, wash, and pixel-based fixtures to build an immersive showcase of lighting innovation and design.
-
2
Light Snacks: Capacitive Touch Buttons Explained
Learn how the capacitive touch buttons on CHAUVET Professional fixtures like the Maverick Storm 3 Profile offer greater reliability. With fewer moving parts, these controls reduce mechanical failure points, ensuring dependable operation for any production.
-
3
Light Snacks: Maverick Storm 3 Profile Zoom, Gobo Layering & Dimming Demo
See the Maverick Storm 3 Profile in action as CHAUVET Professional demonstrates its crystal-clear zoom, dynamic dual gobo layering, and smooth, flicker-free dimming. Discover how this IP65-rated moving head empowers designers to create precise, high-impact looks for any production, indoors or out.
Maverick Storm 3 Profile FAQ’s
Yes, the Maverick Storm 3 Profile is fully weatherproof and designed to operate reliably in outdoor environments, including rain. It also features a unique SunShield technology that automatically protects the internal optics from sun damage when the fixture is turned off, making it ideal for festivals, concerts, and events in any weather.
It is extremely versatile, allowing you to create a wide range of looks. You can adjust the beam from a tight, narrow spotlight to a very wide wash, mix a full spectrum of colors, and project intricate patterns (gobos). It also includes a precision framing system to shape the light into sharp squares or other custom forms to perfectly highlight performers or scenery.
The Maverick Storm 3 Profile is built for large-scale productions. It is incredibly bright, ensuring its light is visible even in large venues or outdoor settings. Its powerful zoom allows it to project sharp beams or patterns from a great distance, and it operates without creating flicker, making it perfect for events that are being filmed or broadcast.
