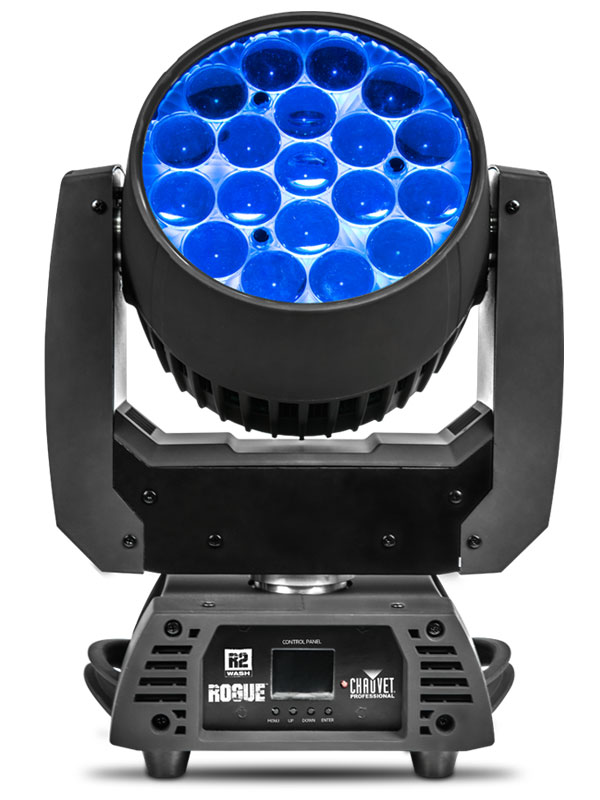

    Rogue R2 Wash

    A durable moving wash workhorse that produces a bright, powerful light from 19 RGBW quad-LEDs, featuring five-zone pixel-mapping control and an expansive 12° to 49° zoom range.
    Ideal for rental and production inventories, this versatile fixture excels at covering large areas in a wide variety of performance settings.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: ROGUER2WASH

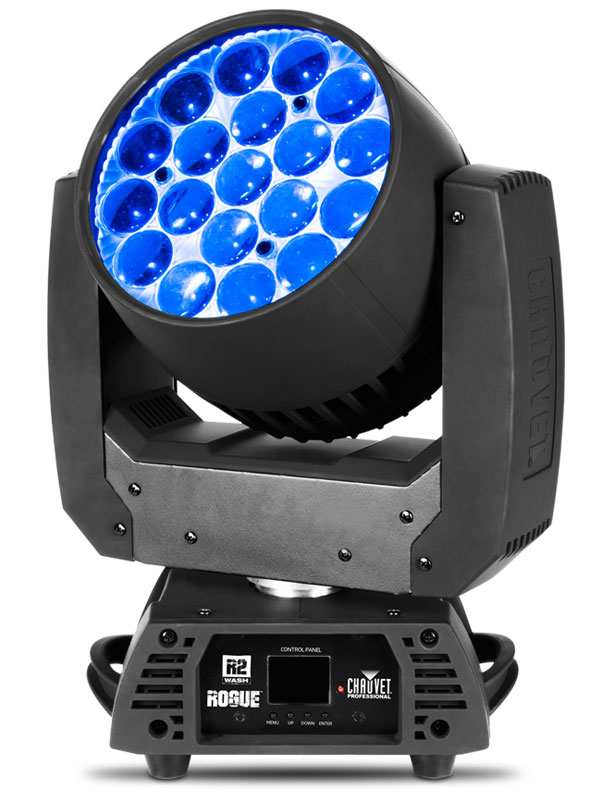

    Rogue R2 Wash

    Specifications
    		 Download
    Rogue R2 Wash Quick Reference Guide
    		 Download
    Rogue R2 Wash User Manual
    		 Download
    Rogue R2 Wash CAD File
    		 Download
    Rogue R2 Wash DMX Chart
    		 Download
    Rogue R2 Wash ShowXpress Profile
    		 Download
    Firmware
    		 Download
    Download All Resources

    Rogue R2 Wash

    SKU: ROGUER2WASH

    Rogue R2 Wash is a valuable addition to rental and production inventories. Durable and dependable, this moving wash workhorse produces a bright, powerful light and offers five zones of LED control to pixel map its 19 (15 W) RGBW quad-LEDs. A standout zoom range of 12° to 49° gives it the spread to cover even the largest areas. Smooth color mixing, simple and complex DMX channel profiles and powerCON in and out are just some of the other features that make this fixture a standout performer in any setting.

    Features

    High Power RGBW LEDs

    Features 19 powerful 15-watt quad-color LEDs for vibrant and intense color output.

    Zoned LED Control

    Offers five independent zones of LED control for creating dynamic pixel mapping effects.

    Superior Color Blending

    A unique lens design ensures seamless and uniform color mixing without unwanted artifacts.

    Rapid Pan and Tilt

    Delivers exceptionally fast and smooth pan and tilt movement for precise positioning.

    Advanced Dimming Modes

    Provides six distinct dimming modes to achieve smooth fades and advanced control for any application.

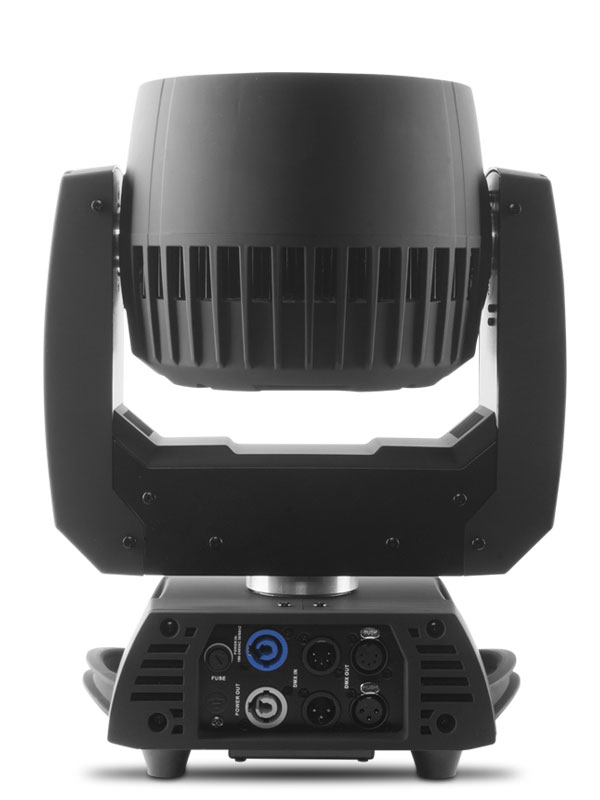

    Flexible DMX Connections

    Includes both 3-pin and 5-pin DMX input and output connections for maximum compatibility.

    Universal Mounting Bracket

    The included Omega mounting bracket fits all Rogue, Maverick, Next, and Legend series fixtures.

    Clear OLED Display

    An easy-to-read OLED display with a simple menu system allows for quick and effective adjustments.

    Versatile DMX Profiles

    Offers both simple and complex DMX channel profiles to accommodate a wide range of programming needs.

    Latest News

    Braxtin Pieper Colorizes Shane Smith and the Saints Ugly Christmas Sweater Tour with CHAUVET Professional
    LD Braxtin Pieper unwraps beautiful color combinations for a festive holiday tour.
    Read more
    Carlos Katsurayama Pushes Envelope on Djo Another Bite Tour with CHAUVET Professional
    Lighting designer Carlos Katsurayama matches Djo’s psychedelic sound with a bold, dynamic lightshow.
    Read more
    John Garberson and Creative BackStage Celebrate Phoenix Fan Fusion with CHAUVET Professional
    Creative BackStage crafts versatile, immersive lighting for the massive Phoenix Fan Fusion event.
    Read more
    Alice Cooper Celebrates CoopStock with CHAUVET Professional Fixtures From Creative Backstage
    Creative Backstage illuminates rock royalty for Alice Cooper’s CoopStock charity concert.
    Read more
    Creative Backstage Unifies Sounds of Skillet and SEETHER on Stage With CHAUVET Professional
    Lighting designer John Garberson unifies the distinct sounds of Skillet and SEETHER on tour.
    Read more
    Braxtin Pieper Colorizes Shane Smith and the Saints Ugly Christmas Sweater Tour with CHAUVET Professional
    LD Braxtin Pieper unwraps beautiful color combinations for a festive holiday tour.
    Read more
    Carlos Katsurayama Pushes Envelope on Djo Another Bite Tour with CHAUVET Professional
    Lighting designer Carlos Katsurayama matches Djo’s psychedelic sound with a bold, dynamic lightshow.
    Read more
    John Garberson and Creative BackStage Celebrate Phoenix Fan Fusion with CHAUVET Professional
    Creative BackStage crafts versatile, immersive lighting for the massive Phoenix Fan Fusion event.
    Read more
    Alice Cooper Celebrates CoopStock with CHAUVET Professional Fixtures From Creative Backstage
    Creative Backstage illuminates rock royalty for Alice Cooper’s CoopStock charity concert.
    Read more
    Creative Backstage Unifies Sounds of Skillet and SEETHER on Stage With CHAUVET Professional
    Lighting designer John Garberson unifies the distinct sounds of Skillet and SEETHER on tour.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        19 LEDs (quad-color RGBW) 15 W, (1 A), 50,000 hours life expectancy

      • Color Temperature (range)

        2800 to 10000 K

      • Beam Angle

        8° to 30°

      • Field Angle

        12° to 49°

      • Zoom Angle

        12° to 49°

      • Lumens – Source

        8,500

      • Lumens – Output

        5,800

        • Illuminance
          • Illuminance (12°)

            8,650 lux @ 5 m

          • Illuminance (49°)

            750 lux @ 5 m

      • PWM Frequency

        1,200 Hz

      Dynamic Effects

      • Pan and Tilt

        540°/230°

      • Pan and Tilt Ranges

        180°, 360°, 540° pan/90°, 180°, 230° tilt

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Zoom

        Motorized

      • Strobe Rate

        0 to 20 Hz

      • Standalone Color Mixing

        Yes

      • Color Temperature Presets

        Yes

      • Dim Curves

        4

      • Built-in Automated Programs

        Yes

      • Customizable Programs

        No

      • Recall Custom Programs

        No

      Construction/Physical

      • Dimensions

        8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)

      • Weight

        20.4 lb (9.25 kg)

      • Exterior Color

        Black

      • Housing Material

        High-impact flame-retardant polymer

      Connections

      • Power Connection

        Edison (Local) plug to Neutrik powerCON

      • Power Input

        Neutrik powerCON

      • Power Output

        Neutrik powerCON

      • Data Connectors

        3- and 5-pin XLR

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        DMX

      • DMX Channels

        15, 17, 22, 33, 54, or 56

      • Modes/Personalities

        8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power Linking

        4 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V

      • Power and Current

        339 W, 2.95 A @ 120 V, 60 Hz

      • Power and Current

        324 W, 1.62 A @ 208 V, 60 Hz

      • Power and Current

        324 W, 1.50 A @ 230 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE, MET

      • IP Rating

        IP20, dry location

      Compatible Accessories

      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Safety Cable: SC-07
      • Neutrik powerCON cables
      • DMX Cables
      • Flight Case: CP6CASER2W
      • UPLOAD 08 software uploader

      What's Included

      • Rogue R2 Wash
      • Neutrik powerCON power cord
      • Omega bracket with mounting hardware

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      Rogue R2 Wash Quick Reference Guide
      		Download
      Manuals
      Rogue R2 Wash User Manual
      		Download
      Drawings
      Rogue R2 Wash CAD File
      		Download
      DMX
      Rogue R2 Wash DMX Chart
      		Download
      Other
      Rogue R2 Wash ShowXpress Profile
      		Download
      Other
      Rogue R2 Wash – Firmware
      		Download

      Learn How To Use Your Rogue R2 Wash

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • Life.Church BTS Tour of LED Stage Lighting for 4K Broadcast Campus Upgrade

        Go behind the scenes at Life.Church to see how their team upgraded their 4K broadcast campus with an all-LED rig from CHAUVET Professional. Discover how Maverick, Ovation, and Rogue fixtures empower dynamic, camera-ready worship experiences that engage audiences both in the room and online.

      • Toby Mac Goes Rogue

        Go behind the scenes on Toby Mac’s Deep Tour as Lighting Designer Noah Wood reveals his design process. Discover how the CHAUVET Professional Rogue series delivered the bold versatility and powerful output required to create impactful visuals for a major arena production.

      • Rogue R1 and Rogue R2 Wash Fixtures by CHAUVET Professional

        The Rogue R1 and R2 Wash fixtures from CHAUVET Professional deliver versatile performance for any rig. Achieve smooth color blending, wide zoom coverage, and dynamic pixel-mapping effects with these powerful moving wash workhorses.

      Video Library

      Latest Articles

      Browse Articles

      CHAUVET Professional Was Everywhere at Glastonbury 2025

      CHAUVET Professional fixtures illuminated the diverse stages and artists of Glastonbury 2025.
      Read More

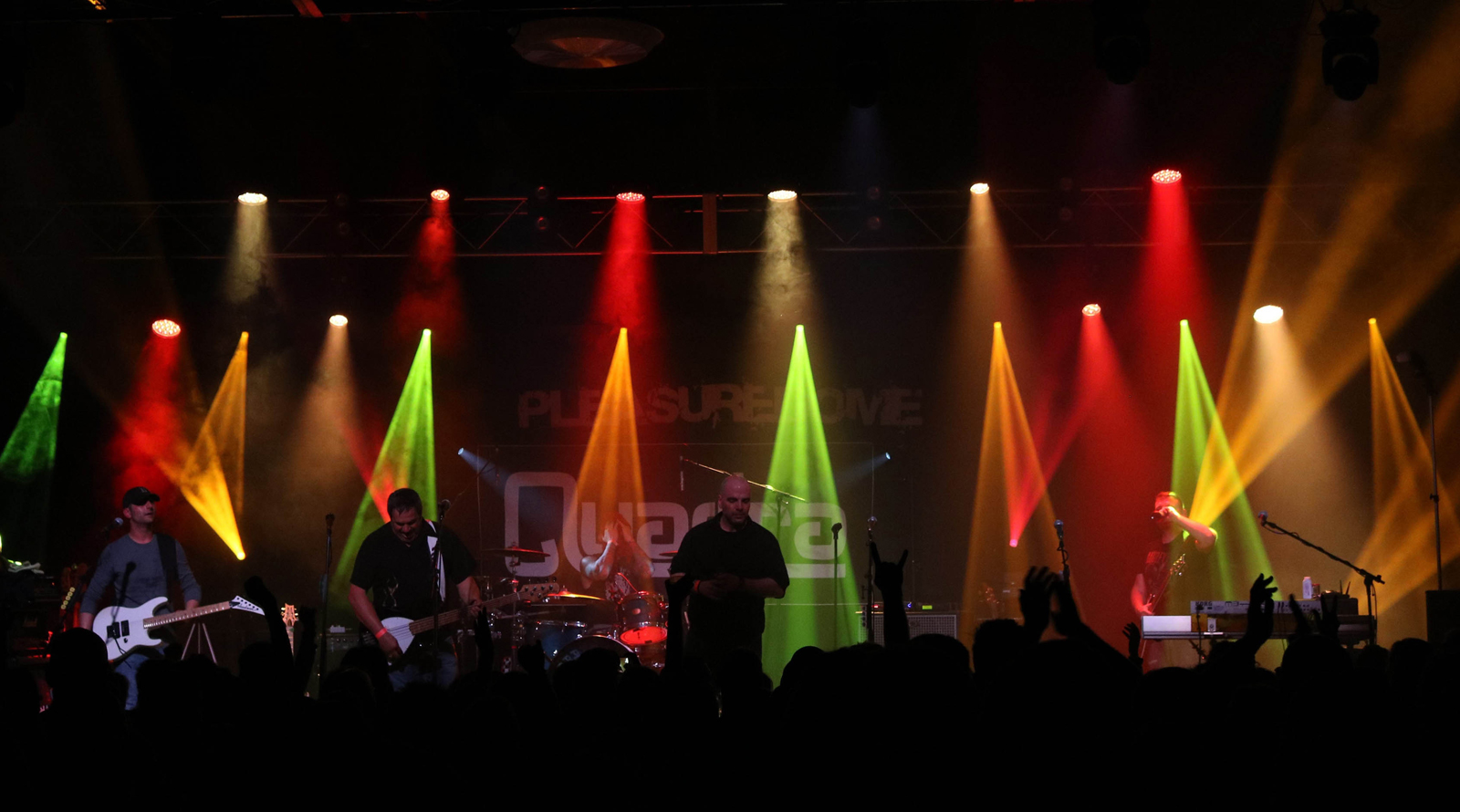

      Higher Ground Music Hall Goes Rogue
