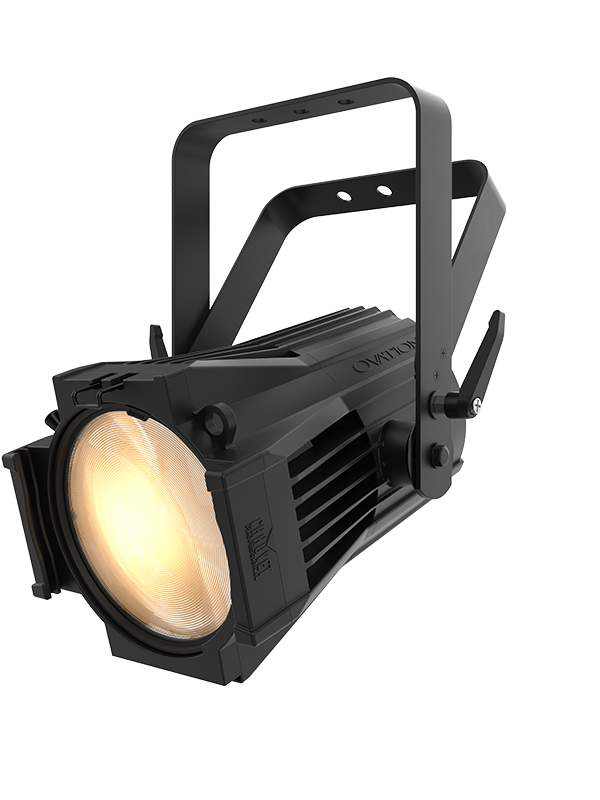

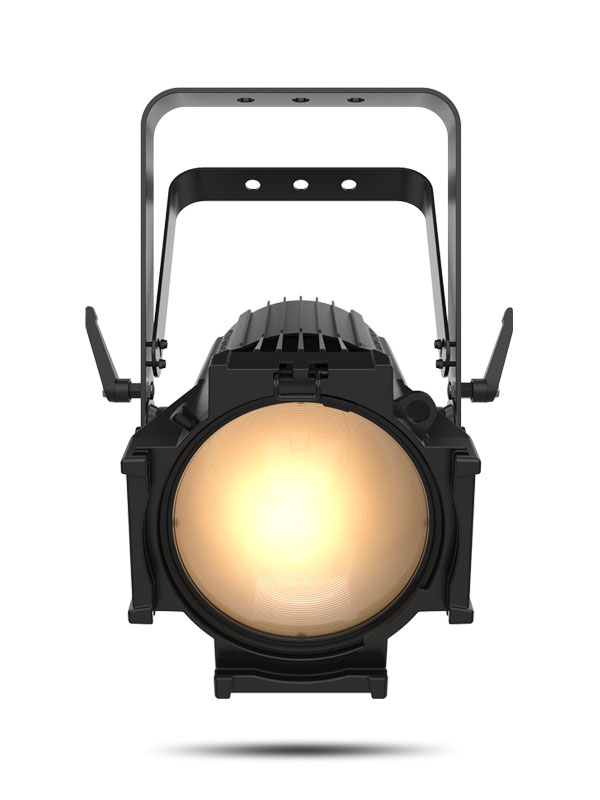

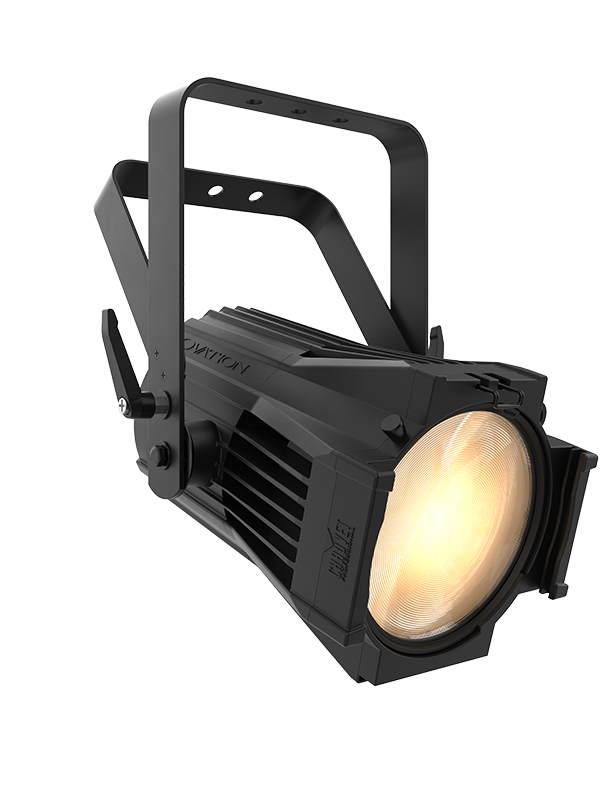

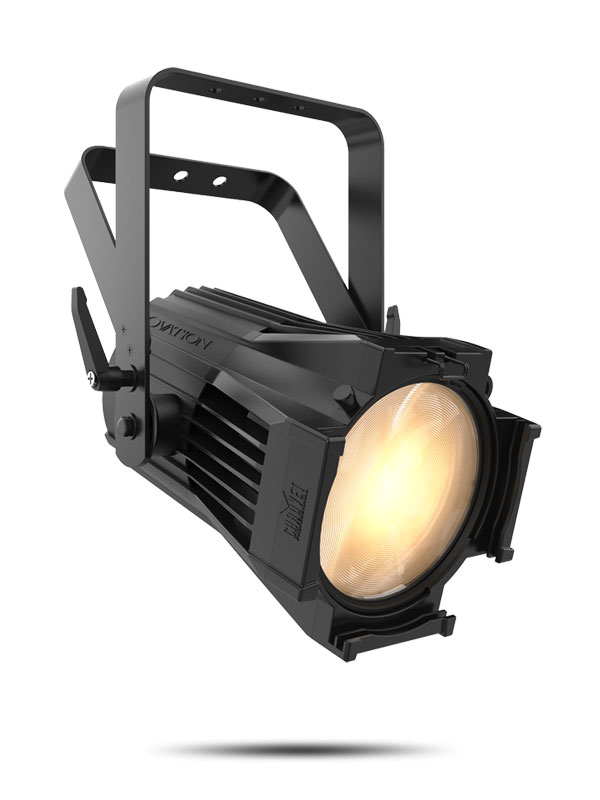

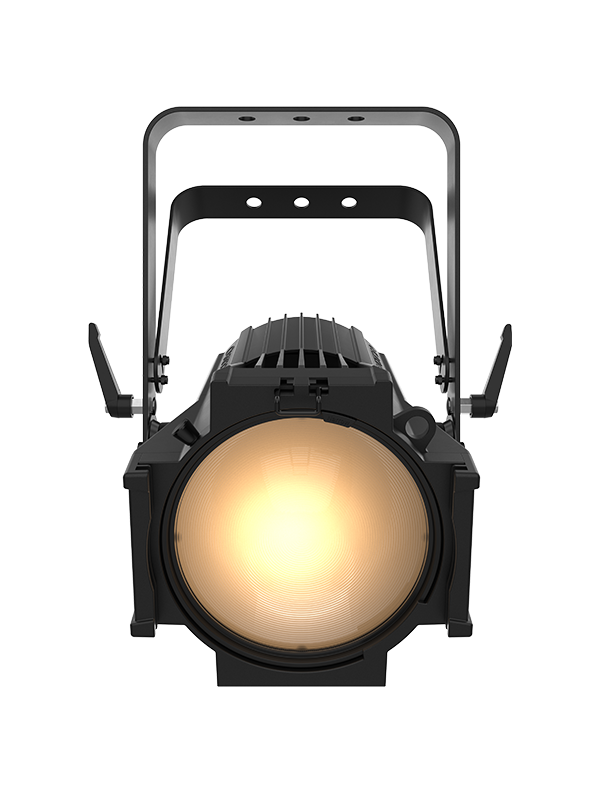

Ovation P-56WW

Ovation P-56WW is a bright, compact, and virtually silent par with exceptionally high CRI that is ideal for theatrical and studio applications. The sleek, modern-style par produces a homogenized, single-source, flat and even field of light with the same efficient warm white LED system found in the award-winning Ovation E-260WW ellipsoidal. Interchangeable lens plates are included for narrow, medium and wide beam angles. The virtually silent par also features extremely smooth 16-bit dimming, as well as RDM and PWM for set-up ease. The unit accepts standard 7.5” beam shaping accessories.


At a Glance

  • Warm white PAR style fixture with output comparable to a 1,000 W PAR 64 lamp

  • 16-bit dimming resolution for smooth fades

  • Compact design with homogenous single source of light

  • Flat, even field of light

  • Quiet operation for use in any situation

  • Interchange lens plates included for narrow, medium and wide beam angles

Specifications

Optical

  • Light Source: 1 LEDs (WW) 230 W, (3.2 A), 3228 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3228 K
  • CRI: 97.9
  • Beam Angle (Narrow lens): 11.8°
  • Beam Angle (Medium lens): 23.9°
  • Beam Angle (Wide lens): 70.9°
  • Beam Angle (Wide lens w/ egg crate) : 37°
  • Field Angle (Narrow lens): 26.6°
  • Field Angle (Medium lens): 40°
  • Field Angle (Wide lens): 106°
  • Field Angle (Wide lens w/egg crate): 68°
  • Lumens (w/Narrow lens): 10,326
  • Lumens (w/Medium lens): 10,728
  • Lumens (w/Wide lens): 10,687
  • Illuminance (w/Narrow Lens): 5,468 lux @ 5 m
  • Illuminance (w/Medium Lens): 2,264 lux @ 5 m
  • Illuminance (w/Wide Lens): 363 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 29 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
  • Weight: 11.6 lb (5.3 kg)
  • Exterior Color: Black
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

Connections

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: USB-C
  • Cable Length (power): 5 ft (1.5 m)
  • Data Connectors: 3- and 5-pin XLR

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 2, 3 or 6
  • Modes/Personalities: 4 personalities (1, 2, 3, 6)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 100 V; 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V; 15 units @ 240 V
  • Power and Current: 210 W, 2.278 A @ 100 V, 60 Hz
  • Power and Current: 205 W, 1.806 A @ 120 V, 60 Hz
  • Power and Current: 197 W, 1.023 A @ 208 V, 60 Hz
  • Power and Current: 195 W, 0.916 A @ 230 V, 50 Hz
  • Power and Current: 194 W, 0.886 A @ 240 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • Ovation P-56WW
  • Neutrik powerCON power cord
  • Gel Frame (7.5 in/191 mm accessories)
  • Wide, medium and narrow lenses
  • Seetronic Powerkon IP65 power cord

Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik® powerCON® cables
  • 3-pin or 5-pin DMX Cables
  • Color Blending Filters: DF60X1D, DF20D
  • Ovation F 7.5″ Barndoor
  • Ovation 60deg, 7.5” Honeycomb
  • Seetronic Powerkon cables

ORDERING INFO

  • Item Code: 03031475
