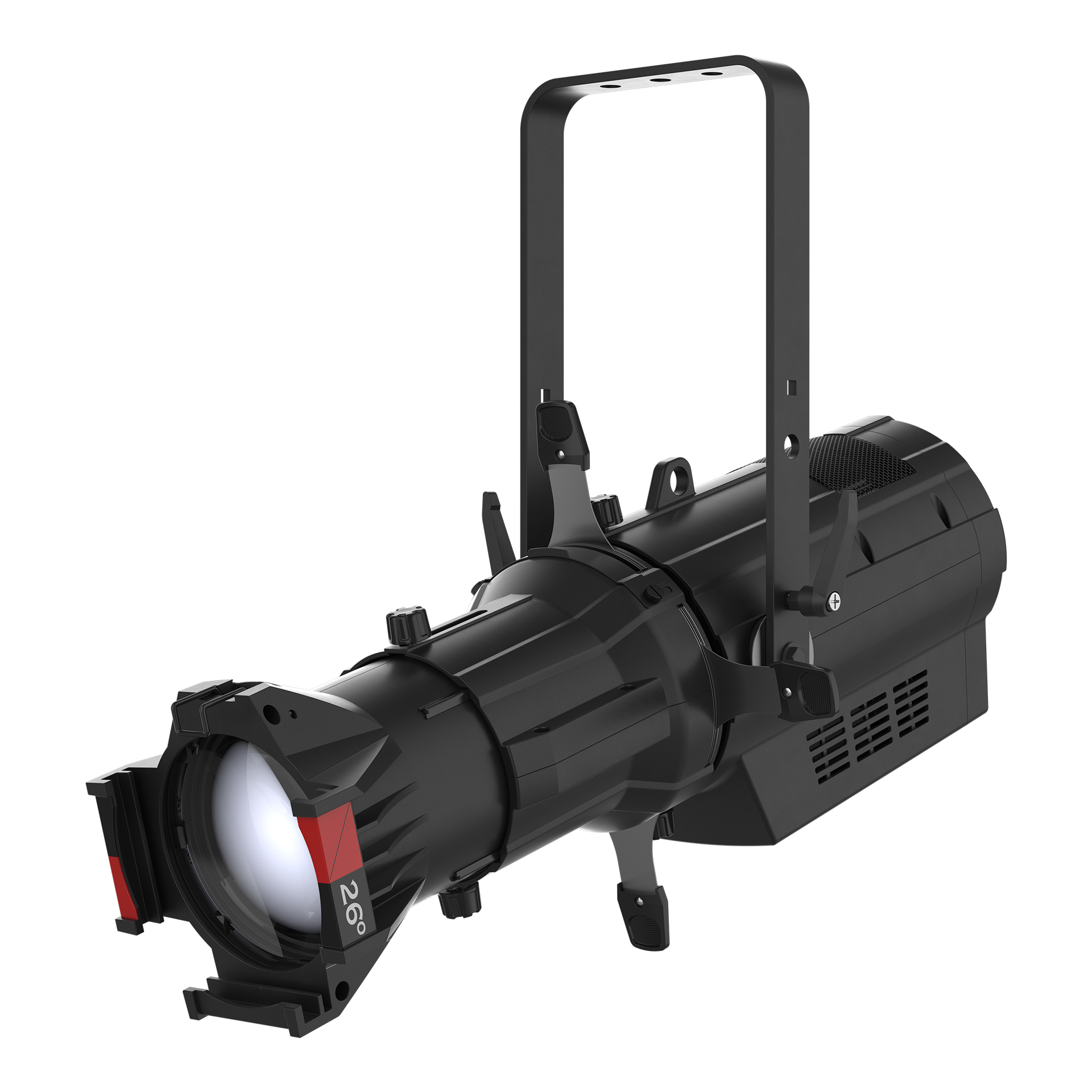

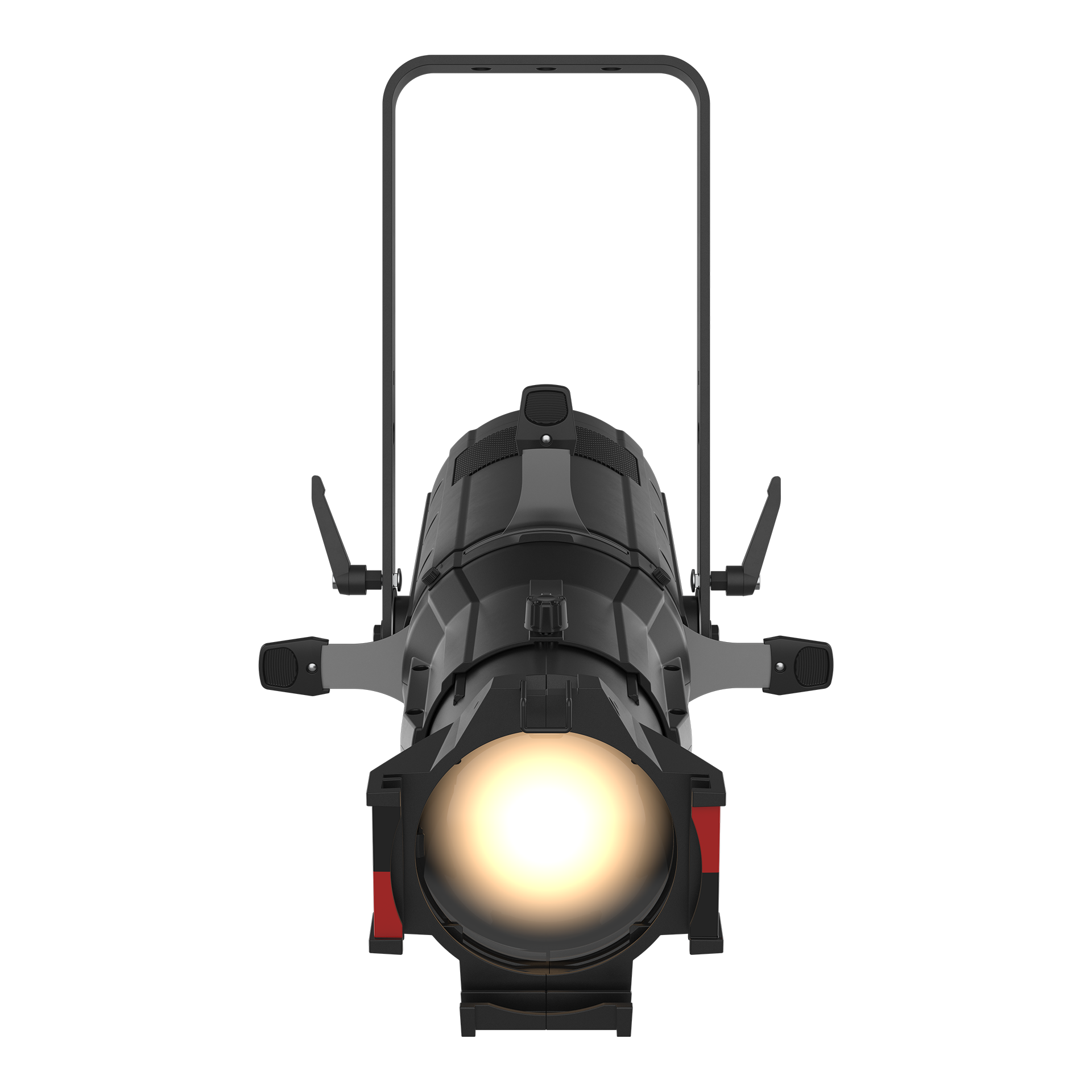

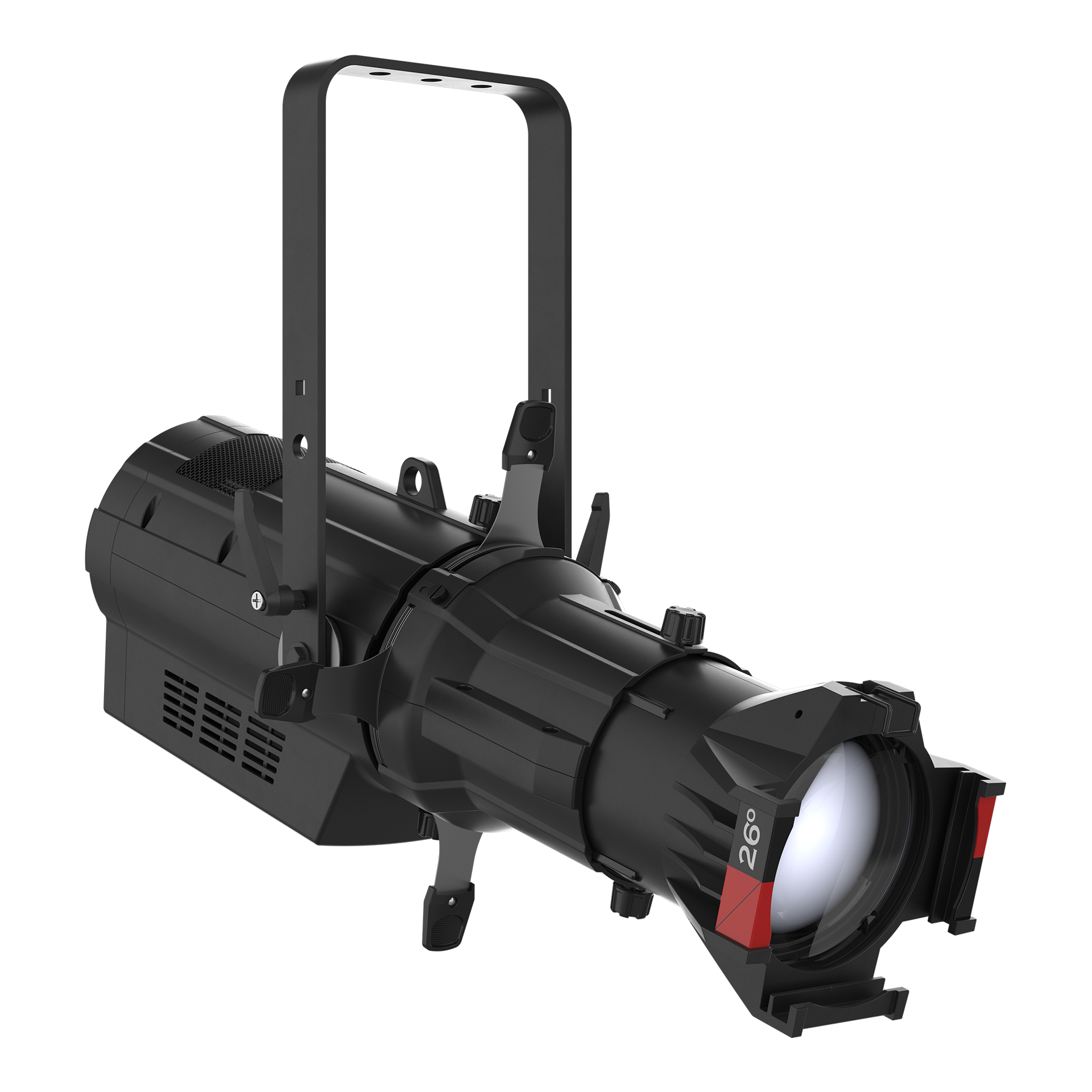

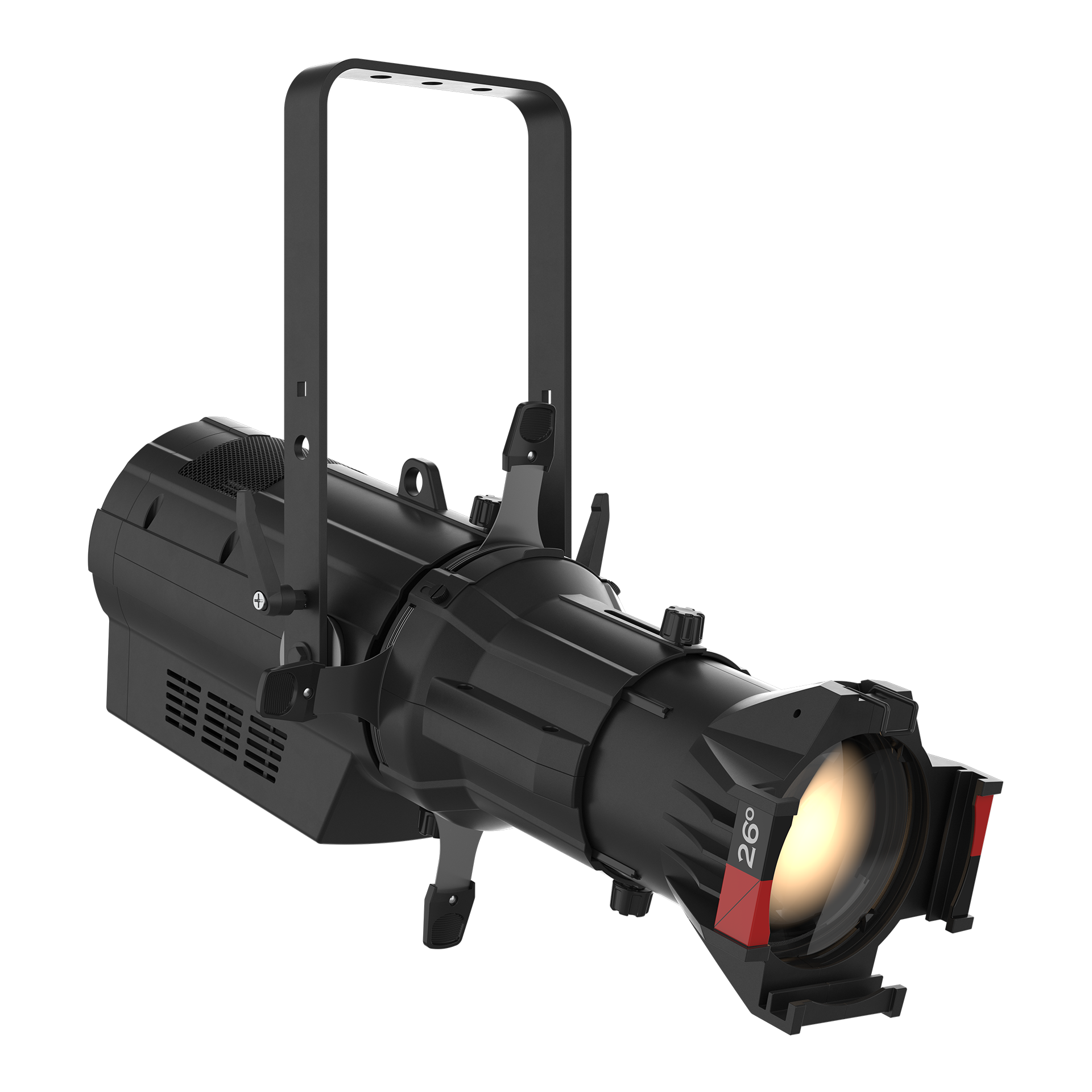

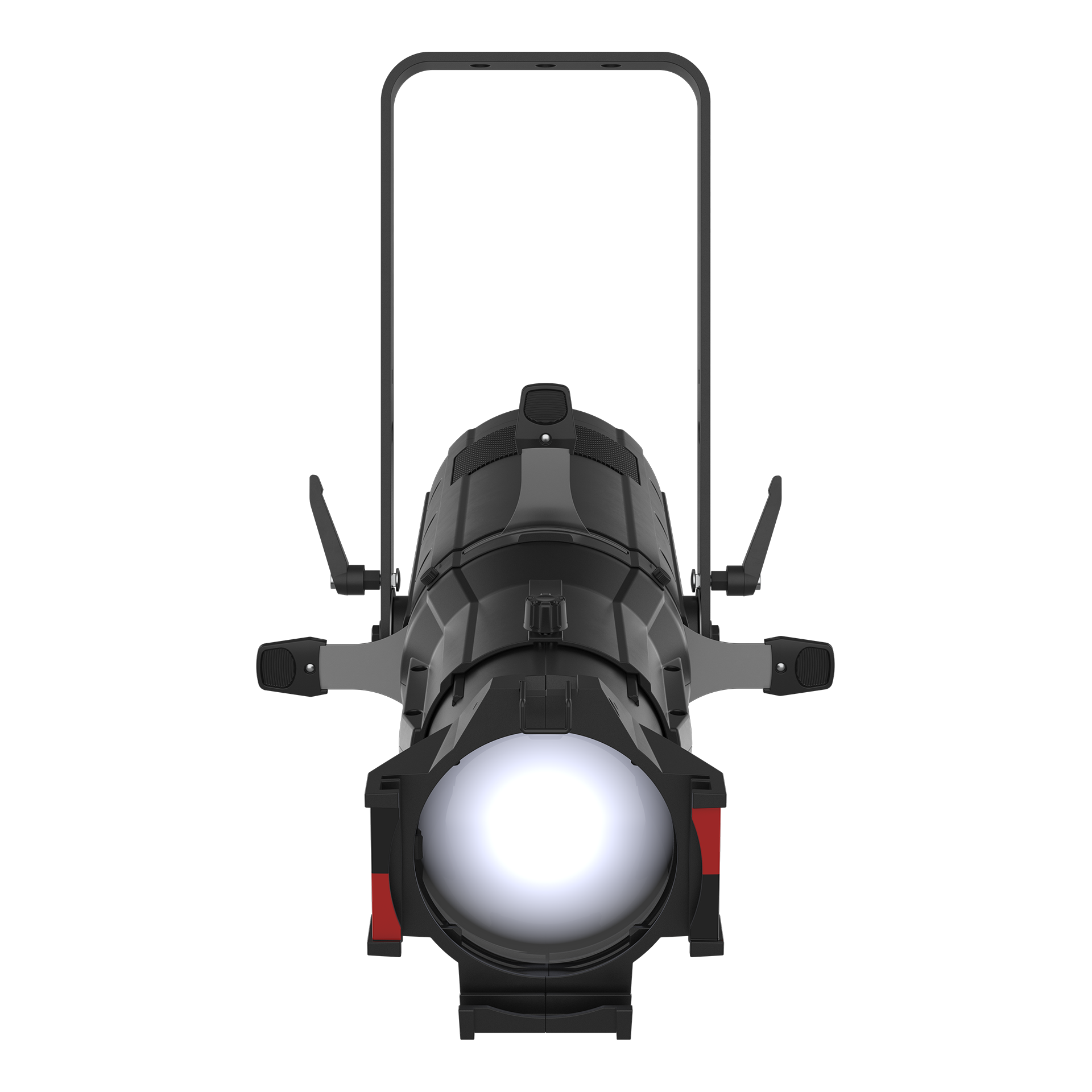

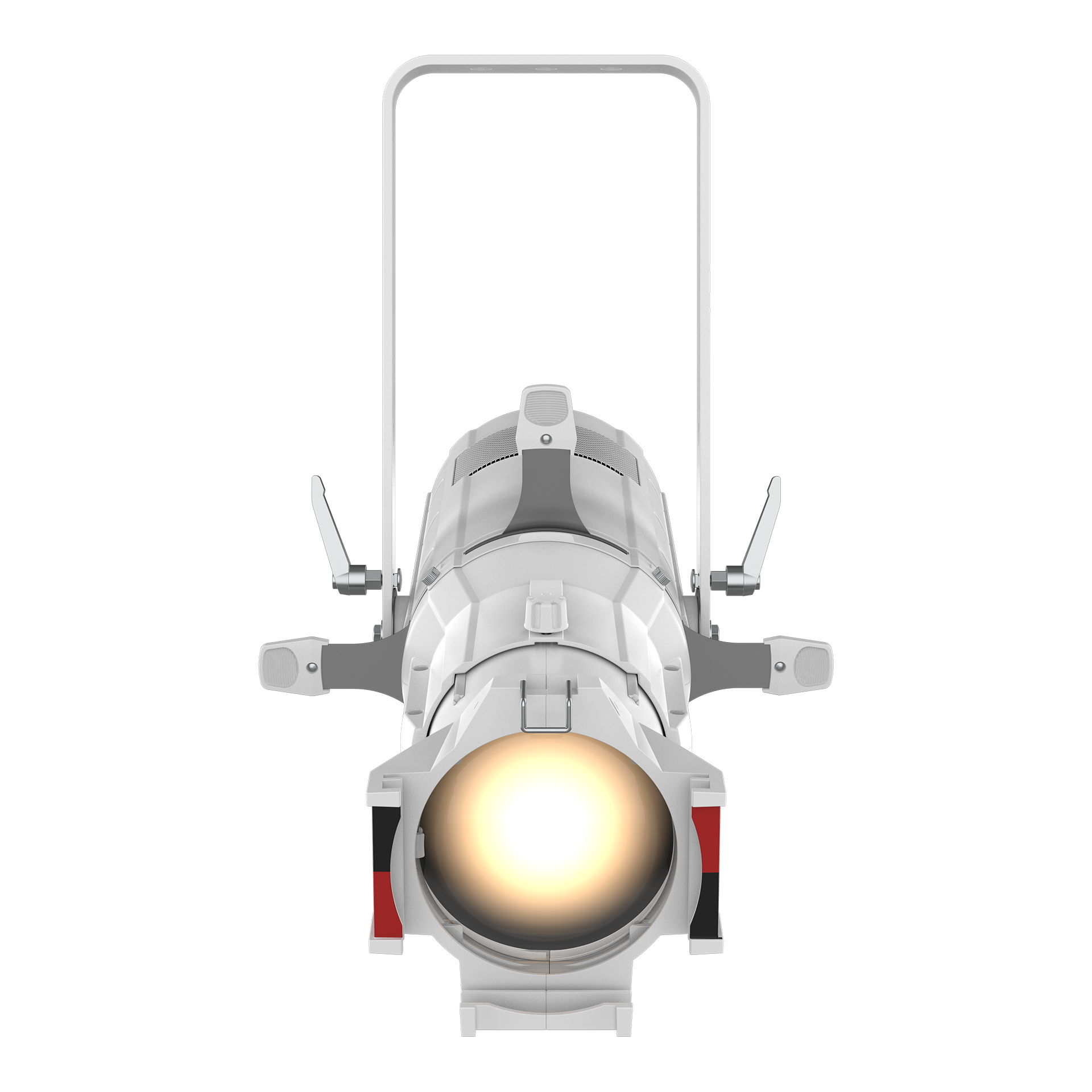

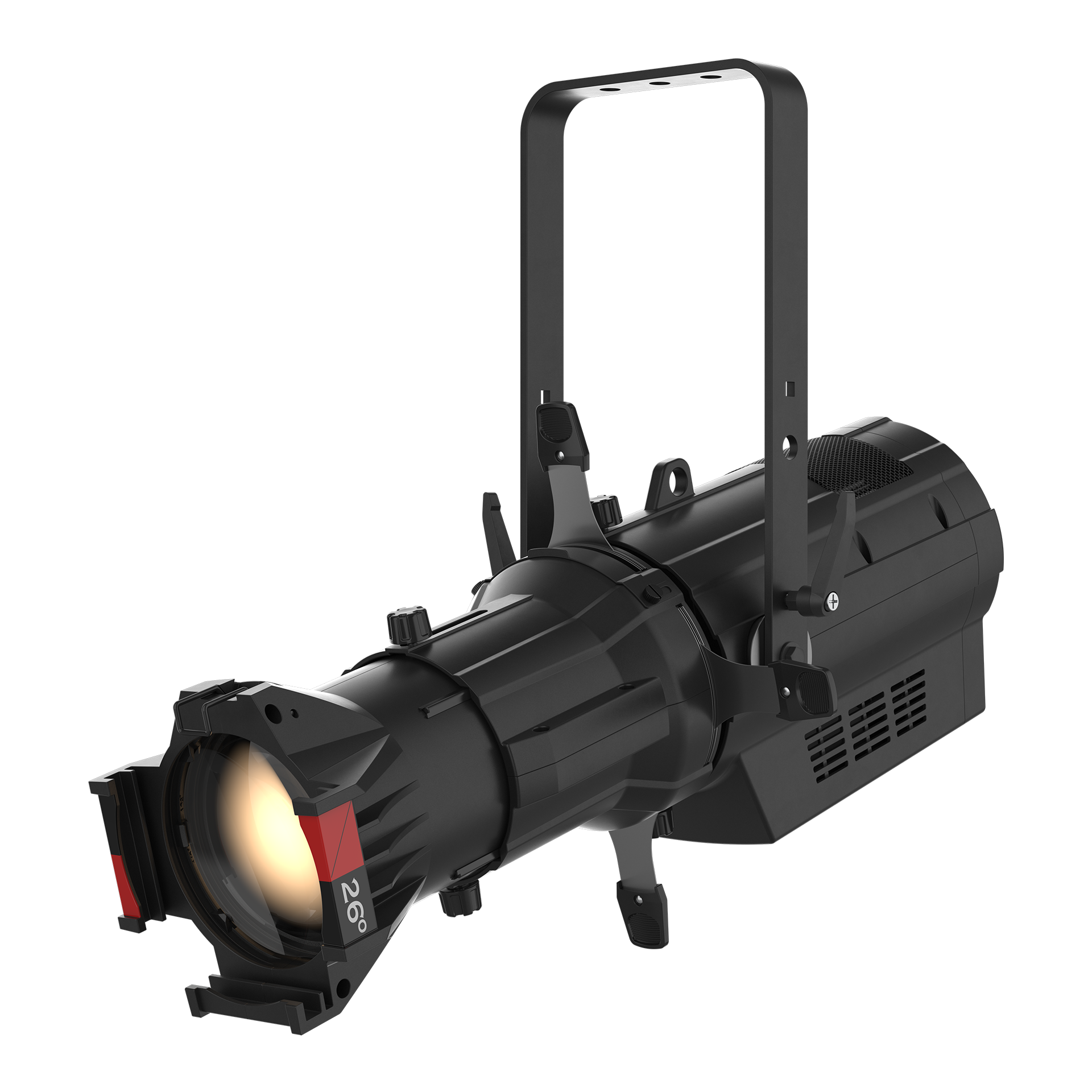

Ovation E-260WW / E-260CW

Optical

• Light Source

  1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy; (CW) 230 W, (3.5 A), 5452 K, 50,000 hours life expectancy

• Color Temperature (at full)

  (WW) 3149 K; (CW) 5452 K

• CRI

  (WW) 96; (CW) 96

• • Beam Angle
    • (W/5° Lens)

      6°

    • (W/10° Lens)

      8°

    • (W/14° Lens)

      11°

    • (W/19° Lens)

      13°

    • (W/26° Lens)

      16°

    • (W/36° Lens)

      20°

    • (W/50° Lens)

      28°

    • (w/15°–30° lens)(Narrow)

      12°

    • (w/15°–30° lens)(Wide)

      14°

    • (w/25°–50° lens)(Narrow)

      21°

    • (w/25°–50° lens)(Wide)

      22°

• • Field Angle
    • (W/5° Lens)

      7°

    • (W/10° Lens)

      10°

    • (W/14° Lens)

      14°

    • (W/19° Lens)

      18°

    • (W/26° Lens)

      25°

    • (W/36° Lens)

      34°

    • (W/50° Lens)

      50°

    • (w/15°–30° lens)(Narrow)

      15°

    • (w/15°–30° lens)(Wide)

      29°

    • (w/25°–50° lens)(Narrow)

      26°

    • (w/25°–50° lens)(Wide)

      46°

• Dimming Modes

  4

• Lumens (w/19° lens)

  (WW) 7,587; (CW) 9,530

• Lumens (w/26° lens)

  (WW) 10,284; (CW) 13,368

• Lumens (w/36° lens)

  (WW) 10,121; (CW) 13,184

• Lumens (w/50° lens)

  (WW) 9,655; (CW) 12,672

• • Illuminance
    • Illuminance (w/5° lens)

      (WW) 41,400 lux @ 5 m; (CW) 49,200 lux @ 5 m

    • Illuminance (w/10° lens)

      (WW) 23,300 lux @ 5 m; (CW) 26,600 lux @ 5 m

    • Illuminance (w/14° lens)

      (WW) 13,439 lux @ 5 m; (CW) 16,787 lux @ 5 m

    • Illuminance (w/19° lens)

      (WW) 9,256 lux @ 5 m; (CW) 10,674 lux @ 5 m

    • Illuminance (w/26° lens)

      (WW) 6,910 lux @ 5 m; (CW) 8652 lux @ 5 m

    • Illuminance (w/36° lens)

      (WW)4,053 lux @ 5 m; (CW) 5185 lux @ 5 m

    • Illuminance (w/50° lens)

      (WW)1,703 lux @ 5 m; (CW) 2181 lux @ 5 m

• Illuminance (w/15°–30° lens)(Narrow)

  (WW) 16,827 lux @ 5 m ; (CW) 19,900 lux @ 5 m

• Illuminance (w/15°–30° lens)(Wide)

  (WW) 10,626 lux @ 5 m; (CW) 10,159 lux @ 5 m

• Illuminance (w/25°–50° lens)(Narrow)

  (WW) 7,210 lux @ 5 m; (CW) 9,219 lux @ 5 m

• Illuminance (w/25°–50° lens)(Wide)

  (WW) 3,295 lux @ 5 m; (CW) 3,468 lux @ 5 m

• Selectable PWM

  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Manual

• Strobe Rate

  (WW) 0 to 27 Hz; (CW) 0 to 30 Hz

• Dim Modes

  4

• Built-in Automated Programs

  Yes

• Color Temperature Presets

  (CW) No

Construction/Physical

• • Dimensions
    • Dimensions (fixture only)

      19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)

    • Dimensions (w/5° lens extended)

      42.79 x 14.17 x 14.48 in (1087 x 360 x 368 mm)

    • Dimensions (w/10° lens extended)

      34.09 x 12.16 x 12.48 in (866 x 309 x 317 mm)

    • Dimensions (w/14° lens extended)

      28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)

    • Dimensions (w/26° lens extended)

      25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)

    • Dimensions (w/15°–30° lens)

      32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)

    • Dimensions (w/25°–50° lens)

      27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)

• • Weights
    • Weight (fixture only)

      15.4 lb (7 kg)

    • Weight (w/5° lens)

      21.2 lb (9.7 kg)

    • Weight (w/10° lens)

      19.2 lb (8.8 kg)

    • Weight (w/14° lens)

      20.8 lb (9.43 kg)

    • Weight (w/26° lens)

      19.4 lb (8.80 kg)

    • Weight (w/15°–30° lens)

      29.4 lb (13.34 kg)

    • Weight (w/25°–50° lens)

      27 lb (12.25 kg)

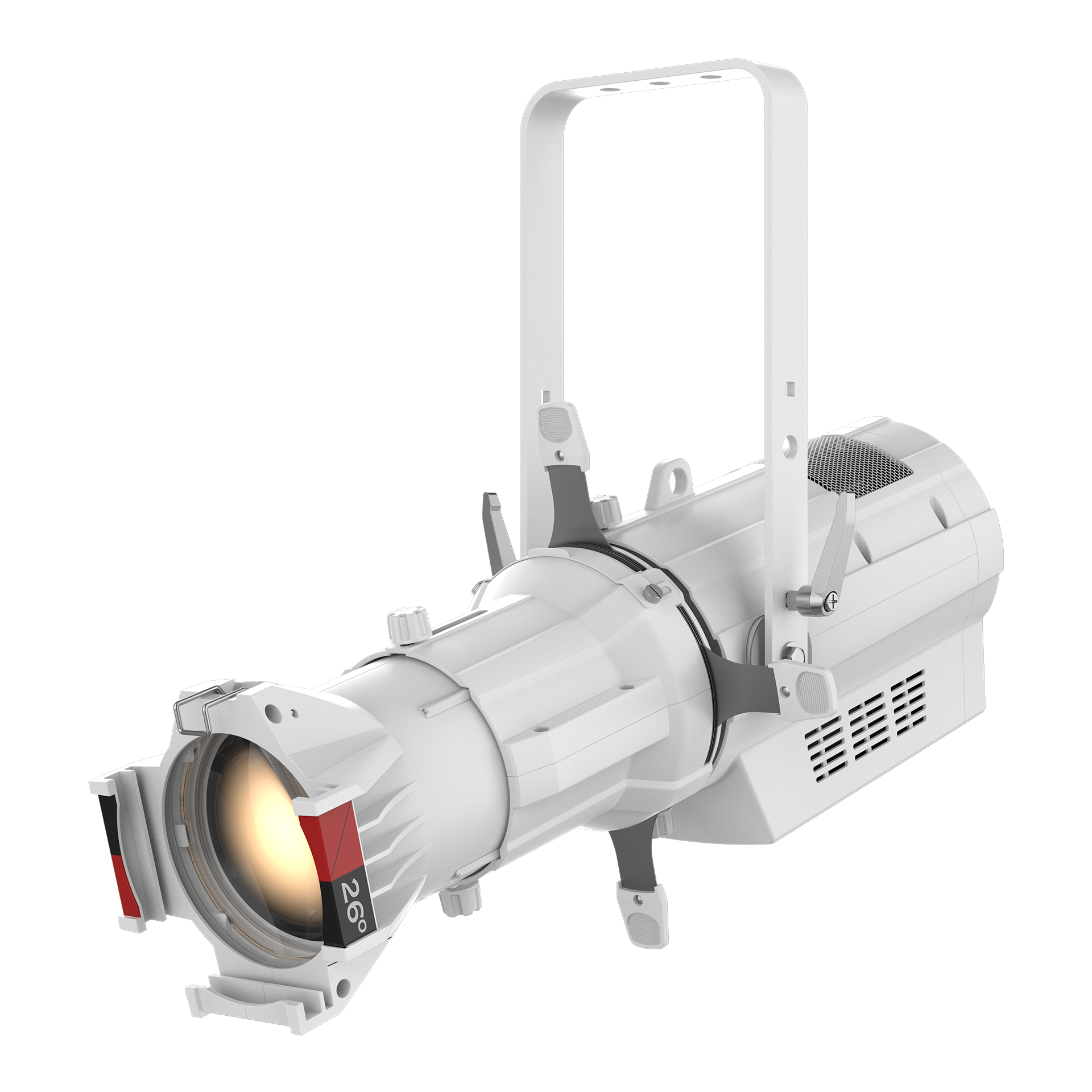

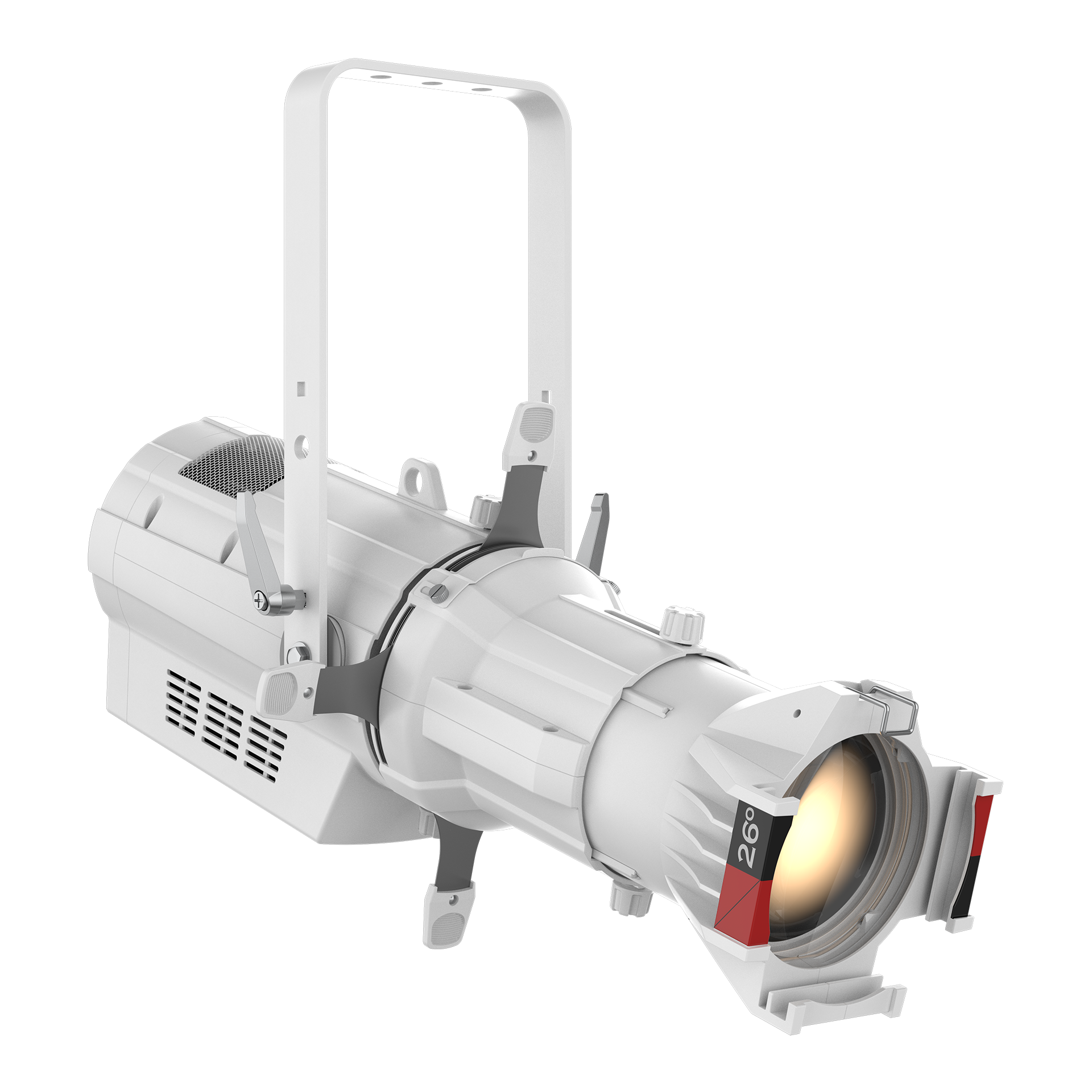

• Exterior Color

  Black or White

• Gobo Size (Optional)

  “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)

• Gobo Size (Optional)

  “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)

• • Accessory Holder/Gel Frame Size
    • (5° Lens)

      14 in (356 mm)

    • (10° Lens)

      12 in (304 mm)

    • (14° Lens)

      7.5 in (191 mm)

    • (19°, 26°, 36°, And 50° Lens)

      6.25 in (159 mm)

    • (15°–30° Lens)

      7.5 in (191 mm)

    • (25°–50° Lens)

      7.5 in (191 mm)

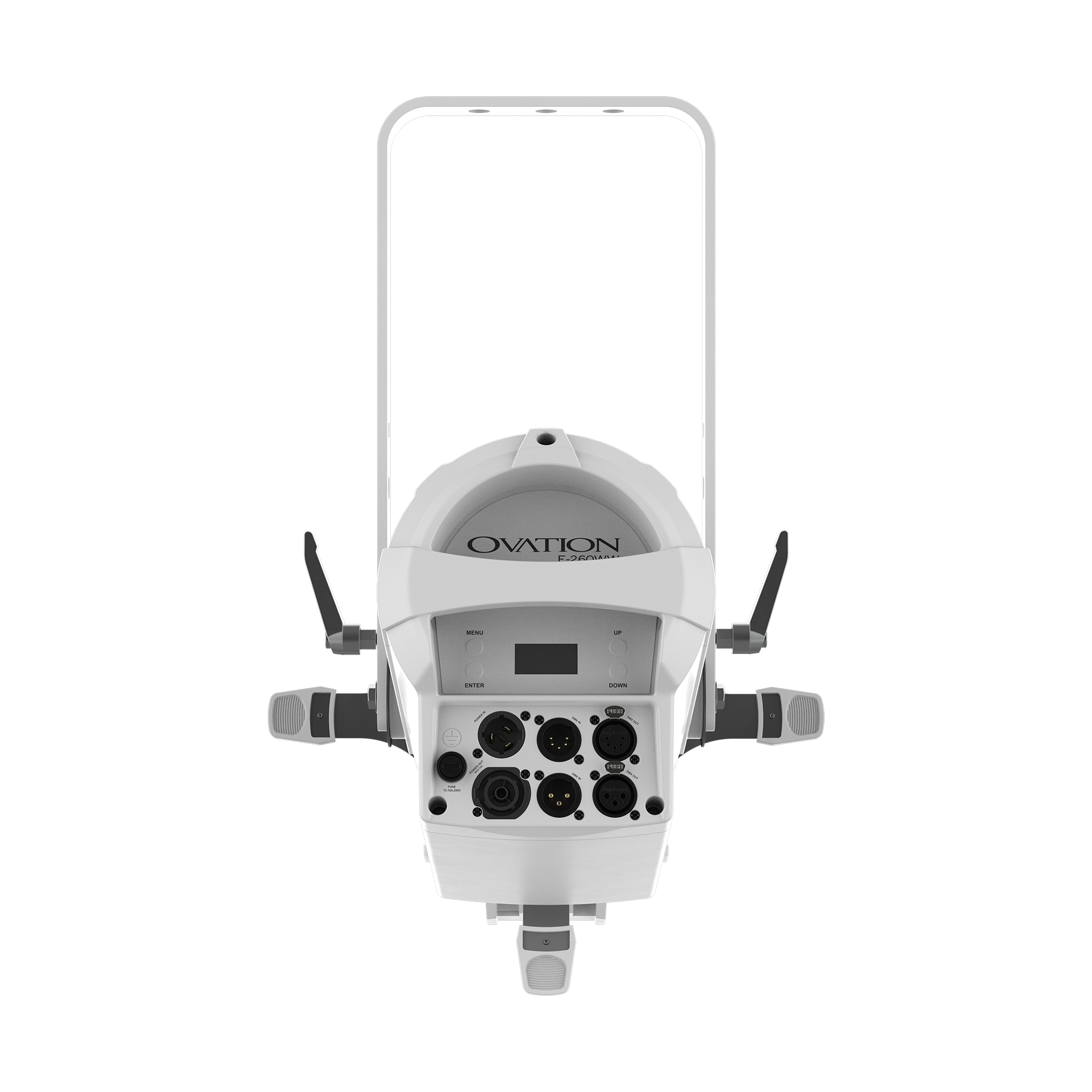

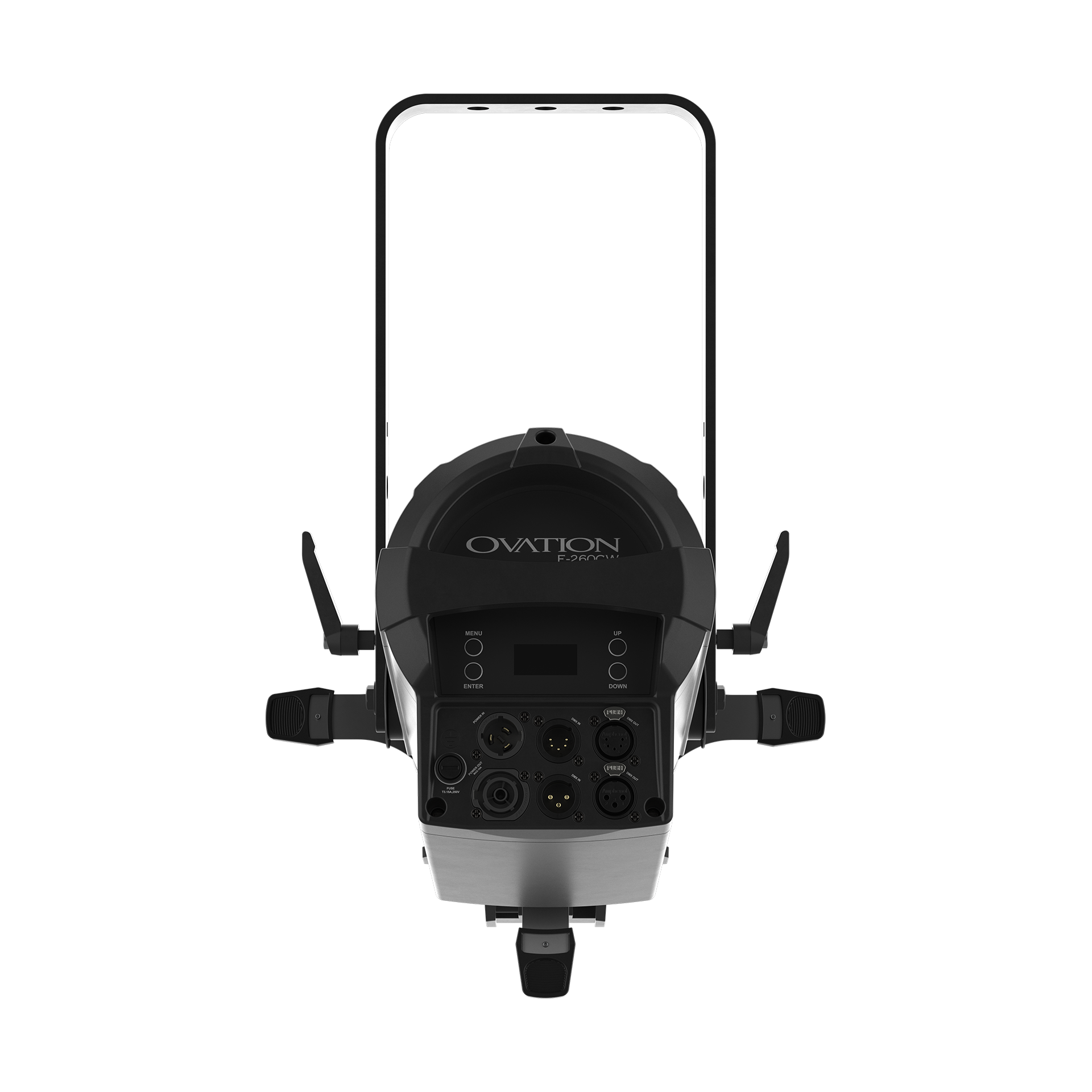

Connections

• Power Connection

  Edison (local) plug to Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Power Output

  Seetronic Powerkon IP65

• Data Connectors

  3- and 5-pin XLR

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  (WW) DMX RDM; (CW) DMX, RDM

• DMX Channels

  1, 2, 3 or 6

• Modes/Personalities

  4 personalities (1, 2, 3, 6)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  6 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V;

• Power and current

  (WW) 225 W, 2.36 A @ 100 V. 60 Hz
  (CW) 225 W, 2.23 A @ 100 V, 60 Hz

• Power and Current

  223 W, 1.84 A @ 120 V, 60 Hz

• Power and Current

  230 W, 1.10 A @ 208 V, 60 Hz

• Power and Current

  231 W, 1.00 A @ 230 V, 50 Hz

• Power and Current

  (WW) 232 W, 1.02 A @ 240 V, 60 HZ
  (CW) 232 W, 0.96 A @ 240 V, 60 Hz

Certifications/Qualifications

• Certifications

  CE, MET, FCC, UKCA

• IP Rating

  IP20, dry location
