Ovation Ellipsoidal HD Lens Tubes

A universally compatible lens tube for all ERS-style ellipsoidal fixtures, featuring high-precision HD optics within a rugged housing for superior image quality and durability.
Ideal for any touring, broadcast, or theatrical production that demands robust construction and high-precision optical performance from its lighting fixtures.

Features

Fixed Focal Length Lens Tube

This lens tube is specifically designed with a fixed focal length for Ovation ellipsoidal fixtures.

Dual Aspheric Lenses

Two aspheric lenses work together to provide precise focus for exceptionally crisp gobo projection.

Included Gel Frame and Holder

An integrated gel frame holder and an included gel frame make adding color media simple and convenient.

Specifications

Download Product Specs

Optical

- Installed Optics
  - 5°

    5°
  - 10°

    10°

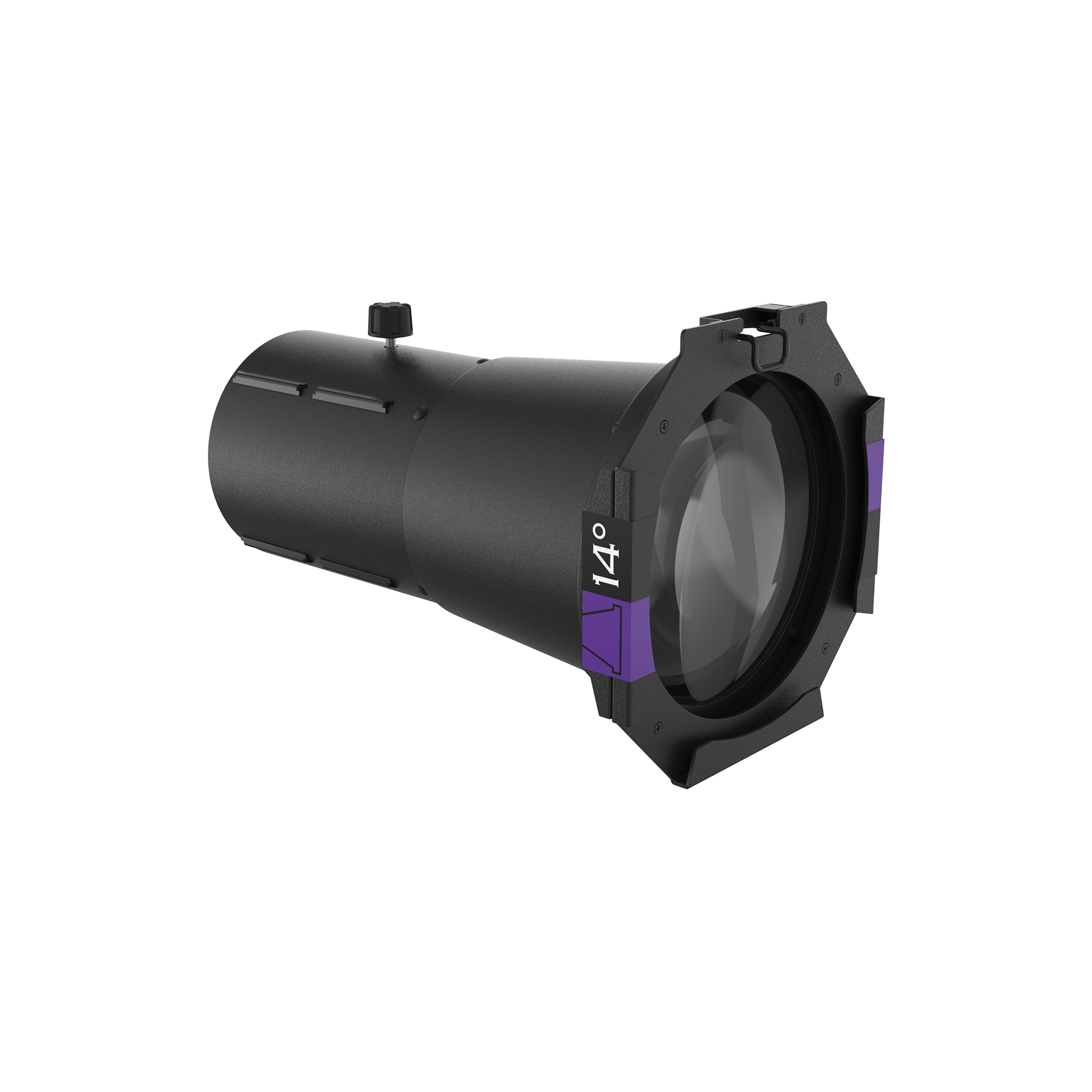

  - 14°

    14°

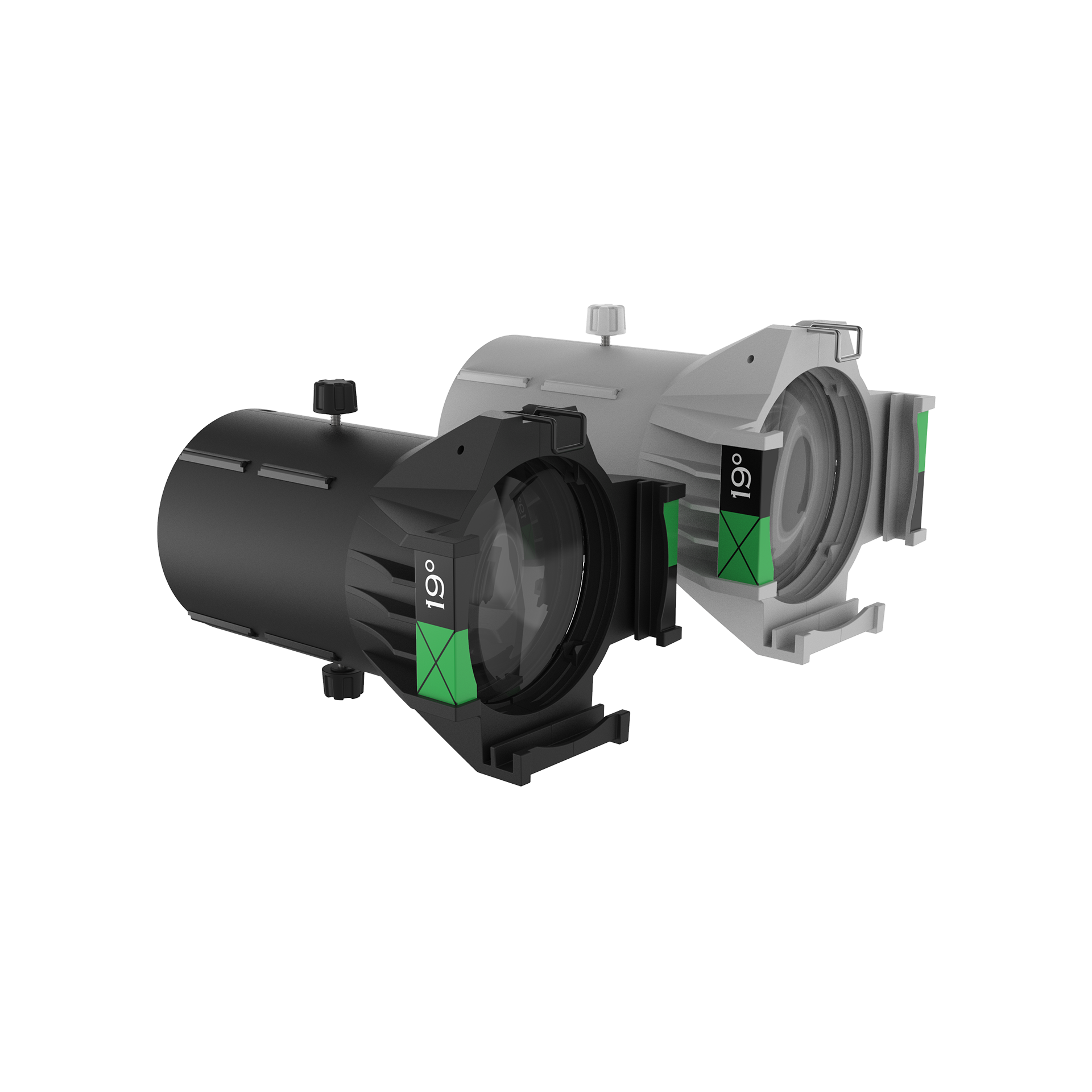

  - 19°

    19°
  - 26°

    26°

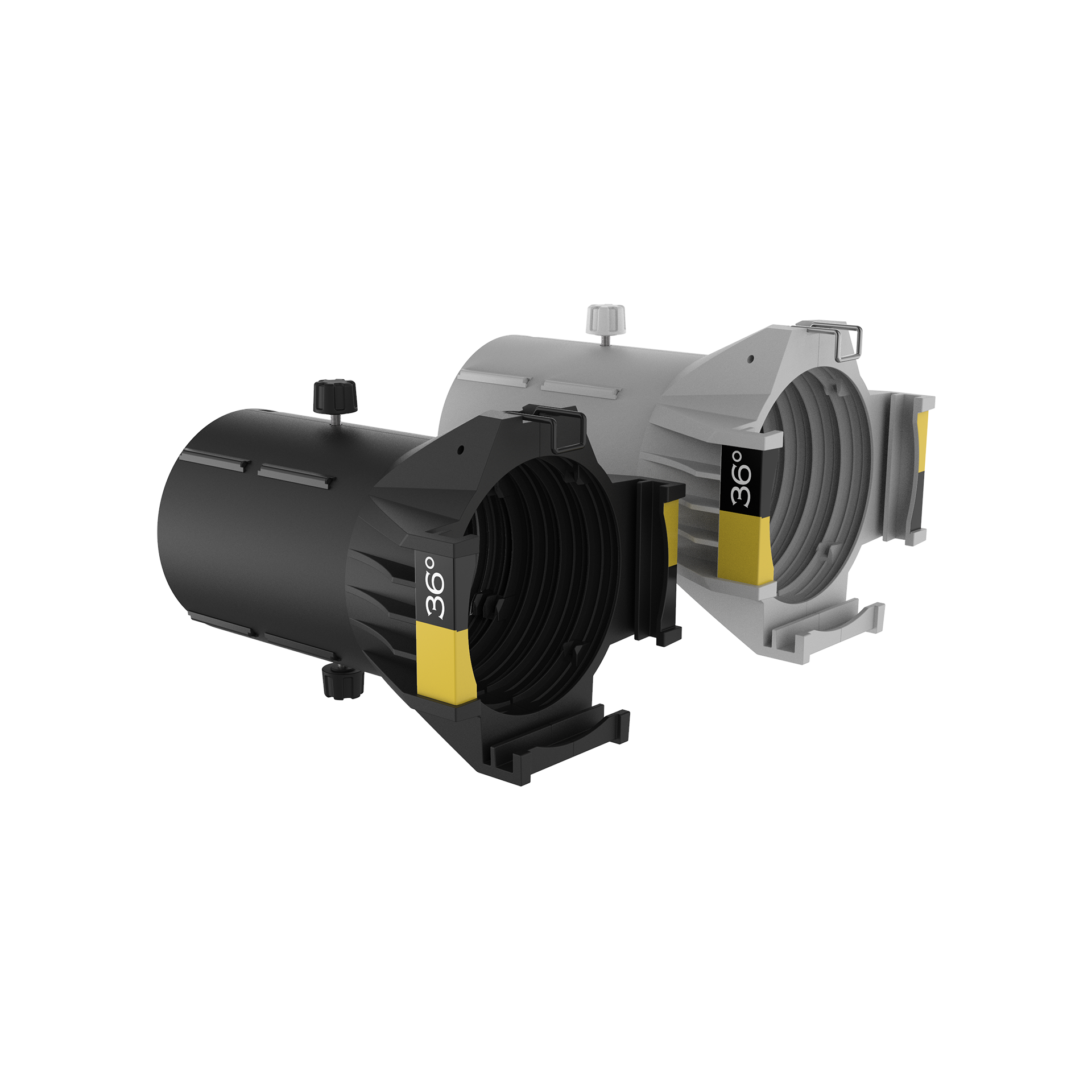

  - 36°

    36°
  - 50°

    50°

Construction/Physical

- Dimensions
  - 5° lens

    24.5 x 14.17 x 14.48 in (622.4 x 360 x 368 mm)
  - 10° lens

    15.78 x 12.16 x 12.48 in (400.9 x 309 x 317 mm)
  - 14° lens

    12.7 x 7.8 x 8 in (323 x 198 x 204 mm)
  - 19°, 26°, 36°, and 50° lens

    9.64 x 6.85 x 6.85 in (245 x 174 x 174 mm)
- Weight
  - 5°

    5.8 lb (2.7 kg)
  - 10°

    3.8 lb (1.8 kg)
  - 14°

    5.4 lb (2.4 kg)
  - 19°

    4.2 lb (1.9 kg)
  - 26°

    4.0 lb (1.8 kg)
  - 36°

    3.8 lb (1.7 kg)
  - 50°

    4.0 lb (1.8 kg)
- Accessory Holder / Gel Frame Size
  - 5° lens

    14 in (356 mm)
  - 10° lens

    12 in (304 mm)
  - 14° lens

    7.50 in (191 mm)
  - 19°, 26°, 36°, and 50° lens

    6.25 in (159 mm)

Certifications/Qualifications

IP Rating

IP65, outdoor/wet

What's Included

OHDLENS5
OHDLENS10
OHDLENS14
OHDLENS19
OHDLENS26
OHDLENS36
OHDLENS50
