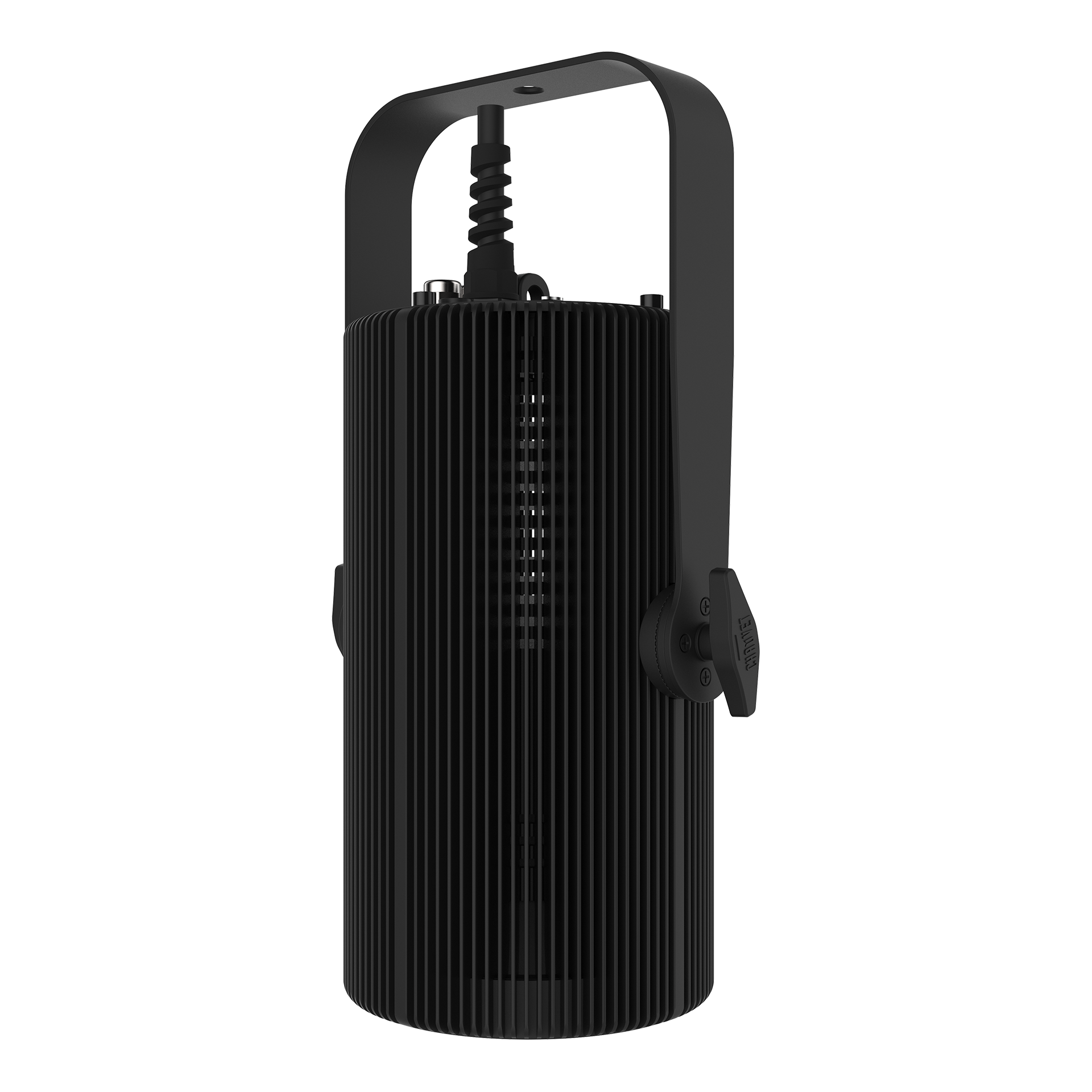

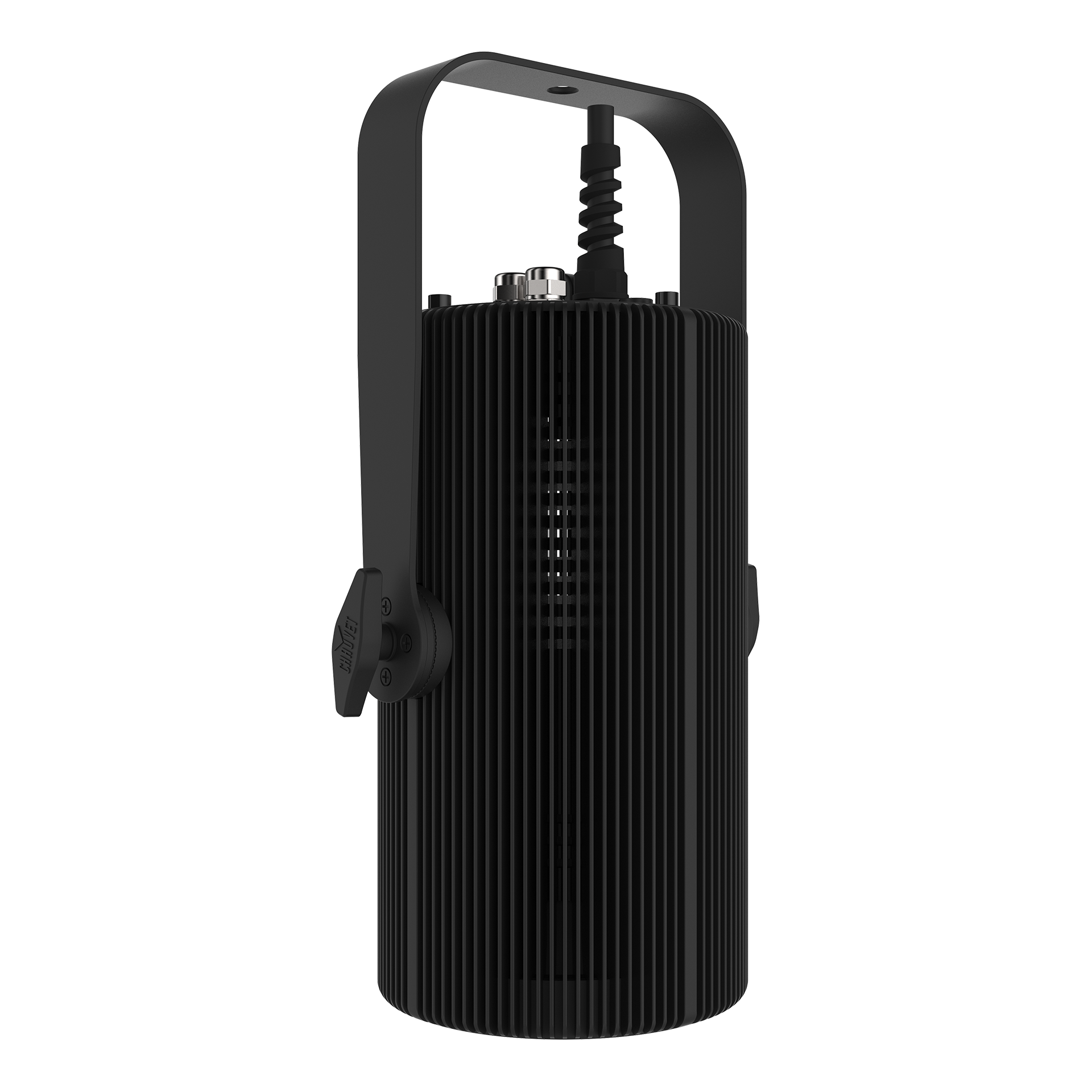

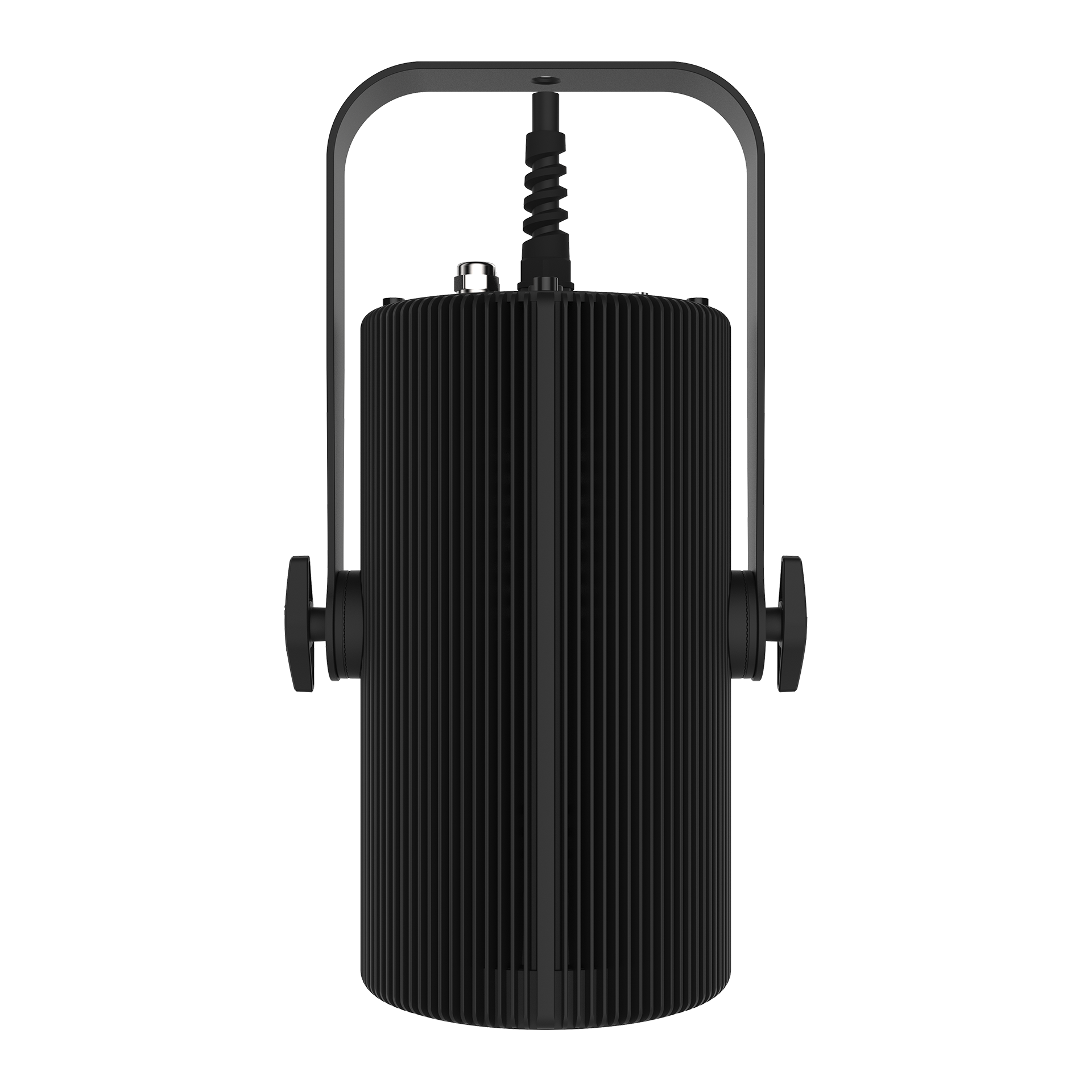

Ovation H-265WW
A silent, convection-cooled LED houselight delivering a powerful, high-CRI warm white output with professional features including 16-bit dimming, flicker-free PWM control, and versatile mounting options.
Perfect for theatres, worship venues, recital halls, and broadcast applications where completely silent operation and high-quality, flicker-free lighting are essential.
-
Features a 230 W LED source with an exceptional 97 CRI for superior color rendering.
-
Operates in complete silence with a fanless, convection-cooled design for sensitive environments.
-
Interchangeable lenses adapt the beam angle for various mounting heights and venue sizes.
-
Offers versatile mounting with a removable yoke or a direct-to-pipe pendant-style option.
-
Supports DMX, W-DMX, and RDM protocols for comprehensive and flexible control integration.
-
Adjustable PWM ensures flicker-free performance for broadcast and recording applications.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Ovation H-265WW Quick Reference Guide | Download |
Ovation H-265WW Quick Reference Guide- Legacy S… | Download |
Ovation H-265WW User Manual | Download |
Ovation H-265WW CAD Files | Download |
Ovation H-265WW IES Files | Download |
Ovation H-265WW Photometrics Report | Download |
Ovation H-265WW DMX Chart | Download |
Ovation H-265WW DMX Chart- Legacy Software | Download |
Ovation H-265WW Specification Sheet | Download |
Case study: Chapel Off Chapel Gets More Versati… | Download |
Firmware | Download |
Firmware | Download |
Revit File | Download |
Ovation H-265WW

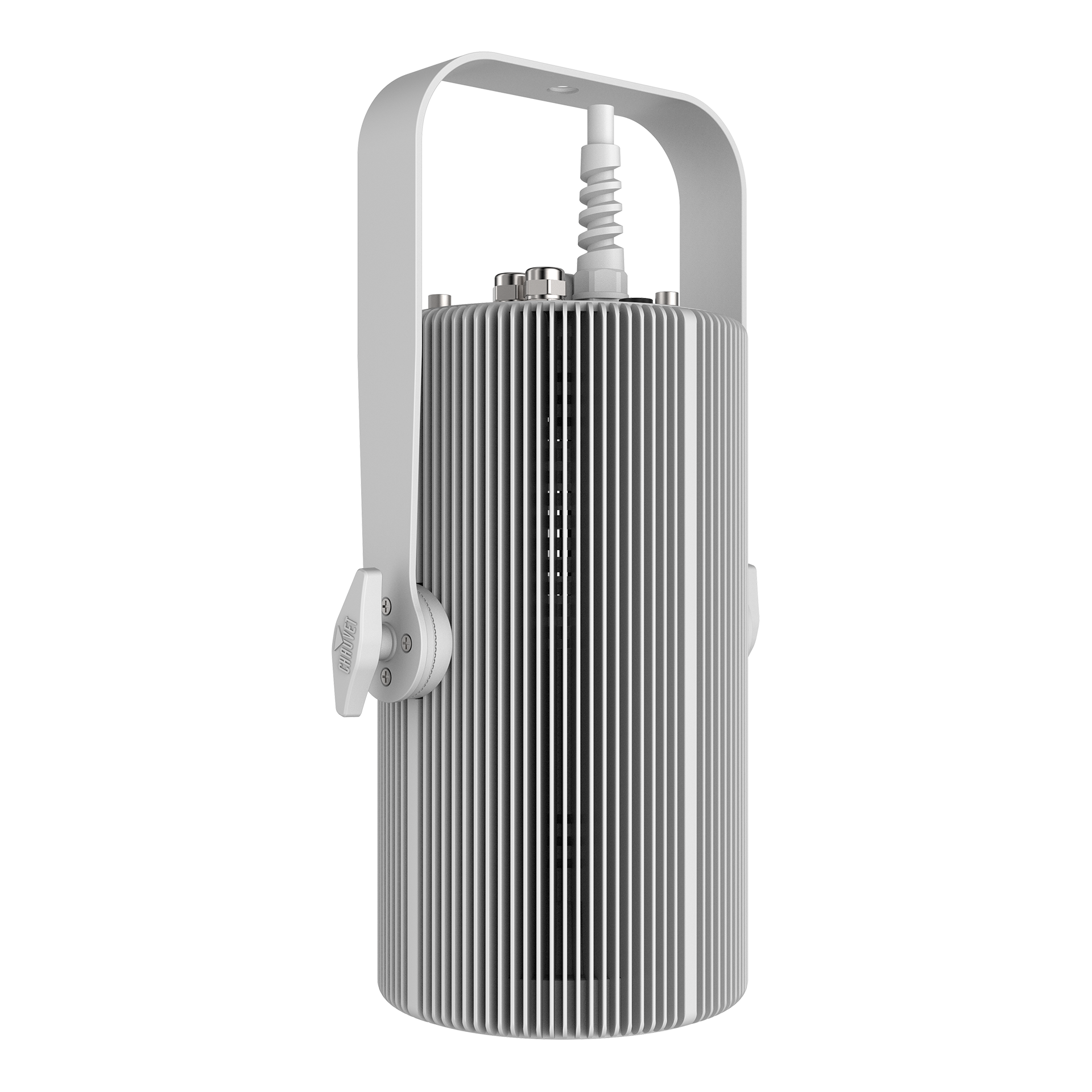

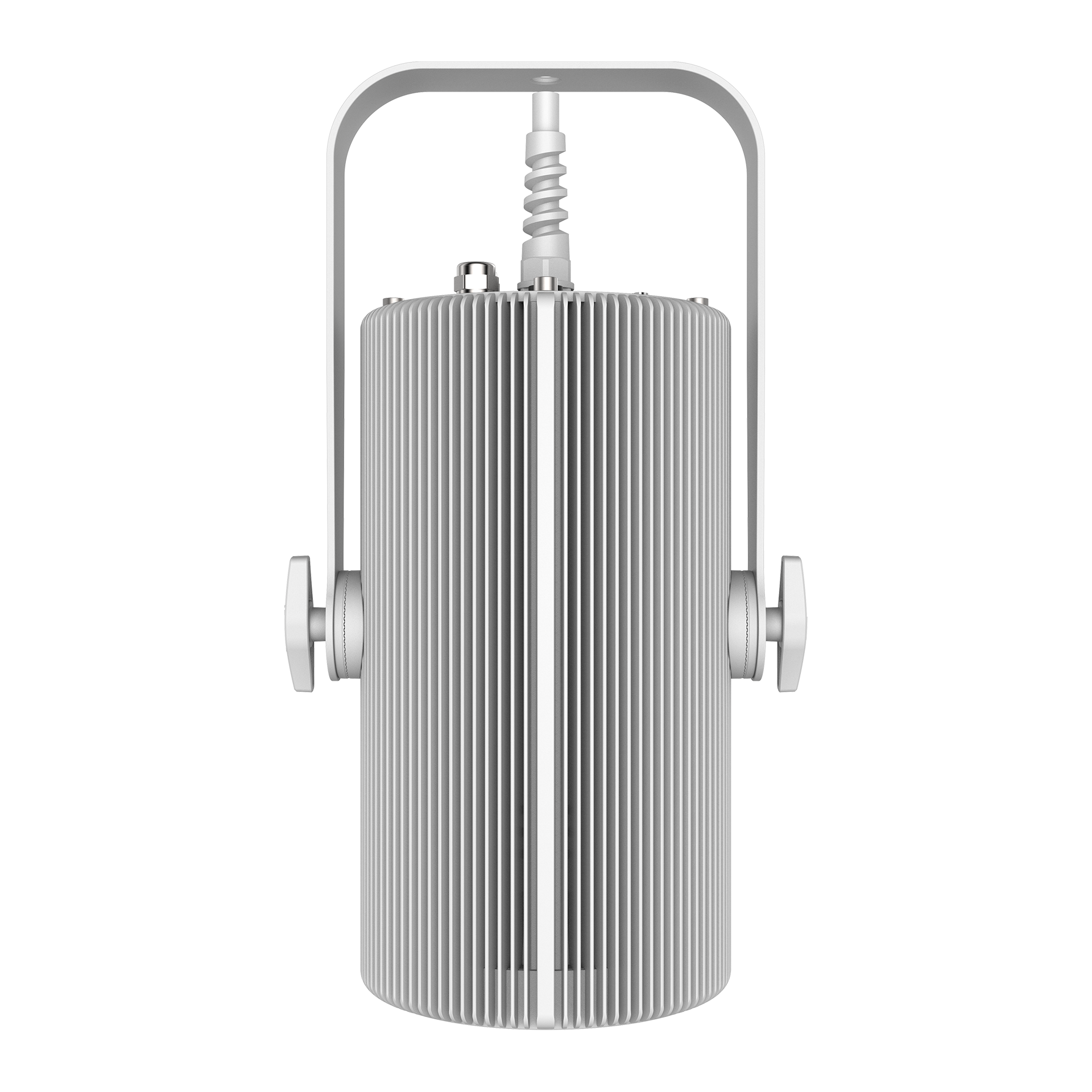

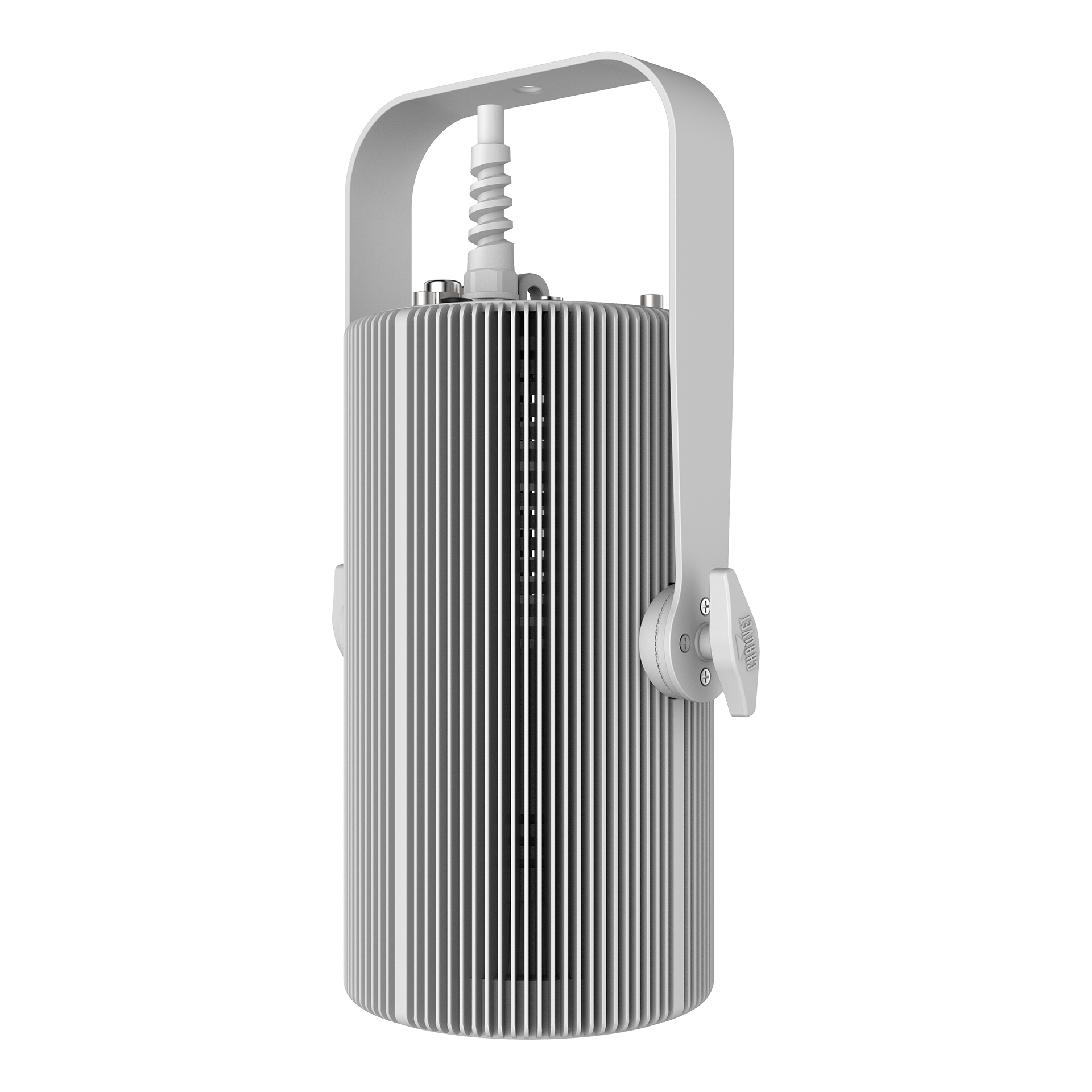

Ovation H-265WW is a silent, convection cooled LED houselight with a powerful warm white light output and a high CRI, ideal for theatres, worship venues and recital halls or any other application where silent operation is crucial. The unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. Interchangeable lenses for height adjustment are another indispensable feature in theatrical and house of worship applications. For even more versatility, the yoke can be completely removed, and the fixture suspended, pendant style, from a loop on the back plate. White housing not available in European Markets.
Features
High Power Houselight
Provides a powerful warm white light source with silent, fanless convection cooling.
Interchangeable Lens Plates
Adapt the beam angle for different mounting heights by easily swapping the lens plates.
Flexible DMX Connections

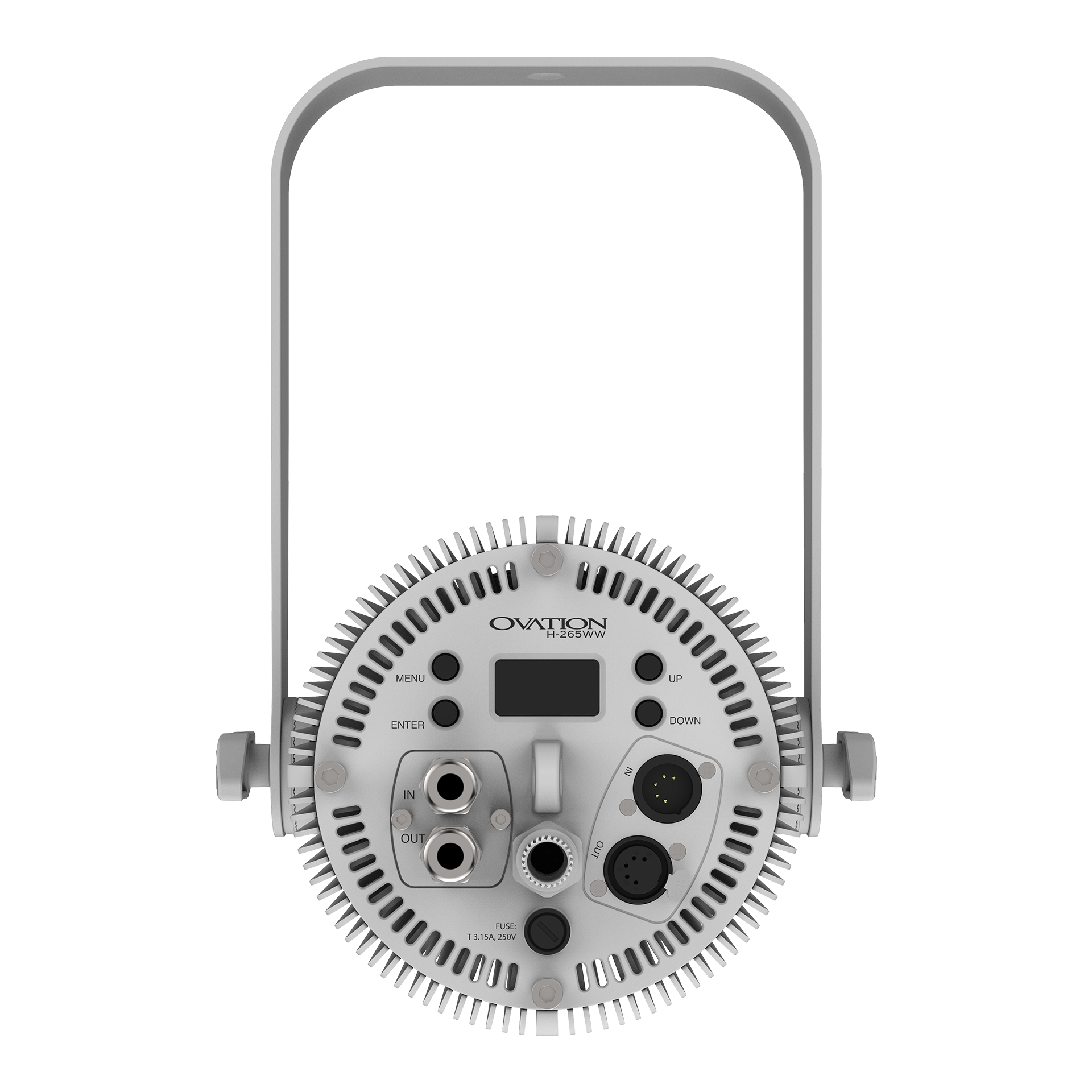

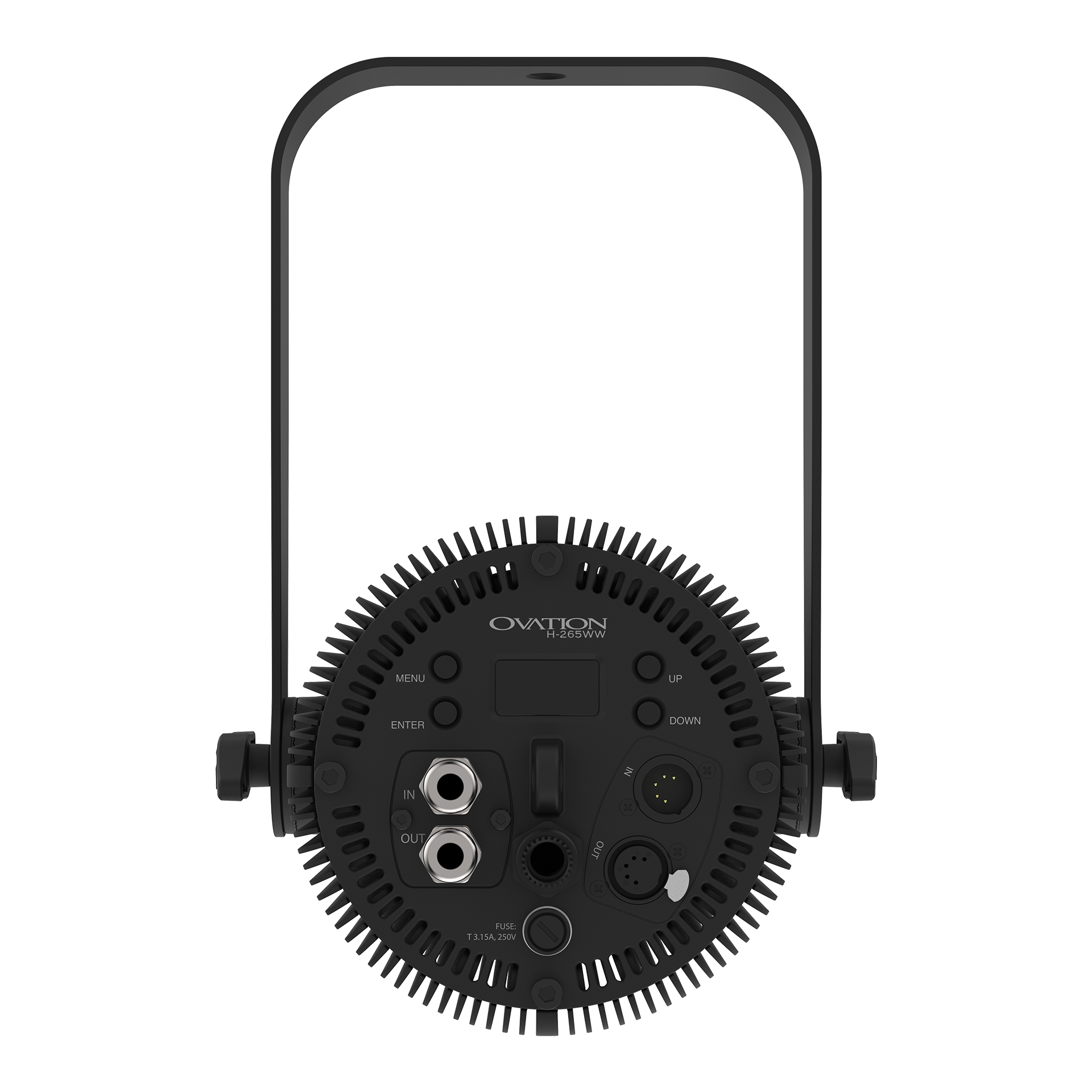

Connect via 5-pin XLR or terminal blocks for seamless DMX and data integration.
Versatile Mounting Options
Use the included yoke for standard mounting or suspend the fixture from its integrated loop-eye.
16-Bit Dimming
Achieve exceptionally smooth and seamless fades from 0 to 100 percent.
Advanced Control Protocols
Enjoy added programming flexibility with support for DMX, WDMX, and RDM.
Adjustable PWM
Avoid on-camera flickering by fine-tuning the Pulse Width Modulation frequency.
Latest News
Complete Your Rig
Specifications
Optical
-
Light Source
1 LEDs (WW) 230 W, (2.3 A), 3258 K, 50,000 hours life expectancy
-
Color Temperature (at full)
3258 K
-
CRI
97
-
-
Beam Angle
-
(W/80° Filter)
40°
-
(W/65°)
50°
-
(W/45° Lens)
39°
-
(W/25° Lens)
19°
-
-
Beam Angle
-
Beam Angle (w/80° filter)
40°
-
-
Field Angle
-
(W/80° Filter)
132.9°
-
(W/45° Lens)
69°
-
(W/25° Lens)
36°
-
-
Field Angle
-
Lumens (w/80° filter)
7,912
-
Lumens (w/65° lens)
8,505
-
Lumens (w/45° lens)
8,885
-
Lumens (w/25° lens)
9,139
-
-
Illuminance
-
Illuminance (w/80° filter)
325 lux @ 5 m
-
Illuminance (w/65°)
400 lux @ 5 m
-
Illuminance (w/45° lens)
623 lux @ 5 m
-
Illuminance (w/25° lens)
1,933 lux @ 5 m
-
-
Illuminance
-
Selectable PWM
600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 25 kHz
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 30 Hz
-
Dim Modes
4
-
Built-in Automated Programs
Yes
Construction/Physical
-
Dimensions
13.11 x 9.44 x 13.34 in (333 x 240 x 339 mm)
-
Weight
17.8 lb (8.1 kg)
Connections
-
Power Connection
Bare-wired
-
Power Input
Hard-wired
-
Data Connectors
5-pin XLR, Phoenix connector
-
Cable Length (power)
15 ft (4.5 m)
Control
-
Control Protocol
DMX, W-DMX, RDM
-
DMX Channels
1, 2, 3 or 6
-
Modes/Personalities
4 personalities (1CH, 2CH, 3CH, 6CH)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current
149 W, 1.314 A @ 120 V, 60 Hz
-
Power and Current
141 W, .738 A @ 208 V, 60 Hz
-
Power and Current
140 W, .691 A @ 230 V, 50 Hz
-
Breaker Size
T3.15 A, 250 V
Certifications/Qualifications
-
Certifications
CE, MET, FCC
-
IP Rating
IP20, dry location
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories
- W-DMX Transmitter
- Professional Clamps: CTC-50HC, CTC-50HCN
- 5-pin DMX Cables
- RDM2go
What's Included
- Ovation H-265WW
- 65°, 45° and 25° Lenses
- 80° Filter
- Egg Crate
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Ovation H-265WW Quick Reference Guide | Download |
Manuals | Ovation H-265WW Quick Reference Guide- Legacy Software | Download |
Manuals | Ovation H-265WW User Manual | Download |
Drawings | Ovation H-265WW CAD Files | Download |
Drawings | Ovation H-265WW IES Files | Download |
Photometrics | Ovation H-265WW Photometrics Report | Download |
DMX | Ovation H-265WW DMX Chart | Download |
DMX | Ovation H-265WW DMX Chart- Legacy Software | Download |
Other | Ovation H-265WW Specification Sheet | Download |
Case Studies | Case study: Chapel Off Chapel Gets More Versatility, Lower Energy Costs With New CHAUVET Professional Rig | Download |
Other | Ovation H-265WW (BLK) – Firmware | Download |
Other | Ovation H-265WW (WHT) – Firmware | Download |
Drawings | Ovation H-265WW – Revit File | Download |
Ovation H-265WW FAQ’s
The Ovation H-265WW is designed to be completely silent because it uses special cooling that doesn’t require a fan. This makes it perfect for venues like theaters, recital halls, and houses of worship where absolute silence is essential during performances and services.
No, it is specifically designed to prevent flickering on camera. It features adjustable settings to ensure a steady, consistent light source for any video recording or broadcast. Its high-quality warm white light also ensures that skin tones and scenery look natural and vibrant on screen.
The fixture is highly adaptable. It includes interchangeable lenses that allow you to easily change the spread of light to fit different mounting heights. For more versatile installation, the standard mounting yoke can be removed, allowing the light to be suspended directly from a built-in loop, pendant-style.
