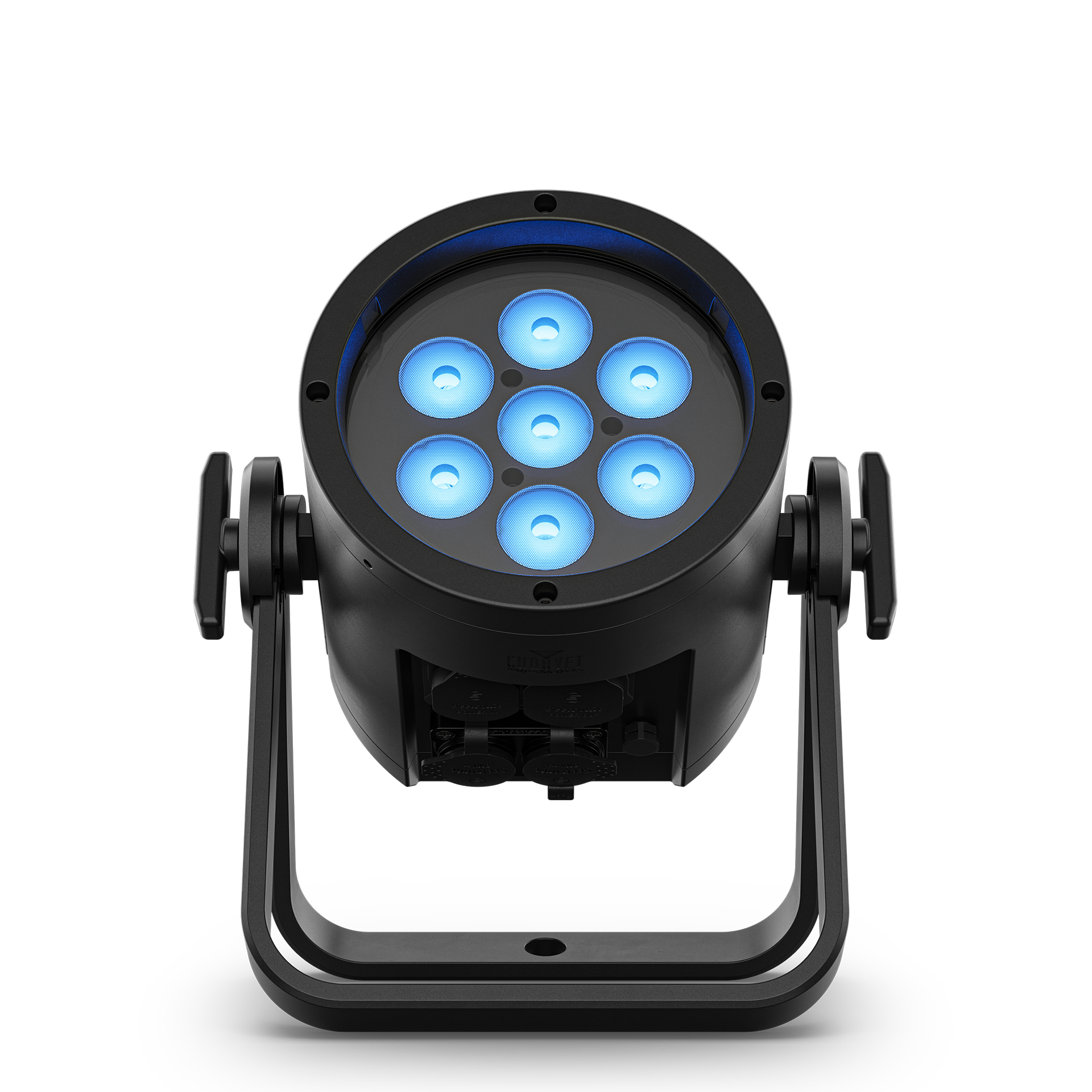

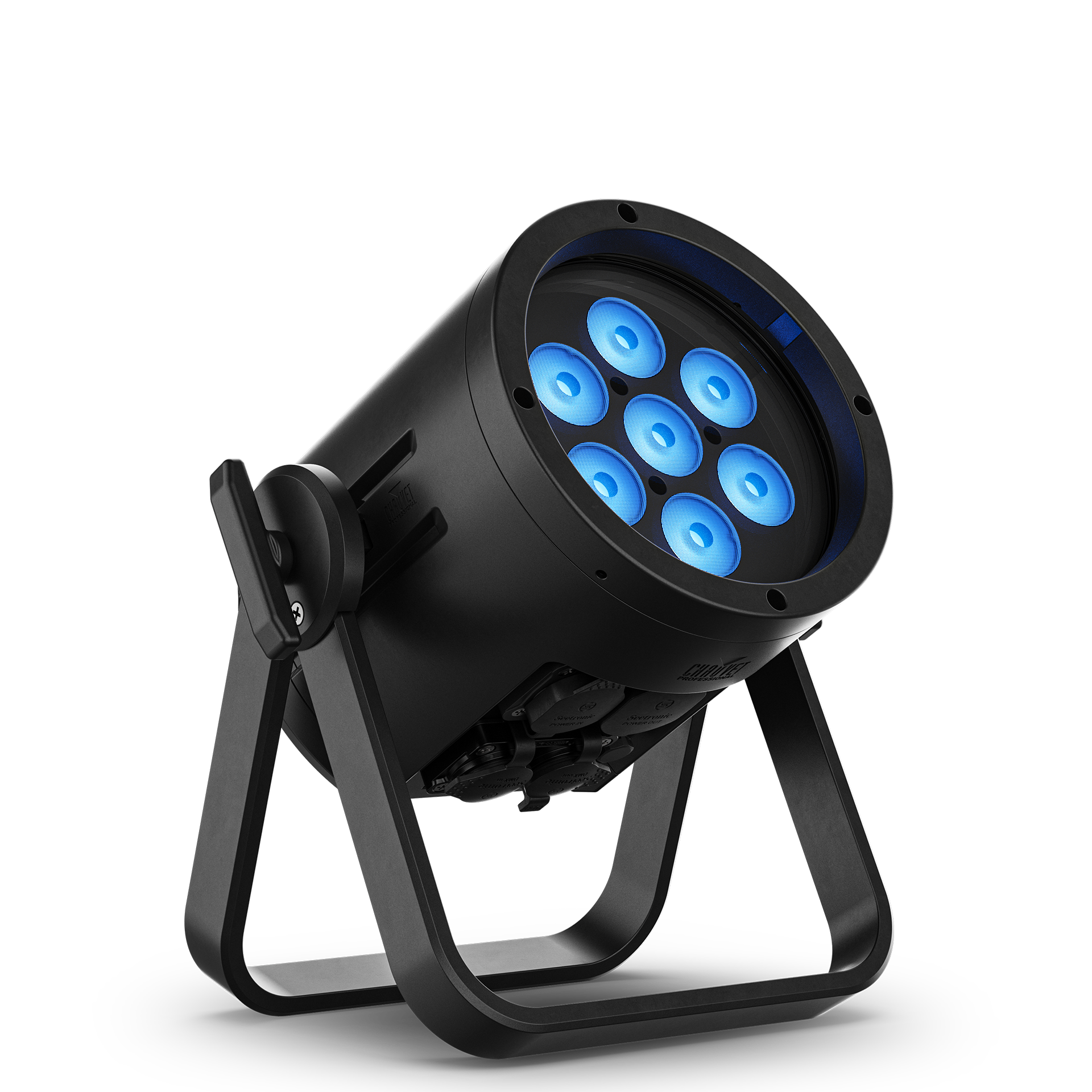

WELL POD 2
A compact, battery-powered PAR wash light offering high output, excellent color rendering, and flexible mounting with a removable split-yoke design.
Ideal for rental inventory and lighting professionals requiring a fast, flexible wash lighting solution for any indoor or outdoor production where quick setup is crucial.
-
Features seven RGBWW LEDs for rich colors and high-quality whites from 2800K to 6500K.
-
Offers multiple battery runtime selections, delivering up to 18 hours of continuous operation.
-
Built with a rugged, IP65-rated housing for reliable performance in any outdoor environment.
-
Provides versatile control options including DMX, CRMX, RDM, RF, and mobile app support.
-
Sold as a six-unit kit in a road case that charges all fixtures with the lid closed.
-
Includes adjustable PWM settings to ensure flicker-free output for on-camera applications.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.

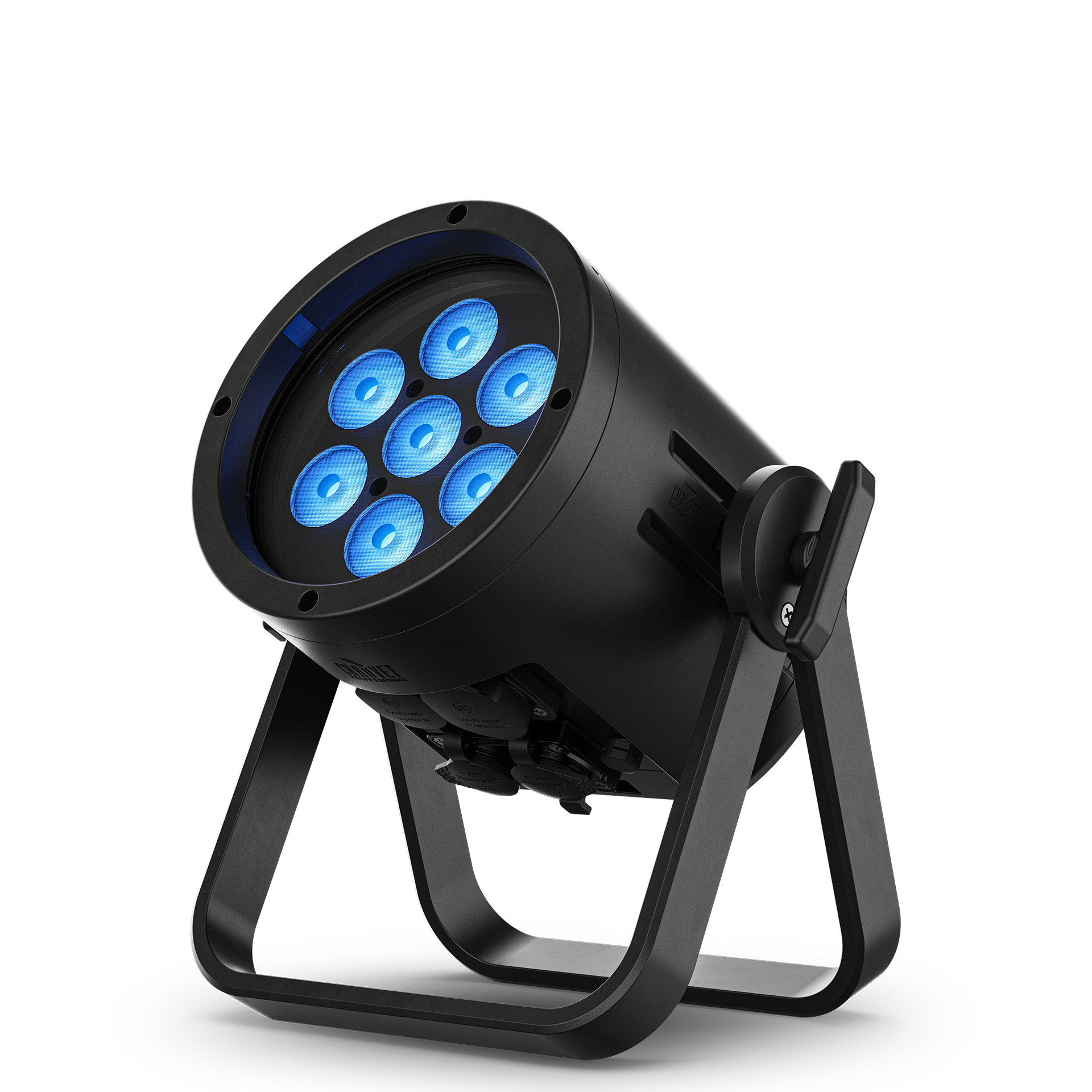

WELL POD 2
WELL POD 2 is a compact addition to any rental package, delivering great output, fantastic color rendering, and the flexibility of a PAR fixture design with a removable split yoke ideal for both truss and floor mounting. Up to 18 hours of battery life from a wash light engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability.
Download the App
ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.
Features
All-In-One Fixture Kit
This complete kit includes six IP65-rated par fixtures with RGB warm white LEDs and a 6-pack charging road case.

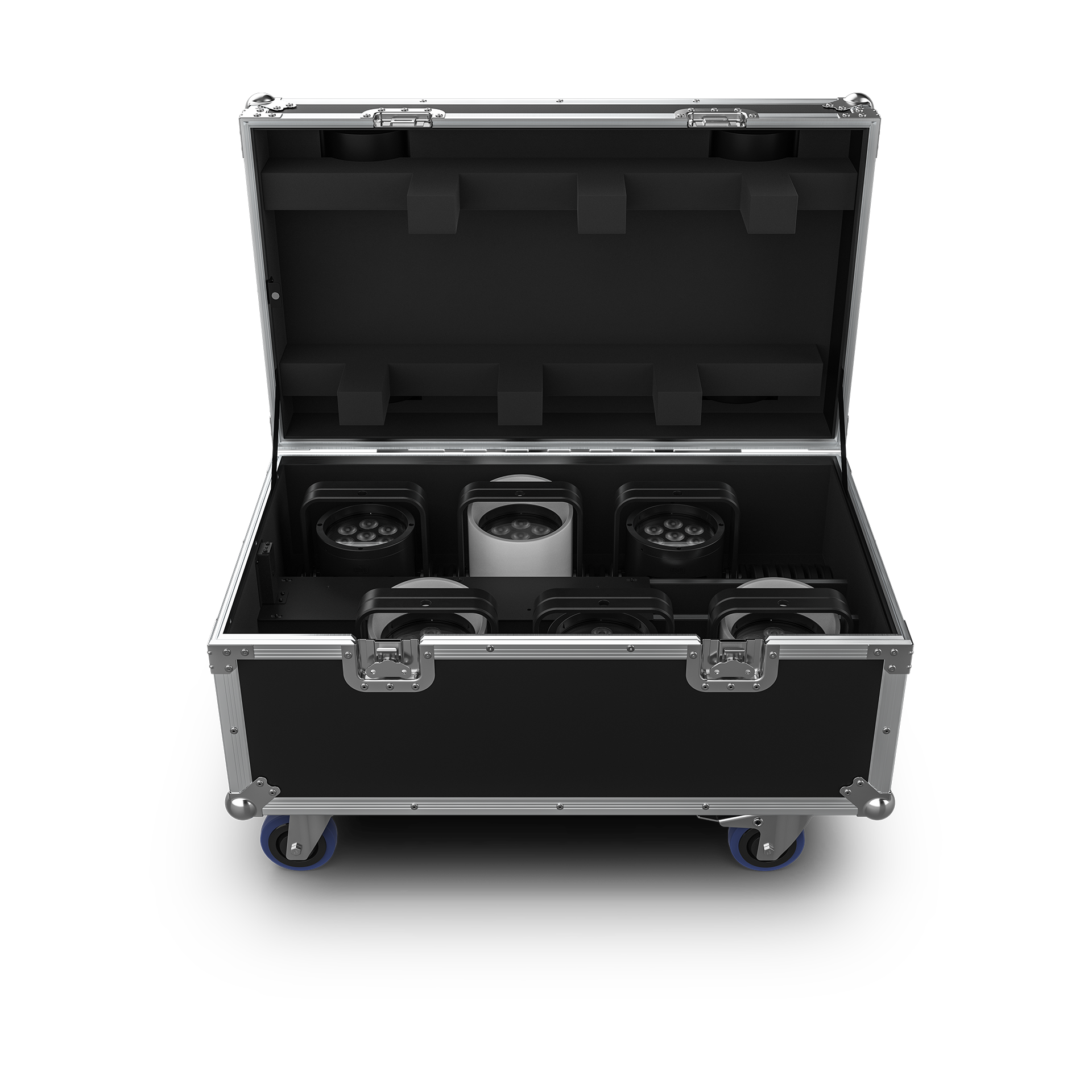

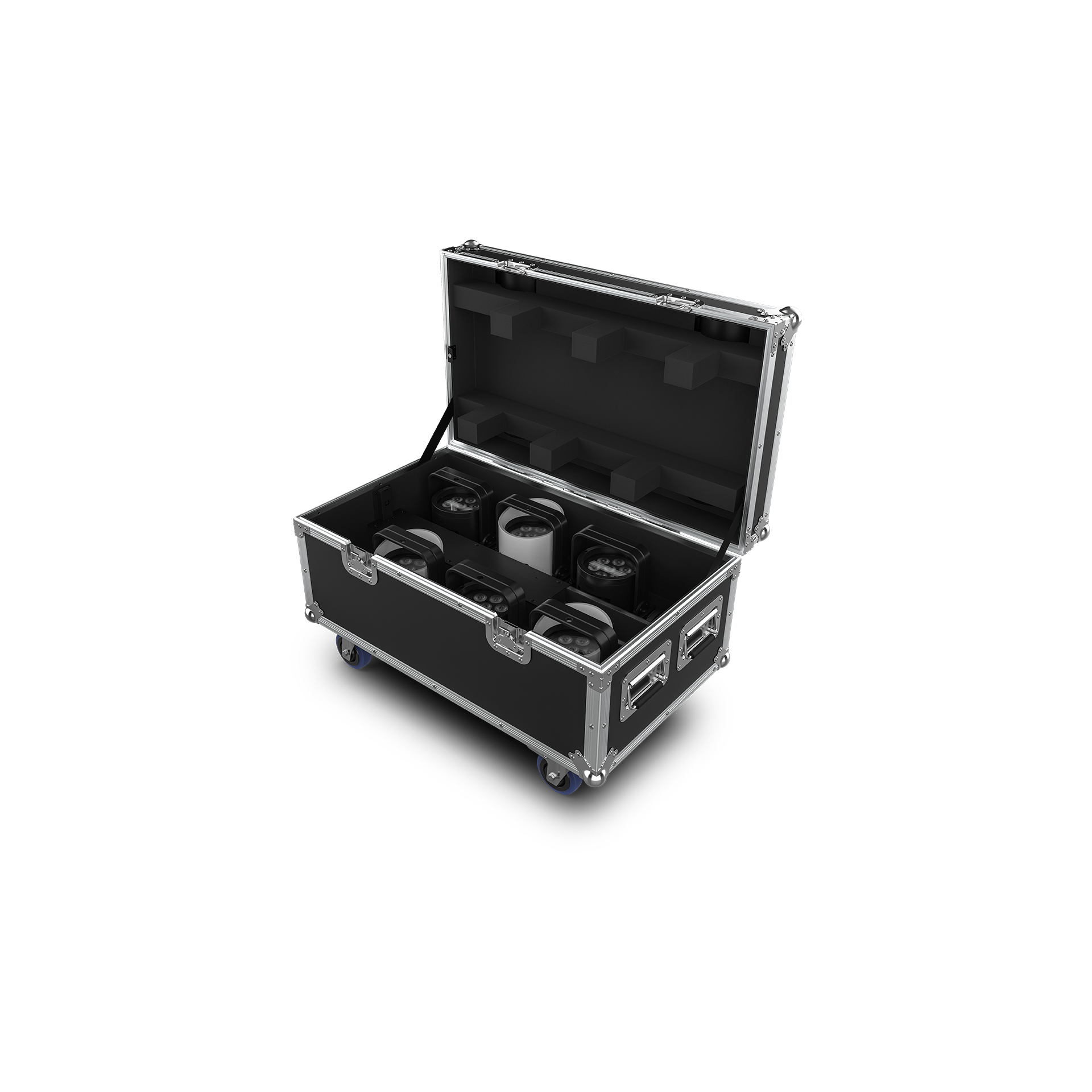

Space-Saving Charging Case
The included road case charges all fixtures simultaneously with the lid closed to maximize storage efficiency.
Extended Battery Runtimes
Choose from multiple battery runtime selections of 5, 8, 12, or 18 hours to match your event’s needs.
Charge and Operate Simultaneously
A built-in charger allows the fixture to be used for illumination even while it is actively charging.
Wired DMX Control
Integrated IP65-rated 5-pin DMX in/out ports provide a reliable connection for wired data control.
IP65 Power Linking
Built-in Seetronic PowerKon input and output connections allow for easy and secure power linking between fixtures.
Versatile Control Options
Operate the fixtures using your preferred method, with support for DMX, CRMX, RDM, and RF control protocols.
App-Based Control
Easily connect to the WELL CONNECT box and ConnectFX for convenient control directly from a mobile app.
Convenient Software Updates
A modern USB-C port makes applying future software and firmware updates simple and fast.
Flexible Mounting Yoke
The removable split yoke provides versatile rigging options for both hanging the fixture and placing it on the floor.
Pressure Equalizing Valve
An integrated M6 Gore valve equalizes internal and external pressure to protect the fixture’s seals and electronics.
Integrated Safety Point
A dedicated attachment point is built into the fixture’s housing for securely attaching a safety cable.

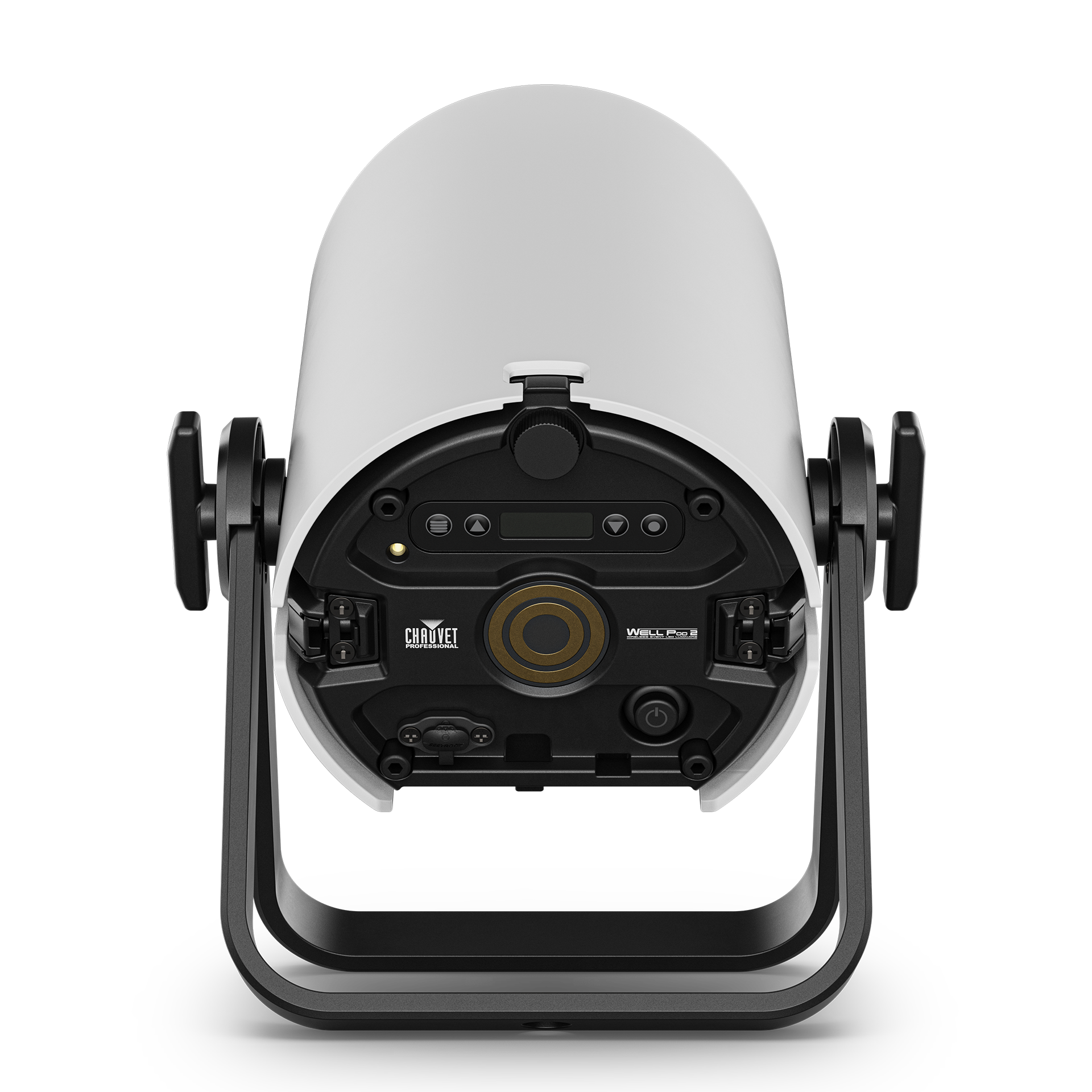

Clear OLED Display
An easy-to-read OLED screen provides clear access to all settings and operational information.
Built-In Theft Alarm
Protect your investment with an integrated alarm that provides both an audible and visual notification if moved.
Adjustable PWM
Adjust the Pulse Width Modulation to ensure flicker-free operation on camera.
Included RF Remote
An RF remote is included for simple wireless control right out of the box.
Complete Your Rig
Specifications
Optical
-
Light Source
7 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy
-
Color Temperature (range)
2800 to 6500 K
-
Beam Angle
11.5°
-
Field Angle
21.6°
-
Cutoff Angle
36.9°
-
Lumens
1797 lm (AC power)
-
Illuminance
lux 1089 @ 5 m (AC power)
-
Lumens
718 lm (OFF battery setting)
-
Illuminance
436 lux @ 5 m (OFF battery setting)
-
Lumens
834 lm (5-hour battery setting)
-
Illuminance
507 lux @ 5 m (5-hour battery setting)
-
Lumens
528 lm (8-hour battery setting)
-
Illuminance
319 lux @ 5 m (8-hour battery setting)
-
Lumens
335 lm (12-hour battery setting)
-
Illuminance
202 lux @ 5 m (12-hour battery setting)
-
Lumens
214 lm (18-hour battery setting)
-
Illuminance
129 lux @ 5 m (18-hour battery setting)
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
1 to 30 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Dim Curves
4
-
Built-in Automated Programs
Yes
-
Customizable Programs
No
-
Recall Custom Programs
No
Construction/Physical
-
Dimensions
8.11 x 5.31 x 8.76 in (206 x 138 x 222.5 mm)
-
Dimensions (w/o bracket)
5.43 x 5.43 x 5.67 in (138 x 138 x 144 mm)
-
Dimensions case
32.7 x 19.3 x 15.4 in (832 x 492 x 390mm)
-
Weight
7.2 lb (3.3 kg)
-
Weight (shipping weight)
113.8 lb (51.6 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum die-cast
Connections
-
Power Connection
Edison (local) plug to Seetronic PowerKon IP65
-
Power Input (fixture and charging case)
Seetronic PowerKon IP65
-
Power Output (fixture and charging case)
Seetronic PowerKon IP65
-
Data Connectors
5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
-
Software Connection
USB-C
Control
-
Control Protocol
RDM, CRMX, NFC, RF
-
DMX Channels
5, 8, or 12
-
Modes/Personalities
3 personalities (5Ch, 8Ch, 12Ch)
-
Wireless WDMX “G” Compatibility
G4S
-
Wireless Lumen Radio Compatibility
CRMX
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
-
Single unit
-
Power Linking
34 units @ 120 V
-
Power Linking
52 units @ 208 V
-
Power Linking
54 units @ 230 V
-
Power and Current
43 W, .35 A @ 120 V, 60 Hz
-
Power and Current
47 W, .23 A @ 208 V, 60 Hz
-
Power and Current
45 W, .22 A @ 230 V, 50 Hz
-
-
Single unit
-
-
6 Pack case
-
Power Linking
4 units @ 120 V
-
Power Linking
6 units @ 208 V
-
Power Linking
6 units @ 230 V
-
Power and Current
191 W, 2.75 A @ 120 V, 60 Hz
-
Power and Current
185 W, 1.96 A @ 208 V, 60 Hz
-
Power and Current
183 W, 1.76 A @ 230 V, 50 Hz
-
6 Pack case fuse
4 hours (all fixtures in case)
-
-
6 Pack case
Battery
-
Battery type
Lithium Ion
-
Rechargeable
Yes
-
Battery Charge Time
8 hours
-
Battery Life
12 hours
-
Battery Power
25.9 V, 2.5 Ah
Certifications/Qualifications
-
Certifications
CE, UKCA, FCC, ROHS
-
IP Rating
IP65, temporary outdoor/wet use
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories
- Clamps

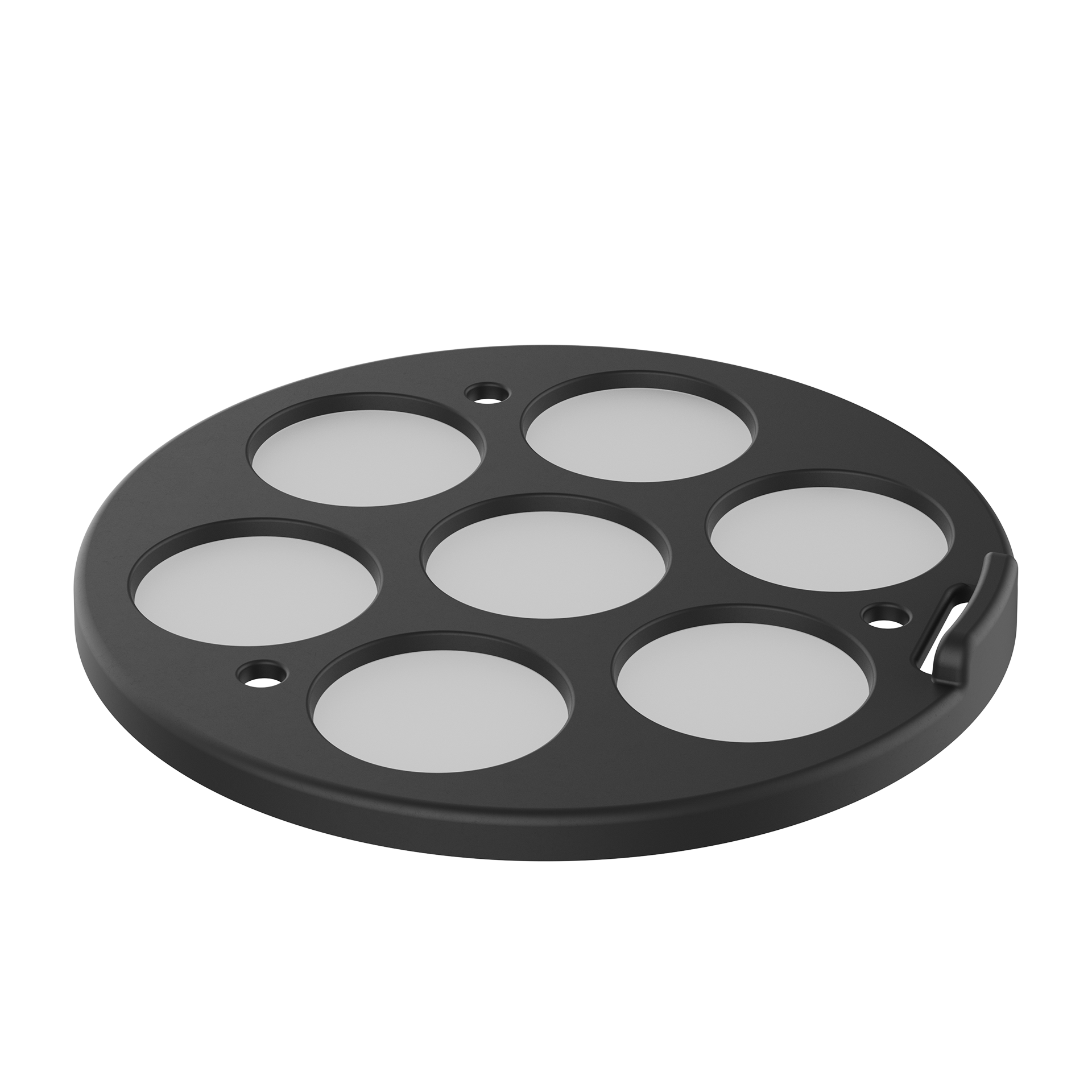

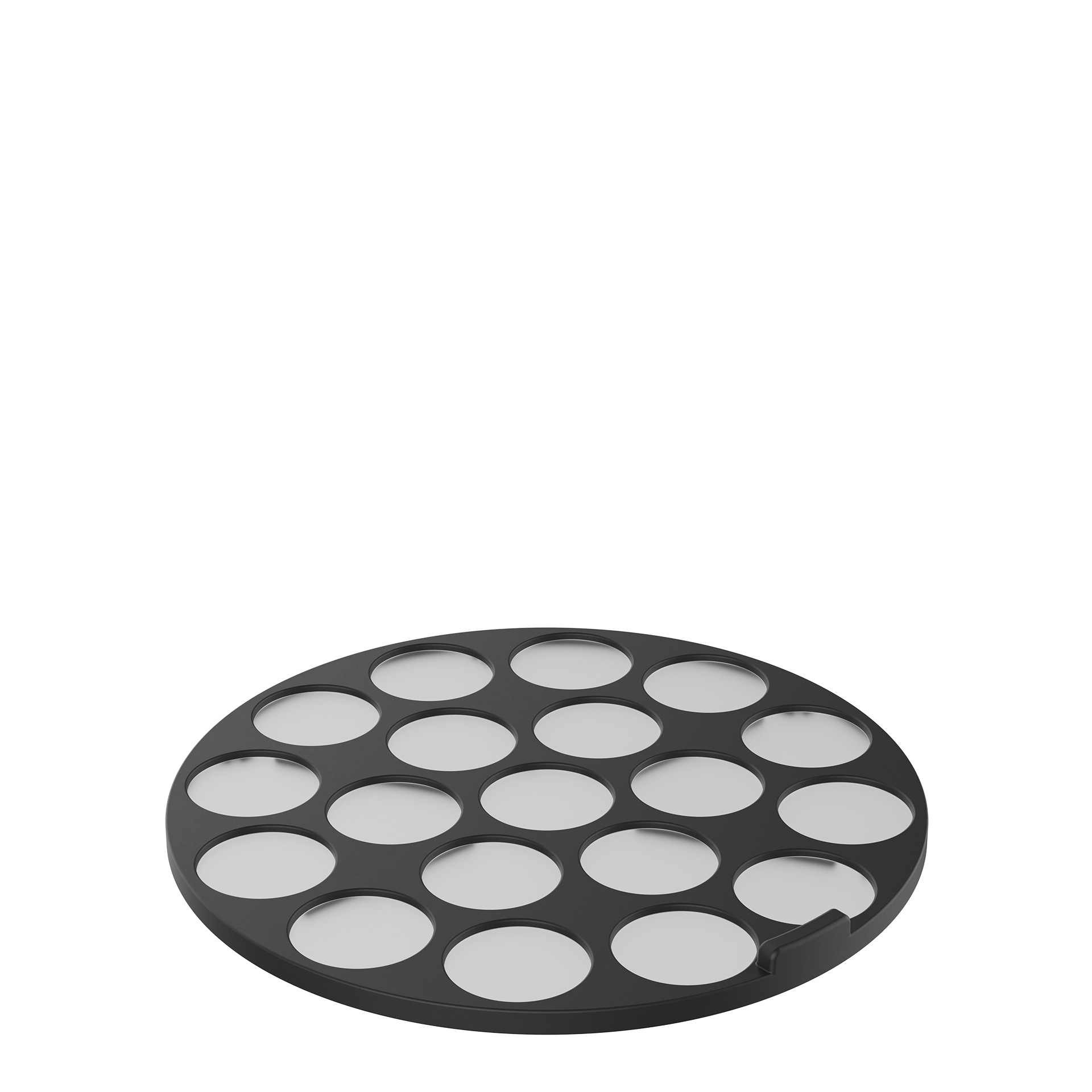

- WELL POD 2 – 15° Filter Pack
- WELL POD 2 60° x 10° Filter Pack

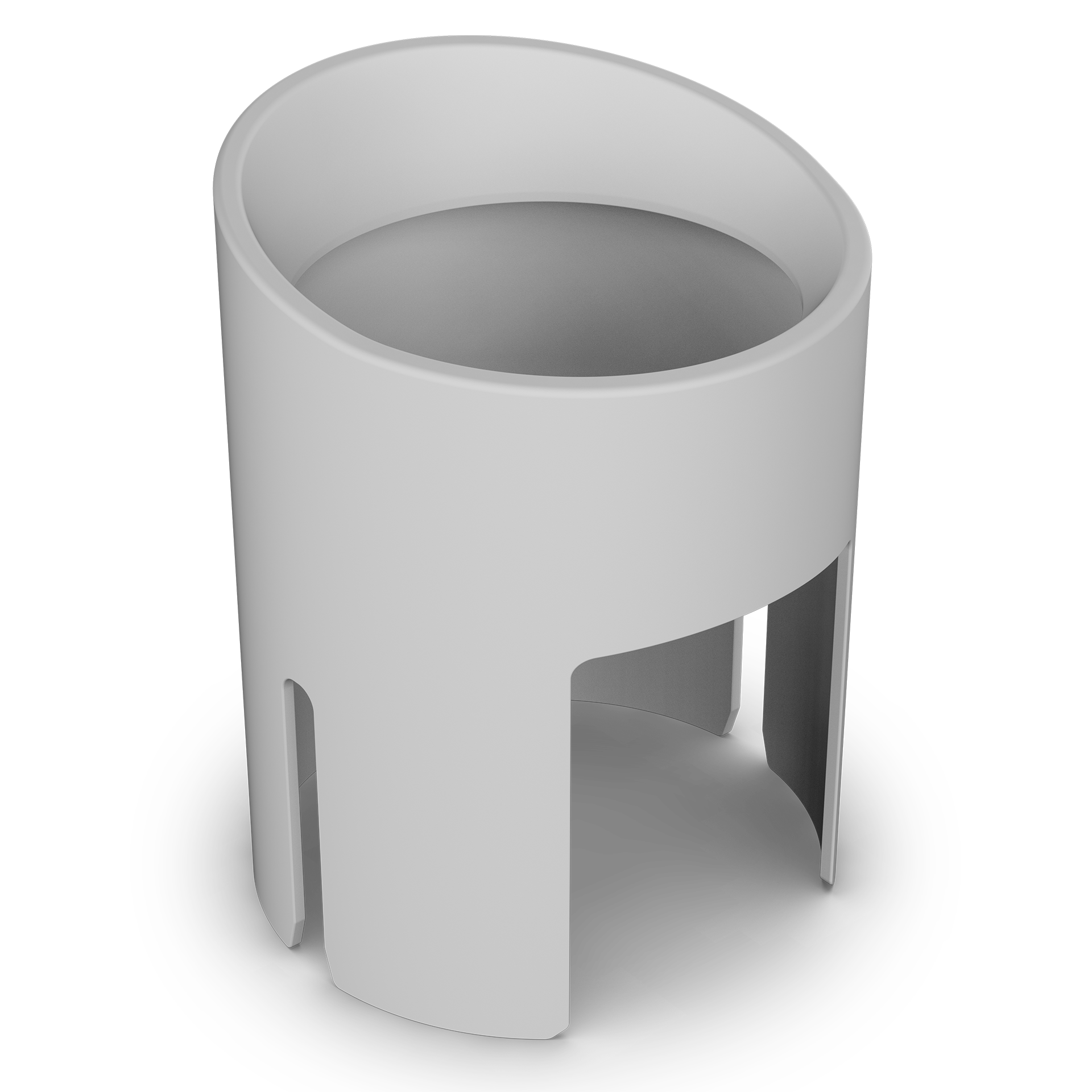

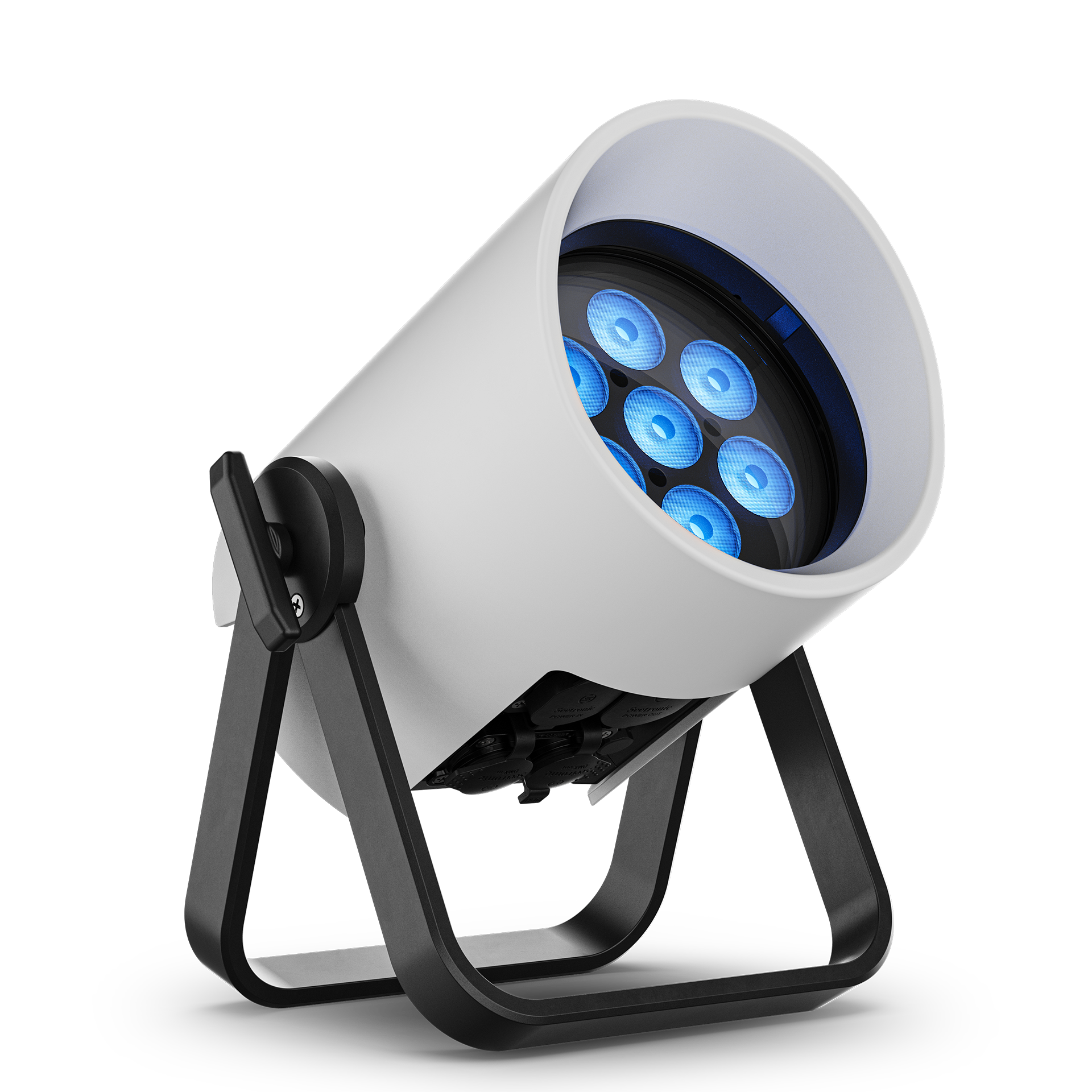

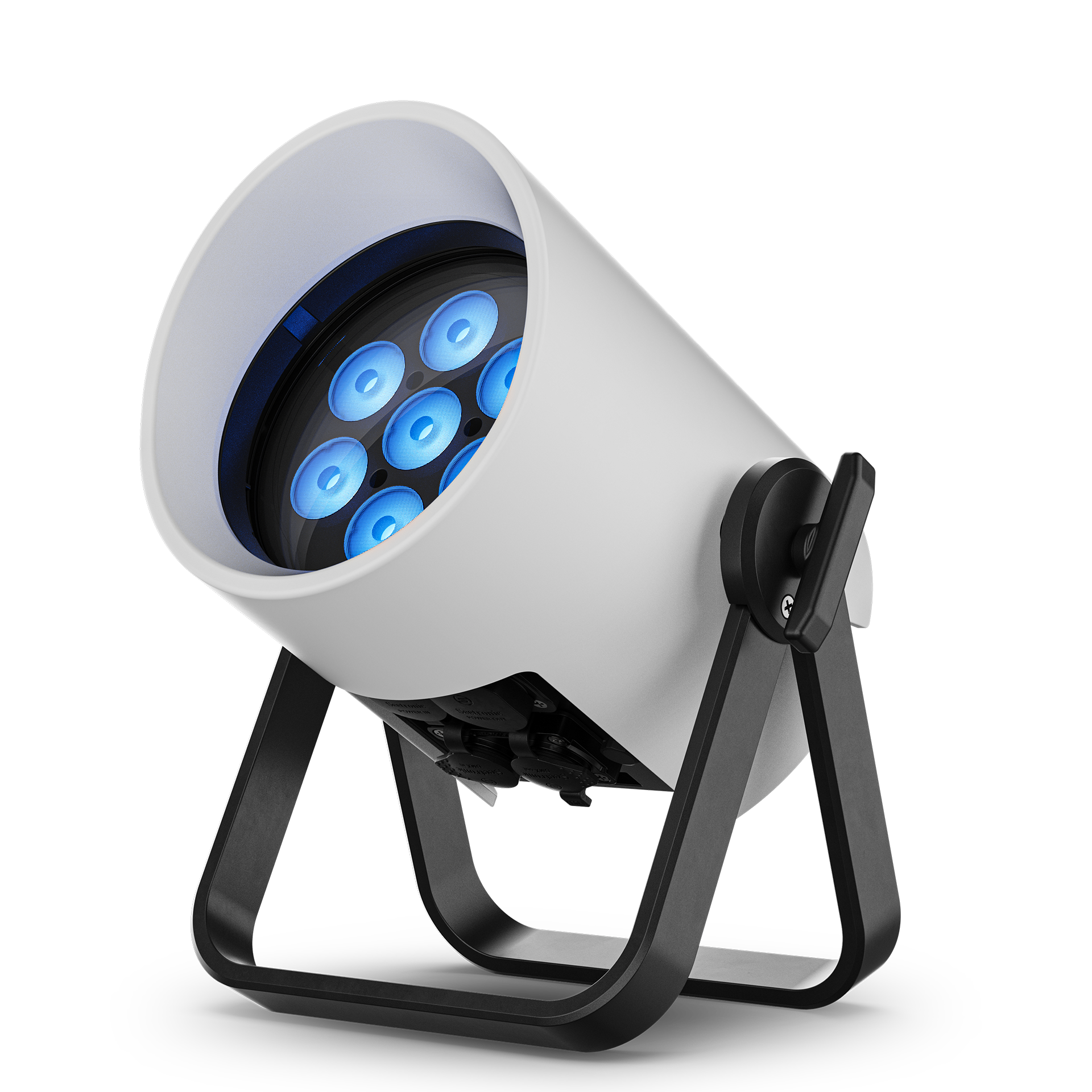

- WELL POD 2 White Fixture Cover
- PowerKon Extension cables
- 5 pin DMX Cables
- W-DMX Micro T-1 TRX G6
What's Included
- (6) WELL POD 2
- (1) 6 slot charging case
- (6) detachable split yokes
- (1) RF controller
- (1) QRG
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | WELL POD 2 – Quick Reference Guide | Download |
Photometrics | WELL POD 2 – Photometrics Report | Download |
Drawings | WELL POD 2 – CAD File | Download |
Drawings | WELL POD 2 – 2D CAD Files | Download |
Drawings | WELL POD 2 – 3D CAD Files | Download |
Manuals | WELL POD 2 – DMX Charts | Download |
Manuals | WELL POD 2 – User Manual | Download |
Learn How To Use Your WELL POD 2
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-
LD Corey Easterbrook talks turning up the color with WELL
Lighting Designer Corey Easterbrook shares how the CHAUVET Professional WELL family empowers event lighting. Discover how these battery-powered, wireless fixtures deliver superior color mixing and rapid deployment for galas, weddings, and other demanding productions.
WELL POD 2 FAQ’s
The WELL POD 2 is a compact, battery-powered wash light designed for fast setup at events. It’s ideal for adding vibrant color indoors or outdoors, whether placed on the floor for uplighting or hung from overhead structures. It is typically rented as a six-unit kit in a convenient, road-ready charging case.
Yes. The WELL POD 2 is weatherproof and specifically designed to be used safely in both indoor and outdoor environments. This makes it a reliable lighting choice for any event, regardless of weather conditions like rain.
The battery life is flexible to meet the demands of your event. You can select run times of 5, 8, 12, or up to 18 hours. The fixtures can also be used while they are plugged in and charging, ensuring they are always ready for your production.
