    WELL Pad

    A completely wireless, battery-powered, and outdoor-ready RGBA LED wash light featuring a wide beam, versatile control options, and a unique rotating base for broad surface coverage.
    Ideal for uplighting walls, landscapes, and architectural elements in any indoor or outdoor setting where a completely cable-free setup is required.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: WELLPADQUAD

    WELL Pad

    Specifications
    		 Download
    WELL Pad Quick Reference Guide
    		 Download
    WELL Pad User Manual
    		 Download
    WELL Pad DMX Chart
    		 Download
    Firmware
    		 Download
    Download All Resources

    WELL Pad

    SKU: WELLPADQUAD

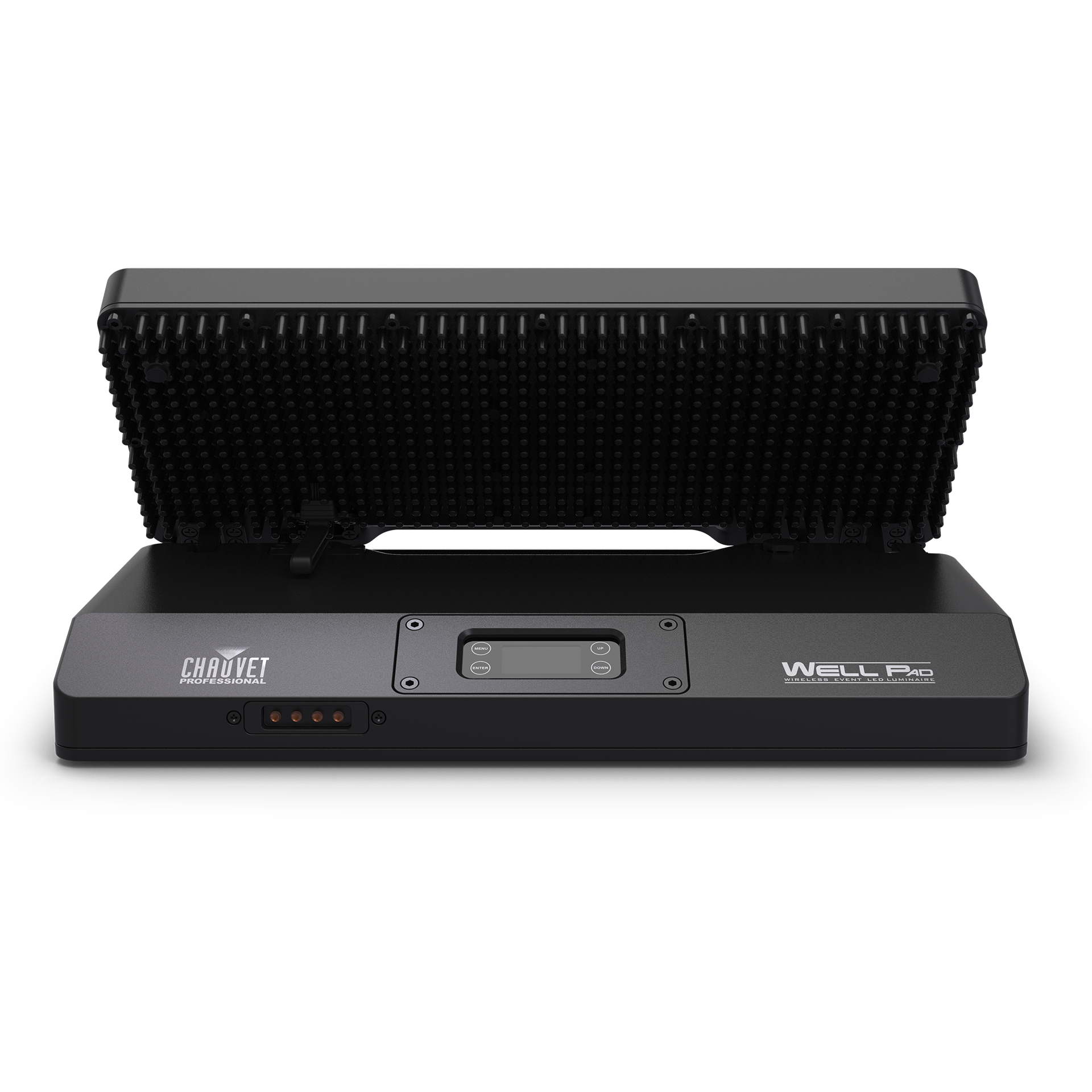

    WELL Pad is an outdoor-ready, completely wireless, battery-powered rectangular RGBA LED wash light that provides excellent coverage of walls, and stages or landscapes and architectural elements from its wide beam and field angles. The unit’s orientation can be manipulated thanks to a unique 90-degree rotation system from its base. It can be controlled via W-DMX or by an included IR remote; alternatively, it can be controlled manually from the OLED display on the fixture. Selectable PWM ensures that this completely wireless wash light is always camera-ready.

    Download the App

    ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.

    Download on the App Store
    Get it on Google Play

    Features

    Wireless Battery-Powered Up-light

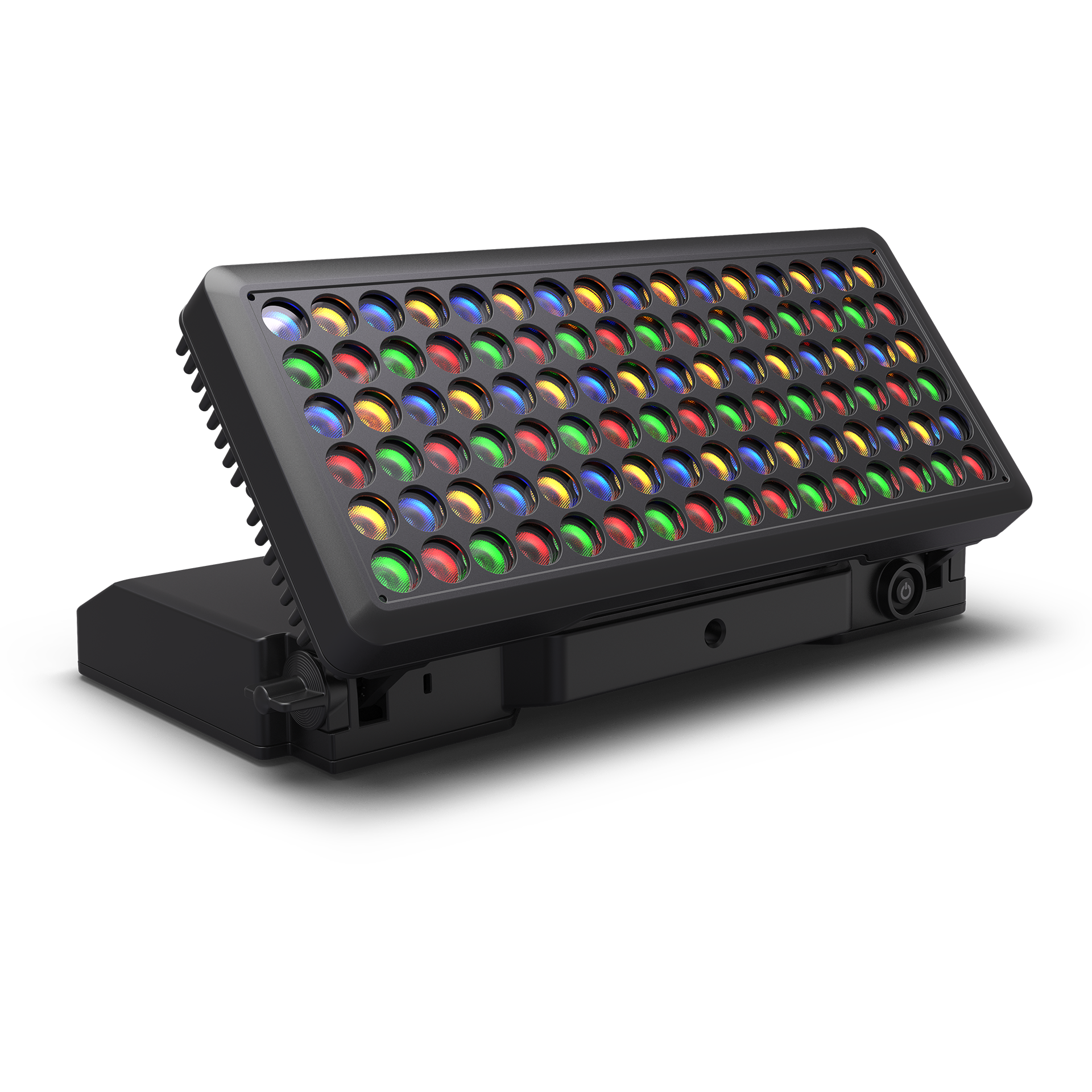

    This completely wireless fixture features 96 red, green, blue, and amber LEDs for vibrant color mixing.

    Versatile Wireless Control

    Operate the light using professional W-DMX systems or the simple, included IR remote.

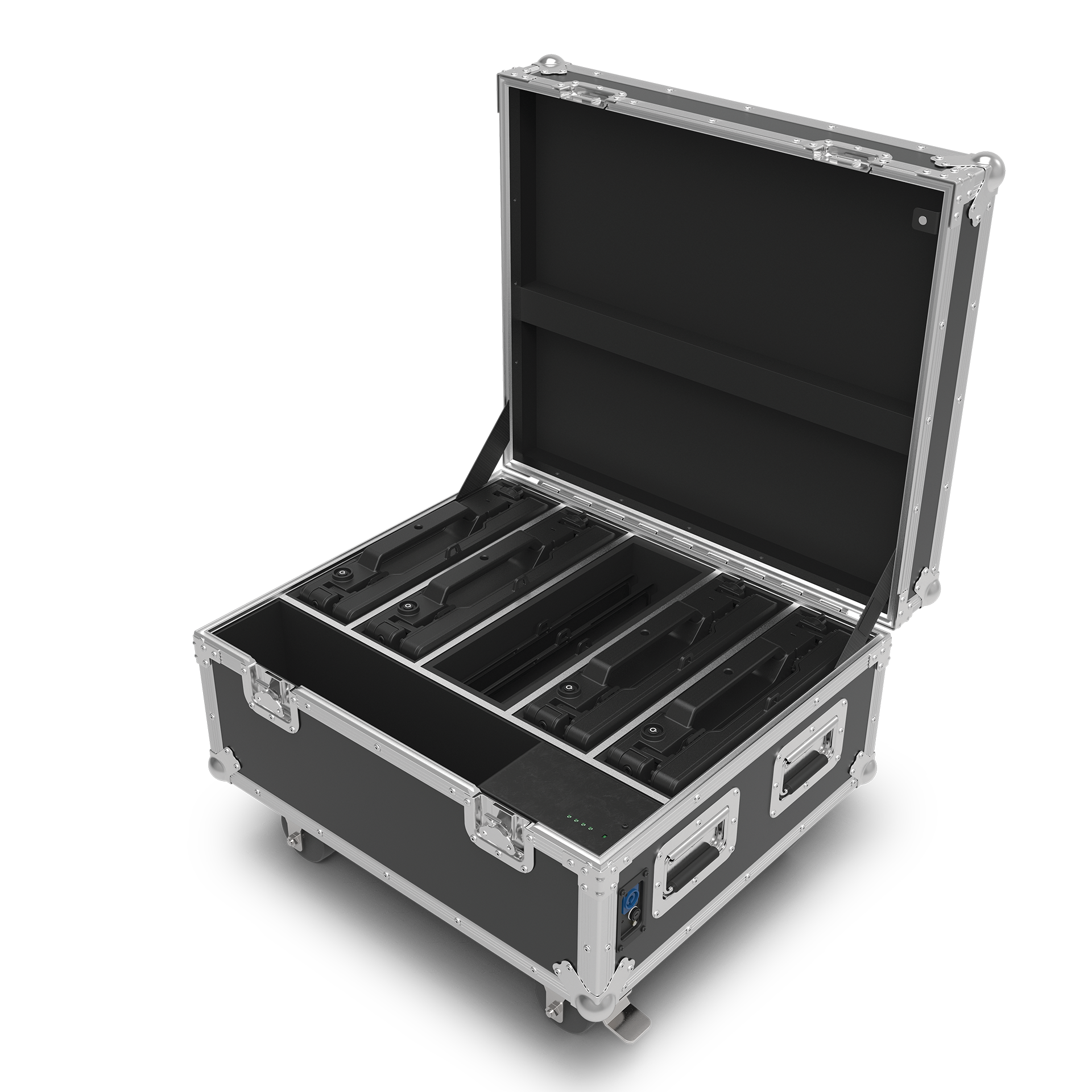

    Drop-in Charging Case

    Easily store and recharge the fixture within its case, simplifying transport and battery management.

    Magnetic Diffuser Filter

    Soften and spread the light output for a smooth wash effect with the included magnetic filter.

    Extended Battery Life

    Achieve up to 9 hours of operation at full output, with a full recharge time of only 6 hours.

    Built-in Automated Programs

    Access a variety of pre-programmed lighting shows that can be recalled manually or via W-DMX and IR control.

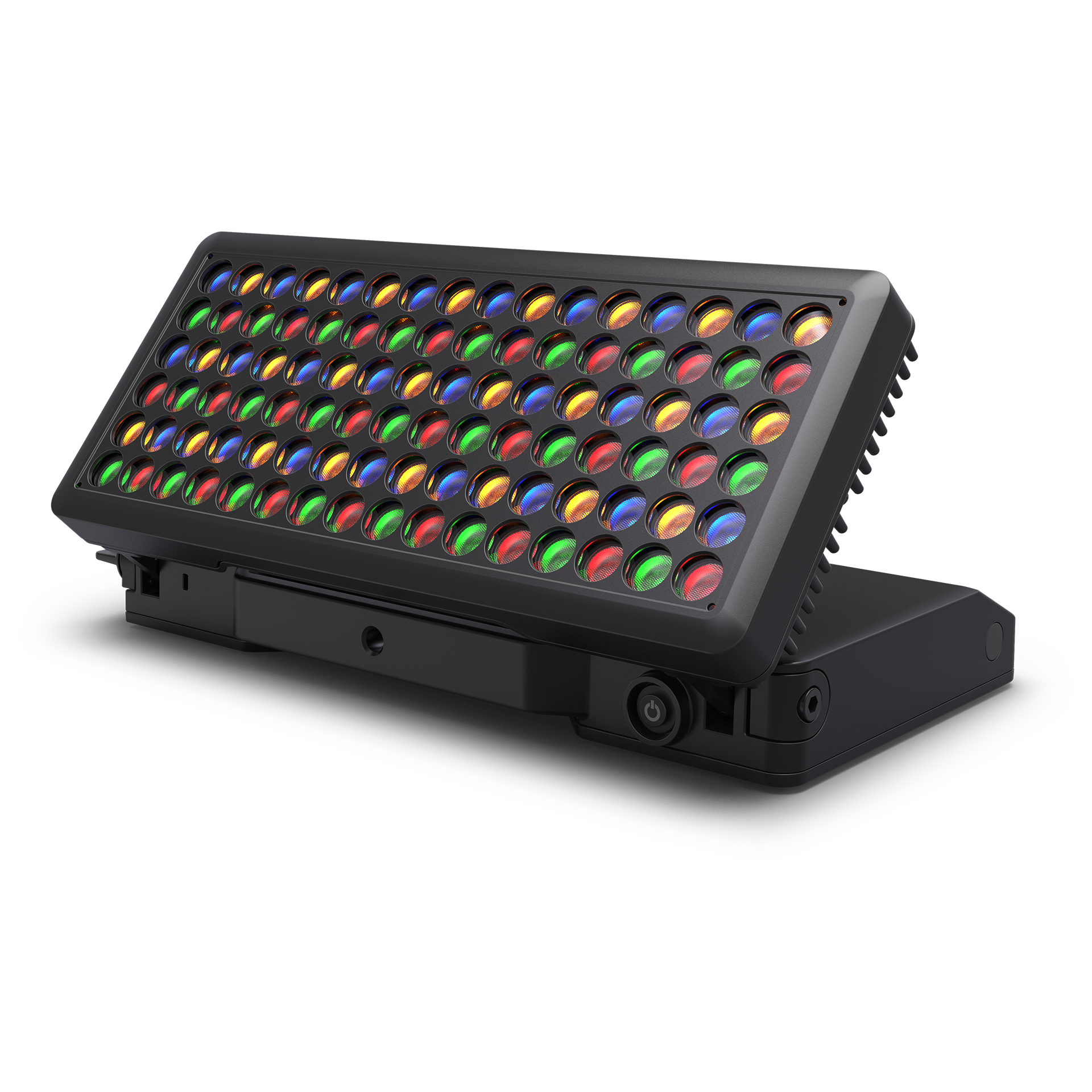

    Adjustable Tilting Panel

    Direct the light output precisely where needed by rotating the panel up to 90 degrees from the base.

    Secure Mounting and Installation

    An M12 threaded insert allows for easy clamp installation, while a Kensington lock position protects your investment.

    IP65 Outdoor Rating

    The IP65 rating provides robust protection against dust and water for reliable temporary outdoor usage.

    Latest News

    Cody Lisle and CHAUVET Professional Reflect Spirit of Gem and Jam Festival in Vivid Color
    Lighting designer Cody Lisle’s vibrant work captures the transcendental spirit of the Gem and Jam Festival.
    Read more
    CHAUVET Professional To Unveil An Array Of New Lighting Solutions At LDI
    CHAUVET Professional unveils an array of innovative lighting solutions at the LDI tradeshow.
    Read more
    Cody Lisle and CHAUVET Professional Reflect Spirit of Gem and Jam Festival in Vivid Color
    Lighting designer Cody Lisle’s vibrant work captures the transcendental spirit of the Gem and Jam Festival.
    Read more
    CHAUVET Professional To Unveil An Array Of New Lighting Solutions At LDI
    CHAUVET Professional unveils an array of innovative lighting solutions at the LDI tradeshow.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        96 LEDs (24 red, 24 green, 24 blue, 24 amber) 1 to 3 W, (500 mA), 50,000 hours life expectancy

      • Beam Angle (w/o filter)

        22°

      • Beam Angle (w/filter)

        27°

      • Field Angle (w/o filter)

        38°

      • Field Angle (w/filter)

        51°

        • Illuminance
          • Without Filter

            553 lux @ 5 m

          • With Filter

            316 lux @ 5 m

      Dynamic Effects

      • Tilt

        90°

      • Tilt Ranges

        0° to 90° tilt

      • Color Macros

        5 macros

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Strobe Rate

        0 to 25 Hz

      • Standalone Color Mixing

        Yes

      • Color Temperature Presets

        Yes

      • Dim Modes

        4

      • Built-in Automated Programs

        Yes

      Construction/Physical

      • Dimensions

        15.98 x 8.38 x 3.99 in (406 x 213 x 101.5 mm)

      • Dimensions (charging case)

        26.29 x 22.83 x 19 in (668 x 580 x 482.6 mm)

        • Weight
          • Single Unit

            21.6 lb (9.8kg)

          • Charging Case

            67.8 lb (30.8kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum die-cast

      Connections

      • Power Connection

        Edison (Local) plug to Neutrik powerCON (ROAD CASE ONLY)

      • Power Input

        Neutrik powerCON

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        W-DMX

      • DMX Channels

        4, 6 or 10

      • Modes/Personalities

        3 personalities (4Ch, 6Ch, 10Ch)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

        • Power and Current
          • Single Unit Charging @ 120 V, 60 Hz

            120 W, 0.996 A

          • Charging Case @ 120 V, 60 Hz

            480 W, 3.984 A

          • Single Unit Charging @ 208 V, 60 Hz

            135 W, 0.654 A

          • Charging Case @ 208 V, 60 Hz

            540 W, 2.616 A

          • Single Unit Charging @ 230 V, 50 Hz

            137 W, 0.594 A

          • Charging Case @ 230 V, 50 Hz

            548 W, 2.376 A

      Battery

      • Battery type

        Lithium Ion

      • Rechargeable

        Yes (Inside road case)

      • Battery Charge Time

        6 hours

      • Battery Life

        (all on) 9 hours, (single LED) 13 hours

      • Battery Power

        18.5 V, 26 Ah

      Certifications/Qualifications

      • Certifications

        CE

      • IP Rating

        IP65, temporary outdoor/wet use with pressure equalizing M12 GORE valve

      • Temperature (Ambient)

        -4 °F to 113 °F (-20 °C to 45 °C)

      Compatible Accessories

      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Safety Cable: SC-07

      What's Included

      • WELL Pad X4
      • Charging case
      • IR remote
      • (4) Diffusion filters
      • powerCON power cable with Edison plug

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      WELL Pad Quick Reference Guide
      		Download
      Manuals
      WELL Pad User Manual
      		Download
      Manuals
      WELL Pad DMX Chart
      		Download
      Other
      WELL Pad – Firmware
      		Download

      WELL Pad FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the WELL Pad
      How long does the WELL Pad battery last on a single charge?

      The WELL Pad is completely wireless and runs on a powerful built-in battery. On a full charge, it can operate for up to 9 hours at full brightness, making it perfect for lighting up events, walls, or landscapes for an entire evening. The lights recharge in approximately 6 hours inside their convenient storage and charging case.

      Can the WELL Pad be used outdoors in the rain?

      Yes, the WELL Pad is specifically designed for temporary outdoor use. It is weather-resistant and built to withstand exposure to the elements, making it a reliable choice for lighting up building exteriors, gardens, or outdoor events, even in wet conditions.

      How can I set up and control the WELL Pad?

      The WELL Pad is designed for fast and flexible setup. Because it’s battery-powered, you can place it anywhere without cables. You can easily aim the light where you need it thanks to a unique base that rotates 90 degrees. For control, you have several simple options: use the included remote for quick changes, control it professionally with a wireless system, or make adjustments directly on the light’s built-in display.
