Rogue R3E Spot
A compact and lightweight 350W LED moving yoke spot that provides a wide zoom range and a complete effects package, including dual gobo and color wheels, a rotating prism, motorized iris, and frost.
Perfect for rental houses, touring productions, and installations in clubs or theaters seeking a versatile, feature-rich spot fixture that can integrate with existing lighting rigs.
-
Features selectable LED output to match the brightness of legacy Rogue R1X Spot fixtures.
-
Provides a wide zoom range of 8.4° to 42.8° for flexible beam and wash applications.
-
Creates seamless gobo morphing effects using one rotating and one static gobo wheel.
-
Offers an expanded color palette with two wheels, featuring eight colors, white, and split-color ability.
-
Supports DMX and RDM protocols with 3-pin and 5-pin connectors for flexible system integration.
-
Ensures flicker-free on-camera performance with selectable Pulse Width Modulation (PWM) settings.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Rogue R3E Spot

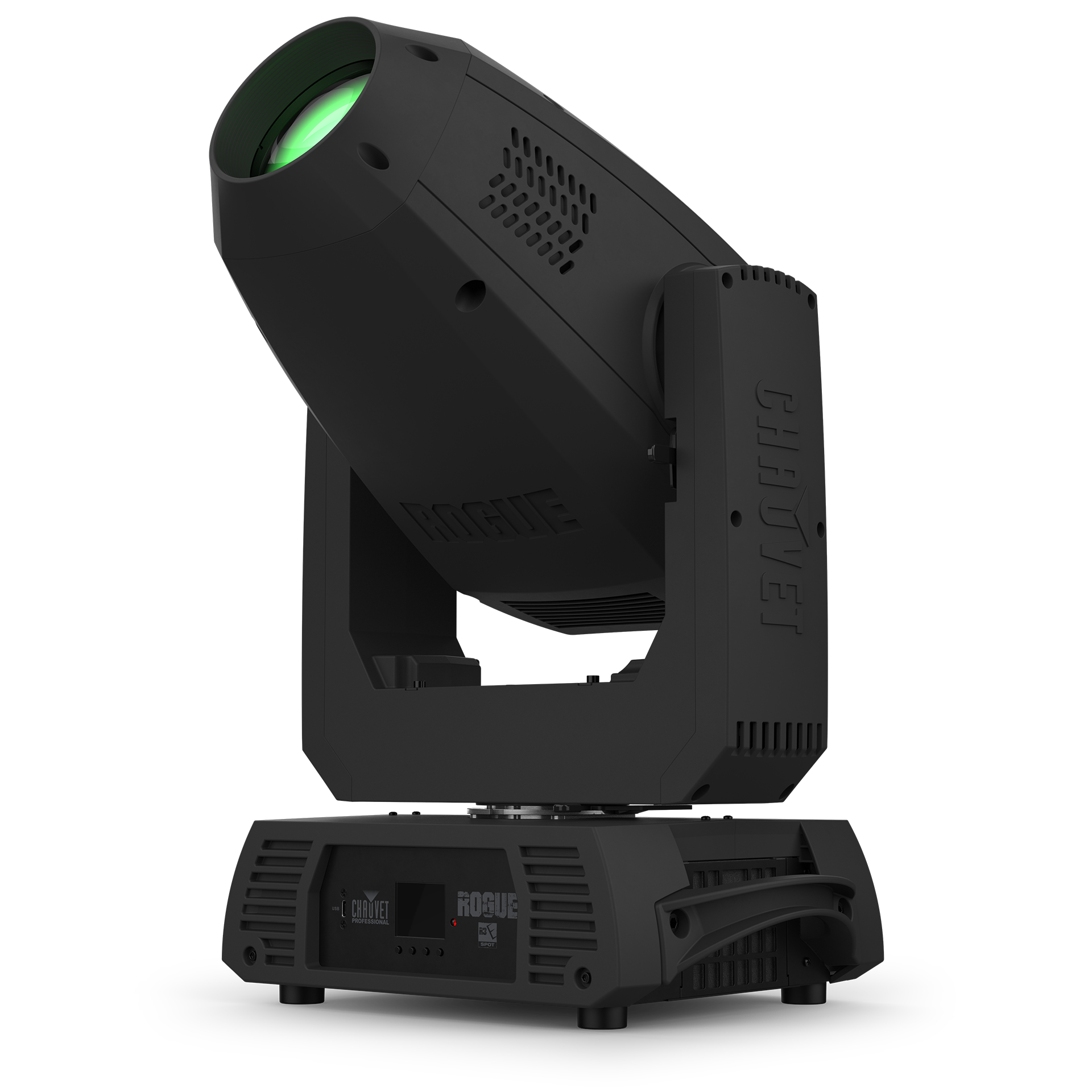

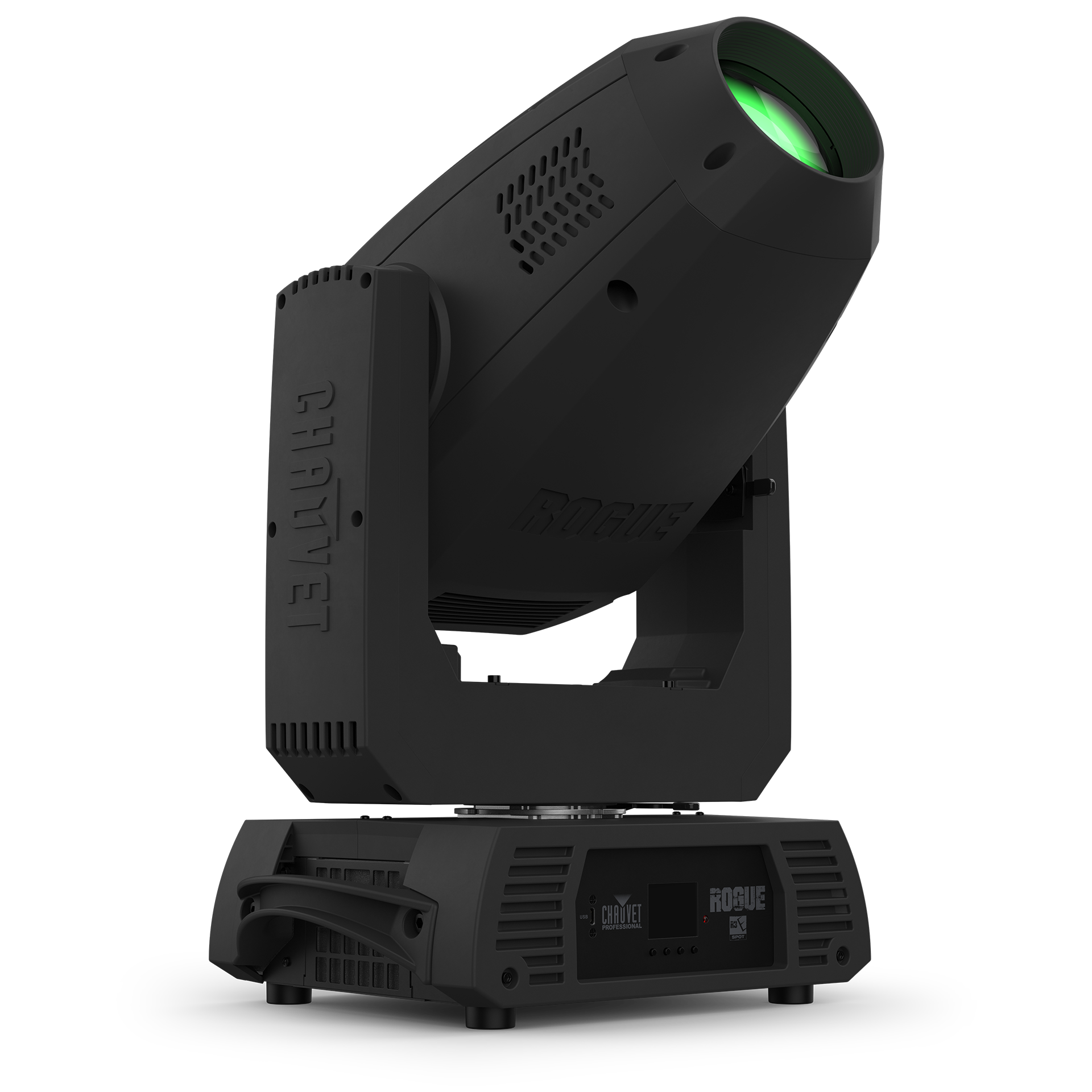

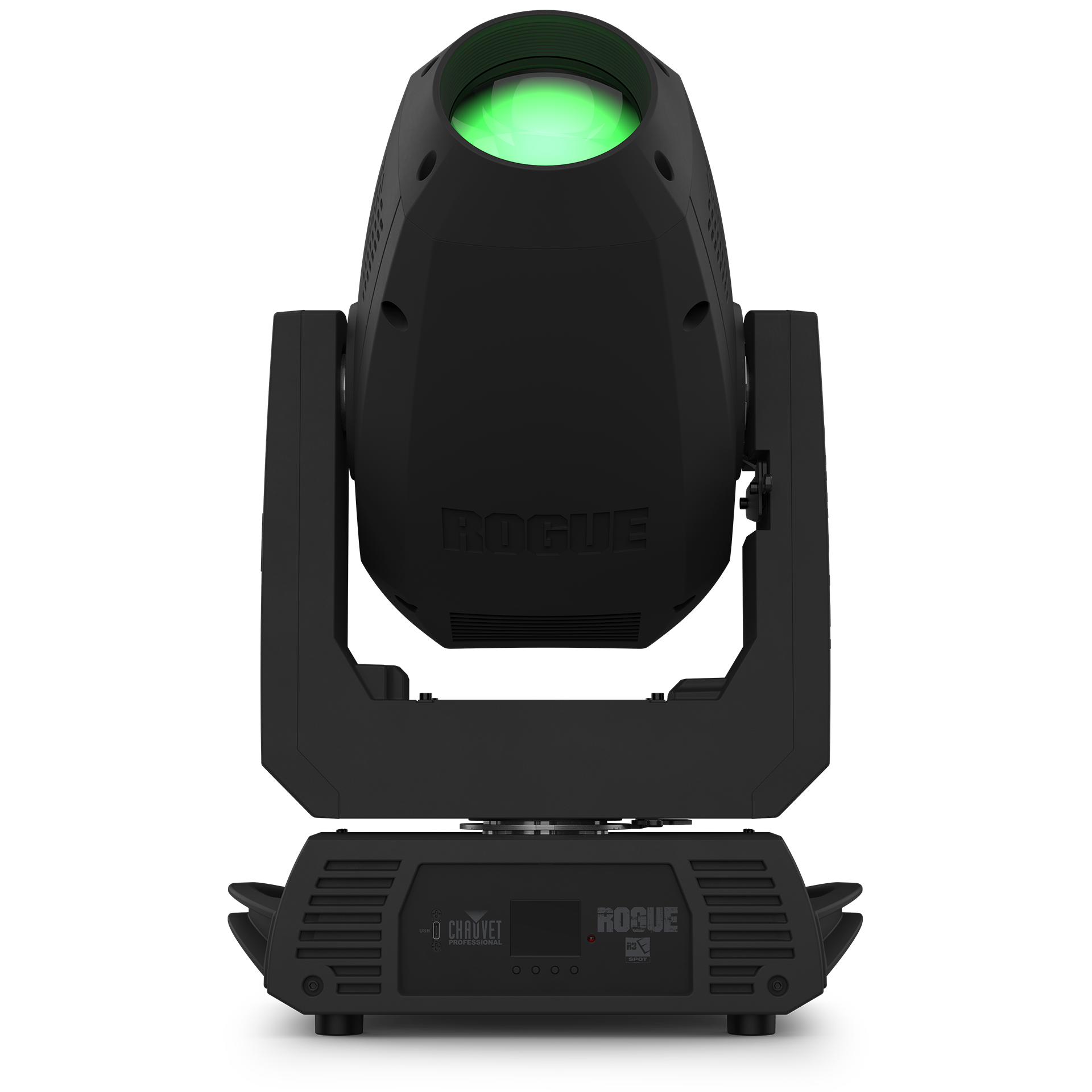

Rogue R3E Spot features an expansive 8.4° to 42.8° zoom in a compact, lightweight moving yoke spot. Its intensely bright 350W LED light engine combines high output with a full effects arsenal: dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; dual color wheels each with eight brilliant colors + white + split colors; 3-facet rotating prism for stunning aerial effects; and motorized iris and frost for beam shaping. Selectable LED max output settings enable matching brightness with legacy Rogue movers in your rig.
Features
Compact and Powerful Spot Fixture
A lightweight moving yoke spot fixture featuring an intense 350W LED light engine.
Smooth 16-Bit Dimming
Achieve exceptionally smooth control of fades with 16-bit dimming on the master dimmer.
Seamless Gobo Morphing
Create perfect transitions and visual effects by morphing between the two gobo wheels.
Dual Color Wheels
Expand your color palette with two wheels featuring eight colors each, split-color ability, and variable speed scrolling.
Dual Gobo Wheels
Utilize one fixed scrolling gobo wheel and one rotating, interchangeable gobo wheel for dynamic patterns.
Advanced Beam Control
Shape and modify the beam using the integrated iris, 3-facet prism, and frost filter.
Wide Zoom Range
Cover a variety of applications with a versatile zoom range from 8.4° to 42.8°.
Power Linking Capability
Simplify cabling with True 1 compatible power input and output connections for linking multiple units.
Flexible DMX Connectivity
Integrate into any lighting rig with both 3-pin and 5-pin DMX input and output connections.
RDM Enabled
Remotely address the fixture and troubleshoot issues from your console for easy setup and maintenance.
Legacy Fixture Matching
Select the maximum LED output to perfectly match the brightness of legacy Rogue R1X Spot fixtures.
Flicker-Free Operation
Selectable PWM settings ensure the light source remains flicker-free for on-camera use.
Versatile DMX Profiles
Choose between simple and complex DMX channel profiles for ultimate programming flexibility.
Complete Your Rig
Specifications
Optical
-
Light Source
1LEDs (CW) 350 W, (5 A), 8527 K, 50,000 hours life expectancy.
-
Color Temperature (at full)
8527 K
-
Front lens diameter
90mm
-
CRI
68.2
-
Beam Angle
8.4° to 33°
-
Field Angle
10.1° to 39.3°
-
Cutoff Angle
11.5° to 42.8°
-
Zoom Range
8.4° to 42.8°
-
Lumens – Source
24,500
-
Lumens – Output
15,705
-
-
Illuminance
-
7°
35,405 lux @ 5 m
-
42.8°
2,492 lux @ 5 m
-
-
Illuminance
-
Selectable PWM
600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
-
Pan and Tilt
540°/270°
-
Pan and Tilt Ranges
180°, 360°, 540° pan/90°, 180°, 270° tilt
-
Colors (1)
8 + white, split colors, continuous scroll at variable speeds
-
Colors (2)
8 + white, split colors, continuous scroll at variable speeds
-
Gobos (1)
7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
-
Gobos (2)
8 + open (8 metal), continuous scroll at variable speeds
-
-
Gobo Size
-
Gobo Wheel 1 (rotating)
size: 20 mm (outside), 16 mm (image), 1.5 mm (max. thickness)
-
Gobo Wheel 2 (static)
size: 24 mm (outside), 16 mm (image), 0.6 (max. thickness)
-
-
Gobo Size
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Zoom
Motorized
-
Focus
Motorized
-
Frost
Motorized
-
Iris
Motorized
-
Prism
3 Facets, motorized, rotating
-
Strobe Rate
0 to 25 Hz
-
Move in Black
Yes
Construction/Physical
-
Dimensions
13.77 x 9.44 x 23.03 in (350 x 240 x 585 mm)
-
Weight
34 lb (15.4 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum die-cast, High-impact flame-retardant polymer, Steel
-
Software update
USB-C

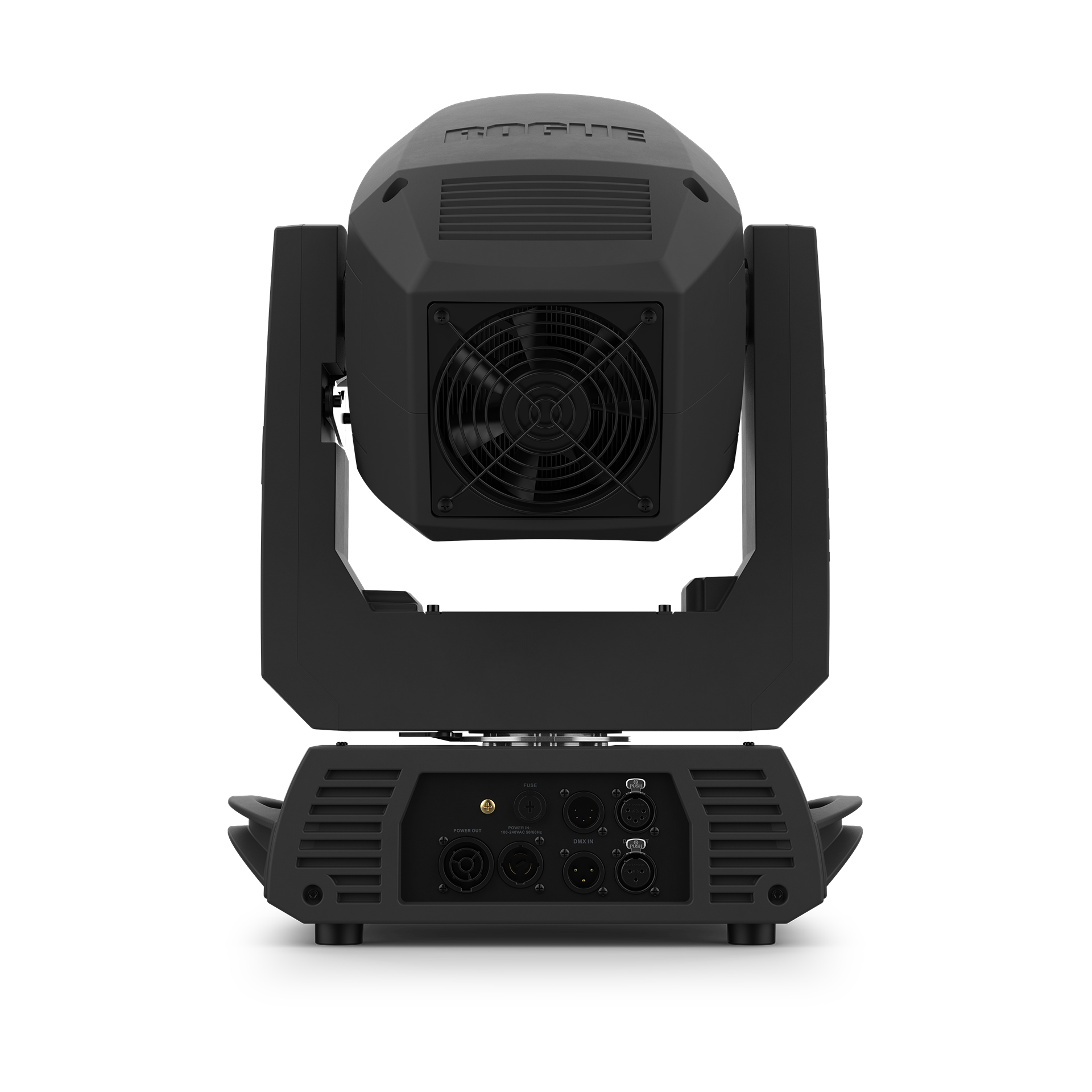

Connections
-
Power Connection
Edison (local) plug to Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Data Connectors
3- and 5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
-
Software Connection
USB-C
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
19 or 25
-
Modes/Personalities
2 personalities (19, 25)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V; 9 units @ 240 V
-
Power and Current
535 W, 4.541 A @ 120 V, 60
-
Power and Current
522 W, 2.576 A @ 208 V, 60 Hz
-
Power and Current
523 W, 2.345 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC, UKCA
-
IP Rating
IP20, dry location
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
-
-
Noise Levels
-
Idle
4.1 dB(A) @ 1 m
-
Max
35.0 dB(A) @ 1 m
-
Auto
33.3 dB(A) @ 1 m
-
Eco
31.2 dB(A) @ 1 m
-
Full
40.2 dB(A) @ 1 m
-
-
Noise Levels
Compatible Accessories
- Clamps
- Neutrik powerCON cables
- Neutrik etherCON cables
- DMX Cables
- Flight Cases
What's Included
- Rogue R3E Spot
- Seetronic PowerKon power cord
- 2 140D Omega brackets with mounting hardware
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Rogue R3E Spot – Quick Reference Guide | Download |
Manuals | Rogue R3E Spot – User Manual | Download |
Manuals | Rogue R3E Spot – DMX Chart | Download |
Manuals | Rogue R3E Spot – IES Files | Download |
Other | Rogue R3E Spot – Firmware | Download |
Drawings | Rogue R3E Spot – 2D CAD Files | Download |
Drawings | Rogue R3E Spot – 3D CAD Files | Download |
Photometrics | Rogue R3E Spot – Photometrics Report | Download |
Manuals | Rogue R3E Spot – Acoustic Reports | Download |
Learn How To Use Your Rogue R3E Spot
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-
Light Snacks: A Closer Look at the New Rogue R1E, R2E, and R3E Spots
CHAUVET Professional introduces the new Rogue E Spot series in this quick overview. See how the R1E, R2E, and R3E Spot fixtures deliver increased lumen output, USB software updates, and adjustable fan speeds for brighter, lighter, and more powerful performance.
Rogue R3E Spot FAQ’s
The Rogue R3E Spot is packed with creative tools. It uses two pattern wheels (gobos) to project sharp images and textures, which can be layered for unique morphing looks. It also has two color wheels for a wide palette of rich colors. For stunning aerial looks, it has a rotating prism that splits the light into multiple beams and a frost filter to create a soft, diffused wash effect.
Its beam is extremely versatile thanks to a wide motorized zoom, allowing you to create anything from a very narrow, tight spotlight to a very broad wash of light. You can also precisely shape the beam’s size using its motorized iris, making it adaptable for lighting everything from performers to large stage areas.
Yes, it’s designed for easy integration. A key feature lets you adjust its maximum brightness to match other lights you may already have, ensuring a consistent look. It is also relatively compact and lightweight, and it includes both 3-pin and 5-pin connections for flexible control with standard lighting equipment.
