Ovation F-415VW
A 6-inch Fresnel-style fixture that leverages a unique 6-color LED system to project a bright, soft, variable white field of light with high CRI, motorized zoom, and precise +/- green adjustment.
Perfectly suited for theatre and television studio applications, its high-quality color rendering, flicker-free operation, and battery power option provide ultimate versatility.
-
Features a smooth, motorized zoom with a versatile field range from 14° to 68°.
-
Delivers an expansive color temperature range from 2800 K to 8000 K.
-
Achieves exceptionally smooth fades with high-resolution 16-bit dimming control.
-
Supports 28 VDC external battery power via 3-pin XLR for mobile applications.
-
Provides virtually silent operation, ideal for noise-sensitive studio and theatre environments.
-
Offers independent 6-color engine control for vibrant color accents when needed.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Ovation F-415VW
Specifications | Download |
Ovation F-415VW Quick Reference Guide | Download |
Legacy Software | Download |
Ovation F-415VW User Manual | Download |
Ovation F-415VW CAD File | Download |
Ovation F-415VW IES Files | Download |
Ovation F-415VW Photometric Report | Download |
Ovation F-415VW DMX Chart | Download |
Ovation F-415VW DMX Chart- Legacy Software | Download |
Ovation F-415VW Specification Sheet | Download |
Firmware | Download |
Ovation F-415VW-2_UM | Download |
Ovation F-415VW

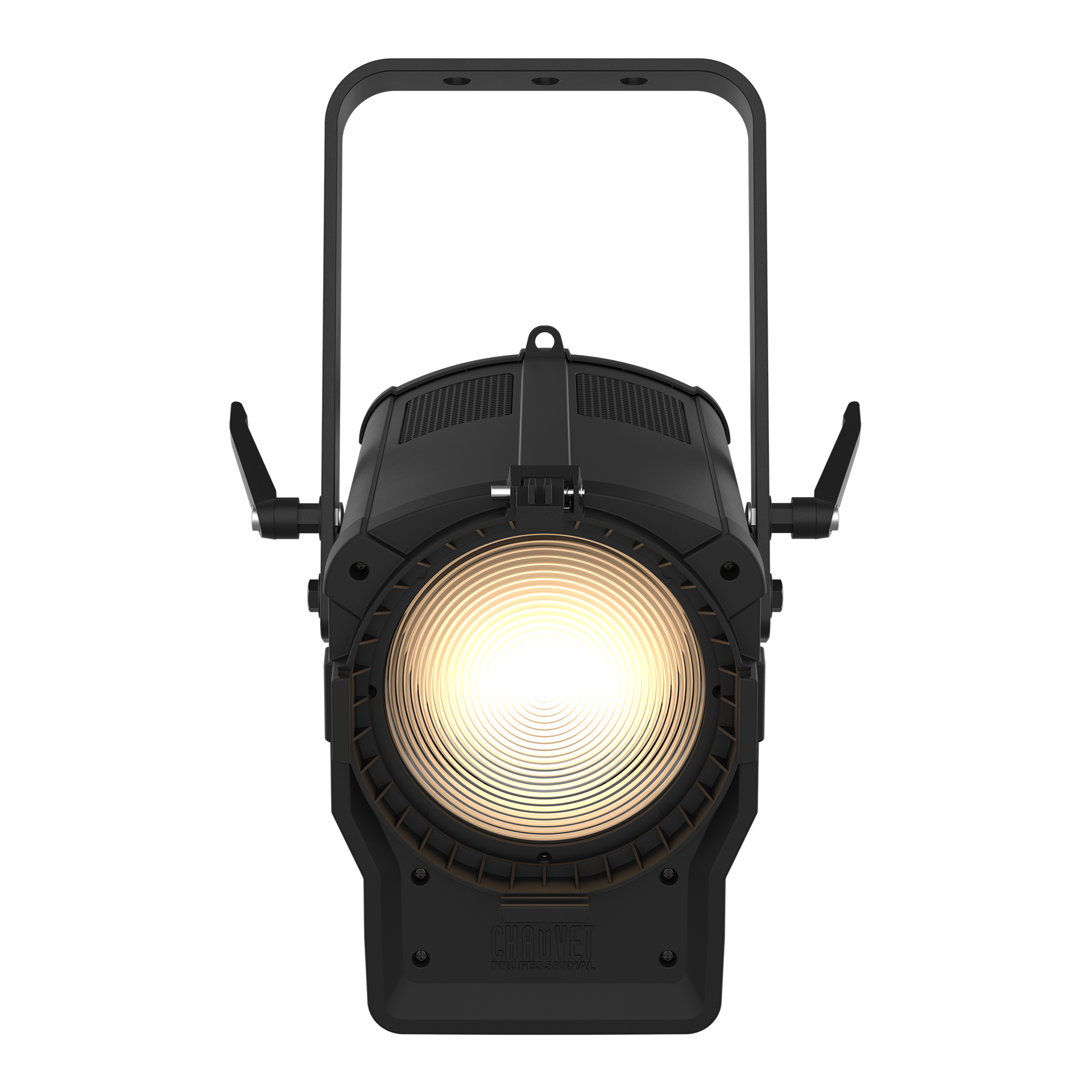

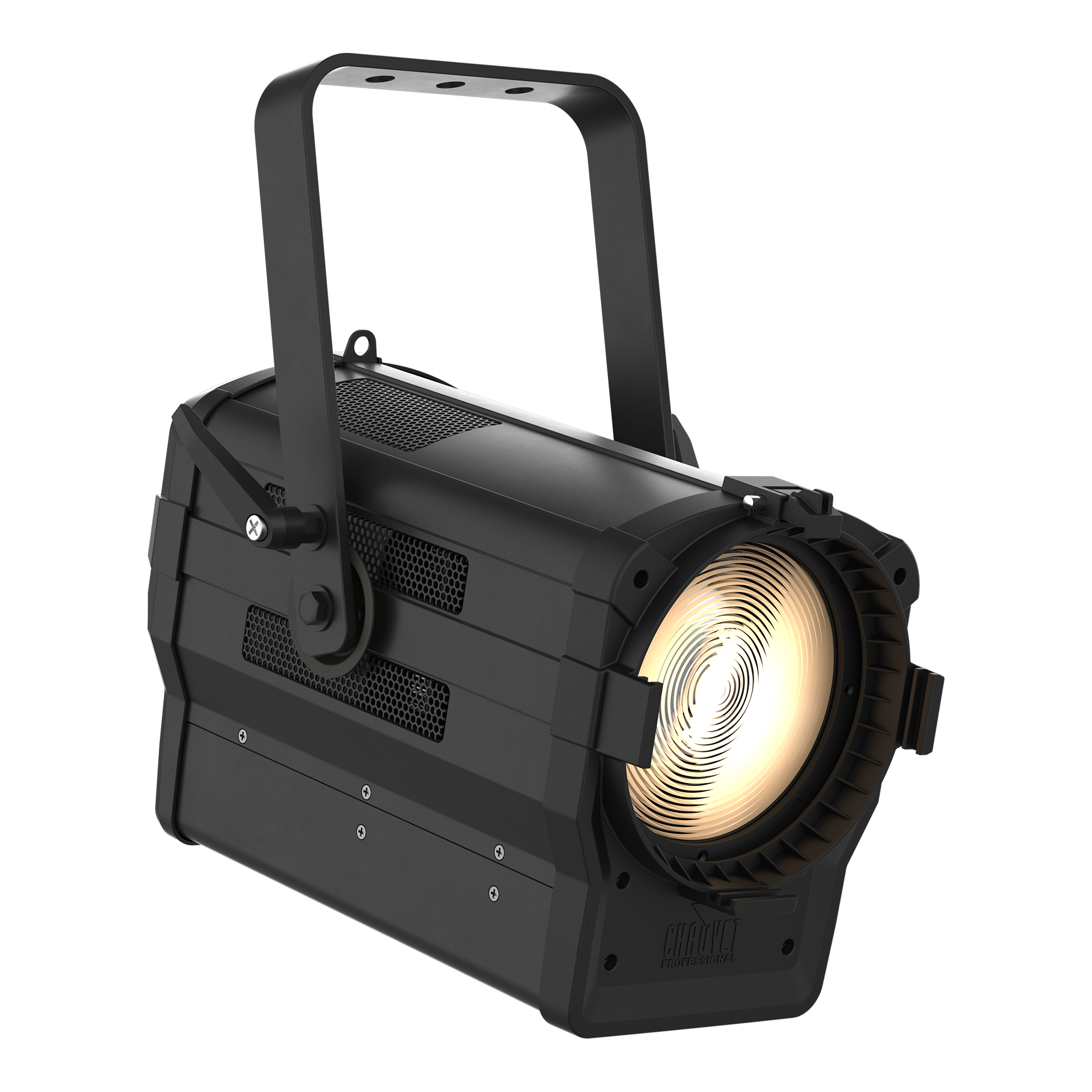

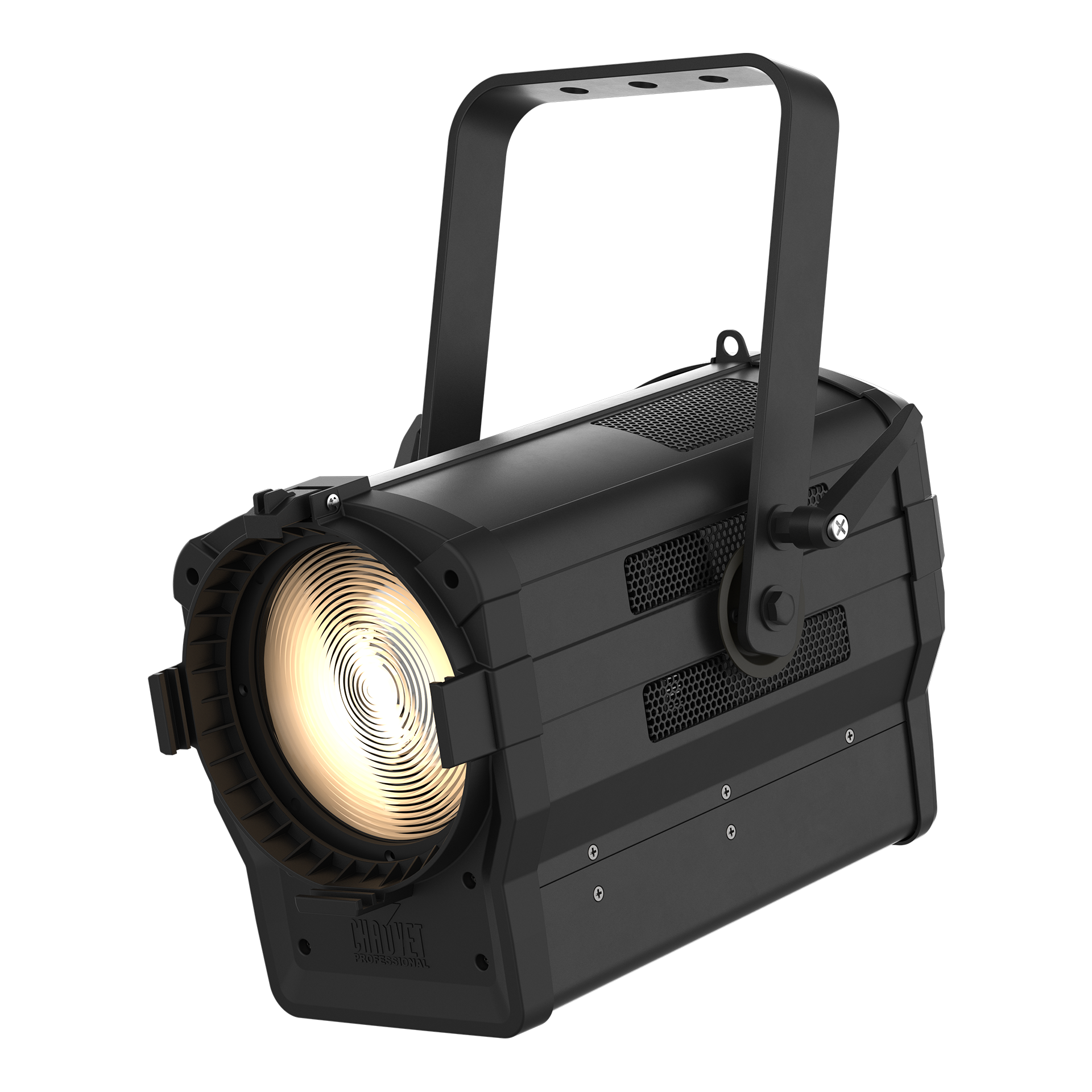

Ovation F-415VW is a 6” Fresnel style variable white fixture that utilizes our unique 6-color LED system. The unit projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theatres and TV studios. Each Color Temperature can be further adjusted for +/- green and a motorized zoom with a 14° – 68° field range that allows you to add light where it is needed. The Color Temperature and hue along with zoom and output can be controlled via DMX or on-board dials. Adding to its versatility, the RDM-enabled unit enables a 28 V external battery operation and offers adjustable PWM for flicker-free use on camera.
Features
Versatile LED Fresnel
A variable white LED Fresnel fixture designed for professional theatre, film, and production applications.
Superior Light Quality
Delivers a consistently soft and even field of light for flawless illumination.
Motorized Zoom
Offers a smooth, motorized zoom range from a narrow 14 degrees to a wide 68 degrees.
Wide Color Temperature Range
Features presets from 2800 K to 8000 K, ensuring high color rendering with excellent CRI and CQS ratings.
External Battery Power Option
A 28 VDC power input via 3-pin XLR allows the fixture to be powered by an external battery pack.
High-Resolution Dimming
Achieves exceptionally smooth fades and intensity changes with beautiful 16-bit dimming control.
Consistent Light Output
The proprietary LED engine ensures powerful and equal output across the entire color temperature range.
Simple Onboard Controls
Easily adjust color temperature, zoom, and dimming directly on the fixture with an intuitive interface.
Plus/Minus Green Adjustment
Fine-tune your lighting with plus or minus green correction, accessible via DMX or on-board controls.
6-Color Engine Control
Gain independent control over the 6-color engine to introduce a vibrant splash of color when desired.
Remote Device Management
RDM capability allows for remote addressing and configuration, adding operational flexibility.
Flicker-Free Operation
Adjustable Pulse Width Modulation (PWM) eliminates on-camera flickering, making it perfect for broadcast.
Silent Operation
Its virtually silent performance is ideal for noise-sensitive environments like studios and theatres.
Latest News
Complete Your Rig
Specifications
Optical
-
Light Source
46 LEDs (4 red, 4 green, 6 blue, 6 R. Blue, 10 Orange, 16 Lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
-
Color Temperature (range)
2800 to 8000 K
-
CRI
89 to 93
-
Beam Angle
14° to 43°
-
Field Angle
27° to 68°
-
Zoom Range
14° to 68°
-
Lumens (27°)
1,631
(68°) : 2,408 -
Illuminance (27°)
800 lux @ 5 m
(68°): 152 lux @ 5 m -
Illuminance drop percentage (fan silent)
23%
(fan off) : 59% -
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Zoom
Motorized
-
Strobe Rate
0 to 27 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Built-in Automated Programs
No
Construction/Physical
-
Dimensions
15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
-
Weight
12.79 lb (5.8 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum alloy, Aluminum die-cast
-
Accessory Holder/Gel Frame Size
6.25 in (158.75 mm)

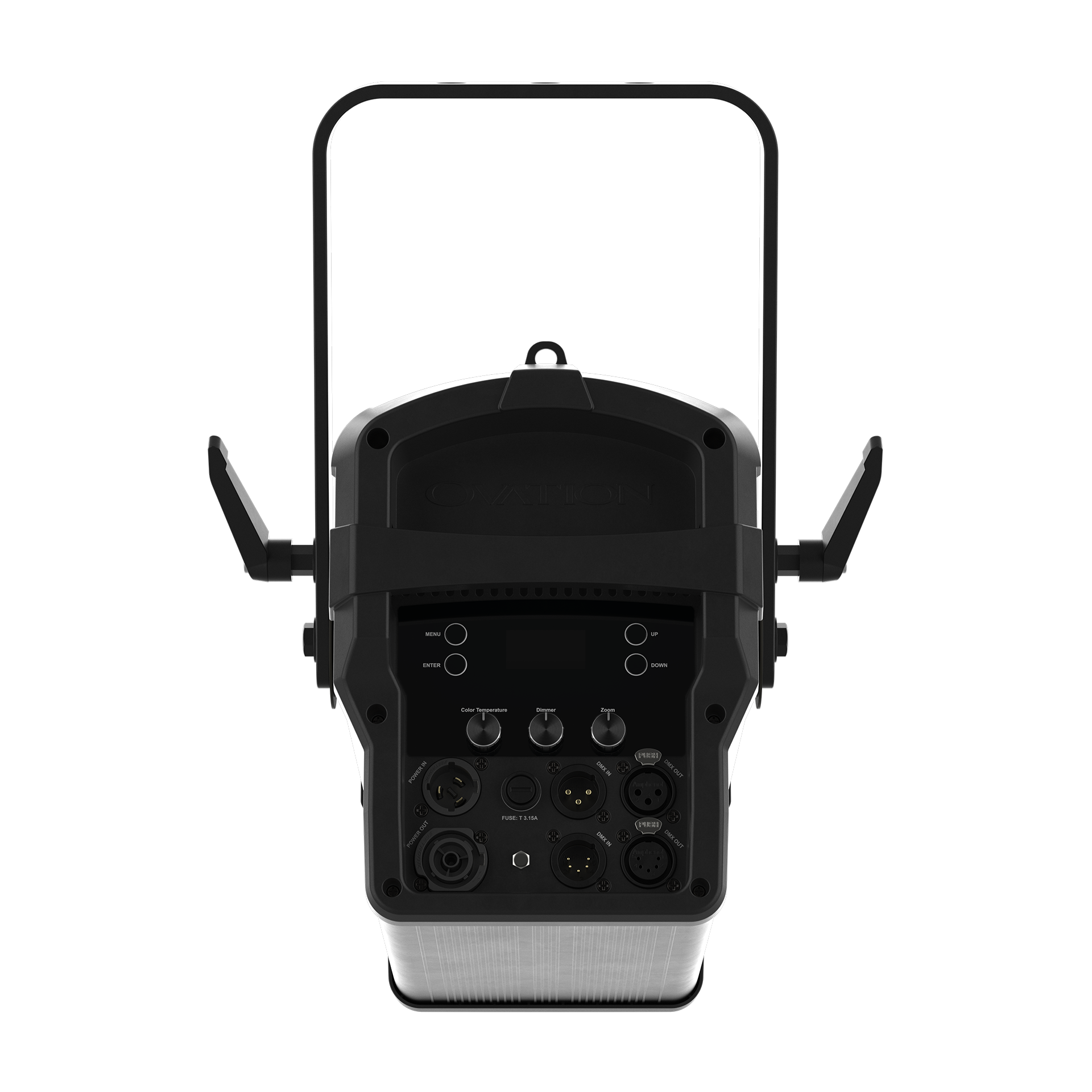

Connections
-
Power Connection
Edison (local) plug to Seetronic Powerkon IP65
-
Connector
Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Power Connection
3-pin XLR
-
Power Input
28 VDC, 3-pin XLR
-
Data Connectors
5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
2, 5, 7, 10, 14, 17 or 19
-
Modes/Personalities
8 personalities (2ch, 5ch, 7ch1, 7ch2, 10ch, 14ch, 17ch, 19ch)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Input Voltage
28 VDC
-
Power Linking
11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V
-
Power and Current
125 W, 1.054 A @ 120 V, 60 Hz
-
Power and Current
122 W, 0.613 A @ 208 V, 60 Hz
-
ower and Current
121 W, 0.569 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC, UKCA
-
IP Rating
IP20, dry location
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
-
-
Noise Levels
-
Noise Level (Idle)
3.1 dB(A) @ 1 m
-
Noise Level (Auto)
17.0 dB(A) @ 1 m
-
Noise Level (On)
28.3 dB(A) @ 1 m
-
Noise Level (Off)
4.4 dB(A) @ 1 m
-
Noise Level (silent)
20.9 dB(A) @ 1 m
-
-
Noise Levels
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Seetronic Powerkon IP65 cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D

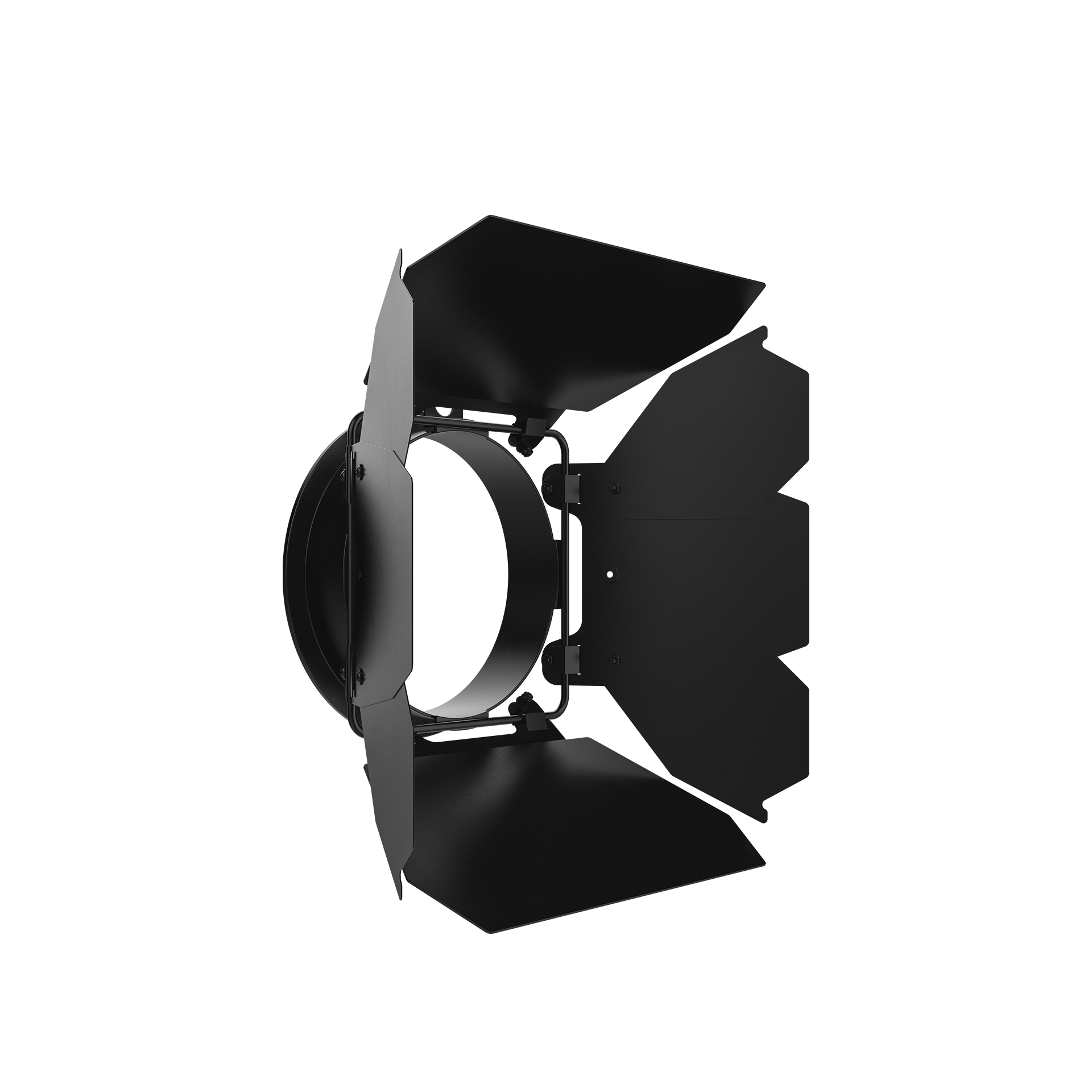

- Ovation F 6.25″ Barndoor V1
What's Included
- Ovation F-415VW
- Seetronic Powerkon IP65 power cord
- Gel frame holder (6.25 in/158.75 mm accessories)
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Ovation F-415VW Quick Reference Guide | Download |
Manuals | Ovation F-415VW Quick Reference Guide – Legacy Software | Download |
Manuals | Ovation F-415VW User Manual | Download |
Drawings | Ovation F-415VW CAD File | Download |
Photometrics | Ovation F-415VW IES Files | Download |
Photometrics | Ovation F-415VW Photometric Report | Download |
DMX | Ovation F-415VW DMX Chart | Download |
DMX | Ovation F-415VW DMX Chart- Legacy Software | Download |
Other | Ovation F-415VW Specification Sheet | Download |
Other | Ovation F-415VW – Firmware | Download |
Manuals | Ovation F-415VW-2_UM | Download |
Learn How To Use Your Ovation F-415VW
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-

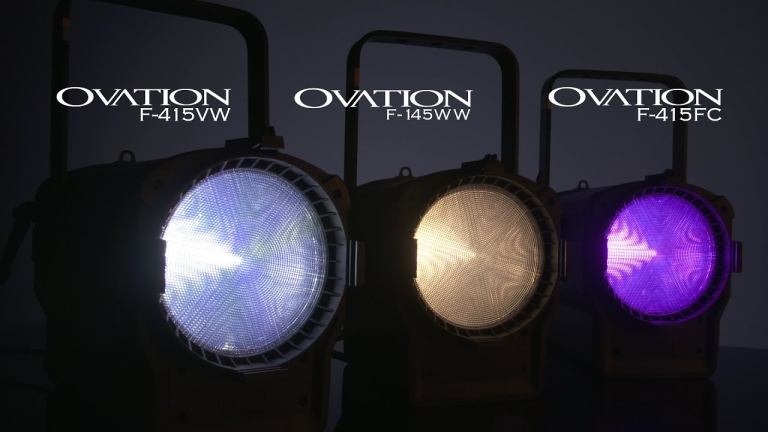

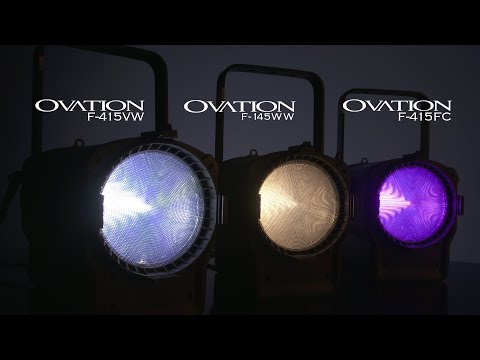

Ovation 6″ Mid-Sized Fresnels by CHAUVET Professional
CHAUVET Professional presents the Ovation 6-inch Fresnel series, engineered to deliver a beautifully soft field of light for theatre and broadcast. These fixtures offer full color, variable white, and warm white options with motorized zoom and quiet operation for ultimate versatility.
Ovation F-415VW FAQ’s
The Ovation F-415VW is a professional lighting fixture ideal for theaters, film sets, and TV studios. It creates a beautiful, soft, and even field of light. Its main benefit is the ability to produce nearly any temperature of white light, from warm to cool, ensuring that skin tones and set pieces look natural and true-to-life on stage or on camera.
It’s highly adjustable. You can use the motorized zoom to easily change the size of the light beam, going from a narrow spotlight to a wide wash of light. You can also precisely dial in the perfect shade of white you need, and for advanced camera work, you can fine-tune the green balance for perfect color.
Yes, it’s designed for flexibility in various settings. The fixture operates almost silently, making it perfect for sound-sensitive environments like studios. It can also be powered by an external battery pack, allowing you to use it in locations where running a power cord isn’t practical.
