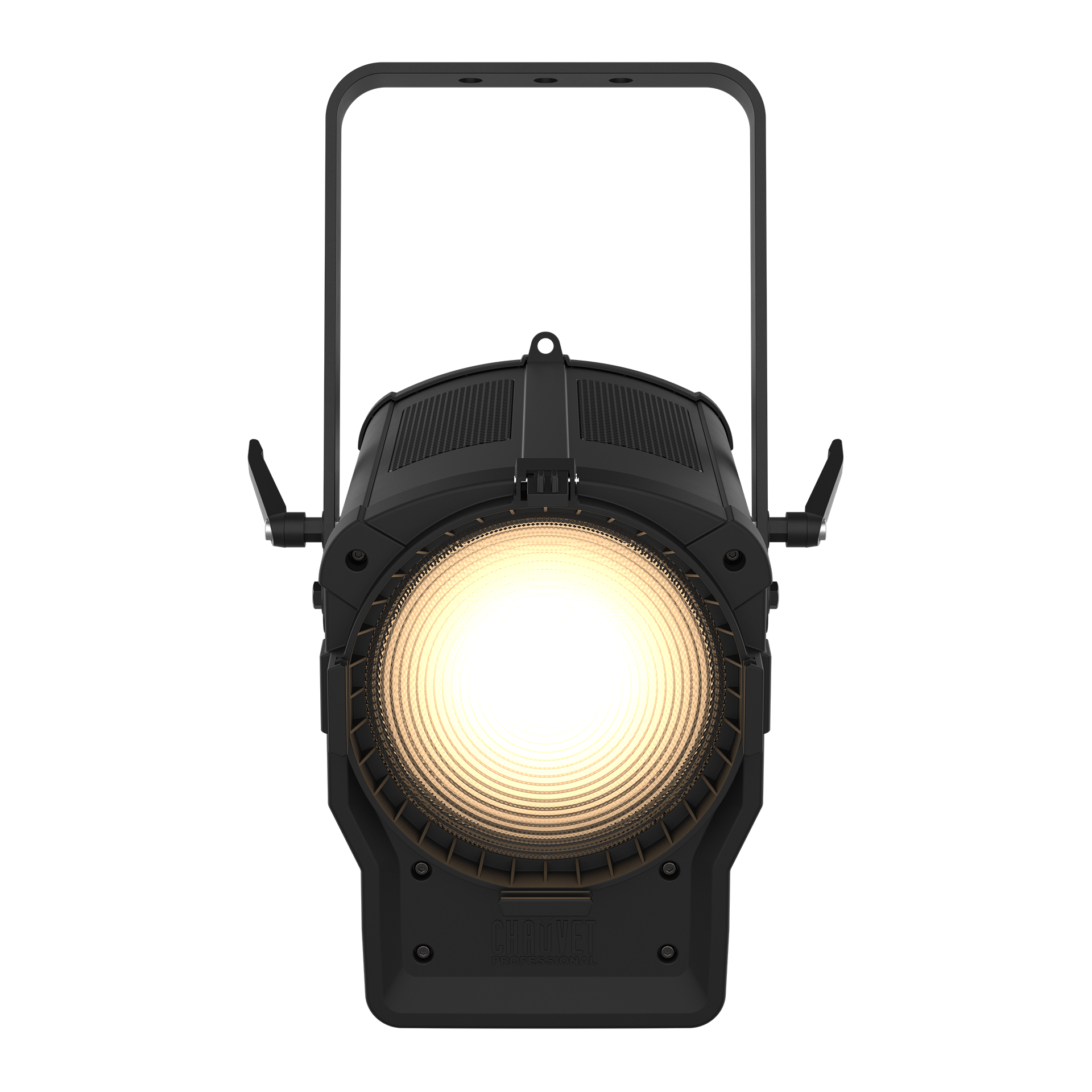

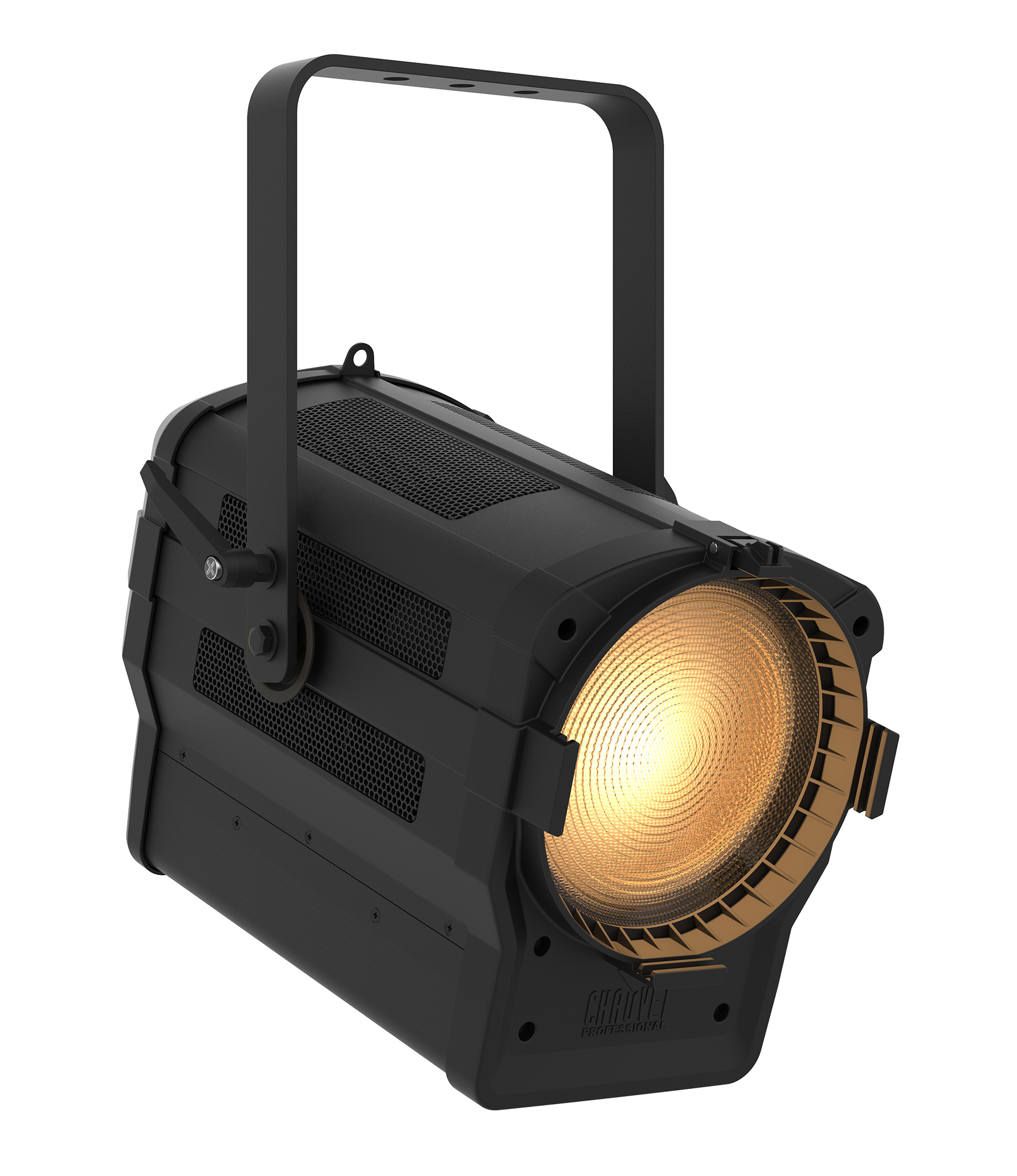

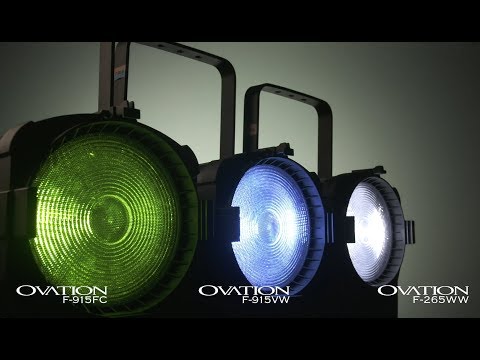

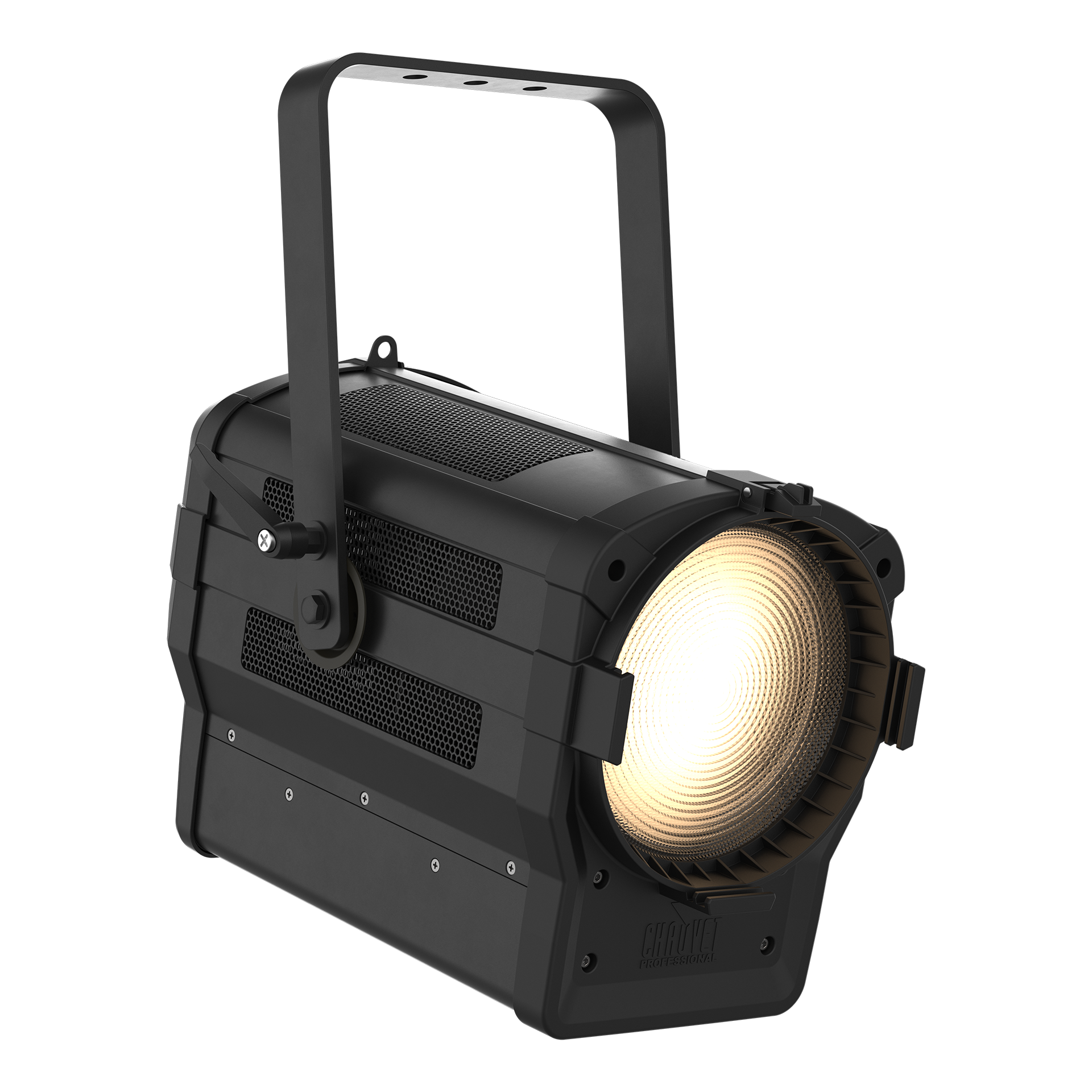

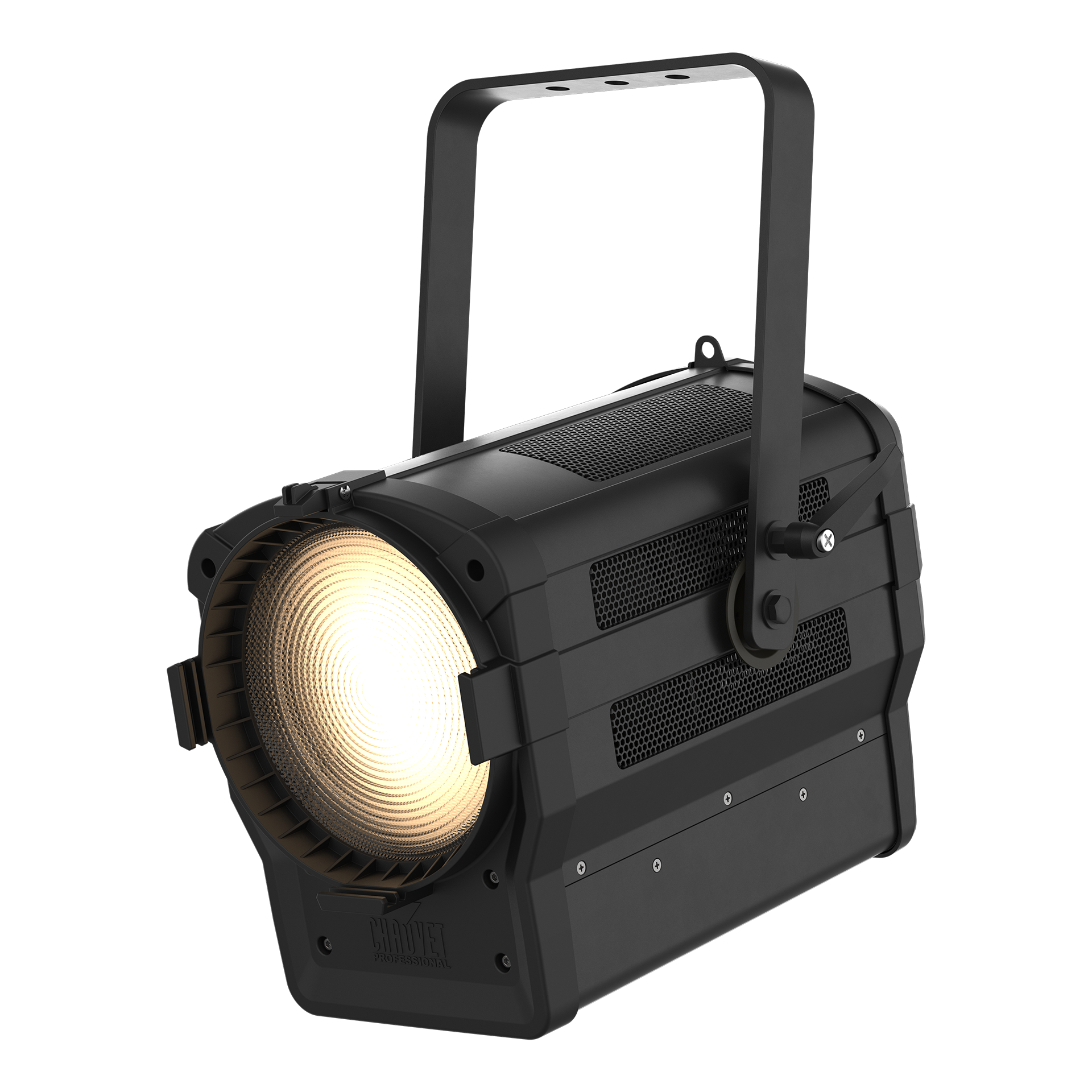

Ovation F-265WW

Optical

• Light Source

  1 LED (WW) 230 W, (3.6 A), 50,000 hours life expectancy

• Color Temperature (at full)

  3142 K

• CRI

  96

• Beam Angle

  16° to 46°

• Field Angle

  27° to 68°

• Zoom Range

  16° to 68°

• Lumens (27°)

  9,283

• Lumens (68°)

  12,802

• • Illuminance
    • Illuminance (27°)

      4,010 lux @ 5 m

    • Illuminance (68°)

      1,162 lux @ 5 m

• Selectable PWM

  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Strobe Rate

  0 to 30 Hz

• Dim Modes

  4

Construction/Physical

• Dimensions

  15.11 x 12.59 x 17.71 in (384 x 320 x 450 mm)

• Weight

  17.2 lb (7.9 kg)

• Exterior Color

  Black

• Housing Material

  Aluminum alloy, Aluminum die-cast

• Accessory Holder/Gel Frame Size

  7.5 in (191 mm)

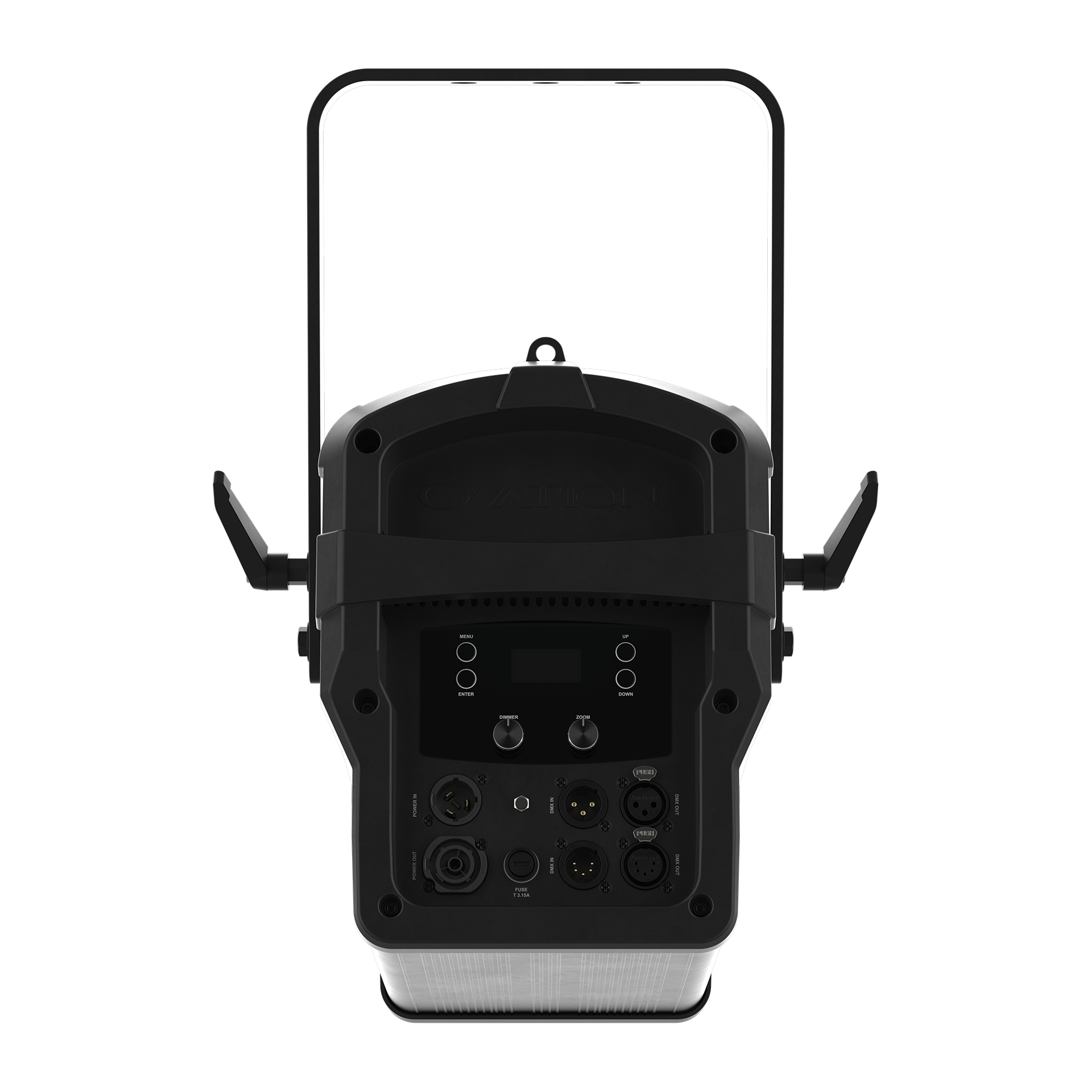

Connections

• Power Connection

  Edison (Local) plug to Seetronic powerKon IP65

• Power Input

  Seetronic Powerkon IP65

• Power Output

  Seetronic Powerkon IP65

• Data Connectors

  3- and 5-pin XLR

• Cable Length (power)

  5 ft (1.5 m)

Control

• Protocol(s)

  DMX, RDM

• DMX Channels

  1, 2, 2 or 5

• Modes/Personalities

  4 personalities (1, 2, 2, 5)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  6 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V

• • Power and Current
    • Electrical Detail

      222 W, 1.84 A @ 120 V, 60 Hz

    • Electrical Detail 2

      231 W, 1.10 A @ 208 V, 60 Hz

    • Electrical Detail 3

      230 W, 1.01 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET, FCC, UKCA

• IP Rating

  IP20, dry location

• Temperature (Ambient)

  -4 °F to 113 °F (-20 °C to 45 °C)
