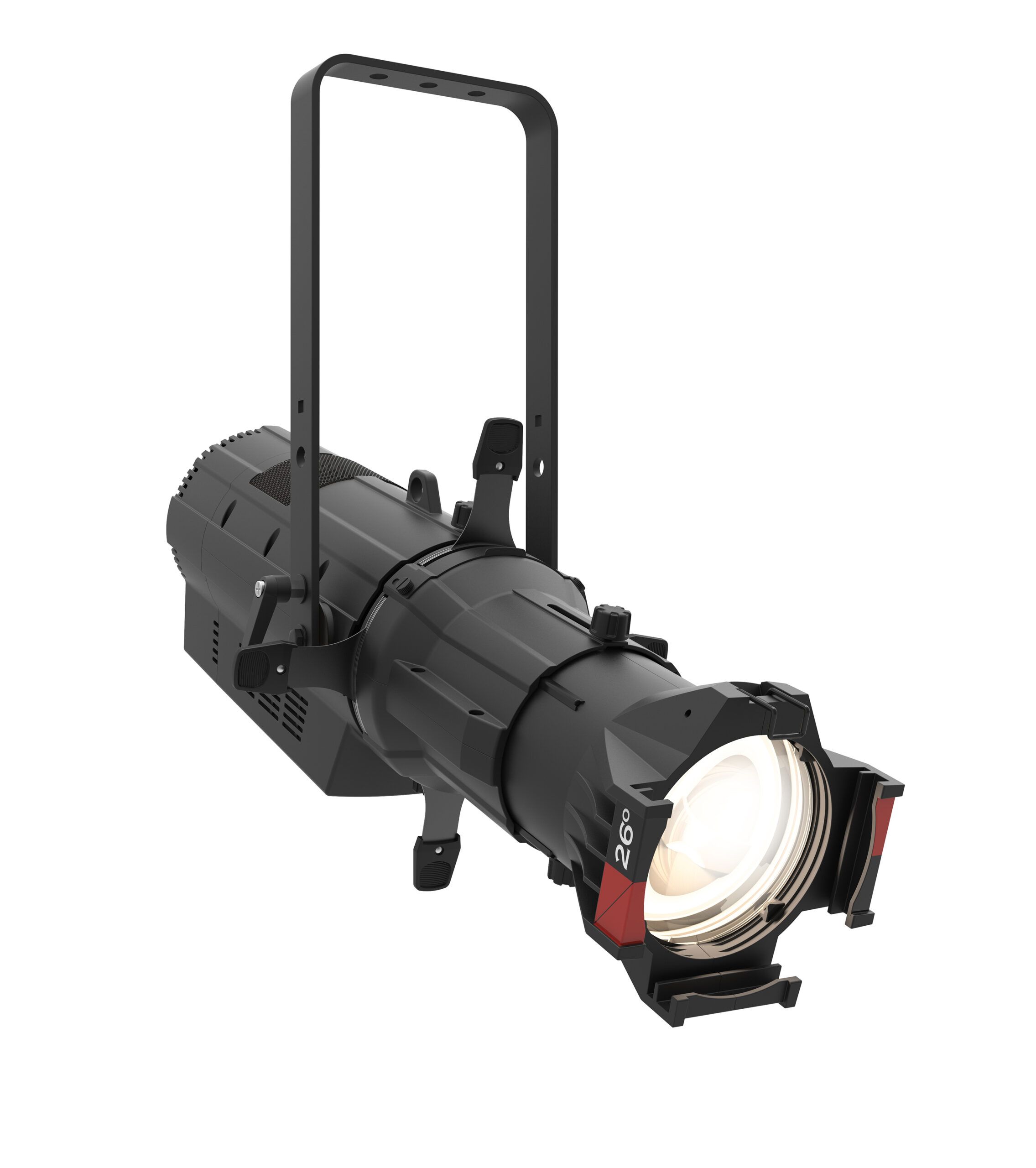

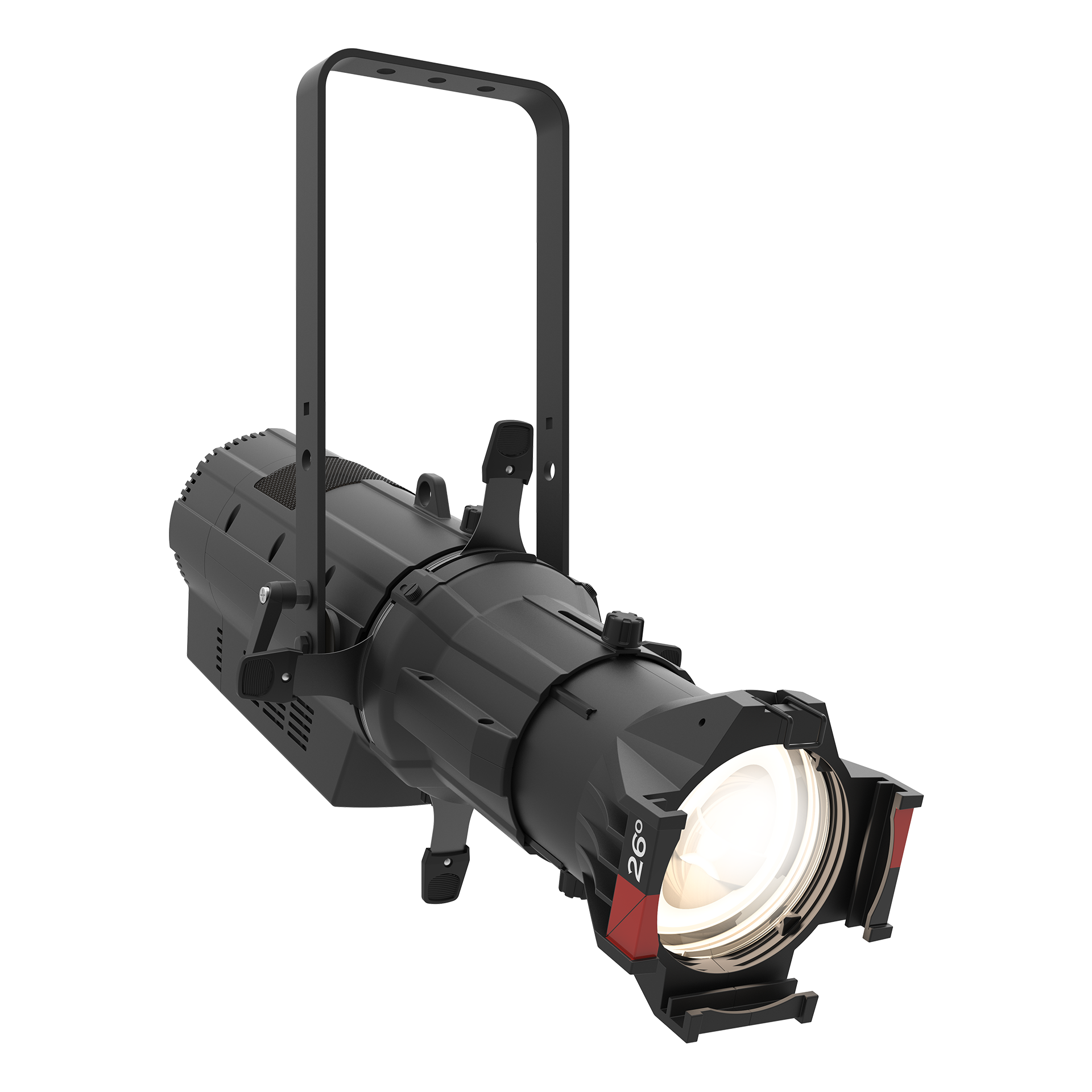

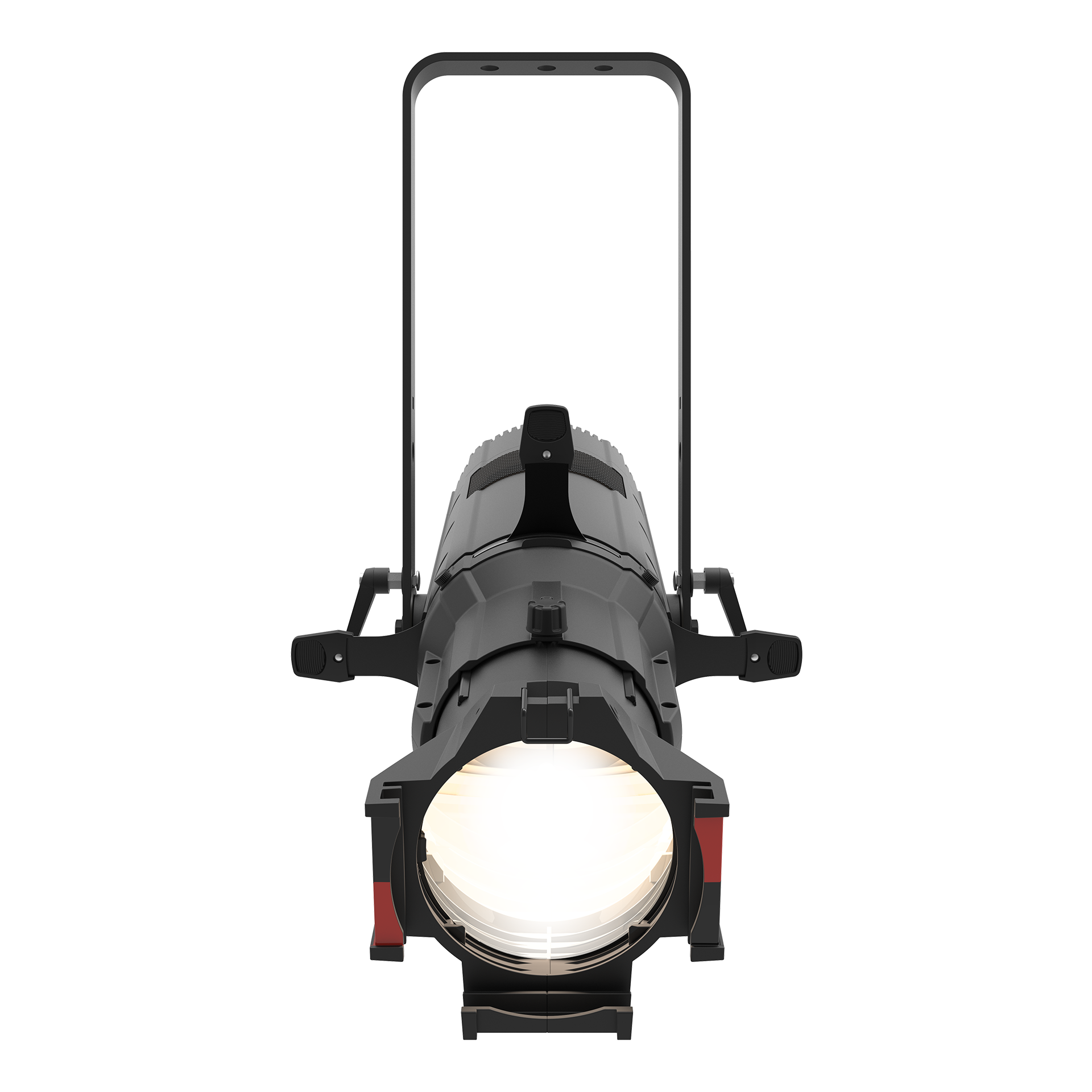

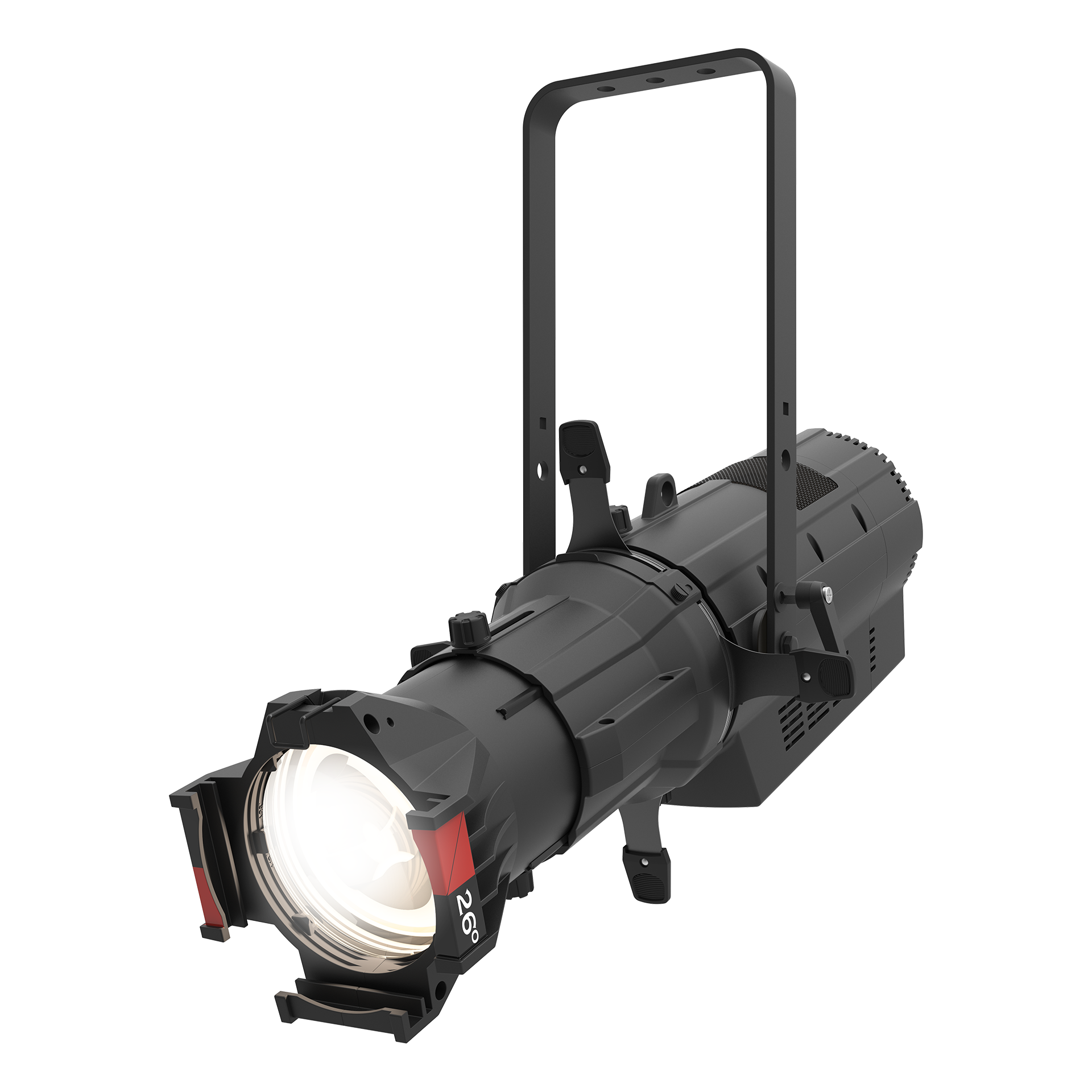

Ovation E-930VW
A high-performance variable white ellipsoidal fixture utilizing a 6-color LED system to project a bright, flat field of light with precise color temperature control, +/- green adjustment, and full color mixing capabilities.
Perfect for theatrical, broadcast, and event applications where high-quality, adjustable white light and color versatility are paramount.
-
Delivers a wide color temperature range from 2800 K to 8000 K with high CRI.
-
Features plus/minus green adjustment via DMX or onboard control for perfect color matching.
-
Achieves exceptionally smooth fades with high-resolution 16-bit dimming control.
-
Provides flicker-free and virtually silent operation ideal for broadcast and theatre use.
-
Supports both DMX and RDM for flexible control and remote device management.
-
Accepts industry-standard lens tubes and accessories for seamless integration.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Ovation E-930VW
Specifications | Download |
Ovation E-930VW Quick Reference Guide | Download |
Legacy Software | Download |
Ovation E-930VW User Manual | Download |
Ovation E-930VW CAD | Download |
Ovation E-930VW IES | Download |
Ovation E-930VW Photometric Report | Download |
Ovation E-930VW DMX Chart | Download |
Legacy Software | Download |
Case study: Chapel Off Chapel Gets More Versati… | Download |
Case study: Nic Farman Conveys Time And Space I… | Download |
Ovation E-930VW ShowXpress | Download |
Firmware | Download |

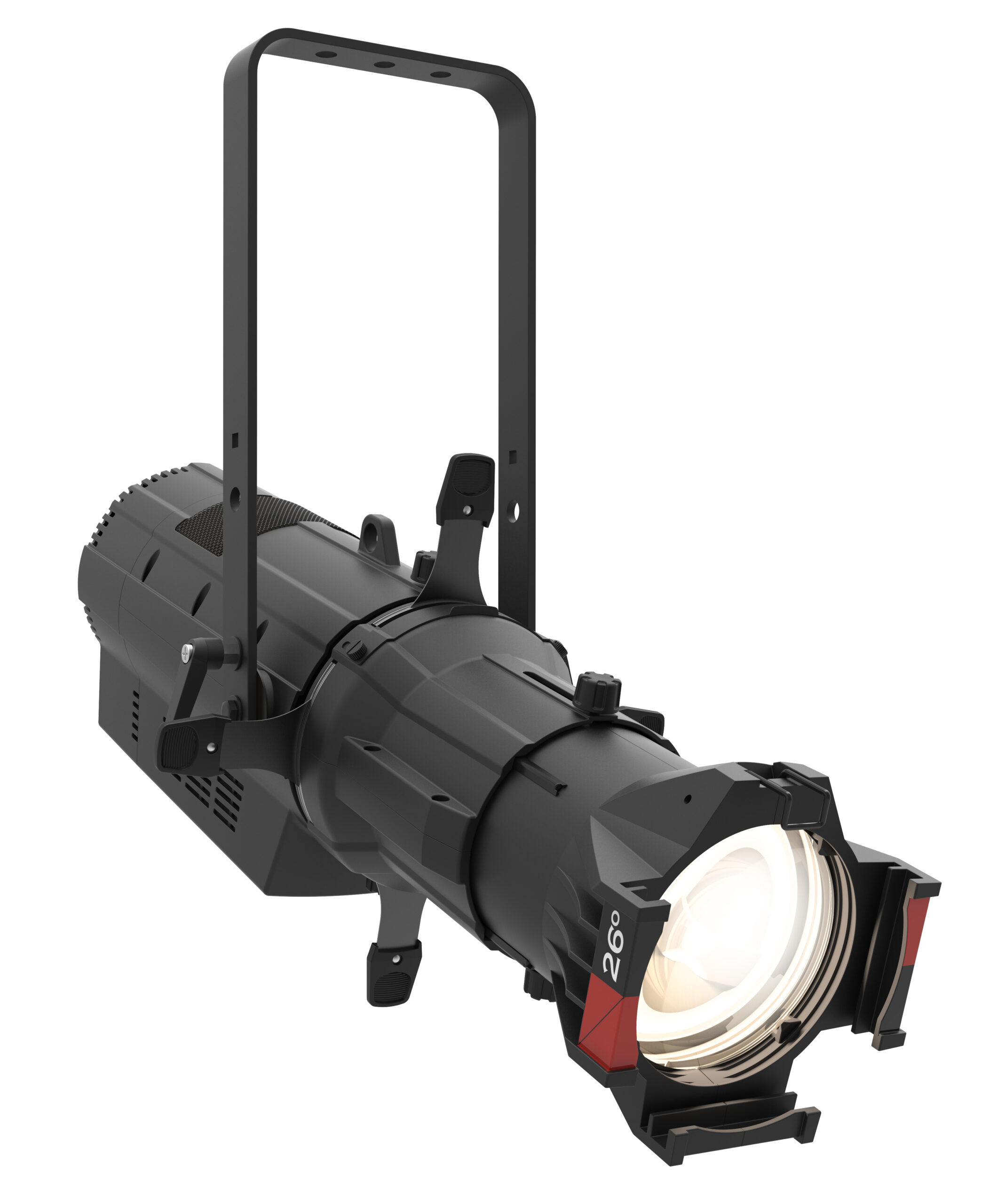

Ovation E-930VW
Ovation E-930VW is a high-performance, variable white ellipsoidal style fixture that utilizes our unique 6-color LED system. This fixture projects a bright, beautifully flat field of light in nearly any temperature of white with high CRI and CQS. Each Color Temperature can be further adjusted for +/- green to perfect the field of light. For times when a splash of color is needed, the fixture can also give you full control of each color of LED as well.
Features
Variable White ERS Fixture
An ERS-style lighting fixture designed for professional theatre, film, and production environments.
Wide Color Temperature Range
Access presets from 2800 K to 8000 K, all with high CRI and CQS for superior color accuracy.
Smooth 16-Bit Dimming
Achieve exceptionally smooth and beautiful fades with high-resolution 16-bit dimming control.
Consistent Light Output
A proprietary LED engine ensures a powerful and consistent output regardless of the selected color temperature.
Green Shift Correction
Precisely adjust the plus or minus green channel via DMX or onboard controls to perfectly match other light sources.
Full Color Engine Control
Gain independent control over the 6-color engine for creating saturated, vibrant colors when needed.
Remote Device Management
RDM compatibility allows for remote addressing and configuration, adding significant setup flexibility.
Flicker-Free Operation
Adjust the Pulse Width Modulation to eliminate on-camera flicker for broadcast and film applications.
Silent Operation
Its virtually silent performance makes it ideal for noise-sensitive studio and theatre environments.
Standard Accessory Compatibility
This fixture works perfectly with industry-standard lens tubes and other ERS-style accessories.
Latest News
Complete Your Rig
Specifications
Optical
-
Light Source
91 LEDs (6 red, 15 orange-red, 9 green, 12 blue, 10 royal blue, 39 lime) 3 W, (960 mA), 50,000 hours life expectancy
-
Color Temperature (range)
2800 to 8000K
-
CRI
88-92
-
Selectable PWM
600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
-
-
5° Lens
-
Beam Angle
5°
-
Field Angle
7°
-
Illuminance
27,300 lux @ 5 m
-
-
5° Lens
-
-
10° Lens
-
Beam Angle
8°
-
Field Angle
10°
-
Illuminance
12,700 lux @ 5 m
-
-
10° Lens
-
-
14° Lens
-
Beam Angle
12°
-
Field Angle
14°
-
Illuminance
7,560 lux @ 5 m
-
Lumens
4,399
-
-
14° Lens
-
-
15°–30° Lens (Narrow)
-
Beam Angle
10°
-
Field Angle
14°
-
Illuminance
6,990 lux @ 5 m
-
-
15°–30° Lens (Narrow)
-
-
15°–30° Lens (Wide)
-
Beam Angle
22°
-
Field Angle
29°
-
Illuminance
1,815 lux @ 5 m
-
-
15°–30° Lens (Wide)
-
-
19° Lens
-
Beam Angle
17°
-
Field Angle
18°
-
Illuminance
3,765 lux @ 5 m
-
Lumens
4,817
-
-
19° Lens
-
-
25°–50° Lens (Narrow)
-
Beam Angle
20°
-
Field Angle
22°
-
Illuminance
2,464 lux @ 5 m
-
-
25°–50° Lens (Narrow)
-
-
25°–50° Lens (Wide)
-
Beam Angle
36°
-
Field Angle
39°
-
Illuminance
975 lux @ 5 m
-
-
25°–50° Lens (Wide)
-
-
26° Lens
-
Beam Angle
22°
-
Field Angle
25°
-
Illuminance
2,210 lux @ 5 m
-
Lumens
5,485
-
-
26° Lens
-
-
36° Lens
-
Beam Angle
27°
-
Field Angle
33°
-
Illuminance
1,296 lux @ 5 m
-
Lumens
5,306
-
-
36° Lens
-
-
50° Lens
-
Beam Angle
38°
-
Field Angle
50°
-
Illuminance
537 lux @ 5 m
-
Lumens
5,037
-
-
50° Lens
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 28 Hz
-
Focus
Manual
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Built-in Automated Programs
No
Construction/Physical
-
-
Dimensions
-
Dimensions (fixture only)
25.04 x 13.54 x 23.22 in (636 x 344 x 590 mm)
-
Dimensions (w/5° lens extended)
46.14 x 14.17 x 14.48 in (1172 x 360 x 368 mm)
-
Dimensions (w/10° lens extended)
37.44 x 12.16 x 23.22 in (951 x 309 x 317 mm)
-
Dimensions (w/26° lens extended)
28.06 x 13.54 x 23.22 in (800 x 344 x 590 mm)
-
Dimensions (w/15°–30° lens)
37 x 11.52 x 10.33 in (939.8 x 287.9 x 262.62 mm)
-
Dimensions (w/25°–50° lens)
29.75 x 11.52 x 10.33 in (755.65 x 287.9 x 262.62 mm)
-
-
Dimensions
-
-
Weights
-
Weight (fixture only)
16.6 lb (7.5 kg)
-
Weight (w/5° lens)
22.4 lb (10.2 kg)
-
Weight (w/10° lens)
20.4 lb (9.3 kg)
-
Weight (w/14° lens)
22 lb (9.97 kg)
-
Weight (w/26° lens)
20.6 lb (9.34 kg)
-
Weight (w/15°–30° lens)
29.2 lb (13.24 kg)
-
Weight (w/25°–50° lens)
26.2 lb 11.88 kg)
-
-
Weights
-
Exterior Color
Black
-
-
Accessory Holder/Gel Frame Size
-
(14°, 19°, 26°, 36°, And 50° Lens)
6.25 in (159 mm)
-
(5° Lens)
14 in (356 mm)
-
(10° Lens)
12 in (304 mm)
-
(15°–30° Lens)
7.5 in (191 mm)
-
(25°–50° Lens)
7.5 in (191 mm)
-
-
Accessory Holder/Gel Frame Size

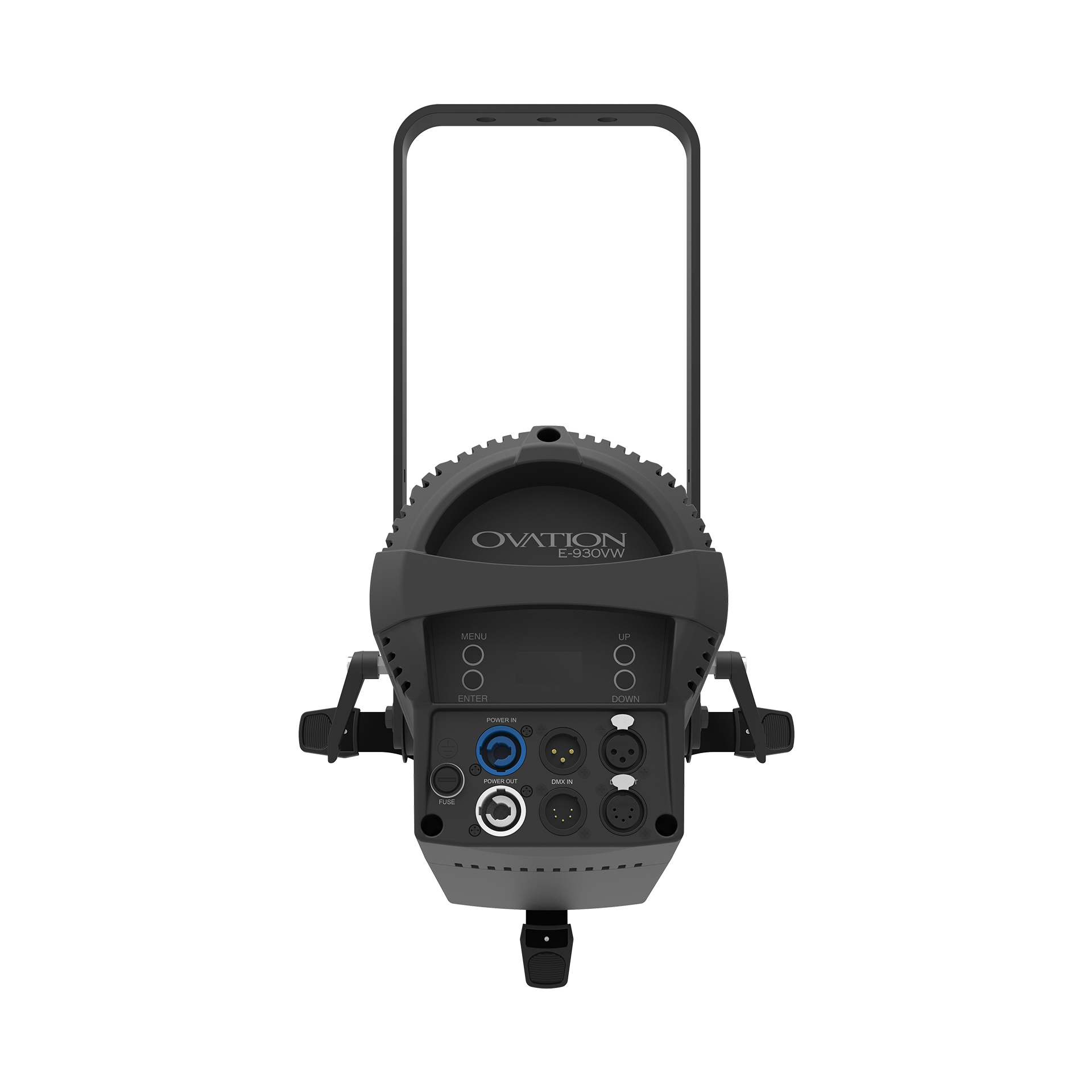

Connections
-
Power Connection
Edison (Local) plug to Neutrik® powerCON®
-
Power Input
Neutrik® powerCON®
-
Power Output
Neutrik® powerCON®
-
Data Connectors
3- and 5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
3, 5, 6, 8, 11, 15, 17
-
Modes/Personalities
6 personalities (3, 5, 6, 8, 11, 15, 17)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
-
Power and Current
226 W, 2.253 A @ 120 V, 60 Hz
-
Power and Current
272 W, 1.303 A @ 208 V, 60 Hz
-
Power and Current
272 W, 1.192 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC
-
IP Rating
IP20, dry location
Required Accessories
- Ovation Ellipsoidal HD Lens Tubes
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Neutrik powerCON cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- RDM2go
- Ovation Zoom Lenses: OHDZOOM1530, OHDZOOM2550
- Gobo Holder: Ovation B-Size Metal or Glass Gobo Holder
- Iris: Ovation 20-leaf Iris
What's Included
- Ovation E-930VW
- Neutrik® powerCON® power cord
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Ovation E-930VW Quick Reference Guide | Download |
Manuals | Ovation E-930VW Quick Reference Guide – Legacy Software | Download |
Manuals | Ovation E-930VW User Manual | Download |
Drawings | Ovation E-930VW CAD | Download |
Photometrics | Ovation E-930VW IES | Download |
Photometrics | Ovation E-930VW Photometric Report | Download |
DMX | Ovation E-930VW DMX Chart | Download |
DMX | Ovation E-930VW DMX Chart – Legacy Software | Download |

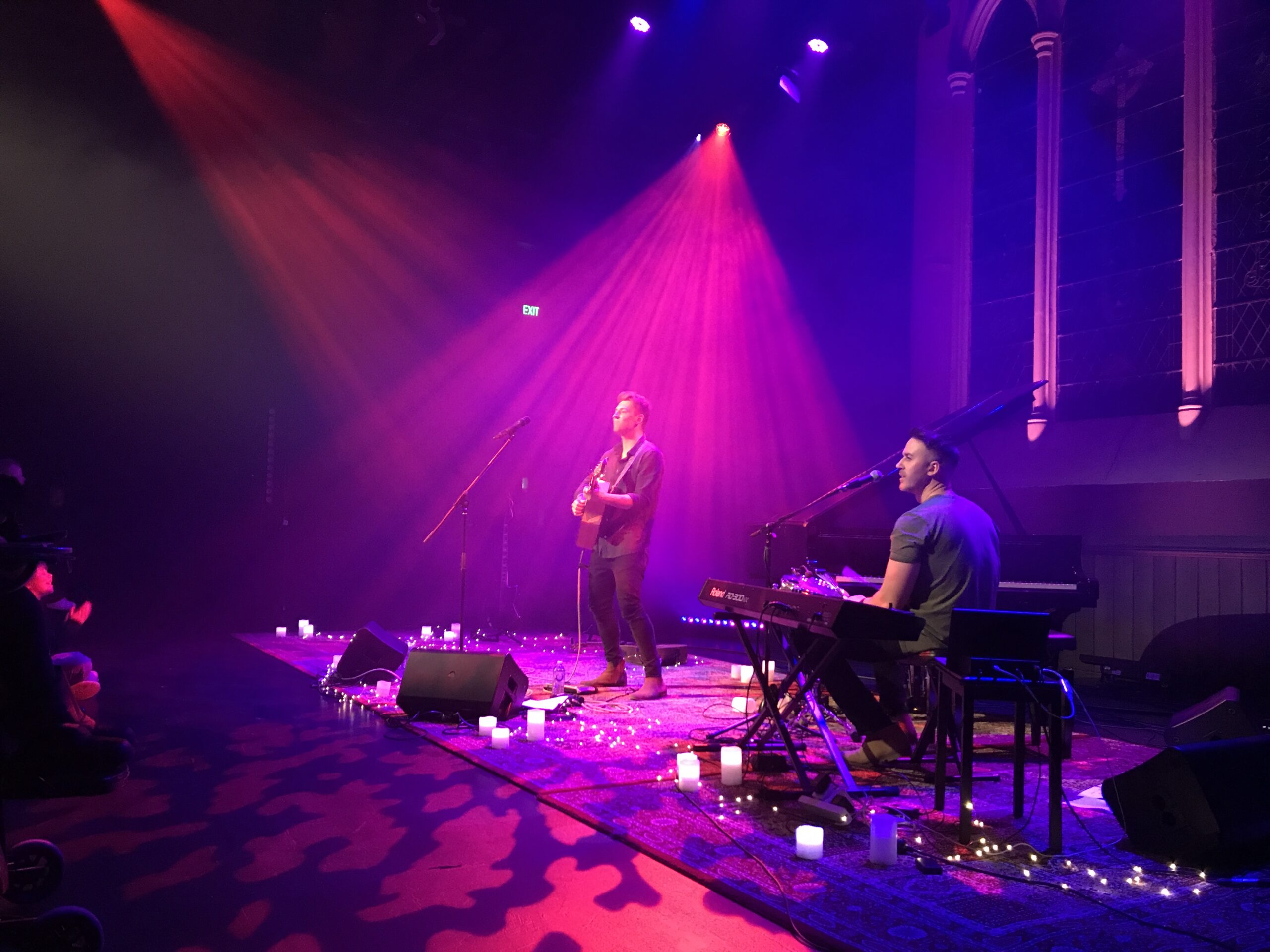

Case Studies | Case study: Chapel Off Chapel Gets More Versatility, Lower Energy Costs With New CHAUVET Professional Rig | Download |
Case Studies | Case study: Nic Farman Conveys Time And Space In Broken Wings With CHAUVET Professional | Download |
Other | Ovation E-930VW ShowXpress | Download |
Other | Ovation E-930VW – Firmware | Download |
Learn How To Use Your Ovation E-930VW
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-
Life.Church BTS Tour of LED Stage Lighting for 4K Broadcast Campus Upgrade
Go behind the scenes at Life.Church to see how their team upgraded their 4K broadcast campus with an all-LED rig from CHAUVET Professional. Discover how Maverick, Ovation, and Rogue fixtures empower dynamic, camera-ready worship experiences that engage audiences both in the room and online.
Ovation E-930VW FAQ’s
This fixture excels at producing a high-quality, natural-looking white light that can be precisely adjusted from a warm, soft tone to a crisp, cool white. It is also designed to be flicker-free on camera and operates almost silently, making it perfect for professional film, broadcast, and theatre applications where sound and video quality are critical.
Yes. While its main purpose is to create stunning variable white light, its advanced 6-color LED system also gives you the ability to produce a wide range of vibrant colors. This dual function makes it highly versatile for any production, allowing it to serve as a primary white light or as a colorful special-effects light.
Yes, it is designed for easy integration. The Ovation E-930VW works seamlessly with industry-standard lens tubes and other common accessories. This allows you to easily upgrade your lighting system without needing to replace all of your existing lenses, making it a convenient and cost-effective choice.
