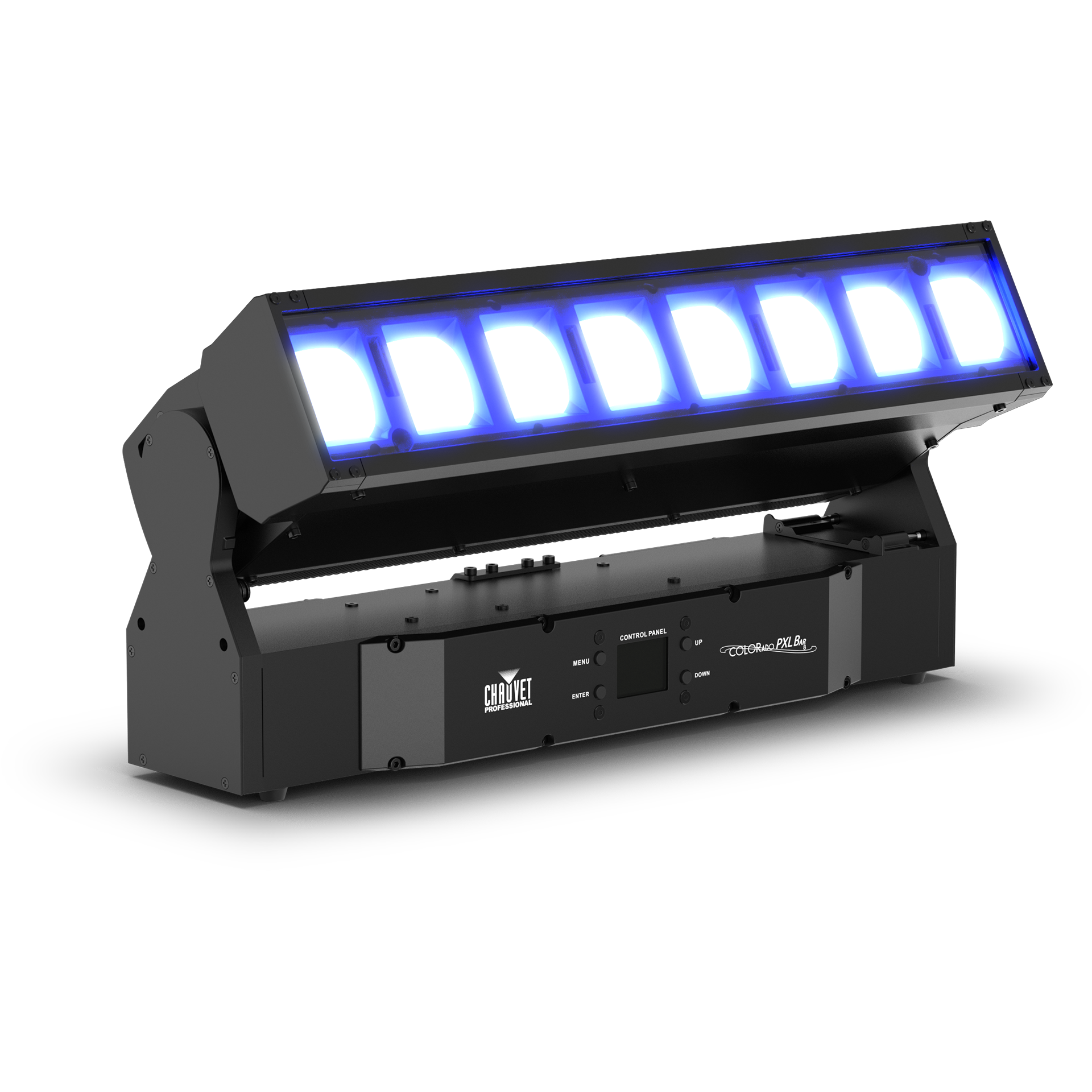

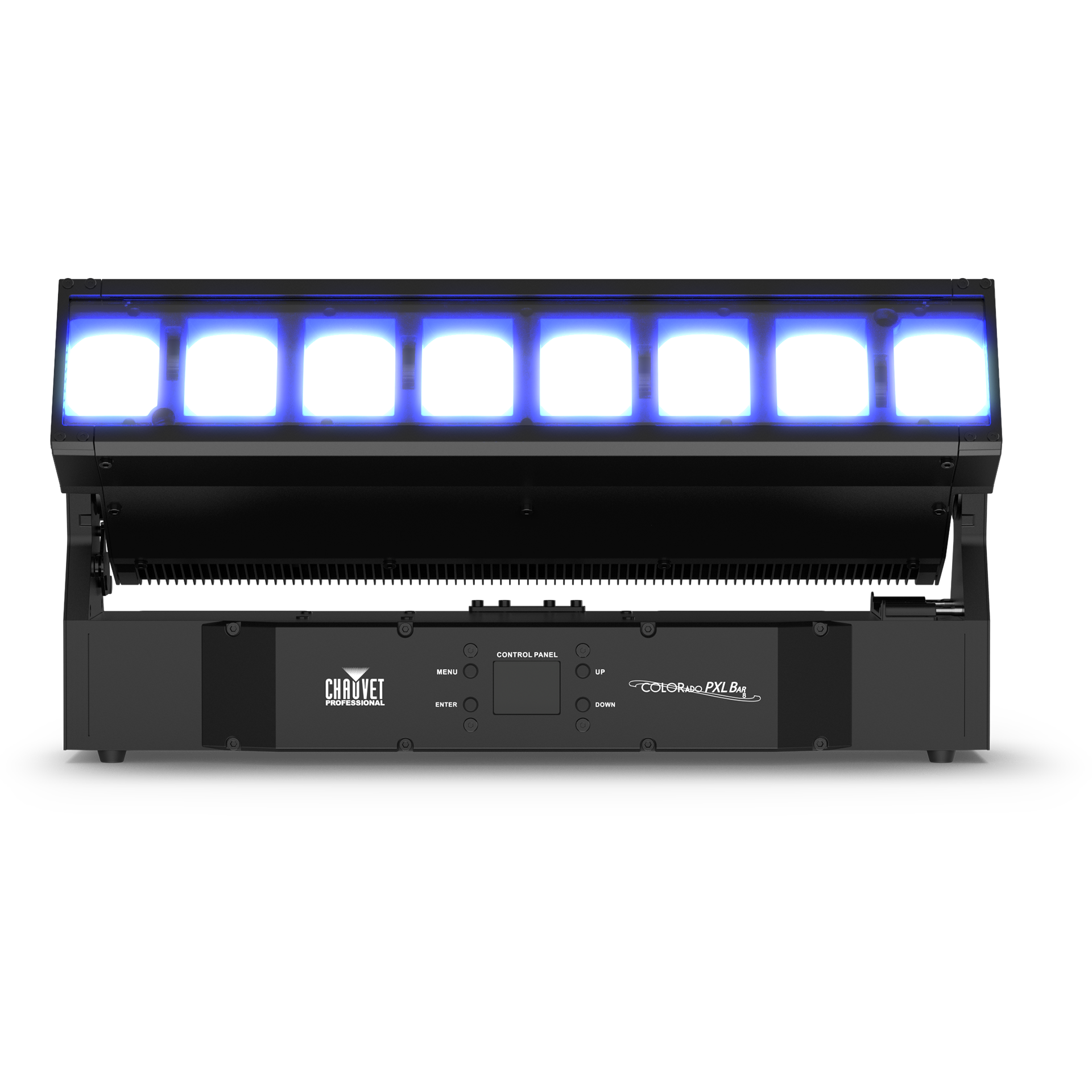

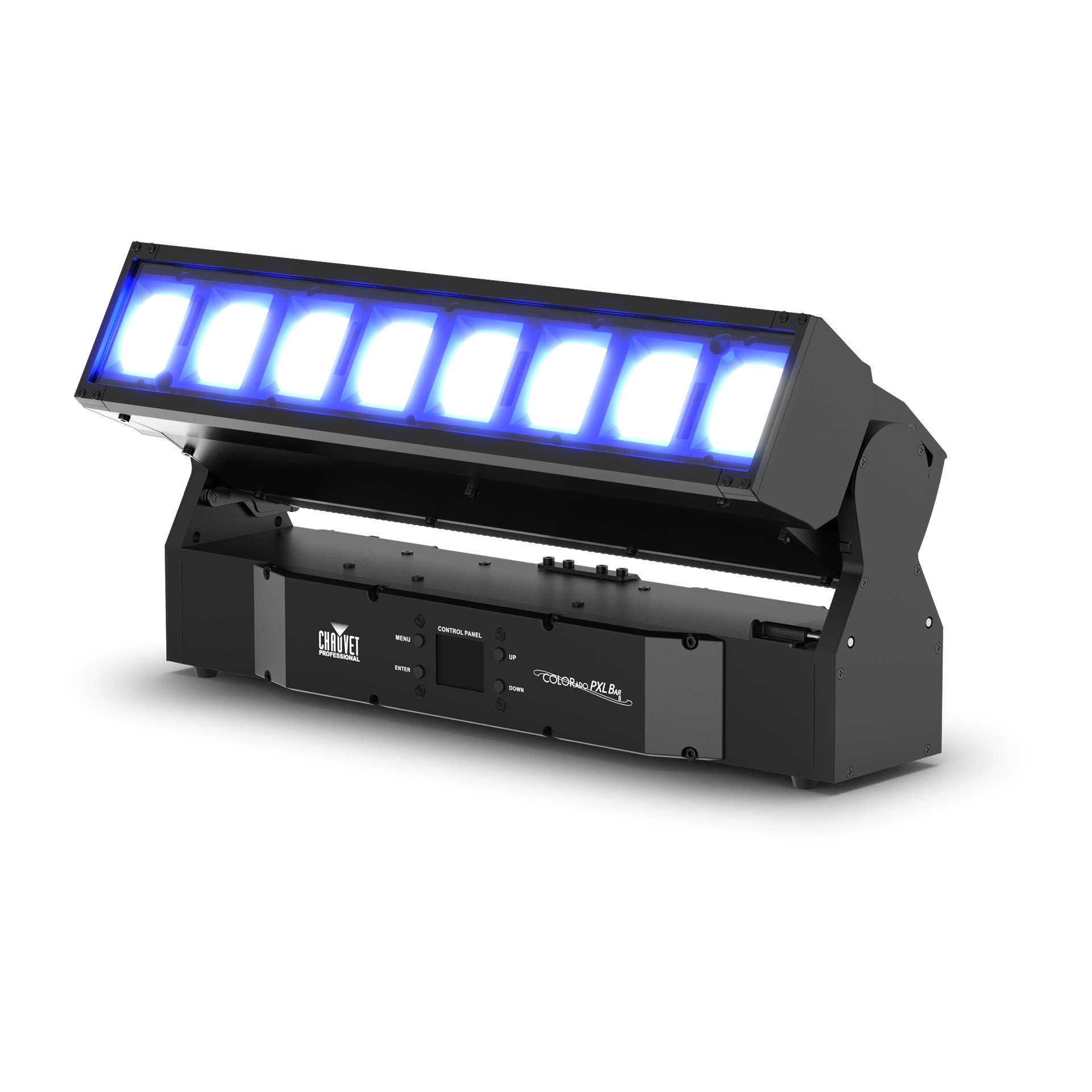

COLORado PXL Bar 8

Optical

• Light Source

  8 LEDs (quad-color RGBW) 45 W, (3.0 A),50,000 hours life expectancy.

• Color Temperature

  6121 K (calibrated white)

• CRI

  64

• Beam Angle

  3.5° to 30.8°

• Beam Angle single cell

  4° to 29.9°

• Field Angle

  5.2° to 42.7°

• Field Angle single cell

  5.4° to 42.3°

• Cutoff Angle

  8.5° to 47.3°

• Cutoff Angle single cell

  6.1° to 45.5°

• Zoom Range

  3.6° to 47.3°

• Zoom Range single cell

  4° to 45.5°

• Lumens

  3,503

• • Illuminance
    • 3.6°

      12,109 lux @ 5 m

    • 47.3°

      563 lux @ 5 m

• Selectable PWM

  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Tilt

  200°

• Tilt Ranges

  60°, 180°, 200° tilt

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Strobe Rate

  0 to 20 Hz

• Dim Modes

  2

• Dim Curves

  4

Construction/Physical

• Dimensions

  19.69 x 5.47 x 10.75 in (500 x 139 x 273 mm)

• Weight

  25.2 lb (11.5 kg)

• Exterior Color

  Black

• Housing Material

  Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer

Connections

• Power Connection

  Bare end to Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Power Output

  Seetronic Powerkon IP65

• Data Connectors

  5-pin IP rated, Seetronic IP rated RJ45 connectors in/out

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  Art-Net, Kling-Net, DMX, sACN, RDM

• DMX Channels

  (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)

• Art-Net Channels

  (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)

• Modes/Personalities

  10 personalities (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  3 units @ 120 V, 5 units @ 208 V, 6 units @ 230 V

• Power and Current

  422 W, 3.497 A @ 120 V, 60 Hz

• Power and Current

  409 W, 2.013 A @ 208 V, 60 Hz

• Power and Current

  407 W, 1.830 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET, FCC

• IP Rating

  IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

• Temperature (Ambient)

  -4 °F to 113 °F (-20 °C to 45 °C)
