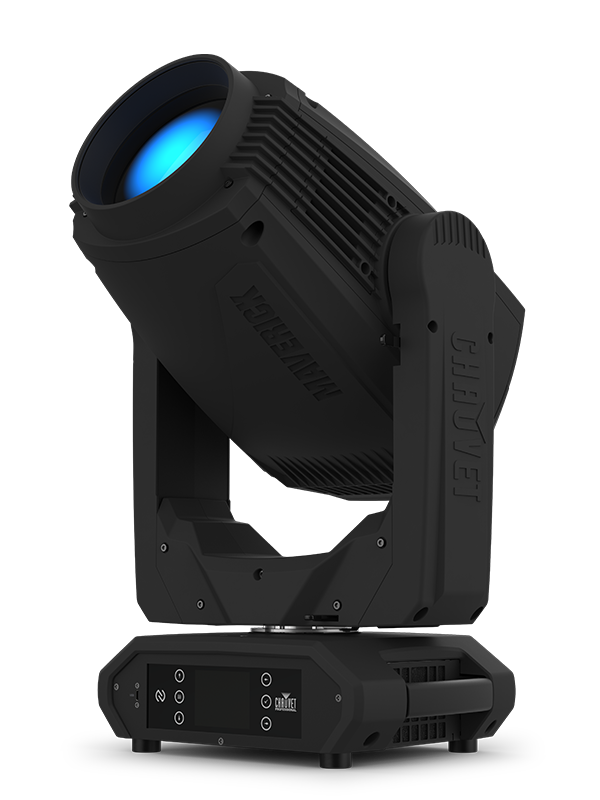

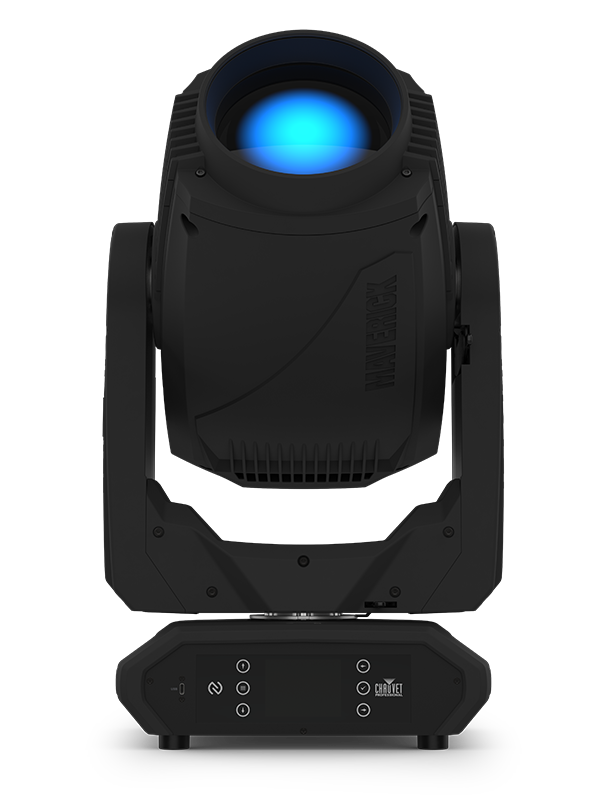

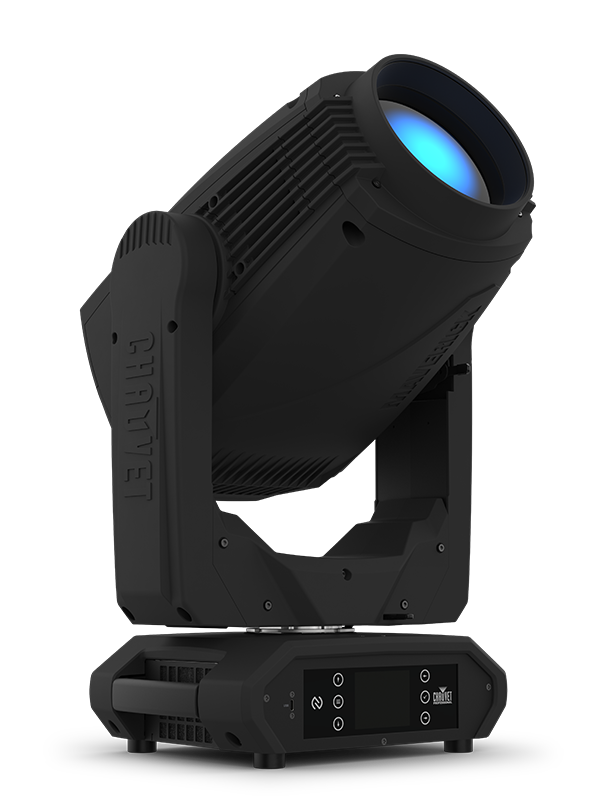

Maverick Force X Profile

Optical

• Light Source

  1 LEDs (CW) 520 W, (4.2A), 6966 K, 50,000 hours life expectancy.

• Color Temperature (at full)

  6966 K

• Front lens diameters

  145 mm

• CRI

  72.2

• CRI with CRI filter

  90

• Beam Angle

  3.4° to 52.2°

• Field Angle

  3.7° to 55.3°

• Cutoff Angle

  3.8° to 57.3°

• Zoom Range

  3.5° to 57.3°

• Lumens – Output

  18,963

• Illuminance (3.4°)

  104,429 lux @ 5 m

• Illuminance (57.3°)

  1,219 lux @ 5 m

• Selectable PWM

  600Hz, 1500Hz, 2000Hz 65000Hz

Dynamic Effects

• Pan and Tilt

  540°/270°

• Pan and Tilt Ranges

  540°, 360°, 180° pan/270°, 180°, 90° tilt

• Colors

  7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds

• Colors

  CMY wheels

• Color Macros

  CMY macros

• Gobos (1)

  7 + open (1 metal + 6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

• Gobos (2)

  9 + open (9 metal), continuous scroll at variable speeds

• Gobo Size

  Gobo Wheel 1 (rotating): 23.9 mm (outside), 14 mm (image), 1.1 mm (max. thickness)

• Framing Shutters

  Yes

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Focus

  Motorized

• Frost

  Motorized

• Iris

  Motorized

• Prism

  5 Facets, motorized, rotating

• Strobe Rate

  0 to 25 Hz

• Move-in-Black

  Yes

• Dim Curves

  5

Construction/Physical

• Dimensions

  14.21 x 9.40 x 25.43 in (361 x 239 x 646 mm)

• Weight

  50 lbs (23.1 kg)

• Exterior Color

  Black

• Housing Material

  Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Steel

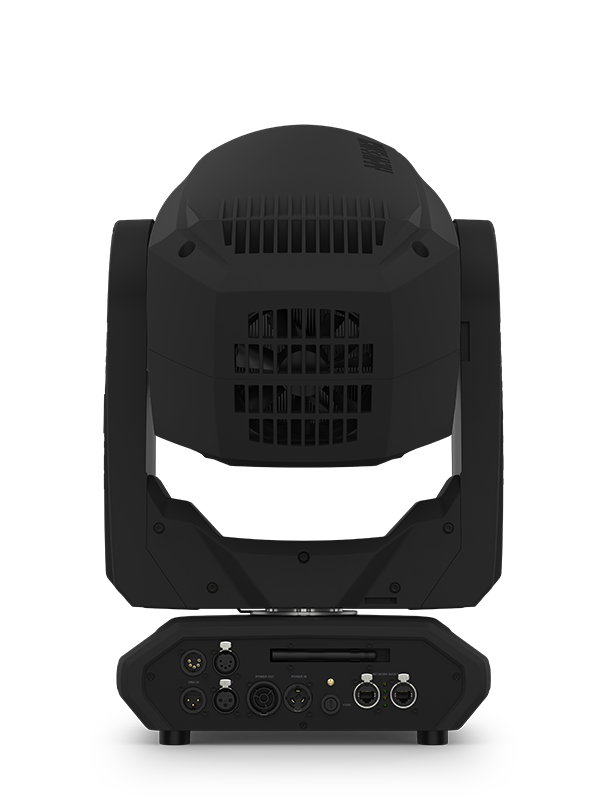

Connections

• Power Connection

  Edison plug to Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Power Output

  Seetronic Powerkon IP65

• Data Connectors

  3- and 5-pin IP65 XLR, Seetronic etherCON

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  DMX, Art-Net, sACN, CRMX, NFC

• DMX Channels

  31 or 47

• Art-Net Channels

  31 or 47

• Modes/Personalities

  2 personalities (31, 47)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  2 units @ 120 V; 4 units @ 208 V;4 units @ 230 V

• Power and Current

  595 W, 5.98 A @ 120 V, 60 Hz

• Power and Current

  576 W, 2.82 A @ 208 V, 60 Hz

• Power and Current

  580 W, 2.58 A @ 230 V, 50 Hz

Battery

• Battery type

  Lithium Ion (display screen backup)

• Rechargeable

  Yes

• Battery Charge Time

  5 hours

• Battery Life

  1 hours

• Battery Power

  3.7V, 500 mAh

Certifications/Qualifications

• Certifications

  CE, MET, FCC, FCC, UKCA

• IP Rating

  IP20, dry location

• • Noise Levels
    • Noise Level (Idle)

      34.4 dB(A) @ 1 m

    • Noise Level (Auto)

      36.6 dB(A) @ 1 m

    • Noise Level (Full)

      39.1 dB(A) @ 1 m

    • Noise Level (Eco)

      35.0 dB(A) @ 1 m

    • Noise Level (TV25)

      35.0 dB(A) @ 1 m

    • Noise Level (TV35)

      35.0 dB(A) @ 1 m

    • Noise Level (max)

      38.8 dB(A) @ 1 m

• Temperature (Ambient)

  -4 °F to 113 °F (-20 °C to 45 °C)
