WELL Gobo
A compact, battery-powered, and outdoor-ready gobo projector featuring a manual zoom and framing shutters for projecting precise images from both glass and metal gobos.
Ideal for corporate and event rental inventories requiring a fast-deploying, weather-resistant, and wireless solution for projecting custom branding and patterns in any indoor or outdoor setting.
-
Features a 25.2 W cool white LED source delivering crisp 6542 K gobo projection.
-
Integrated manual framing shutters enable precise beam shaping for flawless shutter cuts.
-
A built-in rechargeable battery delivers up to 8 hours of completely wireless operation.
-
Offers flexible control via W-DMX, an included IR remote, or the onboard OLED display.
-
Accepts both standard metal and glass E size gobos up to 1 mm thick.
-
Includes four units in a power-linking, self-charging case for efficient deployment.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.

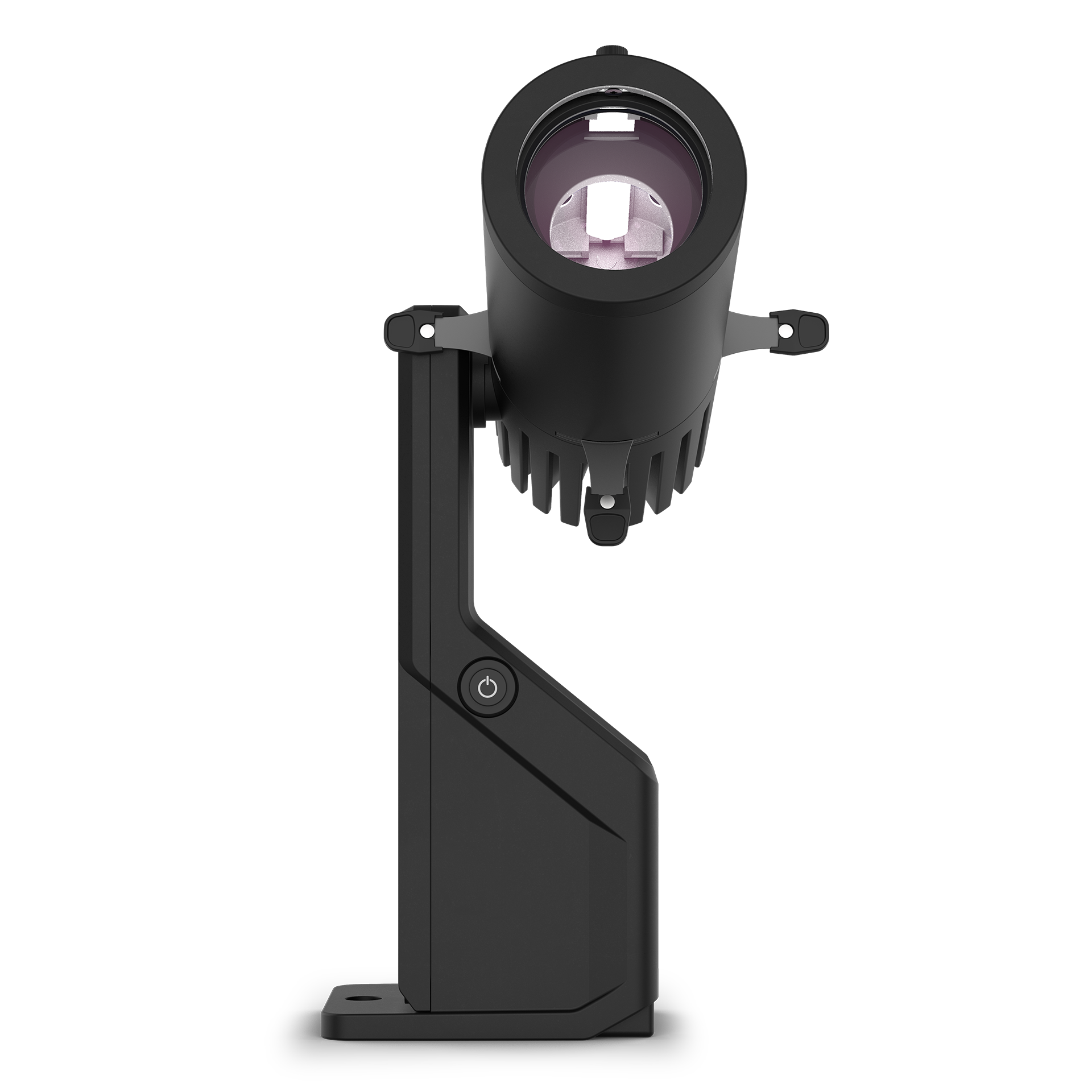

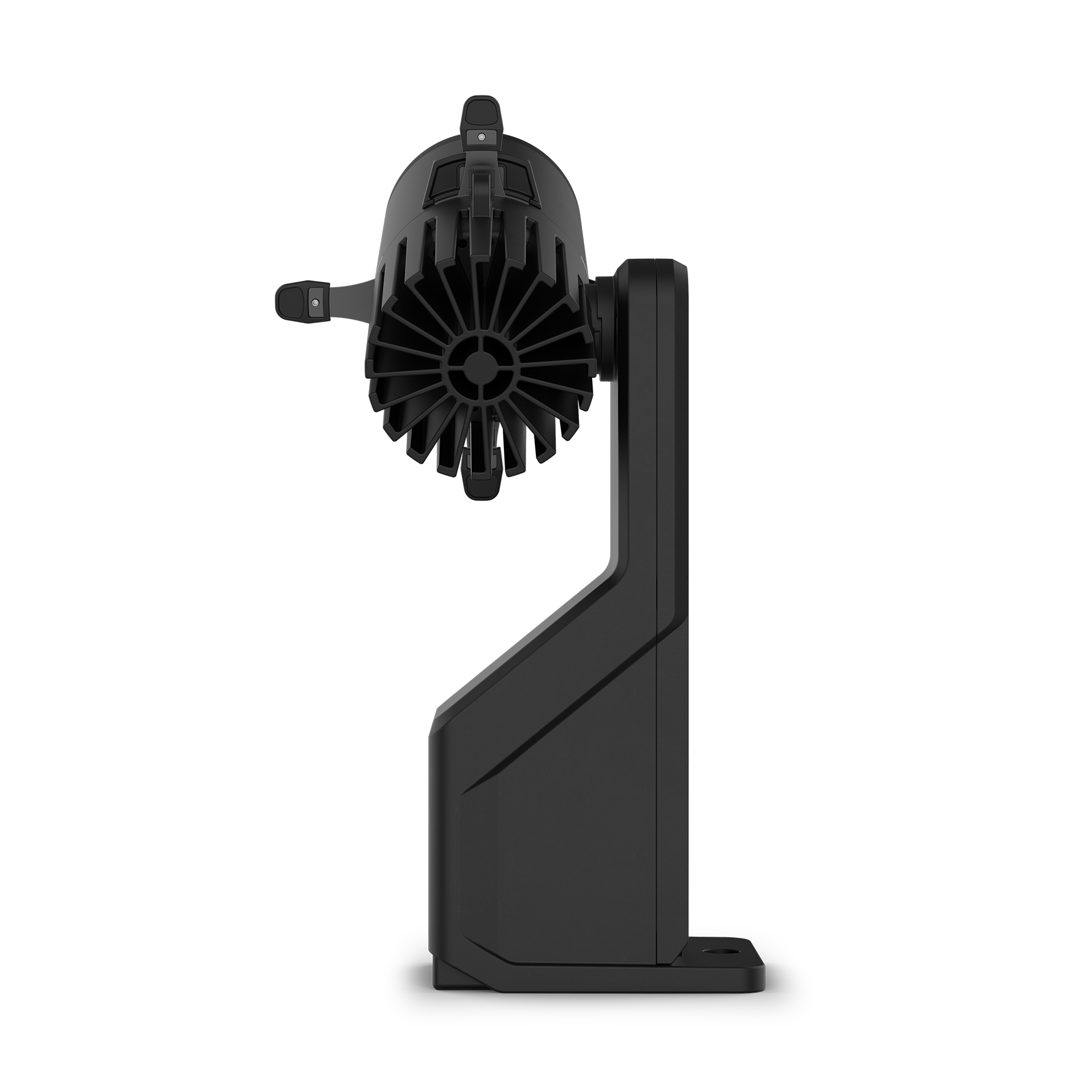

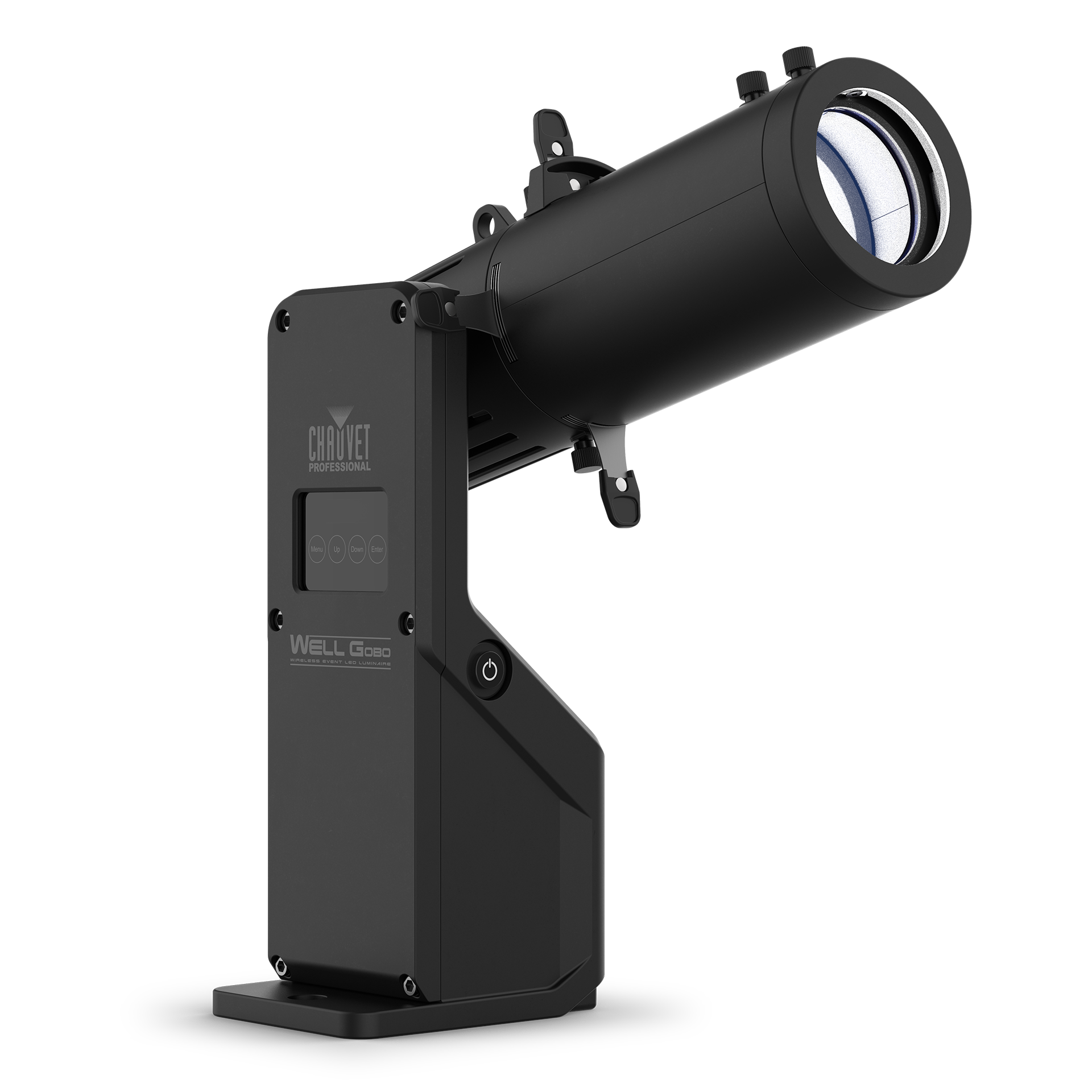

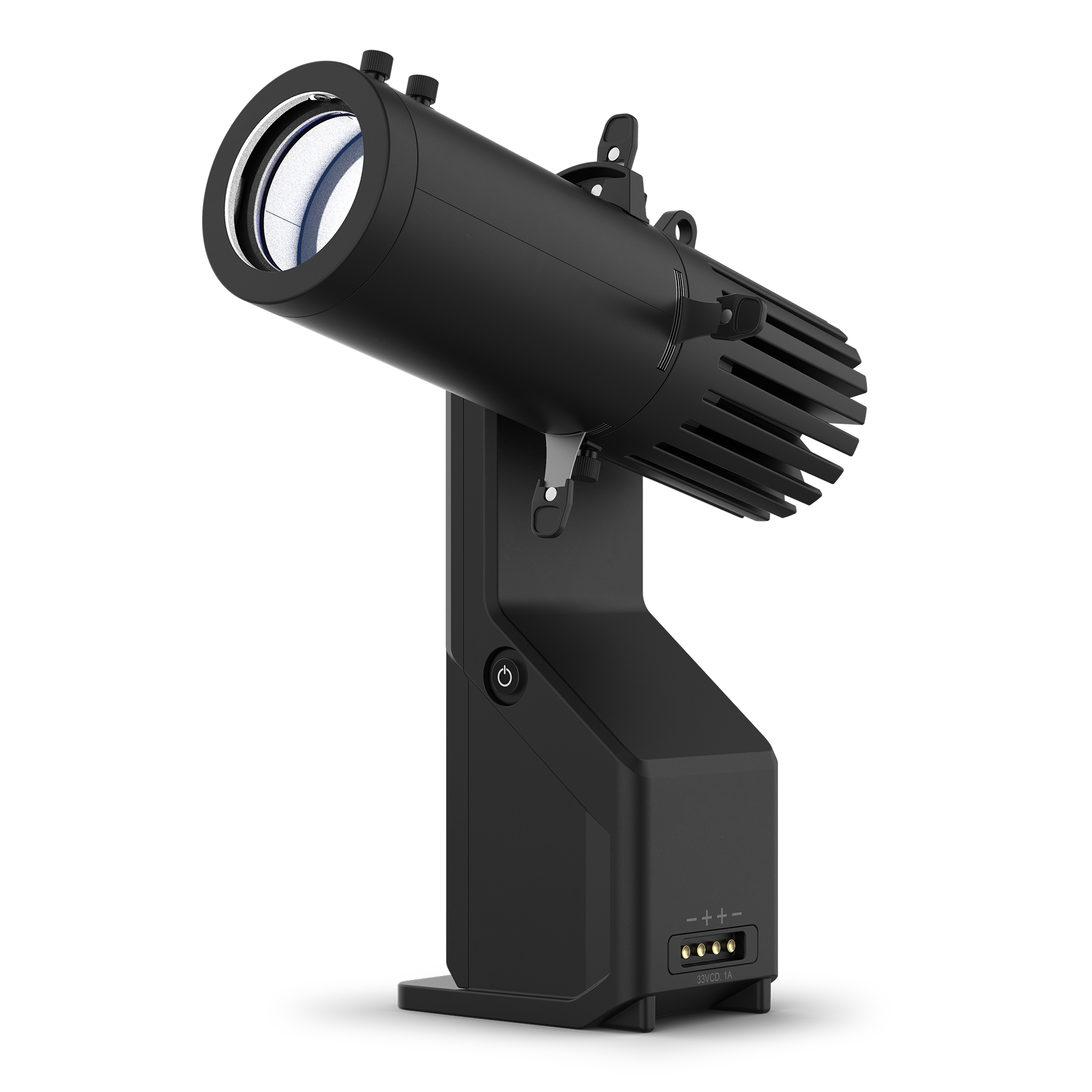

WELL Gobo
WELL Gobo is a compact, outdoor-ready, battery-powered gobo projector ideal for corporate and event rental inventories. Compatible with both glass and metal gobos, the unit also features a manual 20 to 41-degree zoom and framing shutters for flawless shutter cuts. Set it then forget it with onboard OLED display, and control your way with WDMX to link to WELL COM. WELL Gobo includes multiple mounting options and comes in a pack of 4 with a self-charging case.
Download the App
ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.
Features
Wireless and Weatherproof
This IP65-rated gobo projector is completely wireless and battery-powered for use in any environment.
Flexible Control Options
Control the unit using W-DMX, an IR remote, or manually via the onboard OLED display.
Manual Framing Shutters
Precisely shape the projected beam with the integrated manual framing shutters.
Manual Zoom Range
Easily size patterns on any surface with a versatile manual zoom range of 20° to 41°.
Adjustable Focus
Achieve both hard-edged and soft-edged focus to suit any application or desired effect.
Versatile Gobo Compatibility
Works with both glass and metal E size gobos up to 1 mm in thickness for expanded creative options.
Selectable PWM Settings
Ensure flicker-free, flawless on-camera performance with user-selectable Pulse Width Modulation settings.
Simple Clamp Installation
An integrated M12 threaded hole allows for quick and easy installation using a standard clamp.
Extended Battery Life
Operate continuously for up to 8 hours on a single full charge.

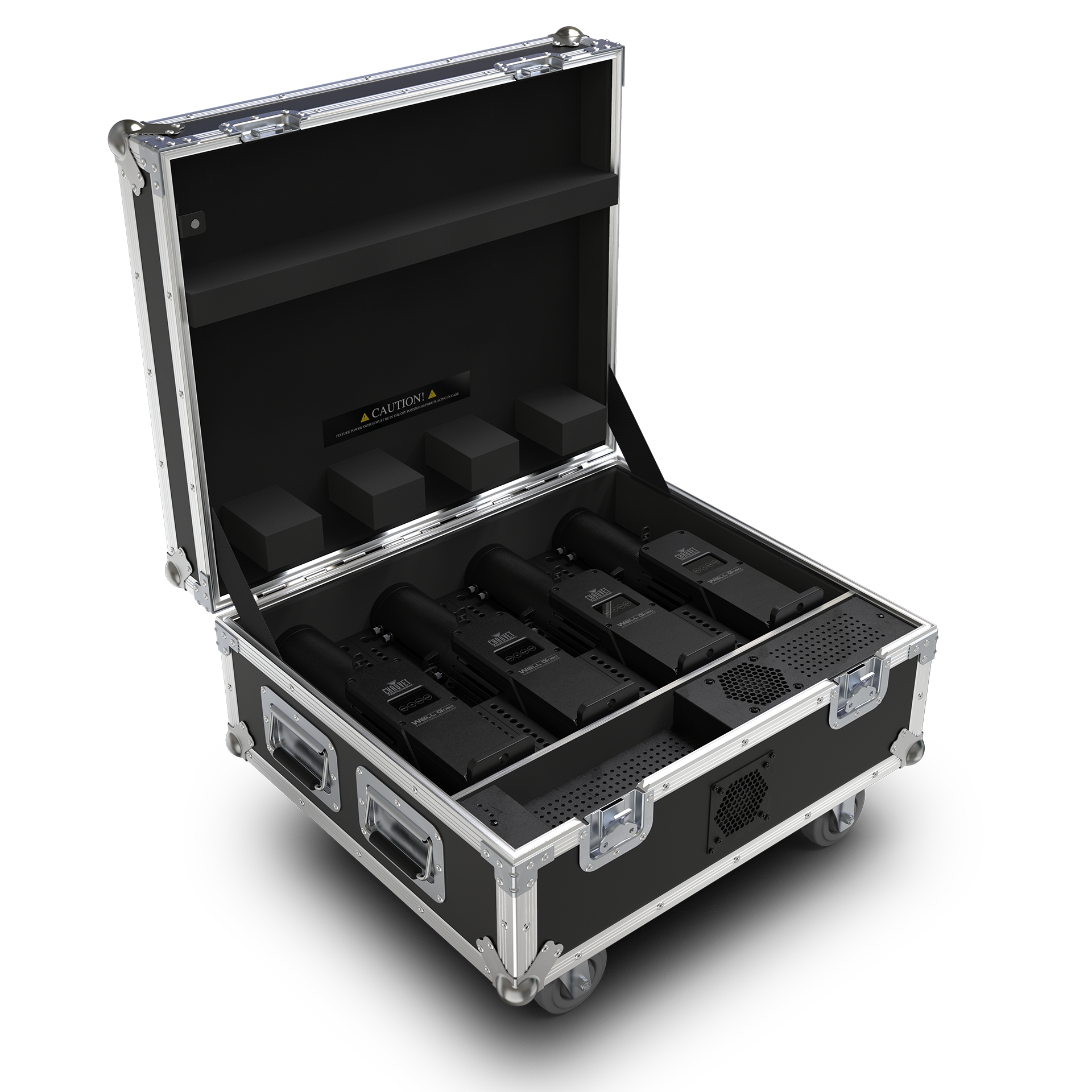

Power-Linkable Charging Case
Save on outlet space by linking multiple recharging cases together from a single power source.
Space-Saving Charging
The recharging case is designed to be charged with the lid closed to conserve valuable warehouse space.
Complete Your Rig
Specifications
Optical
-
Light Source
1 LED (CW) 25.2 W, (1.3 A), 6542 K, 50,000 hours life expectancy.
-
Color Temperature (at full)
6542 K
-
Lumens
2892
-
CRI
79.1
-
Beam Angle
17.3° to 36.6°
-
Field Angle
20° to 41°
-
Zoom Angle
20° to 41°
-
-
Illuminance
-
Illuminance (17.3°)
1,487 lux @ 5 m
-
Illuminance (8 hr mode 17.3°)
1,487 lux @ 5 m
-
Illuminance (36°)
347 lux @ 5 m
-
Illuminance (P/S mode 36°)
165 lux @ 5 m
-
-
Illuminance
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
-
Manual Tilt
180°
-
Tilt Ranges
0° to 180° tilt
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Zoom
Manual
-
Focus
Manual
-
Strobe Rate
0 to 25 Hz
-
Dim Modes
4
-
Built-in Automated Programs
Yes
Construction/Physical
-
Dimensions (Single Unit)
10.11 x 6.81 x 12 in (257 x 173 x 305 mm)
-
Dimension (Charging Case)
27.64 x 17.24 x23.36 in (702mm x 438 x 593.4 mm)
-
-
Weights
-
Weight (Single Unit)
6.6 lb (3 kg)
-
Weight (Charging Case)
71 lb (32.21 kg)
-
-
Weights
-
Exterior Color
Black
-
-
Housing Material
-
(Single Unit)
Aluminum diecast
-
(Charging Case)
Aluminum alloy, wood
-
-
Housing Material
-
Gobo Size (Optional)
“E”: 37.5 mm (outside), 24 mm (image), 1 mm (max. thickness)
Connections
-
Power Connection
Edison (Local) plug to Seetronic Powerkon
-
Power Input
Seetronic Powerkon
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
W-DMX, IRC
-
DMX Channels
1, 2, 3 or 6
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
8 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V
-
-
Power and Current
-
(Single Unit Charging)
42 W, 0.436 A @ 100 V, 60 Hz
-
(Charging Case)
155 W, 1.537 A @ 100 V, 60 Hz
-
(Single Unit Charging)
42 W, 0.362 A @ 120 V, 60 Hz
-
(Charging Case)
153 W, 1.386 A @ 120 V, 60 Hz
-
(Single Unit Charging)
38 W, 0.220 A @ 208 V, 60 Hz
-
(Charging Case)
147 W, 0.719 A @ 208 V, 60 Hz
-
(Single Unit Charging)
40 W, 0.215 A @ 230 V, 50 Hz
-
(Charging Case)
144 W, 0.663 A @ 230 V, 50 Hz
-
(Single Unit Charging)
39 W, 0.211 A @ 240 V, 50 Hz
-
(Charging Case)
143 W, 0.629 A @ 240 V, 50 Hz
-
-
Power and Current
Battery
-
Battery type
Lithium Ion
-
Rechargeable
Yes
-
Battery Charge Time
8 hours
-
Battery Life
5 hrs (high output), 8 (power saving mode)
-
Battery Power
29.6, 4400 mAh
Certifications/Qualifications
-
Certifications
CE, UKCA
-
IP Rating
IP65, temporary outdoor/wet use
What's Included
- (4) WELL Gobo
- Charging Case
- powerCON power cable with Edison plug
- (4) Gobo holder
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
WELL Gobo FAQ’s
Yes, WELL Gobo is completely wireless. It runs on a rechargeable battery for up to 8 hours and can be controlled remotely, giving you the freedom to place it almost anywhere for your event, indoors or out.
You can project custom images, company logos, or intricate patterns onto any surface. The projector is compatible with both metal and high-definition glass gobos, making it ideal for brand activations, weddings, and corporate events.
Yes, it is designed for outdoor use. Its weather-resistant construction allows you to project crisp patterns on buildings, tents, or walkways in various conditions, making it a reliable choice for any event environment.
