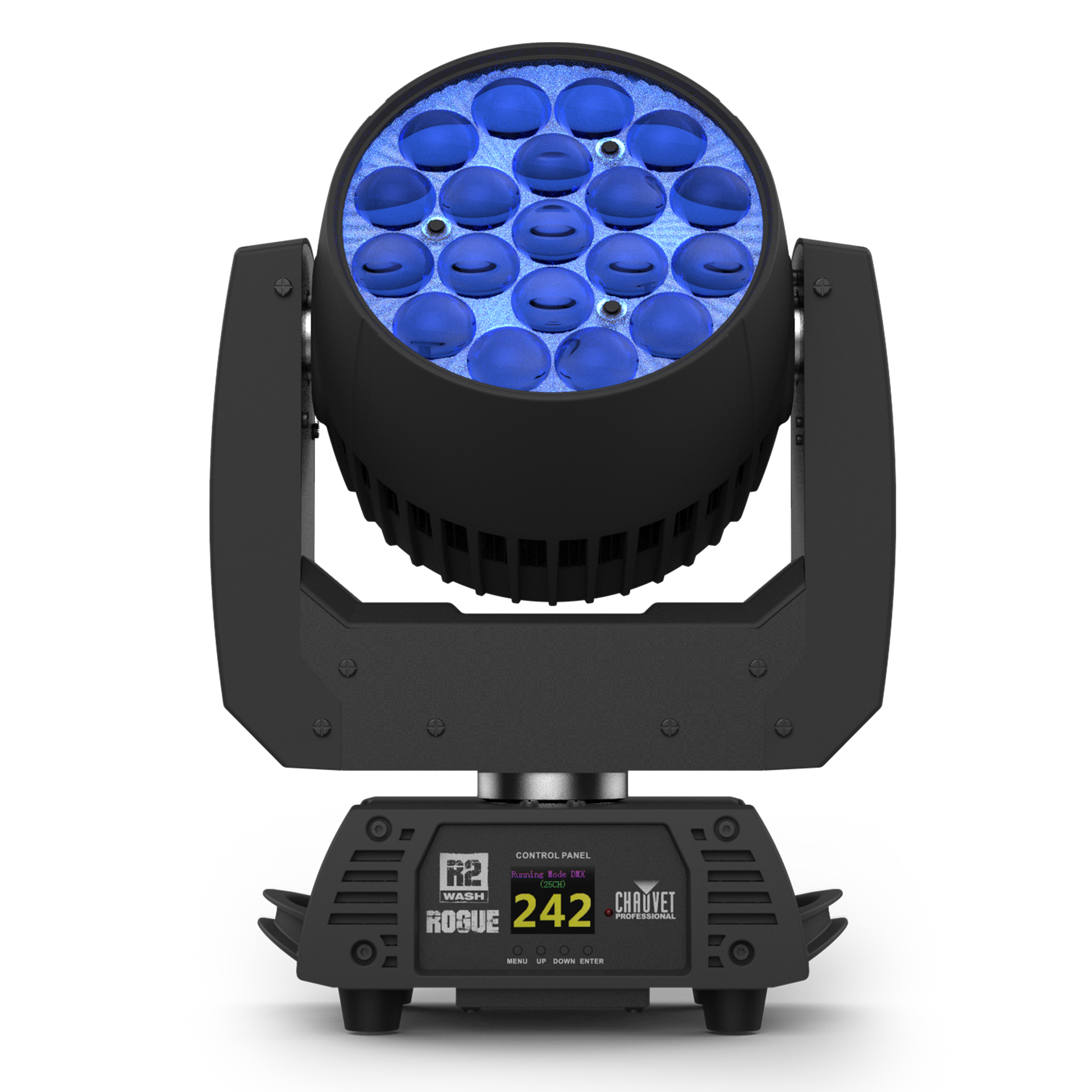

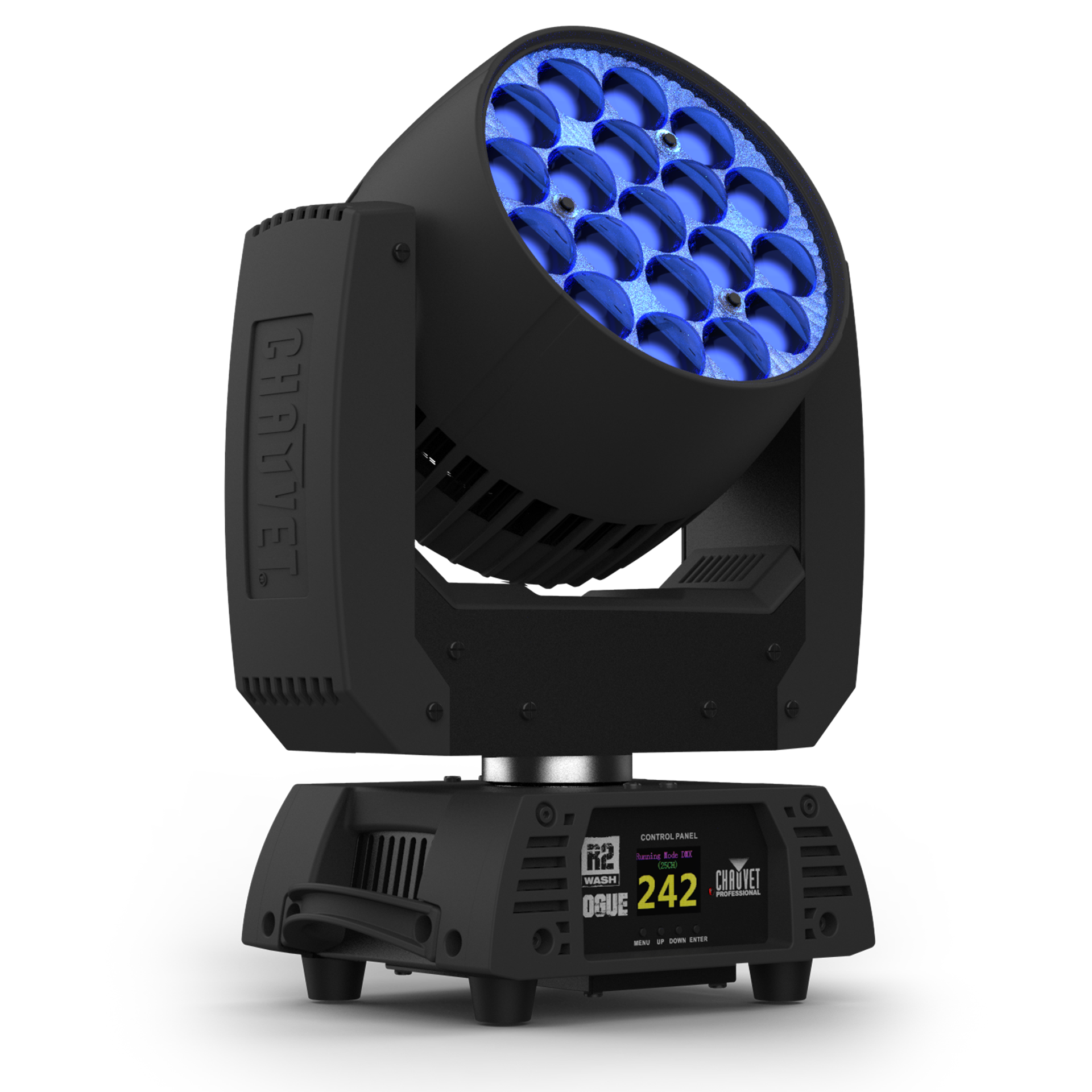

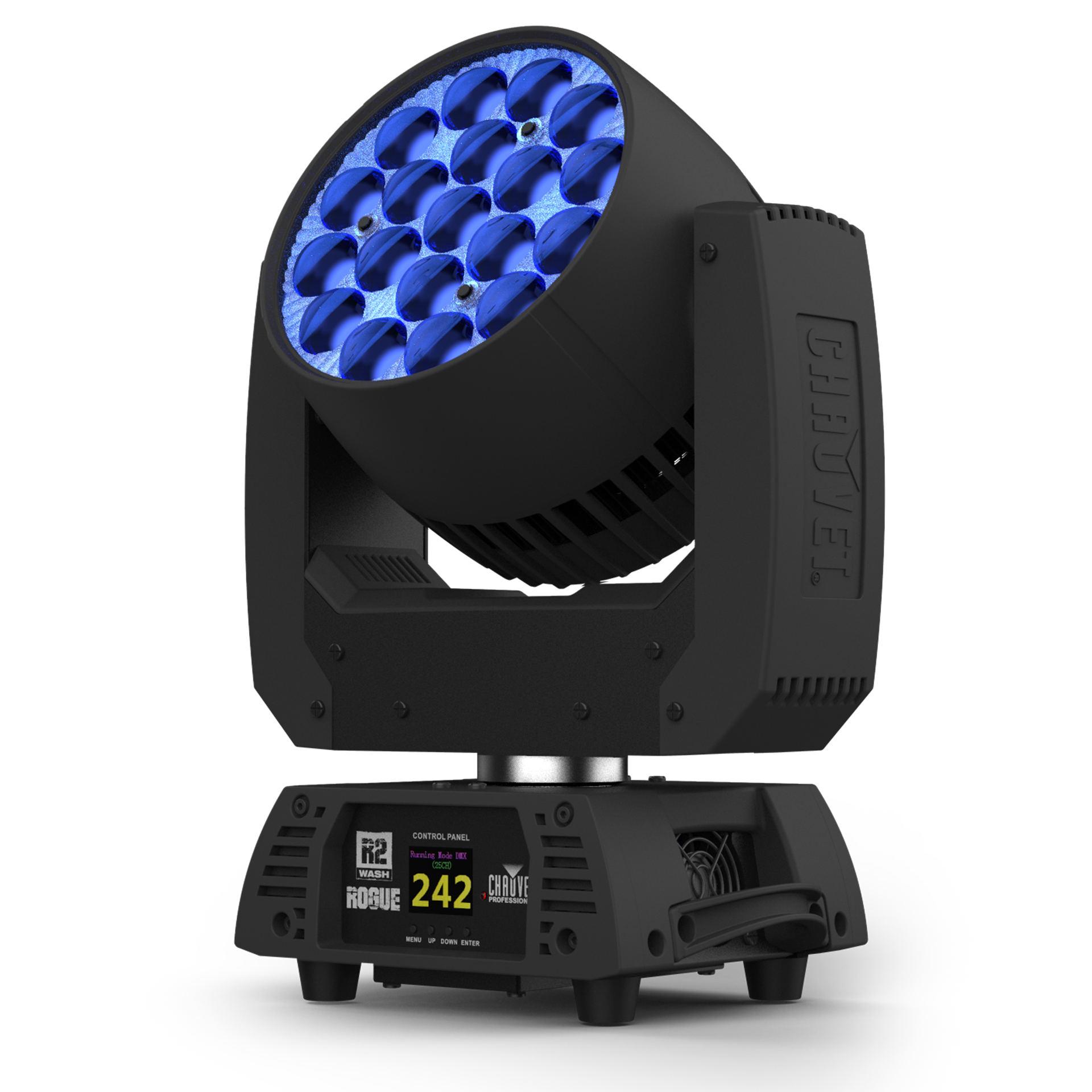

Rogue R2 Wash

Optical

• Light Source

  19 LEDs (quad-color RGBW) 15 W, (1 A), 50,000 hours life expectancy

• Color Temperature (range)

  2800 to 10000 K

• Beam Angle

  8° to 30°

• Field Angle

  12° to 49°

• Zoom Angle

  12° to 49°

• Lumens – Source

  8,500

• Lumens – Output

  5,800

• • Illuminance
    • Illuminance (12°)

      8,650 lux @ 5 m

    • Illuminance (49°)

      750 lux @ 5 m

• PWM Frequency

  1,200 Hz

Dynamic Effects

• Pan and Tilt

  540°/230°

• Pan and Tilt Ranges

  180°, 360°, 540° pan/90°, 180°, 230° tilt

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Strobe Rate

  0 to 20 Hz

• Standalone Color Mixing

  Yes

• Color Temperature Presets

  Yes

• Dim Curves

  4

• Built-in Automated Programs

  Yes

• Customizable Programs

  No

• Recall Custom Programs

  No

Construction/Physical

• Dimensions

  8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)

• Weight

  20.4 lb (9.25 kg)

• Exterior Color

  Black

• Housing Material

  High-impact flame-retardant polymer

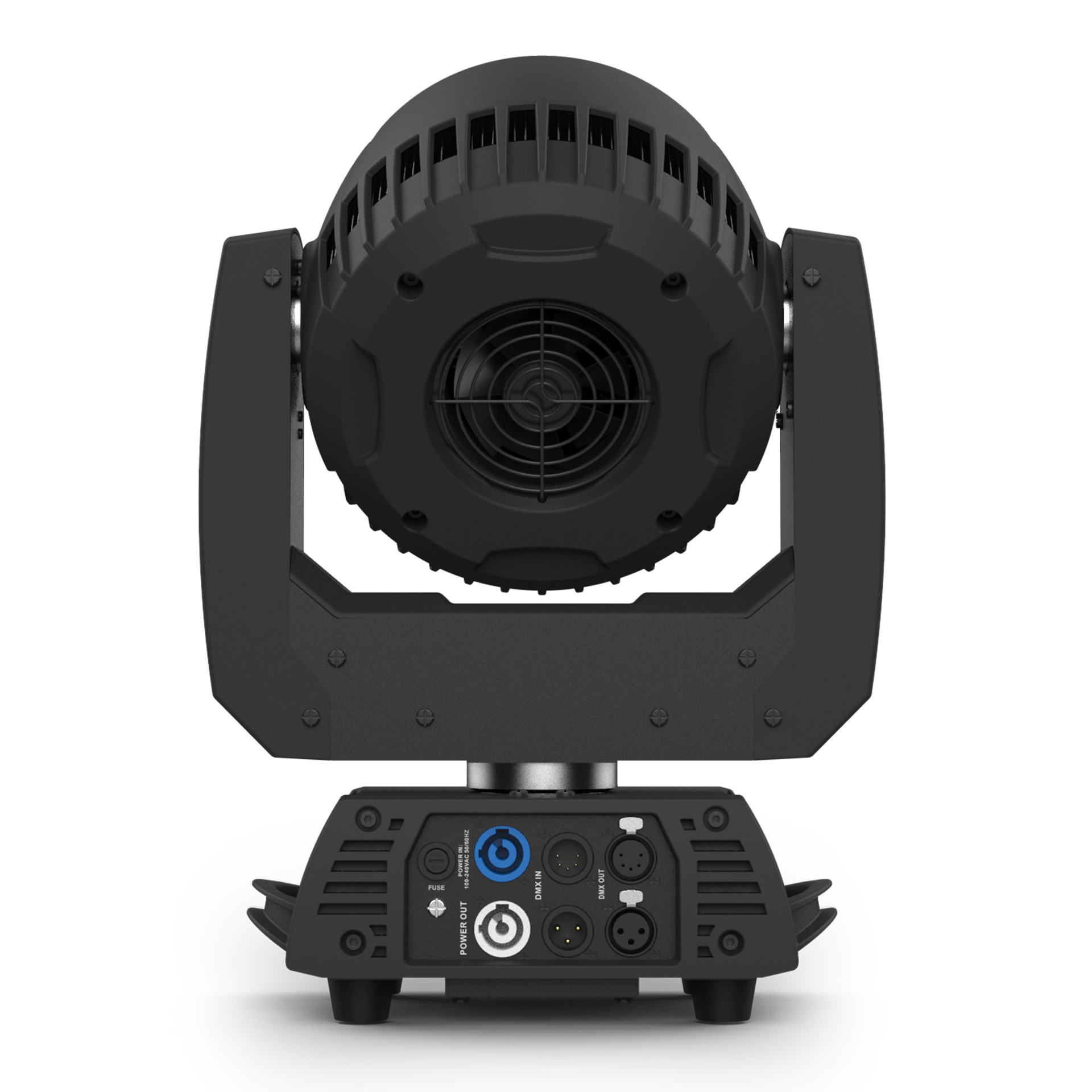

Connections

• Power Connection

  Edison (Local) plug to Neutrik powerCON

• Power Input

  Neutrik powerCON

• Power Output

  Neutrik powerCON

• Data Connectors

  3- and 5-pin XLR

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  DMX

• DMX Channels

  15, 17, 22, 33, 54, or 56

• Modes/Personalities

  8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  4 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V

• Power and Current

  339 W, 2.95 A @ 120 V, 60 Hz

• Power and Current

  324 W, 1.62 A @ 208 V, 60 Hz

• Power and Current

  324 W, 1.50 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET

• IP Rating

  IP20, dry location
