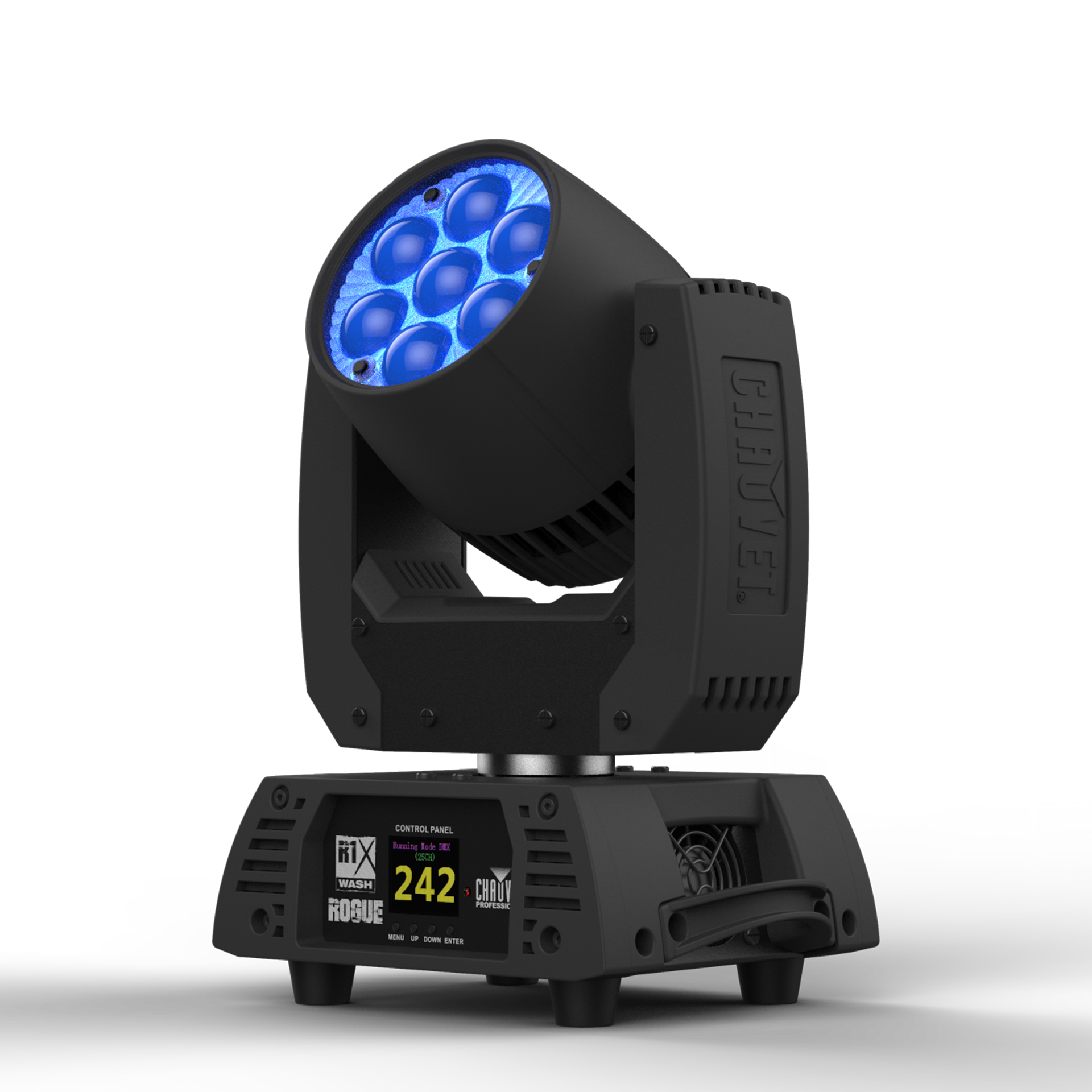

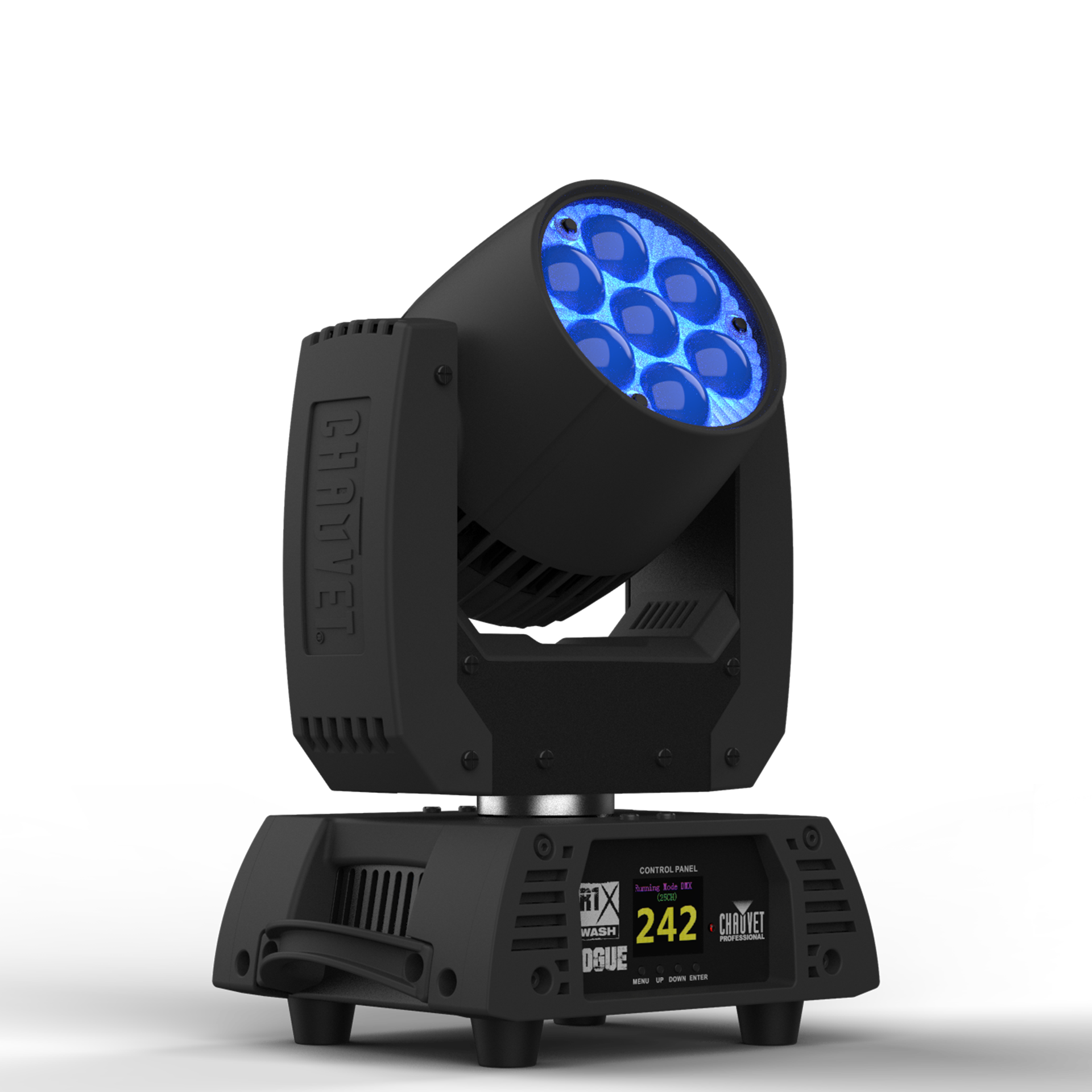

Rogue R1 Wash

Optical

• Light Source

  7 LEDs (quad-color RGBW) 15 W, (980 mA), 50,000 hours life expectancy

• Color Temperature (range)

  2,800 to 10,000 K

• Beam Angle

  8° to 30°

• Field Angle

  11° to 48°

• Zoom Angle

  11° to 48°

• Lumens – Source

  3,500

• Lumens – Output

  2,300

• • Illuminance
    • Illuminance (11°)

      2,790 lux @ 5 m

    • Illuminance (48°)

      261 lux @ 5 m

• PWM Frequency

  1,200 Hz

Dynamic Effects

• Pan and Tilt

  540°/230°

• Pan and Tilt Ranges

  180°, 360°, 540° pan/90°, 180°, 230° tilt

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Strobe Rate

  0 to 20 Hz

• Standalone Color Mixing

  Yes

• Color Temperature Presets

  Yes

• Dim Curves

  4

• Built-in Automated Programs

  Yes

• Customizable Programs

  No

• Recall Custom Programs

  No

Construction/Physical

• Dimensions

  7.36 x 10.43 x 13.94 in (187 x 265 x 354 mm)

• Weight

  13 lb (5.9 kg)

• Exterior Color

  Black

• Housing Material

  High-impact flame-retardant polymer

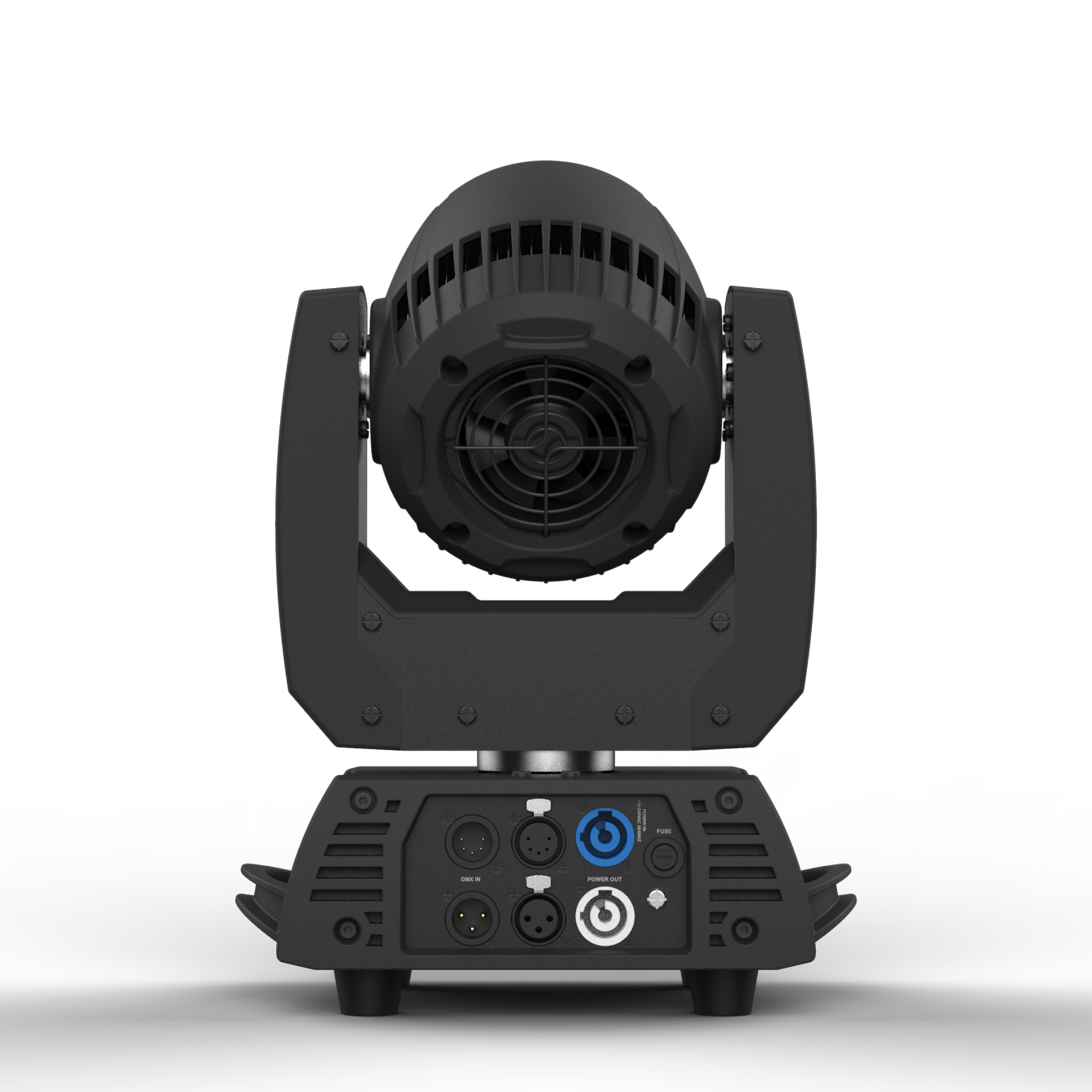

Connections

• Power Connection

  Edison (Local) plug to Neutrik powerCON

• Power Input

  Neutrik powerCON

• Power Output

  Neutrik powerCON

• Data Connectors

  3- and 5-pin XLR

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  DMX

• DMX Channels

  14, 15, 19 or 21

• Modes/Personalities

  4 personalities (14CH, 15CH, 19CH, or 21CH)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  10 units @ 120 V; 18 units @ 208 V; 21 units @ 230 V

• Power and Current

  161 W, 1.34 A @ 120 V, 60 Hz

• Power and Current

  141 W, 0.72 A @ 208 V, 60 Hz

• Power and Current

  139 W, 0.62 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET

• IP Rating

  IP20, dry location
