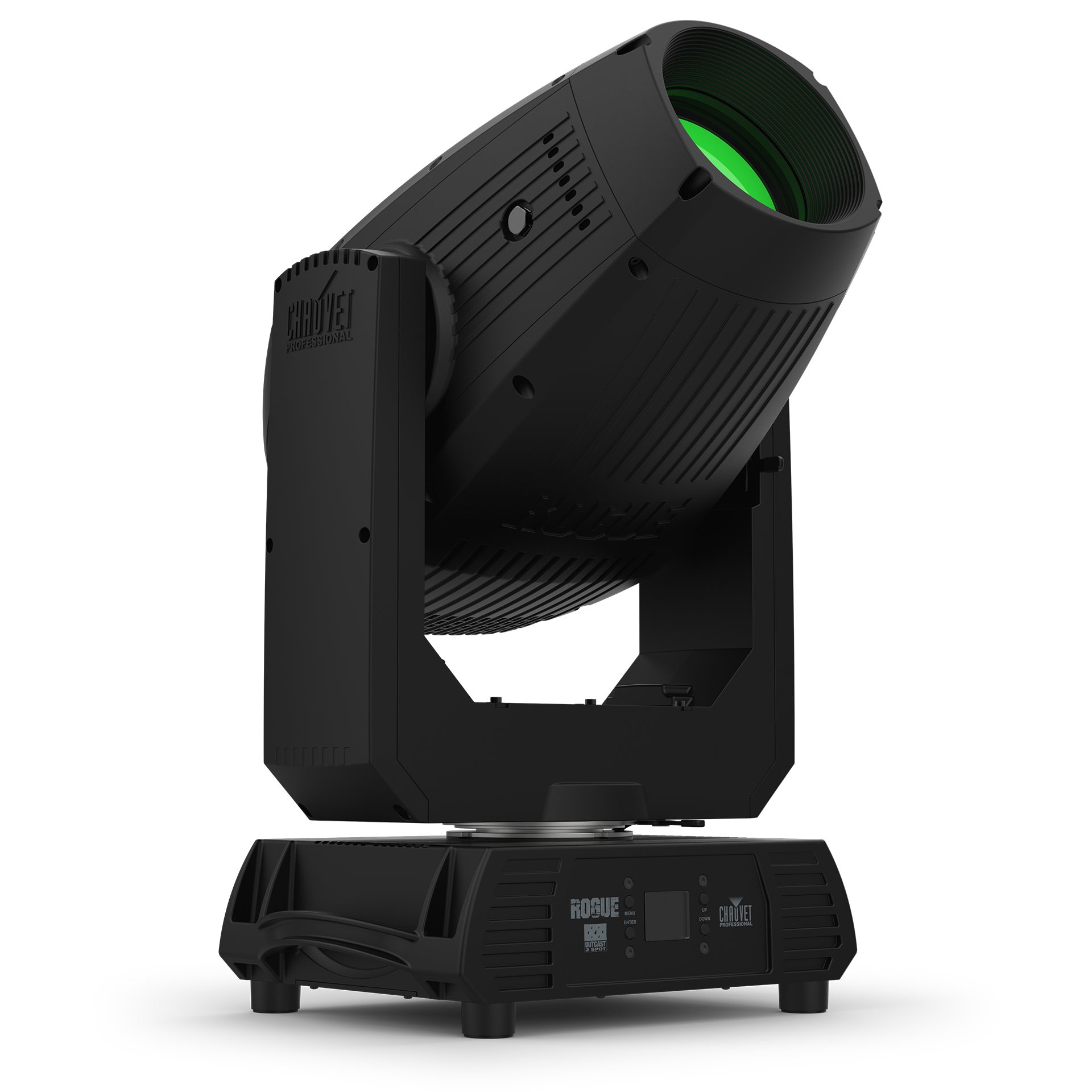

Rogue Outcast 3 Spot
A compact IP65 LED moving head spot that combines a wide zoom range with a full effects package including dual color wheels, dual gobo wheels, iris, prism, and frost.
Ideal for both outdoor events and indoor installations, its durable housing provides low-maintenance protection against the elements as well as particulates like fog and haze.
-
Powered by a potent 300 W cool white LED with a 7044 K color temperature.
-
Offers one rotating and one fixed gobo wheel for seamless morphing and dynamic visual effects.
-
Create layered looks using two independent wheels with split-color and scrolling capabilities.
-
Provides advanced beam shaping with an integrated iris, 5-facet prism, and frost filter.
-
Features a versatile motorized zoom from a tight 4.9° beam to a wide 38.7° wash.
-
Supports DMX and RDM protocols for versatile control and remote fixture management.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Rogue Outcast 3 Spot
Rogue Outcast 3 Spot is a compact IP65 LED moving head that combines the latest lightweight alloy technology with a wheelhouse that delivers the color possibilities of dual color wheels, the dynamic morphing effects of dual gobo wheels, the beauty of smooth 16-bit fades, and a wide zoom range that adds flexibility to achieving desired coverage. Iris, prism and frost round out its effects, and its durable housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance impervious design that withstands particulates such as fog and haze.
Features
IP65 Rated Construction
This LED spot is encased in a lightweight aluminum and magnesium alloy, making it durable and ready for any environment.
Wide Motorized Zoom Range
Offers a flexible zoom range from 4.9° to 38.7° to easily cover stages and surfaces from a distance.
Seamless Gobo Morphing
Achieve perfect transitions and morphing effects between the two gobo wheels for dynamic visuals.
Dual Color Wheels
Features two independent wheels with seven colors each, plus split-color ability and continuous variable speed scrolling.
Dual Gobo Wheels
Expand your creative options with one fixed scrolling gobo wheel and one rotating, interchangeable gobo wheel.
Advanced Beam Control
Shape and modify the beam with a built-in iris, a 5-facet prism, and a frost filter for wash effects.
High Resolution 16-Bit Dimming
Create exceptionally smooth fades and achieve ultimate lighting control with beautiful 16-bit LED dimming.
Weatherproof Power Linking
Safely link power between multiple units in any environment using IP65 rated input and output connections.
Professional DMX Connections
Integrates easily into professional lighting rigs with standard 5-pin DMX input and output connections.
Remote Device Management
RDM is enabled for convenient remote addressing and troubleshooting directly from your console.
Flicker-Free On Camera Operation
Selectable PWM settings ensure your lighting remains completely flicker-free for broadcast and recording applications.
Versatile DMX Profiles
Choose between simple and complex DMX channel profiles for ultimate programming flexibility and control.
Easy Software Updates
Keep your fixture’s software current with a convenient onboard USB-C port for easy uploads.
Latest News
Complete Your Rig
Specifications
Optical
-
Light Source
1 LED (CW) 300 W, (5 A), 7044 K, 50,000 hours life expectancy
-
Color Temperature (at full)
7044 K
-
Front lens diameter
119 mm
-
CRI
70
-
Beam Angle
4.9° to 33.7°
-
Field Angle
5.5° to 38°
-
Cutoff Angle
5.6° to 38.7°
-
Zoom Range
4.9° to 38.7°
-
Lumens – Source
20,000
-
Lumens – Output
14,989
-
-
Illuminance
-
(4.9°)
56,916 lux @ 5 m
-
(38.7°)
2,145 lux @ 5 m
-
-
Illuminance
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
-
Pan and Tilt
540°/270°
-
Pan and Tilt Ranges
180°, 360°, 540° pan/90°, 180°, 270° tilt
-
Colors (1)
7 + white, split colors, continuous scroll at variable speeds
-
Colors (2)
7 + white, split colors, continuous scroll at variable speeds
-
Gobos (1)
7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
-
Gobos (2)
8 + open (8 metal), continuous scroll at variable speeds
-
Gobo Size
Gobo Wheel 1 (rotating); size: 25.5 mm (outside), 14.8 mm (image), 2 mm (max. thickness)
-
Gobo Size
Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Zoom
Motorized
-
Focus
Motorized
-
Frost
Motorized
-
Iris
Motorized
-
Prism
5 Facets, motorized, rotating
-
Strobe Rate
0 to 20 Hz
-
Move in Black
Yes
Construction/Physical
-
Dimensions
14.41 x 9.61 x 25.16 in (366 x 244 x 639 mm)
-
Weight
51 lb (23.2 kg)
-
Exterior Color
Black
-
Housing Material
High-impact flame-retardant polymer
Connections
-
Power Connection
Edison (local) plug to Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Data Connectors
5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
20 or 25
-
Modes/Personalities
2 personalities (20, 25)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
2 units @ 100 V; 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V; 6 units @ 240 V
-
-
Power and Current
-
Electrical Detail
510 W, 5.13 A @ 100 V, 60 Hz
-
Electrical Detail 2
506 W, 4.24 A @ 120 V, 60 Hz
-
Electrical Detail 3
493 W, 2.43 A @ 208 V, 60 Hz
-
Electrical Detail 4
494 W, 2.19 A @ 230 V, 50 Hz
-
Electrical Detail 5
494 W, 2.12 A @ 240 V, 50 Hz
-
-
Power and Current
Certifications/Qualifications
-
Certifications
CE, MET, UKCA
-
IP Rating
IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
-
Temperature (Ambient)
-14 °F to 113 °F (-10 °C to 45 °C)
-
Maximum Exterior Surface Temperature (Tc)
80° C / 176° F
-
Maximum Ambient Temperature (Ta)
45° C / 113° F
-
-
Noise Levels
-
Idle
24.2 dB(A) @ 1 m
-
Max
33.9 dB(A) @ 1 m
-
Auto
34.5 dB(A) @ 1 m
-
Eco
31.0 dB(A) @ 1 m
-
Full
46.9 dB(A) @ 1 m
-
-
Noise Levels
Compatible Accessories
- Clamps
- IP65 5 pin DMX Cables
- IP65 PowerKon Extension cables
- Flight Case
What's Included
- Rogue Outcast 3 Spot
- Seetronic Powerkon IP65 power cord
- (2) Omega brackets with mounting hardware
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Rogue Outcast 3 Spot – Quick Reference Guide | Download |
Manuals | Rogue Outcast 3 Spot – User Manual | Download |
DMX | Rogue Outcast 3 Spot – DMX Chart | Download |
Photometrics | Rogue Outcast 3 Spot-2 – Photometrics Report | Download |
Manuals | Rogue Outcast 3 Spot-2 – IES Files | Download |
Manuals | Rogue Outcast 3 Spot-2 – Acoustic Reports | Download |
Learn How To Use Your Rogue Outcast 3 Spot
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-
Rogue Outcast 3 Spot • Rogue Outcast 2 Beam • Rogue Outcast 2 Hybrid
Meet the Rogue Outcast family from CHAUVET Professional, a series of lightweight, IP65-armored moving heads. This versatile lineup of spot, beam, and hybrid fixtures delivers rugged, low-maintenance performance for any tour or festival, empowering you to create bold looks that can hang anywhere and withstand the elements.
Rogue Outcast 3 Spot FAQ’s
Yes, the Rogue Outcast 3 Spot is specifically designed to be used in various weather conditions. Its durable, weatherproof housing protects it from the elements, making it a reliable choice for outdoor events, festivals, and installations. The sealed design also resists indoor elements like fog and haze, reducing maintenance.
It creates a wide variety of dynamic effects. You can project sharp patterns (gobos) and even morph between two different sets of patterns. The light can also be adjusted from a tight, focused spot to a wide wash using its motorized zoom. For more visual flair, it includes a prism to split the beam into multiple copies and a frost filter to soften the light’s edge.
It is extremely versatile thanks to a wide zoom range. This allows it to easily adjust from a very narrow, long-throw beam to cover distant objects, to a very wide wash that can illuminate entire stages or large surfaces. This flexibility makes it suitable for many different venues and applications, both indoors and out.
