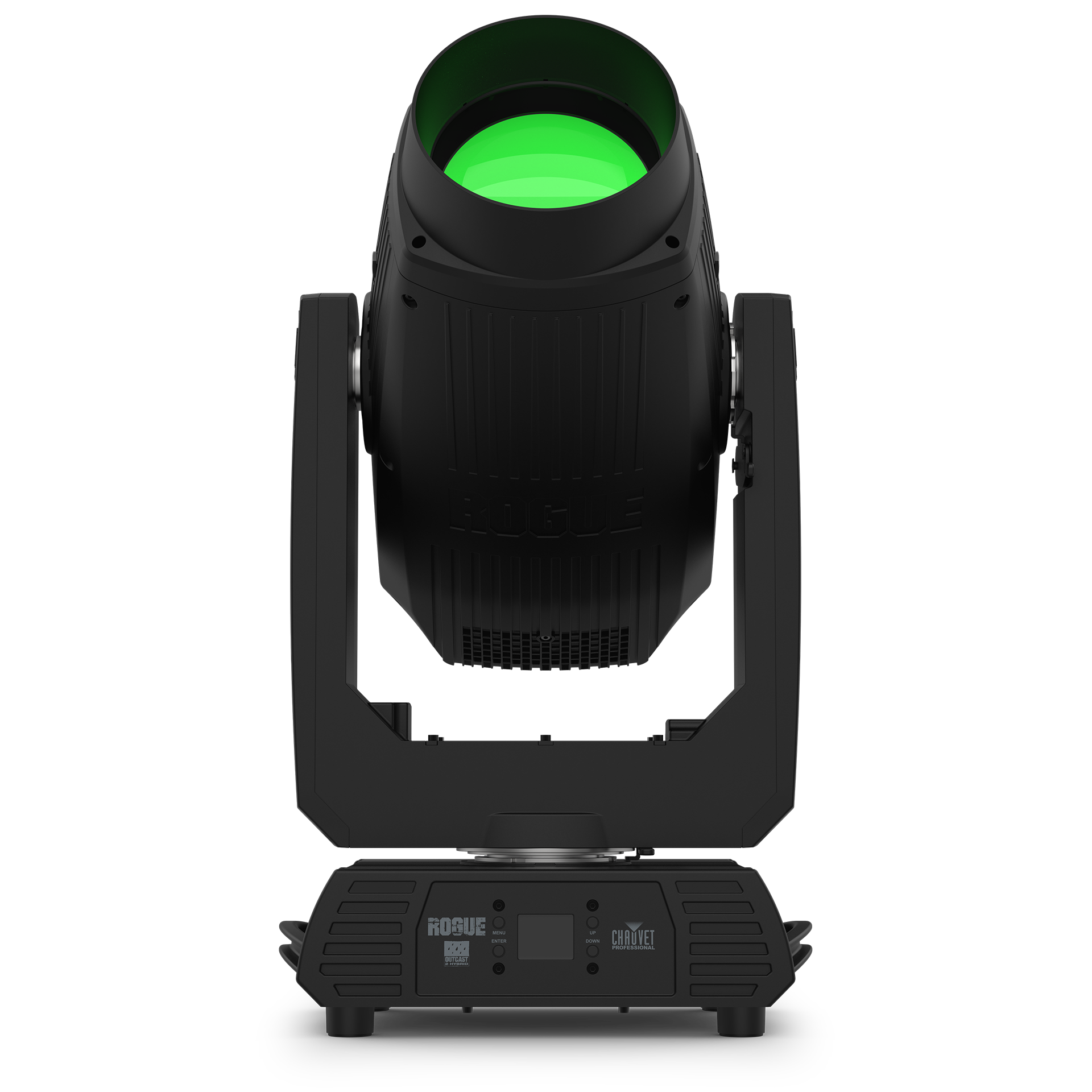

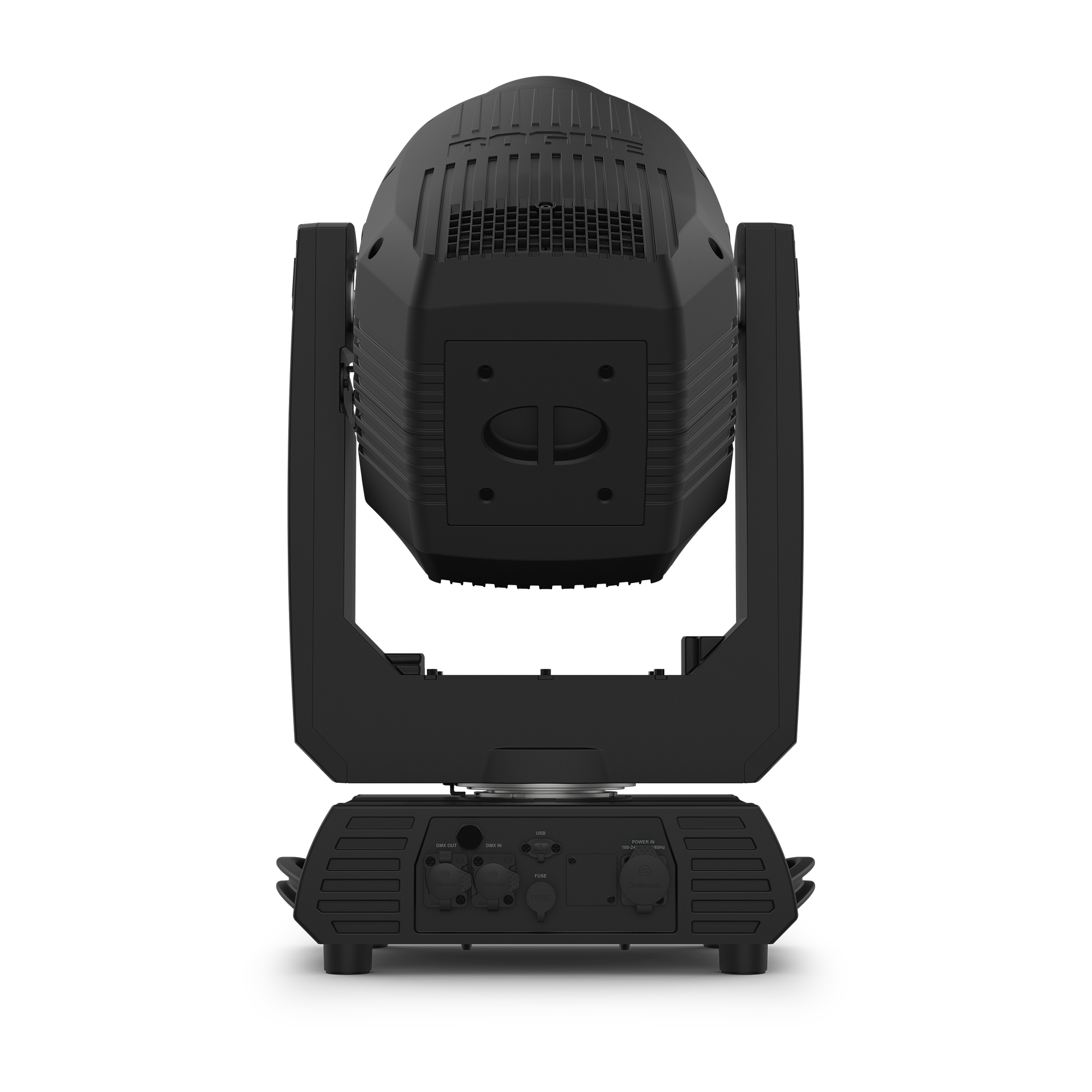

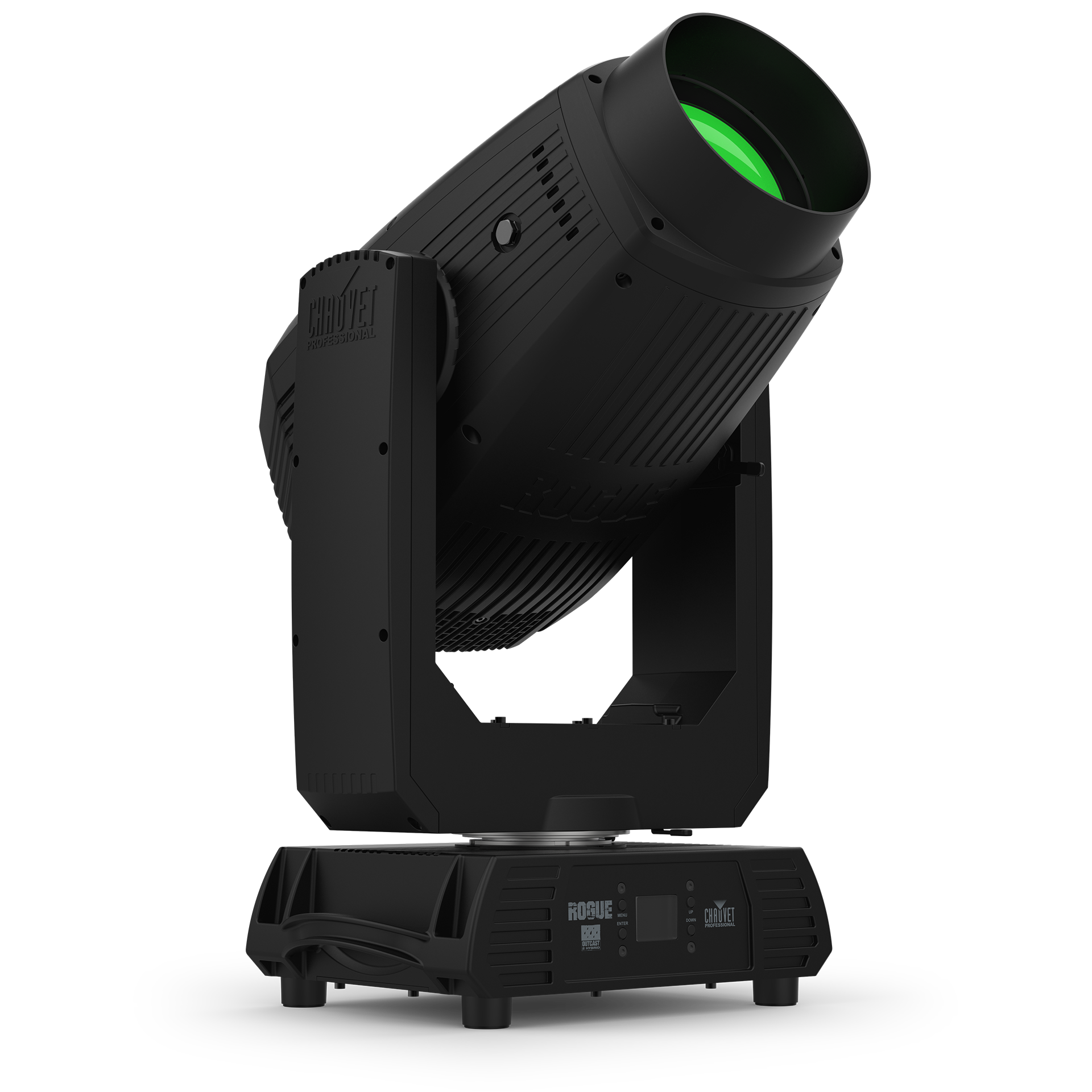

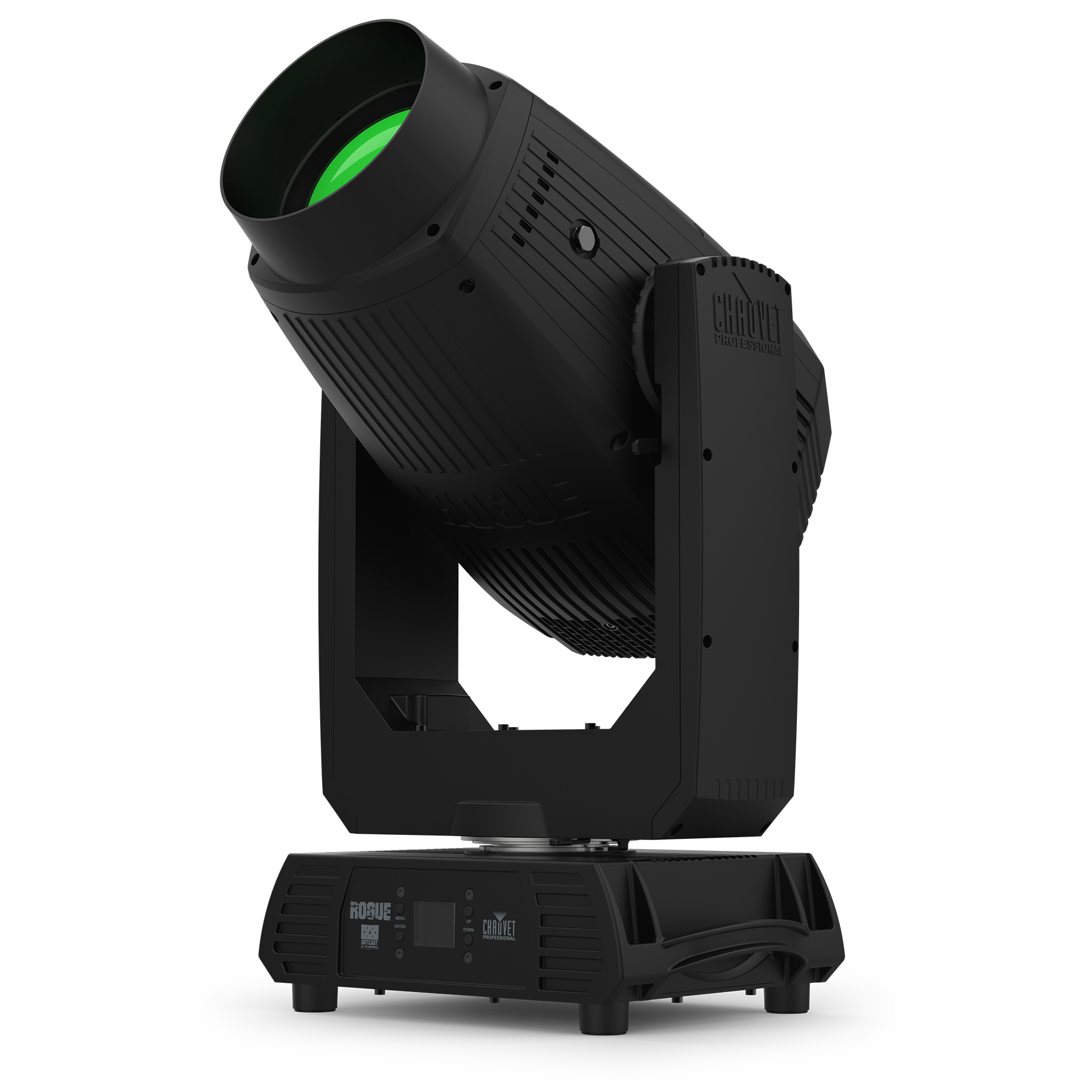

Rogue Outcast 2 Hybrid
A rugged IP65-rated hybrid moving head that delivers powerful spot, beam, and wash effects using a bright 400W lamp, an expansive zoom range, dual gobo wheels, and layerable prisms.
Its durable, all-weather design makes it the ideal all-in-one workhorse for outdoor festivals, concert tours, and any production requiring versatile lighting in demanding conditions.
-
Features a powerful 400W Ushio lamp with an 8000K color temperature and 6,000-hour life.
-
Delivers a precise zoom from a tight 0.9° beam to a wide 14.5° spot.
-
Creates complex aerial effects with layerable 5-facet linear and 8-facet round prisms.
-
Offers two gobo wheels with 9 rotating glass and 13 static metal patterns.
-
Housed in a lightweight, IP65-rated aluminum/magnesium body for all-weather reliability.
-
Supports DMX and RDM protocols with flexible 20 and 25-channel control personalities.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Rogue Outcast 2 Hybrid
Rogue Outcast 2 Hybrid is a rugged IP65-rated Spot/Beam/Wash moving head with a lightweight alloy body housing a sophisticated optical system that delivers incredible brightness and a refined linear zoom that smoothly spans an expansive range of narrow to wide beam angles in every mode. The intense output of its 400W 8000K lamp can be precisely focused to project sharp midair beams and perfectly crisp spots or subtly softened with its frost and beam flattening features. Create stunning looks with dual gobo wheels and layerable prisms or shape luscious color washes with this versatile Outcast.
Features
Versatile 3-in-1 Fixture
A high-powered Spot, Beam, and Wash combination fixture designed for a wide range of applications.
Long Life Ushio Lamp
Equipped with an Ushio 400W, 8000K lamp that provides a 6,000-hour life expectancy.
IP65 Weatherproof Construction
Features a durable and lightweight aluminum/magnesium housing for reliable outdoor use.
Dual Layerable Prisms
Maximize visual impact with individually controllable 5-facet linear and 8-facet round prisms that can be layered.
Frost and Beam Flattening
Includes frost and beam flattening options to achieve smooth and even light distribution.
Narrow Beam Angle
Creates tight, focused air effects with a sharp 0.9° narrow beam angle.
Expansive Zoom Range
Offers a wide linear zoom in beam, spot, and wash modes for versatile coverage in any venue.
Dual Gobo Wheels
Provides massive visual effect with 9 rotating and 13 static gobos for numerous pattern options.
DMX and RDM Control
Supports both DMX and RDM protocols for comprehensive remote control and fixture management.
True 1 Power Input
Ensures a secure and reliable power connection with a True 1 compatible input.
OLED Display
An easy-to-read OLED display with a simple menu allows for quick and effective onboard adjustments.
Versatile DMX Channel Profiles
Includes both simple and complex DMX channel profiles for ultimate programming flexibility.
USB-C Software Port
Allows for convenient software uploads and updates through a modern USB-C port.
Specifications
Optical
-
Light Source
Ushio NSL-400L W lamp, 8000 K, 6,000 hours life expectancy
-
Color Temperature (at full)
7009K
-
Front Lens size
160mm
-
CRI
86.1
-
Lumens – Output
16,033
-
-
Spot Mode
-
Beam Angle
1.4° to 14.5°
-
Field Angle
2.8° to 30°
-
Cutoff Angle
3.5° to 37.2°
-
Zoom Range
1.4° to 37.2°
-
Illuminance (1.4°)
790,297lux @ 5 m
-
Illuminance (37.2°)
6,787 lux @ 5 m
-
-
Spot Mode
-
-
Beam Mode
-
Beam Angle
0.9° to 6.7°
-
Field Angle
1.7° to 18.1°
-
Cutoff Angle
2.1° to 20.7°
-
Zoom Range
0.9° to 20.7°
-
Illuminance (0.9°)
180,594 lux @ 15 m
-
Illuminance (20.7°)
2,158 lux @ 15 m
-
-
Beam Mode
-
-
Wash Mode
-
Beam Angle
5.4° to 32.1°
-
Field Angle
9.5° to 39.4°
-
Cutoff Angle
11.9° to 41.7°
-
Zoom Range
5.4° to 41.7°
-
Illuminance (9.1°)
30,289 lux @ 5 m
-
Illuminance (41.7°)
1,309 lux @ 5 m
-
-
Wash Mode
Dynamic Effects
-
Pan and Tilt
540°/260°
-
Pan and Tilt Ranges
540°, 360°, 180° pan/260°, 180°, 90° tilt
-
Colors
13 + White, split colors, continuous scroll at variable speeds
-
Gobos (1)
9 + open (9 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
-
Gobos (2)
13 + open (13 metal), continuous scroll at variable speeds
-
Gobo Size
Gobo Wheel 1 (rotating): 16 mm (outside), 12 mm (image), 1.1 mm (max. thickness)
-
Dimmer
Motorized
-
Shutter/Strobe
Motorized
-
Zoom
Motorized
-
Focus
Motorized
-
Frost
Motorized
-
Prism (1)
5 Facets, motorized, rotating
-
Prism (2)
8 Facets, motorized, rotating
-
Move-in-Black
Yes
Construction/Physical
-
Dimensions
14.41 x 10.04 x 27.76 in (366 x 255 x 705 mm)
-
Weight
54.4 lb (24.7 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer
Connections
-
Power Connection
Bare-wired to Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Data Connectors
5-pin IP rated
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
20 or 25
-
Modes/Personalities
2 personalities (20, 25)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current
581 W, 4.95 A @ 120 V, 60 Hz
-
Power and Current
565 W, 2.76 A @ 208 V, 60 Hz
-
Power and Current
568 W, 2.53 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, CB, UKCA
-
IP Rating
IP65, temporary outdoor/wet use
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories
- Clamps
- DMX Cables
- Flight Cases
What's Included
- Rogue Outcast 2 Hybrid
- Seetronic Powerkon IP65 power cord
- 2 Omega brackets with mounting hardware
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Rogue Outcast 2 Hybrid – User Manual | Download |
Manuals | Rogue Outcast 2 Hybrid Quick Reference Guide | Download |
Photometrics | Rogue Outcast 2 Hybrid Photometrics Report | Download |
DMX | Rogue Outcast 2 Hybrid – DMX Chart | Download |
Drawings | Rogue Outcast 2 Hybrid – 2D CAD File | Download |
Drawings | Rogue Outcast 2 Hybrid – 3D CAD File | Download |
Other | Rogue Outcast 2 Hybrid – Firmware | Download |
Learn How To Use Your Rogue Outcast 2 Hybrid
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-
Rogue Outcast 3 Spot • Rogue Outcast 2 Beam • Rogue Outcast 2 Hybrid
Meet the Rogue Outcast family from CHAUVET Professional, a series of lightweight, IP65-armored moving heads. This versatile lineup of spot, beam, and hybrid fixtures delivers rugged, low-maintenance performance for any tour or festival, empowering you to create bold looks that can hang anywhere and withstand the elements.
Rogue Outcast 2 Hybrid FAQ’s
It’s a powerful all-in-one moving light that performs three distinct functions. It can project sharp, narrow beams through the air (Beam), display crisp patterns and shapes (Spot), or spread soft, even color over a large area (Wash), all from a single fixture.
