    Rogue Outcast 2X Wash

    A lightweight IP65-rated LED wash fixture featuring nineteen pixel-mappable RGBW quad-LEDs, an expansive zoom range, and smooth 16-bit dimming for vibrant color blending and effects.
    Perfect for touring, festivals, broadcast, and any indoor or outdoor event requiring a versatile and robust wash light that performs well on camera.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: ROGUEOUTCAST2XWASH

    Rogue Outcast 2X Wash

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    Rogue Outcast 2X Wash User Manual
    		 Download
    2D CAD File
    		 Download
    3D CAD File
    		 Download
    Photometric File
    		 Download
    DMX Chart
    		 Download
    Firmware
    		 Download
    Acoustic Reports
    		 Download
    Download All Resources

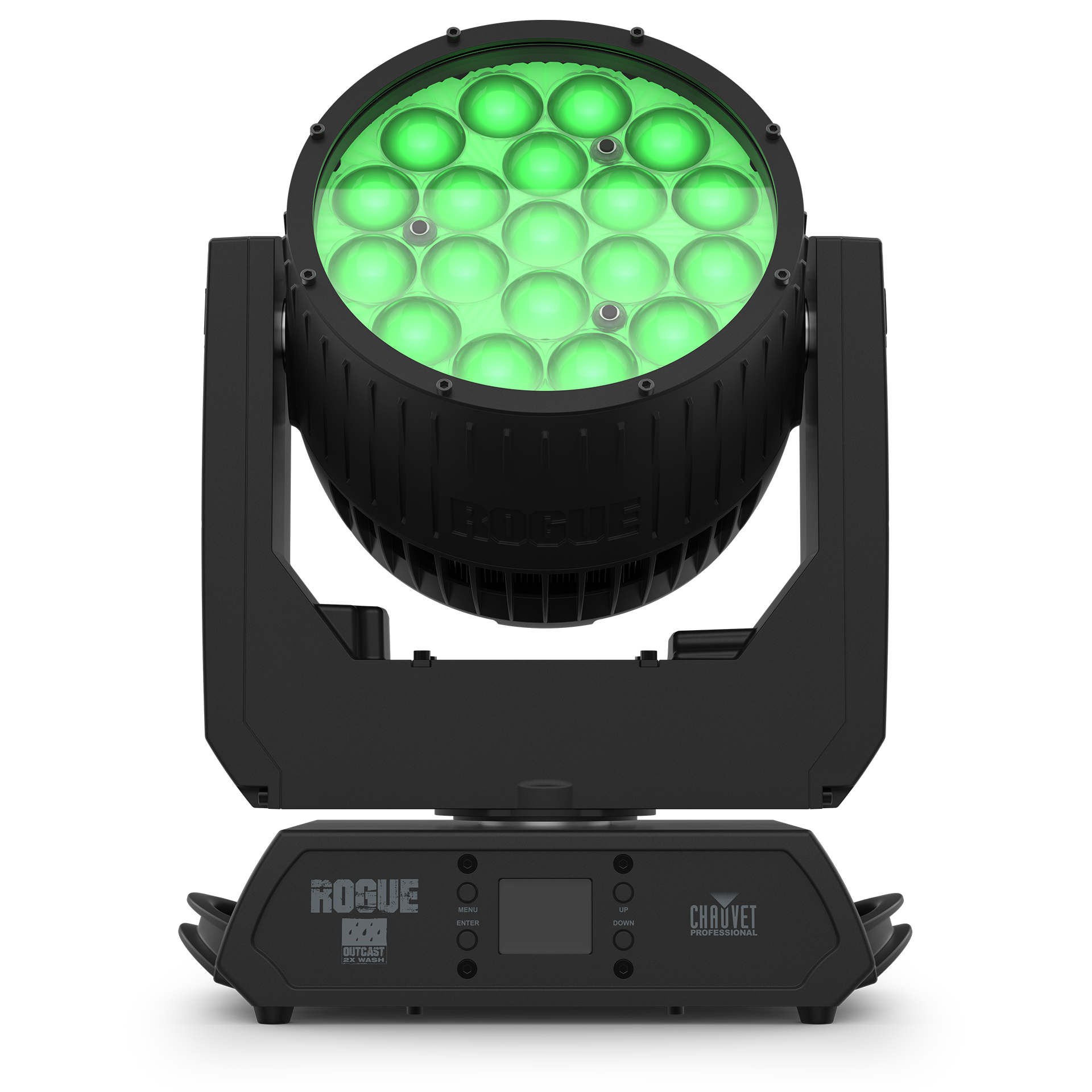

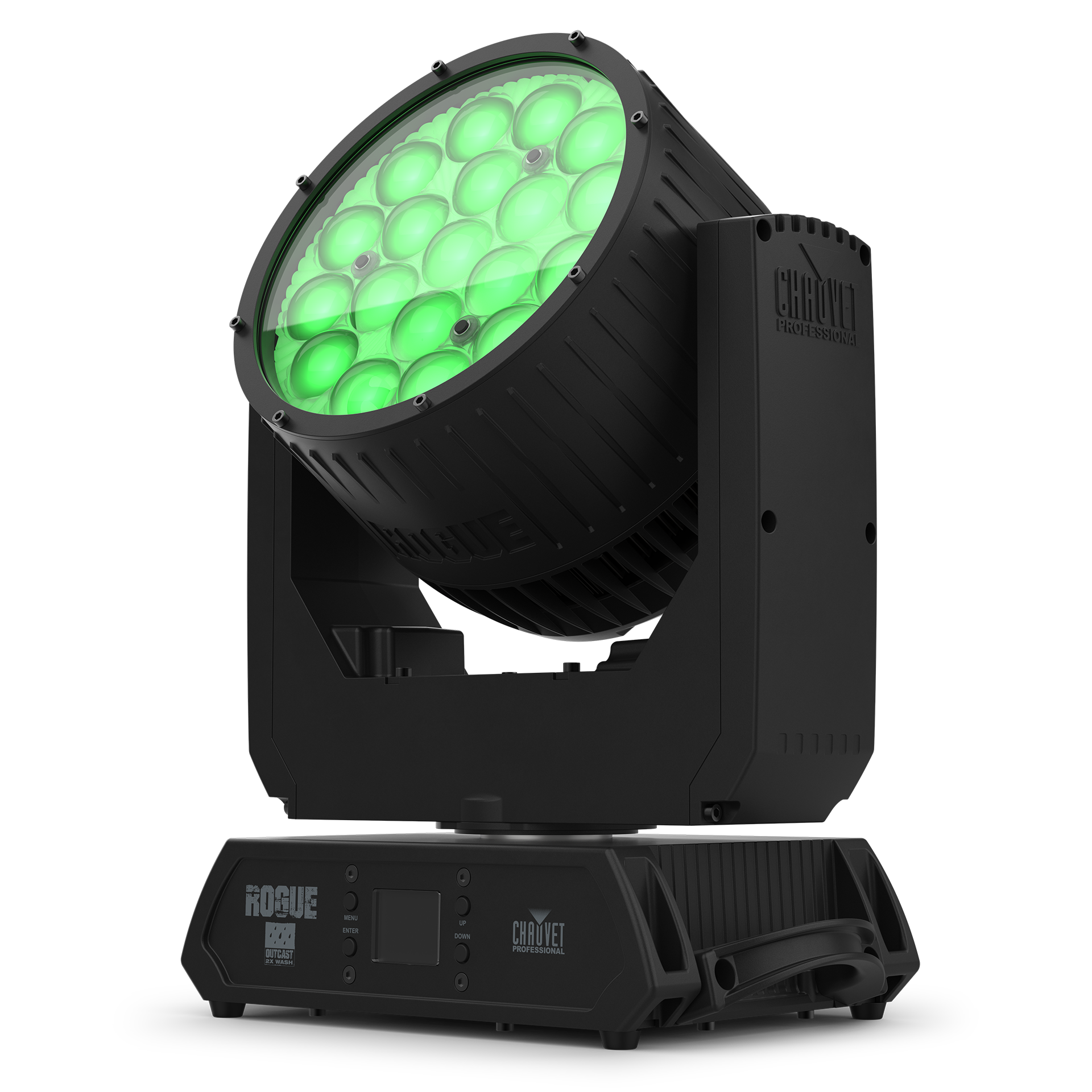

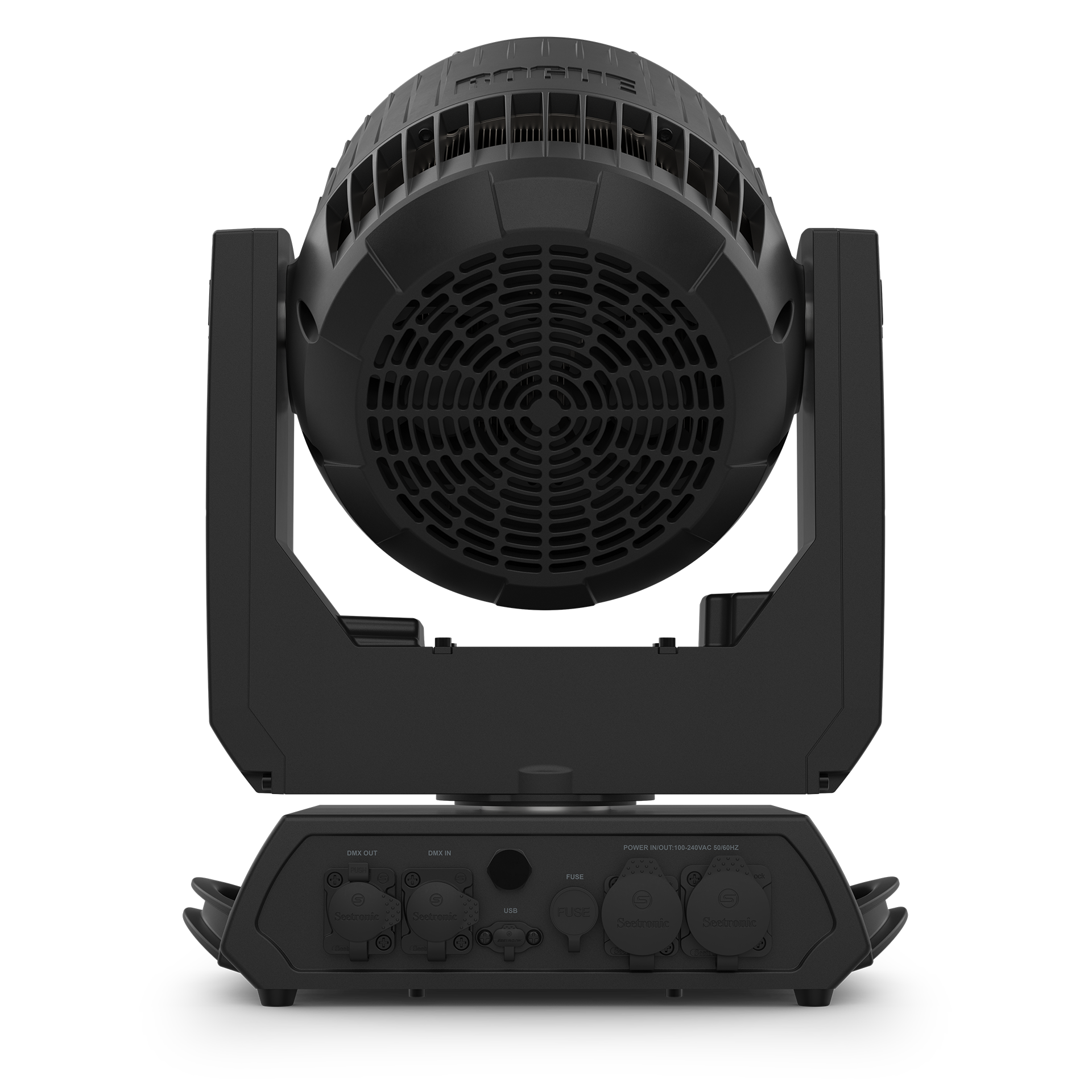

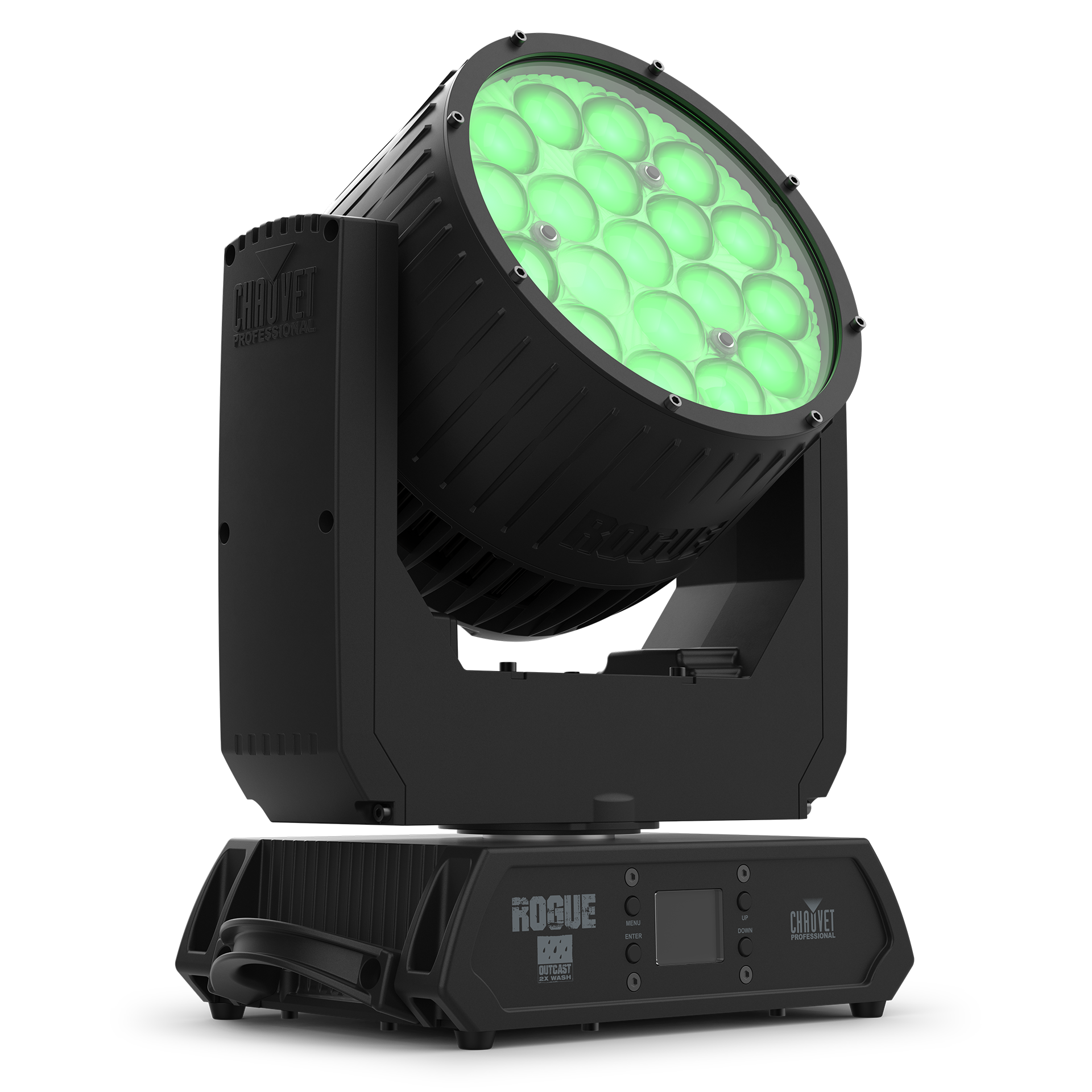

    Rogue Outcast 2X Wash

    SKU: ROGUEOUTCAST2XWASH

    Rogue Outcast 2X Wash is a lightweight IP65 wash that goes wide and hangs anywhere, with a wide zoom range of 8° to 66°, wide 2800 to 10000 K color temp range, wide selection of simple to complex DMX personalities, and a durable alloy housing that suits this versatile workhorse to the widest range of both indoor and outdoor applications, including on-camera use with its user selectable calibrated white. 19 bright 25W RGBW quad-LEDs occupy 5 pixel-mappable zones and produce excellent color blending and fades with 16-bit master and individual dimming.

    Features

    IP65 Rated RGBW Wash Fixture

    A fully featured yoke wash fixture with an IP65 rating, powered by vibrant RGBW LEDs.

    Durable Lightweight Body

    Constructed from a rugged yet lightweight aluminum and magnesium alloy for durability and easy handling.

    16-Bit Dimming Control

    Achieve exceptionally smooth fades with 16-bit resolution for individual colors and the master dimmer.

    Wide Zoom Range

    Offers an expansive zoom range from a tight 8 degrees to a wide 66 degrees for flexible beam control.

    Powerful LED Source

    Equipped with nineteen potent 25-watt RGBW LEDs for intense brightness and rich color mixing.

    Professional DMX Connections

    Includes industry-standard 5-pin DMX input and output connections for reliable control.

    Zoned Pixel Control

    Create compelling visual effects using five individually controllable zones of LEDs for pixel mapping.

    Fast and Smooth Movement

    Delivers quick, fluid, and precise pan and tilt movement for dynamic beam positioning.

    RDM Enabled

    Simplify fixture setup and maintenance with Remote Device Management for remote addressing and troubleshooting.

    Selectable PWM

    Ensures flicker-free performance on camera with user-selectable Pulse Width Modulation options.

    Calibrated White Presets

    Includes user-selectable calibrated white options with a 7500K default for consistent color temperature.

    Multiple Dimming Modes

    Choose from six distinct dimming modes to achieve the ideal fade for any application.

    Intuitive OLED Display

    An easy-to-read OLED display with a simple menu makes onboard configuration quick and effective.

    Versatile DMX Profiles

    Provides both simple and complex DMX channel profiles for maximum programming flexibility.

    USB-C Software Updates

    Keep the fixture’s software current with easy uploads via the convenient USB-C port.

    Latest News

    Steve Lieberman Accents Neon Garden Stage at Electric Daisy Carnival Orlando with CHAUVET Professional
    Designer Steve Lieberman uses bold geometry and light to define EDC Orlando’s Neon Garden stage.
    Read more
    Andrew Dawson Channels Power of Intent for Kaleo at Misty City Festival with CHAUVET Professional
    Lighting designer Andrew Dawson reveals how purposeful design crafted impactful moments for Kaleo.
    Read more
    L’Eden Goes LED with CHAUVET Professional
    French theatre L’Eden embraces an all-LED future with a versatile CHAUVET Professional rig.
    Read more
    Nehemiah Grubbs Creates Down Home Mood at MerleFest with CHAUVET Professional
    LD Nehemiah Grubbs crafts an inviting, richly textured atmosphere for the iconic MerleFest music festival.
    Read more
    Martin Thomas Creates Moments at JJ Grey & Mofro Festival with 100 CHAUVET Professional Fixtures
    LD Martin Thomas captures the southern rock spirit of the JJ Grey & Mofro festival with a dynamic, color-rich lighting design.
    Read more
    Steve Lieberman Accents Neon Garden Stage at Electric Daisy Carnival Orlando with CHAUVET Professional
    Designer Steve Lieberman uses bold geometry and light to define EDC Orlando’s Neon Garden stage.
    Read more
    Andrew Dawson Channels Power of Intent for Kaleo at Misty City Festival with CHAUVET Professional
    Lighting designer Andrew Dawson reveals how purposeful design crafted impactful moments for Kaleo.
    Read more
    L’Eden Goes LED with CHAUVET Professional
    French theatre L’Eden embraces an all-LED future with a versatile CHAUVET Professional rig.
    Read more
    Nehemiah Grubbs Creates Down Home Mood at MerleFest with CHAUVET Professional
    LD Nehemiah Grubbs crafts an inviting, richly textured atmosphere for the iconic MerleFest music festival.
    Read more
    Martin Thomas Creates Moments at JJ Grey & Mofro Festival with 100 CHAUVET Professional Fixtures
    LD Martin Thomas captures the southern rock spirit of the JJ Grey & Mofro festival with a dynamic, color-rich lighting design.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy

      • Color Temperature (range)

        2800 to 10000 K

      • Beam Angle

        8° to 36.1°

      • Field Angle

        11.8° to 53°

      • Cutoff Range

        17.5° to 66.1°

      • Zoom Range

        8° to 66.1°

      • Lumens – Source

        n/a

      • Lumens – Output

        6,258

        • Illuminance
          • Illuminance (11.8°)

            8,713 lux @ 5 m

          • Illuminance (53°)

            694 lux @ 5 m

      • Selectable PWM

        600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

      Dynamic Effects

      • Pan and Tilt

        540°/270°

      • Pan and Tilt Ranges

        180°, 360°, 540° pan/90°, 180°, 270° tilt

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Zoom

        Motorized

      • Strobe Rate

        0 to 20 Hz

      • Standalone Color Mixing

        Yes

      • Color Temperature Presets

        Yes

      • Dim Curves

        6

      • Built-in Automated Programs

        Yes

      • Customizable Programs

        No

      • Recall Custom Programs

        No

      Construction/Physical

      • Dimensions

        11.92×8.58×14.1″ (303x218x361mm)

      • Weight

        21.2 lb. (9.6 kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum/magnesium alloy, High-impact flame-retardant polymer

      Connections

      • Power Connection

        Bare ended to Seetronic IP65 PowerKon

      • Power Input

        Seetronic IP65 PowerKon

      • Power Output

        Seetronic IP65 PowerKon

      • Data Connectors

        5-pin XLR

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        DMX, RDM

      • DMX Channels

        15, 17, 22, 33, 54, or 56

      • Modes/Personalities

        8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power Linking

        5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V

      • Power and Current

        291 W, 2.47 A @ 120 V, 60 Hz

      • Power and Current

        284 W, 1.41 A @ 208 V, 60 Hz

      • Power and Current

        282 W, 1.28 A @ 230 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE, MET, FCC, UKCA

      • IP Rating

        IP65 (temporary wet location)

        • Noise Levels
          • Noise Level (Idle)

            0.9 dB(A) @ 1 m

          • Noise Level (Max)

            42.6 dB(A) @ 1 m

          • Noise Level (Full)

            44.5 dB(A) @ 1 m

          • Noise Level (Eco)

            27.8 dB(A) @ 1 m

          • Noise Level (Auto)

            27.7 dB(A) @ 1 m

      Compatible Accessories

      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Safety Cable: SC-07
      • Seetronic IP65 PowerKon cables
      • DMX Cables
      • Flight Case:CP6CASER2W

      What's Included

      • Rogue Outcast R2X Wash IP
      • Seetronic® powerCON® power cord

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      Rogue Outcast 2X Wash – Quick Reference Guide
      		Download
      Manuals
      Rogue Outcast 2X Wash User Manual
      		Download
      Drawings
      Rogue Outcast 2X Wash – 2D CAD File
      		Download
      Drawings
      Rogue Outcast 2X Wash – 3D CAD File
      		Download
      Photometrics
      Rogue Outcast 2X Wash – Photometric File
      		Download
      DMX
      Rogue Outcast 2X Wash – DMX Chart
      		Download
      Manuals
      Rogue Outcast 2X Wash – Firmware
      		Download
      Manuals
      Rogue Outcast 2X Wash – Acoustic Reports
      		Download

      Learn How To Use Your Rogue Outcast 2X Wash

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • Rogue Outcast 1L Beam & Rogue Outcast 2X Wash

        Discover the Rogue Outcast 1L Beam and 2X Wash, two rugged IP65 moving heads built to perform anywhere. Lightweight and low-maintenance, they deliver uncompromising beam and wash effects that defy the elements and redefine expectations for all-weather lighting.

      • InfoComm 2022: Rogue Product Tour

        Get a first look at the Rogue Outcast series from CHAUVET Professional, featuring the IP65-armored 1L Beam and 2X Wash. These lightweight moving heads deliver powerful aerial effects and versatile washes, engineered for uncompromising performance in any environment.

      Video Library

      Latest Articles

      Browse Articles

      Rogue Outcast 2X Wash FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the Rogue Outcast 2X Wash
      Can the Rogue Outcast 2X Wash be used outdoors?

      Yes, the Rogue Outcast 2X Wash is specifically designed to be used in both indoor and outdoor settings. Its durable, weatherproof body protects it from the elements, making it a reliable choice for festivals, concerts, and events in any weather.

      What makes the Rogue Outcast 2X Wash a versatile light?

      Its versatility comes from an extremely wide zoom range that can create anything from a tight, narrow beam to a very wide flood of light. This, combined with its ability to produce millions of vibrant colors and a full spectrum of white light, allows it to adapt to any lighting need on stage or for an event.

      Is the Rogue Outcast 2X Wash good for video or streaming?

      Absolutely. It is designed to look great on camera with special settings that ensure flicker-free operation. It also features a calibrated white light mode, which helps make colors and skin tones look natural and consistent for any broadcast, livestream, or video recording.
