    Rogue Outcast 1M Beam

    A compact, IP65-rated moving head beam fixture delivering sharp, multi-color beams and stunning aerial effects through continuous 360-degree rotation, a powerful LED engine, dual prisms, and aperture gobos.
    Perfect for touring, festivals, and permanent installations where a compact, powerful, and weather-resistant beam fixture is needed for dynamic effects in any environment.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: ROGUEOUTCAST1MBEAM

    Rogue Outcast 1M Beam

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    User Manual
    		 Download
    IES Files
    		 Download
    Photometrics Report
    		 Download
    DMX Chart
    		 Download
    2D CAD File
    		 Download
    3D CAD File
    		 Download
    Acoustic Report
    		 Download
    Download All Resources

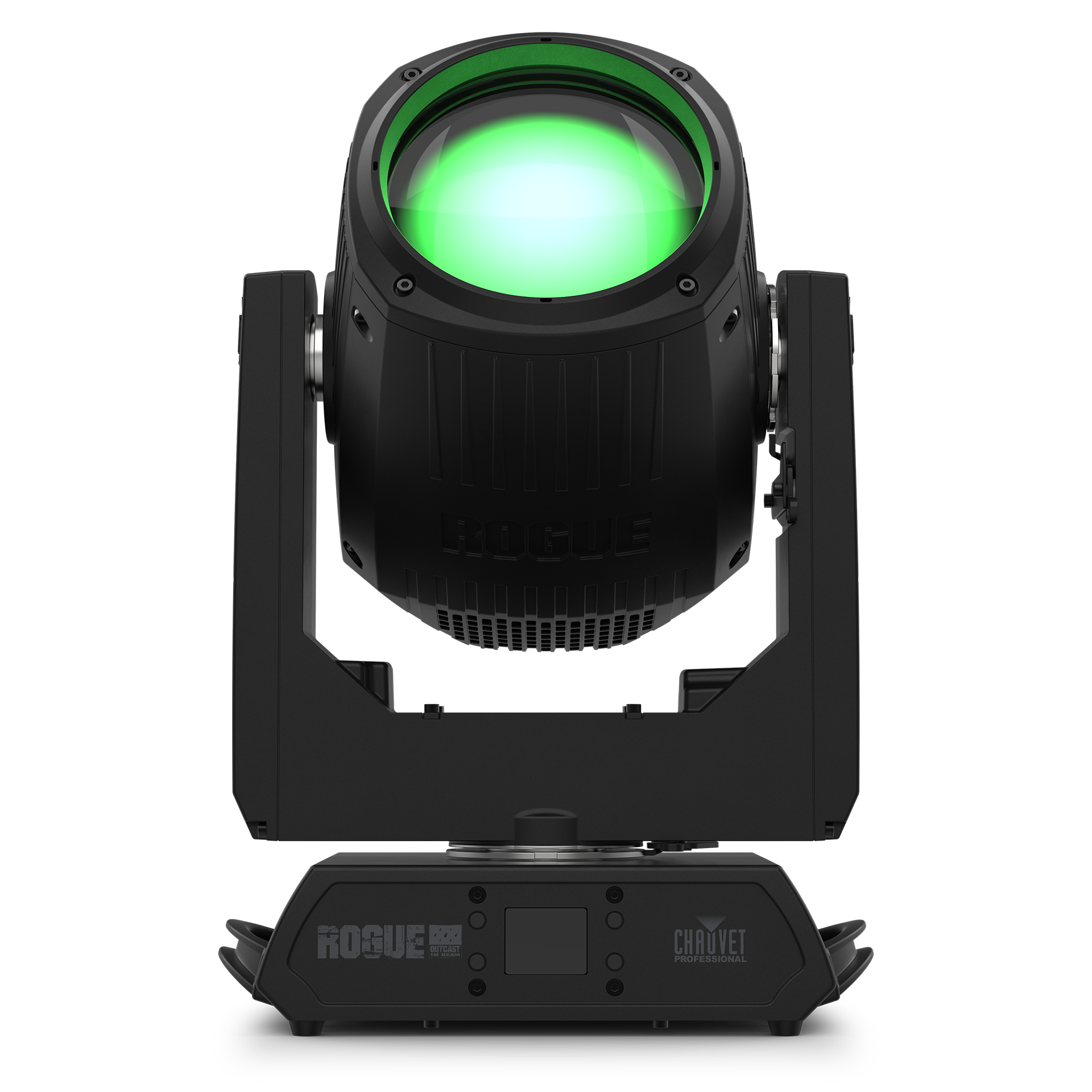

    Rogue Outcast 1M Beam

    SKU: ROGUEOUTCAST1MBEAM

    Spin out with continuous 360 degree rotation. Stand out with a Mint-powered RMB light engine that sets Rogue Outcast 1M Beam apart from the rest of the pack by offering a multi-color LED solution and great optics to produce sharp beams of the highest quality white light and your choice of color. A compact beam fixture that weighs in under thirty pounds, designed to deliver fast and precise performance as well as easy event setups. Create stunning aerial effects with dual overlapping prisms or instantly punch up pencil-thin beams with a selection of aperture gobos. IP65-rated and ready to go anywhere, Rogue Outcast 1M Beam handles outdoor use as well as it handles haze, dust, confetti and other elements in permanent indoor installations with minimum need for upkeep.

    Features

    High Power IP65 Beam Fixture

    A fully featured, high-powered beam fixture housed in a lightweight and durable aluminum and magnesium casing.

    Advanced LED Color Mixing

    A Red, Mint, and Blue LED source provides full color mixing for a wide spectrum of variations without a color wheel.

    Static Gobo Wheel

    One wheel features 17 static gobos to create a variety of dynamic aerial effects.

    Layerable Prisms

    Individually controllable 6- and 8-facet prisms can be layered for more complex looks.

    Continuous Pan and Tilt

    Achieve endless, fast, and precise movement effects with 360-degree pan and tilt rotation.

    Frost Effect

    A built-in frost filter provides even light distribution for soft-edged wash effects.

    5-Pin DMX Connections

    Professional 5-pin DMX input and output connections ensure reliable control.

    Tight 1.9° Beam Angle

    Project extremely focused and sharp aerial effects with a narrow 1.9-degree beam.

    RDM Enabled

    Remotely address and troubleshoot the fixture using its RDM (Remote Device Management) capability.

    OLED Display

    Easily read and navigate settings with a simple and effective menu on the OLED display.

    Versatile DMX Profiles

    Simple and complex DMX channel profiles offer programming versatility for any application.

    USB-C Software Port

    Conveniently upload software updates through the fixture’s integrated USB-C port.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        1 LEDs (Red,Mint,Blue) 120 W, (3.34A), 50,000 hours life expectancy

      • Color Temperature (at full)

        10,398 K

      • Front lens diameter

        140 mm

      • CRI

        80.8

      • Beam Angle

        1.9°

      • Field Angle

        2.7°

      • Cutoff Angle

        3.4°

      • Lumens (Output)

        4,488

      • Illuminance (total)

        117,690 lux @ 5 m

      • Selectable PWM

        600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

      Dynamic Effects

      • Pan and Tilt

        360°/360° total movement

      • Pan and Tilt Ranges

        540°, 360°, 180° pan/270°, 180°, 90° tilt

      • Gobos (1)

        17 + open (metal), continuous scroll at variable speeds

      • Gobo Size

        Gobo Wheel (rotating): 6 mm (outside), .6 mm (max. thickness)

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Focus

        Motorized

      • Frost

        Motorized

      • Prism

        6 Facets, motorized, linear, rotating

      • Prism

        8 Facets, motorized, round, rotating

      • Strobe Rate

        0 to 30 Hz

      • Dim Curves

        4

      Construction/Physical

      • Dimensions

        11.9 x 7.56 x 17.9 in (302 x 192 x 455 mm)

      • Weight

        27.2 lb (12.34 kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum/Magnesium diecast

      Connections

      • Power Connection

        Edison (Local) plug to Seetronic Powerkon IP65

      • Power Input

        Seetronic Powerkon IP65

      • Power Output

        Seetronic Powerkon IP65

      • Data Connectors

        5-pin IP65 XLR

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        DMX, RDM

      • DMX Channels

        21 or 25

      • Modes/Personalities

        2 personalities (21, 25)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power Linking

        ; 6 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V

      • Power and Current

        232 W, 1.95 A @ 120 V, 60 Hz

      • Power and Current

        223 W, 1.11 A @ 208 V, 60 Hz

      • Power and Current

        220 W, .990 A @ 230 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE, MET, FCC, UKCA

      • IP Rating

        IP65, outdoor/wet, with pressure equalizing M12 GORE valve

        • Noise Levels
          • Noise Level (Idle)

            15.9 dB(A) @ 1 m

          • Noise Level (Auto)

            38.3 dB(A) @ 1 m

          • Noise Level (Eco)

            15.0 dB(A) @ 1 m

          • Noise Level (Full)

            47.4 dB(A) @ 1 m

          • Noise Level (Max)

            47.3 dB(A) @ 1 m

      • Temperature (Ambient)

        -4 °F to 113 °F (-20 °C to 45 °C)

      Compatible Accessories

      • Clamps
      • Seetronic PowerKON cables
      • DMX Cables
      • Flight Cases
      • CP Rack

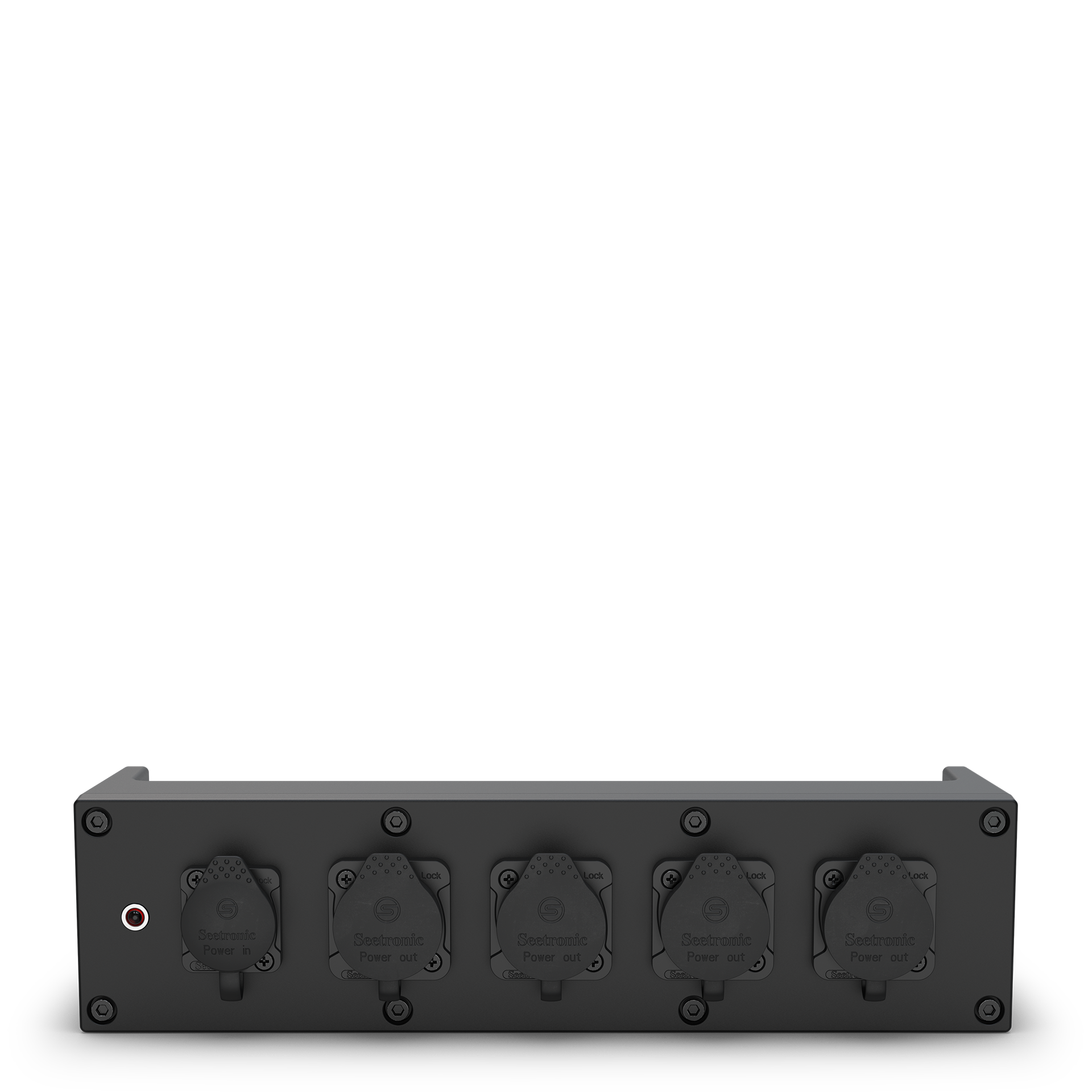

      • PowerStream 4 IP

      What's Included

      • Rogue Outcast 1M Beam
      • Seetronic Powerkon IP65 power cord
      • 105mm Omega bracket with mounting hardware

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      Rogue Outcast 1M Beam – Quick Reference Guide
      		Download
      Manuals
      Rogue Outcast 1M Beam – User Manual
      		Download
      Other
      Rogue Outcast 1M Beam – IES Files
      		Download
      Manuals
      Rogue Outcast 1M Beam – Photometrics Report
      		Download
      DMX
      Rogue Outcast 1M Beam – DMX Chart
      		Download
      Drawings
      Rogue Outcast 1M Beam – 2D CAD File
      		Download
      Drawings
      Rogue Outcast 1M Beam – 3D CAD File
      		Download
      Case Studies
      Rogue Outcast 1M Beam – Acoustic Report
      		Download

      Learn How To Use Your Rogue Outcast 1M Beam

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • 2024 LDI • “True Colors ReveaLED” Light Show • Gigi Pédron, LD • CHAUVET Professional

        Witness the “True Color” light show from LDI 2024, a visual masterpiece by designer Gigi Pédron. Using a powerful lineup of CHAUVET Professional fixtures, she crafted immersive experiences that blend monochromatic scenes with vibrant rainbow finales, showcasing the interplay of shape, light, and music.

      • Showcasing the Best in LED Technology at LDI 2024 with CHAUVET Professional

        Join CHAUVET Professional at LDI 2024 for a tour of our latest innovations in LED technology. See game-changing fixtures that deliver unmatched color consistency and empower designers to create immersive, visually striking experiences.

      • GET ROLLING!

        Command the air with the Rogue Outcast 1M Beam, a compact IP65 moving head built for relentless performance. Its continuous 360-degree rotation and powerful multi-color LED engine create sharp, dynamic beams for stunning aerial effects indoors or out.

      • Light Snacks: Why a Mint LED in the Rogue Outcast 1M Beam Moving Head…?

        Discover how the innovative mint LED in the Rogue Outcast 1M Beam delivers a full, rich color spectrum and stunning whites. This compact, IP65-rated moving head from CHAUVET Professional provides unparalleled color coverage and sharp aerial effects, perfect for creating dynamic looks in any environment.

      • #BTS with LD Cody James, YellowCard and Rogue Outcast 1M Beam

        Go behind the scenes with LD Cody James as he deploys rugged, IP65-rated CHAUVET Professional fixtures on tour with Yellowcard. Discover how the Rogue Outcast 1M Beam and COLORado PXL Bar 8 deliver stunning, weather-proof effects that command the stage, from daytime festivals to rain-soaked encores.

      • Light Snacks: Rogue Outcast 1M Beam

        Discover the Rogue Outcast 1M Beam, a compact and rugged IP65-rated fixture from CHAUVET Professional. Create stunning aerial effects with its unique RMB light engine, dual prisms, and continuous 360-degree rotation, delivering powerful, multi-color beams for any environment.

      • Meet the new Rogue Outcast 1M Beam: Unstoppable speed in every corner!

        Unleash unstoppable speed and dazzling aerial effects with the Rogue Outcast 1M Beam. This compact, IP65-rated moving head features continuous 360-degree rotation and a powerful RMB LED engine, delivering sharp, multi-color beams for any environment, indoors or out.

      Video Library

      Latest Articles

      Browse Articles

      Rogue Outcast 1M Beam FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the Rogue Outcast 1M Beam
      Can the Rogue Outcast 1M Beam be used outdoors in the rain?

      Yes, the Rogue Outcast 1M Beam is specifically designed to be weatherproof. It can handle rain, dust, and other elements, making it ideal for outdoor concerts, festivals, and events without needing extra protection. This durability also makes it a low-maintenance choice for indoor venues.

      What kind of lighting effects can the Rogue Outcast 1M Beam create?

      It excels at creating sharp, pencil-thin beams of light for stunning aerial effects. It can also layer two different prisms to create wider, more complex visuals and uses a built-in wheel of patterns (gobos) to shape the beam. A frost feature can soften the light for even coverage.

      What makes the movement of the Rogue Outcast 1M Beam special?

      This fixture features continuous 360-degree rotation, meaning it can spin endlessly without stopping to create unique, dynamic effects. Its movements are also fast and precise, perfect for creating energetic and synchronized light shows.
