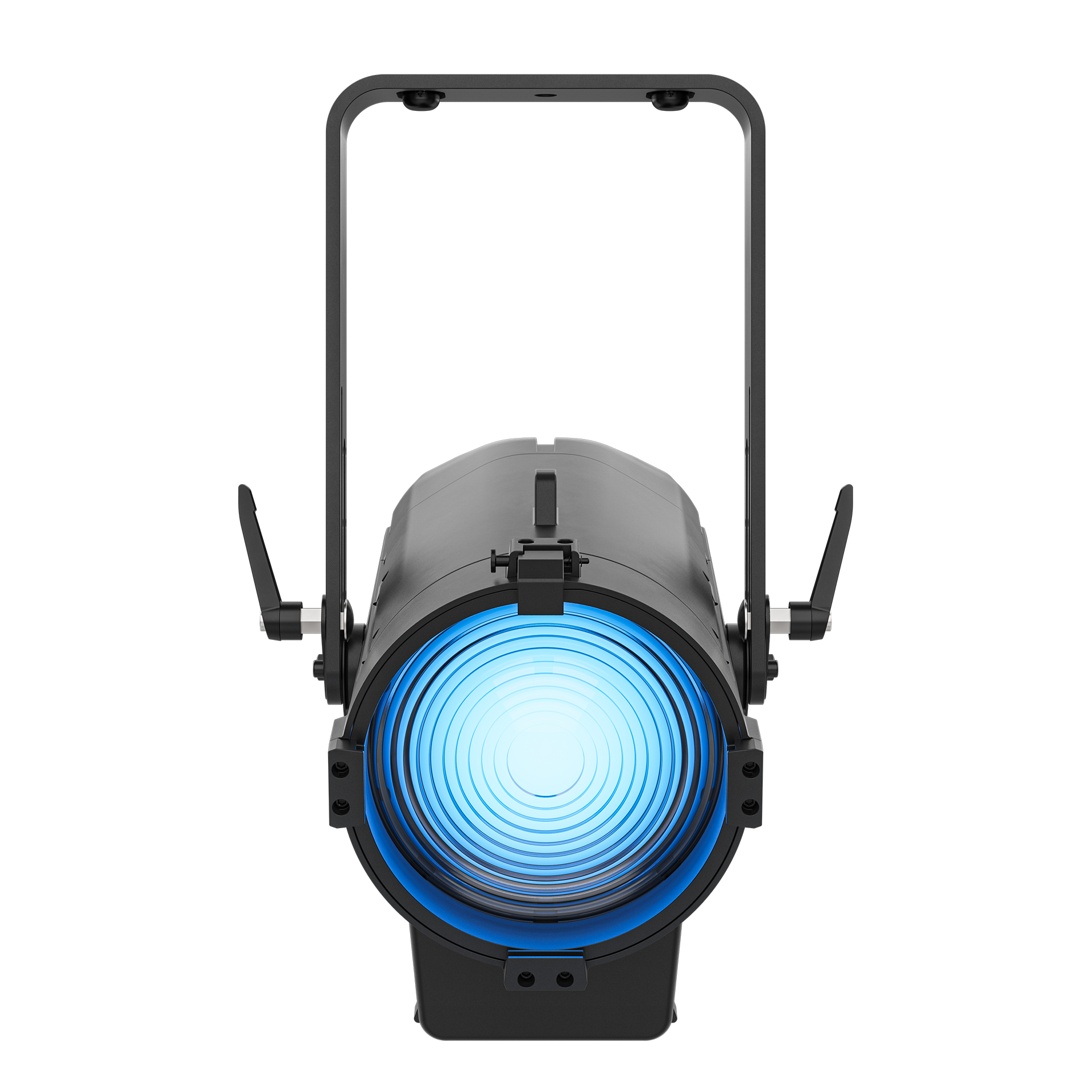

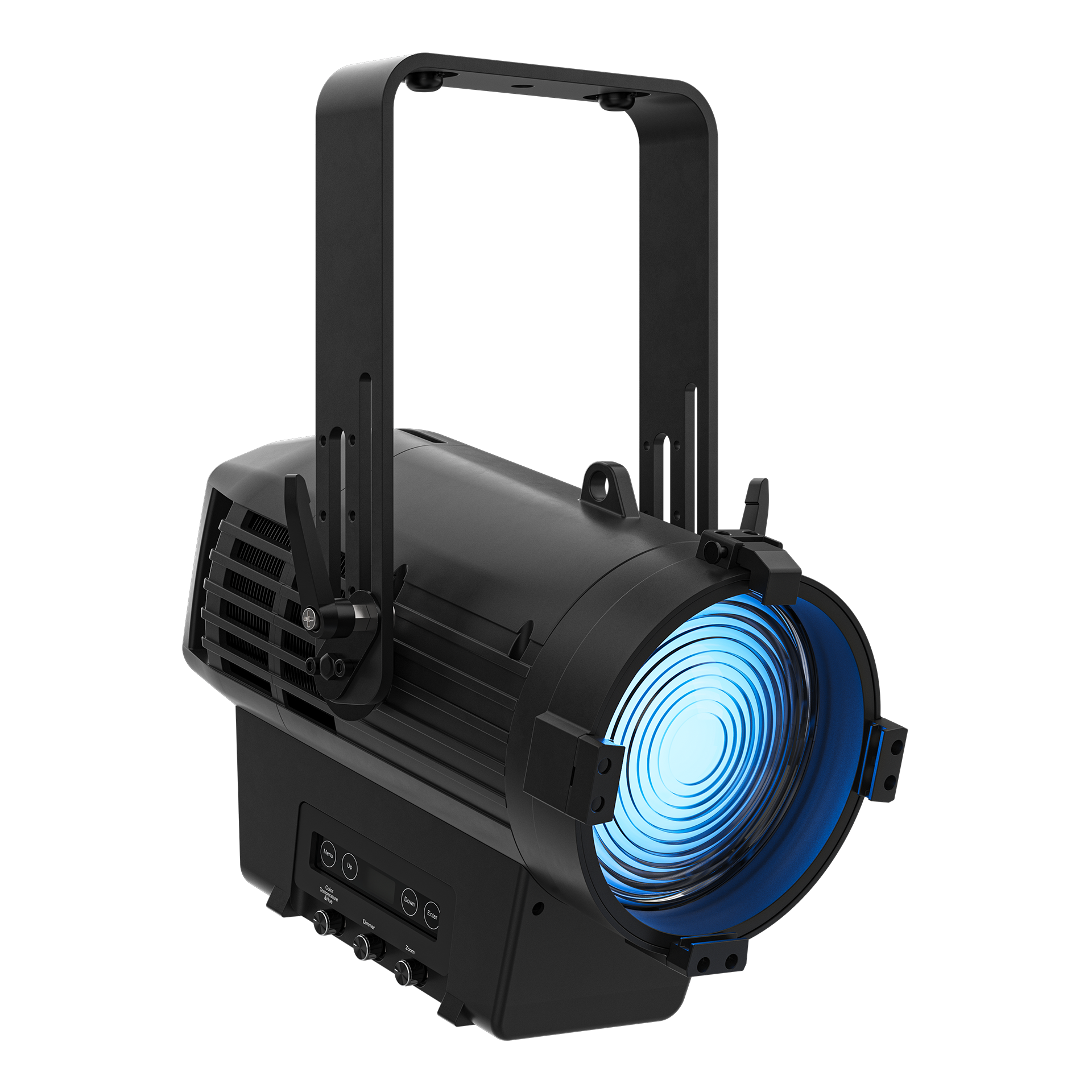

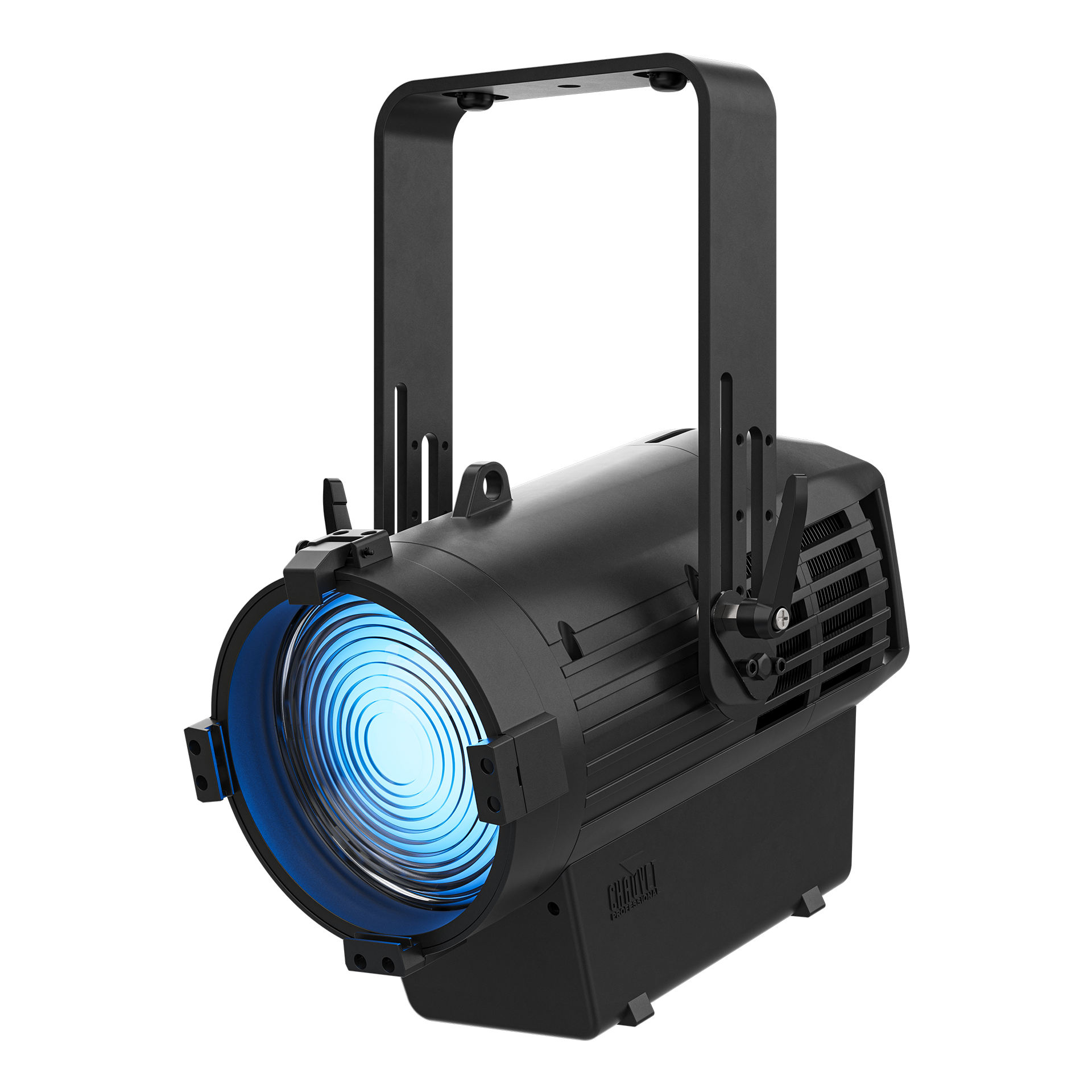

Ovation Rêve F-3 IP
A quiet, IP-rated motorized fresnel featuring a full-spectrum RGBAM light engine to deliver soft, controllable washes with an extended zoom range and camera-friendly performance.
Perfectly suited for theaters, houses of worship, television and film sets, and the rental production world in any indoor, outdoor, or low-clearance application.
-
Offers linear color temperature adjustment from 2800 K to 8000 K with a high CRI of 96.
-
Delivers an expansive motorized zoom range, from a tight 10.6° beam to a wide 68.2° wash.
-
Features a rugged IP65-rated housing for reliable, all-weather use in any indoor or outdoor application.
-
Guarantees flicker-free on-camera operation with adjustable PWM and smooth 18-bit dimming curves.
-
Provides three dedicated on-board dials for immediate, hands-on adjustment of key lighting parameters.
-
An innovative, adjustable yoke allows for versatile mounting possibilities, even in low-clearance areas.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Ovation Rêve F-3 IP
Features
Full Spectrum LED Fresnel
Provides high-quality fresnel lighting suitable for professional theatre, film, and production environments.
IP65 Weatherproof Rating
Fully rated for dust and water protection, enabling reliable use both indoors and outdoors.
On-Board Control
Features three dedicated control dials for direct, manual adjustment of multiple parameters.
Adjustable Color Temperature
Offers linear color temperature presets from 2800 K to 8000 K with high color rendering accuracy.
Virtual Color Wheel
Includes a digital color wheel with presets matched to popular professional gel colors.
Advanced Color Correction
Allows for plus/minus green adjustment and emulated red-shift via DMX or on-board controls.
Remote Device Management
Supports RDM for convenient remote addressing, configuration, and monitoring.
Flicker-Free Operation
Adjustable Pulse Width Modulation (PWM) ensures the light output is free of flickering on camera.
Silent Operation
Engineered for virtually silent performance, making it ideal for noise-sensitive applications.
18-Bit Dimming
Delivers ultra-smooth dimming curves and speeds to complement any lighting scheme.
Adjustable Yoke
An innovative yoke design allows for flexible mounting in low-clearance areas.
USB Software Port
A dedicated USB port allows for simple and convenient software updates.
Complete Your Rig
Specifications
Optical
-
Light Source
126 LEDs (22 red, 14 green, 16 blue, 6 royal blue, 28 amber, 40 mint) 5.8 to 7.5 W, (1.95 A) 50,000 hours life expectancy.
-
Color Temperature (range)
2800 to 8000 K
-
Color Temperature (at full)
5864 K
-
Front lens diameters
210.8 mm
-
CRI
96
-
Beam Angle
10.6° to 68.2°
-
Field Angle
18.3° to 90.4°
-
Cutoff Angle
25.3° to 99.5°
-
Zoom Range
10.6° to 99.5°
-
Lumens (narrow)
5232lm
-
Lumens (wide)
13374lm
-
-
Illuminance
-
Narrow
4869 lux @ 5 m
-
Wide
482 lux @ 5 m
-
50%
1587 lux @ 5 m
-
-
Illuminance
-
Selectable PWM
750 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Zoom
Motorized
-
Strobe Rate
0 to 30 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Dim Curves
4
-
Built-in Automated Programs
Yes
Construction/Physical
-
Dimensions
16.02 x 13.47 x 20 in (406.9 x 342 x 508 mm)
-
-
Weight
-
Standard Yoke
30.4 lb (13.8 kg)
-
Pole Yoke
34.0 lb (15.5 kg)
-
-
Weight
-
Exterior Color
Black
-
Housing Material
Aluminum alloy
-
Accessory Holder/Gel Frame Size
7.5 in (191 mm)
Connections
-
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
-
DMX Channels
1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
-
Modes/Personalities
8 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
-
Modes/Personalities
8 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
-
Power and Current
532 W, 4.46 A @ 120 V, 60
-
Power and Current
519 W, 2.56 A @ 208 V, 60 Hz
-
Power and Current
526 W, 2.24 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC
-
IP Rating
IP65, dry location
-
-
Noise Levels
-
Idle
34.5 dB(A) @ 1 m
-
Auto
37.2 dB(A) @ 1 m
-
On
38.7 dB(A) @ 1 m
-
-
Noise Levels
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-07
- TRUE1 Style Power Extension Cables
- 5-pin IP65 DMX Cables
- RDM2go
- USB Jump Drive
What's Included
- Ovation Reve F-3 IP
- Seetronic Powerkon power cord
- Gel frame
- (1) 140mm Omega bracket with mounting hardware
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Ovation Rêve F-3 IP – Quick Reference Guide | Download |
DMX | Ovation Rêve F-3 IP – DMX Chart | Download |
Manuals | Ovation Rêve F-3 IP – IES Files | Download |
Photometrics | Ovation Rêve F-3 IP – Photometrics Report | Download |
Manuals | Ovation Reve F-3 IP – User Manual | Download |
Manuals | Ovation Reve P-3 IP – CAD Files | Download |
Other | Ovation Reve F-3 IP – Firmware | Download |
Manuals | Ovation Reve F-3 IP – Acoustic Reports | Download |
Learn How To Use Your Ovation Rêve F-3 IP
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-
Ovation Rêve F-3IP Motorized Fresnel Throws Soft Controllable Washes @LDI2023
Meet the Ovation Rêve F-3 IP, a versatile, outdoor-rated motorized fresnel designed for uncompromising performance. It combines the acclaimed Rêve light engine with an expansive zoom range to deliver soft, controllable washes with impressive reach in any environment.
Ovation Rêve F-3 IP FAQ’s
Yes, it is fully weatherproof and specifically designed for reliable use in outdoor settings, rain or shine. This makes it perfect for seasonal events, outdoor stages, and productions where the light might be exposed to the elements.
It is ideal for film and theater because it operates almost silently, so it won’t be picked up by microphones. It also features flicker-free performance for cameras, smooth dimming, and a full-spectrum color engine that produces high-quality, natural-looking light on camera and in person.
The light beam is highly adjustable thanks to its motorized zoom. You can easily change it from a very wide wash for covering large areas to a tight, narrow beam for lighting subjects from a long distance. Its innovative yoke also allows it to be mounted in tight spaces with low ceilings.
