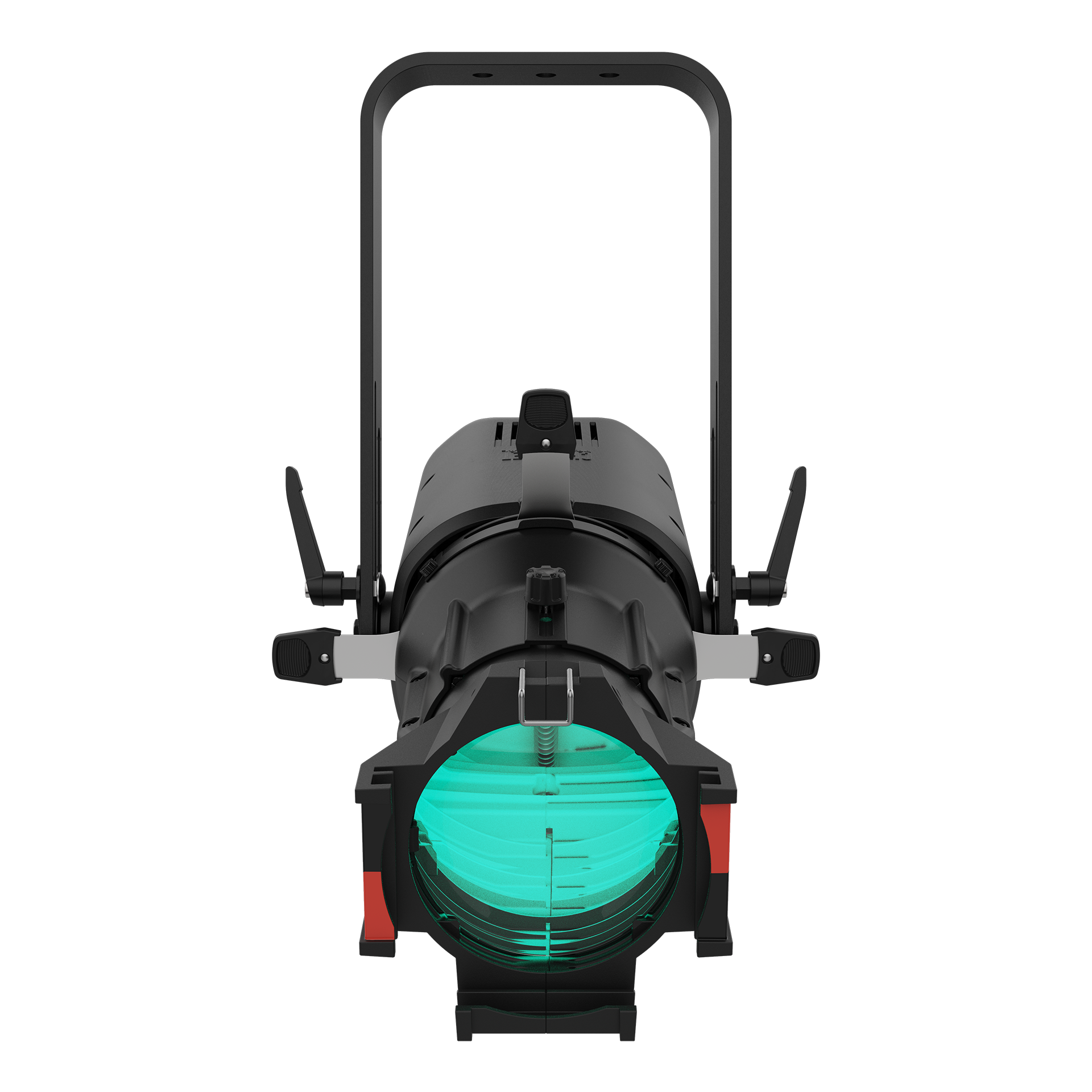

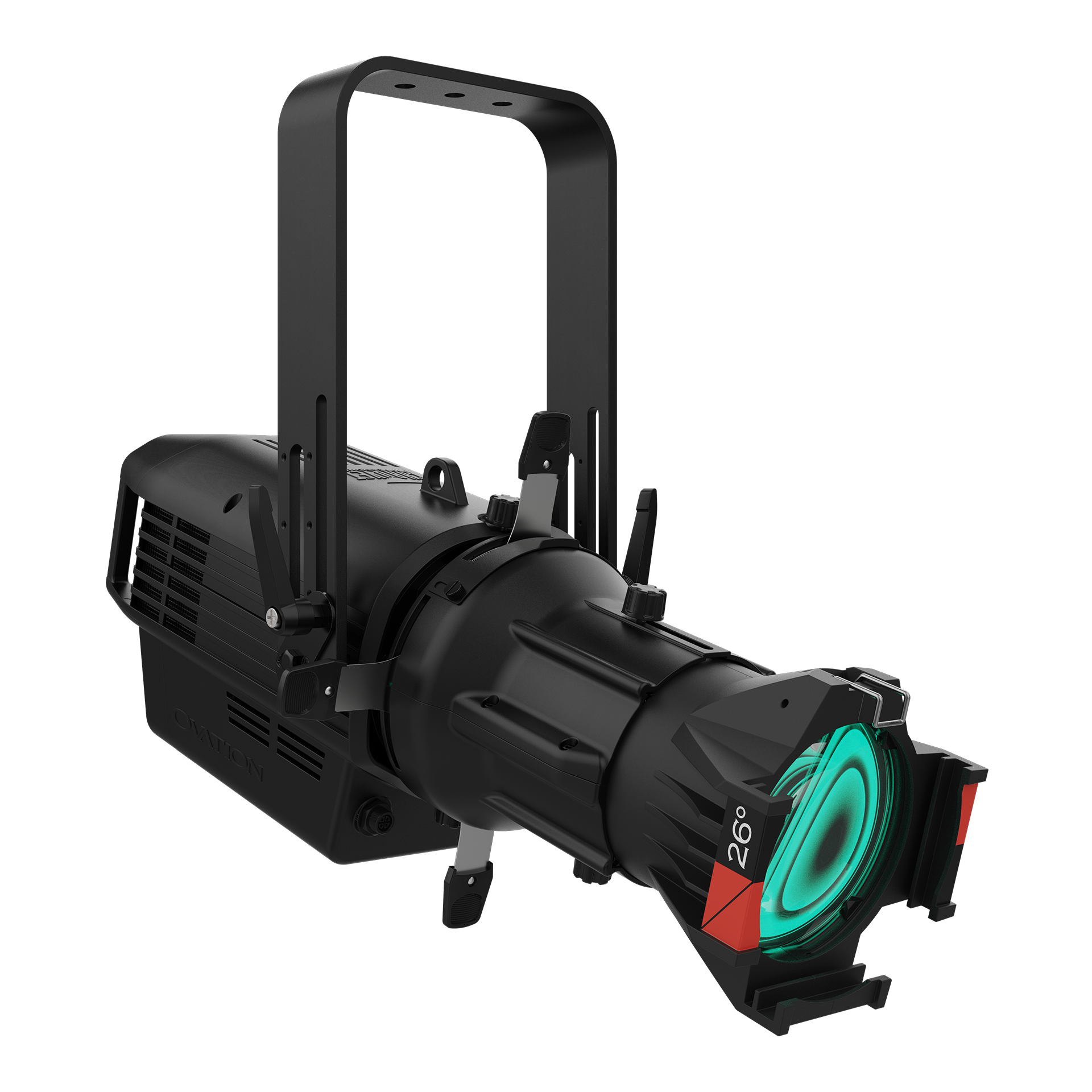

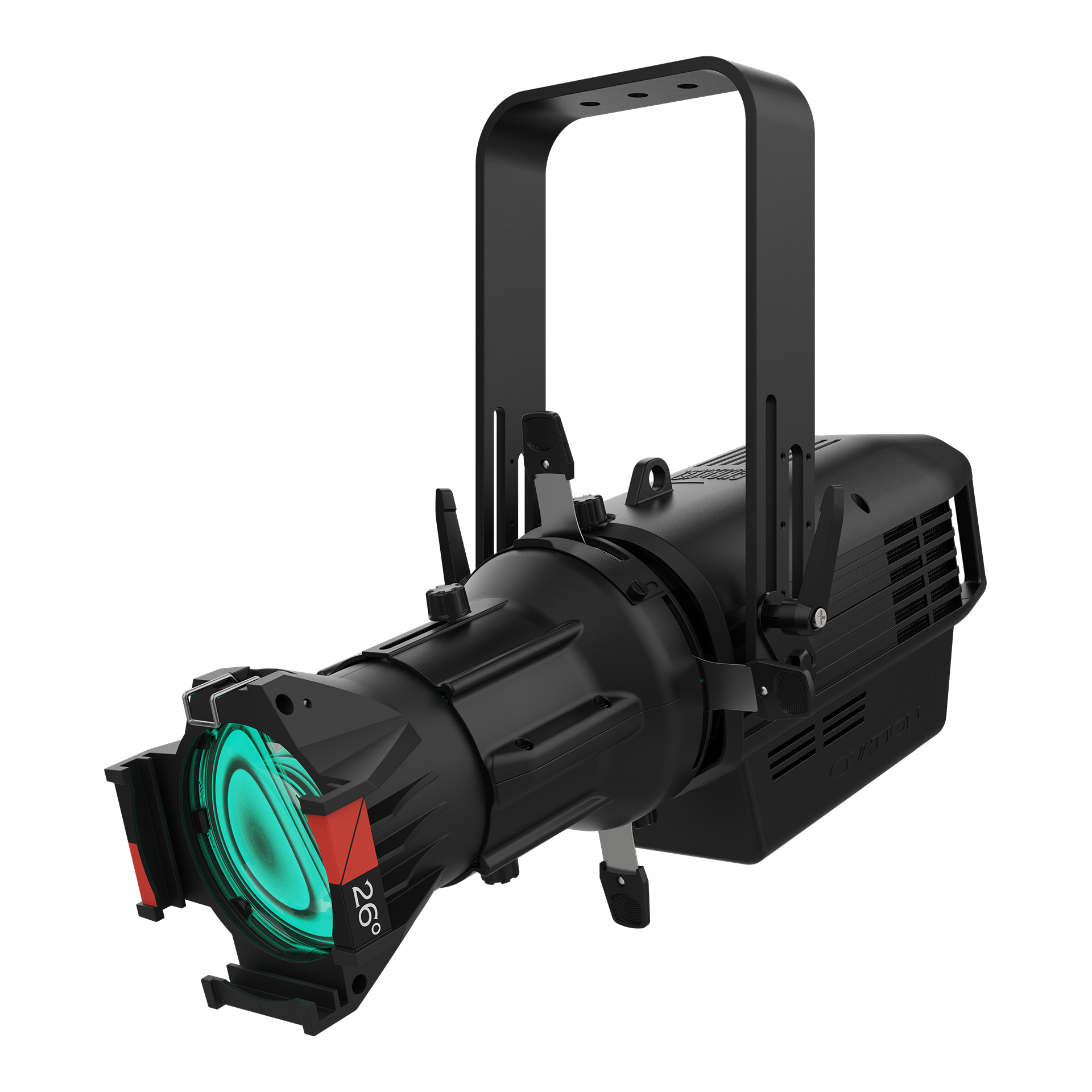

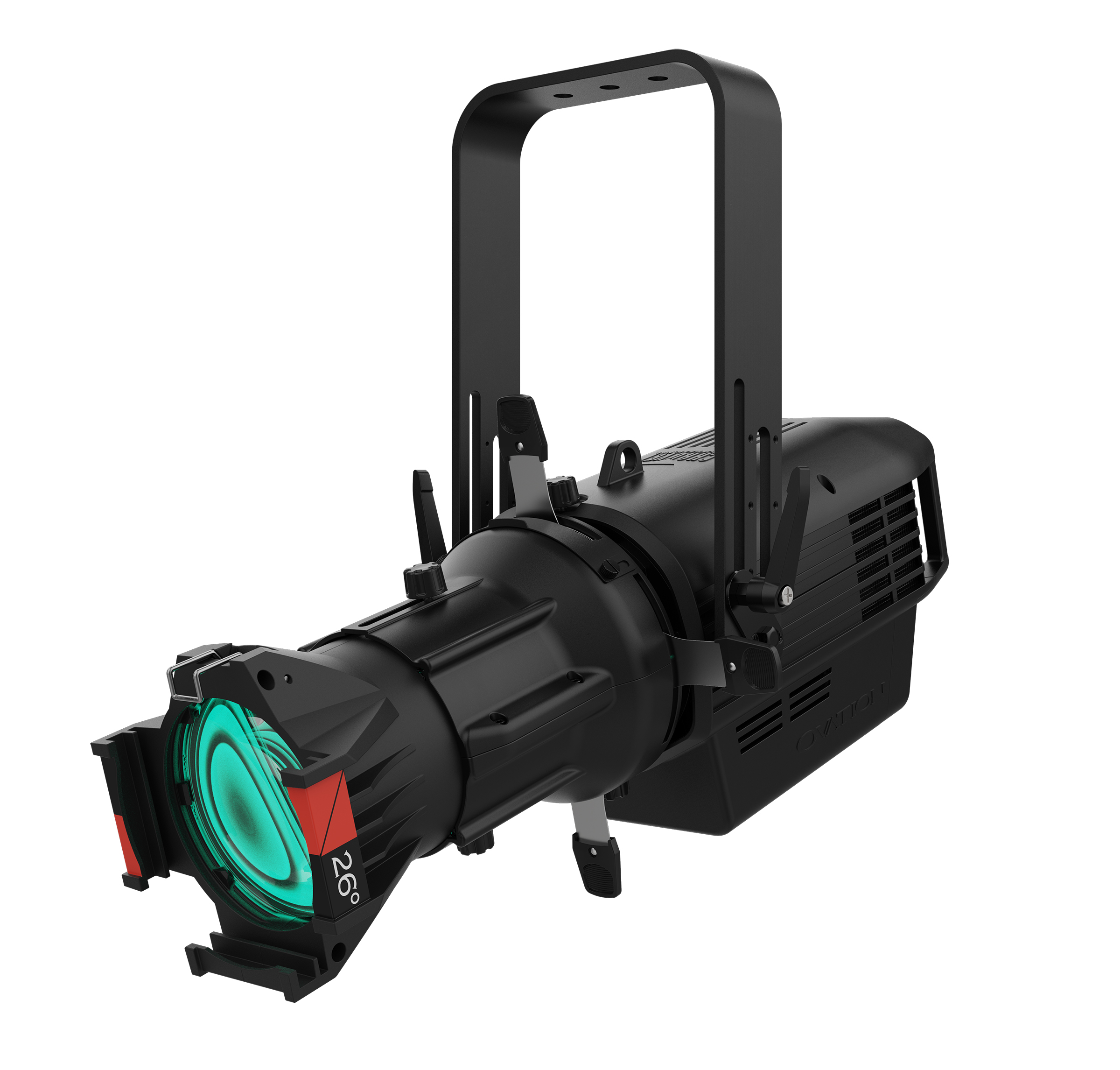

Ovation Rêve E-3
The Ovation Rêve E-3 is a high-output, multi-color LED ellipsoidal that fuses a full spectrum of saturated colors with a range of precisely tunable whites, complete with emulated red-shift and virtually silent operation.
Ideal for theatrical productions, broadcast studios, houses of worship, and any application requiring silent operation with both vibrant, full-color rendering and high-quality white light from a single fixture.
-
Offers a tunable CCT range from 2800 K to 8000 K with high CRI.
-
Includes emulated red-shift and +/- green adjustment for precise white light control.
-
Engineered for virtually silent operation with fan-off modes for noise-sensitive environments.
-
Achieves seamless fades and transitions with ultra-smooth 18-bit dimming curves.
-
Ensures flicker-free operation on camera with adjustable Pulse Width Modulation.
-
Features an innovative, adjustable yoke for easy mounting in low-clearance situations.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Quick Reference Guide | Download |
User Manual | Download |
2D CAD Drawings | Download |
CAD Drawings | Download |
IES Files | Download |
Photometrics Report | Download |
DMX Chart | Download |
Virtual Color Wheel Conversion Chart | Download |
Acoustic Report | Download |
Specification Sheet | Download |
Firmware | Download |
Revit File | Download |
Ovation Rêve E-3
Ovation Rêve E-3 is the brightest, multi-color LED ellipsoidal that also has the capability of producing perfectly tunable whites. It’s a new kind of epic story-telling machine that fuses the best of both worlds into one totally reimagined LED light source. Color Temperature presets ranging from 2800K to 8000K maintain outstanding brightness and a high quality of light, with an emulated “red shift” for a tungsten feel. Ovation Rêve E-3 also features several dimming curves, a virtually silent operation with fan-off modes, and a series of technician-friendly features such as an innovative, adjustable yoke that makes mounting in low clearance situations a breeze. With Ovation Rêve E-3 you can seamlessly transition from captivating a wide range of saturated colors in class-leading output to distinct whites with +/- green adjustments using one fixture. No ifs, or buts. Simply and categorically unrivaLED.
Features
Full Spectrum LED ERS Fixture
Provides high-quality, ERS-style lighting suitable for professional theatre, film, and production environments.
Adjustable Color Temperature
Offers linear color temperature presets from 2800 K to 8000 K with high CRI and CQS for accurate color reproduction.
Virtual Color Wheel
Includes a virtual color wheel with colors precisely matched to popular theatrical gel swatches.
Precise Color Control
Fine-tune your output with plus/minus green adjustment and emulated red-shift, accessible via DMX or on-board controls.
Remote Device Management
RDM capability allows for remote addressing and configuration, adding flexibility to your setup.
Flicker-Free Operation
Adjustable Pulse Width Modulation ensures the light source is flicker-free, making it perfect for on-camera use.
Silent Operation
Engineered for virtually silent operation, this fixture is ideal for noise-sensitive studio, film, and theatre applications.
Ultra-Smooth 18-Bit Dimming
Achieve seamless fades and transitions with ultra-smooth 18-bit dimming curves and adjustable speeds.
Adjustable Yoke
An innovative adjustable yoke allows for easy mounting and positioning, even in areas with low clearance.
Integrated Gobo Rotator Control
Offers direct power, data, and control connections for the Ovation GR-1 gobo rotator accessory.
USB Software Updates
A convenient USB port allows for simple fixture software updates to keep the unit current.
Complete Your Rig
Specifications
Optical
-
Light Source
91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy (L70)
-
Color Temperature (range)
2800 to 8000 K
-
Color Temperature (at full)
5470K
-
CRI (3200 K)
95.4
-
Barrel Rotation
+/- 25°
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
-
-
5° Lens
-
Beam Angle
4.6°
-
Field Angle
5.6°
-
Illuminance
31,856 lux @ 5 m
-
Lumens
5,076
-
-
5° Lens
-
-
10° Lens
-
Beam Angle
10°
-
Field Angle
11.1°
-
Illuminance
18,924 lux @ 5 m
-
Lumens
11,250
-
-
10° Lens
-
-
14° Lens
-
Beam Angle
14.8°
-
Field Angle
16°
-
Illuminance
9,284 lux @ 5 m
-
Lumens
12,179
-
-
14° Lens
-
-
15°–30° Lens
-
Lumens
12,057
-
-
15°–30° Lens
-
-
15°–30° Lens (Narrow)
-
Beam Angle
13°
-
Field Angle
15.4°
-
Illuminance
9,292 lux @ 5 m
-
-
15°–30° Lens (Narrow)
-
-
15°–30° Lens (Wide)
-
Beam Angle
28.5°
-
Field Angle
32.2°
-
Illuminance
2,671 lux @ 5 m
-
-
15°–30° Lens (Wide)
-
-
19° Lens
-
Beam Angle
18.5°
-
Field Angle
21.6°
-
Illuminance
5,635 lux @ 5 m
-
Lumens
12,156
-
-
19° Lens
-
-
25°–50° Lens
-
Lumens
14,355
-
-
25°–50° Lens
-
-
25°–50° Lens (Narrow)
-
Beam Angle
23.6°
-
Field Angle
25.8°
-
Illuminance
3,710 lux @ 5 m
-
-
25°–50° Lens (Narrow)
-
-
25°–50° Lens (Wide)
-
Beam Angle
40.5°
-
Field Angle
44.1°
-
Illuminance
1,527 lux @ 5 m
-
-
25°–50° Lens (Wide)
-
-
26° Lens
-
Beam Angle
26°
-
Field Angle
29.6°
-
Illuminance
3,378 lux @ 5 m
-
Lumens
13,300
-
-
26° Lens
-
-
36° Lens
-
Beam Angle
33.3°
-
Field Angle
37.1°
-
Illuminance
2,085 lux @ 5 m
-
Lumens
13,223
-
-
36° Lens
-
-
50° Lens
-
Beam Angle
49.5°
-
Field Angle
55.7°
-
Illuminance
870 lux @ 5 m
-
Lumens
12,216
-
-
50° Lens
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Focus
Manual
-
Strobe Rate
0 to 30 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Dim Curves
4
-
Built-in Automated Programs
Yes
Construction/Physical
-
-
Dimensions
-
Dimensions (fixture only, yoke up)
20.44 x 13.07 x 20.53 in (519 x 332 x 522 mm)
-
Dimensions (w/5° lens extended, yoke up)
41.60 x 14.17 x 21.42 in (1056 x 360 x 544 mm)
-
Dimensions (w/10° lens extended, yoke up)
32.87 x 13.07 x 20.01 in (835 x 332 x 510 mm)
-
Dimensions (w/14° lens extended, yoke up)
29.7 x 13.07 x 20.53 in (755 x 332 x 522 mm)
-
Dimensions (w/19°, 26°, 36° or 50° lens extended, yoke up)
26.83 x 13.07 x 20.53 in (681 X 332 X 522 mm)
-
Dimensions (w/15°–30° lens, yoke up)
33.02 x 13.52 x 20.53 in (839 x 343 x 522 mm)
-
Dimensions (w/25°–50° lens, yoke up)
25.74 x 13.52 x 20.53 in (838 x 343 x 522 mm)
-
-
Dimensions
-
-
Weights
-
Weight (fixture only)
18.6 lb (8.4 kg)
-
Weight (w/5° lens)
26 lb (11.7 kg)
-
Weight (w/10° lens)
24 lb (10.8 kg)
-
Weight (w/14° lens)
25.6 lb (11.6 kg)
-
Weight (w/26° lens)
24.2 lb (10.9 kg)
-
Weight (w/15°–30° lens)
32.3 lb (14.6 kg)
-
Weight (w/25°–50° lens)
29.8 lb ( 13.5 kg)
-
-
Weights
-

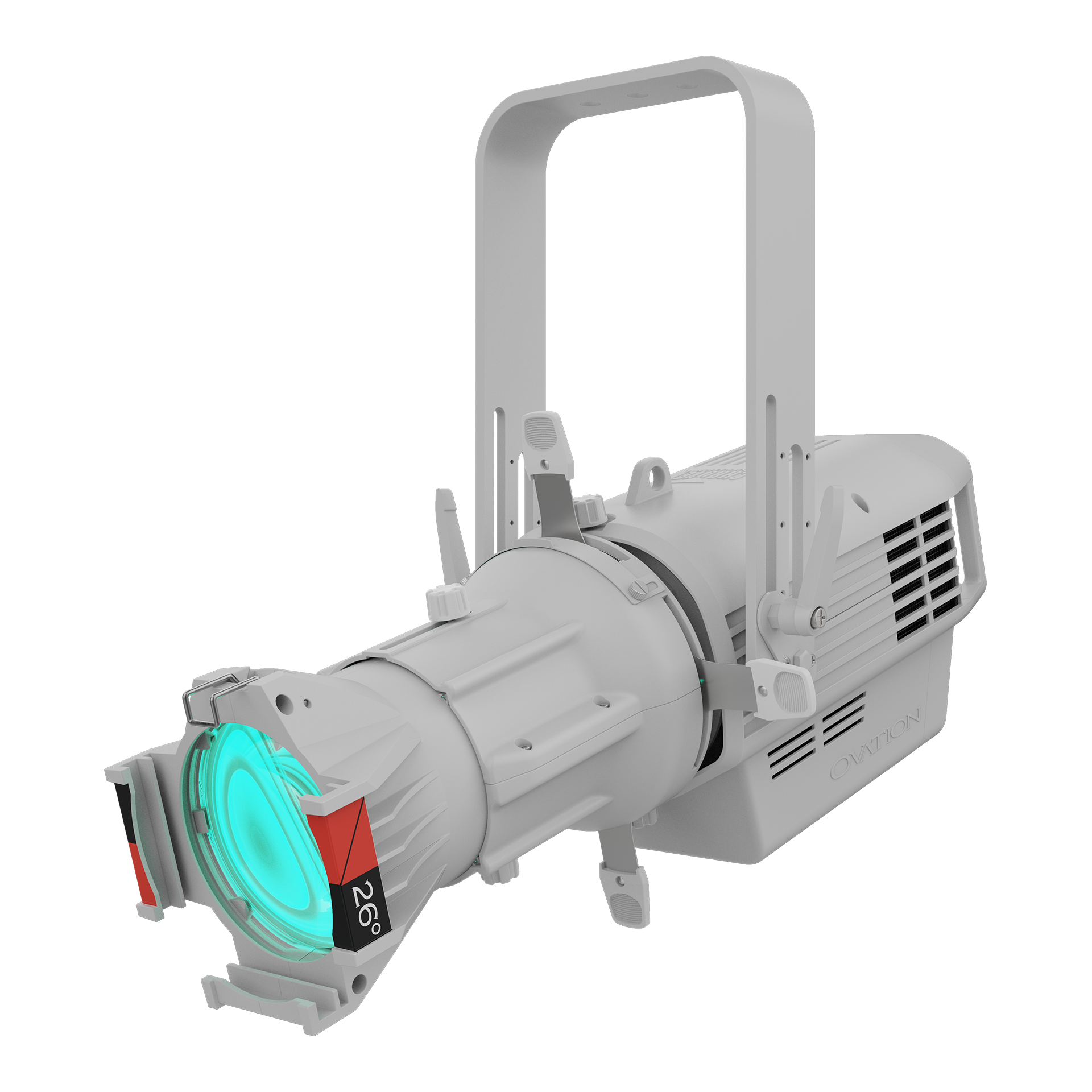

Exterior Color

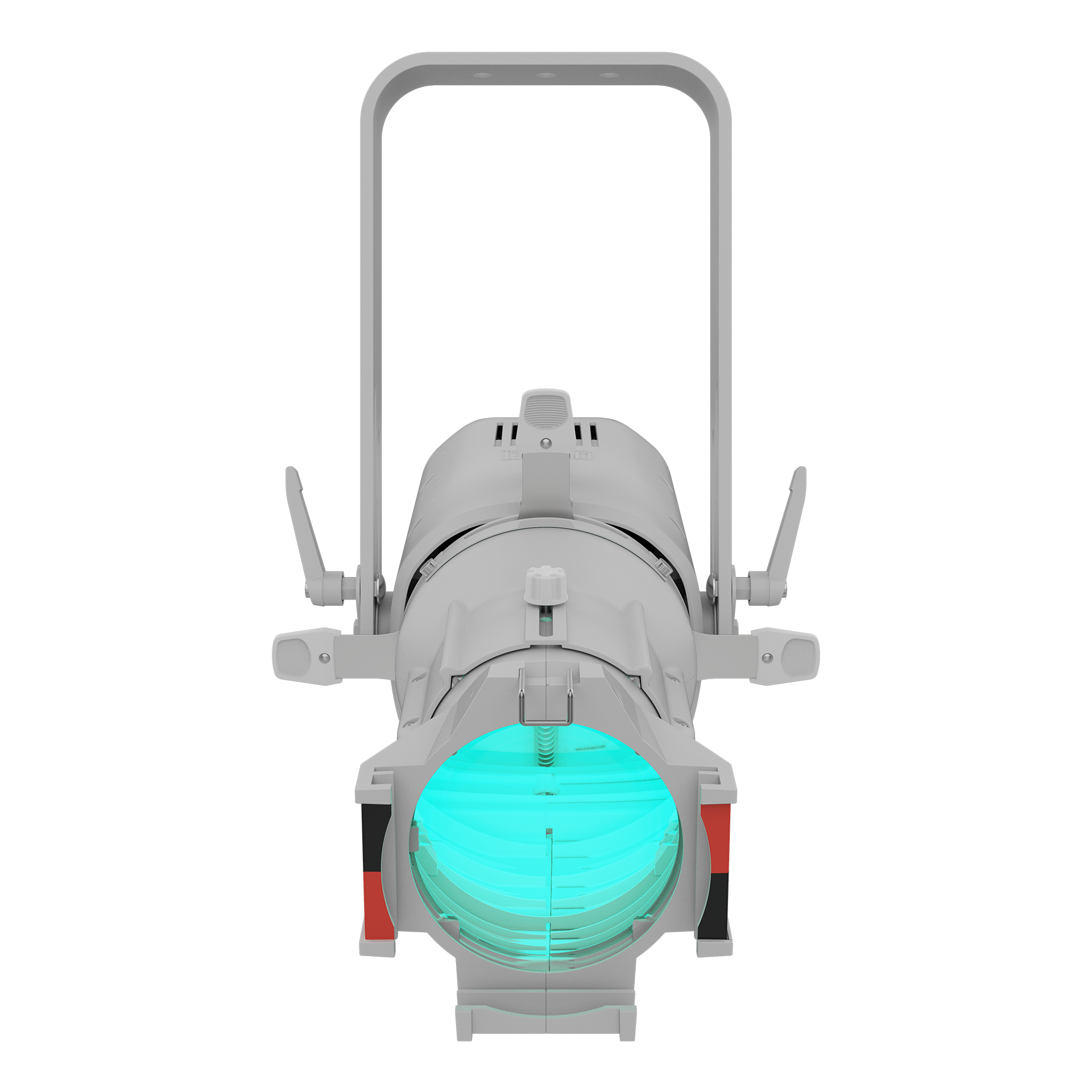

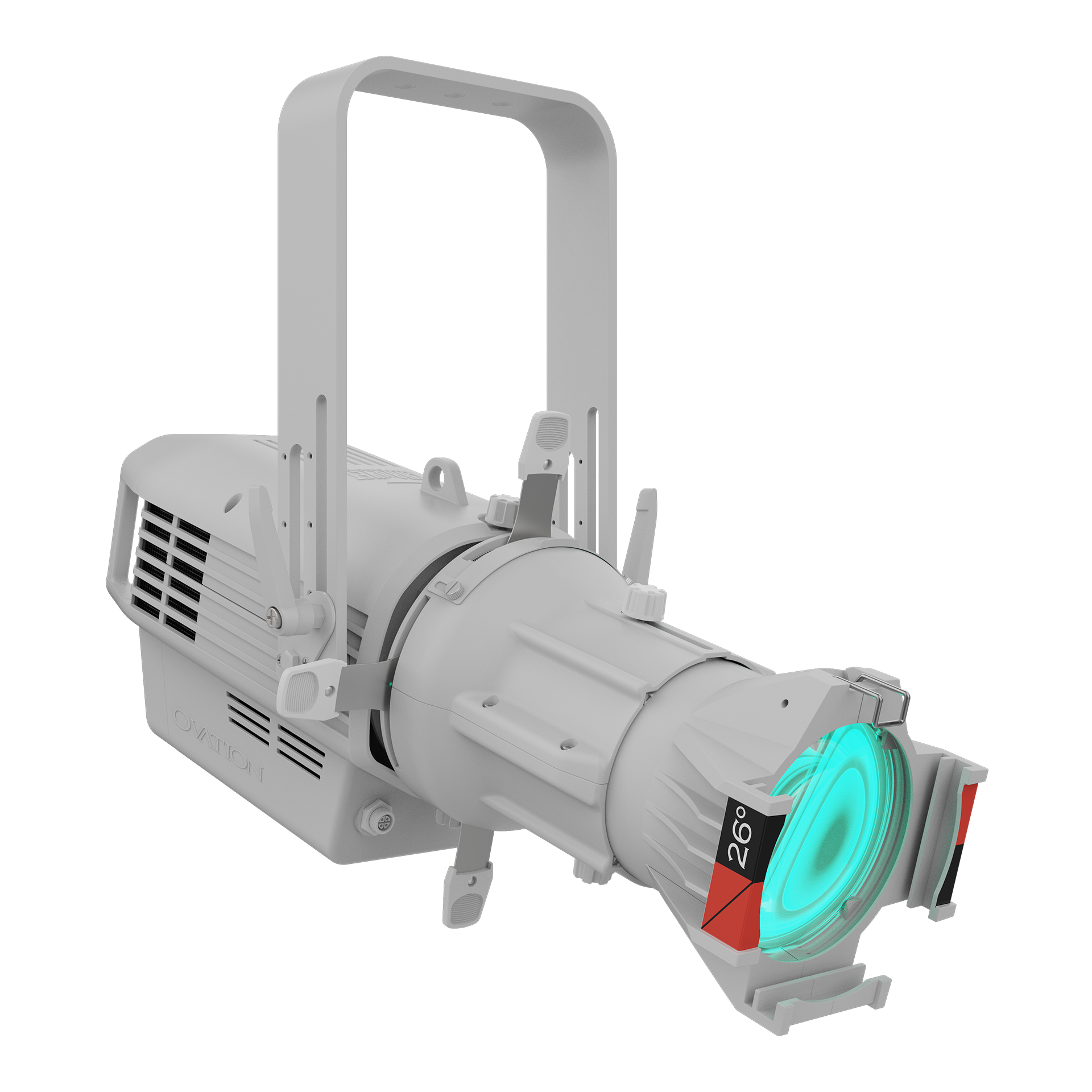

Black or White
-
Gobo Size (Optional)
“A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
-
Gobo Size (Optional)
“B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
-
-
Accessory Holder/Gel Frame Size
-
(5° Lens)
14 in (356 mm)
-
(10° Lens)
12 in (304 mm)
-
(14° Lens)
7.5 in (191 mm)
-
(19°, 26°, 36°, And 50° Lens)
6.25 in (159 mm)
-
(15°–30° Lens)
7.5 in (191 mm)
-
(25°–50° Lens)
7.5 in (191 mm)
-
-
Accessory Holder/Gel Frame Size

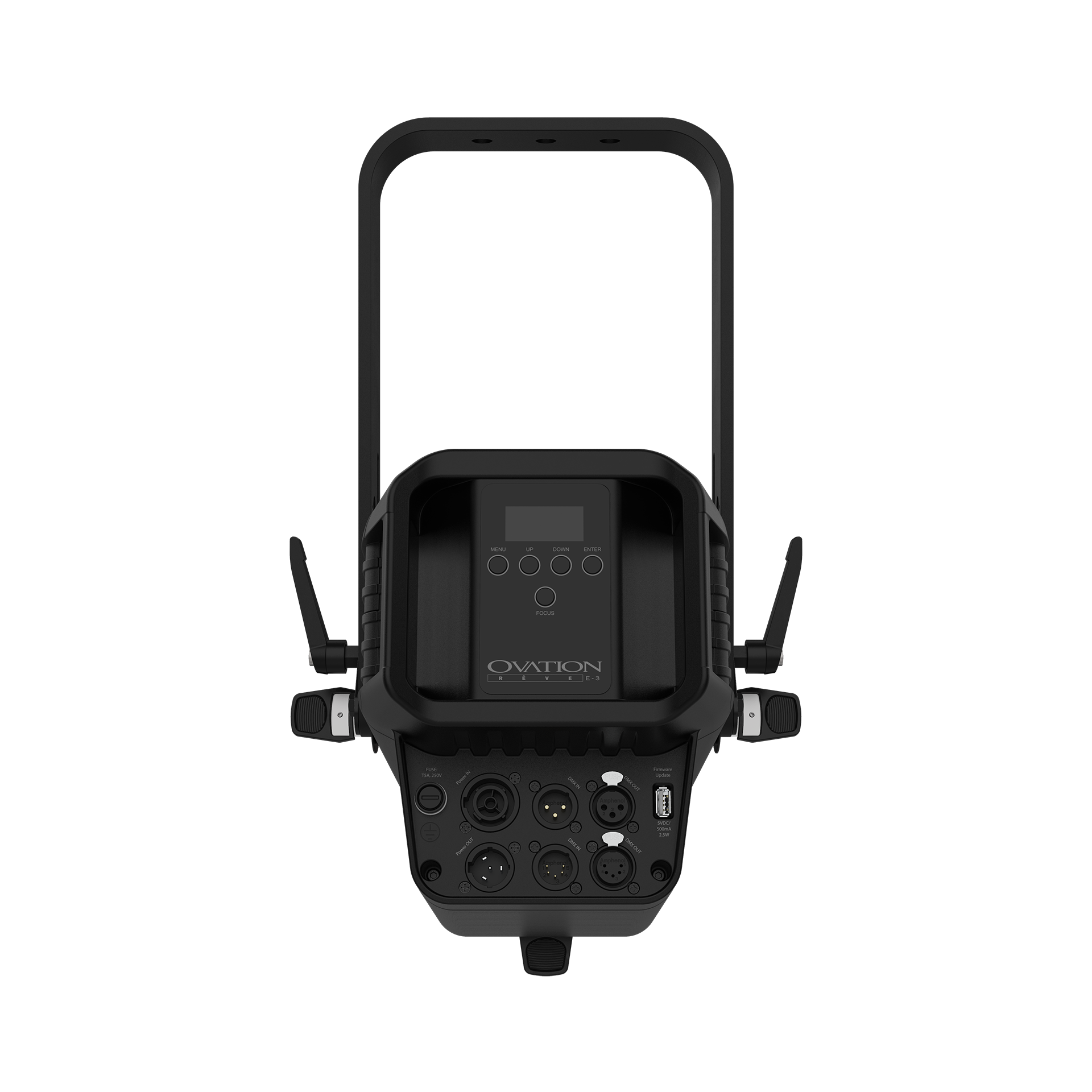

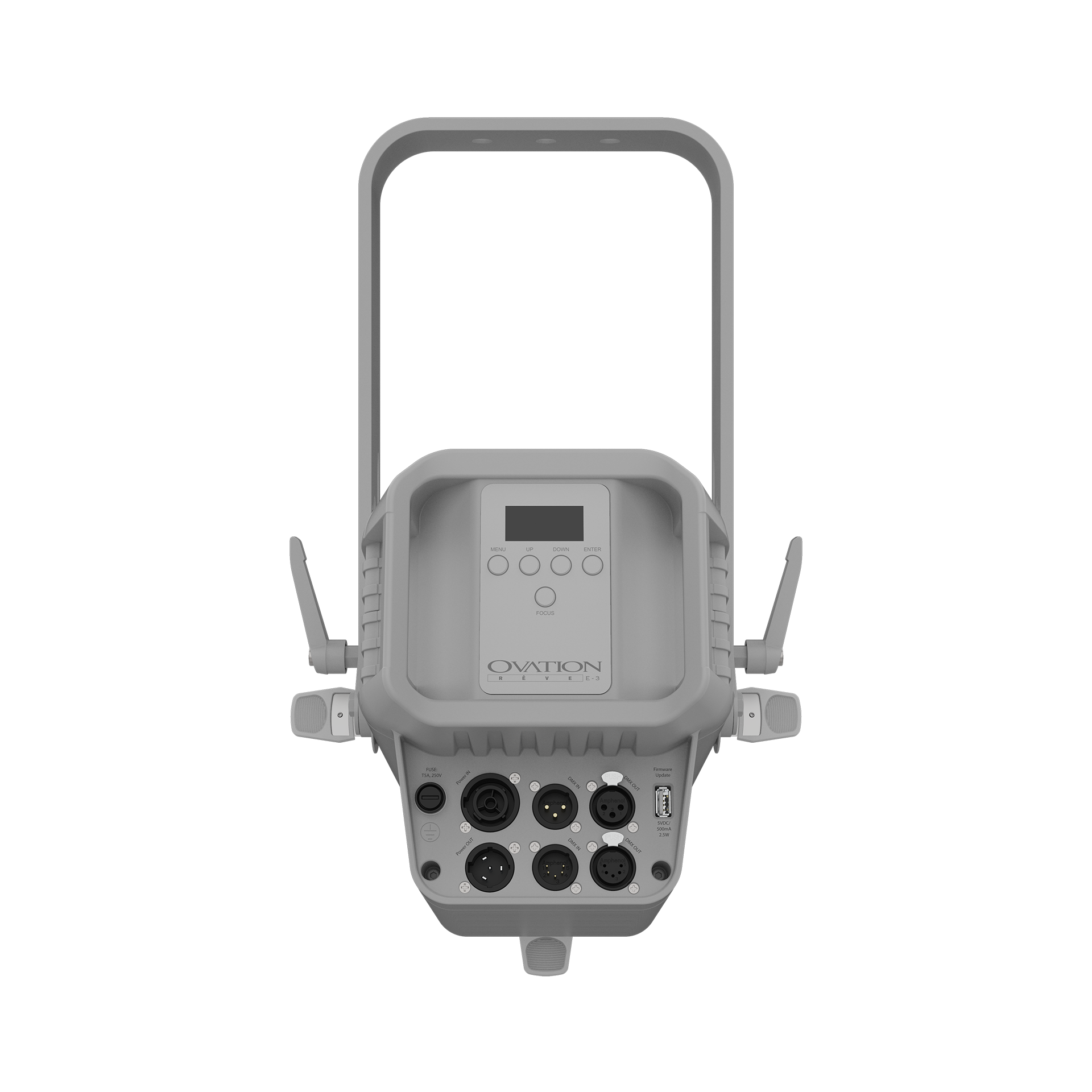

Connections
-
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Data Connectors
3- and 5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
-
Software Connection
USB
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
-
Modes/Personalities
9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
-
Power and Current
367 W, 3.04 A @ 120 V, 60 Hz
-
Power and Current
356 W, 1.76 A @ 208 V, 60 Hz
-
Power and Current
353 W, 1.59 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC
-
IP Rating
IP20, dry location
-
-
Noise Levels
-
Noise Level (Idle)
17.5 dB(A) @ 1 m
-
Noise Level (Auto)
24.6 dB(A) @ 1 m
-
Noise Level (On)
28.7 dB(A) @ 1 m
-
Noise Level (Off)
12.0 dB(A) @ 1 m
-
Noise Level (Silent)
19.6 dB(A) @ 1 m
-
-
Noise Levels
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Required Accessories
- Lens Tube: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°-30°, 25°-50°
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-07
- TRUE1 Style Power Extension Cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- RDM2go
- Ovation Glass Gobo Holder
- Ovation Metal Gobo Holder
- Ovation Iris
- USB Jump Drive
What's Included
- Ovation Reve E-3
- Seetronic Powerkon power cord
- Ovation Metal Gobo Holder
- Soft Focus Filter
