Ovation Rêve E-3 IP
A virtually silent, IP65-rated LED ERS-style fixture featuring a powerful light engine capable of producing full-spectrum colors and tunable whites with advanced control over dimming and color rendition.
Perfect for indoor or outdoor studio, theatre, and film applications requiring quiet operation and superior, high-quality light.
-
Delivers superior color rendering with a 93.5 CRI from a 6-color LED system.
-
Offers linear color temperature presets from 2800 K to 8000 K for precise white balancing.
-
Built with a fanless, IP65-rated housing for silent, all-weather operation.
-
Achieve seamless fades and flicker-free operation with 18-bit dimming and adjustable PWM.
-
Provides precise color control with plus/minus green adjustment and emulated red-shift.
-
Supports DMX and RDM protocols for versatile control and flexible setup options.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.

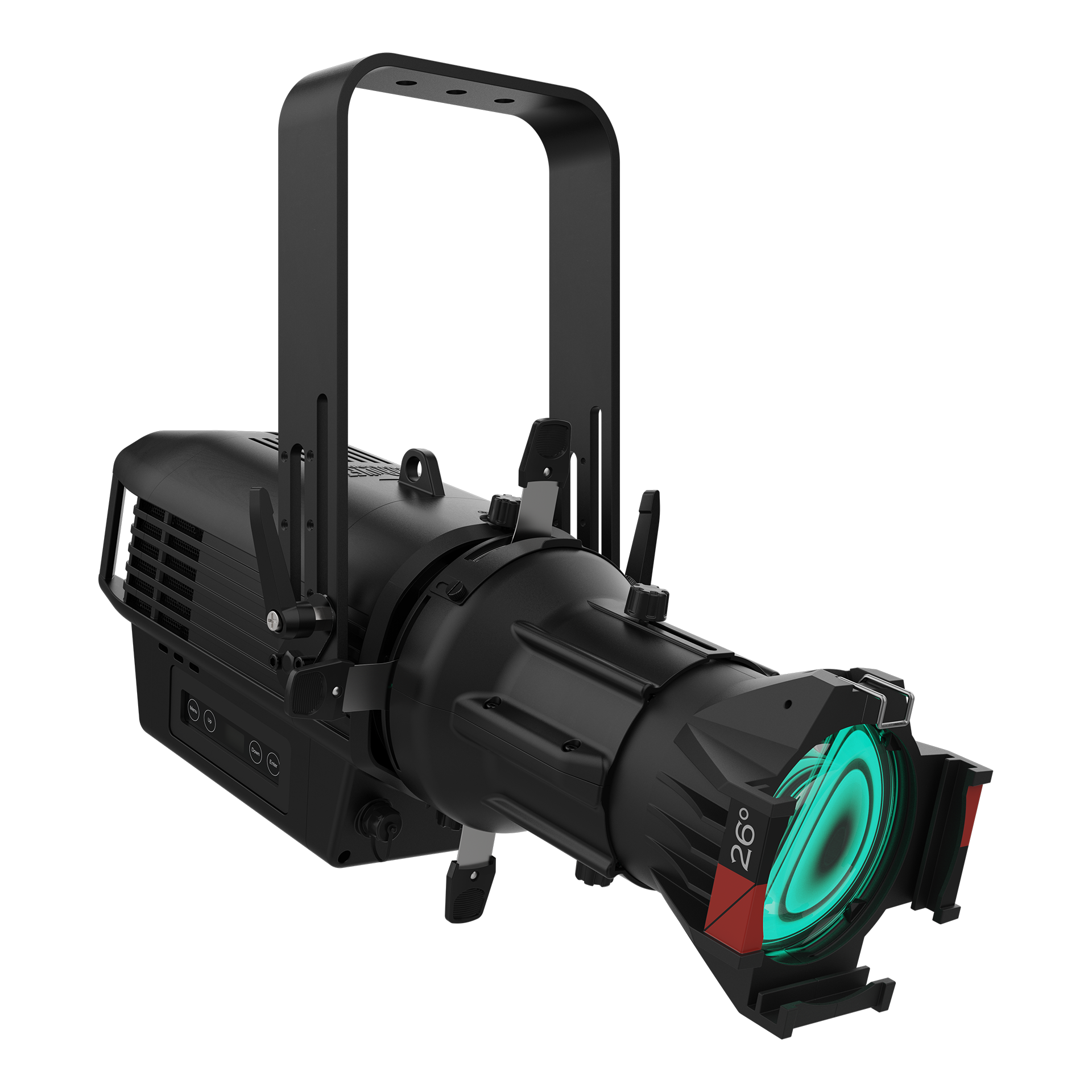

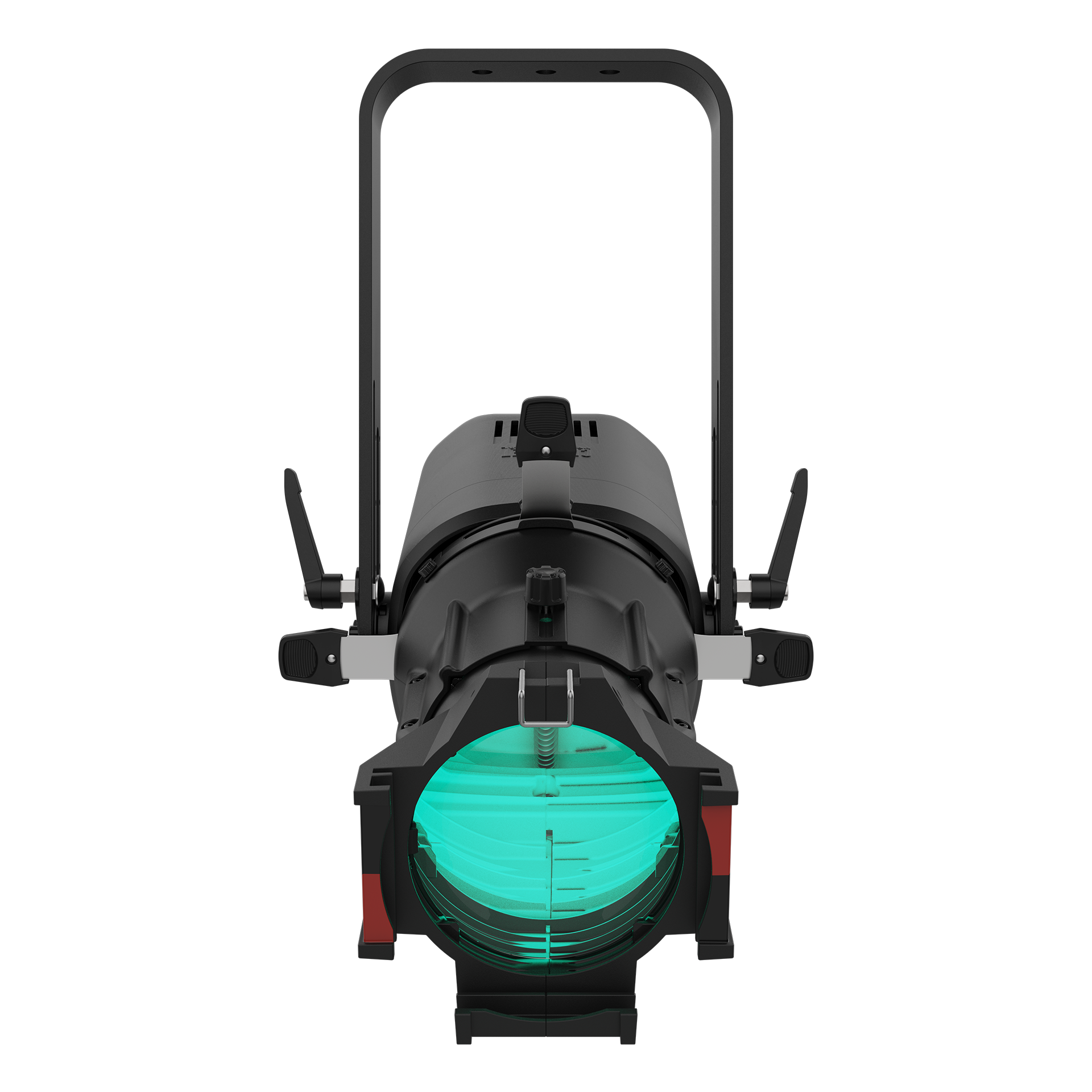

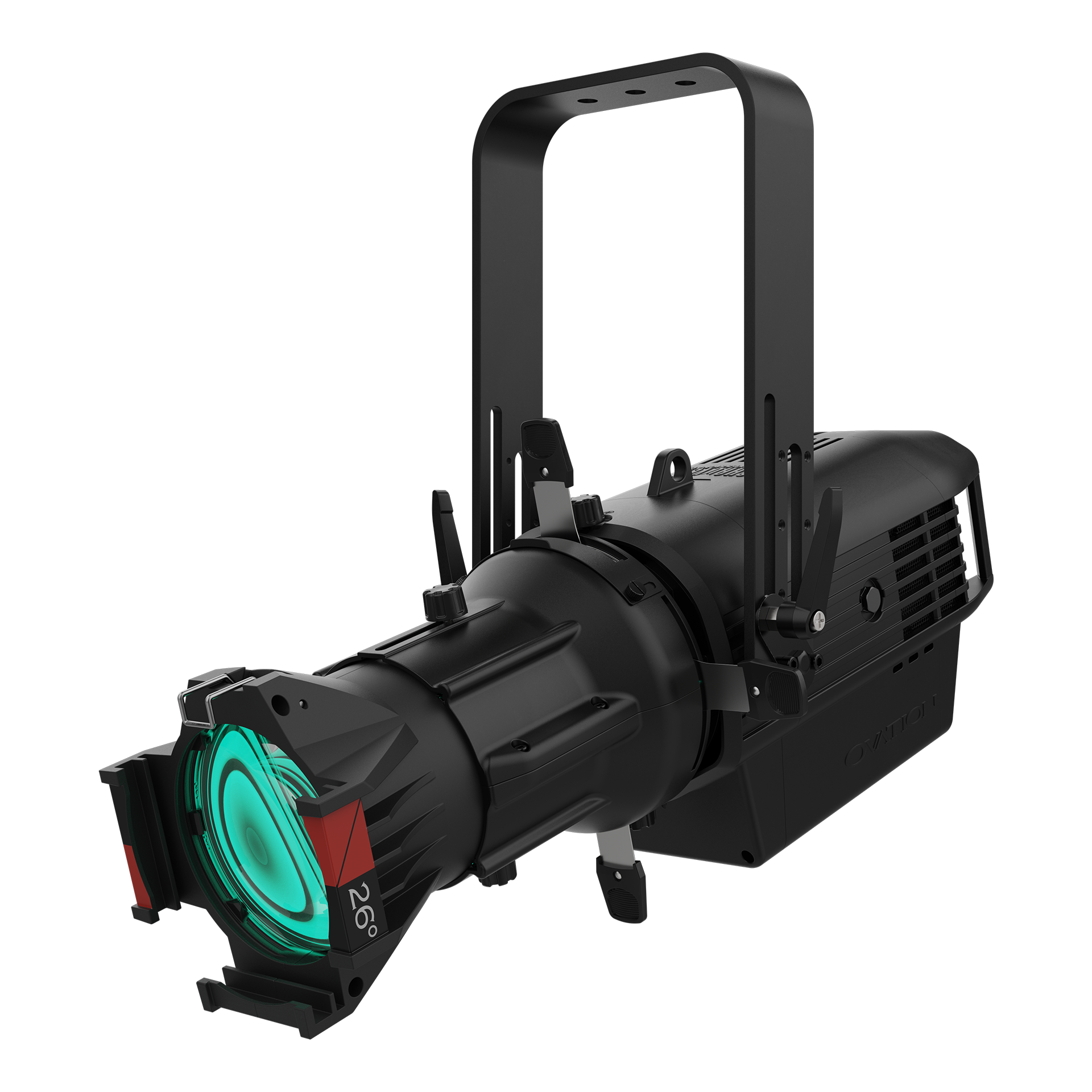

Ovation Rêve E-3 IP
Ovation Rêve E-3 IP is an outdoor-ready, LED ERS-style lighting fixture. Virtually silent and IP65 rated. It’s perfect for studio, theatre, and film applications – both indoors and out. It has the brightest light engine that can produce full-spectrum colors and tunable whites. Ovation Rêve E-3 IP features adjustable PWM, +/- green adjustment and emulated red-shift, and ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme, anywhere.
Features
High Power ERS Style Fixture
This full-spectrum, high-power LED ERS-style lighting fixture is designed for theatre, film, and production.
IP65 Weatherproof Rating
A full IP65 rating allows for reliable seasonal use in both indoor and outdoor environments.
Adjustable Color Temperature
Access linear color temperature presets from 2800 K to 8000 K with high CRI and CQS for superior color rendering.
Virtual Color Wheel
A built-in virtual color wheel provides instant access to colors matched to popular gel filters.
Precise Color Control
Fine-tune your look with plus/minus green adjustment and emulated red-shift via DMX or on-board control.
RDM Enabled
Remote Device Management (RDM) is included for increased setup and operational flexibility.
Flicker Free Operation
Adjustable Pulse Width Modulation (PWM) ensures the light source is flicker-free for on-camera applications.
Silent Operation
The fixture operates virtually silently, making it ideal for noise-sensitive studio, film, and theatre environments.
Smooth 18-Bit Dimming
Achieve seamless fades and transitions with ultra-smooth 18-bit dimming curves and adjustable speeds.
Adjustable Yoke
An innovative adjustable yoke allows for easy mounting and positioning, even in areas with low clearance.
Gobo Rotator Integration
Features direct power, data, and control connections specifically for the Ovation GR-1 gobo rotator.
USB Software Updates
A convenient USB port allows for simple fixture software updates to keep it current.
Specifications
Optical
-
Light Source
91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy
-
Color Temperature (range)
2800 to 8000 K
-
Color Temperature (at full)
6,428 K
-
CRI
93.5
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
-
-
5° Lens
-
Beam Angle
6.7°
-
Field Angle
7.9°
-
Illuminance
28,740 lux @ 5 m
-
Lumens
8,335
-
-
5° Lens
-
-
10° Lens
-
Beam Angle
11.1°
-
Field Angle
12.8°
-
Illuminance
15,108 lux @ 5 m
-
Lumens
11,092
-
-
10° Lens
-
-
14° Lens
-
Beam Angle
14.2°
-
Field Angle
16.9°
-
Illuminance
8,823 lux @ 5 m
-
Lumens
10,700
-
-
14° Lens
-
-
15°–30° Lens (Narrow)
-
Beam Angle
14.3°
-
Field Angle
17.3°
-
Illuminance
7,731 lux @ 5 m
-
Lumens
9,166
-
-
15°–30° Lens (Narrow)
-
-
15°–30° Lens (Wide)
-
Beam Angle
23.8°
-
Field Angle
33.2°
-
Illuminance
2,484 lux @ 5 m
-
Lumens
11,395
-
-
15°–30° Lens (Wide)
-
-
19° Lens
-
Beam Angle
17.6°
-
Field Angle
20.8°
-
Illuminance
5,377 lux @ 5 m
-
Lumens
10,185
-
-
19° Lens
-
-
25°–50° Lens (Narrow)
-
Beam Angle
24.7°
-
Field Angle
27.3°
-
Illuminance
3,174 lux @ 5 m
-
Lumens
11,810
-
-
25°–50° Lens (Narrow)
-
-
25°–50° Lens (Wide)
-
Beam Angle
41.1°
-
Field Angle
44.7°
-
Illuminance
1,502 lux @ 5 m
-
Lumens
14,328
-
-
25°–50° Lens (Wide)
-
-
26° Lens
-
Beam Angle
26°
-
Field Angle
28.2°
-
Illuminance
3,300 lux @ 5 m
-
Lumens
12,178
-
-
26° Lens
-
-
36° Lens
-
Beam Angle
32.8°
-
Field Angle
37°
-
Illuminance
1,977 lux @ 5 m
-
Lumens
11,888
-
-
36° Lens
-
-
50° Lens
-
Beam Angle
50°
-
Field Angle
54.2°
-
Illuminance
864 lux @ 5 m
-
Lumens
11,274
-
-
50° Lens
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Focus
Manual
-
Strobe Rate
0 to 28.6 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Dim Curves
4
-
Built-in Automated Programs
Yes
Construction/Physical
-
-
Dimensions
-
Fixture Only (Yoke Up)
20.83 x 12.71 x 19.75 in (529.3 x 323 x 501.7 mm)
-
w/5° Lens Extended (Yoke Up)
42.25 x 14.5 x 19.75 in (1073.15 x 368.3 x 501.7 mm)
-
w/10° Lens Extended (Yoke Up)
33.5 x 12.71 x 19.75 in (850.9 x 323 x 501.7 mm)
-
w/14° Lens Extended (Yoke Up)
30.25 x 12.71 x 19.75 in (768.35 x 323 x 501.7 mm)
-
w/19°, 26°, 36° or 50° Lens Extended (Yoke Up)
27.5 x 12.71 x 19.75 in (698.5X 323 X 501.7 mm)
-
w/15°–30° Lens (Yoke Up)
33.75 x 12.71 x 19.75 in (857.25 x 323 x 501.7 mm)
-
w/25°–50° Lens (Yoke Up)
26.5 x 12.71 x 19.75 in (673.1x 323 x 501.7 mm)
-
-
Dimensions
-
-
Weight
-
Fixture Only
20.6 lb (9.34 kg)
-
w/5° Lens
25.2 lb (11.43 kg)
-
w/10° Lens
23.8 lb (10.79 kg)
-
w/14° Lens
26 lb (11.79 kg)
-
w/26° Lens
24.4 lb (11.06 kg)
-
w/15°–30° Lens
30.2 lb (13.69 kg)
-
w/25°–50° Lens
26.8 lb ( 12.15 kg)
-
-
Weight
-
Exterior Color
Black
-
Housing Material
Magnesium alloy
-
-
Gobo Size (Optional)
-
A
100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
-
B
86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
-
-
Gobo Size (Optional)
-
-
Accessory Holder/Gel Frame Size
-
5° Lens
14 in (356 mm)
-
10° Lens
12 in (304 mm)
-
14° Lens
7.5 in (191 mm)
-
19°, 26°, 36°, and 50° Lens
6.25 in (159 mm)
-
15°–30° Lens
7.5 in (191 mm)
-
25°–50° Lens
7.5 in (191 mm)
-
-
Accessory Holder/Gel Frame Size

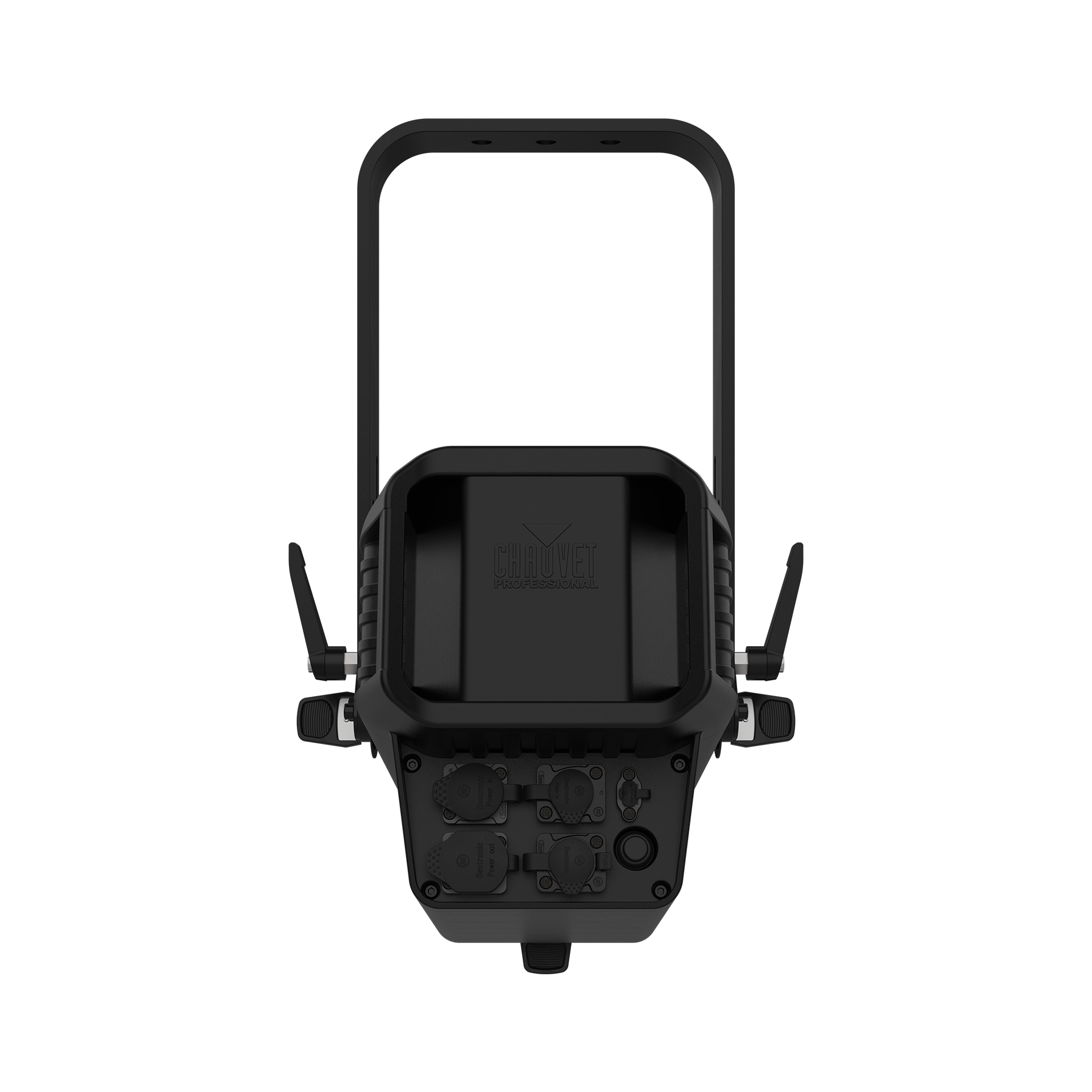

Connections
-
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Data Connectors
5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
-
Software Connection
Type-C USB
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
-
Modes/Personalities
9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
4 units @ 120 V; 7 units @ 208 V; 7 units @ 230 V
-
Power and Current
354 W, 2.999 A @ 120 V, 60 Hz
-
Power and Current
345 W, 1.707 A @ 208 V, 60 Hz
-
Power and Current
342 W, 1.555 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC, UKCA
-
IP Rating
IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
-
-
Noise Levels
-
Idle
11.4 dB(A) @ 1 m
-
Auto
30.3 dB(A) @ 1 m
-
On
36.1 dB(A) @ 1 m
-
Off
0.7 dB(A) @ 1 m
-
Silent
26.5 dB(A) @ 1 m
-
-
Noise Levels
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Required Accessories
- Lens Tube: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°-30°, 25°-50°
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-08
- TRUE1 Style Power Extension Cables
- 5-pin IP65 DMX Cables
- RDM2go
- Ovation Glass Gobo Holder
- Ovation Metal Gobo Holder
- Ovation Iris
- Ovation GR-1 IP Gobo Rotator
- USB Jump Drive
What's Included
- Ovation Rêve E-3 IP
- Seetronic Powerkon power cable
- Ovation Metal Gobo Holder
- Soft Focus Filter
