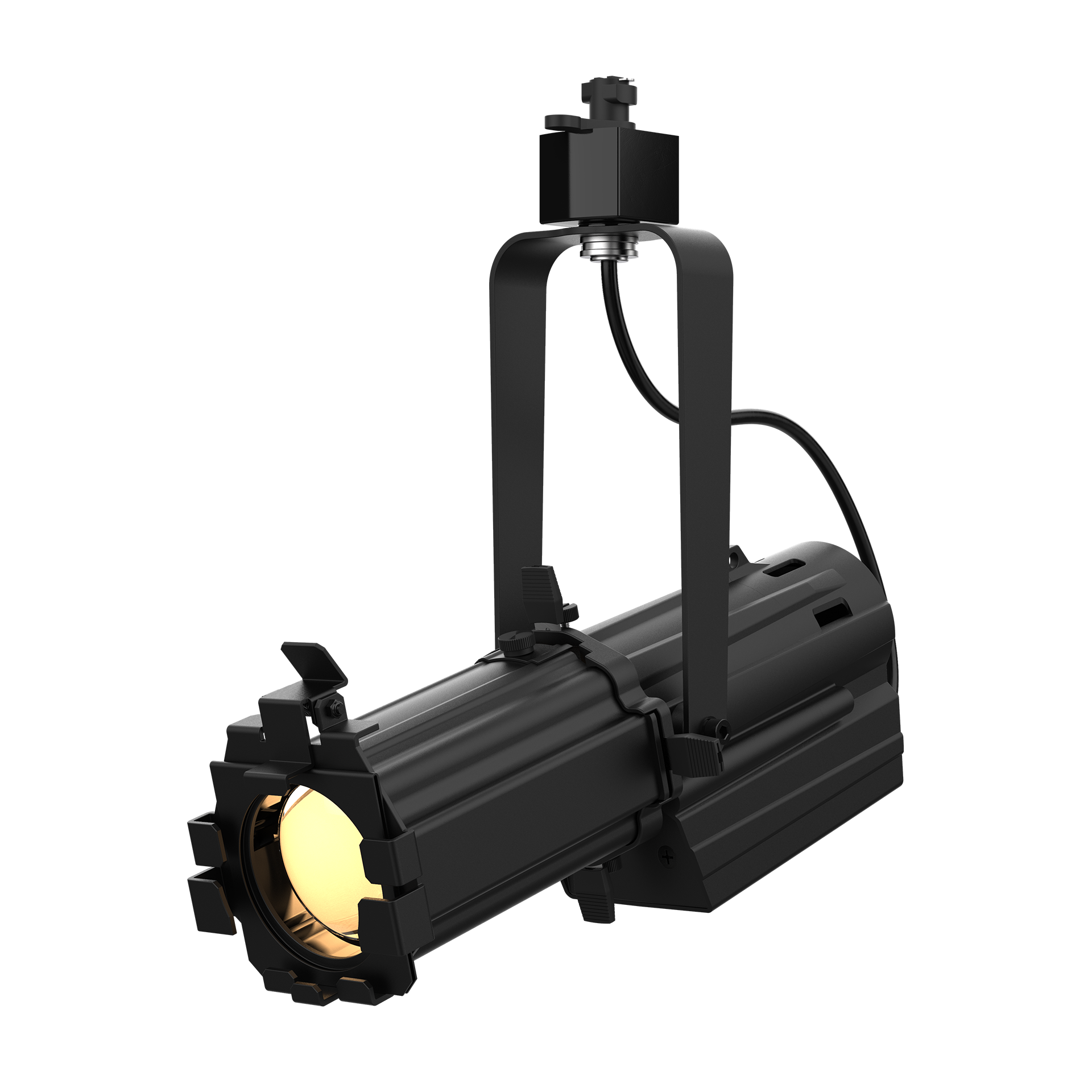

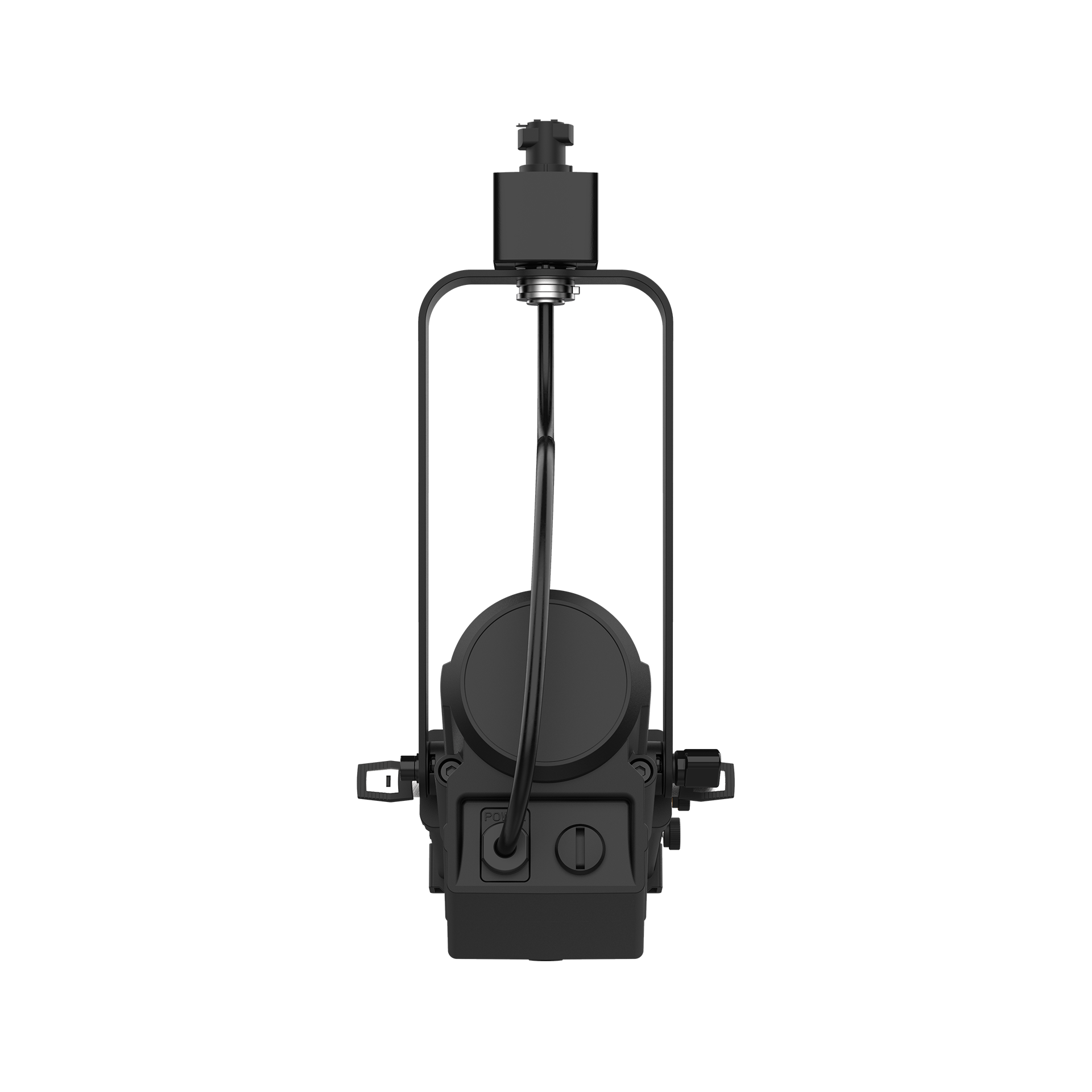

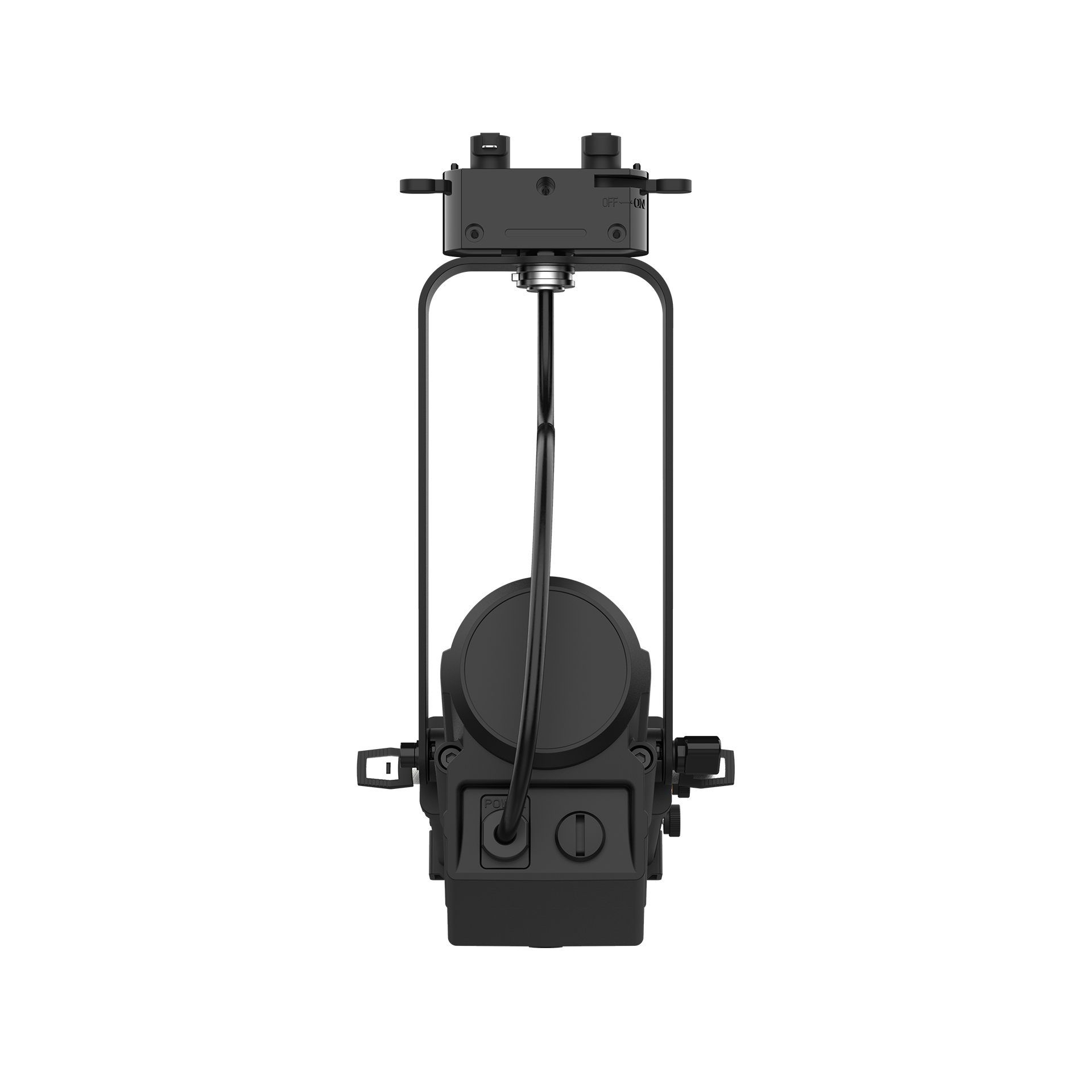

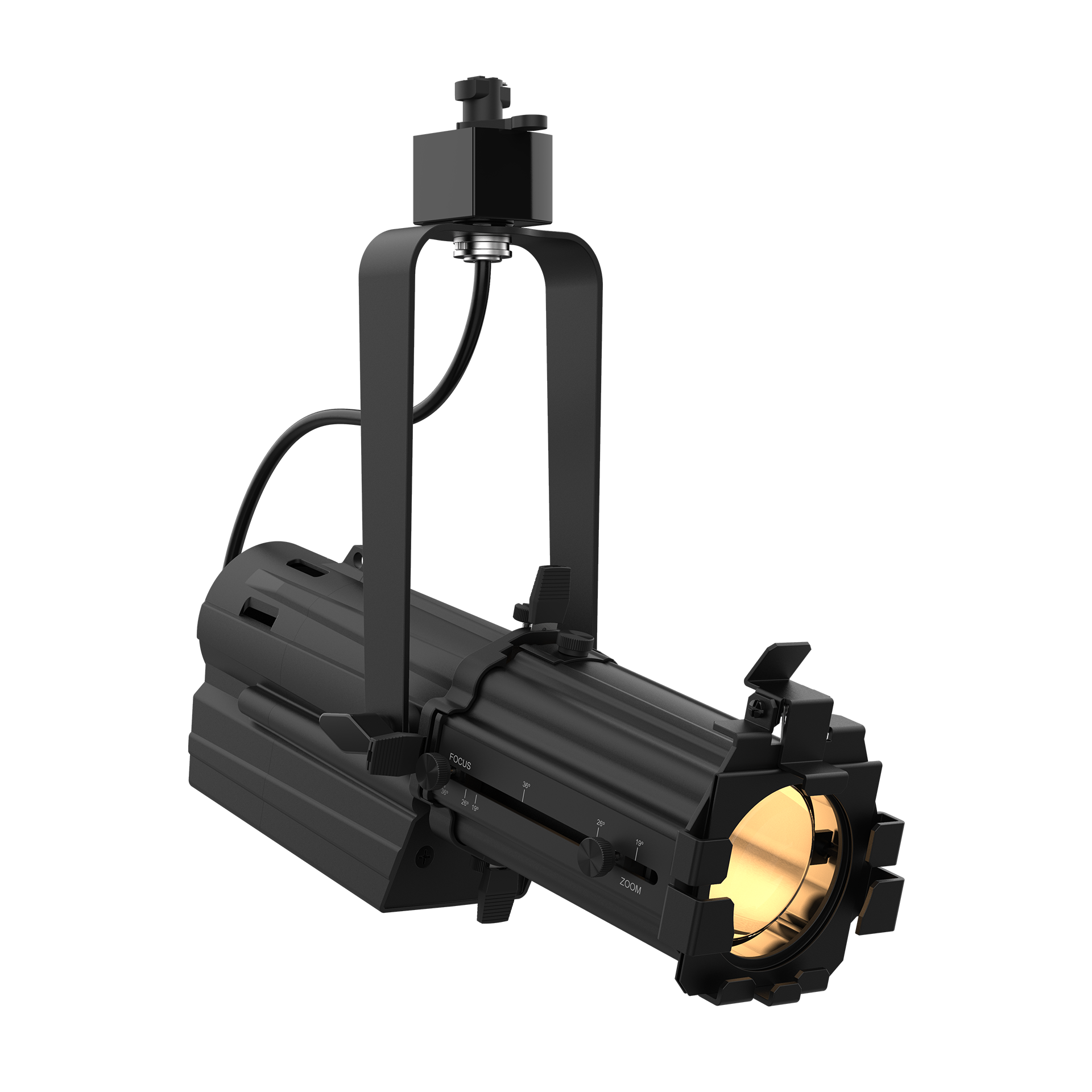

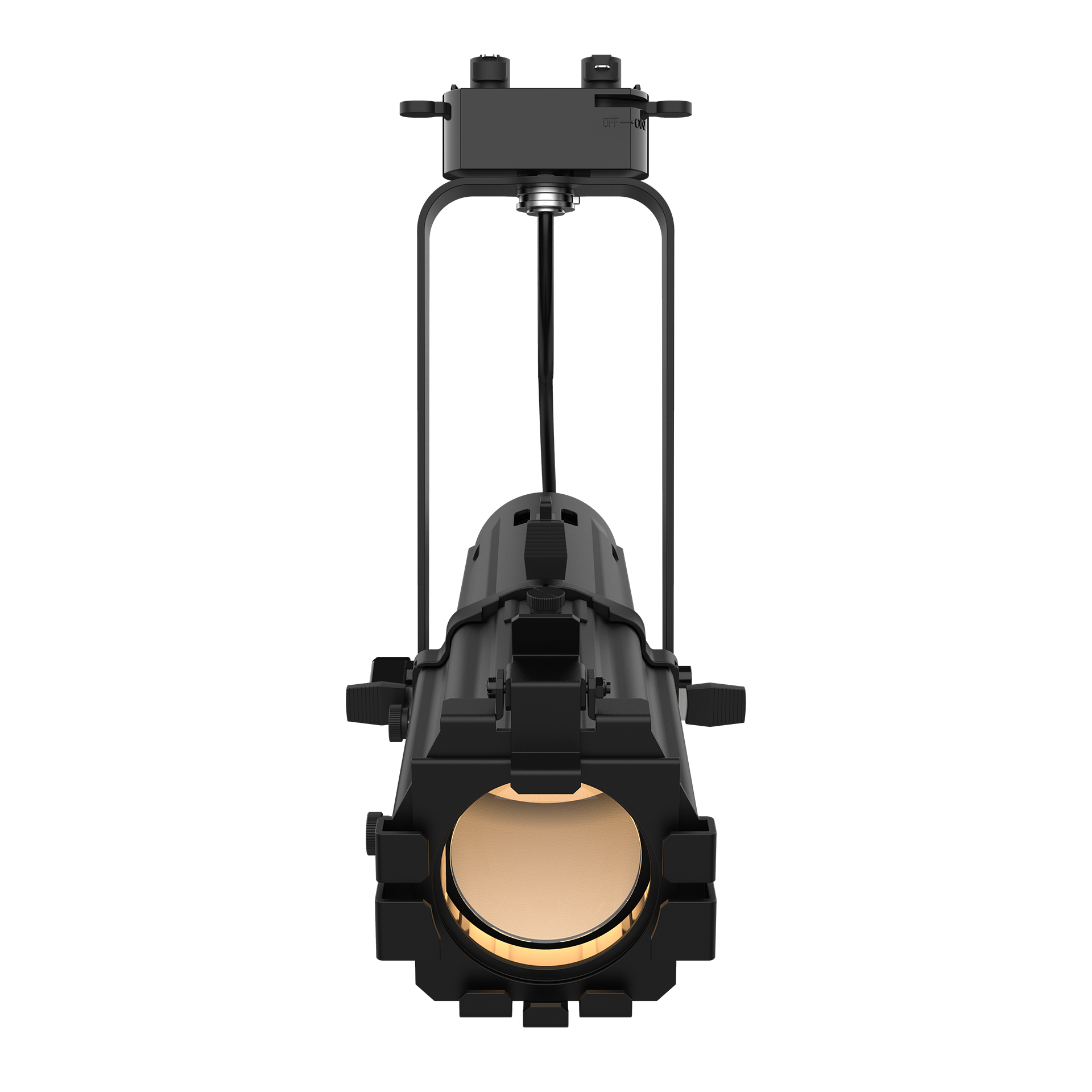

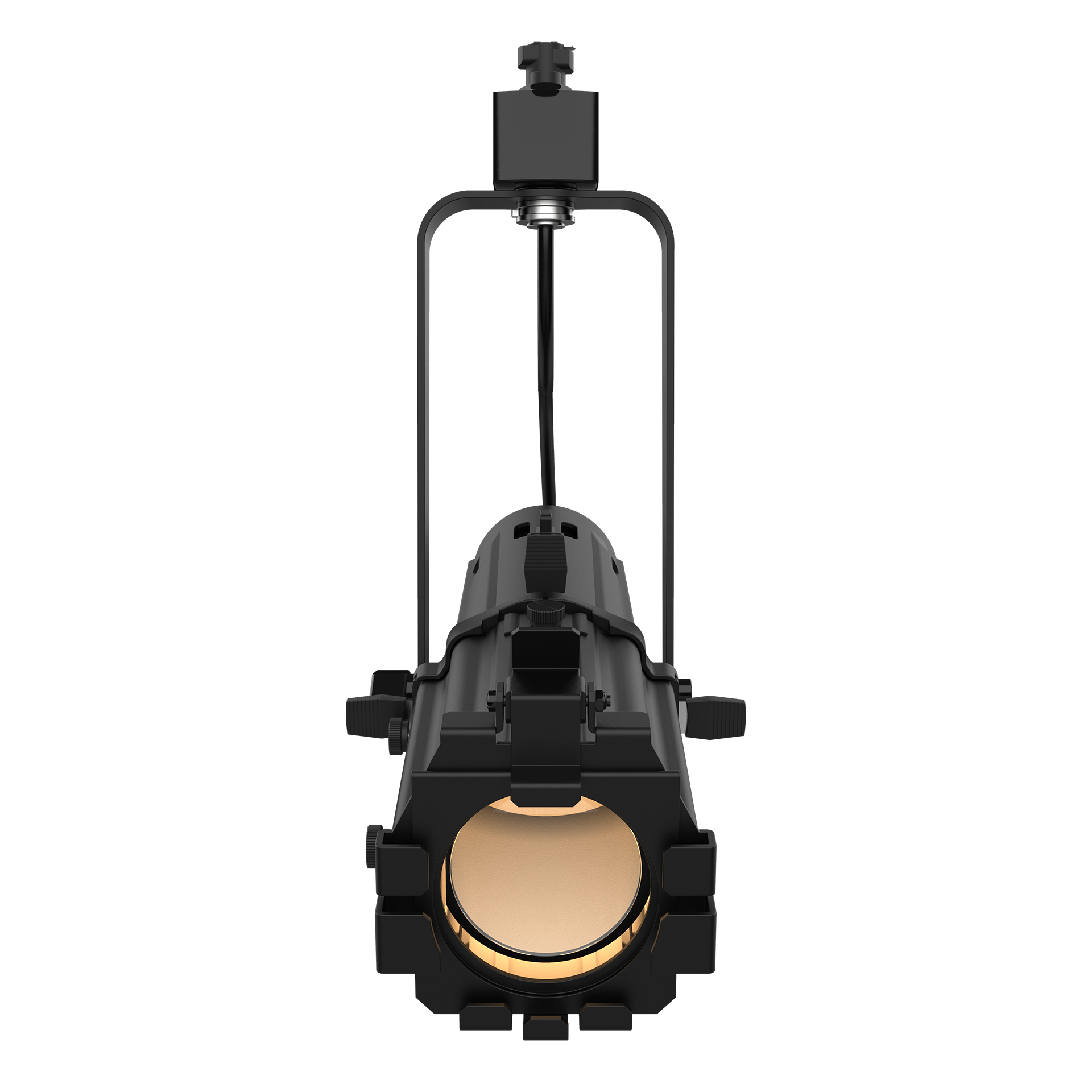

Ovation ETD-40WW
A compact, track-mountable 40W warm white LED ellipsoidal with high CRI, zooming optics, and framing shutters for creating a precise, hard-edged beam for gobo projection.
Ideal for architectural and retail installations requiring a versatile, high-quality fixture to precisely highlight specific areas or products.
-
Delivers 40W of warm white light with an exceptional 93 CRI for accurate color rendering.
-
Offers a manual zoom range from a tight 19° spot to a wider 36° wash.
-
Allows for precise beam shaping with integrated, manually-operated framing shutters.
-
Accepts standard size E glass or metal gobos for versatile pattern projection.
-
Designed for fast installation on most common track lighting systems.
-
Operates efficiently with a low power consumption of only 37W at 120V.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Ovation ETD-40WW
Ovation ETD-40WW is a best-in-class track-mountable 40W warm white LED ellipsoidal. This compact LED fixture has tremendous output with high CRI and creates a hard-edged beam for precise gobo projection. Designed for architectural and retail installations, this luminaire is equipped with fantastic zooming optics that provide a beam angle from 19° to 36° and can be adjusted with framing shutters to highlight desired areas.
Features
Hard Edged Beam
This compact LED ellipsoidal produces a sharp, hard-edged beam ideal for crisp gobo projections.
Track Mountable
Easily install the fixture on readily available track lighting rails for flexible placement.
High Output and CRI
Delivers a powerful light output with a high Color Rendering Index to ensure colors appear natural.
Integrated Framing Shutters
Manually alter and shape the beam of light to precisely highlight specific areas.
Standard Gobo Compatibility
Accommodates standard size E glass or metal gobos for a wide range of pattern options.
Manual Zoom Optics
Adjust the beam angle from a narrow 19° to a wider 36° using the manual zoom.
Complete Your Rig
Specifications
Optical
-
Light Source
1 LEDs (WW) 40 W, (600 mA), 50,000 hours life expectancy.
-
Color Temperature (at full)
3255 K
-
CRI
93
-
TLCI
92.2
-
-
Beam Angle (w/19-36°
-
Lens)(19°)
16°
-
Lens)(26°)
17°
-
Lens)(36°)
18°
-
-
Beam Angle (w/19-36°
-
-
Field Angle (w/19-36°
-
Lens)(19°)
19°
-
Lens)(26°)
25°
-
Lens)(36°)
33°
-
-
Field Angle (w/19-36°
-
-
Lumens (w/19-36°
-
Lens)(19°)
1,327
-
Lens)(26°)
1,260
-
Lens)(36°)
1,050
-
-
Lumens (w/19-36°
-
-
Illuminance (w/19-36°
-
Lens)(19°)
784 lux @ 5 m
-
Lens)(26°)
526 lux @ 5 m
-
Lens)(36°)
352 lux @ 5 m
-
-
Illuminance (w/19-36°
Dynamic Effects
-
Dimmer
Electronic
-
Focus
Manual
Construction/Physical
-
Dimensions
14.82 x 5.09 x 5.18 in (376.5 x 129.3 x 131.64 mm)
-
Weight
3.4 lb (1.6 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum die-cast
-
Gobo Size (Optional)
Gobo size: 37.5 mm (outside), 20 mm (image, glass), 25 mm (image, steel), 1 mm (max. thickness)
Connections
-
Power Connection
Track Type H
-
Cable Length (power)
1.17 ft (0.36 m)
Electrical
-
Input Voltage
120 VAC, 60 Hz
-
Input Voltage
230 VAC, 50 Hz
-
Power and Current
37 W, 0.291 A @ 120 V, 60 Hz
-
Power and Current
39 W, 0.17 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET
-
IP Rating
IP20, dry location
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- Ovation ETD-40WW
- Track Adaptor
- Gobo holder size: 37.5 mm (outside), 20 mm (image, glass), 25 mm (image, steel), 1 mm (max. thickness)
- Gel frame (2.75 in/70 mm accessories)
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Ovation ETD-40WW Quick Reference Guide | Download |
Drawings | Ovation ETD-40WW CAD 2D Drawings | Download |
Drawings | Ovation ETD-40WW CAD 3D Drawings | Download |
Photometrics | Ovation ETD-40WW IES File | Download |
Photometrics | Ovation ETD-40WW Photometrics Report | Download |
Other | Ovation ETD-40WW Specification Sheet | Download |
Ovation ETD-40WW FAQ’s
The Ovation ETD-40WW is a compact spotlight designed to mount directly onto standard track lighting rails. It’s perfect for retail stores, galleries, or museums to precisely highlight products, displays, or architectural features with a sharp, focused beam of warm white light.
Yes, this fixture is specifically designed to project crisp, clear images. It includes a holder for gobos (small stencils for light), allowing you to easily display company logos, custom patterns, or other designs onto a wall, floor, or display.
You can easily change the size and shape of the light beam. It features a manual zoom to make the circle of light larger or smaller, and built-in framing shutters that let you shape the beam into a square or rectangle to perfectly frame an object or sign.
