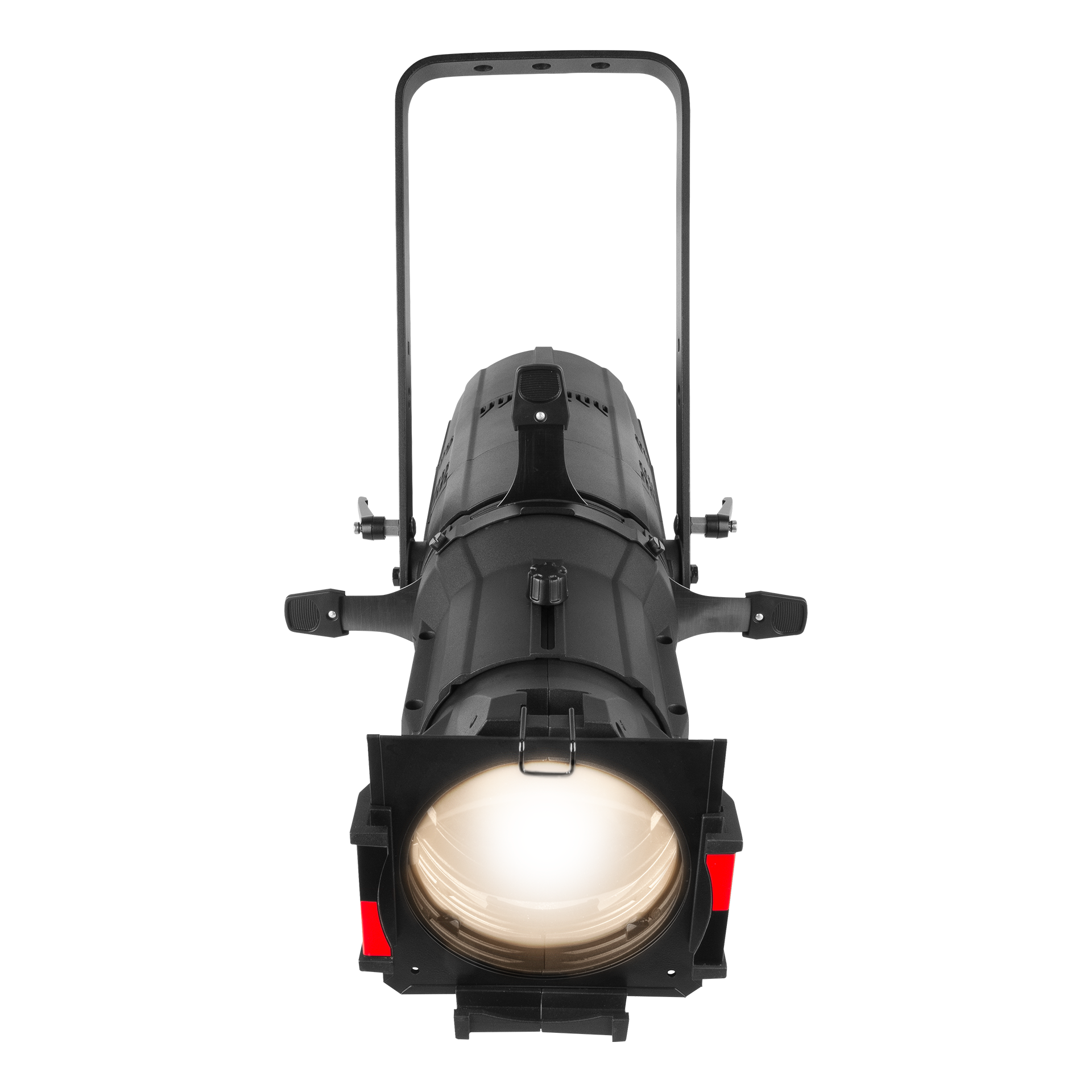

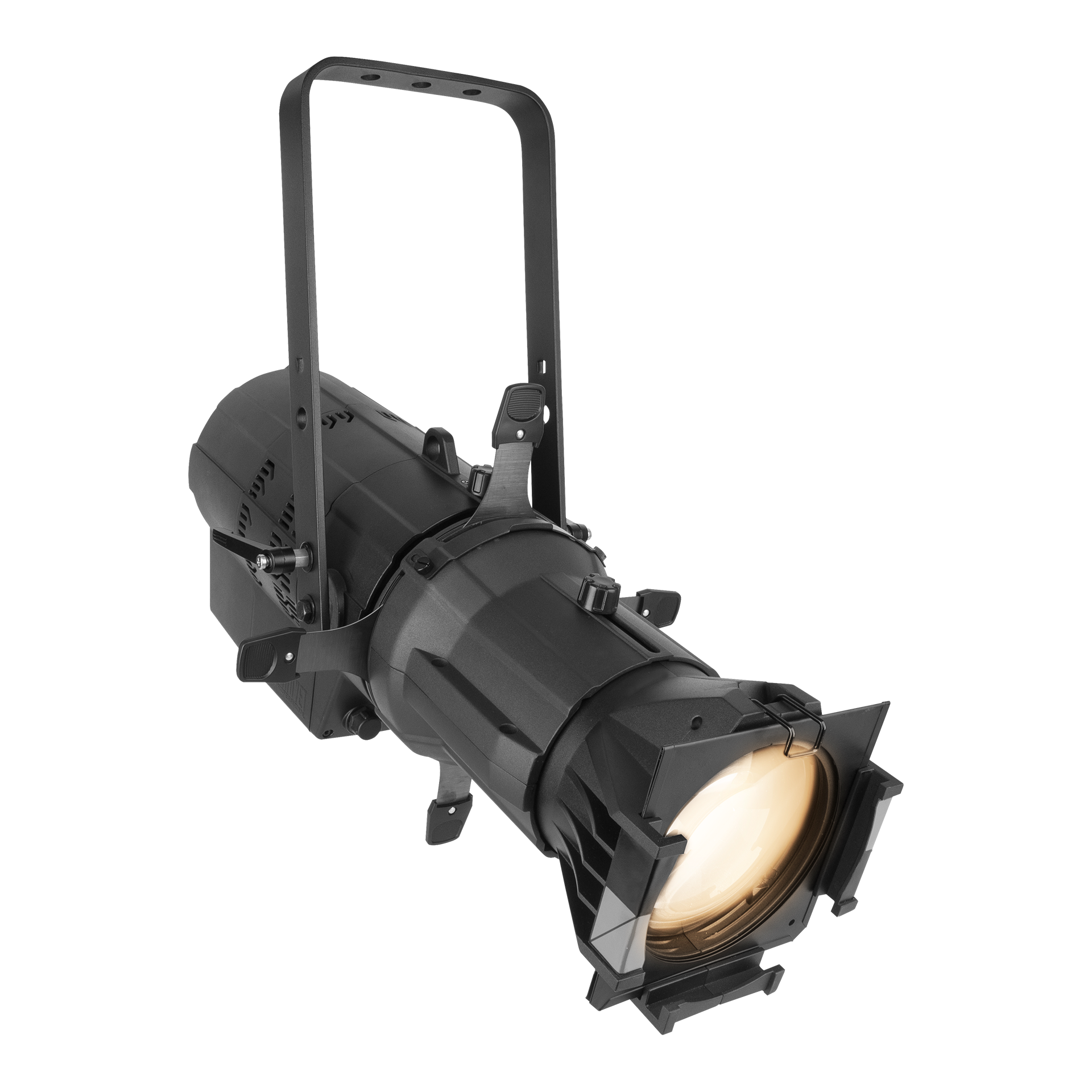

Ovation E-260WW IP
An IP65-rated, warm-white ERS-style fixture that delivers an output surpassing a 750W HPL source, featuring smooth dimming and a flat, even field for superior gobo projection.
Ideal for outdoor theatre, architectural applications, and events that demand a high-performance, weather-resistant ellipsoidal fixture.
-
Features a 230W warm white LED engine with a high 96 CRI for excellent color rendering.
-
Built with a rugged IP65-rated housing to ensure reliable performance in any weather.
-
Works with standard Ovation shutter assemblies and lenses for seamless system integration.
-
Offers ultra-smooth 16-bit dimming and four selectable curves for precise intensity control.
-
Supports both DMX and RDM protocols for flexible setup and remote device management.
-
Features adjustable PWM to provide flicker-free operation for broadcast and video applications.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Ovation E-260WW IP
Specifications | Download |
Ovation E-260WW IP User Manual | Download |
Ovation E-260WW IP Quick Reference Guide | Download |
Legacy Software | Download |
Ovation E-260WW IP CAD Files | Download |
Ovation E-260WW IP IES Files | Download |
Ovation E-260WW IP Photometric Report | Download |
Ovation E-260WW IP DMX Chart | Download |
Legacy Software | Download |
Case study: Ovation E-260WW IP Stands Up To Win… | Download |
Case study: Events United Supplies Complete Rig… | Download |
Case study: Diana Kesselschmidt Warms Up Bryant… | Download |
Ovation E-260WW IP ShowXpress Profiles | Download |
Ovation E-260WW IP Specification Sheet | Download |
Ovation E-260WW IP Specification Sheet | Download |
Ovation E-260WW IP QRG ML5 Rev. 12 | Download |
Ovation E-260WW IP
Ovation E-260WW IP takes the brilliant breakthrough concept of the Ovation E-260WW and places it outdoors. Our standard shutter assembly and lenses lend familiarity and ease-of-use to this groundbreaking IP65-rated ERS-style fixture with an output surpassing that of 750 W HPL. This groundbreaking ellipsoidal also boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Selectable PWM, RDM, and onboard dimming curves ease setup and programming.
Features
Powerful Warm White Output
This ERS-style fixture delivers a bright, warm white light that surpasses the output of a traditional 750W tungsten source.
IP65 All Weather Rating
A full IP65 rating ensures reliable performance for both indoor and outdoor seasonal applications.
Familiar Beam Shaping
Utilizes standard Ovation beam shaping shutters and lenses for an intuitive and user-friendly experience.
Smooth Dimming Control
Features ultra-smooth 16-bit dimming and selectable 8-bit dimming curves to complement any lighting scheme.
Superior Gobo Projection
A flat and even field of light ensures crisp, high-quality gobo projections without hot spots.
Remote Device Management
RDM capability allows for convenient remote addressing and configuration for added operational flexibility.
Flicker Free Operation
Adjustable Pulse Width Modulation (PWM) eliminates on-camera flicker, making it ideal for broadcast and recording.
Latest News
Complete Your Rig
Specifications
Optical
-
Light Source
1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy
-
Color Temperature (at full)
3149 K
-
CRI
96
-
-
Beam Angle
-
(W/5° Lens)
5°
-
(W/10° Lens)
7°
-
(W/14° Lens)
12°
-
(W/19° Lens)
14°
-
(W/26° Lens)
16°
-
(W/36° Lens)
20°
-
(W/50° Lens)
31°
-
(w/15°–30° lens)(Narrow)
12°
-
(w/15°–30° lens)(Wide)
14°
-
(w/25°–50° lens)(Narrow)
21°
-
(w/25°–50° lens)(Wide)
26°
-
-
Beam Angle
-
-
Field Angle
-
(W/5° Lens)
8°
-
(W/10° Lens)
11°
-
(W/14° Lens)
15°
-
(W/19° Lens)
19°
-
(W/26° Lens)
26°
-
(W/36° Lens)
35°
-
(W/50° Lens)
52°
-
(w/15°–30° lens)(Narrow)
15°
-
(w/15°–30° lens)(Wide)
29°
-
(w/25°–50° lens)(Narrow)
26°
-
(w/25°–50° lens)(Wide)
46°
-
-
Field Angle
-
Dimming Modes
4
-
Lumens (w/5° lens)
9,605
-
Lumens (w/10° lens)
10,047
-
Lumens (w/14° lens)
11,308
-
Lumens (w/19° lens)
10,546
-
Lumens (w/26° lens)
12,455
-
Lumens (w/36° lens)
12,793
-
Lumens (w/50° lens)
12,258
-
Lumens (w/15°–30° lens)(Narrow)
11,300
-
Lumens (w/15°–30° lens)(Wide)
11,836
-
Lumens (w/25°–50° lens)(Narrow)
13,220
-
Lumens (w/25°–50° lens)(Wide)
13,632
-
-
Illuminance
-
Illuminance (w/5° lens)
42,658 lux @ 5 m
-
Illuminance (w/10° lens)
23,747 lux @ 5 m
-
Illuminance (w/14° lens)
12,648 lux @ 5 m
-
Illuminance (w/19° lens)
7,983 lux @ 5 m
-
Illuminance (w/26° lens)
5,817 lux @ 5 m
-
Illuminance (w/36° lens)
3,755 lux @ 5 m
-
Illuminance (w/50° lens)
1,613 lux @ 5 m
-
-
Illuminance
-
Illuminance (w/15°–30° lens)(Narrow)
13,155 lux @ 5 m
-
Illuminance (w/15°–30° lens)(Wide)
5,884 lux @ 5 m
-
Illuminance (w/25°–50° lens)(Narrow)
6,535 lux @ 5 m
-
Illuminance (w/25°–50° lens)(Wide)
2,554 lux @ 5 m
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 30 Hz
-
Color Temperature Presets
No
-
Dim Modes
4
-
Built-in Automated Programs
Yes
Construction/Physical
-
-
Dimensions
-
Dimensions (fixture only)
19.49 x 11.14 x 18.42 in (495 x 342 x 506 mm)
-
Dimensions (w/5° lens extended)
43.58 x 14.17 x 14.48 in (1107 x 360 x 368 mm)
-
Dimensions (w/10° lens extended)
34.88 x 12.16 x 12.48 in (886 x 309 x 317 mm)
-
Dimensions (w/14° lens extended)
28.7 x 11.14 x 18.42 in (790 x 342 x 506 mm)
-
Dimensions (w/26° lens extended)
23.5 x 13.46 x 19.92 in (597 x 342 x 506 mm)
-
Dimensions (w/15°–30° lens)
32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
-
Dimensions (w/25°–50° lens)
27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
-
-
Dimensions
-
-
Weights
-
Weight (fixture only)
20.2 (9.2 kg)
-
Weight (w/5° lens)
26 lb (11.9 kg)
-
Weight (w/10° lens)
24 lb (11 kg)
-
Weight (w/14° lens)
25.6 lb (11.6 kg)
-
Weight (w/26° lens)
24.4 lb (11 kg)
-
Weight (w/15°–30° lens)
34.2 lb (15.5 kg)
-
Weight (w/25°–50° lens)
31.8 lb (14.4 kg)
-
-
Weights
-
Exterior Color
Black
-
Gobo Size (Optional)
“A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
-
Gobo Size (Optional)
“B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
-
-
Accessory Holder/Gel Frame Size
-
(5° Lens)
14 in (356 mm)
-
(10° Lens)
12 in (304 mm)
-
(14° Lens)
7.5 in (191 mm)
-
(19°, 26°, 36°, And 50° Lens)
6.25 in (159 mm)
-
(15°–30° Lens)
7.5 in (191 mm)
-
(25°–50° Lens)
7.5 in (191 mm)
-
-
Accessory Holder/Gel Frame Size
Connections
-
Power Connection
Edison (local) plug to Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Data Connectors
5-pin IP65 XLR
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
2, 3, 4 or 7
-
Modes/Personalities
4 personalities (2, 3, 4, 7)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
6 units @ 100 V; 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V; 13 units @ 240 V
-
Power and Current
230 W, 2.30A @ 100 V
-
Power and Current
221 W, 1.95 A @ 120 V, 60 Hz
-
Power and Current
215 W, 1.05 A @ 208 V, 60 Hz
-
Power and Current
213 W, 1.03 A @ 230 V, 50 Hz
-
Power and Current
228 W, 1.03 A @ 240 V
Certifications/Qualifications
-
Certifications
CE, MET, FCC
-
IP Rating
IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
Required Accessories
- Lens Tube: 19°, 26°, 36°, 50°
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Neutrik powerCON cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- RDM2go
- Ovation Zoom Lenses: OHDZOOM1530, OHDZOOM2550
- Gobo Holder: Ovation GR-1IP, Standard “S4” size Sandwich Style or Iris Slot Style gobo holder for “A” or “B” size gobos
What's Included
- Ovation E-260WW IP
- Seetronic Powerkon IP65 power cord
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Ovation E-260WW IP User Manual | Download |
Manuals | Ovation E-260WW IP Quick Reference Guide | Download |
Manuals | Ovation E-260WW IP Quick Reference Guide – Legacy Software | Download |
Drawings | Ovation E-260WW IP CAD Files | Download |
Photometrics | Ovation E-260WW IP IES Files | Download |
Photometrics | Ovation E-260WW IP Photometric Report | Download |
DMX | Ovation E-260WW IP DMX Chart | Download |
DMX | Ovation E-260WW IP DMX Chart – Legacy Software | Download |
Case Studies | Case study: Ovation E-260WW IP Stands Up To Winter Storms At Alaskan University Centennial | Download |

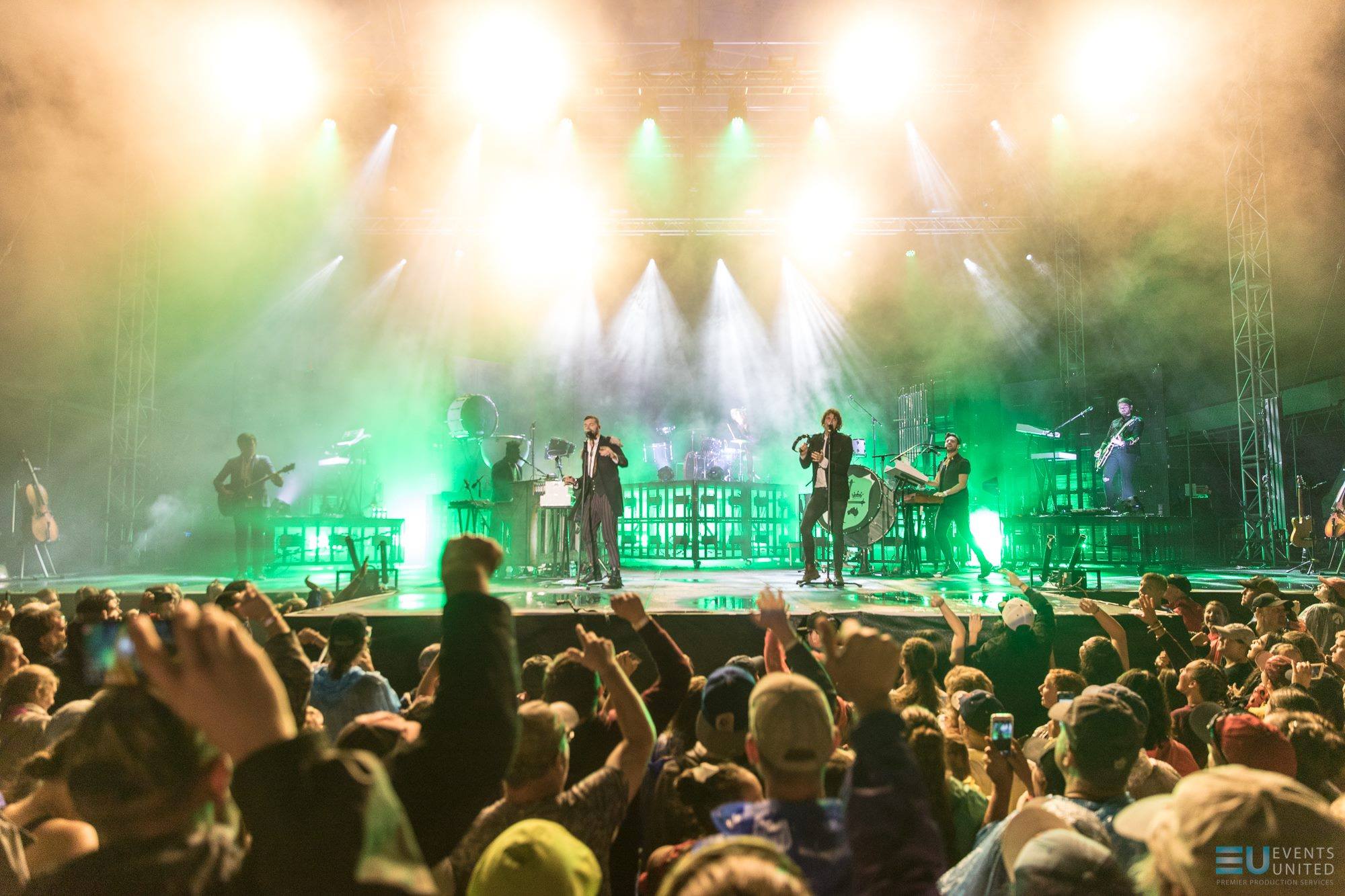

Case Studies | Case study: Events United Supplies Complete Rig For Soulfest With CHAUVET Professional | Download |

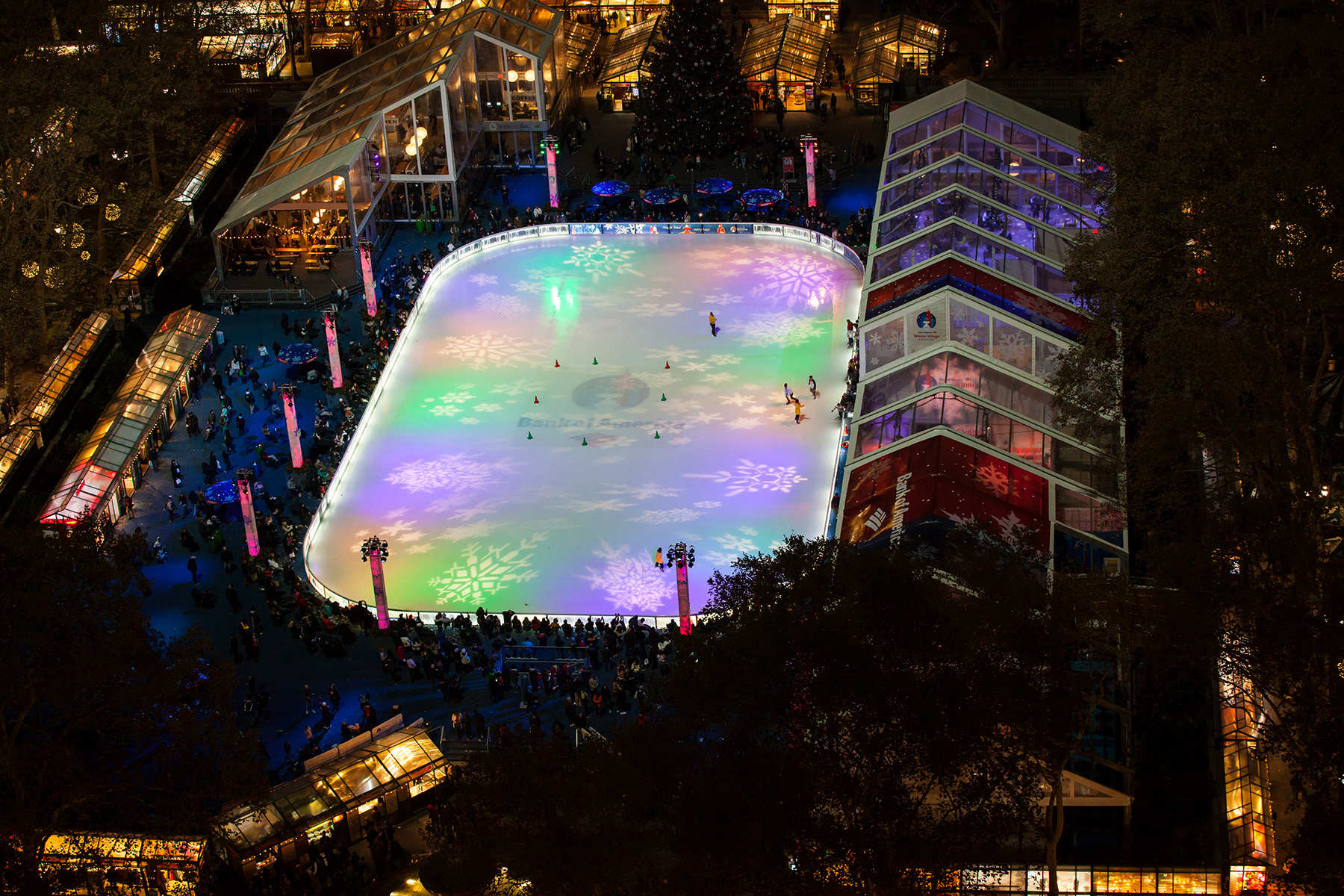

Case Studies | Case study: Diana Kesselschmidt Warms Up Bryant Park Winter Village With CHAUVET Professional | Download |
Other | Ovation E-260WW IP ShowXpress Profiles | Download |
Other | Ovation E-260WW IP Specification Sheet | Download |
Other | Ovation E-260WW IP Specification Sheet | Download |
Manuals | Ovation E-260WW IP QRG ML5 Rev. 12 | Download |
Learn How To Use Your Ovation E-260WW IP
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-

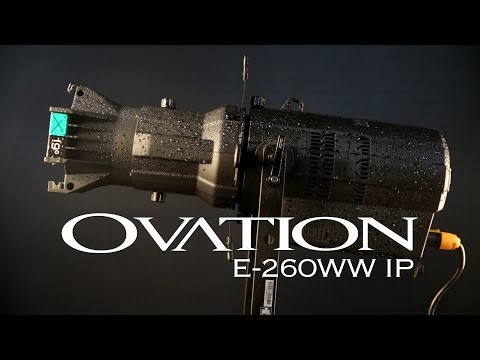

Ovation E-260WW IP by CHAUVET Professional
Take the brilliant performance of a classic ellipsoidal outdoors with the Ovation E-260WW IP. This rugged, IP65-rated fixture delivers powerful warm white output with a flat, even field for superior gobo projection and flawless dimming in any weather.
-

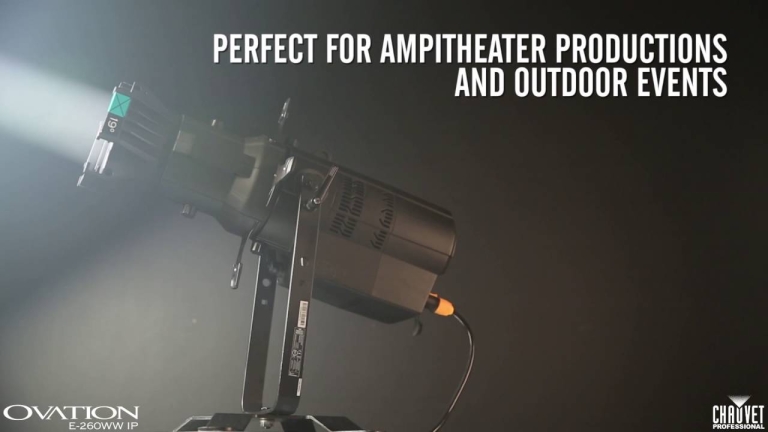

OVATION E 260WW IP Sneak Peak by CHAUVET Professionnal
The Ovation E-260WW IP from CHAUVET Professional brings the brilliant performance of an ERS-style fixture outdoors. Its IP65 rating, powerful warm white output, and superior gobo projection empower you to create stunning theatrical and architectural designs in any weather.
-
Ovation E-260WW LED Ellipsoidal by CHAUVET Professional
The Ovation E-260WW is a powerful LED ellipsoidal delivering output that surpasses a 750W tungsten source. With exceptionally smooth dimming and crisp gobo projection, it is the ideal, camera-friendly replacement for legacy fixtures in theatrical and broadcast applications.
-
Ovation E-260WW by CHAUVET Professional
The Ovation E-260WW from CHAUVET Professional is a powerful LED ellipsoidal engineered to replace traditional 750W tungsten fixtures. Experience superior performance with output that exceeds legacy sources, plus exceptionally smooth dimming and crisp gobo projection perfect for theatrical and broadcast applications.
-
1

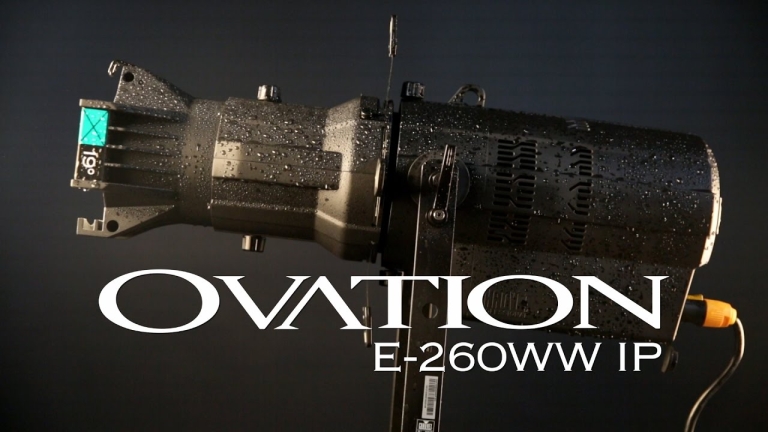

Ovation E-260WW IP by CHAUVET Professional
Take the brilliant performance of a classic ellipsoidal outdoors with the Ovation E-260WW IP. This rugged, IP65-rated fixture delivers powerful warm white output with a flat, even field for superior gobo projection and flawless dimming in any weather.
-
2
OVATION E 260WW IP Sneak Peak by CHAUVET Professionnal
The Ovation E-260WW IP from CHAUVET Professional brings the brilliant performance of an ERS-style fixture outdoors. Its IP65 rating, powerful warm white output, and superior gobo projection empower you to create stunning theatrical and architectural designs in any weather.
-
3

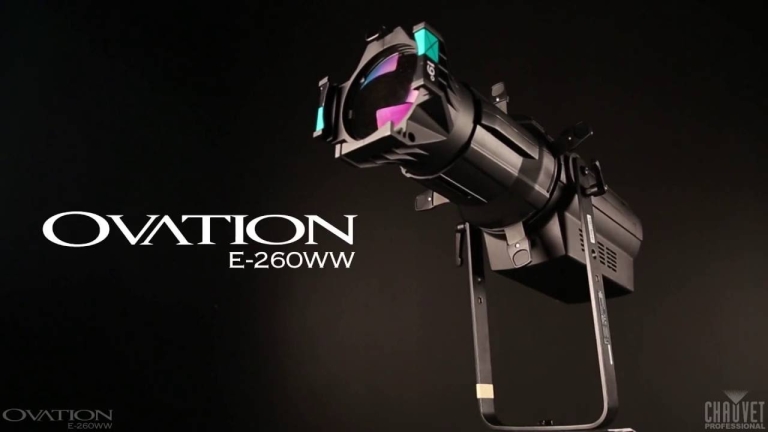

Ovation E-260WW LED Ellipsoidal by CHAUVET Professional
The Ovation E-260WW is a powerful LED ellipsoidal delivering output that surpasses a 750W tungsten source. With exceptionally smooth dimming and crisp gobo projection, it is the ideal, camera-friendly replacement for legacy fixtures in theatrical and broadcast applications.
-
4
Ovation E-260WW by CHAUVET Professional
The Ovation E-260WW from CHAUVET Professional is a powerful LED ellipsoidal engineered to replace traditional 750W tungsten fixtures. Experience superior performance with output that exceeds legacy sources, plus exceptionally smooth dimming and crisp gobo projection perfect for theatrical and broadcast applications.
Ovation E-260WW IP FAQ’s
Yes, the Ovation E-260WW IP is fully weatherproof and designed for outdoor use. Its durable construction protects it from the elements, making it a reliable choice for seasonal outdoor events, concerts, and architectural lighting, even in wet conditions.
This is a very bright, warm white spotlight ideal for theater, events, and broadcast. It produces a flat, even field of light that is perfect for projecting crisp, clear patterns and logos (gobos). Its beam can be precisely shaped using standard shutters and lenses, giving you complete control over your lighting.
No, the Ovation E-260WW IP is designed to be flicker-free on camera. It includes special adjustments to work smoothly with video recording, making it an excellent choice for live streams, television broadcasts, and any event being filmed.
