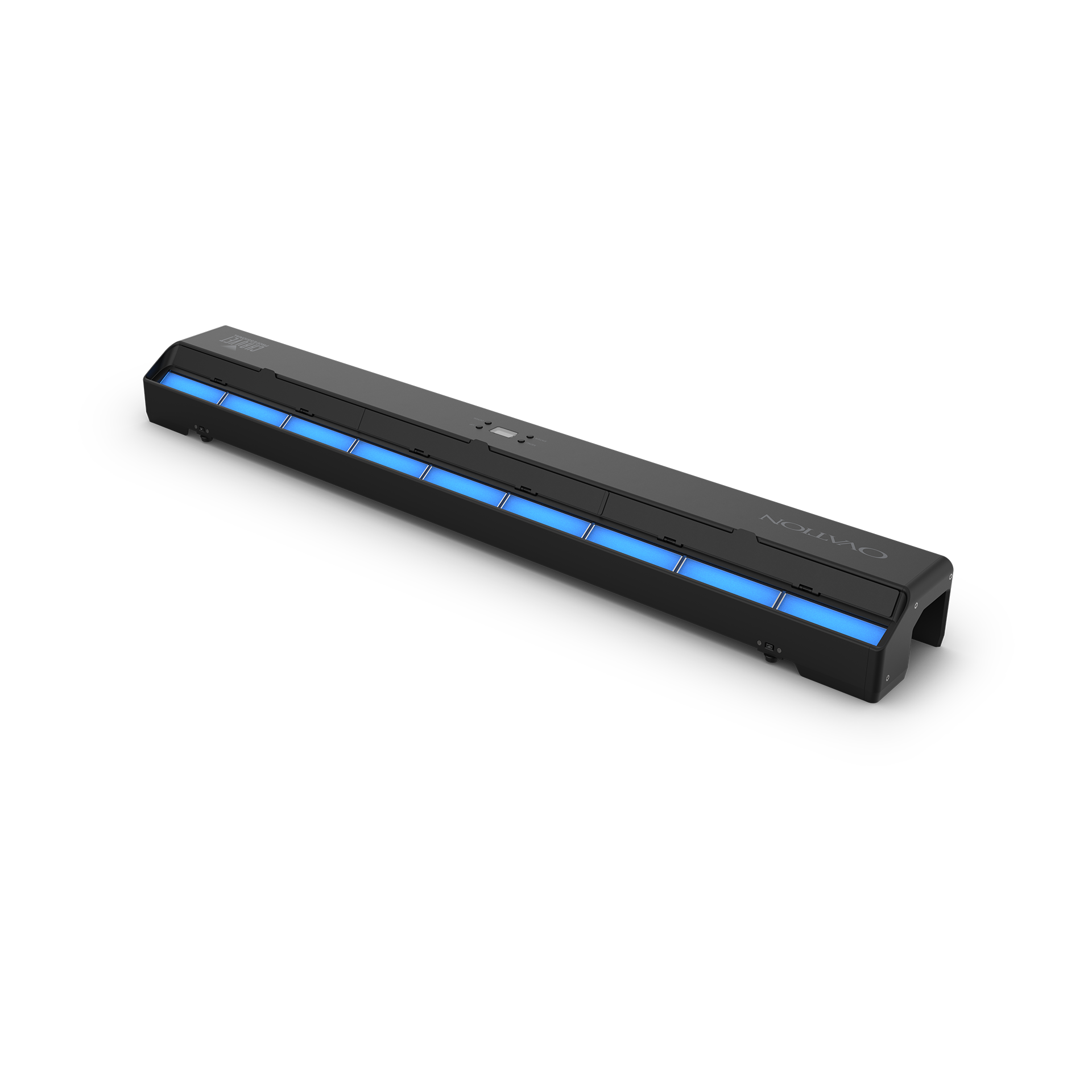

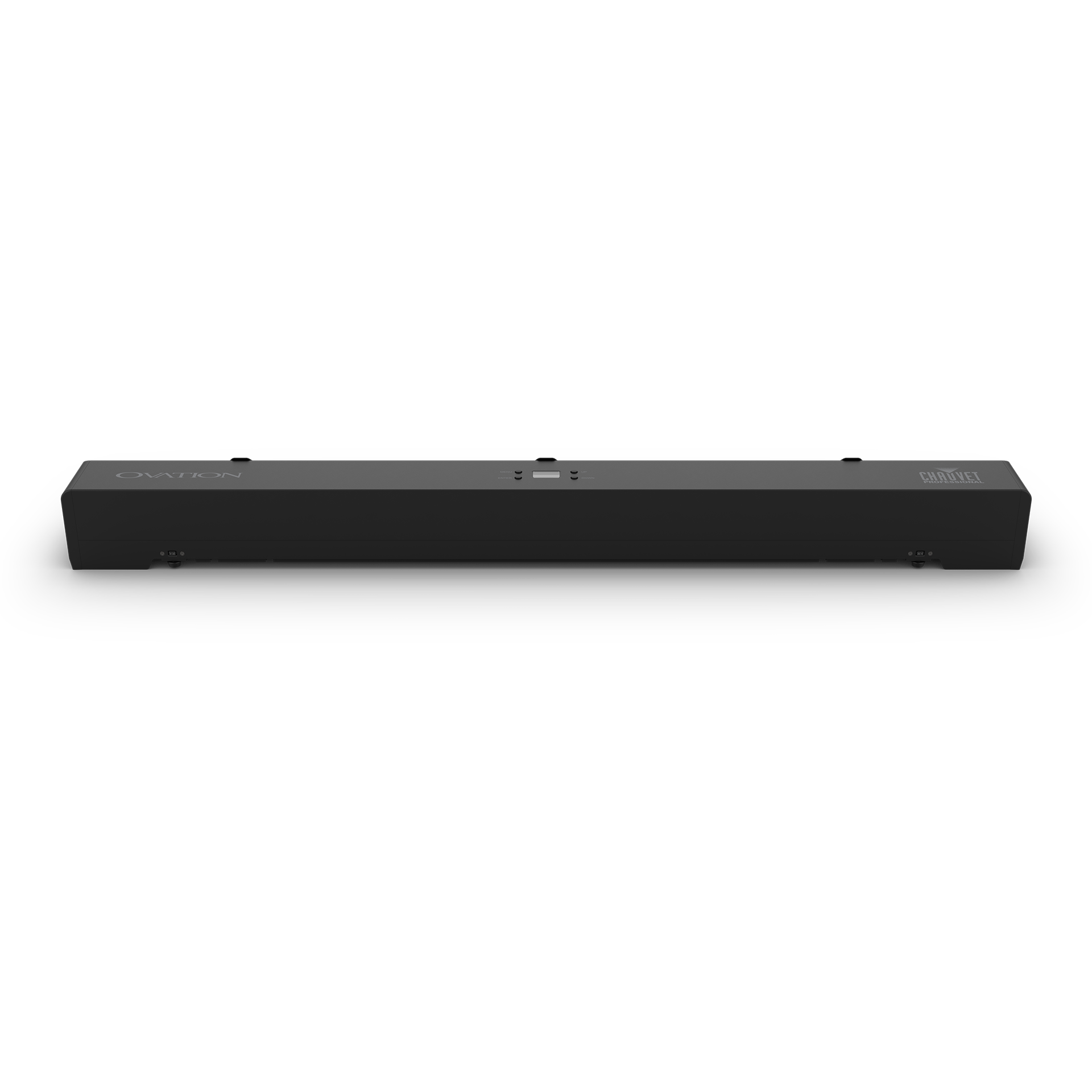

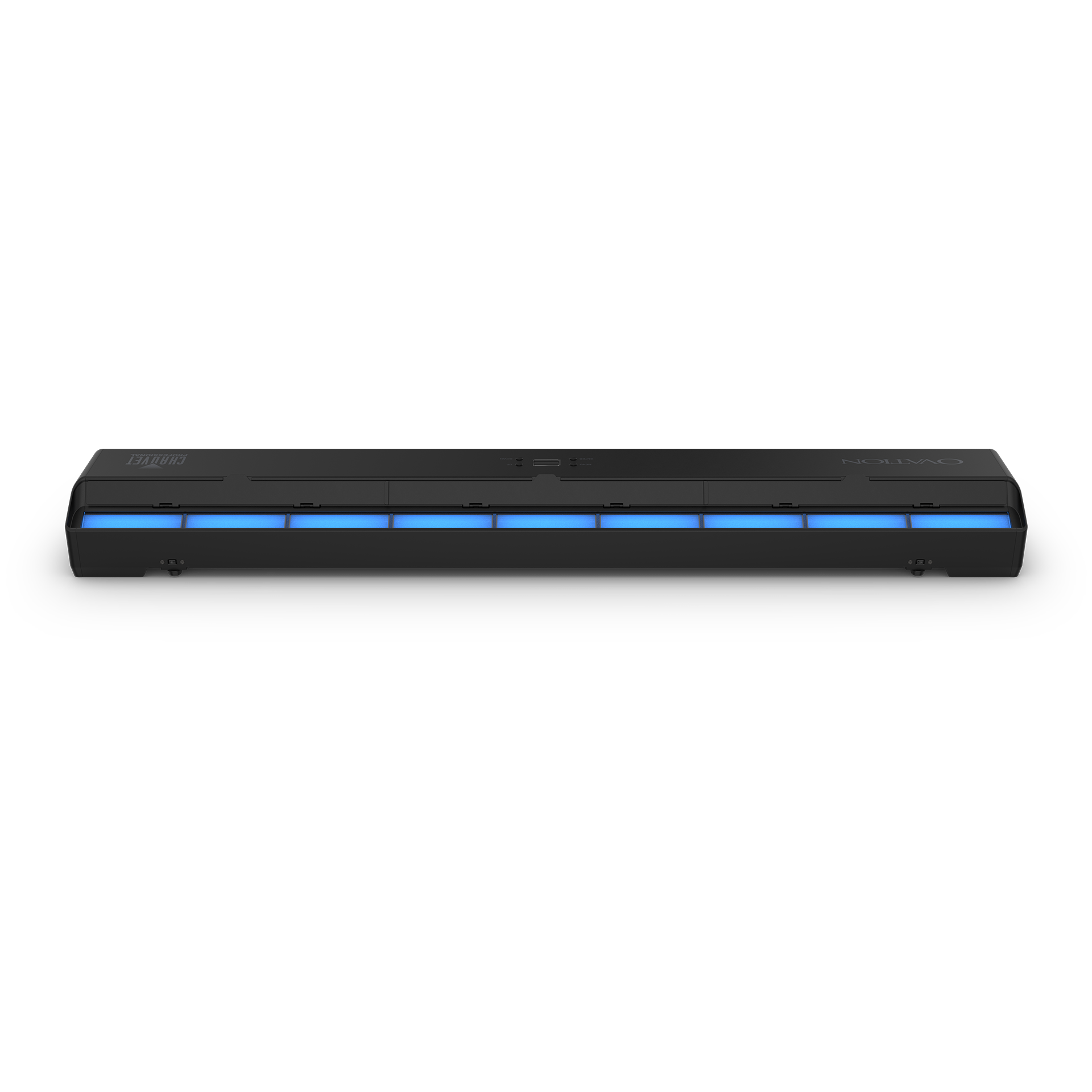

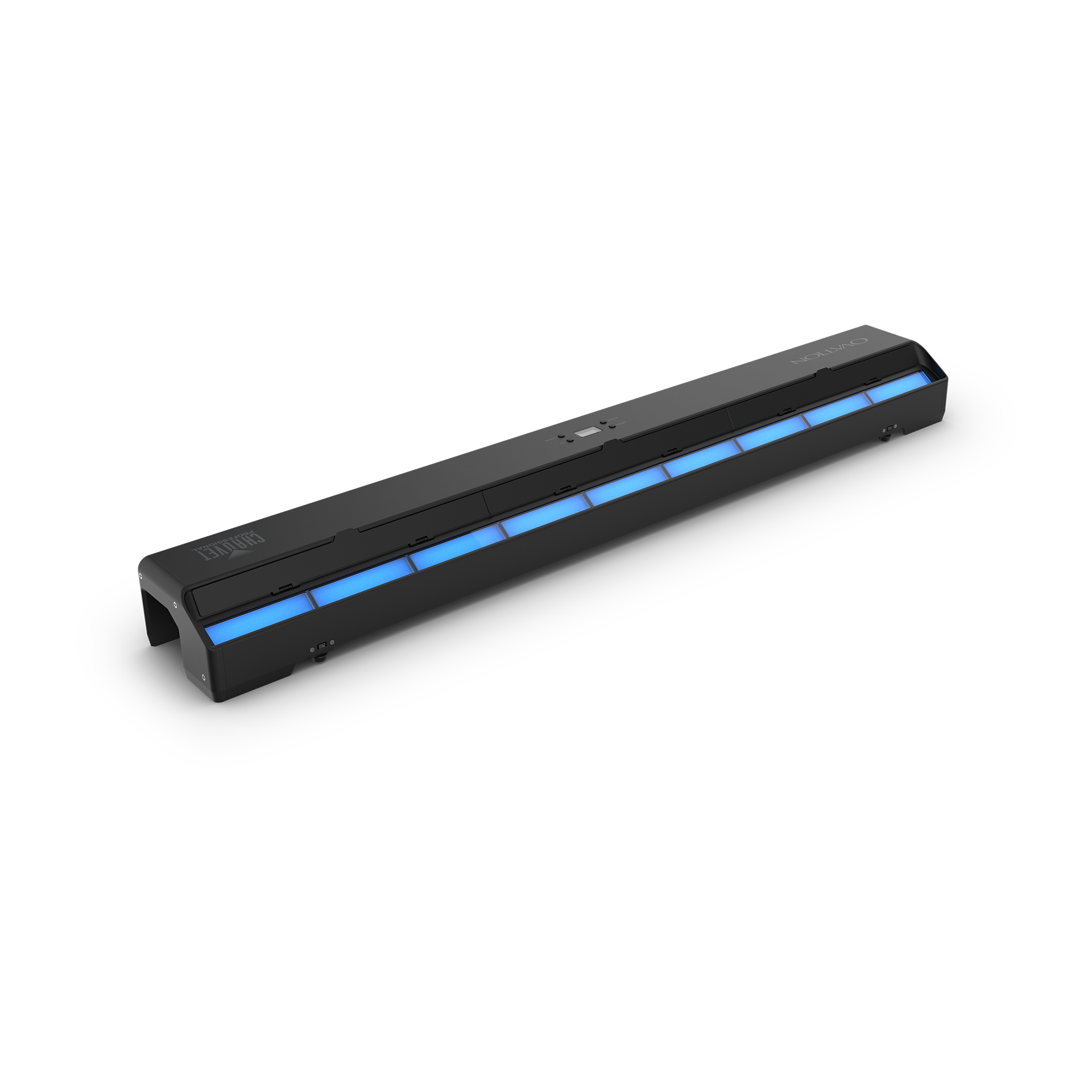

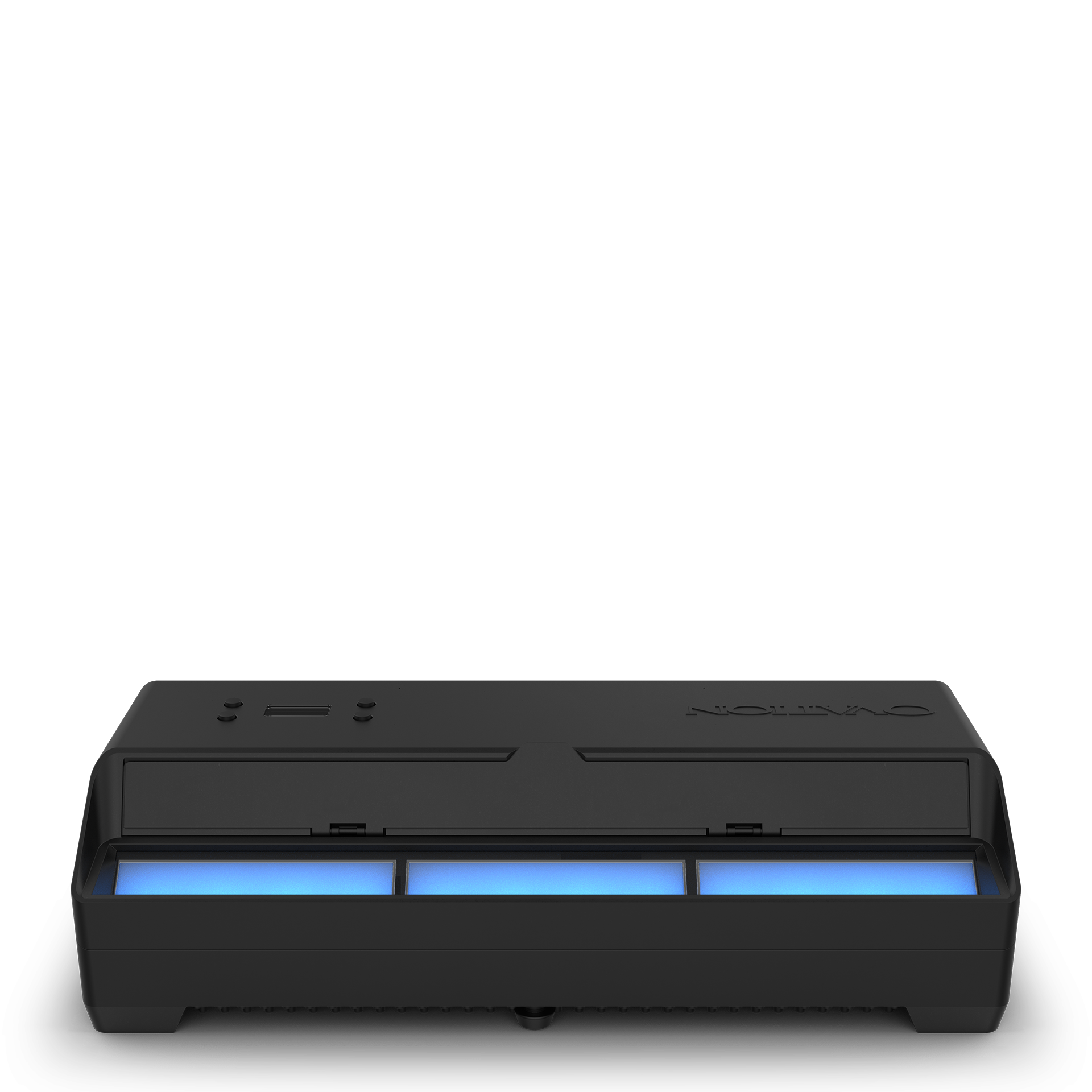

Ovation CYC 3 FC

Optical

• Light Source

  180 LEDs (36 red, 36 green, 36 blue, 36 amber, 36 lime) 2.5 W to 3.5, (725 mA)

• Color Temperature (range)

  2800 to 6500 K

• CRI (3200K)

  90

• Beam Angle (Horizontal)

  111.4°

• Field Angle (Horizontal)

  151.8°

• Beam Angle (Vertical)

  76.7°

• Field Angle (Vertical)

  134.4°

• Lumens

  19,575

• Illuminance (total)

  280 lux @ 5 m

• PWM Frequency

  600, 1200, 2000, 4000, 6000, 25,000 Hz

Dynamic Effects

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Strobe Rate

  0 to 29 Hz

• Standalone Color Mixing

  Yes

• Color Temperature Presets

  Yes

• Dim Modes

  4

• Dim Curves

  4

• Built-in Automated Programs

  Yes

• Customizable Programs

  No

• Recall Custom Programs

  No

Construction/Physical

• Dimensions

  47.13 x 6.30 x 4.33 in (1197 x 160 x 110 mm)

• Weight

  24.6 lb (11.2 kg)

• Exterior Color

  Black

• Housing Material

  Aluminum die-cast

Connections

• Power Connection

  Edison (Local) plug to Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Power Output

  Seetronic Powerkon IP65

• Data Connectors

  5-pin XLR

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  DMX, RDM

• DMX Channels

  1, 3, 5, 7, 10, 12, 13, 16, 17, 33

• Modes/Personalities

  11 personalities (1, 3, 5, 7, 10, 12, 13, 16, 17, 33, HSV)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  4 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V

• Power and Current

  345 W, 2.93 A @ 120 V, 60 Hz

• Power and Current

  338 W, 1.77 A @ 208 V, 60 Hz

• Power and Current

  334 W, 1.64 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET, FCC, UKCA

• IP Rating

  IP20, dry location

• Temperature (Ambient)

  -4 °F to 113 °F (-20 °C to 45 °C)
