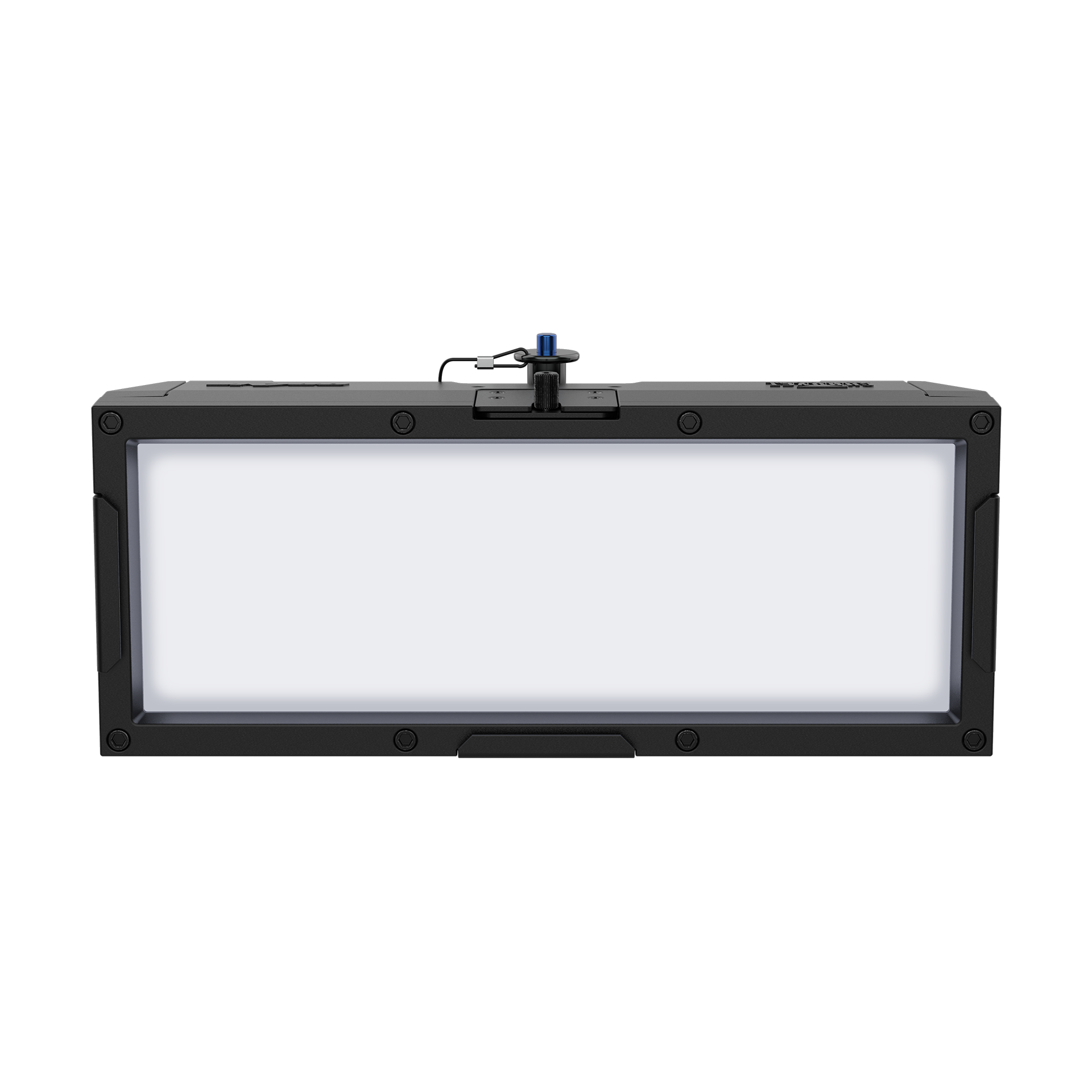

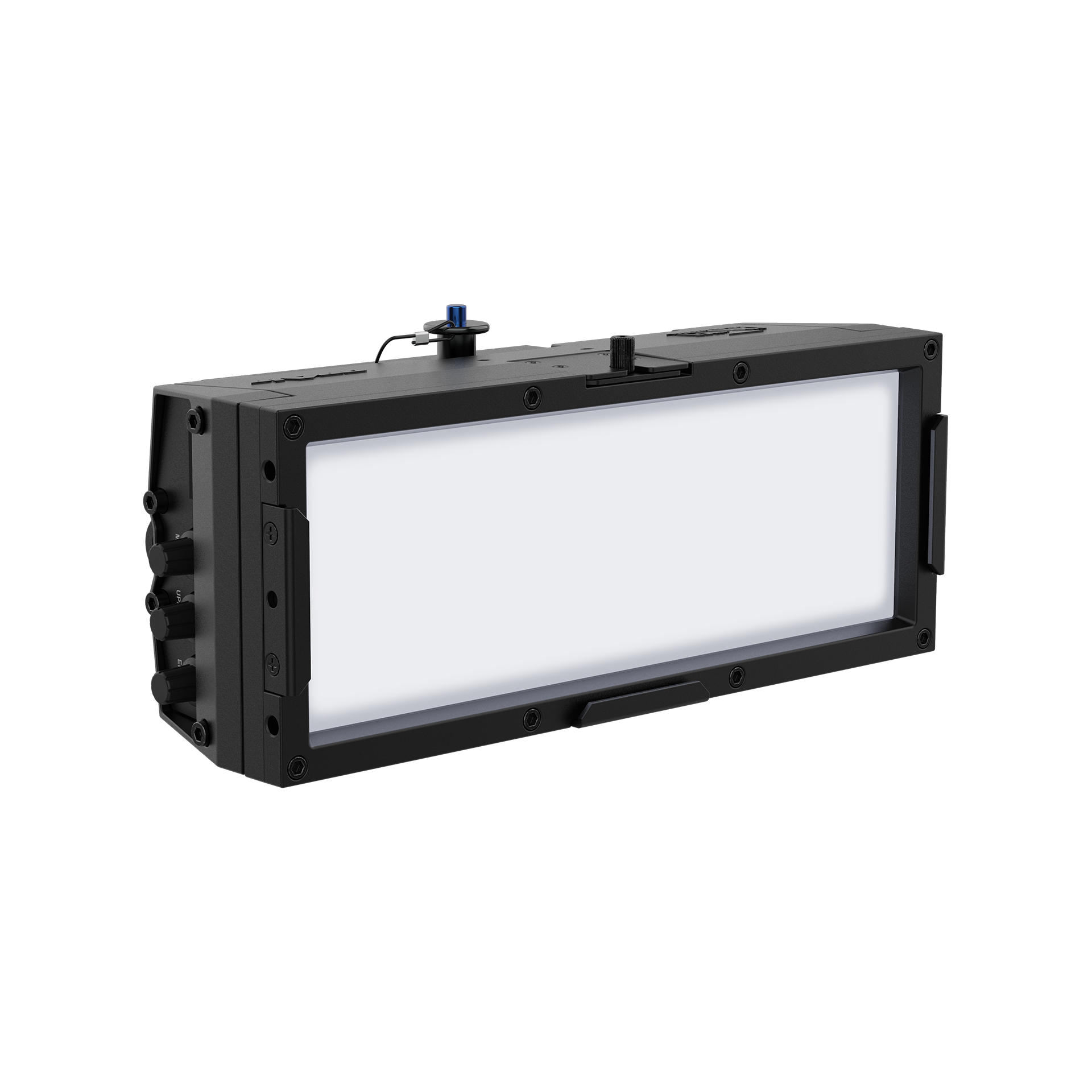

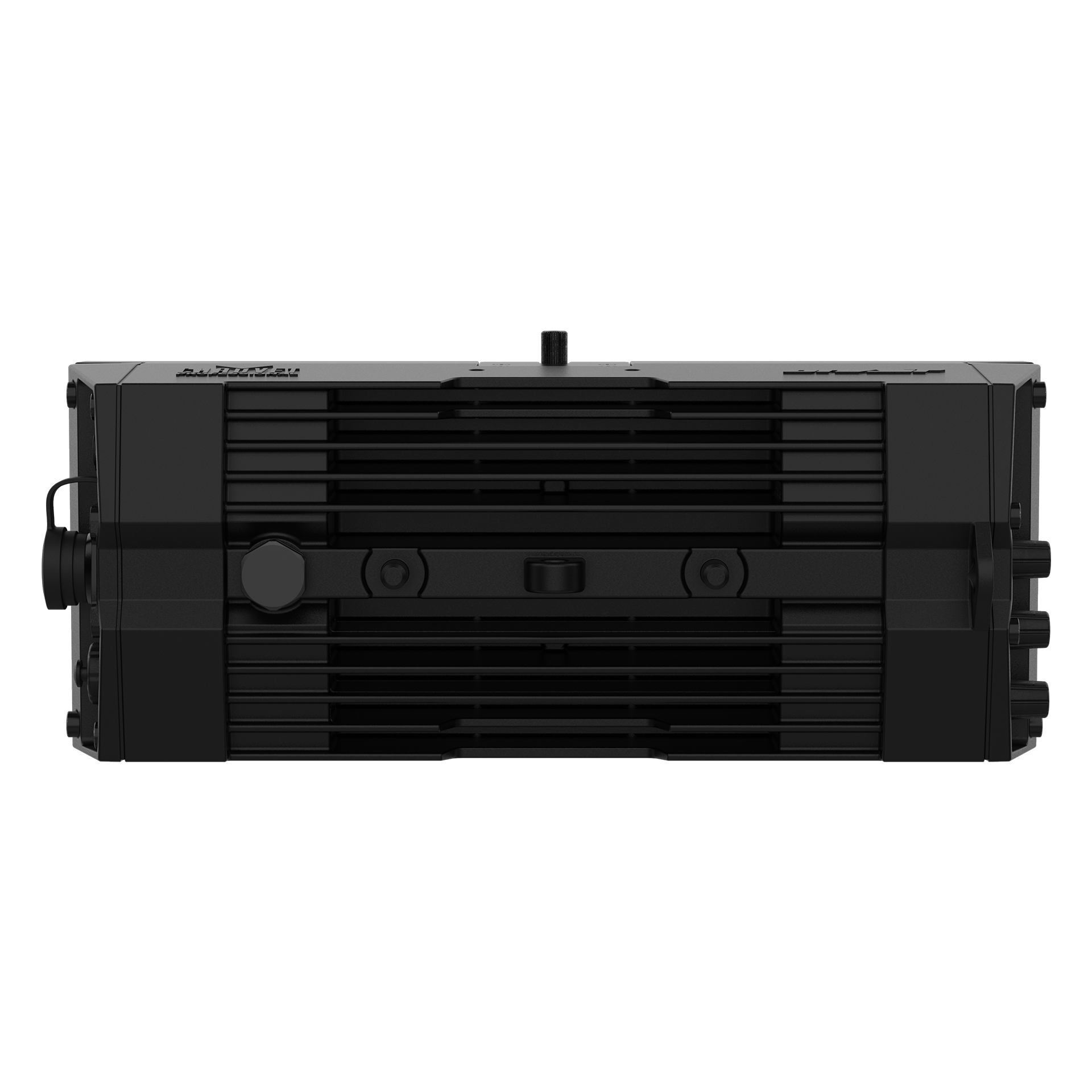

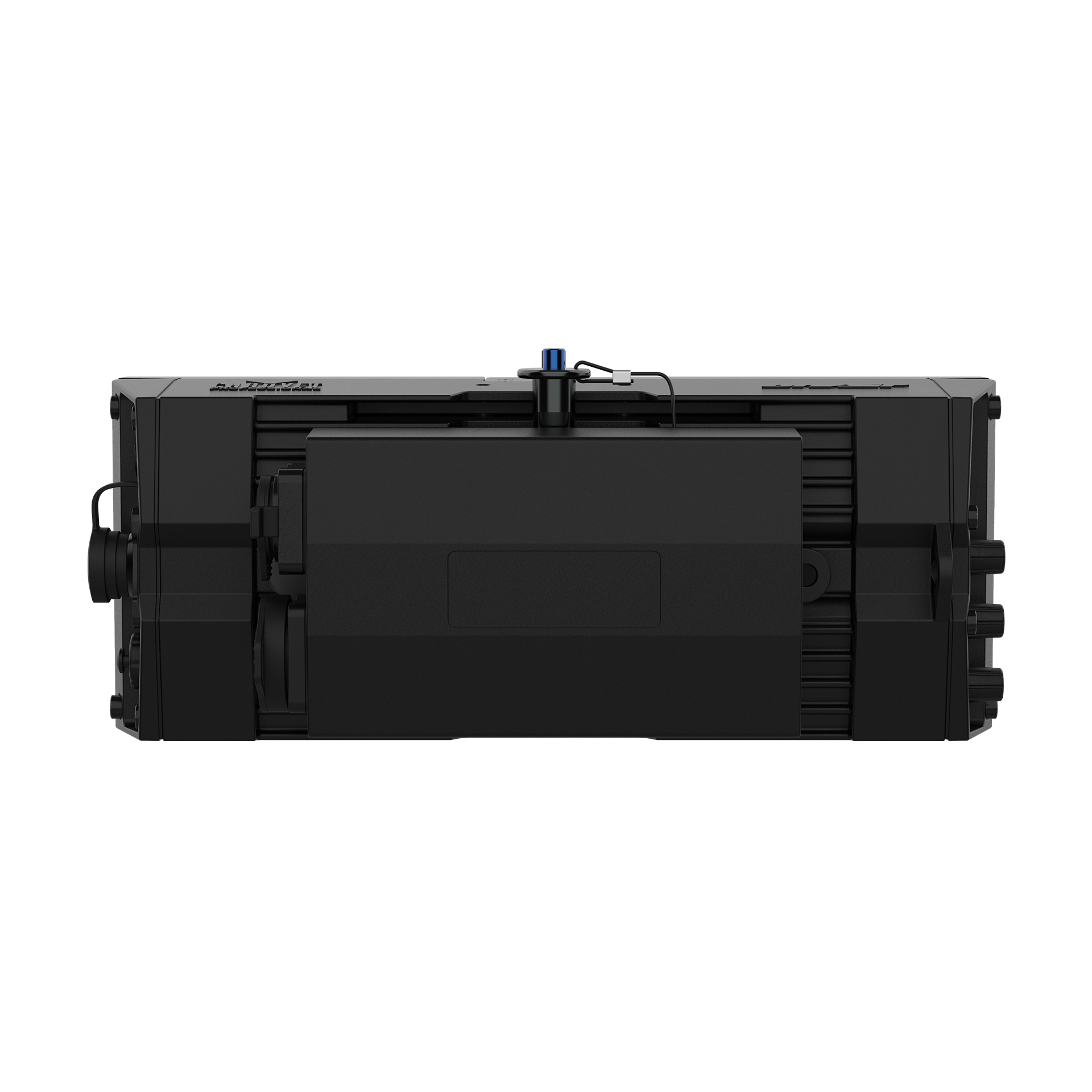

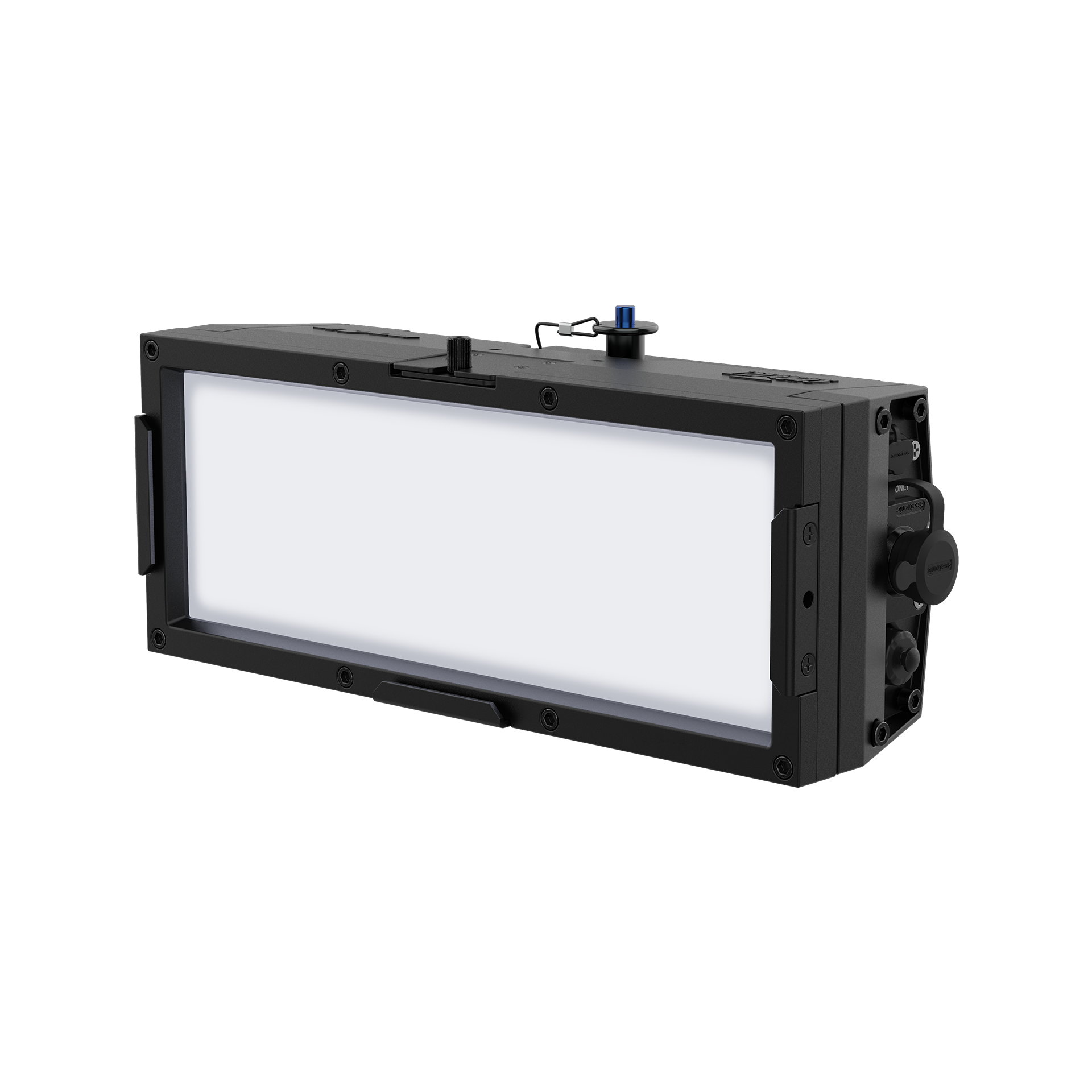

onAir Panel Min IP
A compact, rugged, and IP65-rated full-spectrum LED soft light panel that delivers high-quality white and colored light with versatile control and power options.
Perfectly suited for on-location broadcast, film production, and studio applications where a compact, portable, and weather-resistant high-quality soft light is required.
-
Produces superior white light with a high CRI and an expansive 2800 K to 8000 K CCT range.
-
Fine-tune color with plus/minus green adjustment, emulated redshift, and a virtual color wheel.
-
Built with a rugged, IP65-rated housing for reliable performance in any weather condition.
-
Achieves silent, flicker-free performance via fanless cooling and adjustable PWM for on-camera use.
-
Integrates DMX, RDM, and CRMX protocols for comprehensive wired and wireless control flexibility.
-
Accepts external battery power through a 28 VDC XLR input for maximum on-location portability.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
onAir Panel Min IP
onAir Panel Min IP is a small and rugged IP65, full-spectrum LED soft light capable of facing all of the elements, outdoors or in. Ready to go on-location, or squeeze into any studio space with a low-trim, onAir Panel Min IP also features a superior quality of white light with high CRI/TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard LED menu. Conveniently switch mounting options from the Ball Head Mount with included adapters for a Baby Pin Receiver or a threaded insert for attaching a clamp. The rugged build is designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX and an onboard control option ensure camera-ready use. Its small size makes it super portable, and you can remove the main power supply for a 28 VDC input via 3-pin XLR to power the fixture from an external battery pack to add increased flexibility for all of your remote needs.
Features
Full Spectrum Soft Light Panel
A mini soft light panel fixture designed to provide full-spectrum LED light for broadcast, film, and special events.
IP65 All Weather Rating
Certified for reliable indoor or outdoor use in any weather conditions.
Wide Color Temperature Range
Adjust the color temperature linearly from 2800 K to 8000 K while maintaining high color rendering accuracy.
Virtual Color Wheel
Instantly access a range of popular gel colors digitally without the need for physical filters.
Precise Color Control
Fine-tune your lighting with plus/minus green adjustment and emulated red-shift for perfect color matching.
Advanced Wireless Control
Offers enhanced flexibility through RDM for remote configuration and CRMX for wireless DMX operation.
Flicker-Free Operation
Adjustable Pulse Width Modulation ensures the light output is completely flicker-free for any camera frame rate.
Silent Operation
Features a fanless cooling system for completely silent performance, perfect for sound-sensitive studio environments.
Smooth 16-Bit Dimming
Achieve seamless fades and intensity changes with ultra-smooth 16-bit dimming curves.
Versatile Mounting Options
Quickly swap between a clamp mount on a ball head and a standard Baby Pin for flexible rigging.
Accessory Slot
A built-in drop-in slot allows for the easy addition of light-shaping accessories.
Rugged and Durable Design
Built to withstand years of demanding use in even the most extreme production conditions.
Intuitive On-Board Control
Access all fixture features directly through a simple on-board interface without requiring an external controller.
USB Port for Updates
Keep the fixture’s software current with easy updates via a convenient USB port.
Compact and Portable
Its small and lightweight design is ideal for mobile run-and-gun shoots and discreet permanent installations.
External Battery Power
Power the unit on location using an external battery pack via the 28 VDC 3-pin XLR input.
Complete Your Rig
Specifications
Optical
-
Light source
40 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy
-
Light source
40 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy
-
Color temperature (range)
2800 to 8000 K
-
Color temperature (at max)
6367 K
-
CRI
95
-
Beam Angle
94.9°
-
Field Angle
149.4°
-
Lumens
2,573
-
Illuminance
47 lux @ 5 m
-
Selectable PWM
600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 27 Hz
-
Independent color mixing
Yes
-
Color temperature presets
Yes
-
Dimming modes
4
-
Dim Curves
4
-
Built-in automated programs
Yes
Construction/Physical
-
Dimensions w/ PSU
10 x 5.62 x 4.29 in (254 x 143 x 109 mm)
-
Dimensions w/o PSU
10 x 4.13 x 4.29 in (254 x 105 x 109 mm)
-
Weight w/ PSU
6.2 lb (2.9 kg)
-
Weight w/o PSU
4.2 lb (2 kg)
-
Exterior Color
Black
-
Housing material
Aluminum Alloy
Connections
-
Power connection
Edison plug (local) to Seetronic Powerkon IP65
-
Power input
Seetronic Powerkon IP65
-
Power Input
28 VDC, 3-pin IP65 XLR
-
Cable Length (power)
5 ft (1.5 m)
-
Software Connection
USB
Control
-
Control Protocol
CRMX, RDM
-
DMX Channels
1, 3, 4, 5, 6, 8, 10, 11, 15
-
Modes/Personalities
9 personalities (1, 3, 4, 5, 6, 8, 10, 11, 15Ch1)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current
49 W, .419 A @ 120 V, 60 Hz
-
Power and Current
52 W, .260 A @ 208 V, 60 Hz
-
Power and Current
57 W, .246 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC,
-
IP Rating
IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories
- onAir Panel Min IP Barndoor
- onAir Panel Min IP 30deg Honeycomb
- onAir Panel Min IP 60deg Honeycomb
- Professional Clamps: CTC-50HC, CTC-50HCN
- Seetronic Powerkon power linking cables
- 5-pin DMX Cables
What's Included
- onAir IP Panel Min IP
- Seetronic Powerkon IP65
- mounting hardware
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | onAir Panel Min IP Quick Reference Guide | Download |
Manuals | onAir Panel Min IP – User Manual | Download |
DMX | onAir Panel Min IP DMX Chart | Download |
Photometrics | onAir Panel Min IP – Photometrics Report | Download |
Drawings | onAir Panel Min IP – IES Files | Download |
Drawings | onAir Panel Min IP – 2D CAD Files | Download |
Manuals | onAir Panel Min IP – 3D CAD Files | Download |
Other | onAir Panel Min IP – Firmware | Download |
onAir Panel Min IP FAQ’s
Yes, the onAir Panel Min IP is designed to be all-weather and can be used outdoors in the elements, including rain. Its rugged, protected build makes it a reliable choice for on-location shoots, regardless of conditions.
For maximum flexibility, you can power the light in two ways. Use the included power supply to plug it into a standard outlet, or detach the supply and connect an external battery pack for use in remote locations where power isn’t available.
It provides exceptionally high-quality, soft light that looks natural on camera. You can easily adjust the warmth of the white light, fine-tune the color to match other lights, or add vibrant colors. It also features smooth, flicker-free dimming to ensure a perfect, professional shot.
