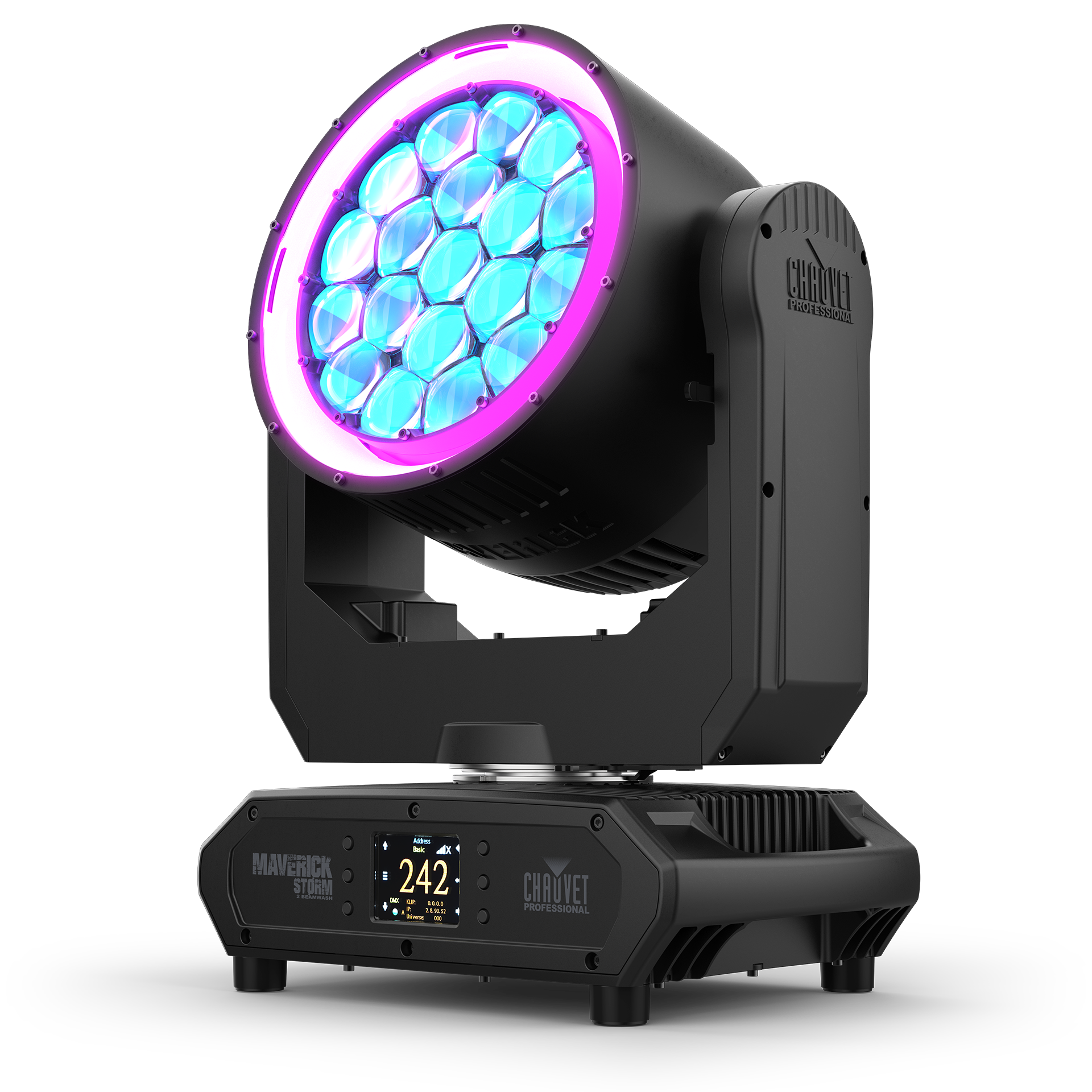

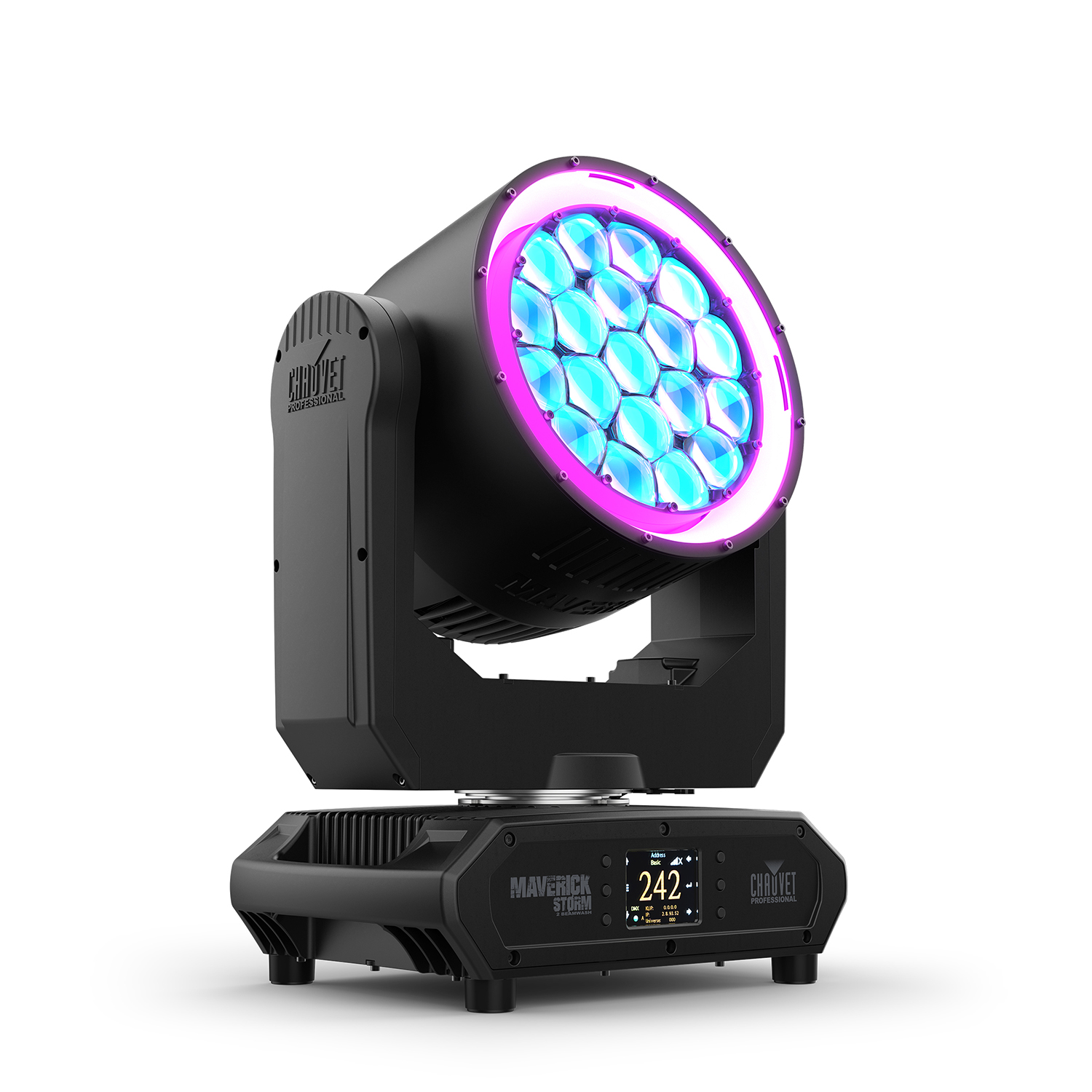

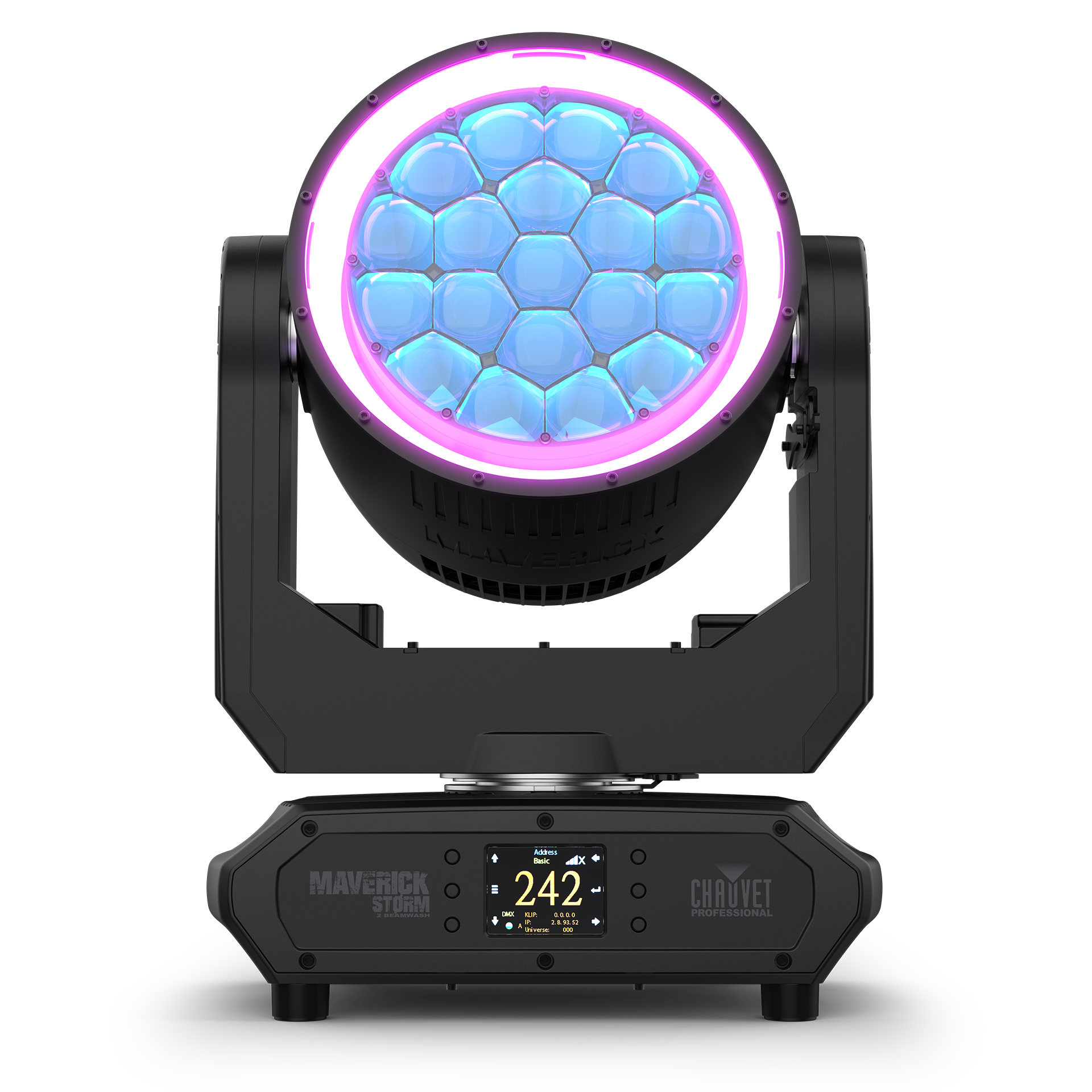

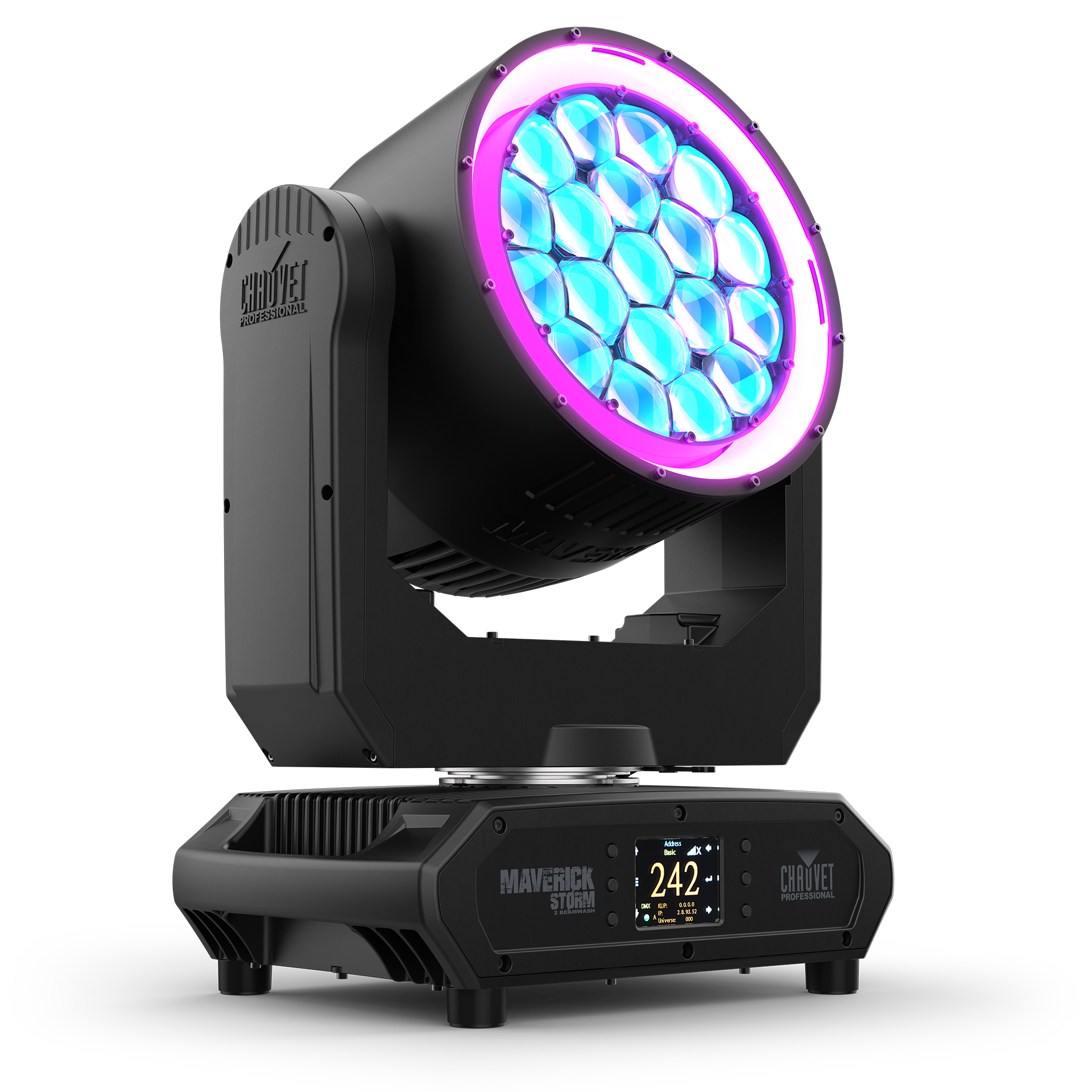

Maverick Storm 2 BeamWash

Optical

• Light Source

  19 LEDs (quad-color RGBW) 45 W (3 A), 50,000 hours life expectancy

• Light Source

  144 LEDs Outer Ring (tri-color RGB) 0.2 W, (20 mA), 50,000 hours life expectancy.

• Color Temperature (range)

  2700 to 8000 K

• Beam Angle

  3.6° to 34.5°

• Field Angle

  5.7° to 47.4°

• Cutoff Angle

  6.6° to 53.4°

• Zoom Range

  3.6° to 53.4°

• Lumens – Source

  15,000

• Lumens – Output

  9,927

• • Illuminance
    • 3.6°

      37,529 lux @ 5 m

    • 47.4°

      1,262 lux @ 5 m

• Selectable PWM

  600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects

• Pan and Tilt

  540°/260°

• Pan and Tilt Ranges

  540°, 360°, 180° pan/260°, 180°, 90° tilt

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Strobe Rate

  0 to 20 Hz

• Standalone Color Mixing

  No

• Color Temperature Presets

  Yes

• Move-in-Black

  Yes

• Dim Curves

  4

Construction/Physical

• Dimensions

  15.28 x 11.42 x 19.72 in (388 x 290 x 501 mm)

• Weight

  52.4 lb (23.8 kg)

• Exterior Color

  Black

• Housing Material

  Aluminum diecast, High-impact flame-retardant polymer, steel

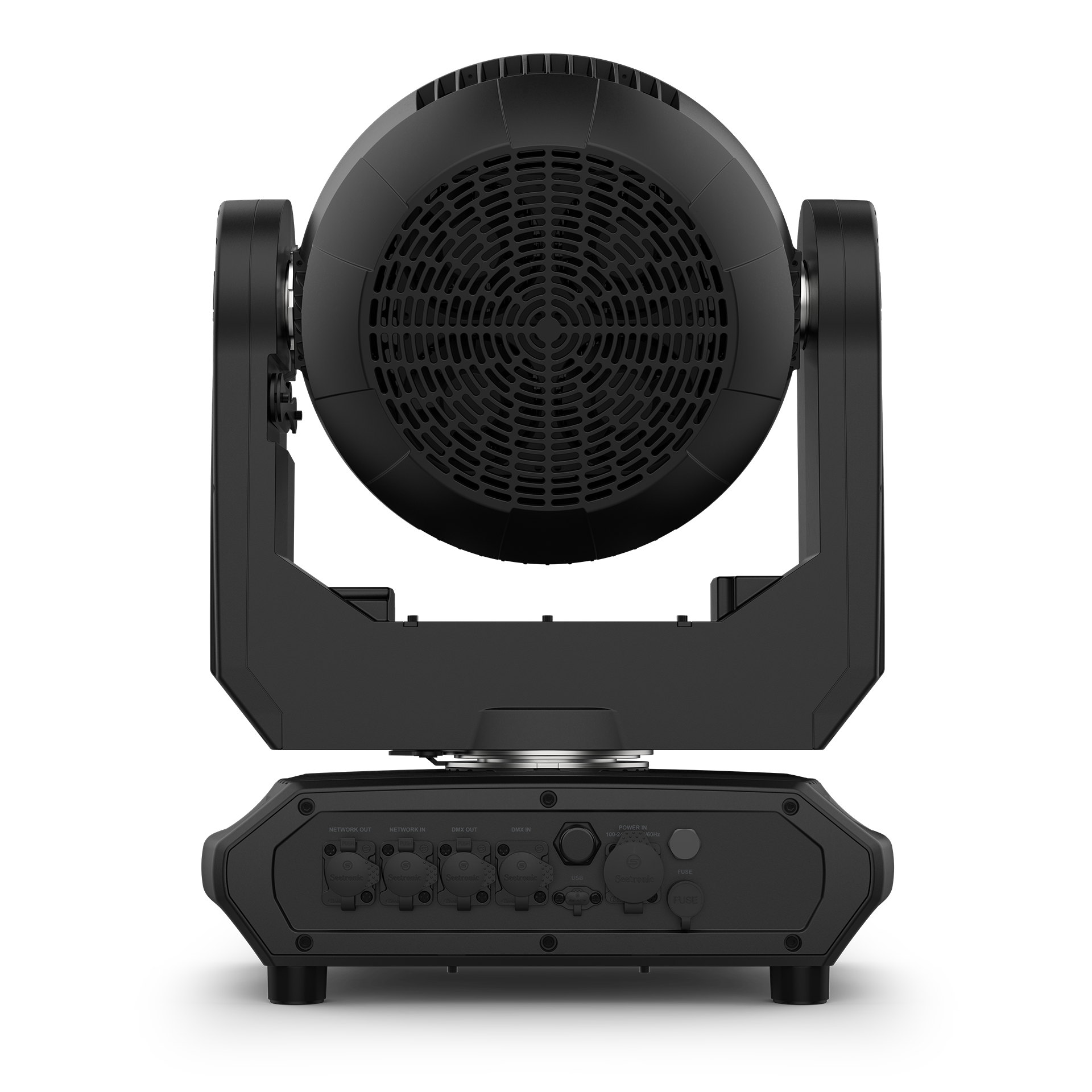

Connections

• Power Connection

  Seetronic Powerkon IP65

• Power Input/Output

  Seetronic Powerkon IP65

• Data Connectors

  5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  Art-Net, sACN, Kling-Net, RDM, DMX, W-DMX

• DMX Channels (Single Mode)

  33 ch, 145 ch, 265 ch or 327 ch

• Art-Net/sACN Channels (Single Mode)

  3 3ch, 145 ch, 265 ch or 327 ch

• DMX Channels (Dual Mode) (Movement)

  13 ch, 36 ch, 4 7ch

• DMX Channels (Dual Mode) (Pixel)

  93 ch, 112 ch, 224 ch

• Art-Net/sACN Channels (Dual Mode) (Movement)

  13 ch, 36 ch, 47 ch

• Art-Net/sACN/Kling-Net Channels (Dual Mode) (Pixel)

  93 ch, 112 ch, 224 ch

• Modes/Personalities

  7 personalities (33 ch, 145 ch, 265 ch, 32 7ch, 13ch-93 ch, 36 ch-112 ch, 47 ch-224 ch)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current

  1080 W, 9.26 A @ 120 V, 60 Hz

• Power and Current

  1040 W, 5.23 A @ 208 V, 60 Hz

• Power and Current

  1040 W, 4.65 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET, FCC, CB, UKCA

• IP Rating

  IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

• Temperature (Ambient)

  4 °F to 113 °F (-20 °C to 45 °C)

• • Noise Levels
    • Idle

      34.9 dB(A) @ 1 m

    • Max

      46.5 dB(A) @ 1 m

    • Eco

      34.2 dB(A) @ 1 m

    • Auto

      44.7 dB(A) @ 1 m

    • Full

      46.7 dB(A) @ 1 m
