    IP Tester

    The IP Tester is a portable, tour-ready tool designed to verify the vacuum and pressure integrity of IP-rated products using pre-loaded and custom testing profiles.
    Ideal for service technicians and rental houses needing to confirm the weatherproofing of any IP-rated product equipped with a Gore valve before touring or outdoor use.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: IPTESTER

    IP Tester

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    User Manual
    		 Download
    GitHub Downloads
    		 Download
    Firmware
    		 Download
    Download All Resources

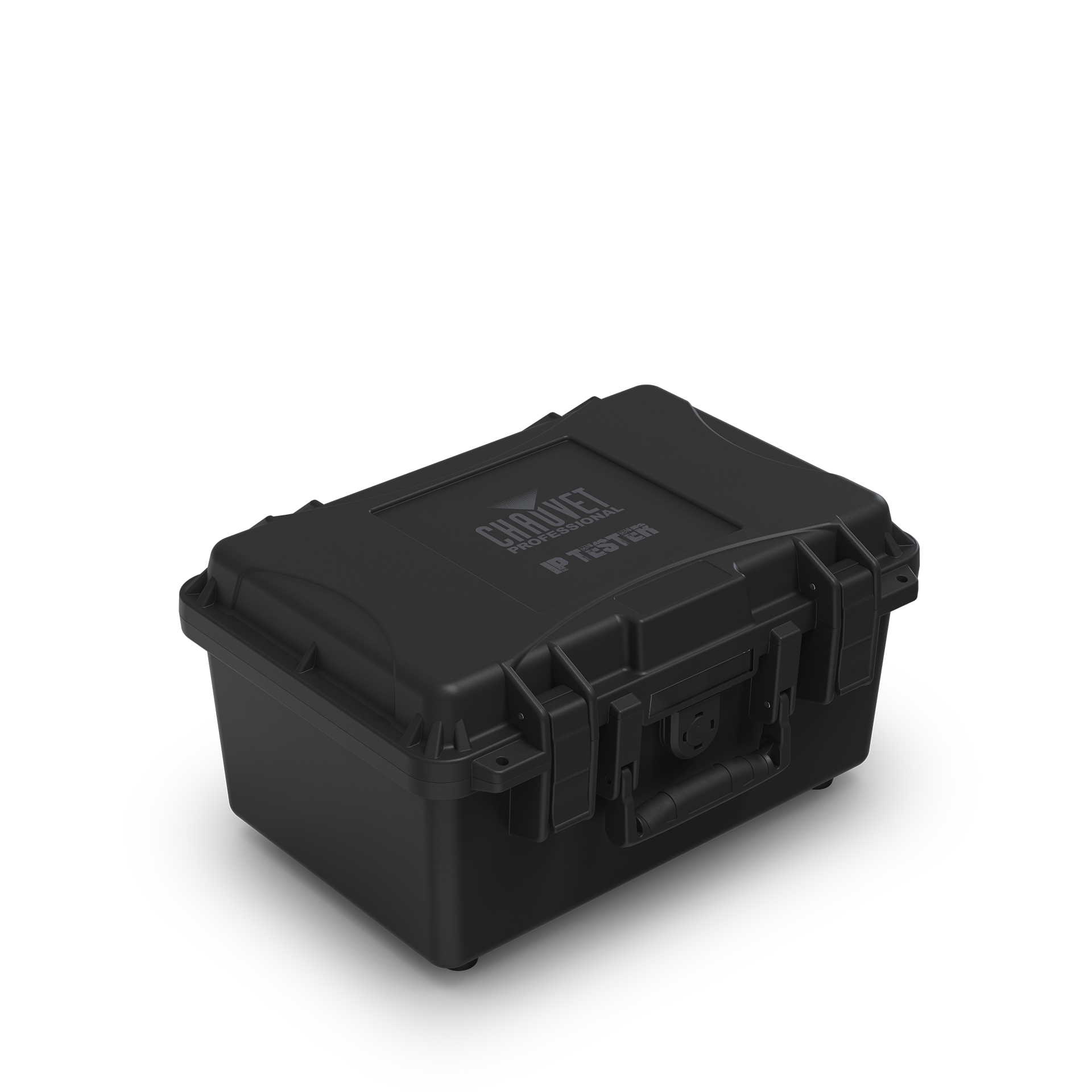

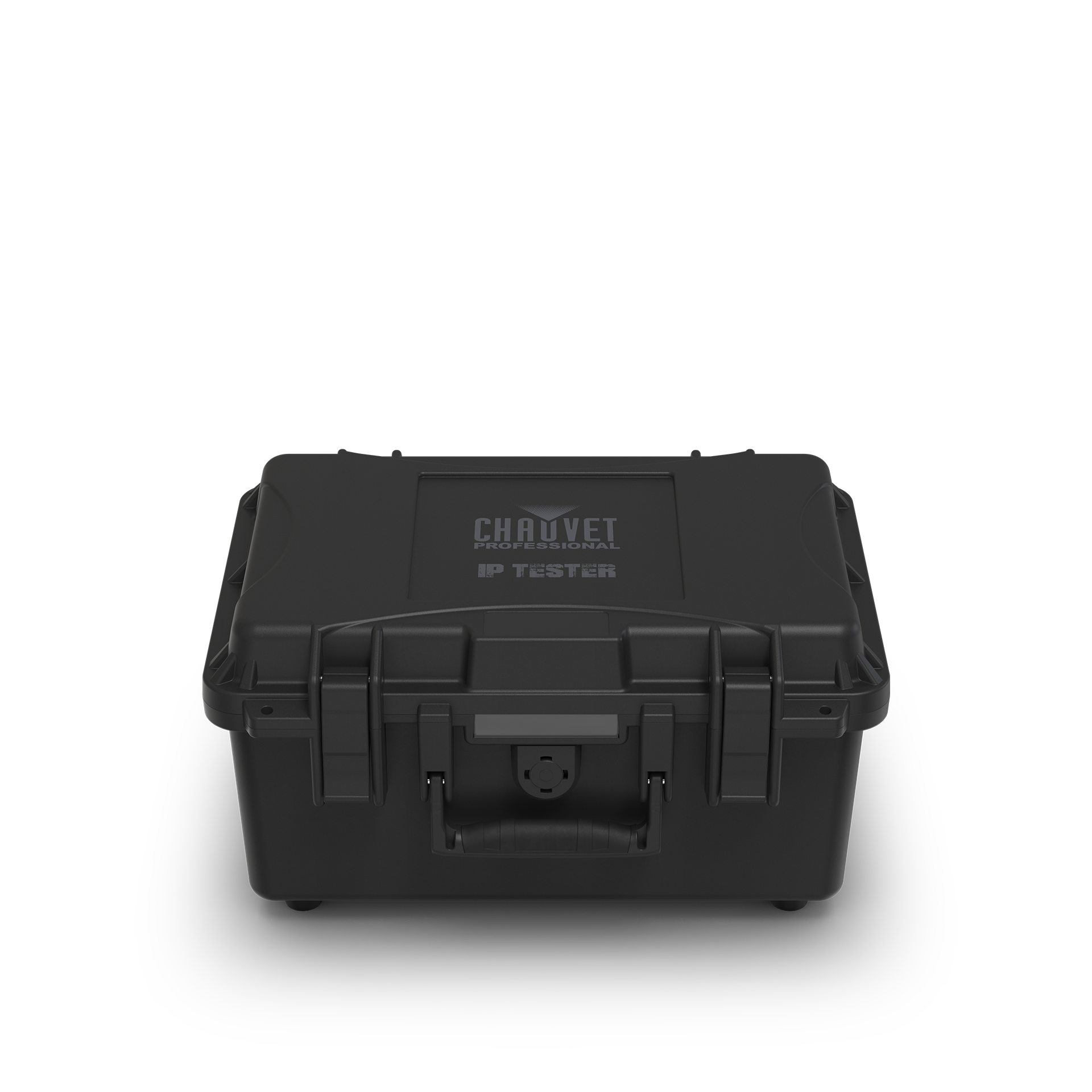

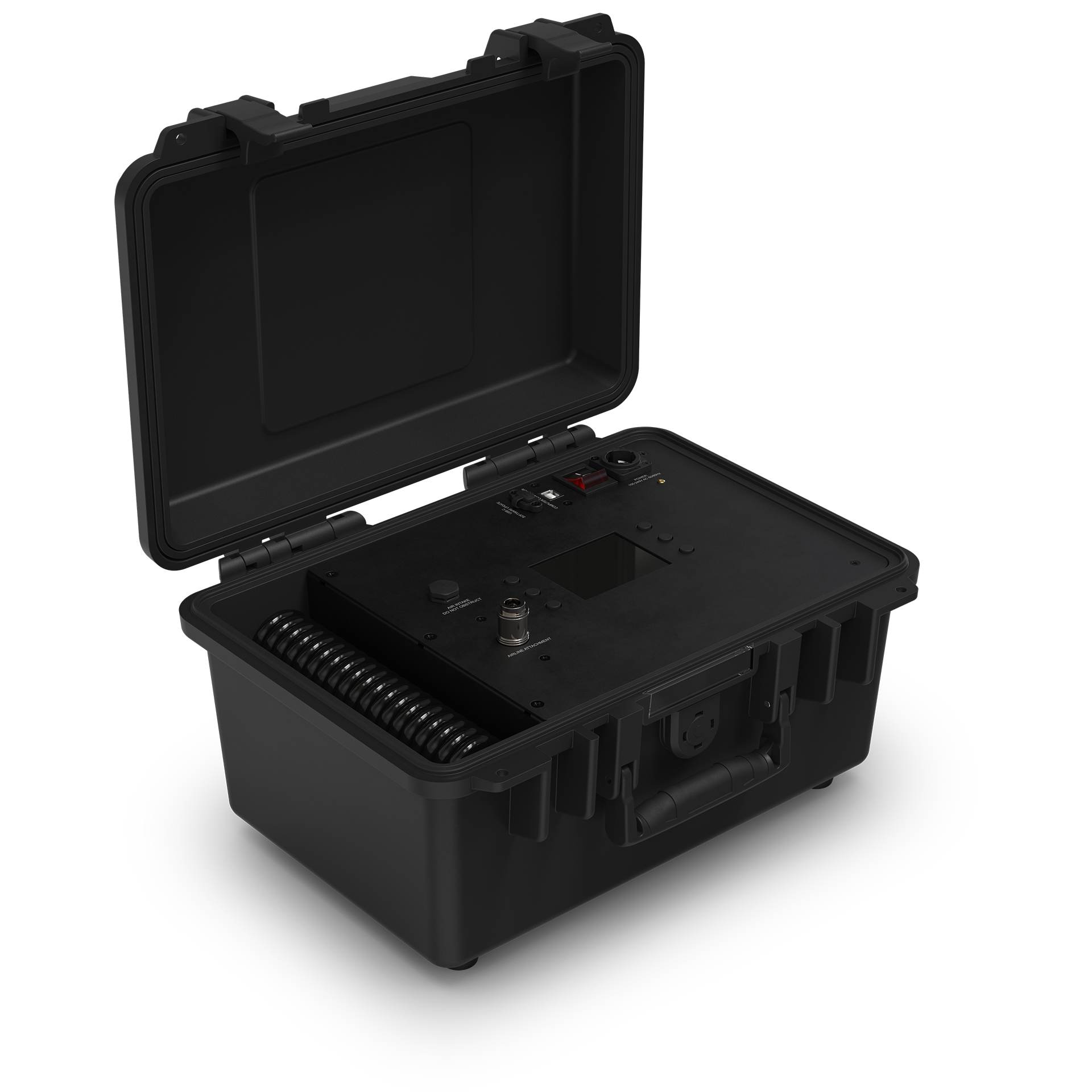

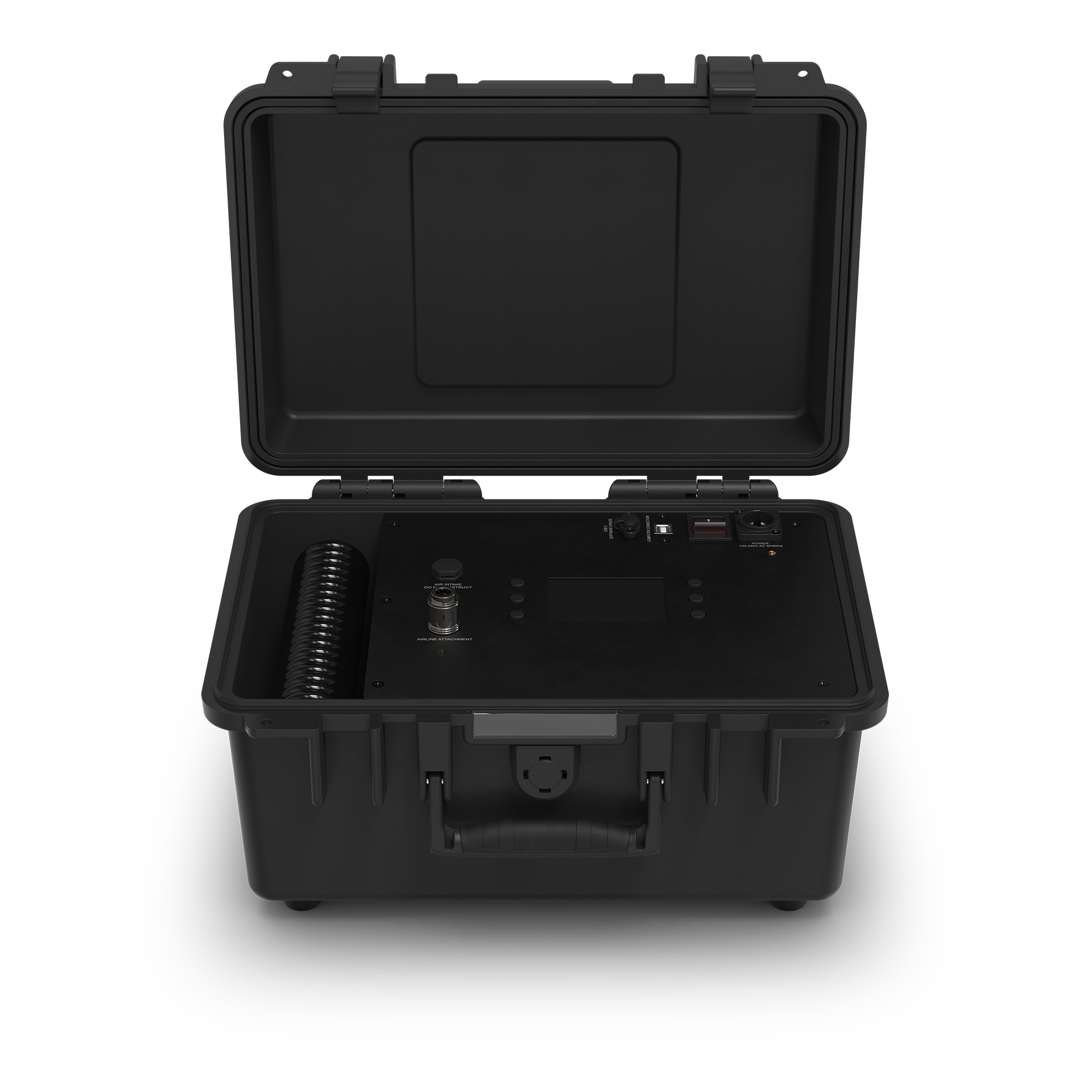

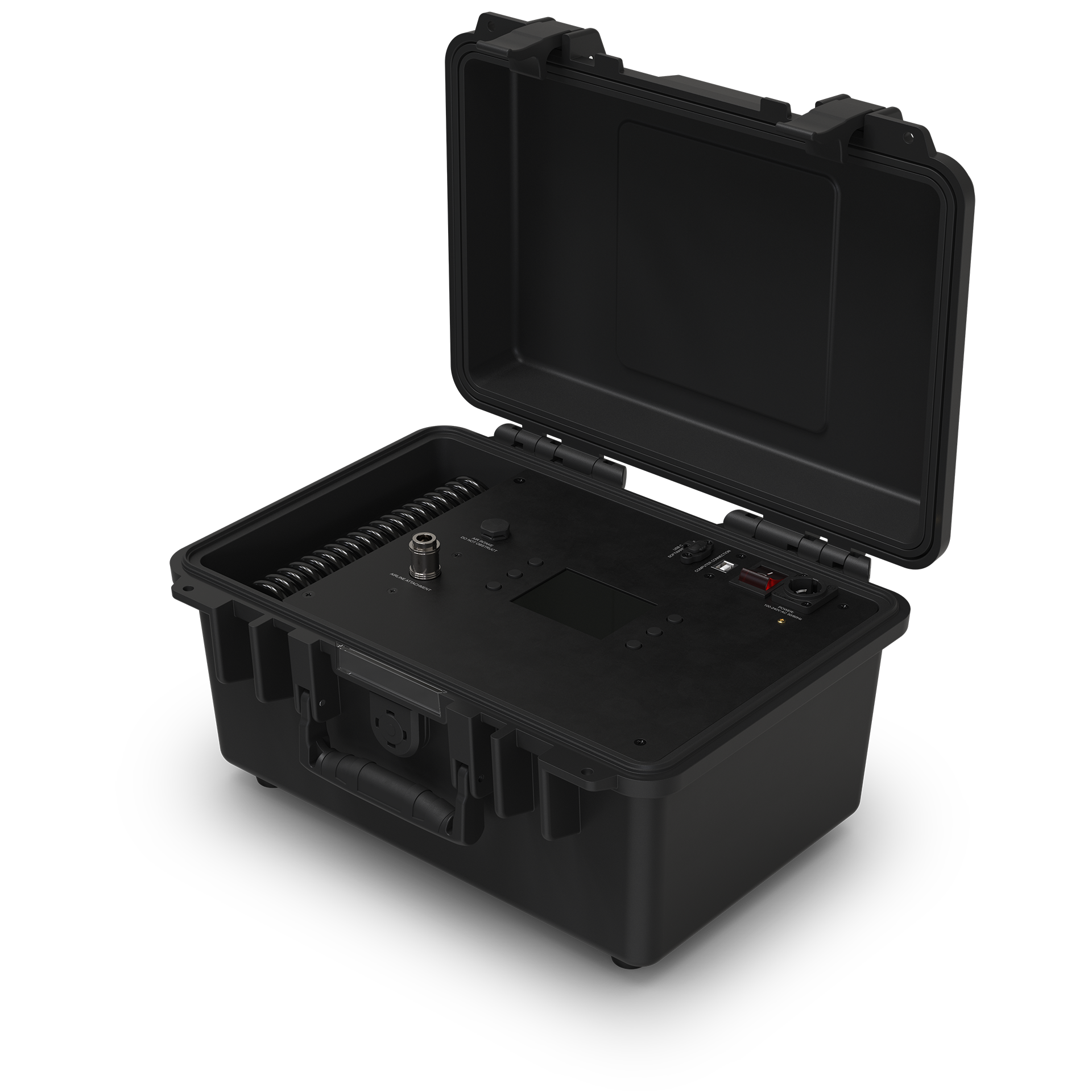

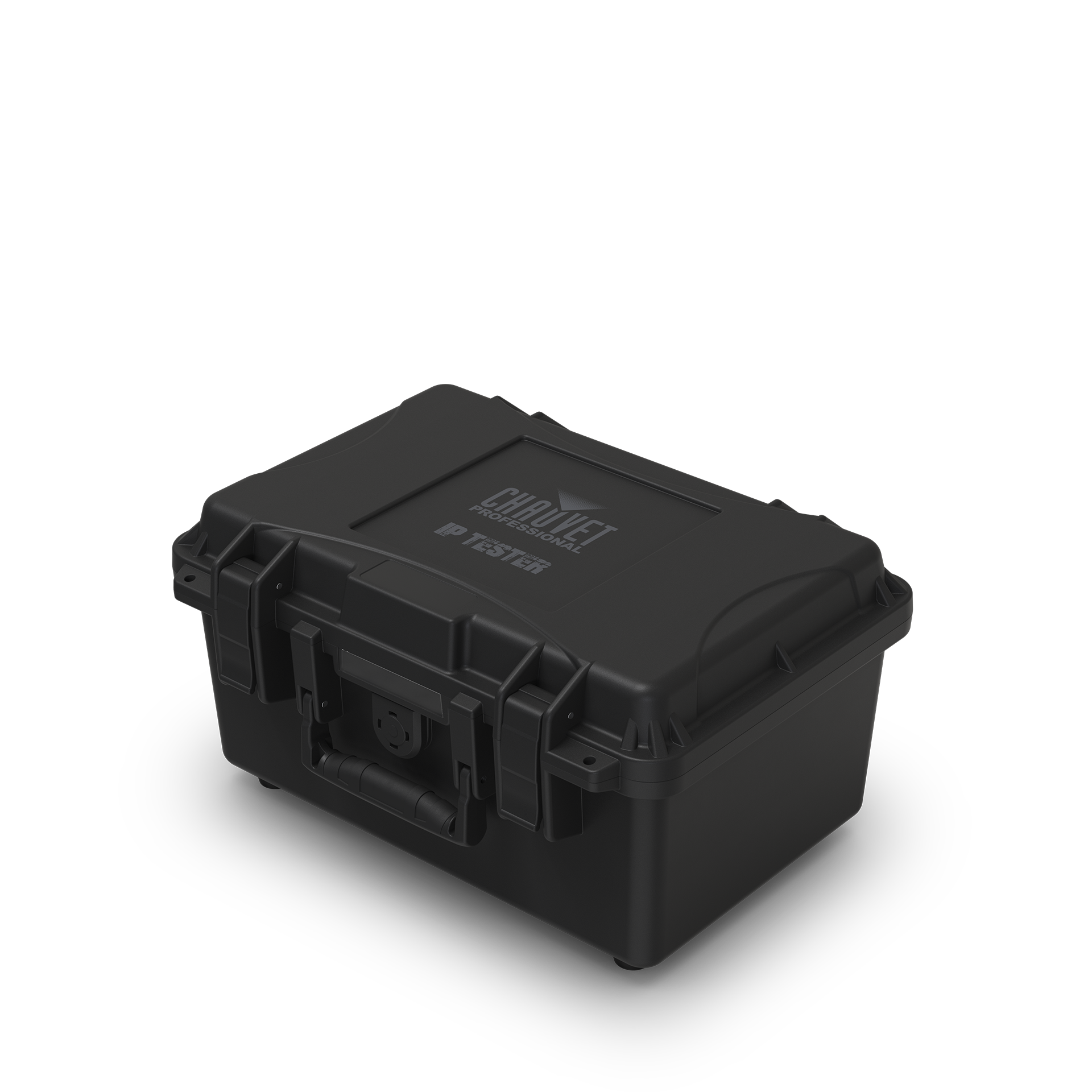

    IP Tester is a portable tool capable of testing the vacuum and pressure parameters of IP rated products. It comes with pre-loaded testing personality files for CHAUVET Professional IP rated fixtures as well as offering the ability to easily create custom testing profiles. A built-in web server allows for easily connecting to PC computers for creating fixture profiles and storing information collected from tests. IP Tester is a useful tool for testing any CHAUVET Professional IP rated product fitted with Gore valves. Housed in a compact and impact resistant ABS plastic case designed with touring in mind and able to fit in tool and road cases.

    Compatible with all IP rated products with Gore valves.

    Features

    Portable IP Testing

    This compact device provides both vacuum and pressure testing capabilities for IP rating verification.

    Pre-loaded Chauvet Profiles

    Includes pre-loaded testing personality files for CHAUVET Professional IP rated products.

    Custom Testing Profiles

    Easily build your own custom testing profiles for a wide range of fixtures.

    Integrated Web Server

    A built-in web server allows for a simple connection to PC computers to create fixture profiles and store test information.

    USB-C Connectivity

    The USB-C input facilitates easy software upgrades and the storage of fixture test data.

    USB-B PC Connection

    A dedicated USB-B port provides a convenient option for connecting directly to a PC.

    Tour-Ready Design

    Its compact and impact-resistant ABS plastic case is designed to fit in tool and road cases for touring applications.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Construction/Physical

    • Dimensions

      14.38 x 11 x 7.5 in (365.25 x 279.4 x 190.5 mm)

    • Weight

      9.4 lb (4.3 kg)

    • Exterior Color

      Black

    • Housing Material

      Injection molded case

    Connections

    • Power Connection

      Edison plug to Seetronic Powerkon

    • Power Input

      Seetronic Powerkon

    • Fitting

      Quick-Release Air Hose Fitting

    • Vent

      Air In/Out Vent

    • Data Connection

      USB-B Port, USB-C

    • Cable Length (power)

      5 ft (1.5 m)

    Control

      • On-Board Control
        • LCD Menu

          6 button LCD menu

        • Web Server

          Built in webserver for USB connection to PC

        • USB-C Data Storage

          remote information storage over USB-C input

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power and Current

      25 W, 0.335 A @ 120 V, 60 Hz

    • Power and Current

      25 W, 0.214 A @ 208 V, 60 Hz

    • Power and Current

      25 W, 0.205 A @ 230 V, 50 Hz

    What's Included

    • IP Tester
    • Seetronic powerKon IP65 Power Cord to Edison
    • USB Cable
    • M12 Threaded Brass Nozzle with Push-to-Connector Fitting
    • (2) M12 threaded metal plugs

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    IP Tester – Quick Reference Guide
    		Download
    Manuals
    IP Tester – User Manual
    		Download
    Other
    IP Tester – GitHub Downloads
    		Download
    Other
    IP Tester – Firmware
    		Download

    Learn How To Use Your IP Tester

    Explore these detailed videos showcasing setup, features, and creative applications for this product.

    • Light Snacks: Inspecting the Gore Valve on CHAUVET Professional IP65 Rated Fixtures

      Protect your all-weather CHAUVET Professional fixtures by learning the importance of Gore valve inspection. This quick check ensures your IP65-rated gear properly equalizes pressure and maintains its seal for reliable performance in any environment.

    Video Library

    Latest Articles

    Browse Articles

    IP Tester FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the IP Tester
    What is the IP Tester used for?

    The IP Tester is a portable diagnostic tool used to verify that the protective seals on your outdoor-rated equipment are working correctly. It performs pressure and vacuum tests to ensure the fixture’s housing is perfectly sealed, protecting its internal electronics from damage by rain, dust, and moisture.

    How do I use the IP Tester with my equipment?

    It’s designed for ease of use. The device comes with pre-loaded testing profiles for CHAUVET Professional outdoor-rated fixtures, making it ready to go out of the box. For other gear, you can easily create and save custom testing profiles by connecting the IP Tester to a computer.

    Is the IP Tester suitable for touring and travel?

    Yes, it is specifically designed for touring technicians and use on the road. It is housed in a compact, impact-resistant case that fits easily into tool chests and road cases, ensuring it can handle the demands of travel and fieldwork.
