    ÉPIX Flex Boost

    The ÉPIX Flex Boost is a plug-and-play, 24V in-line voltage booster that doubles the capacity of an ÉPIX Flex Drive output, allowing it to control a greater quantity of ÉPIX Flex 20 fixtures.
    This is the perfect solution for creating large-scale or extended-run lighting installations that require more fixtures than a single driver output can typically support.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: EPIXFLEXBOOST

    ÉPIX Flex Boost

    Specifications
    		 Download
    ÉPIX Flex Boost Quick Reference Guide
    		 Download
    ÉPIX Flex Connection Guide
    		 Download
    Download All Resources

    ÉPIX Flex Boost

    SKU: EPIXFLEXBOOST

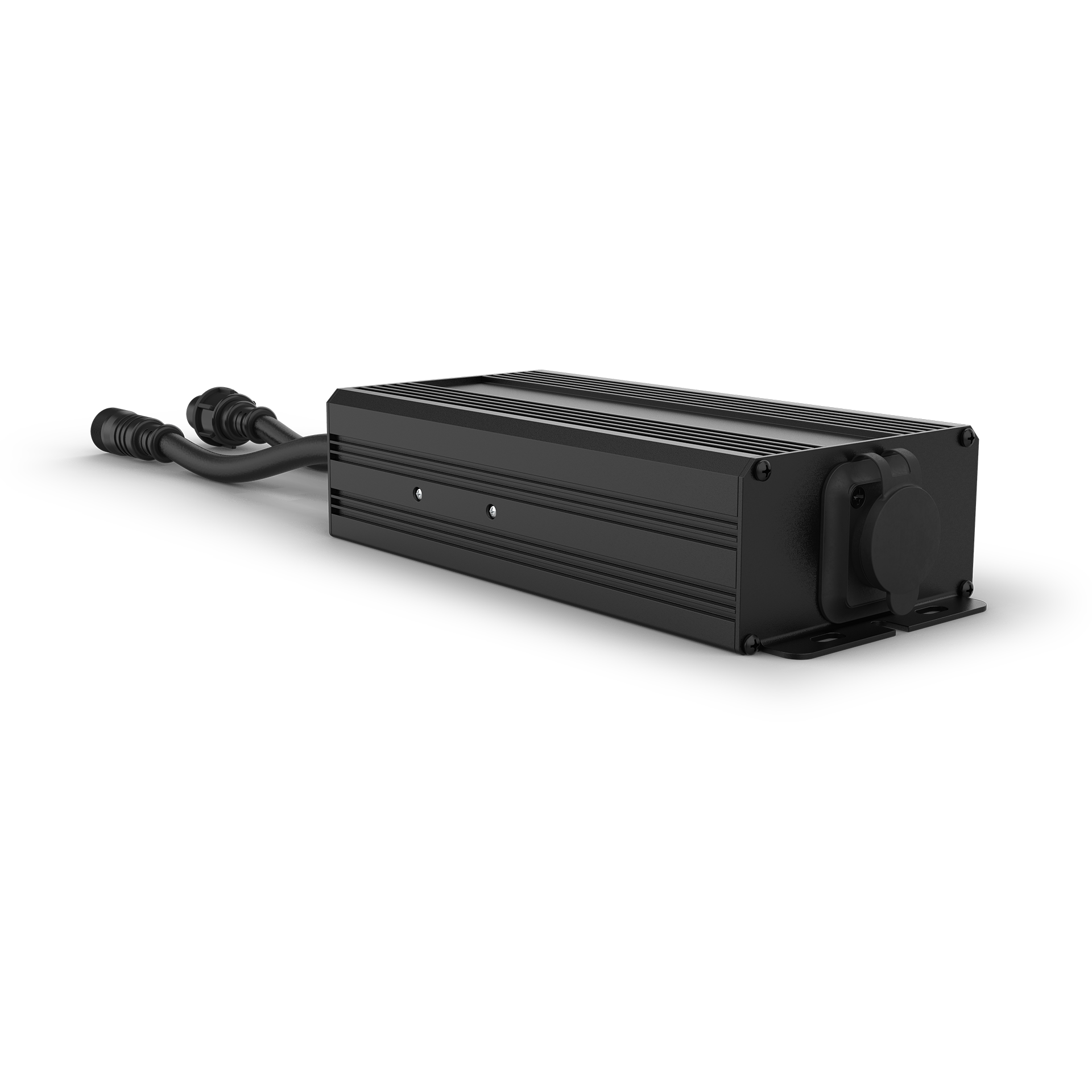

    ÉPIX Flex Boost is a 24V in-line voltage booster that doubles the capacity of each output on the ÉPIX Flex Drive and the quantity of ÉPIX Flex 20 it controls. There is no need to solder into system with this plug-and-play operation.

    Features

    Outdoor Rated Voltage Booster

    An IP65 rated in-line voltage booster designed specifically for the ÉPIX Flex 20.

    Simple Driver Connection

    Works by connecting directly to the outputs of the required ÉPIX Flex Driver.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Construction/Physical

    • Dimensions

      8.13 x 3.56 x 1.83 in (206.5 x 46.5 x 90.5 mm)

    • Weight

      4.4 lb (2 kg)

    • Exterior Color

      Black

    • Housing Material

      Aluminum

    Connections

    • Connection

      Edison (Local) plug to Seetronic Powerkon IP65

    • Power Input

      Seetronic Powerkon IP65

    • Device inputs

      (1) 3-pin male IP Flex

    • Device Outputs

      (1) 3-pin female IP Flex

    • Physical Linking

      2 inline ÉPIX Flex 20

    • Cable Length (signal)

      1.16 ft (0.355 m)

    • Cable Length (power)

      5 ft (1.5 m)

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power and Current

      200 W, 1.6 A @ 120 V, 60 Hz

    • Power and Current

      200 W, 0.87 A @ 230 V, 50 Hz

    Certifications/Qualifications

    • Certifications

      CE, MET

    • IP Rating

      IP65, outdoor/wet, with pressure equalizing M14 GORE valve

    • Temperature (Ambient)

      -4 °F to 113 °F (-20 °C to 45 °C)

    • MET Listing Number

      E114016-1144

    • US Safety

      UL 8750

    • Canadian Safety

      CSA C22.2 No. 250.13-12

    Required Accessories

    • Accessories (required): ÉPIX Flex Drive
    • Compatible Mounting Options: M12 Bolt/Clamp

    Compatible Accessories

    • Clamps
    • IP Flex Cables
    • Seetronic Powerkon cables
    • DMX Cables

    What's Included

    • ÉPIX Flex Boost
    • Seetronic Powerkon power cord

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    ÉPIX Flex Boost Quick Reference Guide
    		Download
    Manuals
    ÉPIX Flex Connection Guide
    		Download

    ÉPIX Flex Boost FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the ÉPIX Flex Boost
    What is the purpose of the ÉPIX Flex Boost?

    The ÉPIX Flex Boost is a simple plug-in device that doubles the number of ÉPIX Flex 20 light strands you can run from a single controller output. This allows you to easily create larger, more expansive lighting designs.

    How do you install the ÉPIX Flex Boost?

    Installation is designed to be fast and simple. The ÉPIX Flex Boost connects directly inline with your existing ÉPIX Flex cables, requiring no special tools or wiring. It’s a true plug-and-play solution for extending your lighting setup.

    Can the ÉPIX Flex Boost be used outdoors?

    Yes, it features a rugged, weather-resistant design, making it perfectly suitable for outdoor events and installations. You can confidently use it in various weather conditions to expand your creative lighting displays.
