Available in 4 different lengths

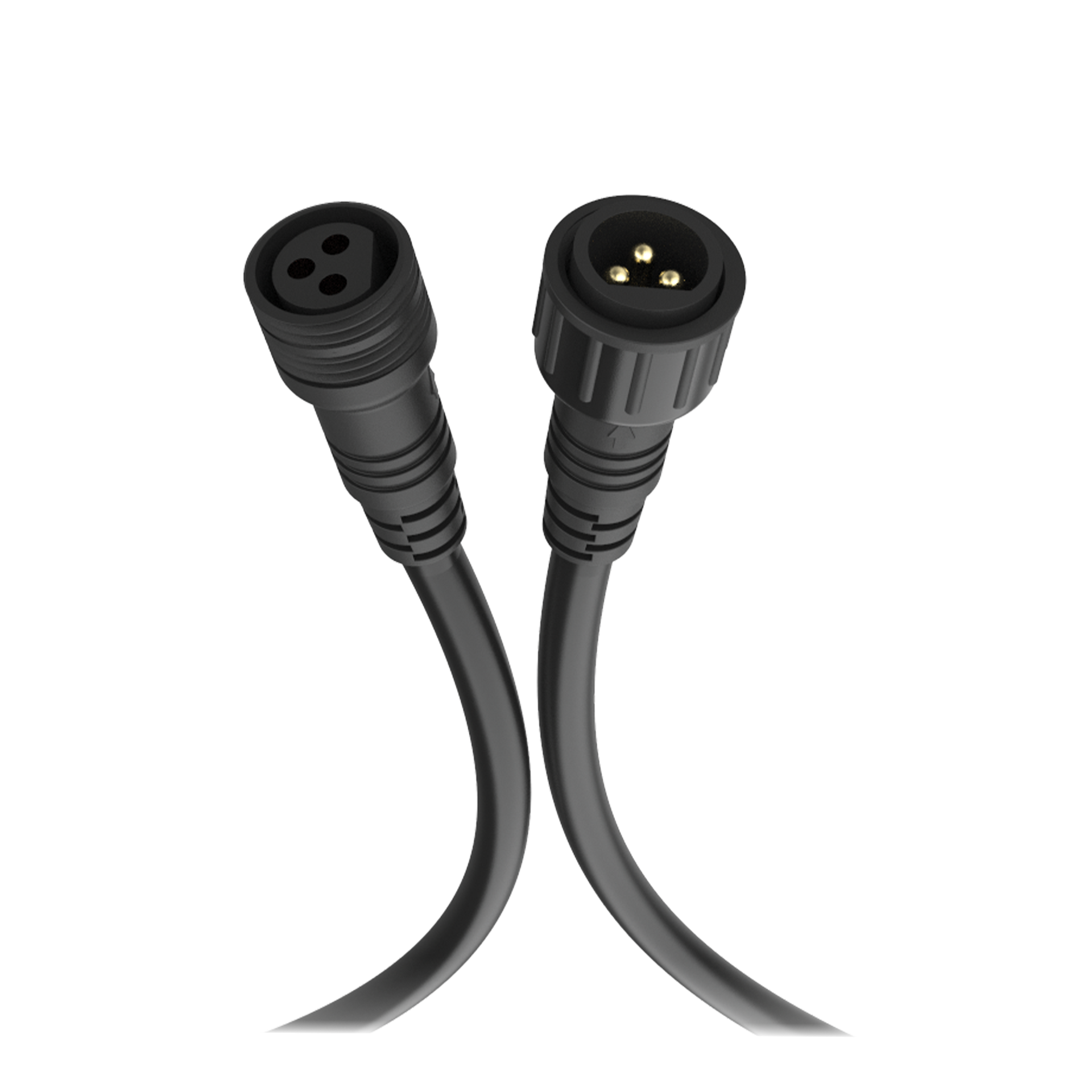

IP Flex Extension

A 3-pin, IP67-rated extension cable featuring secure locking connectors, available in various lengths to reliably extend power or data connections.
Ideal for outdoor event production, architectural installations, or any environment where connections must be protected from dust and water.

Length	SKU	Description
5FT	IPFLEXEXT5FT	IP Flex Extension – 5FT
15FT	IPFLEXEXT15FT	IP Flex Extension – 15FT
25FT	IPFLEXEXT25FT	IP Flex Extension – 25FT
50FT	IPFLEXEXT50FT	IP Flex Extension – 50FT

Features

Combined Power and Data

Extends the reach of your setup by carrying both power and data in a single cable.

Épix System Compatibility

Designed specifically for use with the Épix Flex 20, ÉPIX Flex Drive, and ÉPIX Flex Boost products.

Specifications

Download Product Specs

Cable

Connector

3-pin IP FLEX connector
Cables Lengths Offered

5 ft (1.5 m), 15 ft (4.57 m), 25 ft (7.62 m), 50 ft (15.24 m)
Cable size

(3) (SJTW) 16 AWG Stranded
Conductors

Black DC+, White DC-, Green DATA
Conductors twisted

Yes
Jacket thickness (outer)

0.61mm
Jacket thickness (each internal wire)

0.69mm
Jacket material

PVC
Jacket type

Flexible rubber (black)
Wire impedance

0.762 MΩ / kilometer
Outer jacket diameter

8.15mm to 8.45mm
Temperature rating

-40 °F to 221 °F (-40 °C to 105 °C)
Shielded

No
IP Rating

IP67

What's Included

IPFLEXEXT5FT – Cable packed in bag with header card.
IPFLEXEXT15FT – Cable packed in bag with header card.
IPFLEXEXT25FT – Cable packed in bag with header card.
IPFLEXEXT50FT – Cable packed in bag with header card.
