COLORdash Batten-Quad 6

A linear wash fixture featuring six individually controllable quad-color RGBA LEDs that produces a wide array of whites and richly saturated colors, while also enabling dynamic pixel-mapping effects.
Perfectly suited for uplighting, wall-grazing, and creating pixel-mapped displays in theatrical, concert, and broadcast applications.

COLORdash Batten-Quad 6

Specifications	Download
COLORdash Batten-Quad 6 Quick Reference Guide	Download
COLORdash Batten-Quad 6 User Manual	Download
COLORdash Batten-Quad 6 DMX Chart	Download
COLORdash Batten-Quad 6 CAD	Download
COLORdash Batten-Quad 6 ShowXpress Profile	Download
COLORdash Batten-Quad 6 IES Files	Download
COLORdash Batten Quad 6 Photometrics Report	Download

Download All Resources

Squeek Lights Gets Creative With CHAUVET Professional On The Wonder Years Tour

CHAUVET Professional Adds Colour And Depth To The Voice Australia Set

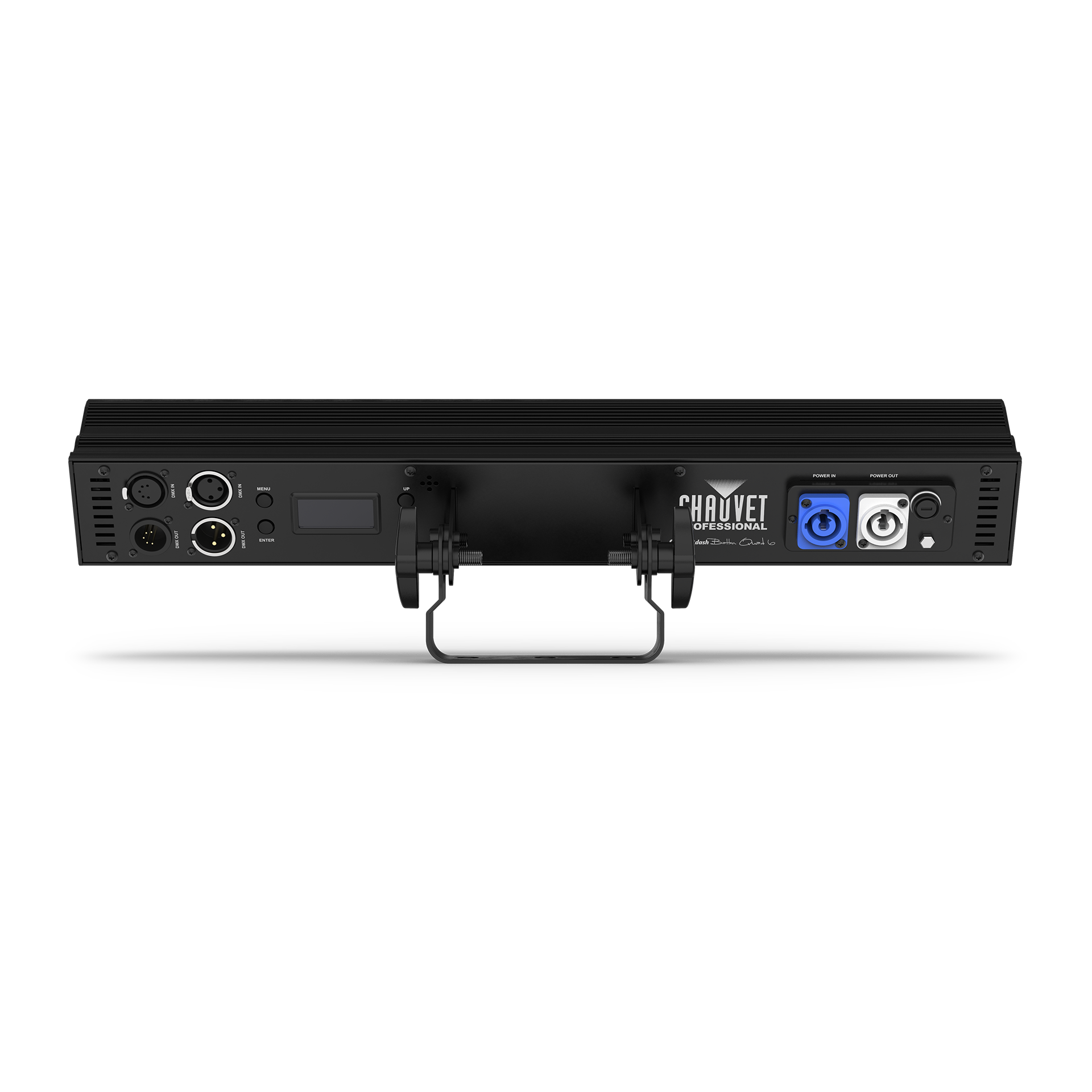

COLORdash Batten-Quad 6 is a linear wash fixture with 6 individually controllable quad-colored RGBA LEDs outputting any variation of white as well as richly saturated colors, thanks to the inclusion of amber LEDs. It pixel maps beautifully when used in multiples because it maintains an even pixel pitch. Setup is easy with a hanging bracket, floor trunnions, 3- and 5-pin DMX connectors and secure Neutrik® powerCON® power in and out.

Features

Durable Metal Construction

The all-metal body ensures the fixture can withstand the rigors of frequent use and transport.

Individual Pixel Control

Each LED can be controlled independently to create stunning pixel-mapping and animation effects.

Silent, Flicker-Free Operation

The fanless design provides completely silent and flicker-free performance ideal for on-camera use.

Versatile DMX Control

Choose between simple and complex DMX channel profiles for flexible programming options to suit any need.

Seamless Unit Linking

Mount multiple units together either stacked or end-to-end while maintaining a consistent pixel pitch.

Specifications

Download Product Specs

Optical

Light Source

6 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy
Color Temperature (range)

2,800 to 10,000 K
Installed Optics

20°
Beam Angle

17°
Field Angle

33°
Illuminance (total)

390.7 lux @ 5 m
PWM Frequency

600 Hz

Dynamic Effects

Dimmer

Electronic
Shutter/Strobe

Electronic
Strobe Rate

0 to 20 Hz
Standalone Color Mixing

Yes
Color Temperature Presets

Yes
Built-in Automated Programs

Yes

Construction/Physical

Dimensions

22 x 2.6 x 6.5 in (560 x 65 x 164 mm)
Weight

5 lb (2.3 kg)
Exterior Color

Black

Connections

Power Connection

Edison plug to Neutrik powerCON
Power Input

Neutrik powerCON
Power Output

Neutrik powerCON
Data Connectors

3- and 5-pin XLR
Cable Length (power)

5 ft (1.5 m)

Control

Control Protocol

DMX
DMX Channels

4, 6, 10, 24 or 28
Modes/Personalities

5 personalities (4, 6, 10, 24, 28)

Electrical

Input Voltage

100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking

17 units @ 120 V; 30 units @ 208 V; 33 units @ 230 V
Power and Current

90 W, 0.76 A @ 120 V, 60 Hz
Power and Current

94 W, 0.45 A @ 208 V, 50 Hz
Power and Current

96 W, 0.41 A @ 230 V, 50 Hz

Certifications/Qualifications

Certifications

CE, MET
IP Rating

IP20, dry location

Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
3- or 5-pin DMX Cables

What's Included

COLORdash Batten-Quad 6
Neutrik powerCON power cord
2 Trunnions

Questions or Concerns?

Let us know, we’re here to help! Contact Us

Downloads

Download All

Manuals	COLORdash Batten-Quad 6 Quick Reference Guide	Download
Manuals	COLORdash Batten-Quad 6 User Manual	Download
Manuals	COLORdash Batten-Quad 6 DMX Chart	Download
Manuals	COLORdash Batten-Quad 6 CAD	Download
Manuals	COLORdash Batten-Quad 6 ShowXpress Profile	Download
Photometrics	COLORdash Batten-Quad 6 IES Files	Download
Photometrics	COLORdash Batten Quad 6 Photometrics Report	Download

Latest Articles

Browse Articles

Squeek Lights Gets Creative With CHAUVET Professional On The Wonder Years Tour

LDs Victor Zeiser and David Summers design a versatile rig to capture the pop-punk energy of The Wonder Years.

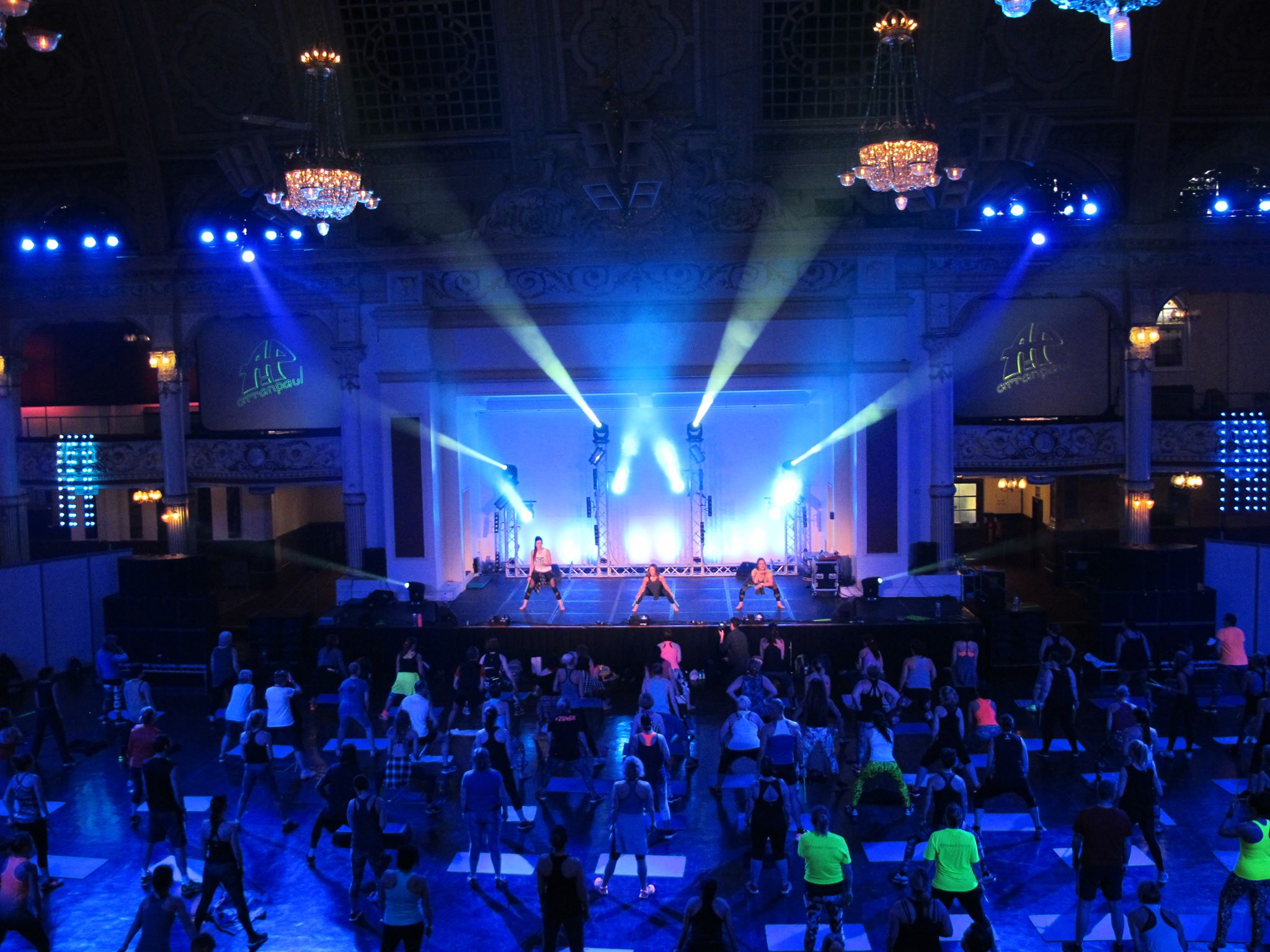

International Fitness Showcase Flexes Lighting Muscles with CHAUVET Professional!

A dynamic CHAUVET Professional rig adds intense energy to the International Fitness Showcase.

COLORdash Batten-Quad 6 FAQ’s

Quickly find answers to common questions about setup, operation, and features of the COLORdash Batten-Quad 6

What makes the color mixing on the COLORdash Batten-Quad 6 special?

The COLORdash Batten-Quad 6 uses four-in-one (RGBA) LEDs, which include an amber element. This allows it to produce a wide spectrum of rich, saturated colors and a full range of whites, from warm to cool tones, that standard RGB lights cannot achieve.

How does the COLORdash Batten-Quad 6 work for pixel mapping effects?

Each of the 6 LEDs on the light bar can be controlled individually, acting as a separate ‘pixel’. When you line up multiple units end-to-end, they maintain a consistent spacing between LEDs, allowing you to create smooth, seamless, and dynamic animated patterns across a larger area.

What are the best uses for the COLORdash Batten-Quad 6?

It’s a versatile light perfect for washing walls with color, uplighting scenery on a stage, or creating visual effects. Thanks to its silent and flicker-free operation, it is also ideal for use in quiet environments like theaters or for video and broadcast applications where on-camera performance is critical.
