Low-profile, 0.5mIP65 rated footlight with full-color and high-quality white light
-
Single-source lens for smooth, even output with no distracting points of light and an additional “stealth” filter to help the fixture disappear when off
-
Additional, fully controllable RGB marker lights can be used to cue talent or mark the edge of a stage
-
Designed for end-to-end use with no gaps or distracting cable mess, and a covered display to keep everything elegant unseen.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
COLORado Solo Edge 1

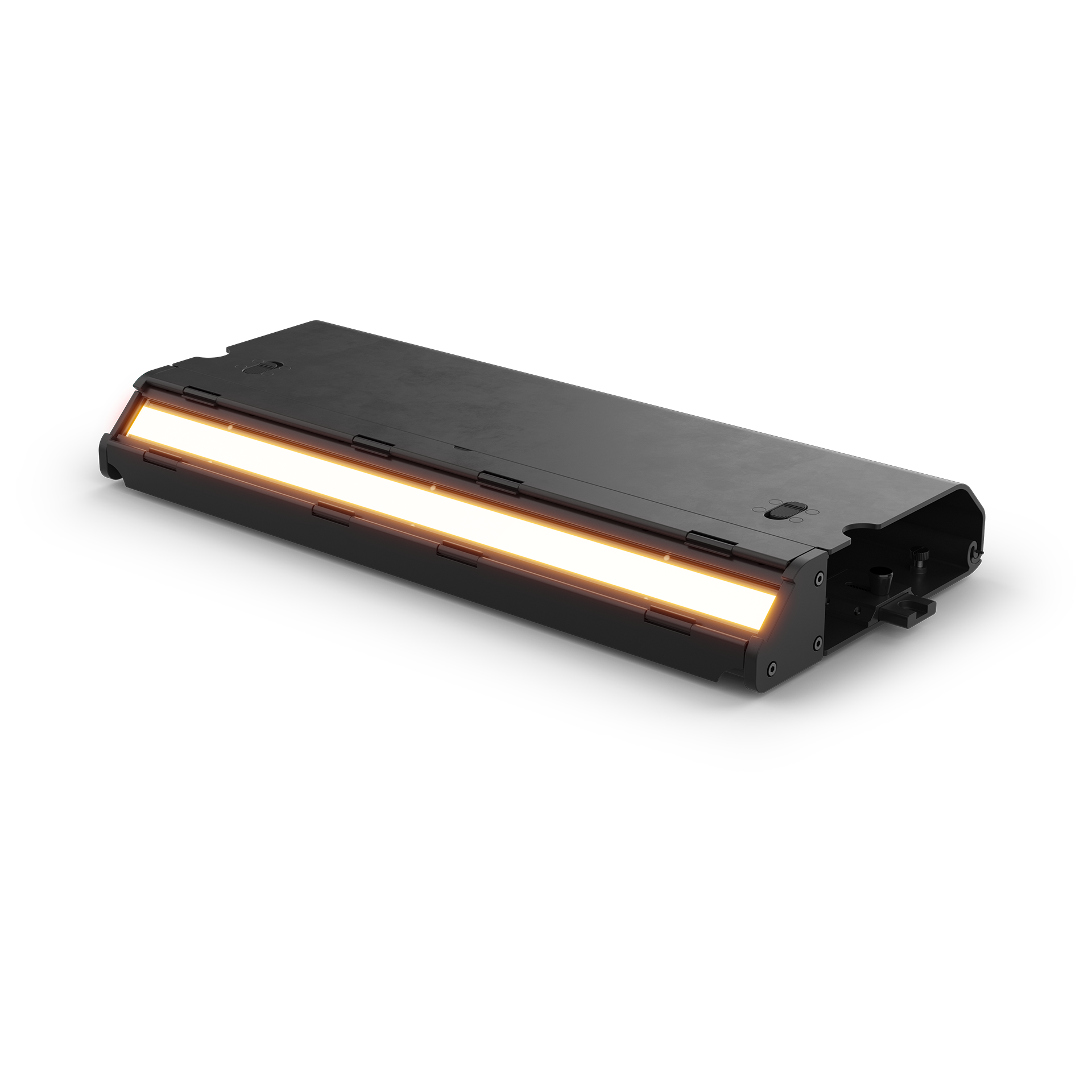

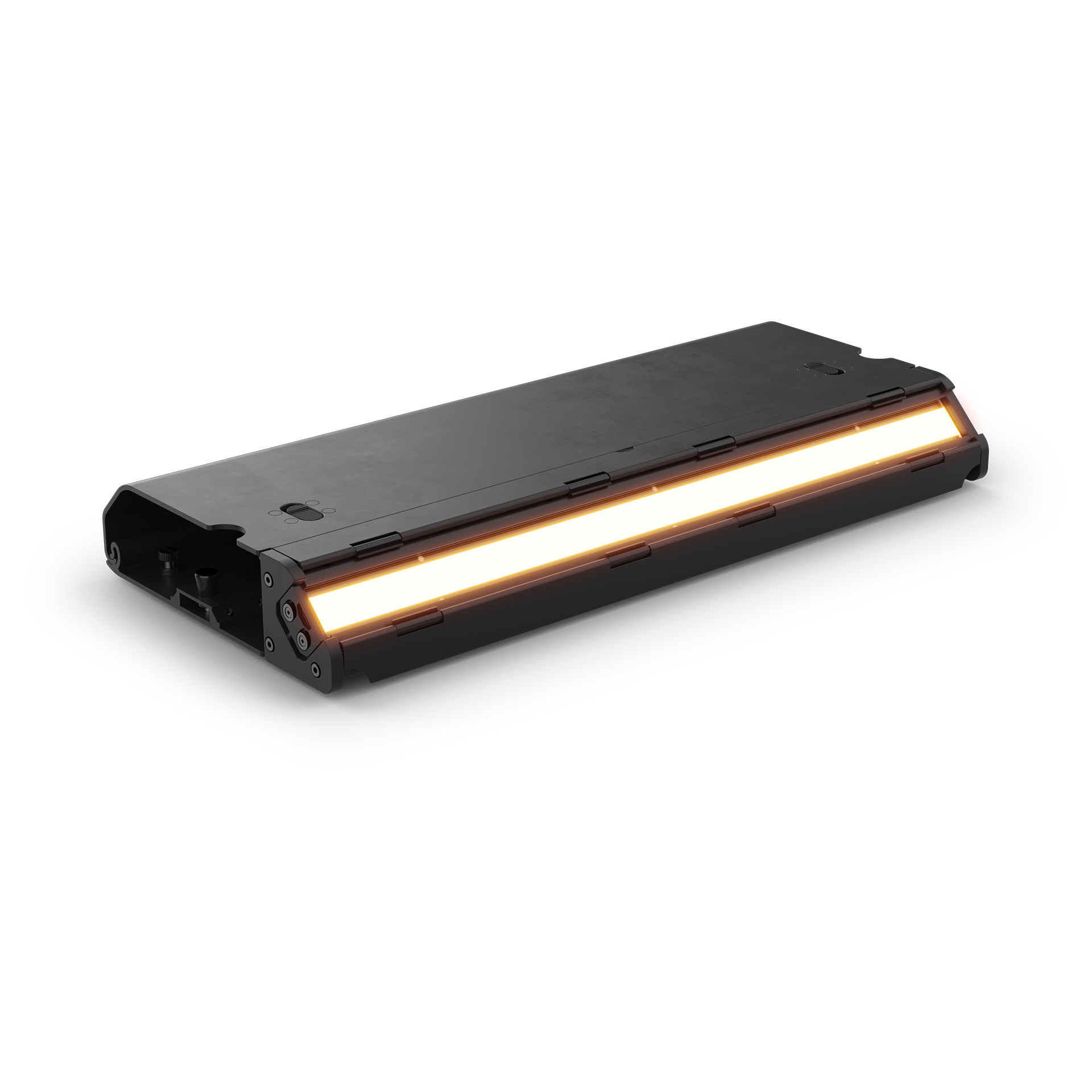

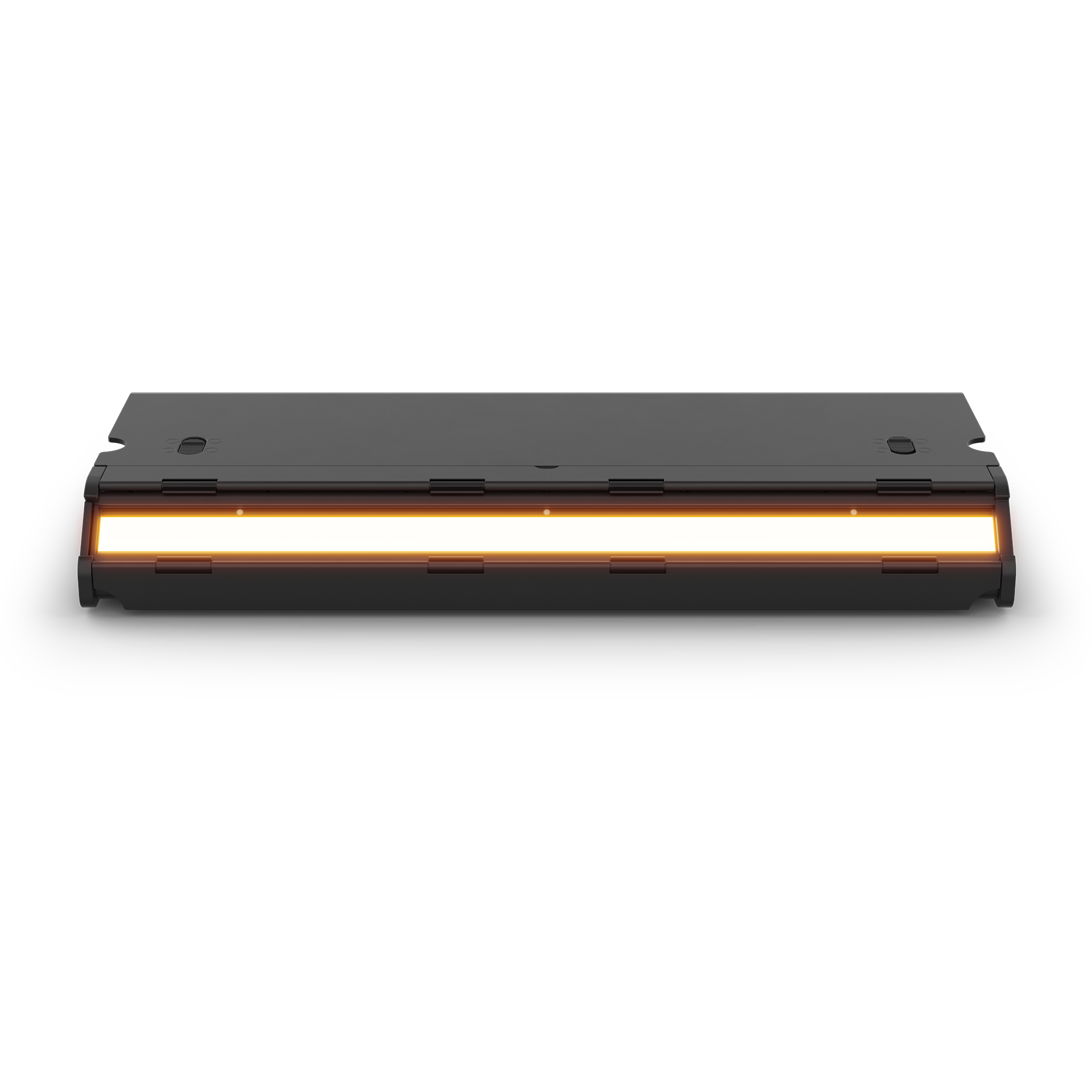

This low-profile 0.5-meter IP65-rated RGBwWL LED footlight projects high-quality white light and a full range of color through a single-source lens designed to produce smooth, even output. Featuring fully-controllable RGB marker lights that can be used to cue talent or mark the edge of a stage, seamless end-to-end alignment, and a covered display, this elegant fixture also comes with a stealth filter that enables it to disappear when off.
Features
Rugged, Low-Profile Design
Its IP65-rated, low-profile housing delivers high-quality white and full-color light for demanding indoor or temporary outdoor stage environments.
Smooth, Unobtrusive Output
A single-source lens produces smooth, even washes, while the included stealth filter helps the fixture visually disappear when not in use.
Integrated Marker Lights
Use the fully controllable RGB marker lights to provide visual cues for performers or clearly define the edge of any stage.
Seamless End-to-End Alignment

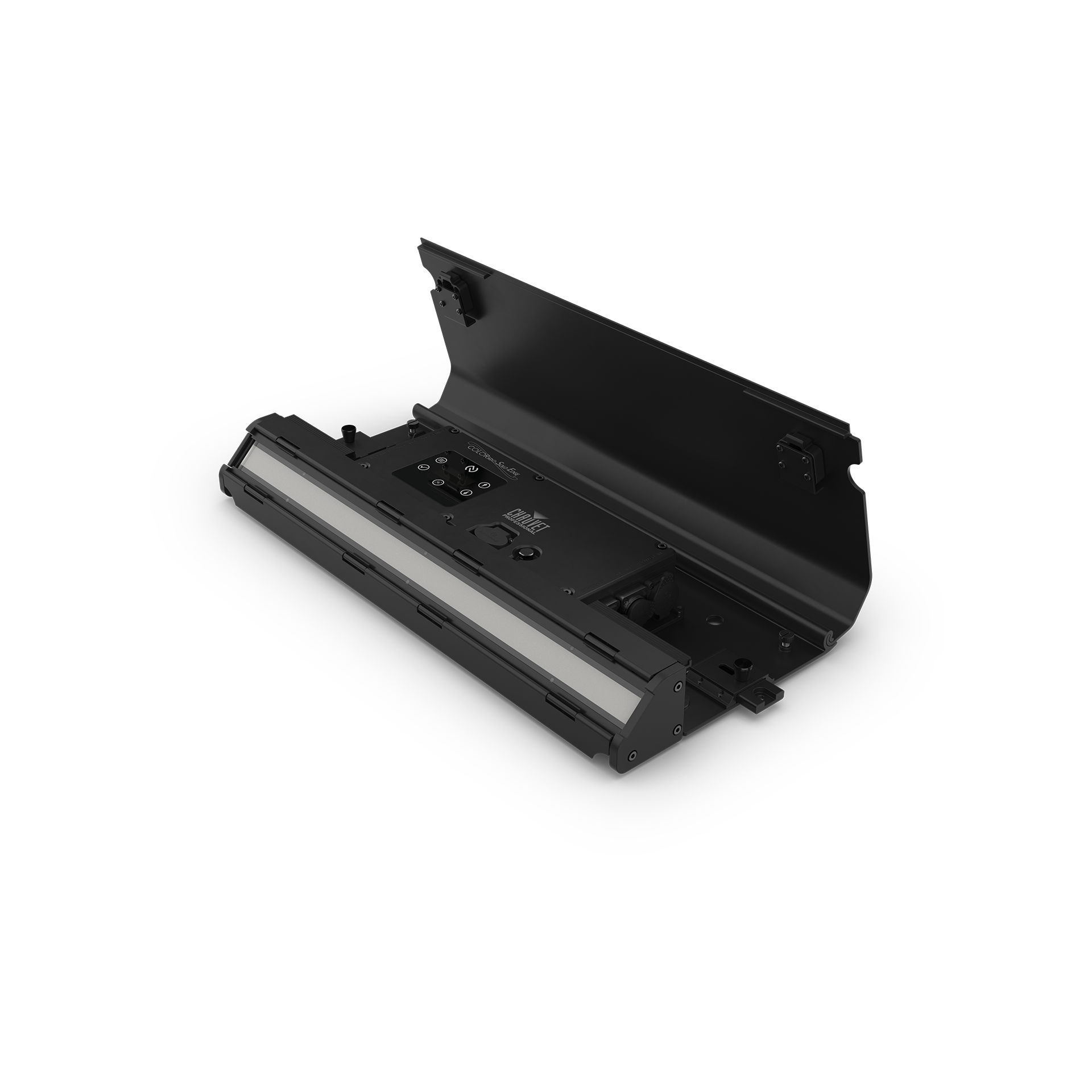

Create clean, uninterrupted lines of light with end-to-end connections and a covered display that conceals distracting cables and settings.
Complete Your Rig
Specifications
Optical
-
-
Light Source
-
Primary
56 LEDs (Quintuple-color RGBWL)
-
RGB Markers
6 LEDs (Tri-color RGB)
-
-
Light Source
-
Color Temperature (range)
2800 to 8000 K
-
Color Temperature (at full)
6516 K
-
CRI @ 3200K
93.1
-
-
Beam Angle
-
Horizontal
118.2°
-
Vertical
120.1°
-
Horizontal (Stealth Filter)
88.4°
-
Vertical (Stealth Filter)
89.2°
-
-
Beam Angle
-
-
Field Angle
-
Horizontal
154.4°
-
Vertical
155.2°
-
Horizontal (Stealth Filter)
139.1°
-
Vertical (Stealth Filter)
128.8°
-
-
Field Angle
-
-
Lumens
-
Without Stealth Filter
6,988
-
With Stealth Filter
1,731
-
-
Lumens
-
-
Illuminance
-
Without Stealth Filter
107 lux @ 5 m
-
With Stealth Filter
37 lux @ 5 m
-
-
Illuminance
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 30Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Dim Curves
4
-
Built-in Automated Programs
Yes
-
Customizable Programs
Yes
Construction/Physical
-
Dimensions
19.68 x 8.85 x 2.51 in (500 x 225 x 64 mm)
-
Weight
12.52 lb (5.68 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum alloy and Aluminum die-cast
-
IP Rating
IP66
Connections
-
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Data Connectors
5-pin IP65 XLR, Seetronic etherCON
-
Cable Length (power)
5 ft (1.5 m)
-
Software Connection
USB, Ethernet (RJ45)
Control
-
Control Protocol
Art-Net, sACN, DMX, RDM
-
-
DMX Channels
-
1 Cell
5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
-
2 Cell
8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
-
-
DMX Channels
-
-
Art-Net Channels
-
1 Cell
5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
-
2 Cell
8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
-
-
Art-Net Channels
-
Modes/Personalities
Personalities (22)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V;
-
Power and Current
126 W, 1.05 A @ 120 V, 60 Hz
-
Power and Current
125 W, 0.61 A @ 208 V, 60 Hz
-
Power and Current
125 W, 0.55 A @ 230 V, 50 Hz
Battery
-
Battery Type
Lithium Ion
-
Rechargeable
Yes
-
-
Battery Power
-
Li-ion Battery
3.7Vdc, 200mAh
-
Li-Button
3Vdc, 1000mAh
-
-
Battery Power
Certifications/Qualifications
-
Compliance
CE, MET, ROHS
-
MET Listing Number
[E113093-1110, E113093-1125]
-
US Safety
[UL 60950-1]
-
Canadian Safety
[CSA C22.2 No. 60950-1]
-
Temperature (Ambient)
-4 °F to 122 °F (-20 °C to 50° C)
Required Accessories
- Required Software: Chamsys, QuickQ, DMX Workshop, etc.
- Controller (required): [Drivers, processors, etc.]
- Compatible Mounting Options: [140DX OMEGA BRACKET, M12 BOLT, VELCRO, ETC.]
Compatible Accessories
- Professional Clamps : CTC-50HC, CTC-50HCN
- Riglink TR1 Cables
- Riglink IP DMX cables
- Riglink IP Network cables
What's Included
- COLORado Solo Edge 1
- Seetronic Powerkon IP65
- Power and Data linking cables
- Stealth Filter
- 2 Omega bracket with mounting hardware
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | COLORado Solo Edge 1 – Quick Reference Guide | Download |
Manuals | COLORado Solo Edge 1 – User Manual | Download |
Manuals | COLORado Solo Edge 1 – DMX Charts | Download |
Manuals | COLORado Solo Edge 1 – Photometrics Reports | Download |
Manuals | COLORado Solo Edge 1 – Corners, Edges, Straight, Ends | Download |
Manuals | COLORado Solo Edge 1 – 2D Files | Download |
Manuals | COLORado Solo Edge – 3D Files | Download |
Learn How To Use Your COLORado Solo Edge 1
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-
Tech Talk: COLORado Solo Edge
Discover how the CHAUVET Professional COLORado Solo Edge 3 keeps the stage front clean with powerful, even light. This innovative footlight shapes the performance when needed and disappears when it shouldn’t be noticed, ensuring a distraction-free production.
COLORado Solo Edge 1 FAQ’s
Yes, its IP65 rating ensures it is protected against dust ingress and low-pressure water jets, making it ideal for temporary outdoor stages and events.
The fixture is designed for seamless end-to-end alignment with no gaps. It includes power and data linking cables to simplify creating clean, uninterrupted runs.
The stealth filter is an accessory that helps the fixture blend into its surroundings and become visually unobtrusive when it is turned off.
