    STRIKE 1

    The STRIKE 1 is a powerful, IP-rated blinder, strobe, and wide-area floodlight that uses a 230W warm-white LED with an emulated amber shift to perfectly replicate the classic look of incandescent dimming.

    It is perfectly suited for concerts, festivals, and any large-scale indoor or outdoor event requiring a powerful and weather-resistant blinder, strobe, or wash effect.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: STRIKE1

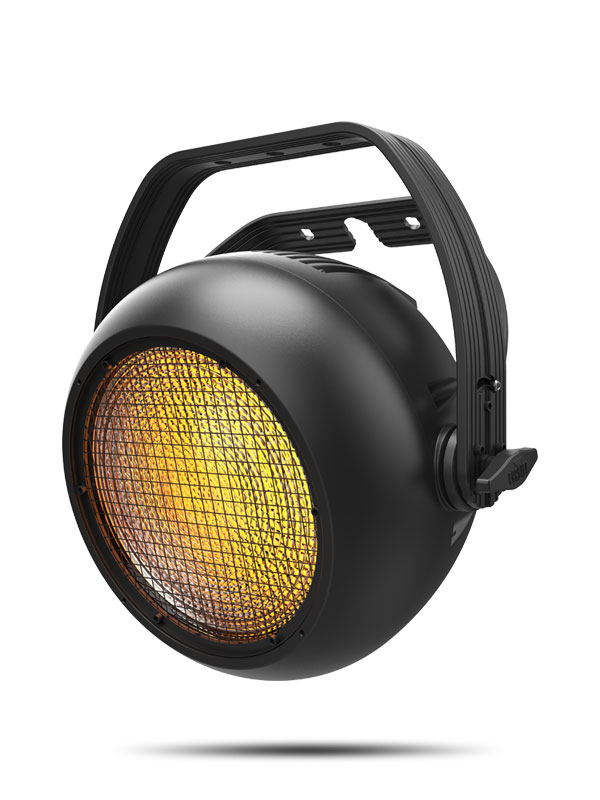

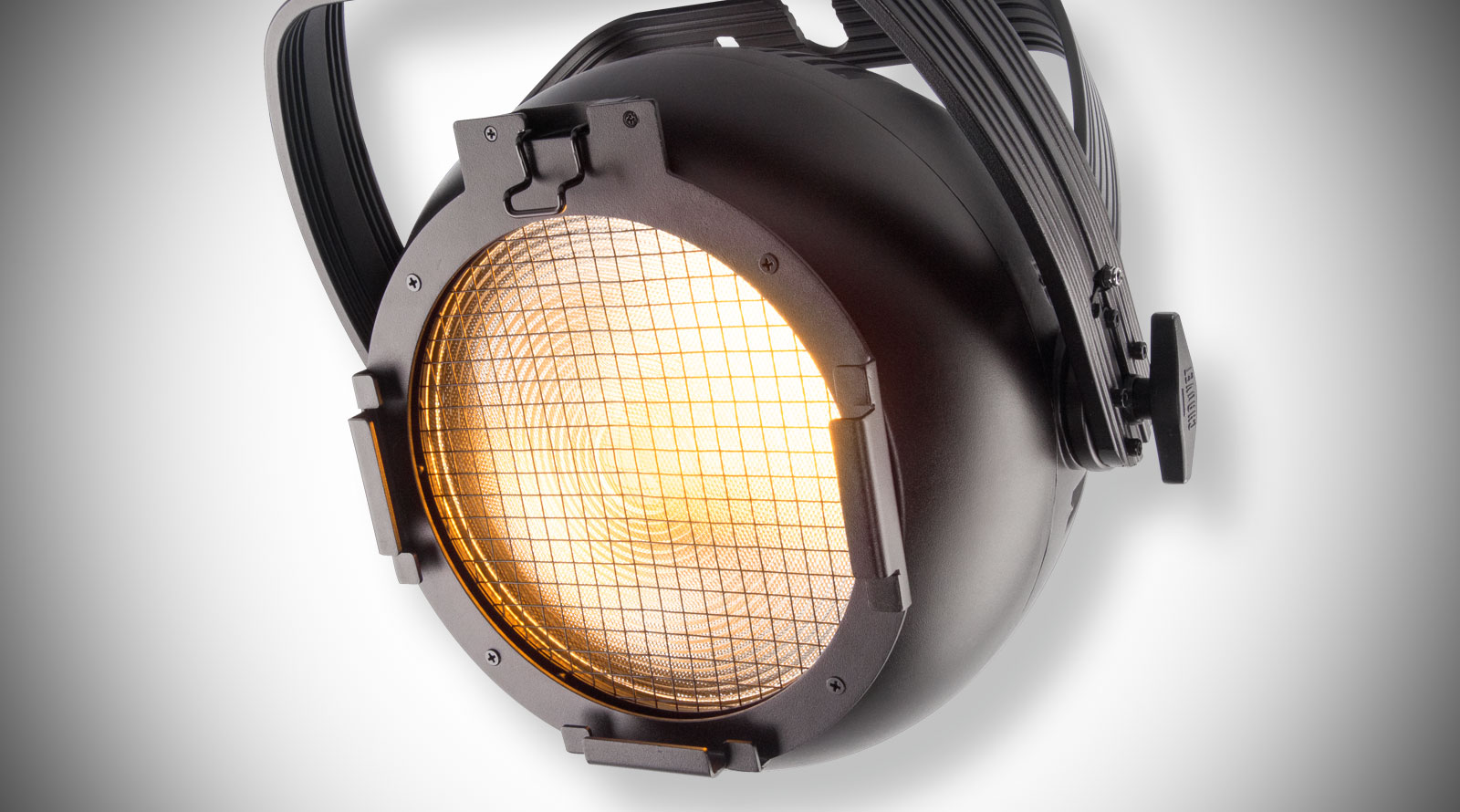

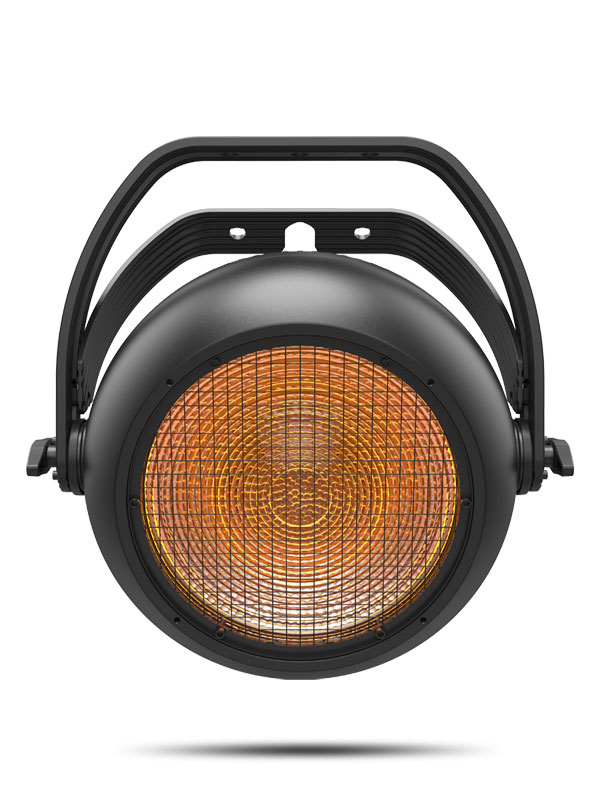

    STRIKE 1

    Specifications
    		 Download
    STRIKE 1 User Manual
    		 Download
    STRIKE 1 Quick Reference Guide
    		 Download
    STRIKE 1 DMX Chart
    		 Download
    STRIKE 1 CAD Files
    		 Download
    STRIKE 1 IES Files
    		 Download
    STRIKE 1 ShowXpress Profiles
    		 Download
    STRIKE 1 Photometric and Chromaticity Reports
    		 Download
    Firmware
    		 Download
    Download All Resources

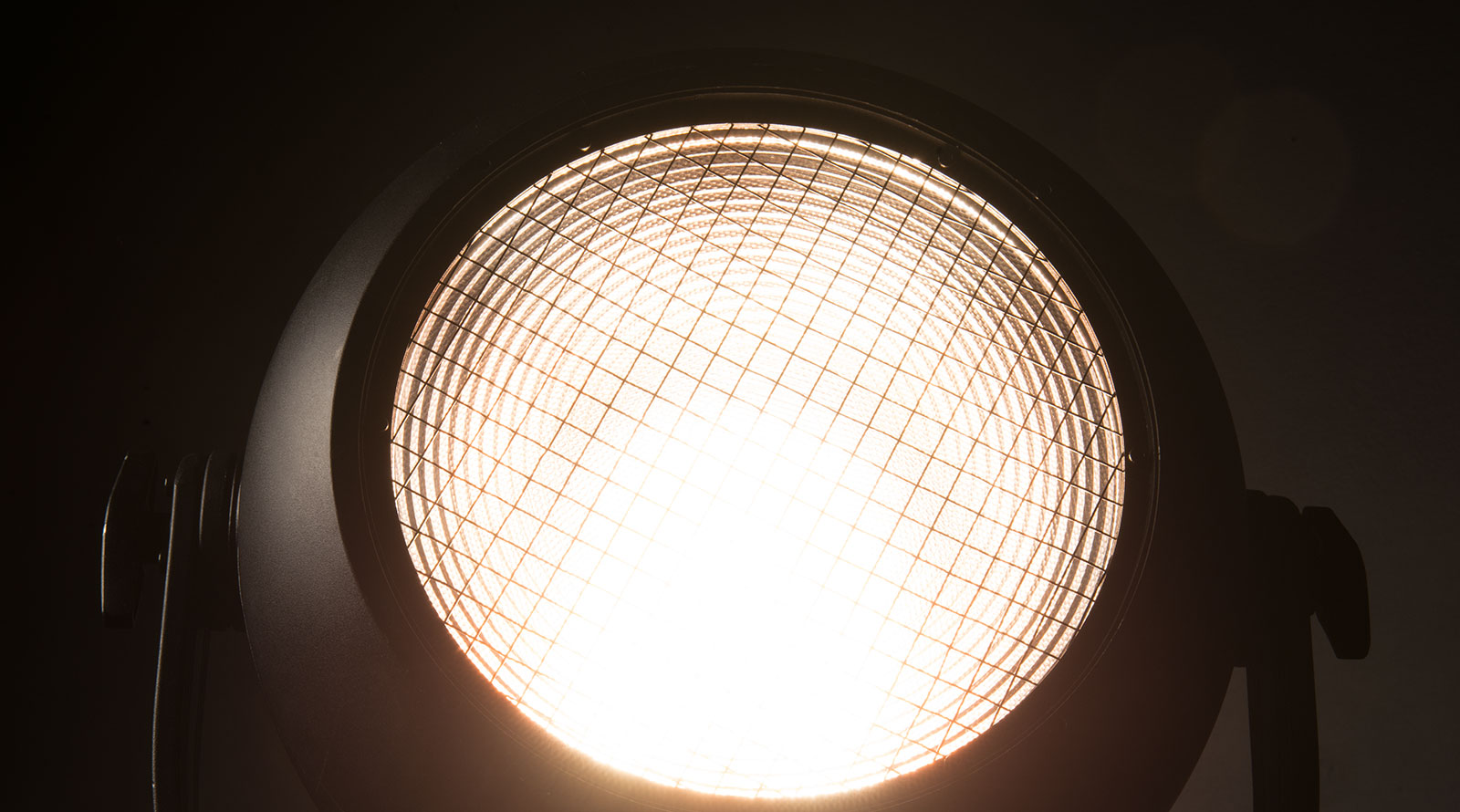

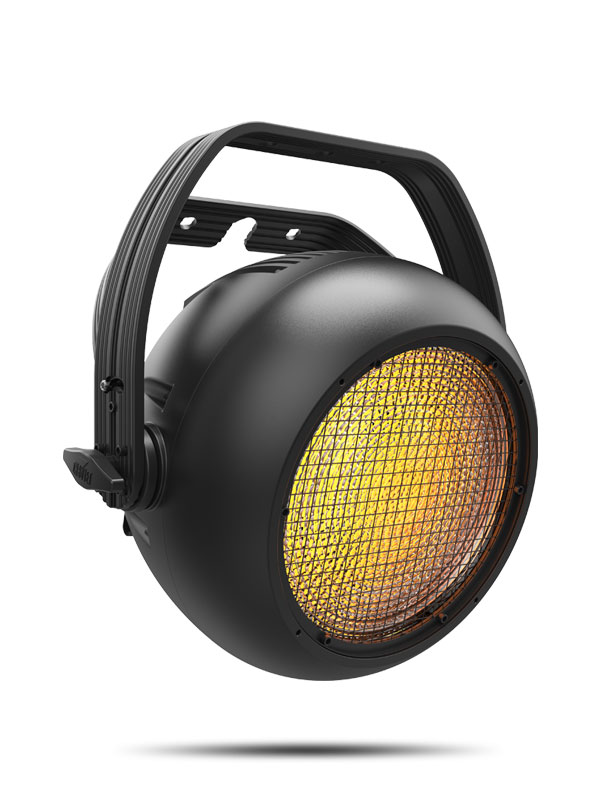

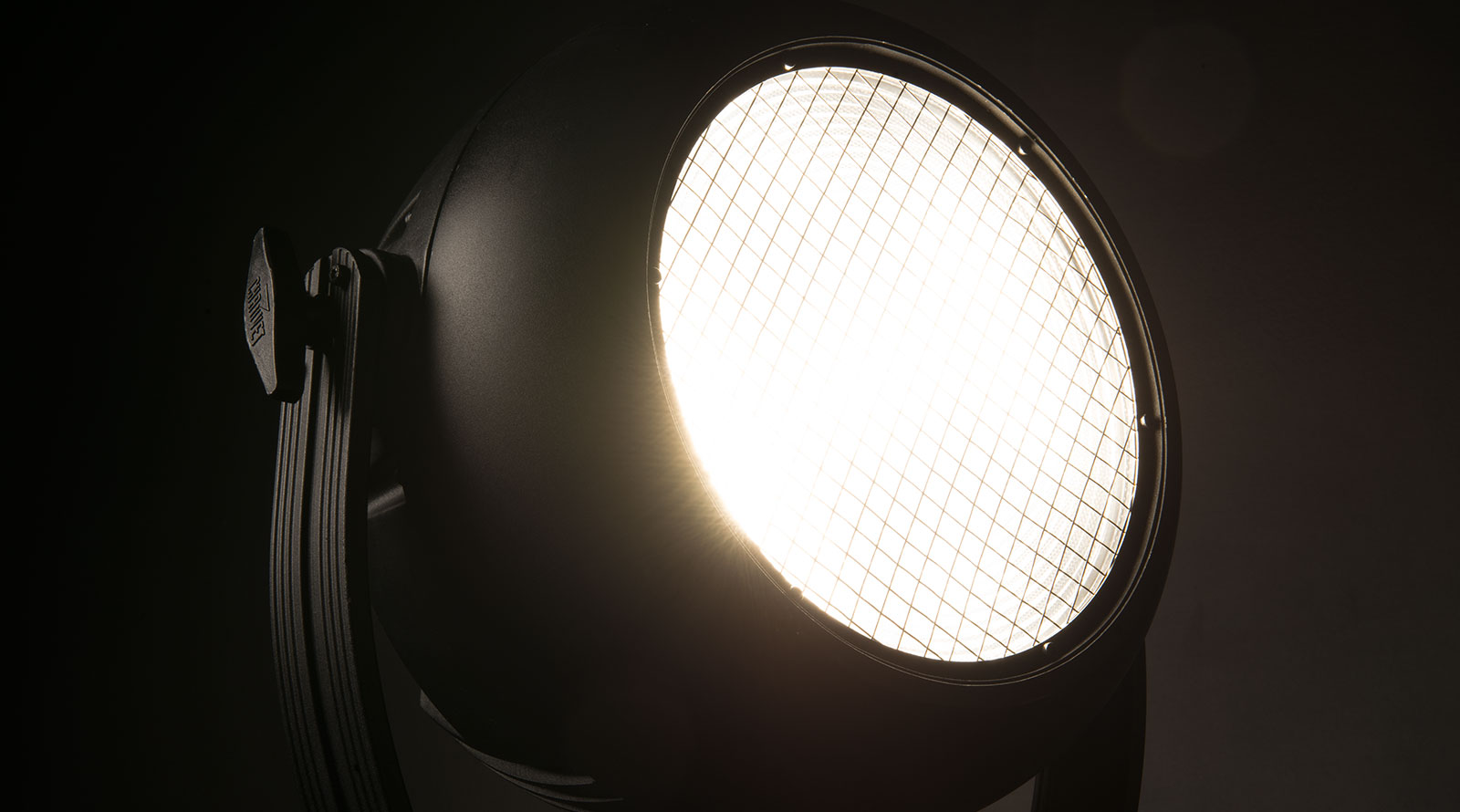

    STRIKE 1 is a big, bold, outdoor-ready blinder powered by an intense 230 W warm white LED source. It is also an awesome strobe and a wide area floodlight. Its IP rated fan keeps it cool enough for use as a wash while IP rated direct power and DMX connections eliminate undesirable whips. An emulated “amber shift” warms the Color Temperature of the light as it dims to mimic incandescent lights perfectly.

    Features

    All-Weather Blinder and Strobe

    This intense single-pod fixture is IP65 rated for reliable use in any weather condition.

    16-Bit Dimming Control

    Achieve exceptionally smooth and perfect fades with high-resolution 16-bit dimming control.

    High-Impact Strobe Effects

    Create powerful, high-impact moments on-the-fly with its dedicated strobe functionality.

    Incandescent Red Shift Emulation

    A beautiful warm glow is made possible with an emulated red shift that perfectly mimics classic incandescent fixtures.

    Versatile Multi-Bracket

    The included multi-bracket allows you to easily create large, multi-fixture banks for expanded coverage.

    Easy-to-Use OLED Display

    Navigate settings and options effortlessly with the clear and simple OLED display.

    Flicker-Free Operation

    Adjustable Pulse Width Modulation (PWM) control eliminates on-camera flicker, making it ideal for broadcast applications.

    Remote Device Management

    Added flexibility is provided through RDM (Remote Device Management) for easy remote configuration and monitoring.

    Latest News

    Steven Douglas Sets Stage for Amble’s First Headline Arena Show With CHAUVET Professional
    Steven Douglas designs an intimate yet arena-sized show for Irish folk-rock sensation Amble.
    Read more
    Allen Branton, Bianca Moncada Give Rock & Roll Hall of Fame Awards New Looks With CHAUVET Professional
    Lighting designer Allen Branton blends light and video for an immersive Rock & Roll Hall of Fame.
    Read more
    Braxtin Pieper Colorizes Shane Smith and the Saints Ugly Christmas Sweater Tour with CHAUVET Professional
    LD Braxtin Pieper unwraps beautiful color combinations for a festive holiday tour.
    Read more
    Alexander Lehman Keeps Pace with Gavin Adcock On Need To Know Tour with CHAUVET Professional
    LD Alexander Lehman’s lighting design creates arena-scale intimacy for Gavin Adcock’s tour.
    Read more
    Dayne deHaven and Tyler Shapard Bring Classic Vibe to Ben Rector’s Richest Man in the World Tour with CHAUVET Professional
    Designers Dayne deHaven and Tyler Shapard craft a classic, simplistic lighting vibe for Ben Rector’s latest arena tour.
    Read more
    Lightswitch & Upstaging Inspire at Frederik Meijer Gardens & Sculpture Park’s ENLIGHTEN with CHAUVET Professional
    Lightswitch creates a site-specific holiday experience that enhances art and nature with bold color.
    Read more
    Steven Douglas Sets Stage for Amble’s First Headline Arena Show With CHAUVET Professional
    Steven Douglas designs an intimate yet arena-sized show for Irish folk-rock sensation Amble.
    Read more
    Allen Branton, Bianca Moncada Give Rock & Roll Hall of Fame Awards New Looks With CHAUVET Professional
    Lighting designer Allen Branton blends light and video for an immersive Rock & Roll Hall of Fame.
    Read more
    Braxtin Pieper Colorizes Shane Smith and the Saints Ugly Christmas Sweater Tour with CHAUVET Professional
    LD Braxtin Pieper unwraps beautiful color combinations for a festive holiday tour.
    Read more
    Alexander Lehman Keeps Pace with Gavin Adcock On Need To Know Tour with CHAUVET Professional
    LD Alexander Lehman’s lighting design creates arena-scale intimacy for Gavin Adcock’s tour.
    Read more
    Dayne deHaven and Tyler Shapard Bring Classic Vibe to Ben Rector’s Richest Man in the World Tour with CHAUVET Professional
    Designers Dayne deHaven and Tyler Shapard craft a classic, simplistic lighting vibe for Ben Rector’s latest arena tour.
    Read more
    Lightswitch & Upstaging Inspire at Frederik Meijer Gardens & Sculpture Park’s ENLIGHTEN with CHAUVET Professional
    Lightswitch creates a site-specific holiday experience that enhances art and nature with bold color.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        1 LED (WW) 230 W, (4.1 A), 2688 K, 50,000 hours life expectancy

      • Light Source

        8 LEDs (Amber) 2 W, (0.7 A), 50,000 hours life expectancy

      • Color Temperature (at full)

        2688 K

      • Color Temperature (at 10%)

        1941 K

      • CRI

        93

      • Beam Angle

        30°

      • Field Angle

        51°

      • Illuminance

        1,119 lux @ 5 m

      • Selectable PWM

        600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz

      Dynamic Effects

      • Dimmer

        Electronic

      • Strobe Rate

        0 to 25 Hz

      • Dim Modes

        4

      • Built-in Automated Programs

        Yes

      Construction/Physical

      • Dimensions

        14.96 x 7.40 x 14.61 in (380 x 188 x 371 mm)

      • Weight

        18.8 lb (8.6 kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum die-cast

      • Accessory Holder/Gel Frame Size

        8.87 in (225 mm)

      Connections

      • Power Connection

        Edison (Local) plug to Seetronic Powerkon IP65

      • Power Input

        Seetronic Powerkon IP65

      • Power Output

        Seetronic Powerkon IP65

      • Data Connectors

        5-pin IP65 XLR

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Protocol(s)

        DMX, RDM

      • DMX Channels

        1, 3, 4, 5 or 6

      • Modes/Personalities

        5 personalities (1ch, 3ch, 4ch, 5ch, 6ch)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power Linking

        5 units @ 100 V;6 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V; 11 units @ 240 V

      • Power and Current

        265 W, 2.651 A @ 100 V, 60 Hz

      • Power and Current

        260 W, 2.180 A @ 120 V, 60 Hz

      • Power and Current

        257 W, 1.332 A @ 208 V, 60 Hz

      • Power and Current

        254 W, 1.179 A @ 230 V, 50 Hz

      • Power and Current

        259 W, 1.142 A @ 240 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE

      • IP Rating

        IP65, temporary outdoor/wet use

      Compatible Accessories

      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Seetronic Powerkon power linking cables
      • 5-pin IP or Non-IP DMX Cables
      • STRIKE 1 Multi-Bracket
      • STRIKE Array Flush Bracket

      What's Included

      • STRIKE 1
      • Seetronic Powerkon IP65 power cord

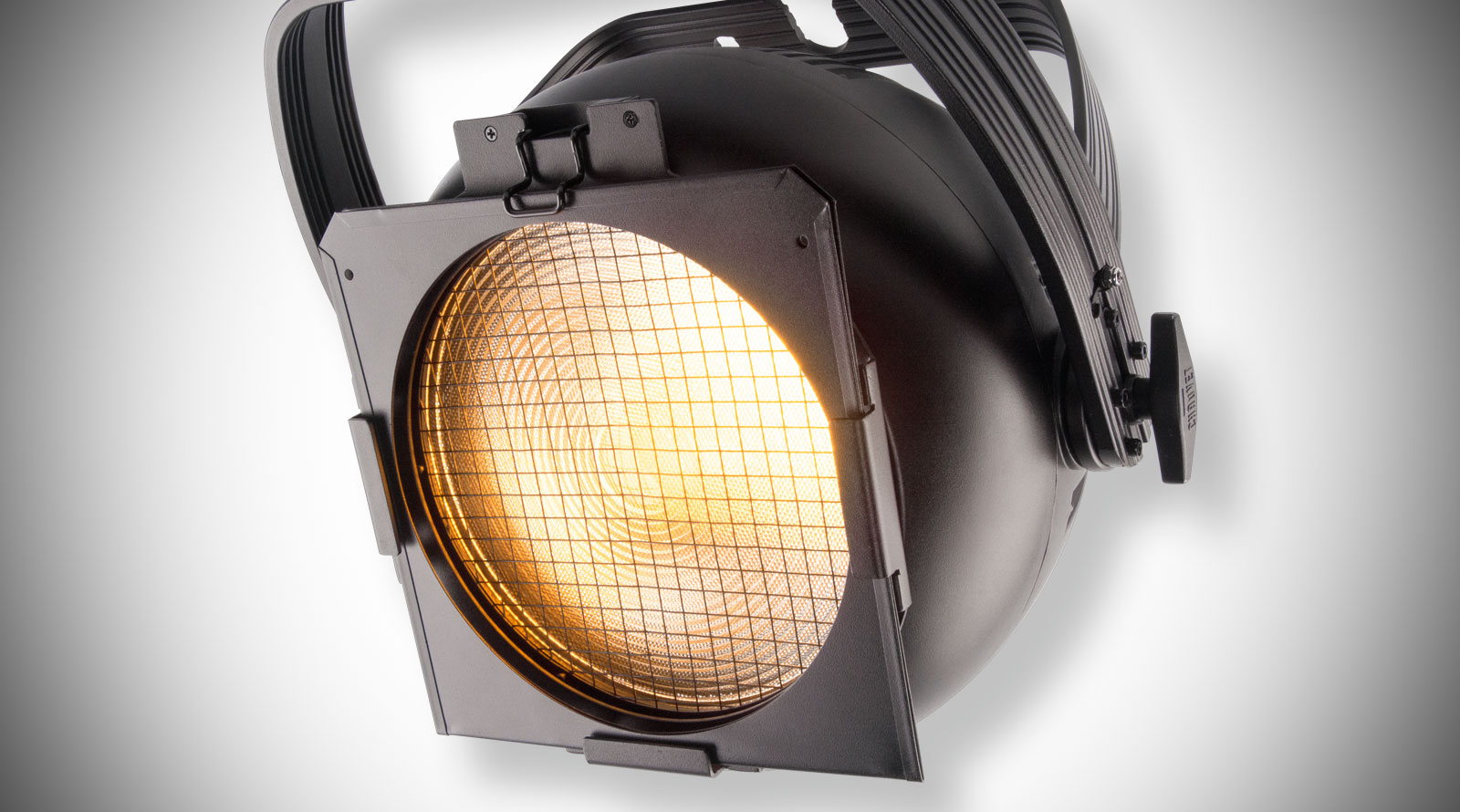

      • Gel frame (8.87 in/225 mm accessories)
      • Multi-Bracket

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      STRIKE 1 User Manual
      		Download
      Manuals
      STRIKE 1 Quick Reference Guide
      		Download
      DMX
      STRIKE 1 DMX Chart
      		Download
      Drawings
      STRIKE 1 CAD Files
      		Download
      Photometrics
      STRIKE 1 IES Files
      		Download
      Other
      STRIKE 1 ShowXpress Profiles
      		Download
      Photometrics
      STRIKE 1 Photometric and Chromaticity Reports
      		Download
      Other
      STRIKE 1 – Firmware
      		Download

      Learn How To Use Your STRIKE 1

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

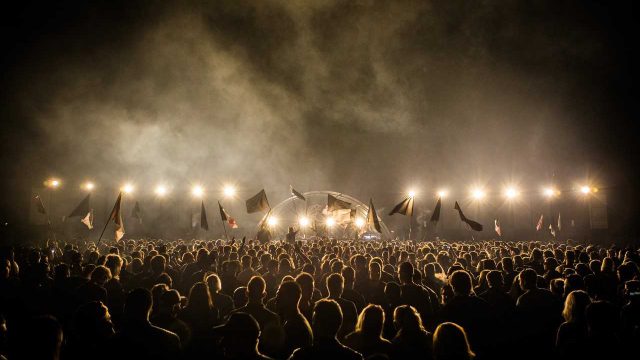

      • LD Neil Marsh on STRIKE Family and Maverick Storm 1 Flex for Above & Beyond

        Lighting designer Neil Marsh details his use of the versatile STRIKE 1 and reliable Maverick Storm 1 Flex on tour with Above & Beyond. Discover how these CHAUVET Professional fixtures delivered powerful, camera-friendly looks and flawless performance, proving essential for demanding, large-scale productions.

      • “The Big Reveal” STRIKE 1 On Tour with Maggie Rogers for Feral Joy

        Lighting designers for Maggie Rogers’ “Feral Joy Tour” reveal how they used a massive grid of STRIKE 1 blinders to create a classic arena rock feel. The CHAUVET Professional fixtures delivered a powerful, in-your-face effect that connected the artist directly with the audience.

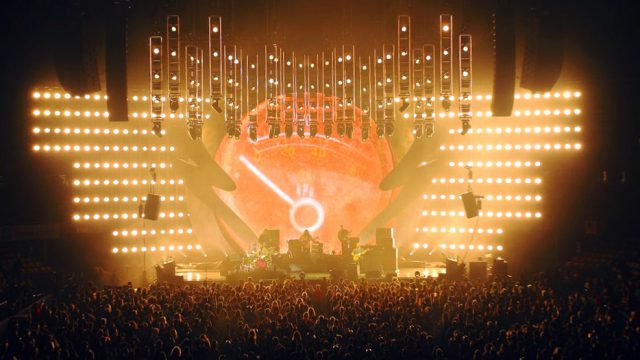

      • The Black Keys BTS on Tour with STRIKE

        Go behind the scenes with lighting designers Eric Cathcart and Mike Grant on The Black Keys’ “Let’s Rock” Tour. See how they used 400 STRIKE 1 fixtures from CHAUVET Professional to create an electrifying, high-impact lighting design for a massive arena show.

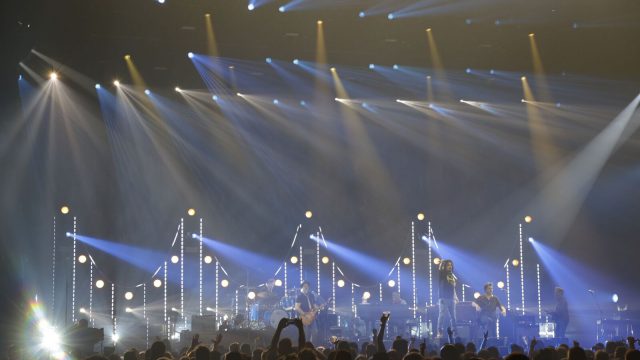

      • Counting Crows on Tour with STRIKE

        Discover how Lighting Designer Mike Zielinski harnessed the intense output and versatility of the CHAUVET Professional STRIKE 1 to create a dynamic lighting design for the legendary Counting Crows tour.

      • CHAUVET Professional Concert Lighting for Festival Season | STRIKE 1 IP65 WW LED Strobe

        Unleash intense, all-weather effects with the CHAUVET Professional STRIKE 1. This IP65 blinder and strobe uses a powerful warm-white LED with an emulated amber shift to deliver classic incandescent looks for demanding festival and concert productions.

      Video Library

      Latest Articles

      Browse Articles

      STRIKE 1 FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the STRIKE 1
      Can the STRIKE 1 be used in the rain?

      Yes, STRIKE 1 is specifically designed for all-weather performance. Its rugged, weatherproof construction and sealed power and data connections ensure it operates reliably for outdoor events like festivals and concerts, even in wet conditions.

      What makes the STRIKE 1 light look like a traditional blinder?

      STRIKE 1 features special technology that perfectly mimics the look of classic incandescent lights. As the light dims, it smoothly shifts to a warmer, amber tone, creating that timeless, tungsten-style effect with the power and efficiency of a modern LED.

      What can STRIKE 1 be used for besides a blinder?

      Beyond being an intense audience blinder, STRIKE 1 is a versatile 3-in-1 fixture. It also functions as a high-impact strobe for energetic effects and a wide-area floodlight to wash a stage or venue. Its flicker-free operation makes it ideal for TV and video recording.
