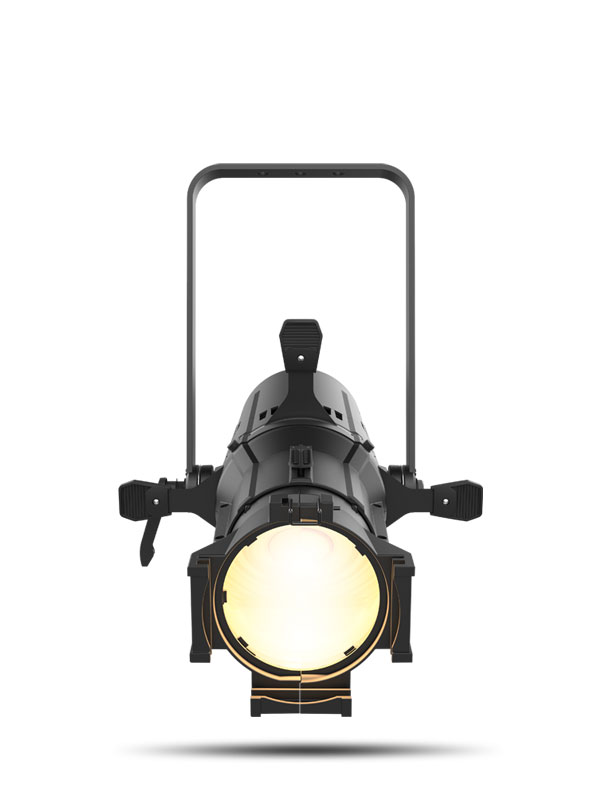

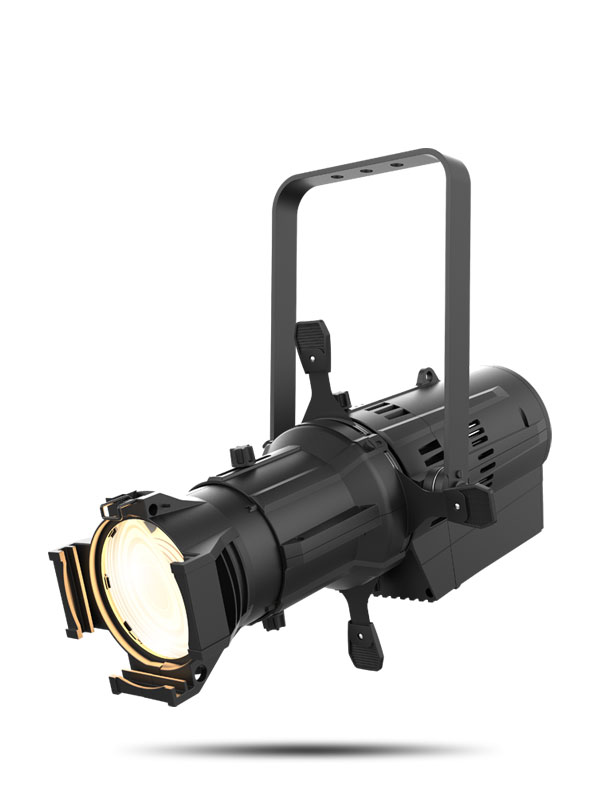

Ovation ED-200WW
A high-performance, warm white LED ellipsoidal fixture delivering tungsten-equivalent intensity with the unique ability to automatically operate on both traditional dimming systems and modern constant power with DMX.
Perfect for theatrical venues and performance spaces looking to retrofit and upgrade to the benefits of LED lighting while retaining their existing investment in dimming infrastructure.
-
Delivers tungsten-equivalent output from a 230W warm white LED with an exceptional 97 CRI.
-
Integrates seamlessly by auto-detecting dimmer rack power or constant power with DMX control.
-
Achieves superior low-end dimming with 16-bit resolution for exceptionally smooth and precise fades.
-
Projects a flat, even field of light for superior gobo projection using standard lens tubes.
-
Provides virtually silent operation, making it ideal for use in noise-sensitive environments.
-
Supports DMX, RDM, and direct dimmer control with selectable 1, 2, or 3-channel modes.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Specifications | Download |
Ovation ED-200WW Quick Reference Guide | Download |
Ovation ED-200WW User Manual | Download |
Ovation ED-200WW CAD Files | Download |
Ovation ED-200WW DMX Chart | Download |
Ovation ED-200WW IES Files | Download |
Ovation ED-200WW Photometric Report | Download |
Ovation ED-200WW Specification Sheet | Download |
Firmware | Download |
Ovation ED-200WW
Ovation ED-200WW brings a 750 W tungsten equivalent warm white intensity and 95 CRI to our exclusive, award-winning Ovation ED range of LED theatrical fixtures, making it the highest power LED ellipsoidal unit that can sense and respond to traditional dimming systems. This high performance ellipsoidal is equally as efficient running on constant power and DMX, as it is when connected directly to a dimming power source. Advanced onboard electronics automatically detect what type of power and data the fixture receives, and it responds accordingly. Retrofit and upgrade to the benefits of LED lighting without being held back by previous investments made in major dimming systems!
Features
Bright Tungsten-Equivalent Output
This warm white ERS style fixture delivers an output that exceeds a traditional 750W tungsten source.
Flexible Power Options
Works on either conventional dimmers or constant power with DMX for easy system integration.
Automatic Power Sensing
The fixture auto-senses the power and data source and responds appropriately for simple, reliable operation.
Superior Low End Dimming
Achieve exceptional dimming performance at low levels whether using traditional dimmers or constant power.
Perfect for Retrofits
Utilizes existing dimming infrastructure flawlessly, making it the ideal fixture for the retrofit market.
High Resolution Dimming
A 16-bit dimming resolution in DMX mode ensures exceptionally smooth and precise fades.
Even Field of Light
Projects a flat, even field of light that provides superior gobo projection.
Standard Accessory Compatibility
Works perfectly with industry standard lens tubes and other accessories you already own.
Virtually Silent Operation
Operates almost silently, making it suitable for use in any noise-sensitive situation.
Specifications
Optical
-
Light Source
1 LEDs (WW) 230 W, (3.4 A), 100,000 hours life expectancy
-
Color Temperature (at full)
3334 K
-
CRI
97
-
PWM Frequency
600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz
-
-
5° Lens
-
Beam Angle
7°
-
Field Angle
7°
-
Illuminance
43,100 lux @ 5 m
-
-
5° Lens
-
-
10° Lens
-
Beam Angle
9°
-
Field Angle
10°
-
Illuminance
23,200 lux @ 5 m
-
-
10° Lens
-
-
14° Lens
-
Beam Angle
11°
-
Field Angle
14°
-
Illuminance
15,092 lux @ 5 m
-
-
14° Lens
-
-
15°–30° Lens
-
Lumens
11,739 (@15°), 11,315 (@30°)
-
-
15°–30° Lens
-
-
15°–30° Lens (Narrow)
-
Beam Angle
11°
-
Field Angle
13°
-
Illuminance
15,879 lux @ 5 m
-
-
15°–30° Lens (Narrow)
-
-
15°–30° Lens (Wide)
-
Beam Angle
17°
-
Field Angle
28°
-
-
15°–30° Lens (Wide)
-
-
19° Lens
-
Beam Angle
15°
-
Field Angle
17°
-
Illuminance
9,118 lux @ 5 m
-
Lumens
11,534
-
-
19° Lens
-
-
25°–50° Lens
-
Lumens
14,243 (@25°), 12,834 (@50°)
-
-
25°–50° Lens
-
-
25°–50° Lens (Narrow)
-
Beam Angle
19°
-
Field Angle
23°
-
Illuminance
5,958 lux @ 5 m
-
-
25°–50° Lens (Narrow)
-
-
25°–50° Lens (Wide)
-
Beam Angle
30°
-
Field Angle
41°
-
Illuminance
2,283lux @ 5 m
-
-
25°–50° Lens (Wide)
-
-
26° Lens
-
Beam Angle
19°
-
Field Angle
25°
-
Illuminance
6,028 lux @ 5 m
-
-
26° Lens
-
-
36° Lens
-
Beam Angle
25°
-
Field Angle
33°
-
Illuminance
3,210 lux @ 5 m
-
Lumens
13,946
-
-
36° Lens
-
-
50° Lens
-
Beam Angle
35°
-
Field Angle
50°
-
Illuminance
1,445 lux @ 5 m
-
Lumens
12,754
-
-
50° Lens
Dynamic Effects
-
Dimmer
Electronic or External Dimmer Rack
-
Shutter/Strobe
Electronic
-
Focus
Manual
-
Strobe Rate
0 to 18 Hz
-
Dim Modes
5
-
Dim Curves
4
Construction/Physical
-
Dimensions
(fixture only): 21.5 x 15 x 15 in (545 x 380 x 380 mm)
-
Dimensions
(w/5° lens extended): *** x 15 x 15 in (*** x 380 x 380 mm)
-
Dimensions
(w/10° lens extended): *** x 15 x 15 in (*** x 380 x 380 mm)
-
Dimensions
(w/26° lens extended): 26.5 x 15 x 15 in (673 x 380 x 380 mm)
-
Dimensions
(w/15°–30° lens): 42 x 14.6 x 14.6 in (1,068 x 371 x 371 mm)
-
Dimensions
(w/25°–50° lens): 36.3 x 14.6 x 14.6 in (923 x 371 x 371 mm)
-
-
Weights
-
Weight (fixture only)
17.6 lb (7.9 kg)
-
Weight (w/5° lens)
23.4 lb (10.6 kg)
-
Weight (w/10° lens)
21.4 lb (9.7 kg)
-
Weight (w/14° lens)
23 lb (10.4 kg)
-
Weight (w/26° lens)
21.6 lb (9.8 kg)
-
Weight (w/15°–30° lens)
30.2 lb (13.6 kg)
-
Weight (w/25°–50° lens)
27.2 lb (12.3 kg)
-
-
Weights
-
Exterior Color
Black
-
Gobo Size (Optional)
“A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
-
Gobo Size (Optional)
“B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
-
-
Accessory Holder/Gel Frame Size
-
(5° Lens)
14 in (356 mm)
-
(10° Lens)
12 in (304 mm)
-
(14° Lens)
7.5 in (191 mm)
-
(19°, 26°, 36°, And 50° Lens)
6.25 in (159 mm)
-
(15°–30° Lens)
7.5 in (191 mm)
-
(25°–50° Lens)
7.5 in (191 mm)
-
-
Accessory Holder/Gel Frame Size
Connections
-
Power Connection
Edison plug to Neutrik® powerCON®
-
Power Input
Neutrik® powerCON®
-
Power Output
Neutrik® powerCON®
-
Data Connectors
3- and 5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM, Dimmer
-
DMX Channels
1, 2 or 3
-
Modes/Personalities
3 personalities (UNO, DOS, STD.P)
Electrical
-
Input Voltage
120/230 VAC, 50/60 Hz (switchable)
-
Power Linking
6 units @ 120 V; 12 units @ 230 V
-
Power and Current
250 W, 2.074 A @ 120 V, 60 Hz
-
Power and Current
254 W, 1.103 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET
-
IP Rating
IP20, dry location
Required Accessories
- Lens Tube: 14°, 19°, 26°, 36°, 50°
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Neutrik® powerCON® cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- Ovation Zoom Lenses: OEZOOM1530, OEZOOM2550
- Gobo Holder: Standard “S4” size Sandwich Style or Iris Slot Style gobo holder for “A” or “B” size gobos
What's Included
- Ovation ED-200WW
- Neutrik® powerCON® power cord
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Latest News
Complete Your Rig
Downloads
Manuals | Ovation ED-200WW Quick Reference Guide | Download |
Manuals | Ovation ED-200WW User Manual | Download |
Drawings | Ovation ED-200WW CAD Files | Download |
Drawings | Ovation ED-200WW DMX Chart | Download |
Photometrics | Ovation ED-200WW IES Files | Download |
Photometrics | Ovation ED-200WW Photometric Report | Download |
Other | Ovation ED-200WW Specification Sheet | Download |
Other | Ovation ED-200WW – Firmware | Download |
Ovation ED-200WW FAQ’s
The Ovation ED-200WW is designed to be a simple, plug-and-play upgrade for older lighting systems. It automatically senses whether it is connected to a traditional dimmer or a modern constant power source and adjusts its performance accordingly. This allows you to get the benefits of bright, energy-efficient LED light without needing to replace your existing dimming equipment.
