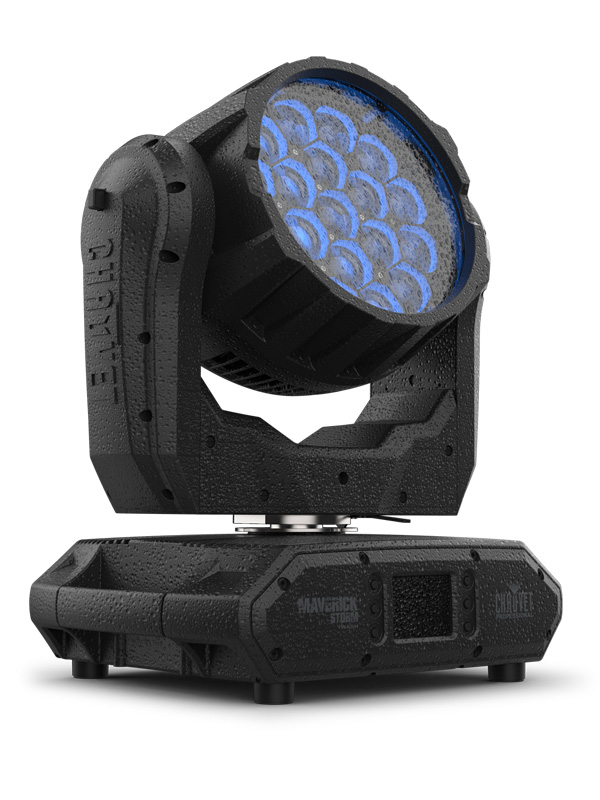

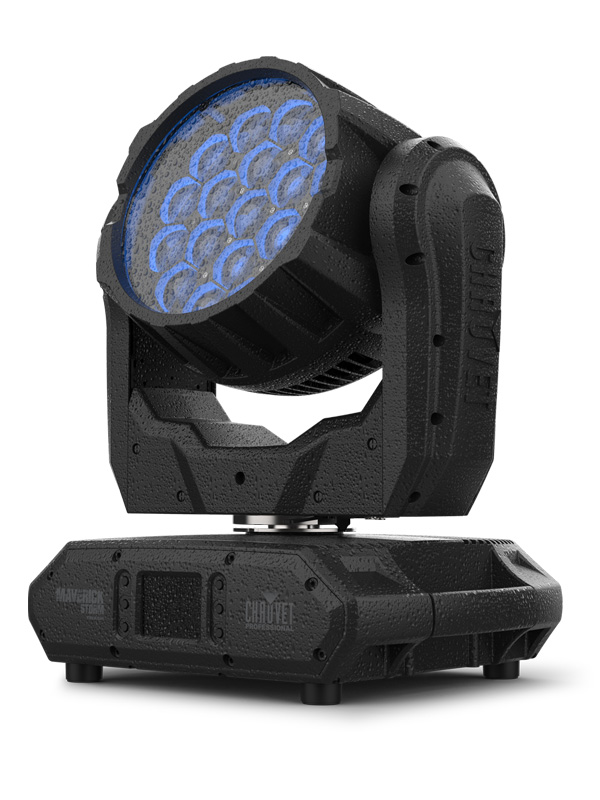

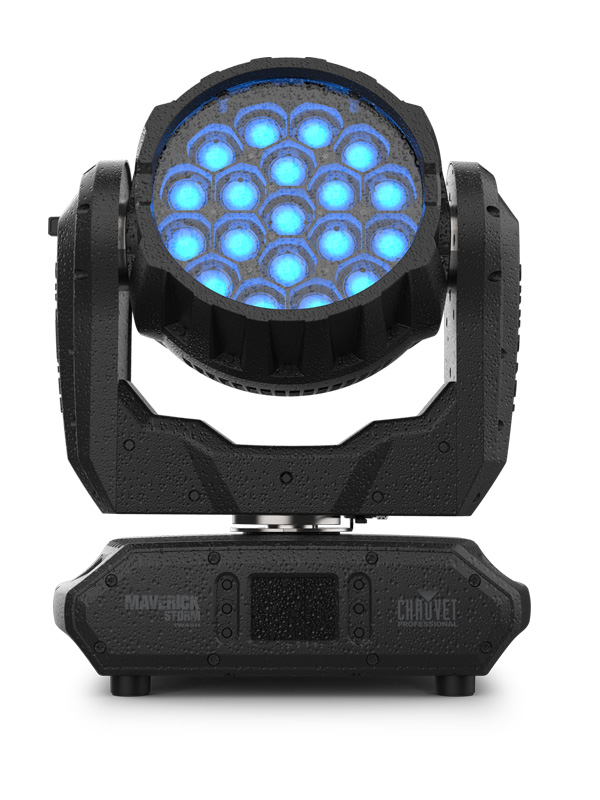

Maverick Storm 1 Wash

Optical

• Light Source

  19 LEDs (quad-color RGBW) 20 W, (1.3 A), 50,000 hours life expectancy

• Color Temperature (range)

  2800 to 10000 K

• Beam Angle

  7° to 27°

• Field Angle

  11° to 42°

• Cutoff Angle

  12.2° to 56.5°

• Zoom Range

  6.7° to 56.5°

• Lumens – Source

  8,800

• Lumens – Output

  6,000

• • Illuminance
    • Illuminance (7°)

      11,032 lux @ 5 m

    • Illuminance (42°)

      832 lux @ 5 m

Dynamic Effects

• Pan and Tilt

  540°/270°

• Pan and Tilt Ranges

  180°, 360°, 540° pan/90°, 180°, 270° tilt

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Strobe Rate

  0 to 27 Hz

• Standalone Color Mixing

  No

• Color Temperature Presets

  Yes

• Move-in-Black

  Yes

• Dim Curves

  4

Construction/Physical

• Dimensions

  12.5 x 16.3 x 18.77 in (319 x 414 x477 mm)

• Weight

  59 lb ( 27 kg)

• Exterior Color

  Black

• Housing Material

  High-impact flame-retardant polymer

• IP Rating

  65

• Operating temperature range

  14°F – 104°F (-10°C – 40°C)

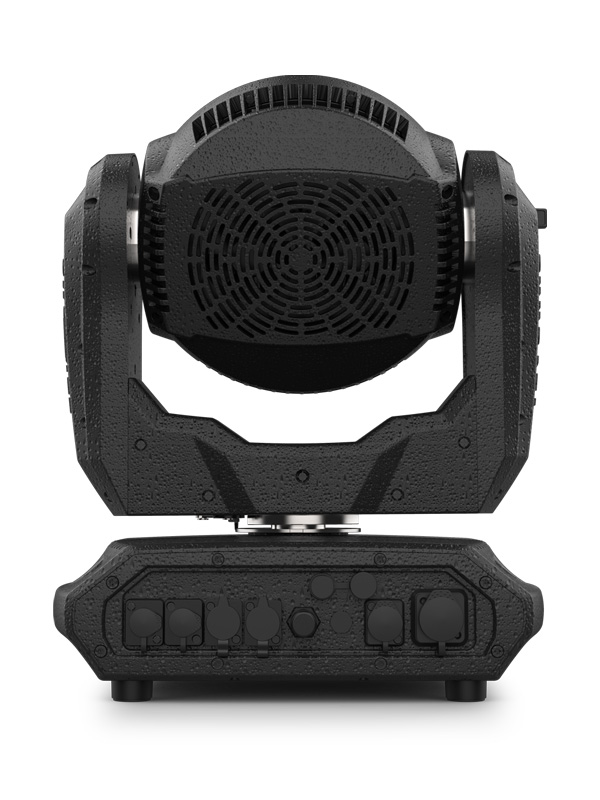

Connections

• Power Input/Output

  Seetronic Powerkon IP65

• Data Connectors

  5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  Art-Net, sACN, Kling-Net, RDM, DMX, W-DMX

• • DMX Channels
    • Single Mode

      20, 96, 178, 216

    • Dual Mode – Function

      8, 20, 26

    • Dual Mode – Pixel

      57, 76, 152

• • Art-Net Channels
    • Single Mode

      20, 96, 178, 216

    • Dual Mode – Function

      8, 20, 26

    • Dual Mode – Pixel

      57, 76, 152

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  3 units @ 120 V; 6 units @ 208 V; 6 units @ 230 V

• Power and Current

  477 W, 3.958 A @ 120 V, 60 Hz

• Power and Current

  473 W, 2.258 A @ 208 V, 60 Hz

• Power and Current

  461 W, 2.013 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET

• IP Rating

  IP66, outdoor/wet, with pressure equalizing M12 GORE valve
