    STRIKE Saber

    A versatile and powerful LED batten that functions as a blinder, footlight, or tunable warm-white wash, featuring pixel-mappable control and an emulated amber shift to mimic classic incandescent dimming.
    Perfect for ground-level applications in theatre, concert touring, and broadcast sets requiring dynamic footlighting, powerful blinding effects, or smooth warm-white washes.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: STRIKESABER

    STRIKE Saber

    Specifications
    		 Download
    STRIKE Saber Quick Reference Guide
    		 Download
    STRIKE Saber User Manual
    		 Download
    STRIKE Saber CAD Files
    		 Download
    STRIKE Saber DMX Chart
    		 Download
    STRIKE Saber IES Files
    		 Download
    STRIKE Saber Photometric and Chromaticity Reports
    		 Download
    Download All Resources

    STRIKE Saber

    SKU: STRIKESABER

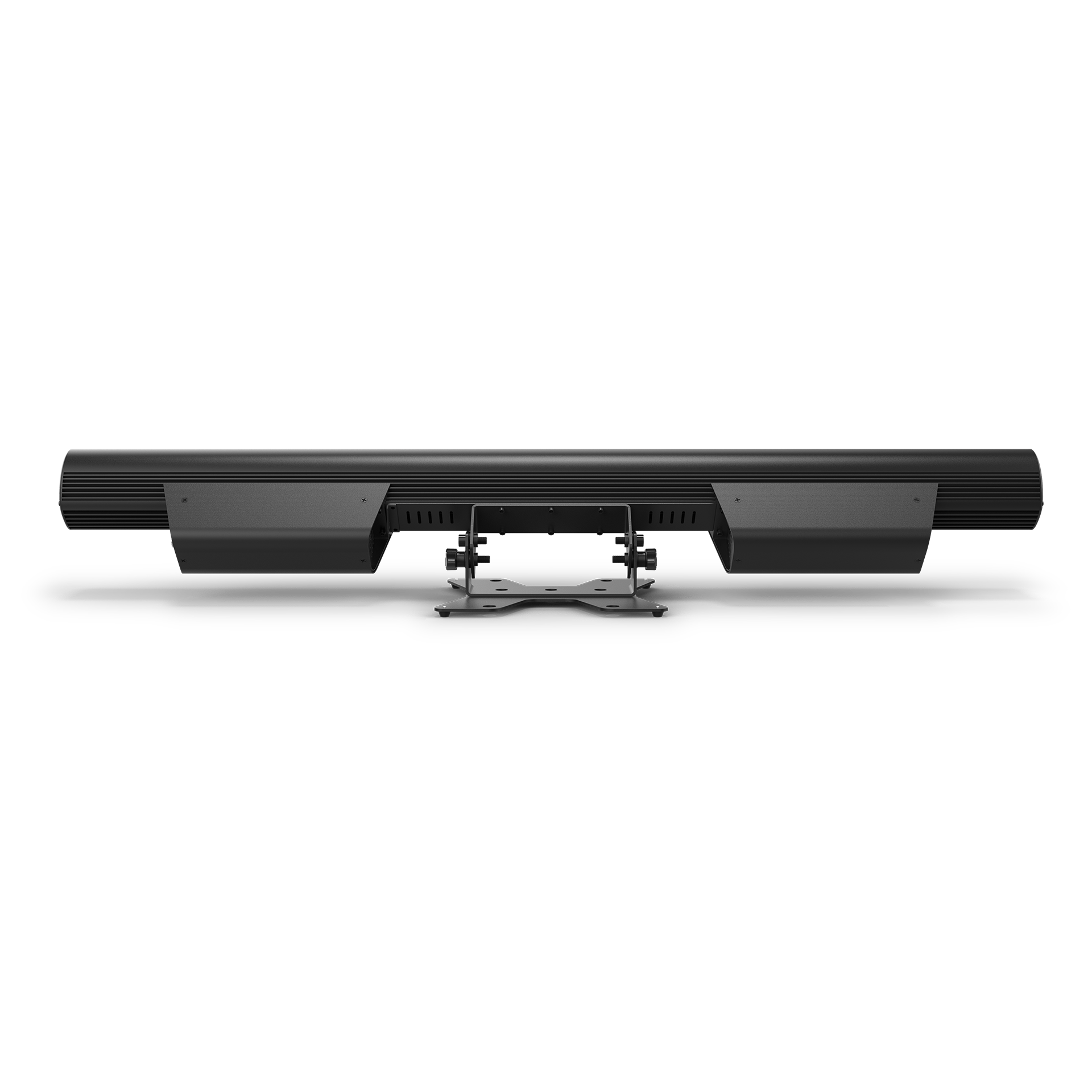

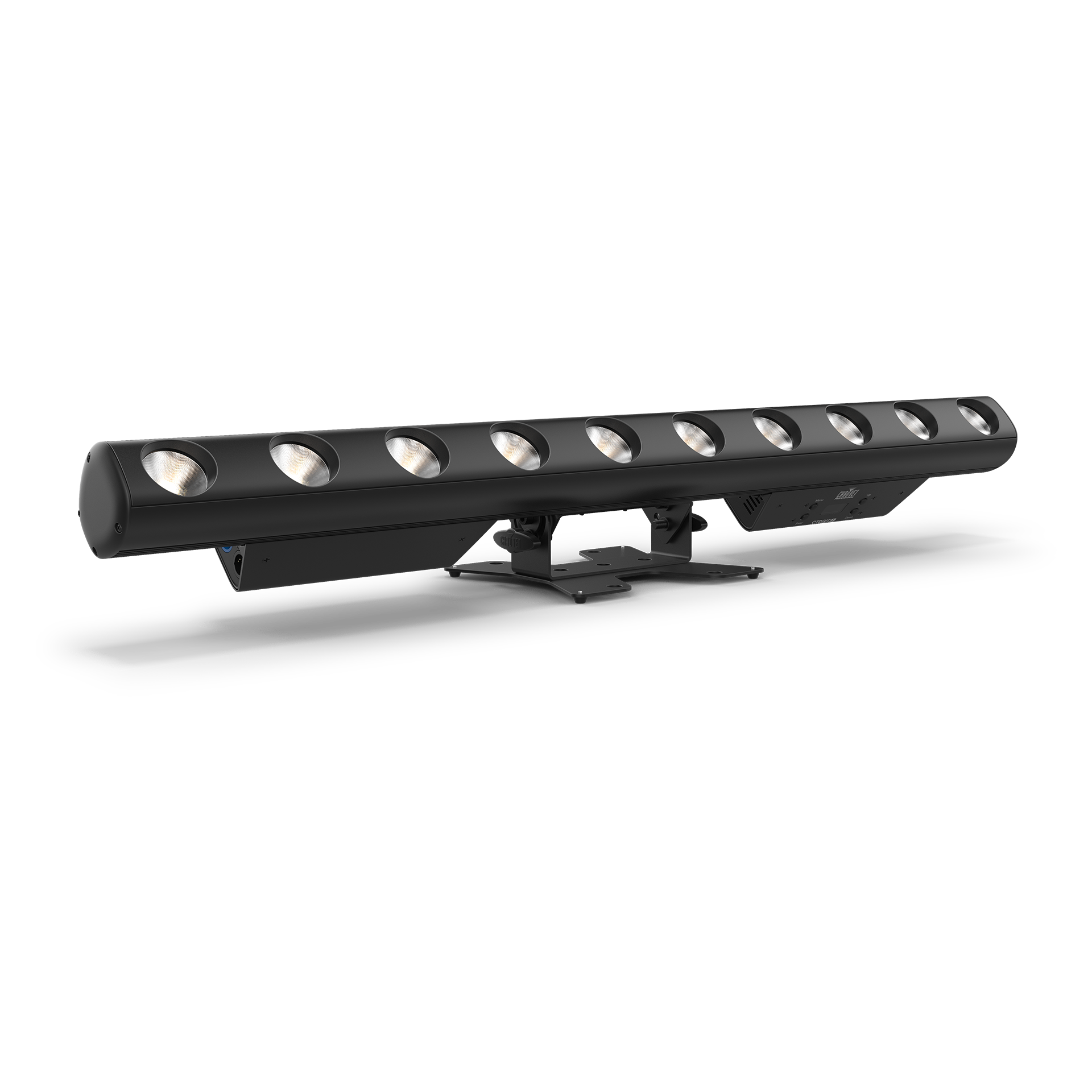

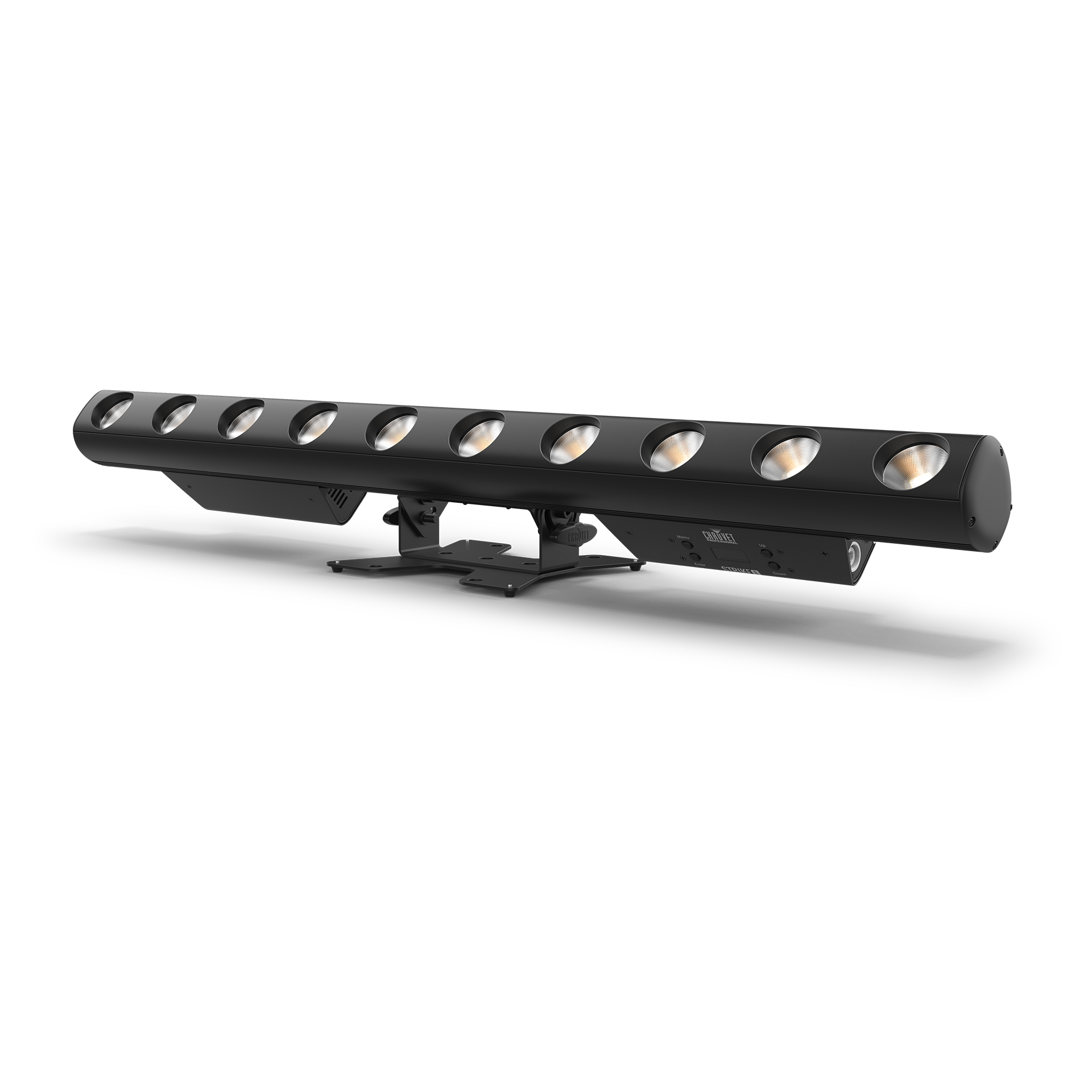

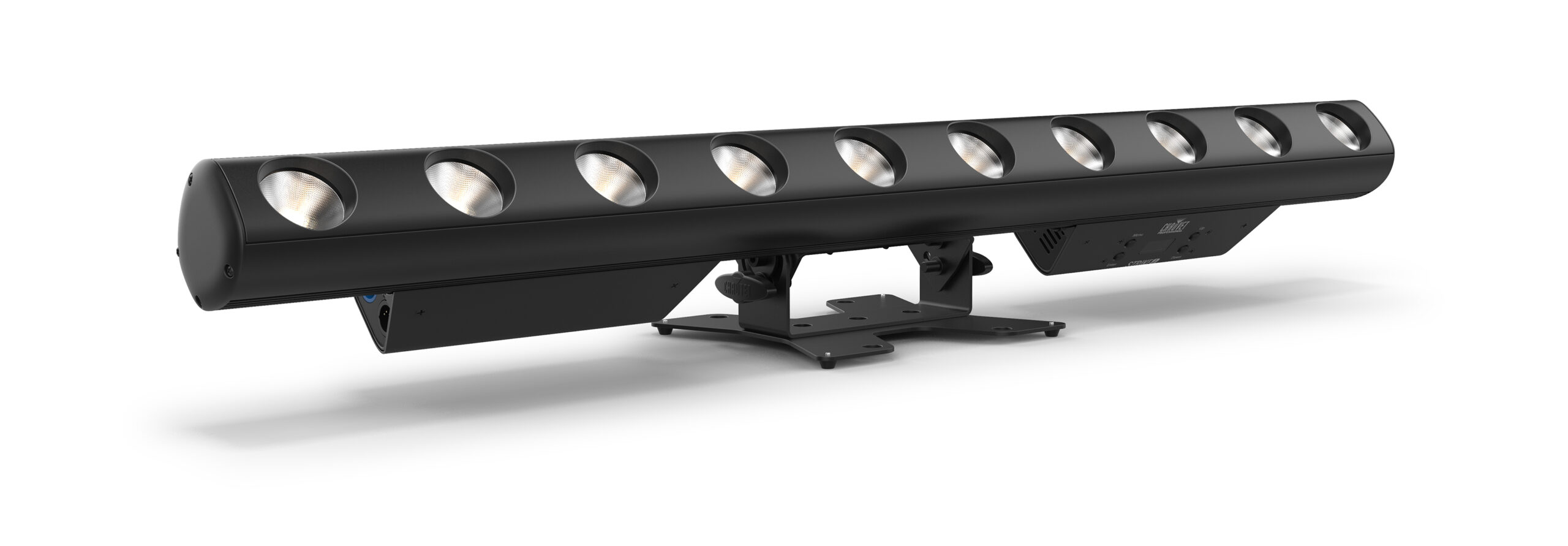

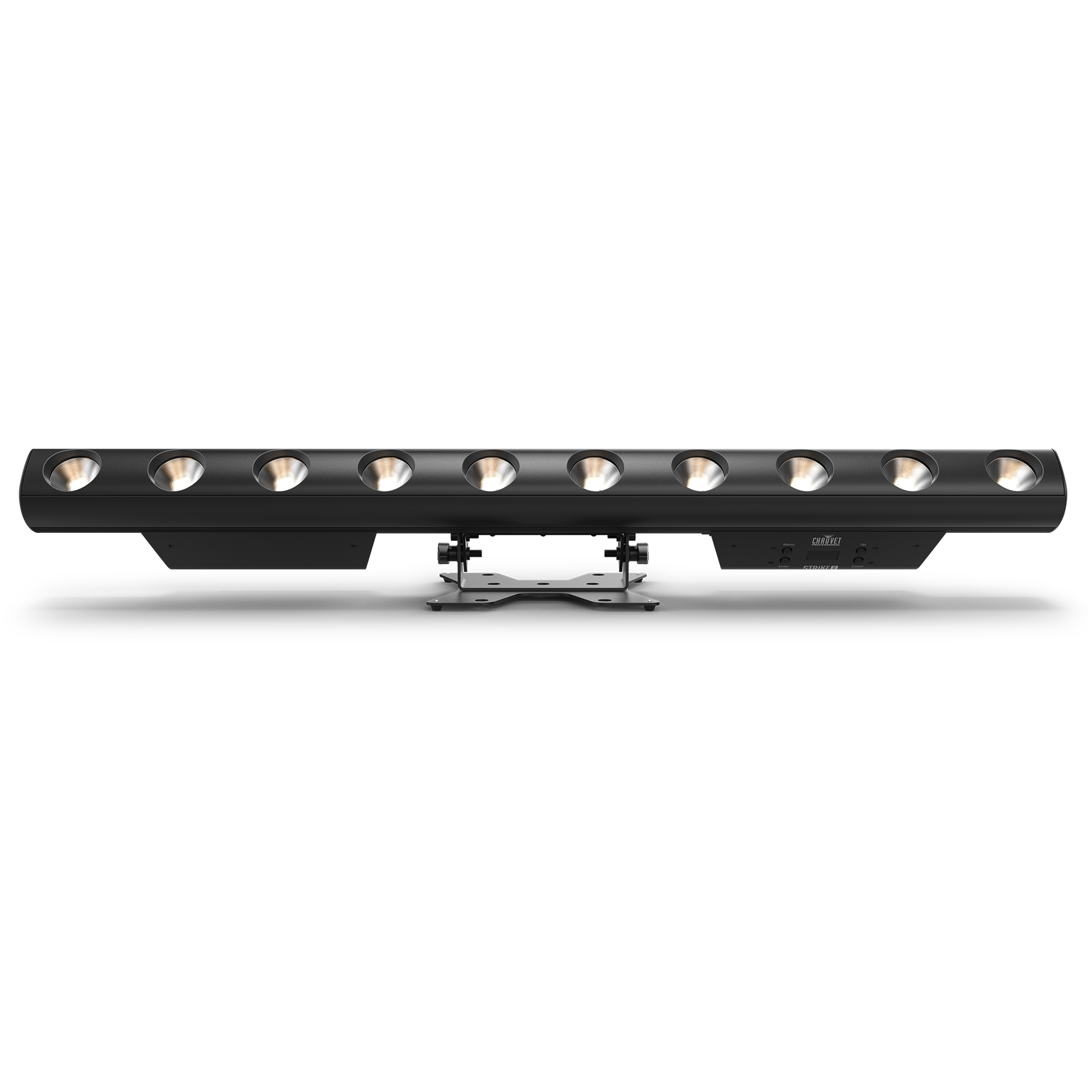

    STRIKE Saber is a powerful blinder, footlight or tunable warm-white wash powered by 10 17 W bi-color (WW/Amber) LEDs. It’s also pixel-mappable for awesome chase and strobe effects. An emulated “amber shift” warms the Color Temperature of the light as it dims to perfectly mimic incandescent lights. This dynamic batten also comes with a floorplate for easy ground level mounting and includes RDM control and 16-bit dimming for smooth, perfect fades.

    Features

    Versatile 10-Cell Batten

    This intense fixture is perfect for use as a blinder, footlight, or tunable warm-white light source.

    Emulated Red Shift

    Perfectly mimics the warm, dimming glow of traditional incandescent fixtures.

    16-Bit Dimming Control

    Achieve exceptionally smooth and perfect fades with high-resolution dimming control.

    Integrated Strobe Function

    Create high-impact, energetic effects on-the-fly using the built-in strobe functionality.

    Pixel Mapping Capability

    Each cell is individually controllable for creating intense chase sequences and dynamic strobe effects.

    Included Floor Plate

    An included floor plate allows for simple and stable ground-level mounting.

    Easy-to-Use OLED Display

    Navigate settings and make adjustments quickly with the clear and intuitive OLED display.

    Adjustable PWM

    Eliminate on-camera flicker for broadcast and recording applications by adjusting the Pulse Width Modulation.

    Remote Device Management

    Access and configure the fixture remotely for added flexibility and convenience using RDM protocol.

    Latest News

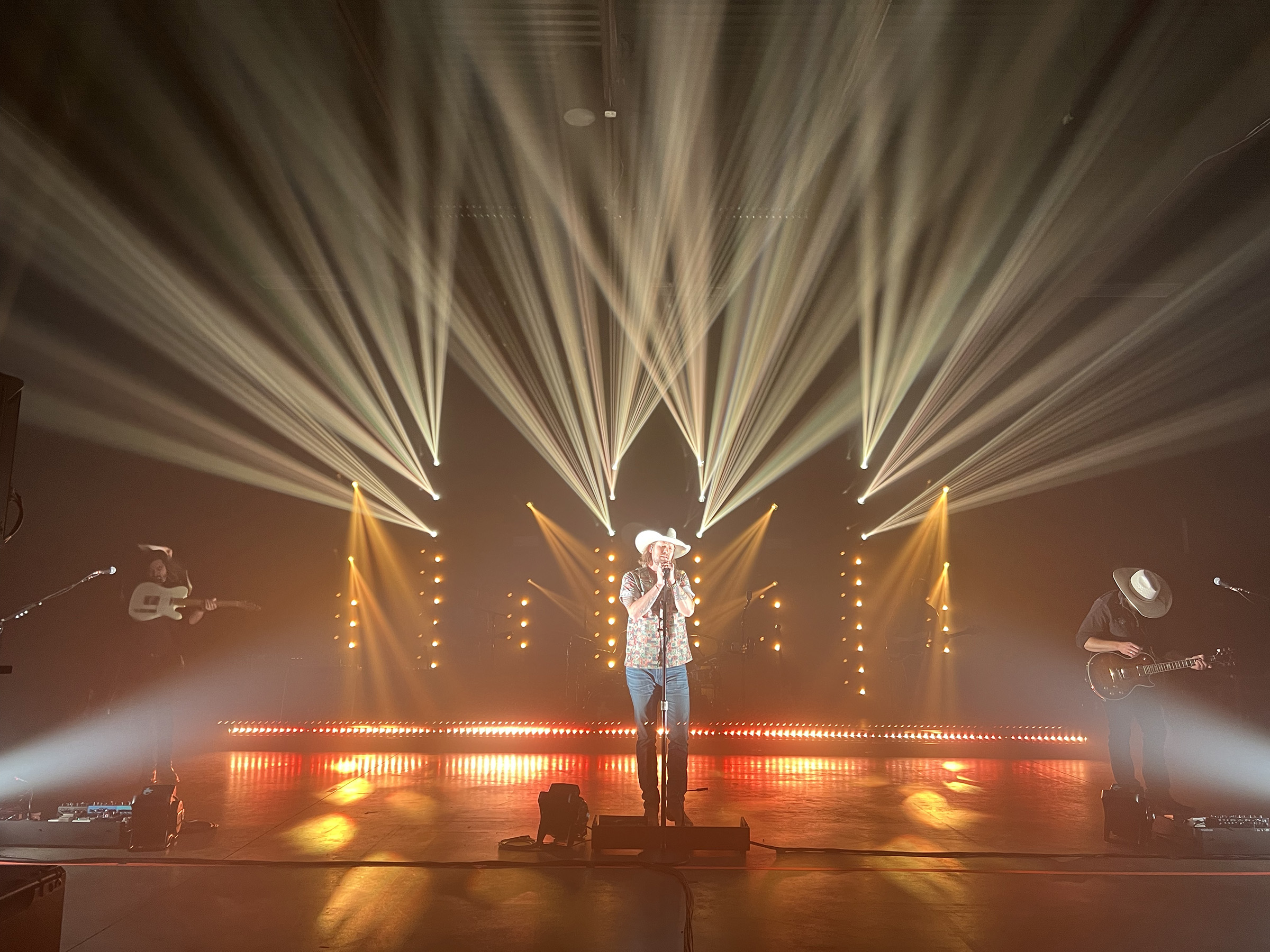

    District 5 Creates Cool Beach Vibe for Brian Kelley with CHAUVET Professional
    Designers from District 5 Studio craft a scalable, beach-inspired rig for Brian Kelley’s tour.
    Read more

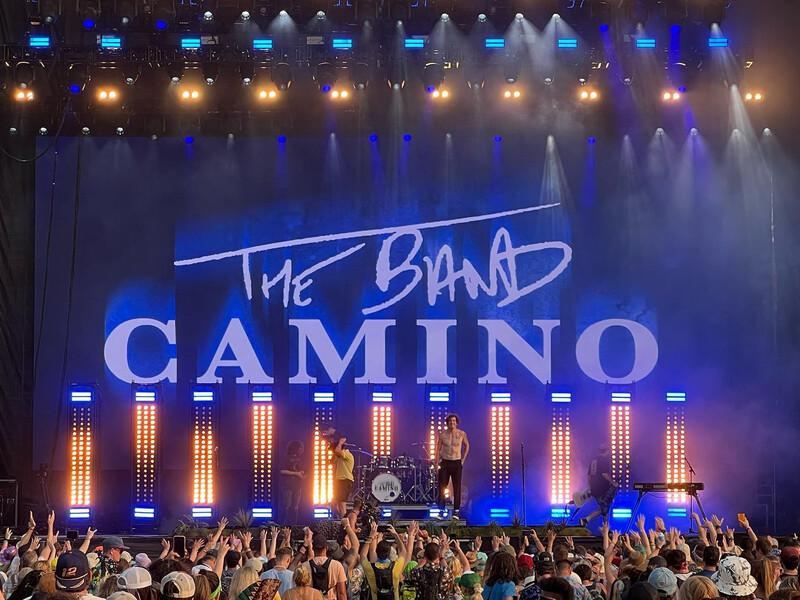

    Tyler Shapard and Dayne deHaven Go Bold at Bonnaroo for The Band CAMINO with CHAUVET Professional
    Designers Tyler Shapard and Dayne deHaven deliver a bold daylight show for The Band CAMINO at Bonnaroo.
    Read more
    Andrew Dawson Unfolds James Barker Band’s Stories with CHAUVET Professional
    Lighting designer Andrew Dawson crafts a visual narrative for the James Barker Band’s tour.
    Read more
    George Gorton Creates Organic Rig for Dallas Smith Tour with CHAUVET Professional
    LD George Gorton crafts an evolving, structural lighting design for Dallas Smith’s latest tour.
    Read more

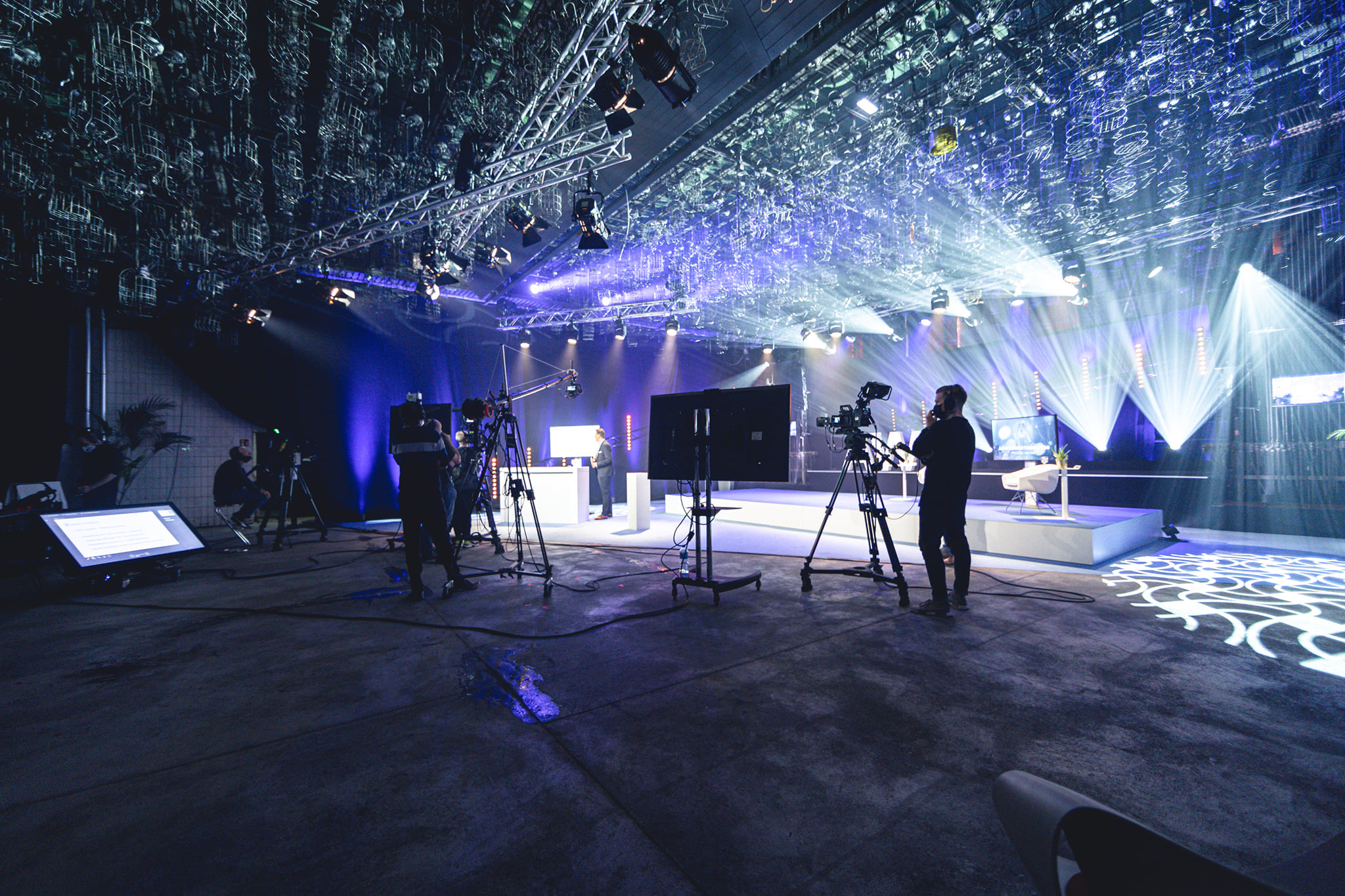

    Schallmeister Blends Old And New At Livestream In Former Coal Mine With CHAUVET Professional
    Schallmeister fuses historic industrial architecture with modern lighting for a memorable livestream.
    Read more
    PROTONES Calls On CHAUVET Professional To Set Mood For Netflix Special
    Lighting designer Alex Schmidt balances historic architecture with modern broadcast needs for a Netflix special.
    Read more
    District 5 Creates Cool Beach Vibe for Brian Kelley with CHAUVET Professional
    Designers from District 5 Studio craft a scalable, beach-inspired rig for Brian Kelley’s tour.
    Read more
    Tyler Shapard and Dayne deHaven Go Bold at Bonnaroo for The Band CAMINO with CHAUVET Professional
    Designers Tyler Shapard and Dayne deHaven deliver a bold daylight show for The Band CAMINO at Bonnaroo.
    Read more
    Andrew Dawson Unfolds James Barker Band’s Stories with CHAUVET Professional
    Lighting designer Andrew Dawson crafts a visual narrative for the James Barker Band’s tour.
    Read more
    George Gorton Creates Organic Rig for Dallas Smith Tour with CHAUVET Professional
    LD George Gorton crafts an evolving, structural lighting design for Dallas Smith’s latest tour.
    Read more
    Schallmeister Blends Old And New At Livestream In Former Coal Mine With CHAUVET Professional
    Schallmeister fuses historic industrial architecture with modern lighting for a memorable livestream.
    Read more
    PROTONES Calls On CHAUVET Professional To Set Mood For Netflix Special
    Lighting designer Alex Schmidt balances historic architecture with modern broadcast needs for a Netflix special.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

    • Optical

      10, LEDs (Warm White/Amber) 17 W, (310 mA), 3134 K, 50,000 hours life expectancy

    • Color Temperature (at full)

      3134 K

    • CRI

      89

    • Beam Angle vertical

      15°

    • Beam Angle horizontal

      18°

    • Field Angle vertical

      30°

    • Field Angle horizontal

      35°

    • Lumens

      5,675

    • Illuminance

      2,466 lux @ 5 m

    • Selectable PWM

      600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

    Dynamic Effects

    • Dimmer

      Electronic

    • Strobe

      Electronic

    • Strobe Rate

      0 to 26.7 Hz

    • Dim Modes

      4

    • Built-in Automated Programs

      Yes

    Construction/Physical

    • Dimensions

      39.3 x 3.08 x 6.18 in (1000 x 78.4 x 157 mm)

    • Weight

      14.6 lb (6.7 kg)

    • Exterior Color

      Black

    • Housing Material

      Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Steel

    Connections

    • Power Connection

      Edison (Local) plug to Neutrik powerCON

    • Power Input

      Neutrik powerCON

    • Power Output

      Neutrik powerCON

    • Data Connectors

      5-pin XLR

    • Cable Length (power)

      5 ft (1.5 m)

    Control

    • Control Protocol

      DMX, RDM

    • DMX Channels

      1, 3, 7, 10, 11, 20, or 27

    • Modes/Personalities

      6 personalities (1ch, 3ch, 7ch, 10ch, 11ch, 20ch, 27ch)

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power Linking

      9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V

    • Power and Current

      174 W, 1.434 A @ 120 V, 60 Hz

    • Power and Current

      172 W, .829 A @ 208 V, 60 Hz

    • Power and Current

      170 W, .741 A @ 230 V, 50 Hz

    Certifications/Qualifications

    • Certifications

      CE, MET

    • IP Rating

      IP20, dry location

    • Temperature (Ambient)

      -4 °F to 113 °F (-20 °C to 45 °C)

    Compatible Accessories

    • Professional Clamps: CTC-50HC, CTC-50HCN
    • Powerkon power linking cables
    • 5-pin DMX Cables

    What's Included

    • STRIKE Saber
    • Neutrik powerCON power cord
    • Floor Stand

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    STRIKE Saber Quick Reference Guide
    		Download
    Manuals
    STRIKE Saber User Manual
    		Download
    Drawings
    STRIKE Saber CAD Files
    		Download
    DMX
    STRIKE Saber DMX Chart
    		Download
    Photometrics
    STRIKE Saber IES Files
    		Download
    Photometrics
    STRIKE Saber Photometric and Chromaticity Reports
    		Download

    Learn How To Use Your STRIKE Saber

    Explore these detailed videos showcasing setup, features, and creative applications for this product.

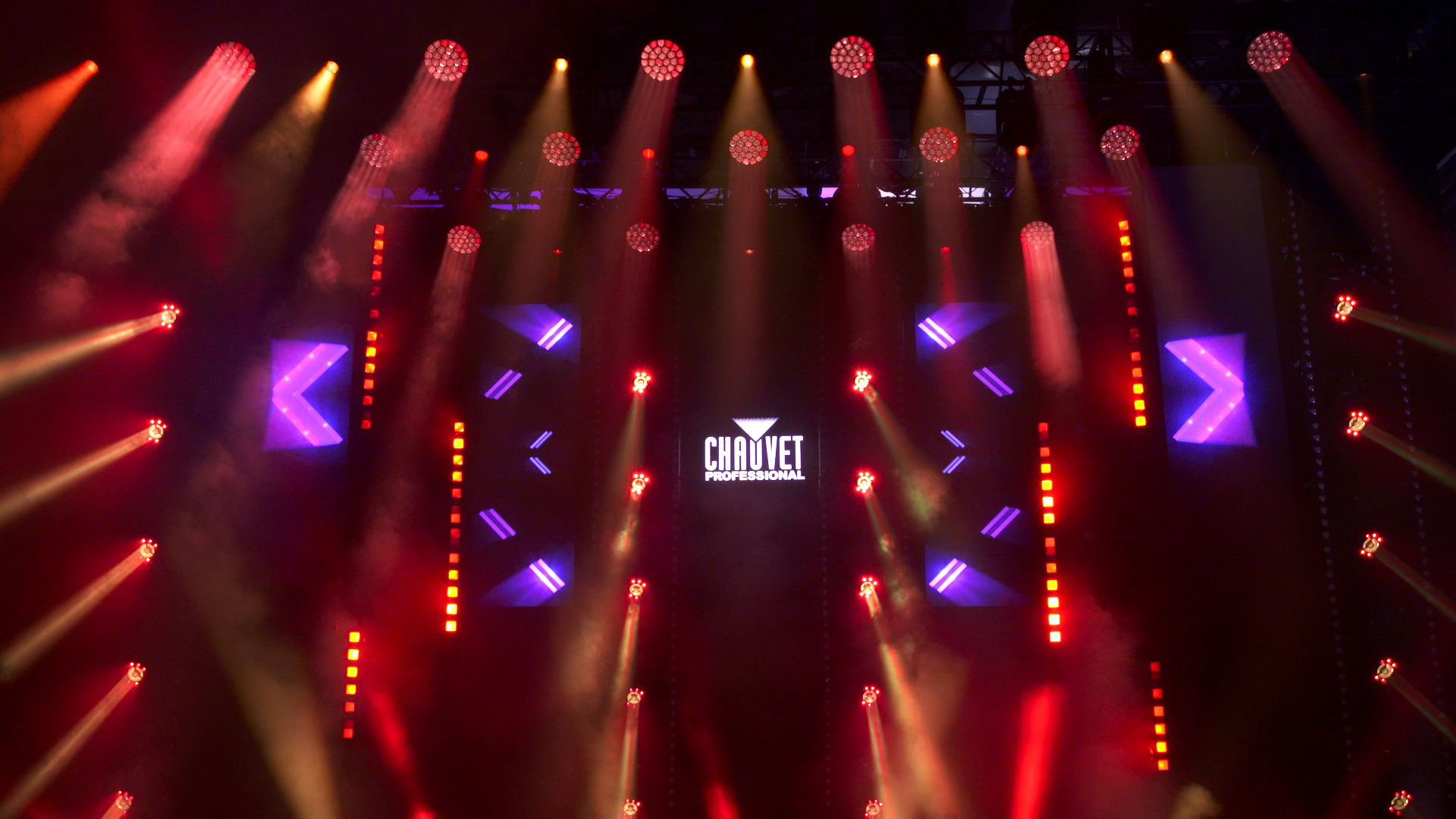

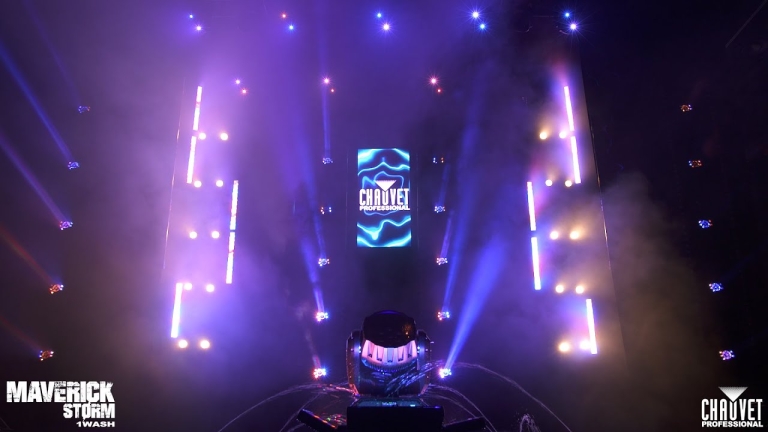

    • LDI 2018 – LD Interview and Booth Tour by CHAUVET Professional

      Explore the CHAUVET Professional LDI 2018 booth with Lighting Designer Cody James as he reveals his creative process. Discover how new fixtures powered three dynamic lightshows, showcasing bold designs and innovative technology in action.

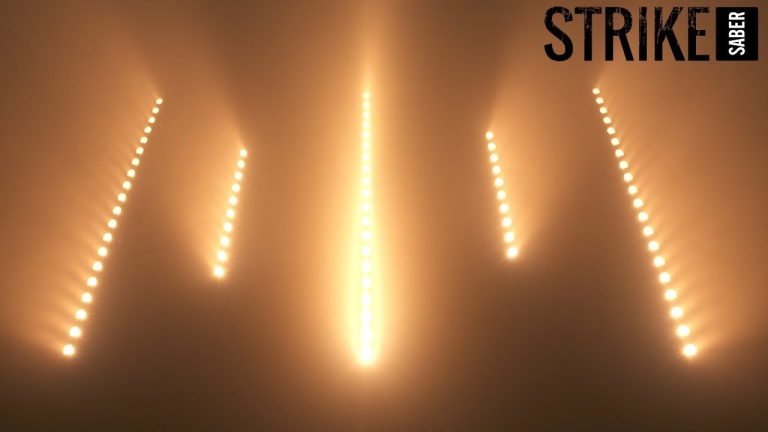

    • Strike Saber by CHAUVET Professional

      Command the stage with the STRIKE Saber, a versatile LED batten that excels as a blinder, footlight, or tunable white wash. Create dynamic chases with pixel-mappable cells or mimic classic incandescent looks with its emulated amber shift, delivering powerful and creative options for ground-level lighting applications.

    Video Library

    STRIKE Saber FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the STRIKE Saber
    What is the STRIKE Saber used for?

    STRIKE Saber is a multi-purpose light bar perfect for creating dramatic effects. Use it as a powerful blinder facing the audience, as a footlight to illuminate performers from below, or as a warm-white wash to light up a stage or wall. It includes a floor stand for easy setup right on the ground.

    Does the STRIKE Saber look like a traditional stage light?

    Yes, it’s designed to perfectly mimic the warm, amber glow of classic incandescent lights. As you dim the STRIKE Saber, the light naturally warms in color, creating a beautiful and authentic fade that looks just like a traditional tungsten fixture.

    Can you create moving light patterns with the STRIKE Saber?

    Absolutely. Each of the 10 powerful LEDs in the STRIKE Saber can be controlled individually. This allows you to create stunning eye-candy effects, including dynamic chases, strobes, and other animated light patterns, adding a high-impact visual element to any show.
