    STRIKE Array Ultra

    A next-generation IP65 audience blinder that pairs a powerful RGBA-WW engine with a motorized movement axis and a dynamic RGB halo ring.

    Built for large-scale touring and broadcast applications, it transforms classic blinder punch into a flexible platform for creating unforgettable audience-facing effects.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: STRIKEARRAYULTRA

    STRIKE Array Ultra

    Specifications
    		 Download
    Download All Resources

    STRIKE Array Ultra

    SKU: STRIKEARRAYULTRA

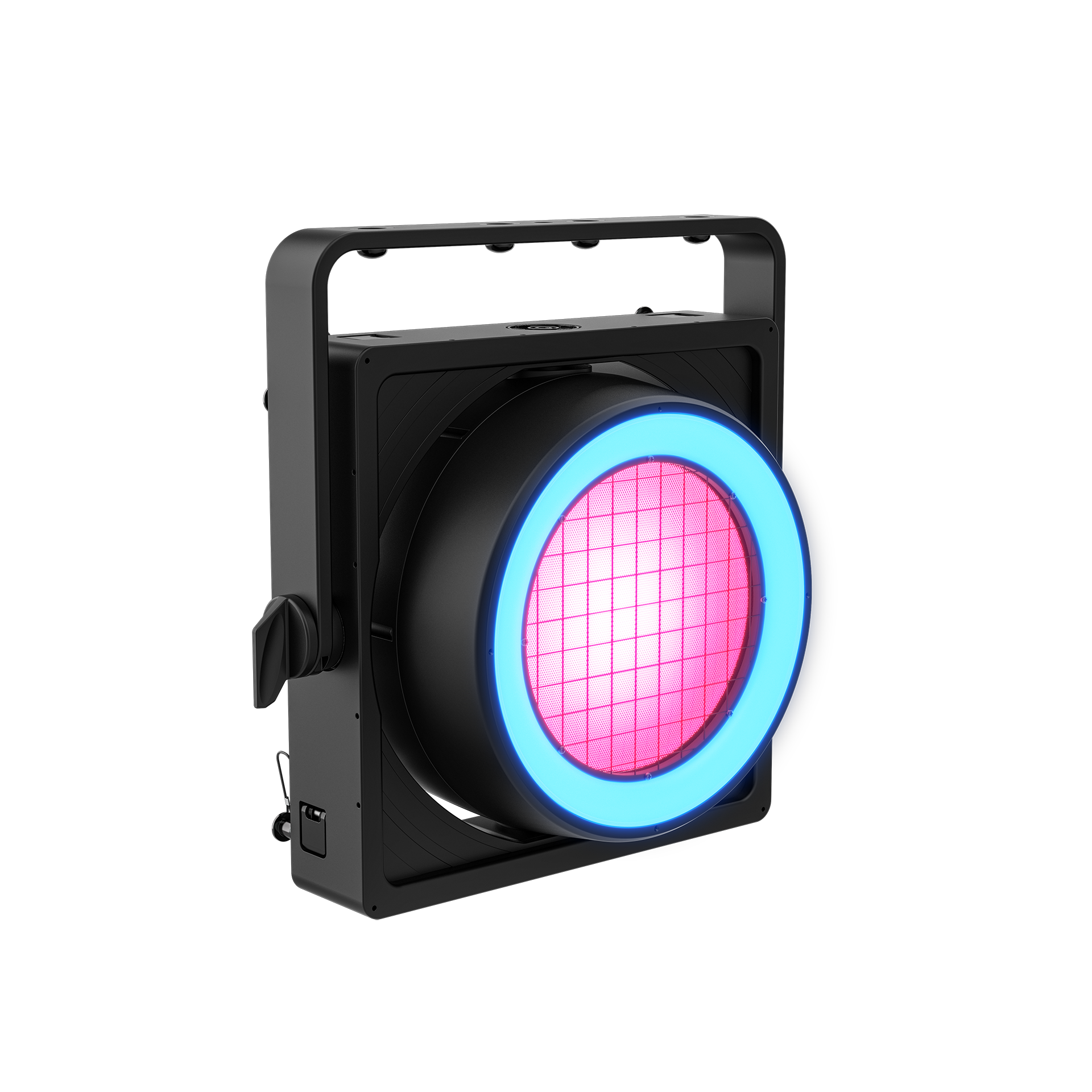

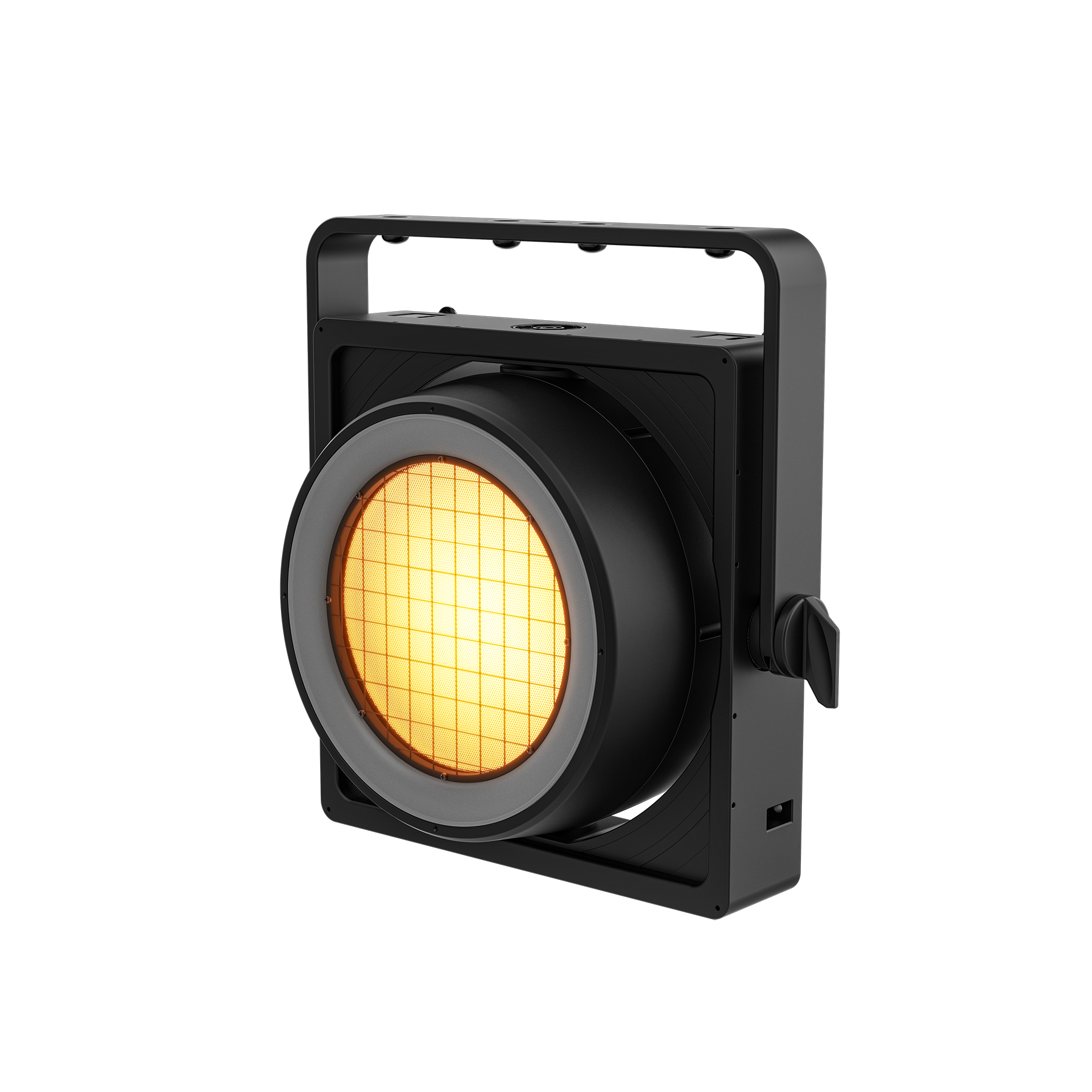

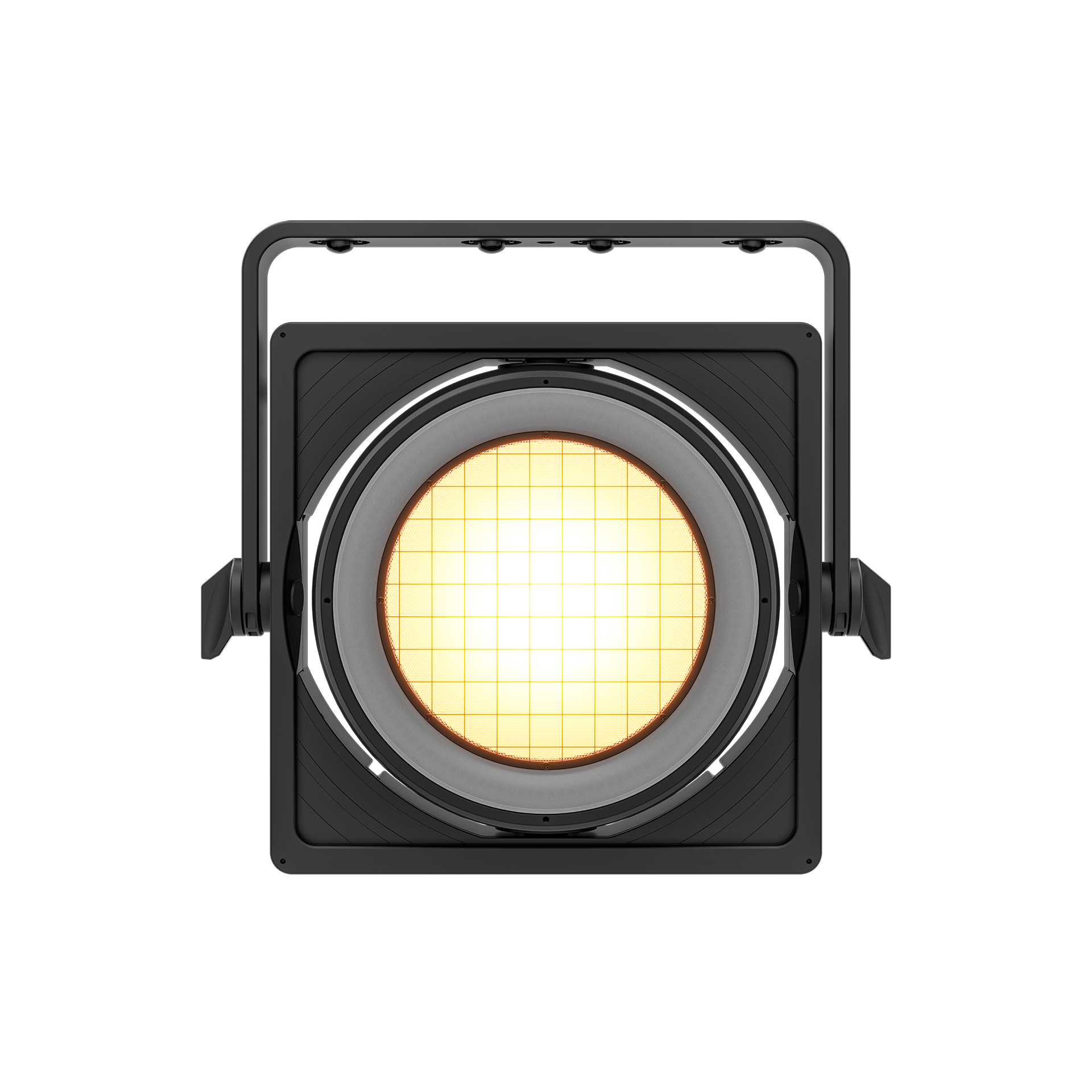

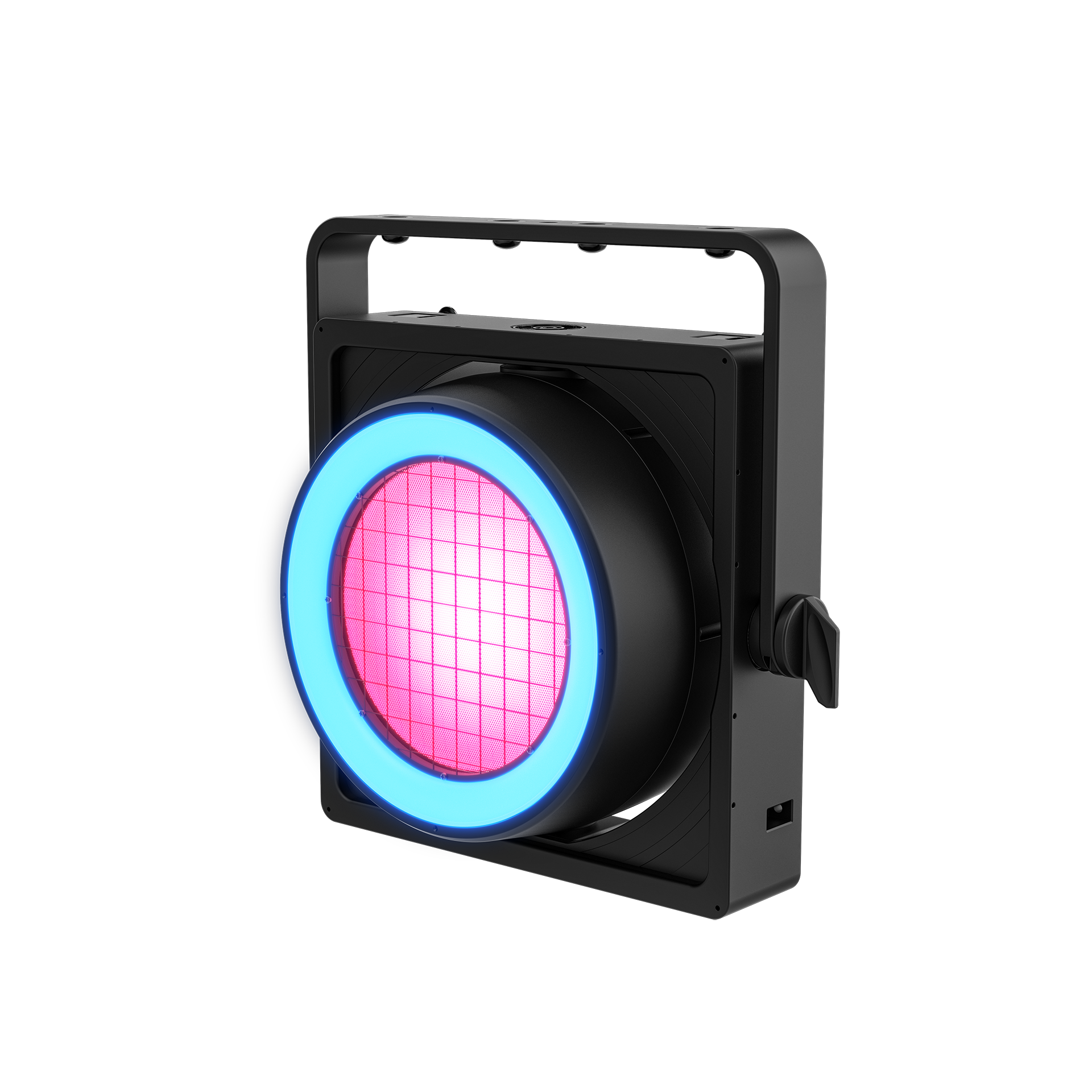

    STRIKE Array Ultra is a next-generation IP65 audience blinder that pairs a powerful RGBA-WW engine with a distinctive RGB halo ring for bold, camera-ready looks. Its high-CRI calibrated whites and filter option deliver natural skin tones and rich color on camera, while a single motorized movement axis that functions as pan or tilt, along with broadcast-optimized dimming, transforms classic blinder punch into a flexible, dynamic effects platform. Built to integrate seamlessly with other STRIKE Array and STRIKE Bolt fixtures, it scales effortlessly from clubs to full festival and broadcast rigs.

    Features

    60,000+ Lumen Single-Source Punch

    A single high-output pod delivers 60,000+ lumens of blinder-intensity impact—built to read on camera and carry from studio floors to stadium tours.

    Broadcast-Grade RGBA-WW Color + High-CRI Whites

    RGBA-WW color mixing produces saturated color and clean, high-CRI whites, with red-shift dimming for natural warmth on fades and superior on-camera skin tones.

    Dynamic Motorized Movement

    A single motorized axis provides pan or tilt movement, adding a layer of dynamic motion to traditional blinder effects for more engaging looks.

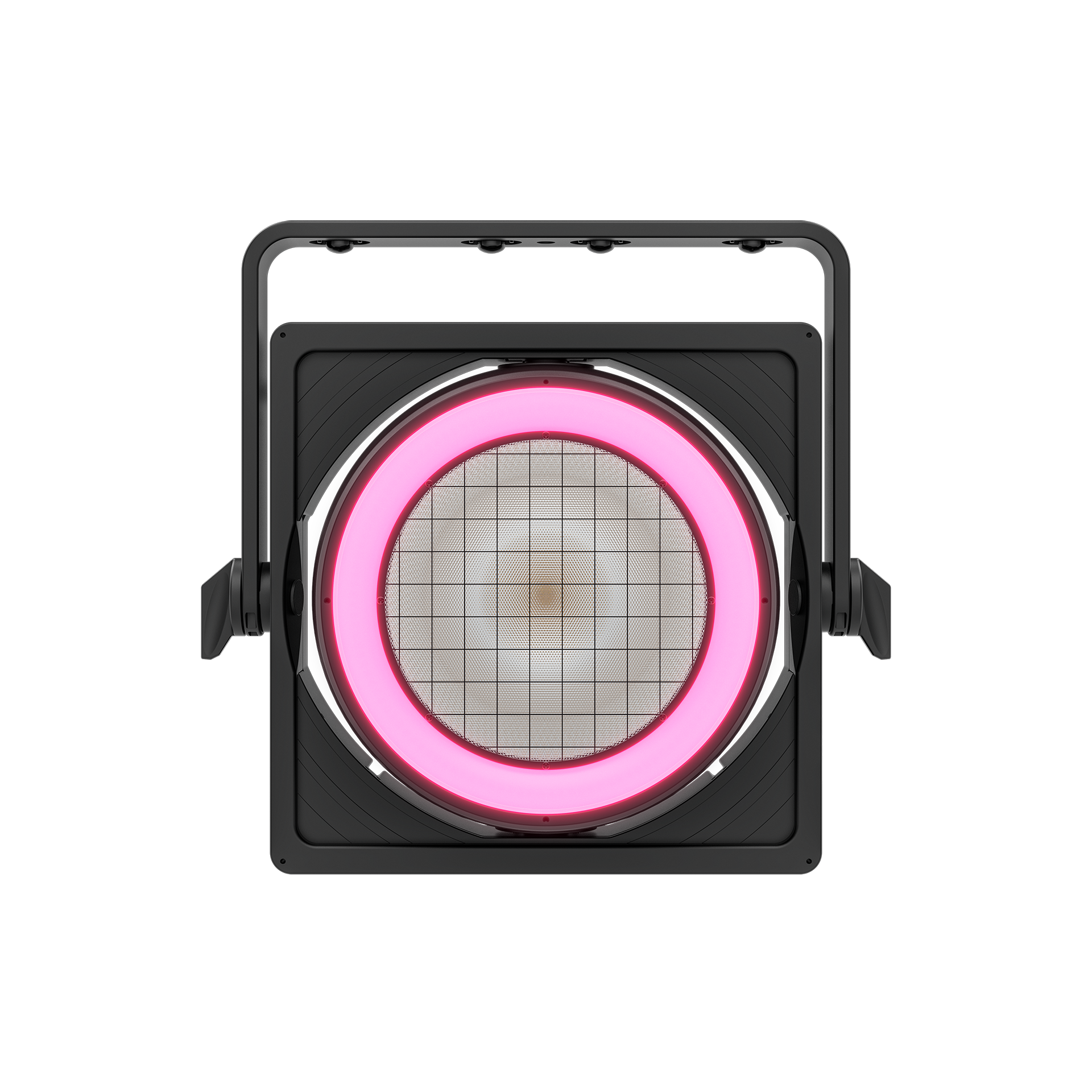

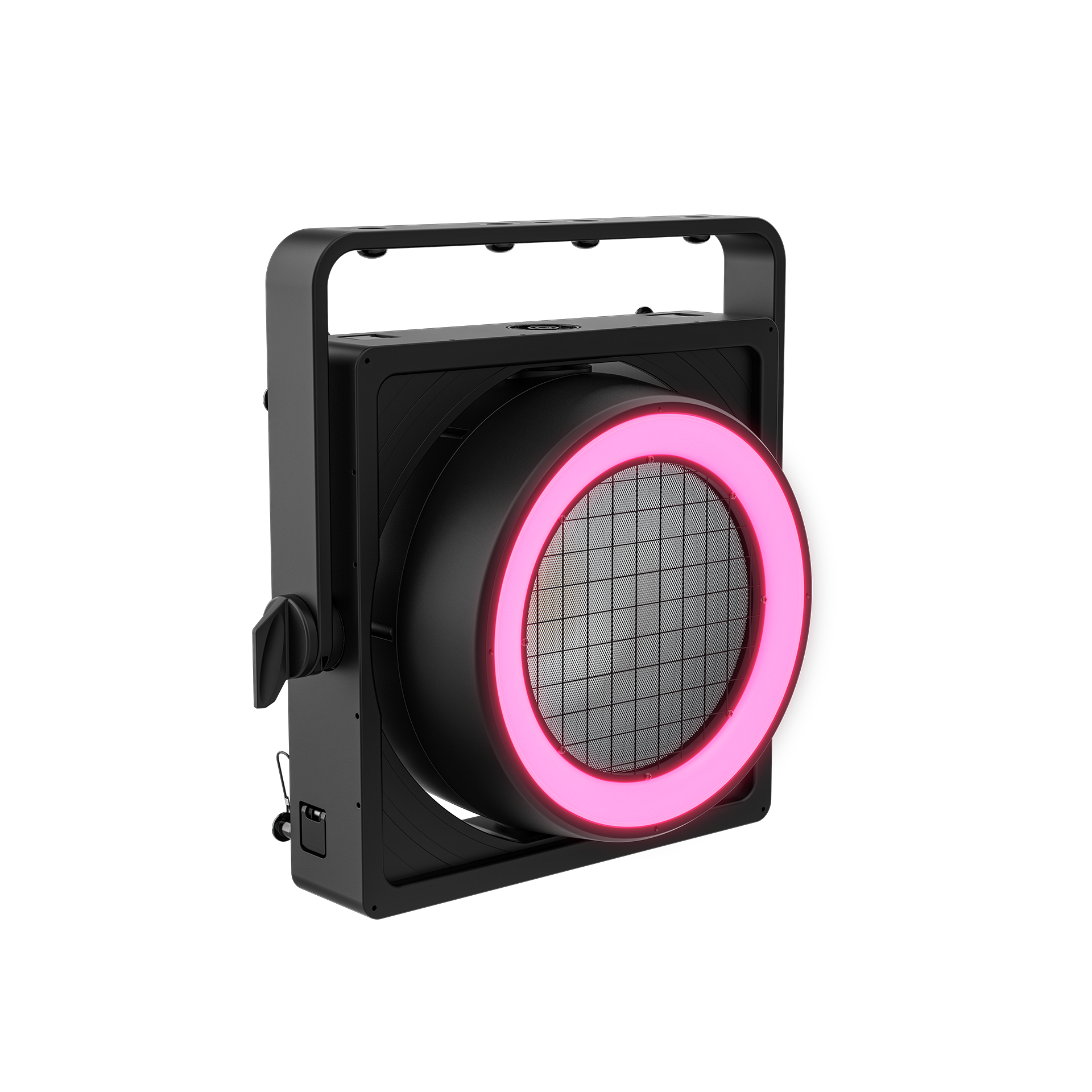

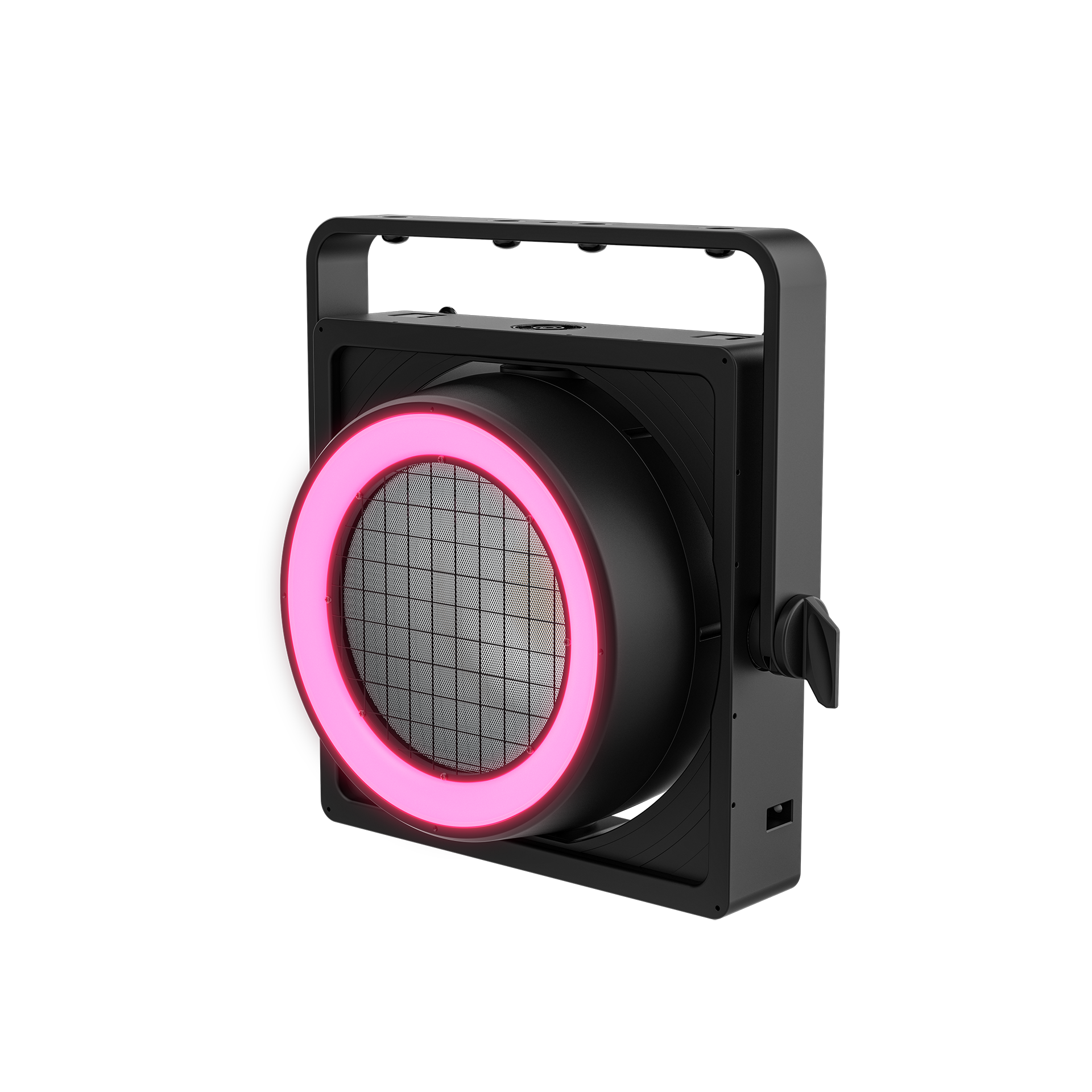

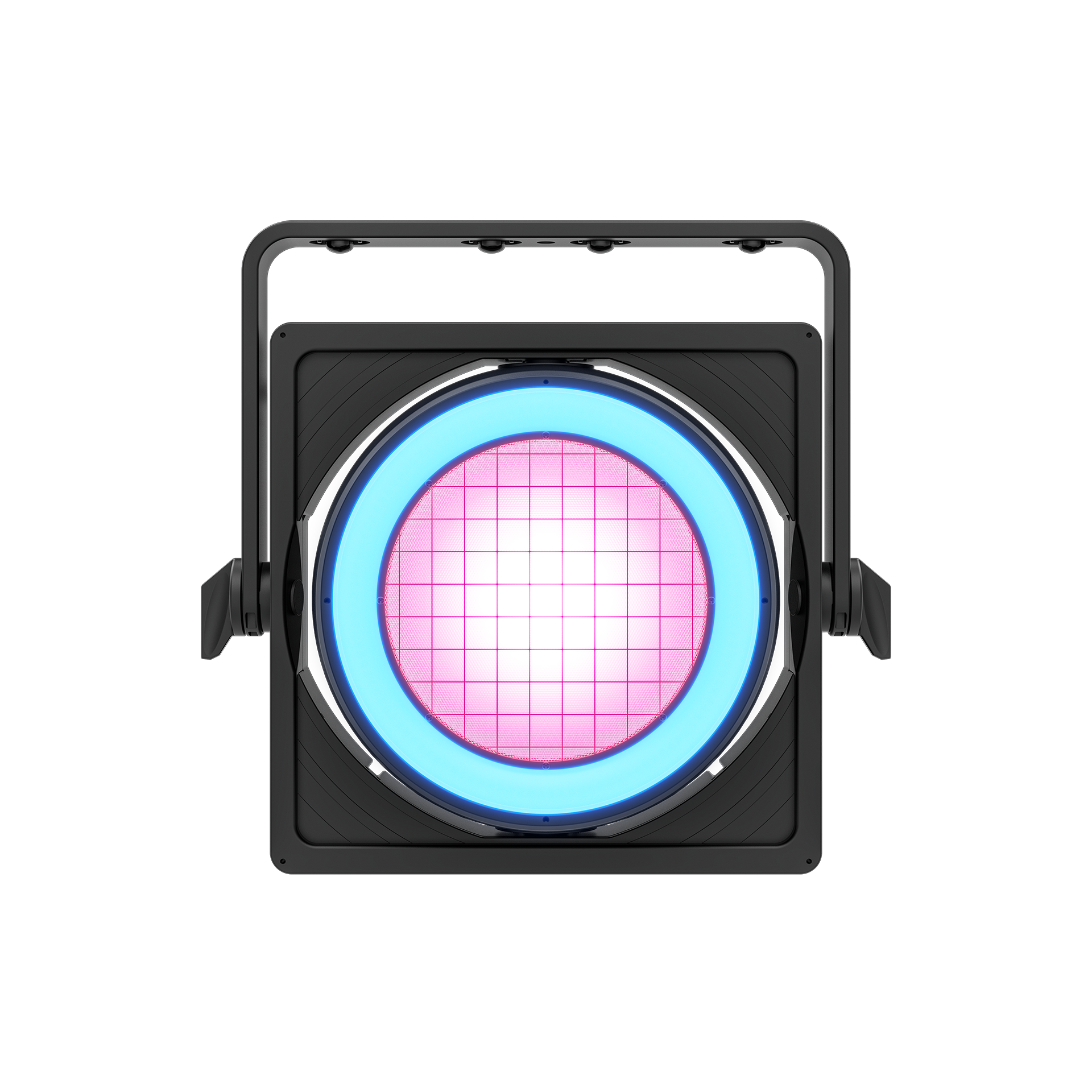

    12‑Section RGB Halo Ring Effects

    A distinctive 12-segment RGB ring adds pixel-style effects, chases, and eye-candy—expanding looks beyond “on/off blinder” for live and broadcast.

    STRIKE Array Family Mounting Compatibility

    Physically mounts with all fixtures in the STRIKE Array family for seamless lineup builds, consistent rigging, and familiar deployment across existing systems.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

      • Light Source(s)
        • Light Source (Pod)

          1 LED (RGBWA)

        • Light Source (Ring)

          120 LEDs (RGB)

    • CRI @ 3200K

      92.8

      • Beam Angle(s)
        • Beam Angle (Combined)

          52°

        • Beam Angle (Pod)

          52°

        • Beam Angle (Ring)

          112.3°

      • Field Angle(s)
        • Field Angle (Combined)

          91.7°

        • Field Angle (Pod)

          91.6°

        • Field Angle (Ring)

          177.6°

      • Lumens
        • Lumens (Combined)

          56,715

        • Lumens (Pod)

          56,604

        • Lumens (Ring)

          297

      • Illuminance
        • Illuminance (Combined)

          2607 lux @ 5 m

        • Illuminance (Pod)

          2610 lux @ 5 m

        • Illuminance (Ring)

          4 lux @ 5 m

    • Selectable PWM

      600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

    Dynamic Effects

    • Pan

      +-25°

    • Pan Ranges

      50°

    • Dimmer

      Electronic

    • Shutter/Strobe

      Electronic

    • Strobe Rate

      0 to 30Hz

    • Standalone Color Mixing

      Yes

    • Color Temperature Presets

      Yes

    • Dim Modes

      4

    • Dim Curves

      4

    • Built-in Automated Programs

      Yes

    Construction/Physical

    • Dimensions

      19.13 x 17.79 x 11.02 in (486 x 452 x 280 mm)

    • Weight

      39.6 lb (18 kg)

    • Exterior Color

      Black

    • Housing Material

      Aluminum Profile, Die-casting magnesium

    • IP Rating

      IP65

    Connections

    • Power Connection

      Edison (Local) plug to Seetronic Powerkon IP65

    • Power Input

      Seetronic Powerkon IP65

    • Data Connectors

      5-pin Seetronic IP65 XLR or Seetronic IP65 etherCON

    • Cable Length (power)

      5 ft (1.5 m)

    • Software Update

      USB-C

    Control

    • Control Protocol

      Art-Net, sACN, DMX, RDM

    • DMX Channels

      4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV

    • Art-Net Channels

      4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV

    • Modes/Personalities

      11 personalities (4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV)

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power Linking

      1 units @ 120 V; 2 units @ 208 V; 2 units @ 230 V;

    • Power and Current

      1024 W, 8.54 A @ 120 V, 60 Hz

    • Power and Current

      995 W, 4.81 A @ 208 V, 60 Hz

    • Power and Current

      995 W, 4.34 A @ 230 V, 50 Hz

    Certifications/Qualifications

    • Compliance

      CE, MET, FCC

    • MET Listing Number

      [E113093-1110, E113093-1125]

    • US Safety

      [UL 60950-1]

    • Canadian Safety

      [CSA C22.2 No. 60950-1]

      • Thermal Dissipation
        • Thermal Dissipation @ 120V

          819 BTU per hour

        • Thermal Dissipation @ 208V

          819 BTU per hour

        • Thermal Dissipation @ 230V

          819 BTU per hour

    • Temperature (Ambient)

      -4 °F to 113 °F (-20 °C to 45 °C)

    Compatible Accessories

    • STRIKE Array Flush Mount Bracket
    • RIGLINK powerKON cables
    • RIGLINK etherKON cables
    • RIGLINK DMX Cables
    • Professional Clamps: CTC-50HC, CTC-50HCN
    • Safety Cable: SC-08
    • STRIKE Array Flush Bracket
    • RIGLINK IP65 DMX CABLES
    • CTC-50HC
    • CTC-50HCN
    • SC-08 Safety Cable

    What's Included

    • STRIKE Array Ultra
    • Seetronic Powerkon IP65
    • 2 Omega bracket with mounting hardware

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Learn How To Use Your STRIKE Array Ultra

    Explore these detailed videos showcasing setup, features, and creative applications for this product.

    • STRIKE Array Ultra: Ultimate Impact. Multiplied.

      Meet the next-generation IP65 audience blinder from CHAUVET Professional, combining raw punch with rich color and a signature halo. The STRIKE Array Ultra adds dynamic, scalable impact to any show with a motorized movement axis for unforgettable audience-facing effects.

    • Light Snacks: STRIKE Array Ultra Lens Accessories & Custom Blinder Builds

      Discover how to customize the STRIKE Array Ultra with optional accessory lenses for unique on-camera looks. Learn to build interconnected blinder configurations by combining it with other fixtures from the versatile STRIKE family for maximum creative impact.

    • Light Snacks: STRIKE Array Ultra Mounting Options

      Discover the rigging flexibility of the STRIKE Array Ultra. This video demonstrates how its removable yoke and unique motorized pod empower you to build dynamic, custom blinder arrays with pan or tilt movement.

    Video Library

    Latest Articles

    Browse Articles

    STRIKE Array Ultra FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the STRIKE Array Ultra
    How does the motorized movement work?

    The fixture has a single motorized axis. Depending on how you orient and mount it using the included omega brackets, it functions as either pan or tilt.

    Is this fixture suitable for outdoor use in bad weather?

    Yes, its IP65 rating ensures it is fully protected against dust ingress and low-pressure water jets, making it ideal for temporary outdoor festival and event stages.
