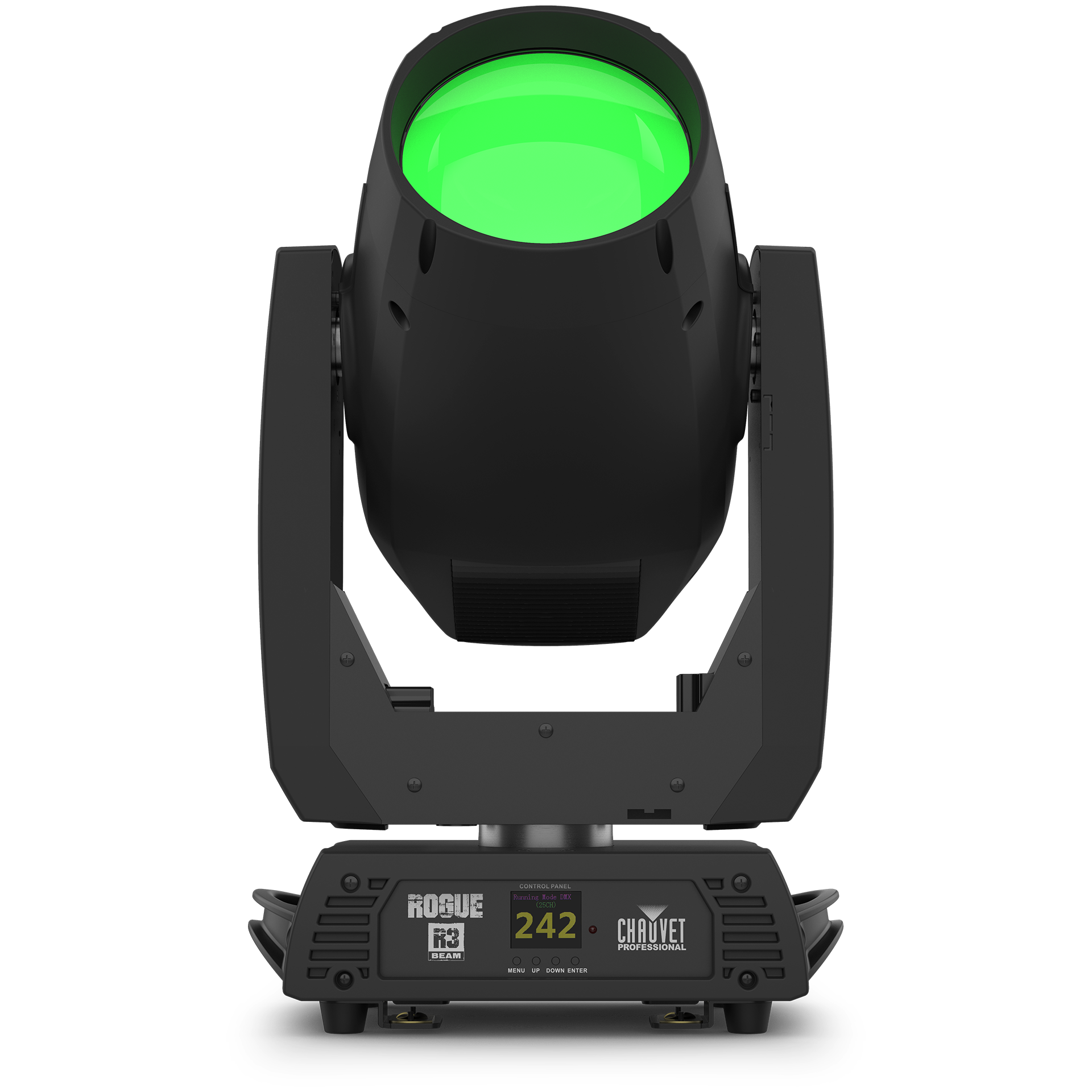

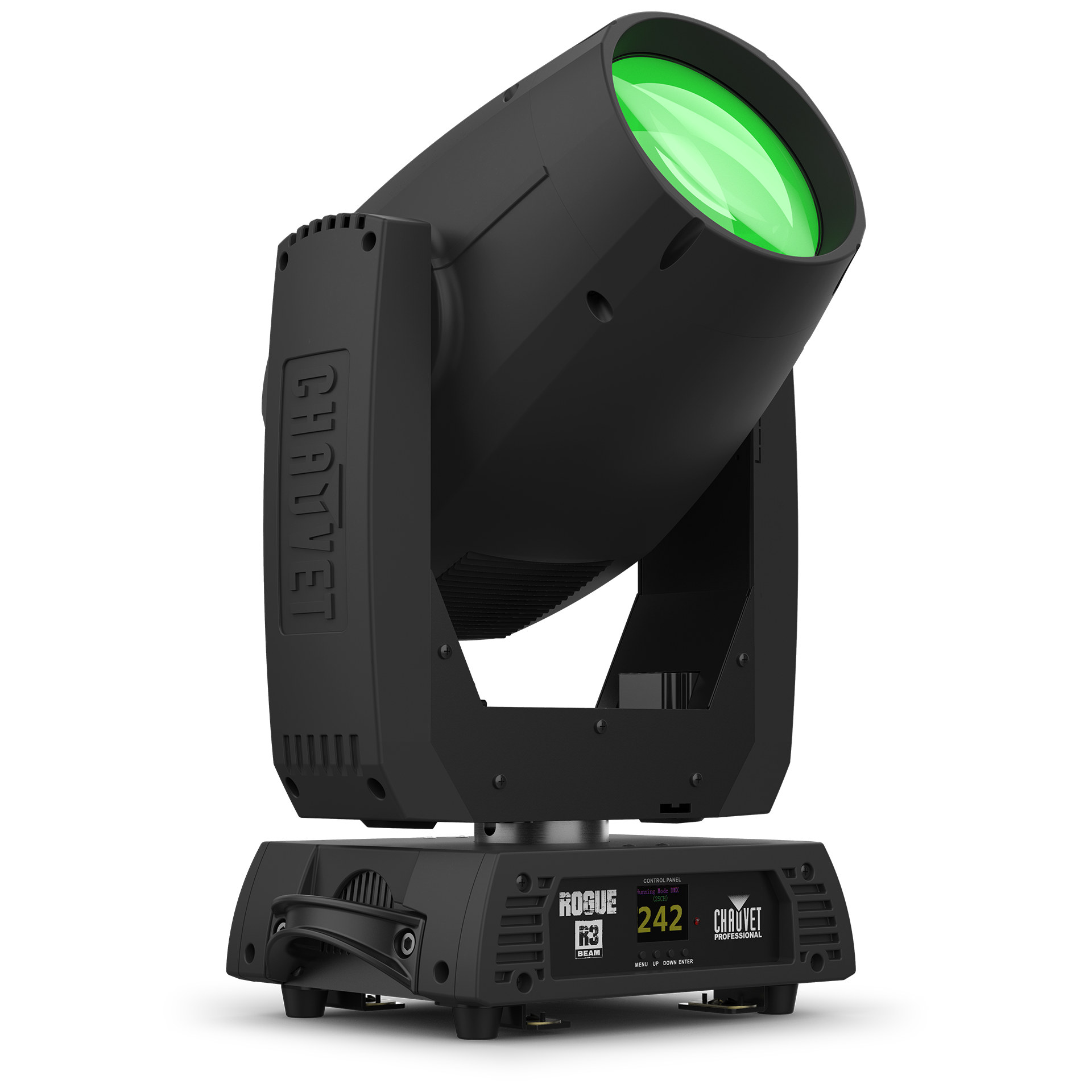

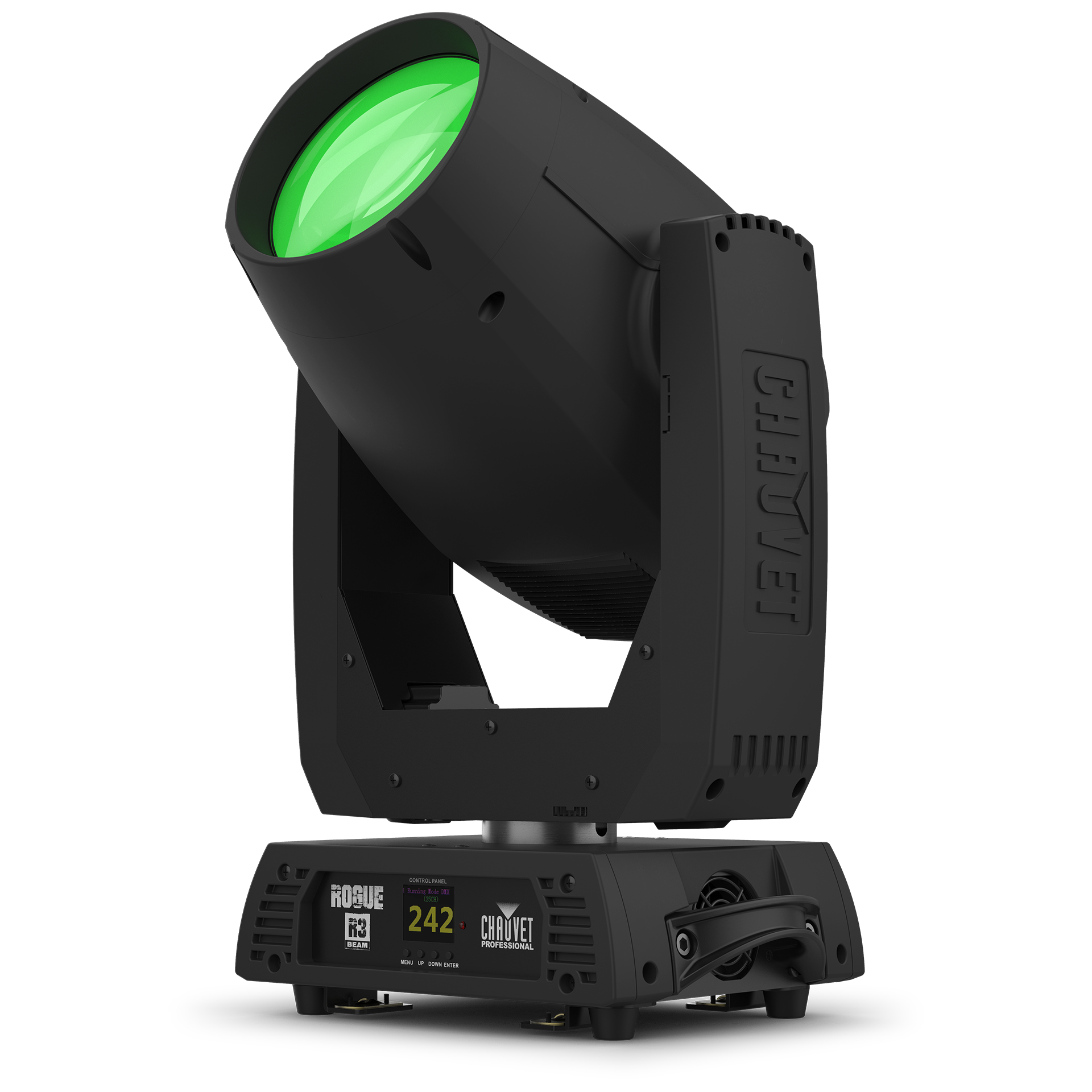

    Rogue R3 Beam

    The Rogue R3 Beam is a powerful 300W moving head fixture that produces an intense, ultra-narrow 0.8° beam, featuring a 14-color wheel, a 17-gobo wheel, and dual overlapping 8 and 24-facet prisms for dynamic aerial effects.
    Perfect for large-scale concerts, festivals, and productions requiring powerful, long-throw aerial beam effects that make a significant visual impact.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: ROGUER3BEAM

    Rogue R3 Beam

    Specifications
    		 Download
    Rogue R3 Beam Quick Reference Guide
    		 Download
    Rogue R3 Beam User Manual
    		 Download
    Rogue R3 Beam DMX chart
    		 Download
    Rogue R3 Beam 2D CAD Drawings
    		 Download
    Rogue R3 Beam 3D CAD Drawings
    		 Download
    Rogue R3 Beam IES File
    		 Download
    Rogue R3 Beam Photometrics Report
    		 Download
    Firmware
    		 Download
    Acoustic Reports
    		 Download
    Download All Resources

    Rogue R3 Beam

    SKU: ROGUER3BEAM

    Rogue R3 Beam is the light cannon of the Rogue series, outputting over 208,000 lux at 15 meters from its 300 W Ushio NSL lamp. This fully-featured beam can be focused down to 0.8° degrees for extremely focused aerial effects alongside motorized frost and focus options. A color wheel equipped with 14 colors complimented by a gobo wheel with 17 gobos give you a wealth of dynamic effects, and both wheels are fully scrollable at variable speeds. Additionally, the unit features individually overlapping 8 and 24-facet prisms for an endless supply of creative beam looks. The unit is equipped with RDM and DMX protocols and features multiple control personalities.

    Features

    High Powered Beam Fixture

    A fully featured fixture powered by a long-life 300 W Ushio NSL lamp rated for 8,000 hours.

    Fast and Precise Movement

    Delivers rapid and accurate pan and tilt functions for creating dynamic, swift movements.

    Layerable Dual Prisms

    Create complex looks using the individually controllable and stackable 8-facet and 24-facet prisms.

    Frost Filter

    A built-in frost effect softens the beam for even light distribution and wash capabilities.

    Narrow 0.8° Beam Angle

    Produces an extremely tight 0.8-degree beam ideal for creating sharp, focused aerial effects.

    RDM Enabled

    Allows for remote addressing and troubleshooting to simplify setup and maintenance.

    Static Gobo Wheel

    Offers 17 static gobos on a single wheel for generating a massive visual impact.

    Latest News

    CHAUVET Professional Fixtures Dance on Luis Torres’s Royal Ball Room Stage at Decadence Festival
    LD Luis Torres crafts an immersive Royal Ballroom experience at the Decadence Festival.
    Read more
    Luis Torres Reflects Wide Range of Artists at Goldrush with CHAUVET Professional
    LD Luis Torres designed a versatile lighting rig to support the diverse lineup of artists at the Goldrush festival.
    Read more
    Blessing Bero Lights Eleana Makombe Grateful Show With CHAUVET Professional
    Lighting designer Blessing Bero turns last-minute pressure into a dynamic show for a gospel star.
    Read more
    John Garberson Opens Doors at Desert Sky Music Festival with CHAUVET Professional
    John Garberson details how a flexible festival rig delivered immersive looks despite numerous production challenges.
    Read more
    Over 100 CHAUVET Professional Fixtures Shine on Junior H Sad Boys USA Tour
    LD Arturo Sanchez supports Junior H’s Sad Boys USA Tour with a bold, dynamic light show.
    Read more
    Groupe AES Lights Fourmi Rouge – Cabaret Spectacles With CHAUVET Professional
    A historic French church finds new life as a cabaret with an expressive CHAUVET Professional lighting rig.
    Read more
    CHAUVET Professional Fixtures Dance on Luis Torres’s Royal Ball Room Stage at Decadence Festival
    LD Luis Torres crafts an immersive Royal Ballroom experience at the Decadence Festival.
    Read more
    Luis Torres Reflects Wide Range of Artists at Goldrush with CHAUVET Professional
    LD Luis Torres designed a versatile lighting rig to support the diverse lineup of artists at the Goldrush festival.
    Read more
    Blessing Bero Lights Eleana Makombe Grateful Show With CHAUVET Professional
    Lighting designer Blessing Bero turns last-minute pressure into a dynamic show for a gospel star.
    Read more
    John Garberson Opens Doors at Desert Sky Music Festival with CHAUVET Professional
    John Garberson details how a flexible festival rig delivered immersive looks despite numerous production challenges.
    Read more
    Over 100 CHAUVET Professional Fixtures Shine on Junior H Sad Boys USA Tour
    LD Arturo Sanchez supports Junior H’s Sad Boys USA Tour with a bold, dynamic light show.
    Read more
    Groupe AES Lights Fourmi Rouge – Cabaret Spectacles With CHAUVET Professional
    A historic French church finds new life as a cabaret with an expressive CHAUVET Professional lighting rig.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        300W NSL Ushio lamp, 8000 K (color temp), 8,000 hours life expectancy

      • Color Temperature (at full)

        7657 K

      • CRI

        80.8

      • Front Lens Diameter

        153 mm

      • Beam Angle

        0.8°

      • Field Angle

        1.6°

      • Cutoff Angle

        2°

      • Lumens – Output

        30,878

      • Illuminance (total)

        208,006 lux @ 15 m

      Dynamic Effects

      • Pan and Tilt

        540°/270°

      • Pan and Tilt Ranges

        180°, 360°, 540° pan/90°, 180°, 270° tilt

      • Colors

        14 + white, split colors, continuous scroll at variable speeds

      • Gobos

        17 + open (17 metal), continuous scroll at variable speeds

      • Dimmer

        Motorized

      • Shutter/Strobe

        Motorized

      • Focus

        Motorized

      • Frost

        Motorized

      • Prism

        8 facets, motorized, rotating

      • Prism

        24 facets, motorized, rotating

      • Strobe Rate

        0 to 15 Hz

      • Move in Black

        Yes

      Construction/Physical

      • Dimensions

        12.79 x 8.66 x 21.65 in (325 x 220 x 550 mm)

      • Weight

        34.4 lb (15.6kg)

      • Exterior Color

        Black

      • Housing Material

        High-impact flame-retardant polymer

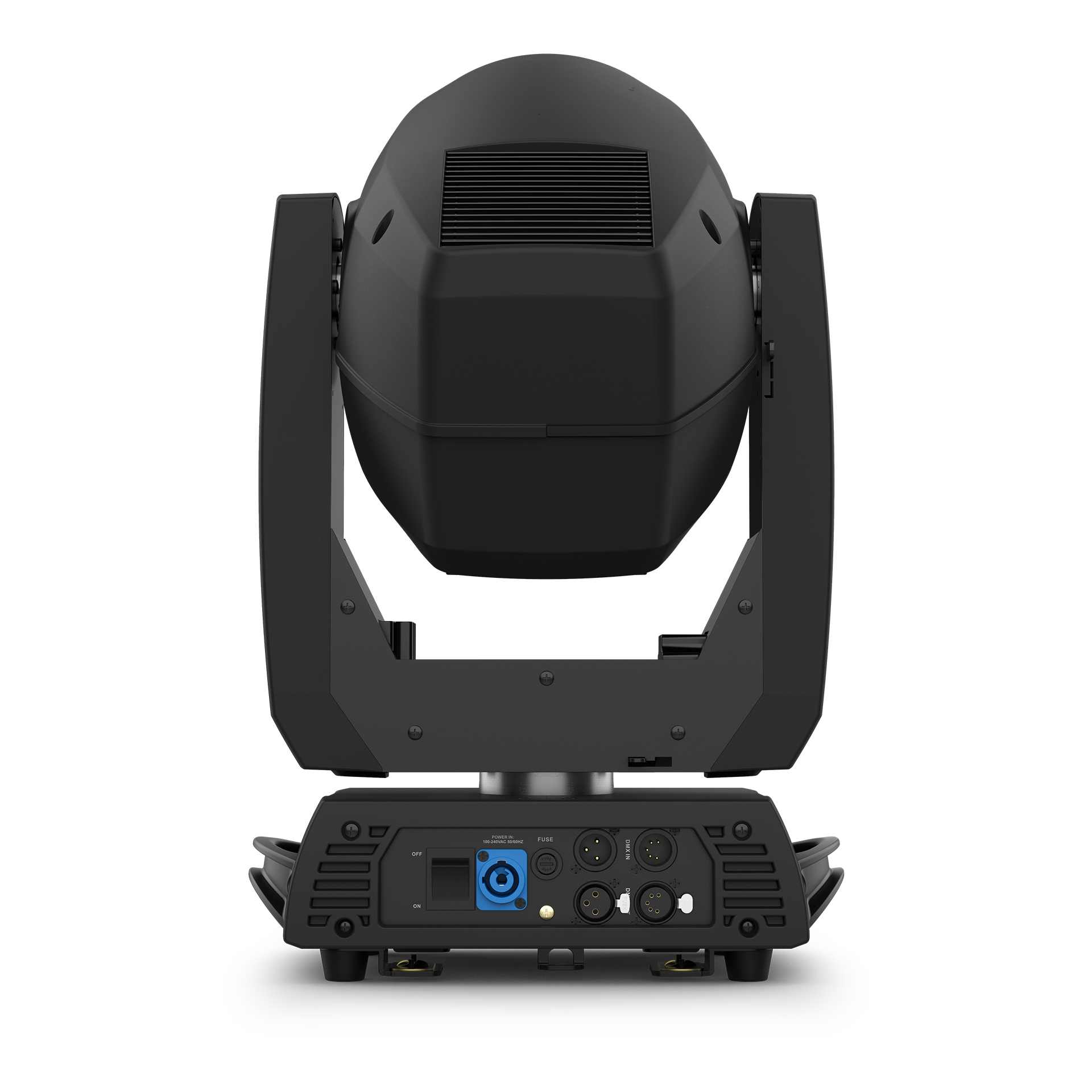

      Connections

      • Power Connection

        Edison (Local) plug to Neutrik

      • Power Input

        Neutrik powerCON

      • Power Output

        Neutrik® powerCON®

      • Data Connectors

        3- and 5-pin XLR

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        DMX, RDM

      • DMX Channels

        16 or 19

      • Modes/Personalities

        2 personalities (16, 19)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power and Current

        422 W, 4.20 A @ 100 V, 60 Hz

      • Power and Current

        418 W, 3.55 A @ 120 V, 60 Hz

      • Power and Current

        411 W, 1.98 A @ 208 V, 60 Hz

      • Power and Current

        411 W, 1.78 A @ 230 V, 50 Hz

      • Power and Current

        406 W, 1.68 A @ 240 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE, MET, UKCA

      • IP Rating

        IP20, dry location

      • Temperature (Ambient)

        -4 °F to 113 °F (-20 °C to 45 °C)

        • Noise Levels
          • Noise Level (Idle)

            41.6 dB(A) level @ 1 m

          • Noise Level (Auto)

            37.9 dB(A) level @ 1 m

          • Noise Level (Max)

            38.4 dB(A) level @ 1 m

      Compatible Accessories

      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Safety Cable: SC-07
      • DMX cables
      • Flight Case: #CP2CASER2XR3SPOT
      • UPLOAD 08 software uploader

      What's Included

      • Rogue R3 Beam
      • Neutrik powerCON power cord
      • 2 Omega brackets with mounting hardware

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      Rogue R3 Beam Quick Reference Guide
      		Download
      Manuals
      Rogue R3 Beam User Manual
      		Download
      Manuals
      Rogue R3 Beam DMX chart
      		Download
      Drawings
      Rogue R3 Beam 2D CAD Drawings
      		Download
      Drawings
      Rogue R3 Beam 3D CAD Drawings
      		Download
      Photometrics
      Rogue R3 Beam IES File
      		Download
      Photometrics
      Rogue R3 Beam Photometrics Report
      		Download
      Other
      Rogue R3 Beam – Firmware
      		Download
      Manuals
      Rogue R3 Beam – Acoustic Reports
      		Download

      Learn How To Use Your Rogue R3 Beam

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • 98 Degrees Rig with CHAUVET Professional

        Join Lighting Director Andy Figueroa for a behind-the-scenes tour of the 98 Degrees concert rig designed by Butch Allen. Discover how a versatile array of CHAUVET Professional fixtures empowers designers to create impactful, dynamic looks for major touring productions and live events.

      • Rogue Army: Liberating the Imagination by CHAUVET Professional

        Unleash your creative vision with the Rogue series from CHAUVET Professional, a powerful army of moving heads built to win the battle against tight budgets. These feature-packed spot and beam fixtures deliver the high-impact looks you need to command any stage.

      Video Library

      Rogue R3 Beam FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the Rogue R3 Beam
      What kind of effects can the Rogue R3 Beam create?

      The Rogue R3 Beam creates intense, razor-sharp beams of light for dramatic aerial effects. It features a wheel with 14 colors and a separate wheel with 17 patterns (gobos) to shape the light. For more complex visuals, it has two different prisms that can be used separately or layered together to split the beam into unique, multi-rayed looks.

      What is the primary use for the Rogue R3 Beam?

      This fixture is a dedicated ‘beam’ light, designed to be a workhorse for creating powerful and defined aerial effects. Its main purpose is to project bright, tight beams over long distances, making it perfect for concerts, large stages, and events where cutting through other lighting is essential.

      Can I soften the light from the Rogue R3 Beam?

      Yes. While it excels at producing a very tight, focused beam, the fixture also includes a motorized frost feature. This allows you to soften the edge of the light for a more even and diffused wash effect, adding to its versatility.
